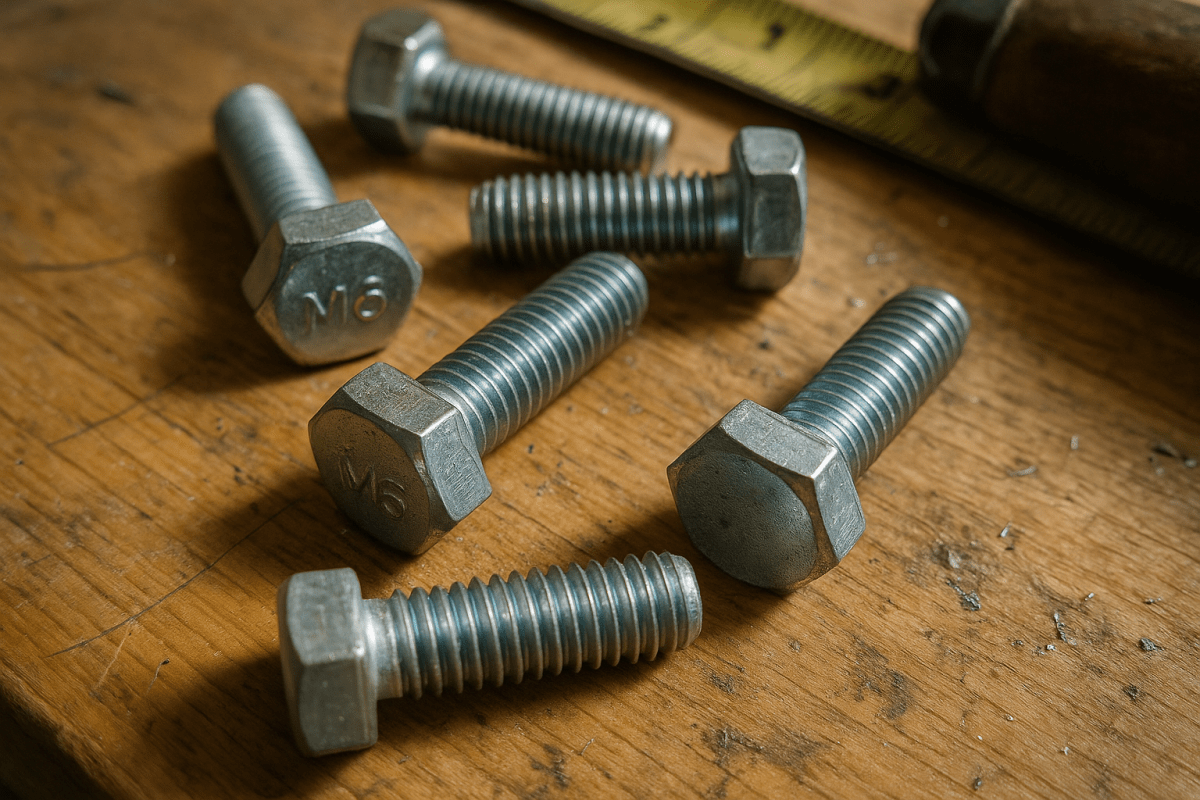

What Does "M6" Actually Mean?
If you've ever rummaged through your toolbox wondering about bolt sizes, you're not alone. The "M" in M6 stands for "metric," indicating it follows the ISO metric system. The number 6 refers to the bolt's nominal outer diameter - specifically, 6 millimeters. But there's more to the story than just diameter.
As a hardware specialist who's helped countless DIYers, I've seen the confusion firsthand. Last month, a customer brought in a broken bicycle rack because he'd used imperial bolts in metric threads. Understanding M6 dimensions could have saved him $120 in repairs. That's why knowing your M6 bolt specs matters.
Here's what M6 tells you:
- Thread Diameter: 6mm
- Thread Pitch: Typically 1.0mm (standard coarse thread)
- Head Size: Usually 10mm hex head
- System: Metric ISO standards
Detailed M6 Bolt Dimensions
While diameter is the headline number, several critical dimensions define an M6 bolt:
| Dimension | Measurement | Tolerance | Notes |
|---|---|---|---|
| Major Diameter | 6mm | ±0.1mm | Outer thread diameter |
| Pitch (Standard) | 1.0mm | - | Distance between threads |
| Pitch (Fine) | 0.75mm | - | Less common variant |
| Head Width | 10mm | ±0.3mm | Hex head measurement |
| Head Height | 3.5-4mm | - | Varies by manufacturer |
| Thread Length | 1.5D min | - | ~9mm for standard bolts |
One critical specification many overlook is thread pitch. While most M6 bolts use the standard 1.0mm pitch, fine-thread versions (0.75mm) exist for precision applications like electronics or aviation. I helped a watchmaker last month who nearly damaged a vintage chronograph by using standard instead of fine-pitch bolts.
M6 vs. Imperial Sizes
For American DIYers working with mixed systems, understanding metric-imperial equivalents prevents frustration. While not exact matches, these are the closest imperial sizes to M6:
1/4" Bolt
Diameter: 0.25" (6.35mm)
Comparison: Slightly larger than M6
Fit: Will not thread into M6 holes
Use Case: Not interchangeable
#12 Screw
Diameter: 0.216" (5.49mm)
Comparison: Smaller than M6
Fit: Loose in M6 holes
Use Case: Not recommended
M6 Actual
Diameter: 0.236" (6.00mm)
Comparison: Between 1/4" and #12
Solution: Use proper M6 fasteners
Recommendation: Our M6 bolt set
Last summer, I helped a boat owner repair his deck hardware after he forced 1/4" bolts into M6 fittings. The mismatch stripped the threads, requiring expensive re-tapping. Moral of the story? When working with metric equipment, always use genuine M6 bolts.
Strength & Material Grades
Not all M6 bolts are created equal. Strength varies dramatically based on material and manufacturing:
| Grade | Material | Tensile Strength | Common Applications |
|---|---|---|---|
| Class 4.6 | Low-carbon steel | 400 MPa | General household use |
| Class 8.8 | Medium-carbon steel | 800 MPa | Automotive, furniture |
| Class 10.9 | Alloy steel | 1000 MPa | Structural applications |
| Class 12.9 | Alloy steel | 1200 MPa | High-performance machinery |
| A2/A4 Stainless | Stainless steel | 500-700 MPa | Outdoor/marine environments |
Our M6 bolt and nut set uses Class 8.8 steel - the sweet spot for most DIY applications. This grade provides 800 MPa tensile strength (about 116,000 PSI), sufficient for everything from furniture assembly to automotive repairs.
Common Applications of M6 Bolts
The M6 size hits the sweet spot between strength and versatility. As a hardware specialist, I recommend keeping our 84-piece M6 set for these common tasks:
- Furniture Assembly: Bed frames, shelving units, and modular furniture
- Automotive: Engine covers, interior trim, and brake components
- Electronics: Computer cases, server racks, and appliance panels
- Bicycles: Brake mounts, rack attachments, and accessory mounts
- Outdoor Equipment: Decking, garden structures, and play sets
- DIY Projects: Custom cabinets, workbenches, and tool modifications
One customer transformed his garage using just M6 bolts: wall-mounted tool panels, workbench reinforcements, and custom storage solutions. The uniformity meant he needed just one wrench size for everything!
Choosing the Right M6 Bolt
Selecting the perfect M6 bolt involves more than just diameter. Follow this decision framework:
-
Determine Length:
- Measure material thickness
- Add space for the washer and nut
- Add 1.5-2 thread pitches beyond the nut
-
Select Head Type:
- Hex head (maximum torque)
- Button head (low profile)
- Socket head (precision applications)
-
Choose Material:
- Zinc-plated steel (indoor use)
- Stainless steel (outdoor/marine)
- Alloy steel (high-strength needs)
-
Pick Thread Type:
- Full thread (adjustability)
- Partial thread (shear strength)
For most DIYers, our M6 bolt set covers 90% of projects with its mix of lengths and complementary nuts/washers.
Installation Best Practices
Proper installation ensures maximum strength and safety:
-
Torque Values:
- Steel on steel: 10 Nm (88 in-lb)
- Steel on aluminum: 7 Nm (62 in-lb)
- Stainless on stainless: 8 Nm (71 in-lb)
- Thread Engagement: Minimum 1x diameter (6mm)
- Lubrication: Anti-seize for stainless, light oil for steel
- Washer Use: Always under the nut, sometimes under the head
- Preload: 75-80% of yield strength for critical joints
Frequently Asked Questions
Is M6 the same as 6mm?
Essentially yes - M6 indicates a 6mm diameter metric thread. However, "M6" specifies the entire standardized system, including pitch and tolerances, not just diameter.
What size wrench for an M6 bolt?
Standard M6 hex heads require a 10mm wrench. Some low-profile heads may use 8mm. Our M6 set includes standard 10mm hex bolts.
How much weight can an M6 bolt hold?
An M6 Class 8.8 bolt can support approximately 1,000-1,200 kg (2,200-2,650 lbs) in tension. Shear strength is typically 60-70% of tensile strength. Always consult engineering specifications for critical applications.
Can I use M6 bolts in wood?
Yes, but use coarse-threaded bolts specifically designed for wood (often called "lag bolts" or "coach screws"). Standard machine threads won't grip effectively in wood fibers.
What drill bit for an M6 bolt?
For through holes: 6.5mm
For tapped holes: 5.0mm (coarse thread) or 5.25mm (fine thread)
Always test on scrap material first!
The Versatile Workhorse of DIY
Understanding M6 bolt dimensions transforms how you approach projects. From furniture assembly to automotive repairs, this versatile fastener offers the perfect balance of strength and size for countless applications. As we've explored, knowing your M6 bolt specifications means avoiding stripped threads, failed joints, and unnecessary frustration.
At Home DIYer, we've curated the perfect 84-piece M6 bolt and nut set for American DIYers - with lengths from 12mm to 50mm, Class 8.8 zinc-plated steel, and complementary washers and nuts. Keep this essential kit in your toolbox and you'll never be caught mid-project without the right fastener again!
