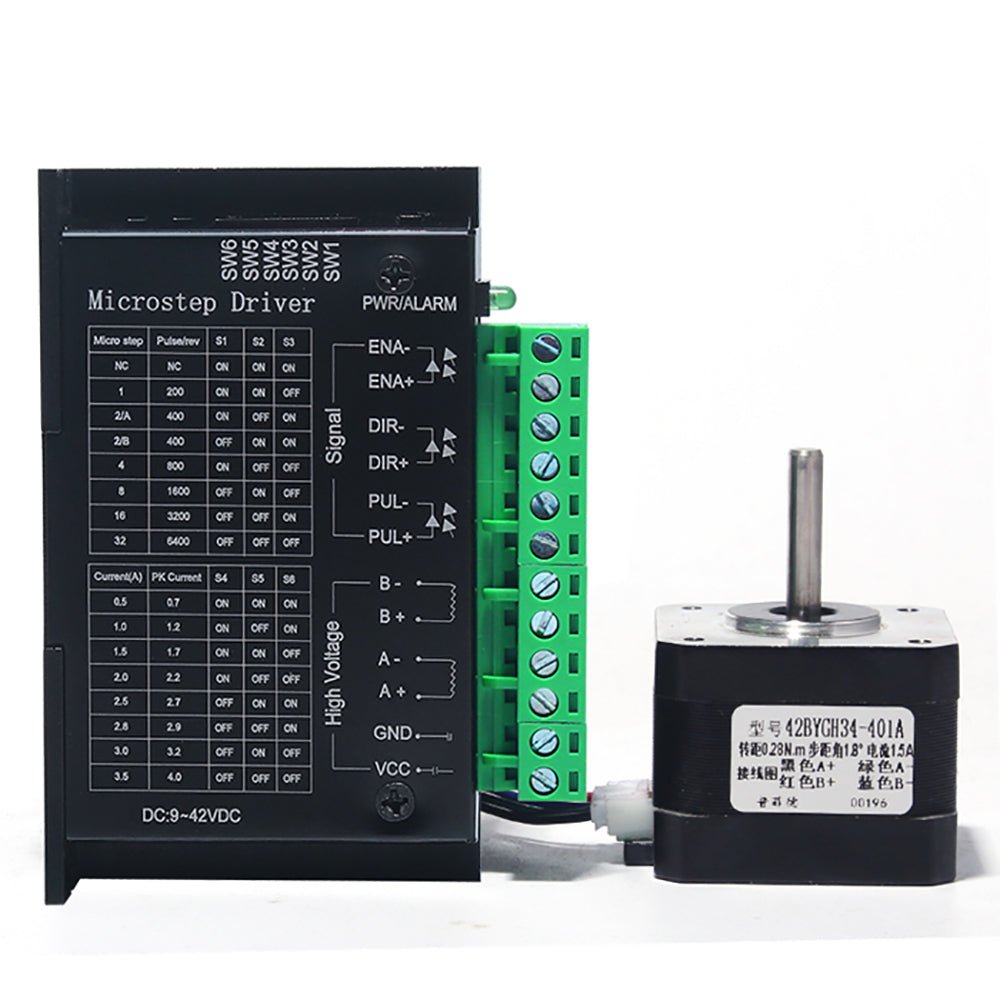

42BYGH34 Stepper Motor + TB6600 / DM542C Driver Controller 4A Micro-Step CNC Kit

42BYGH34 Stepper Motor + TB6600 / DM542C Driver Controller 4A Micro-Step CNC Kit

● Product Name: 42 Step Motor Kit

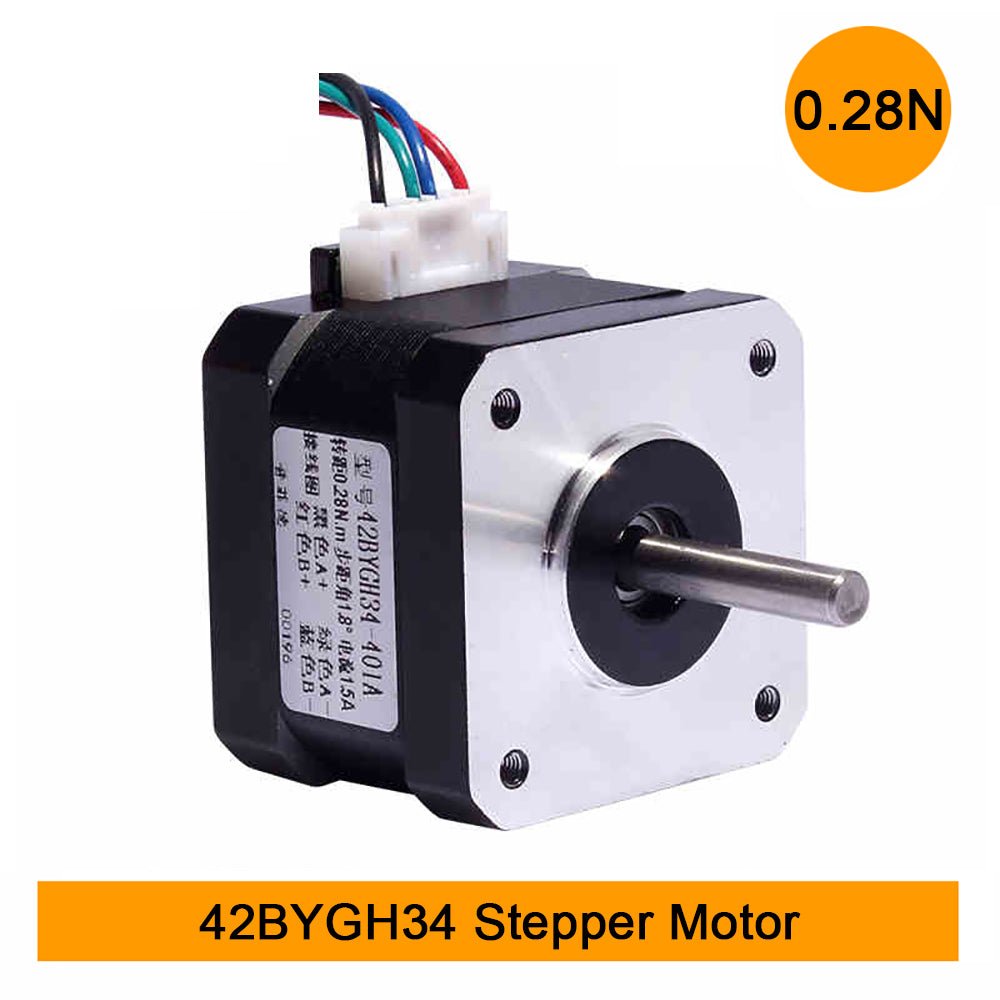

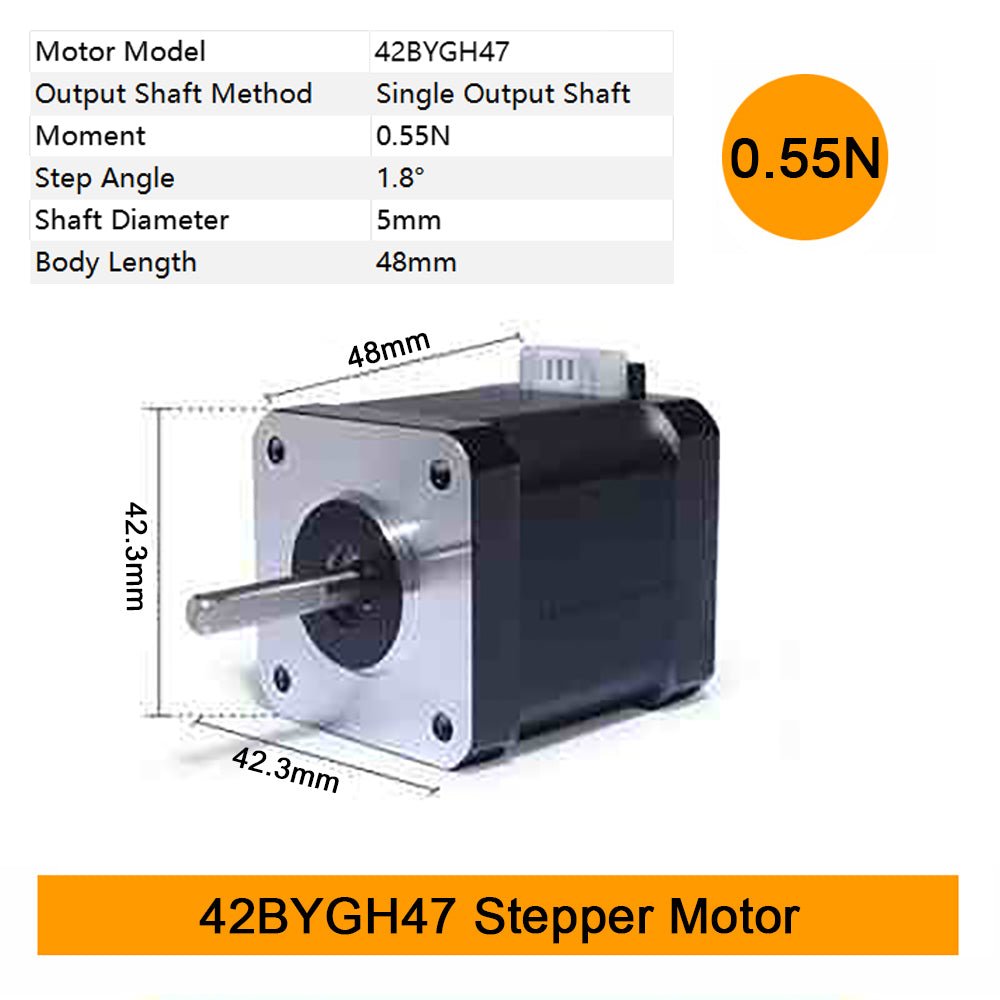

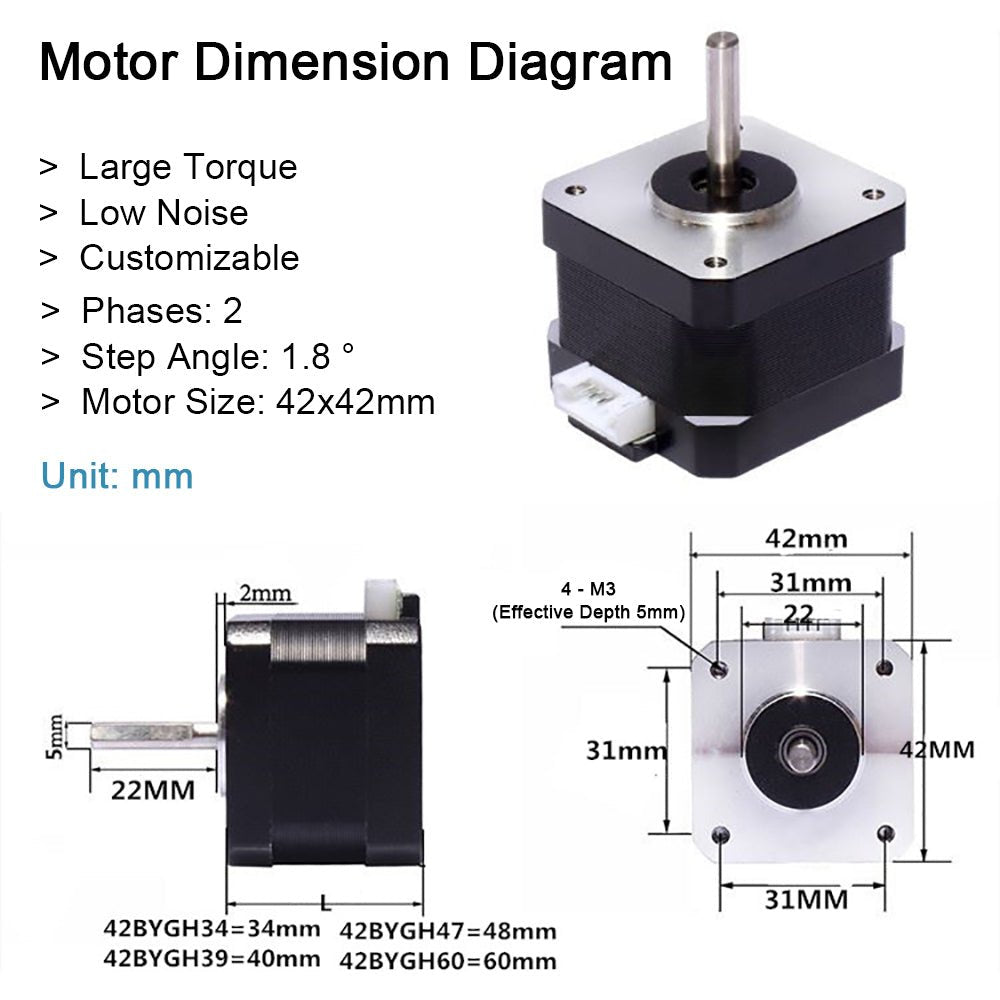

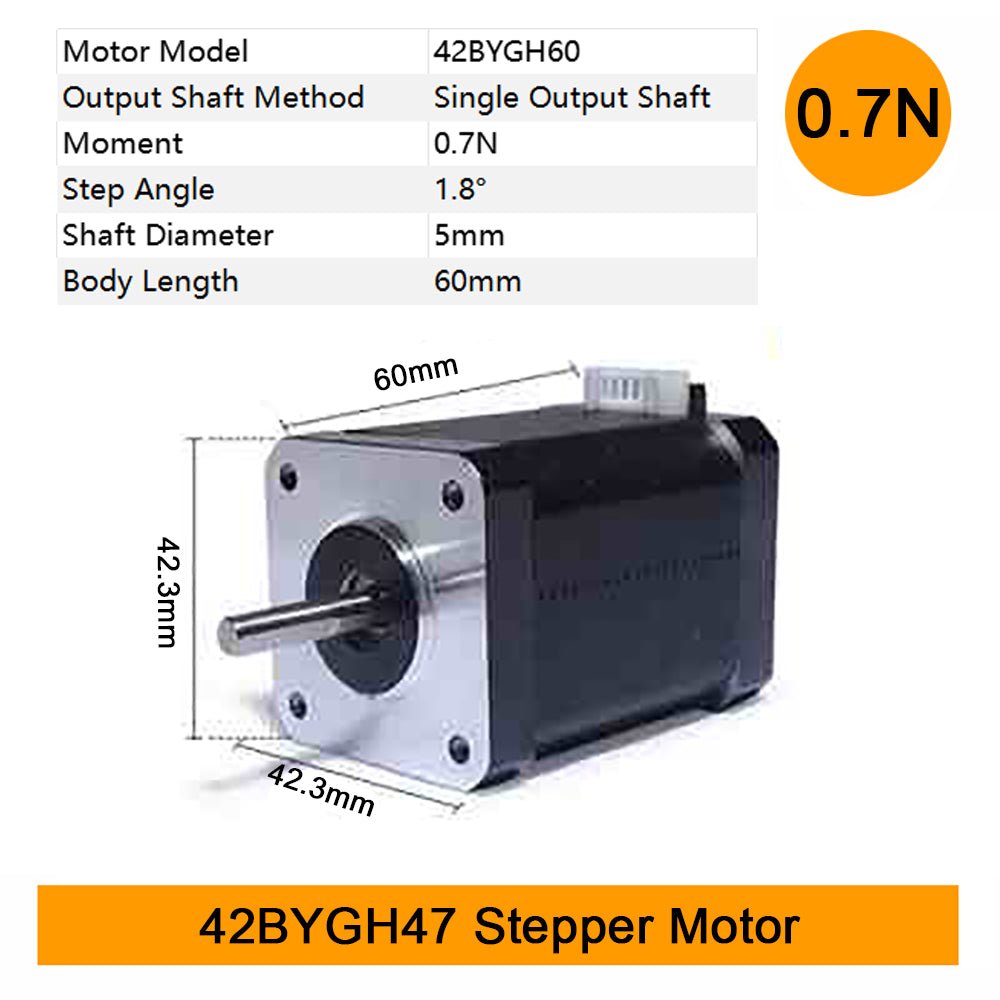

● 42 Step Motor:
> Current: 1.5A
> Step angle: 1.8 degrees (two-phase)
> Shaft length: 22mm
> Shaft diameter: 5mm (D-shaped)
> Output shaft method: single output shaft/double output shaft
> Motor wire: 1 meter.
> Outgoing method: Two phase four wire (black wire A+, green wire A -, red wire B+, blue wire B -) plug-in type

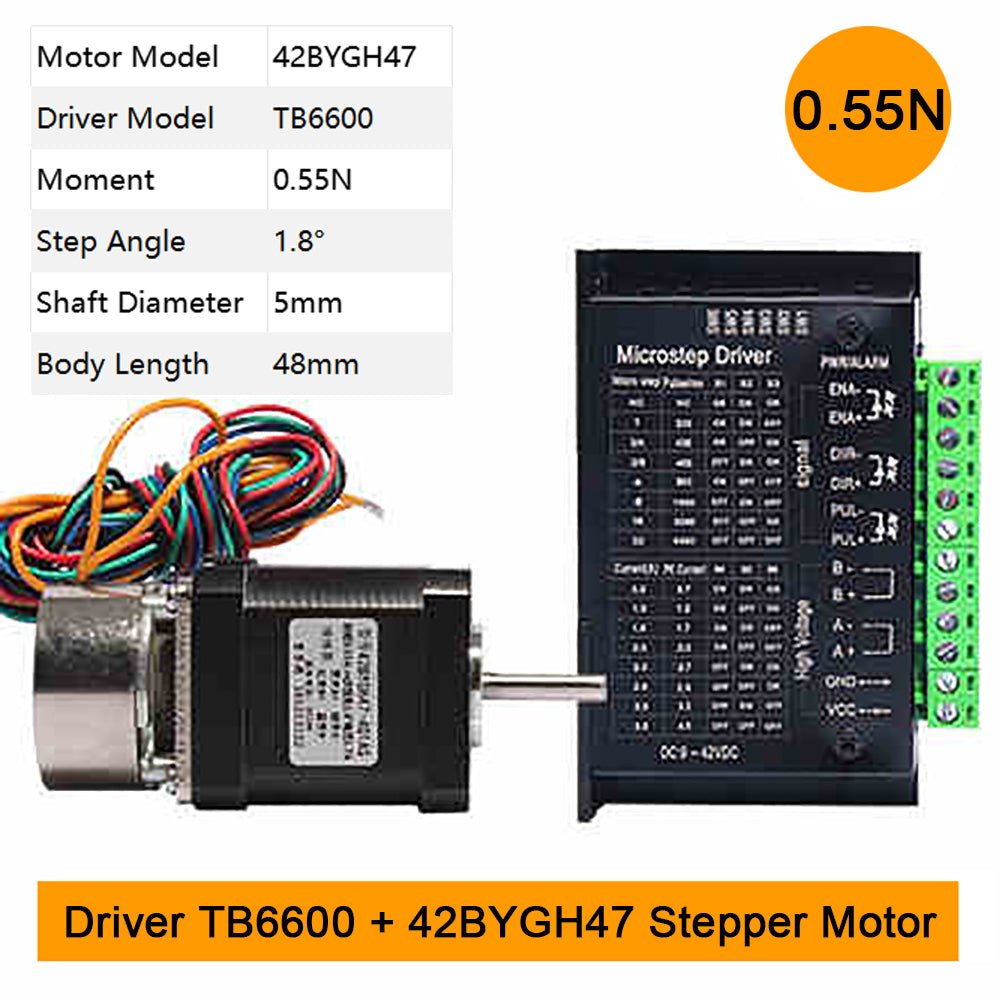

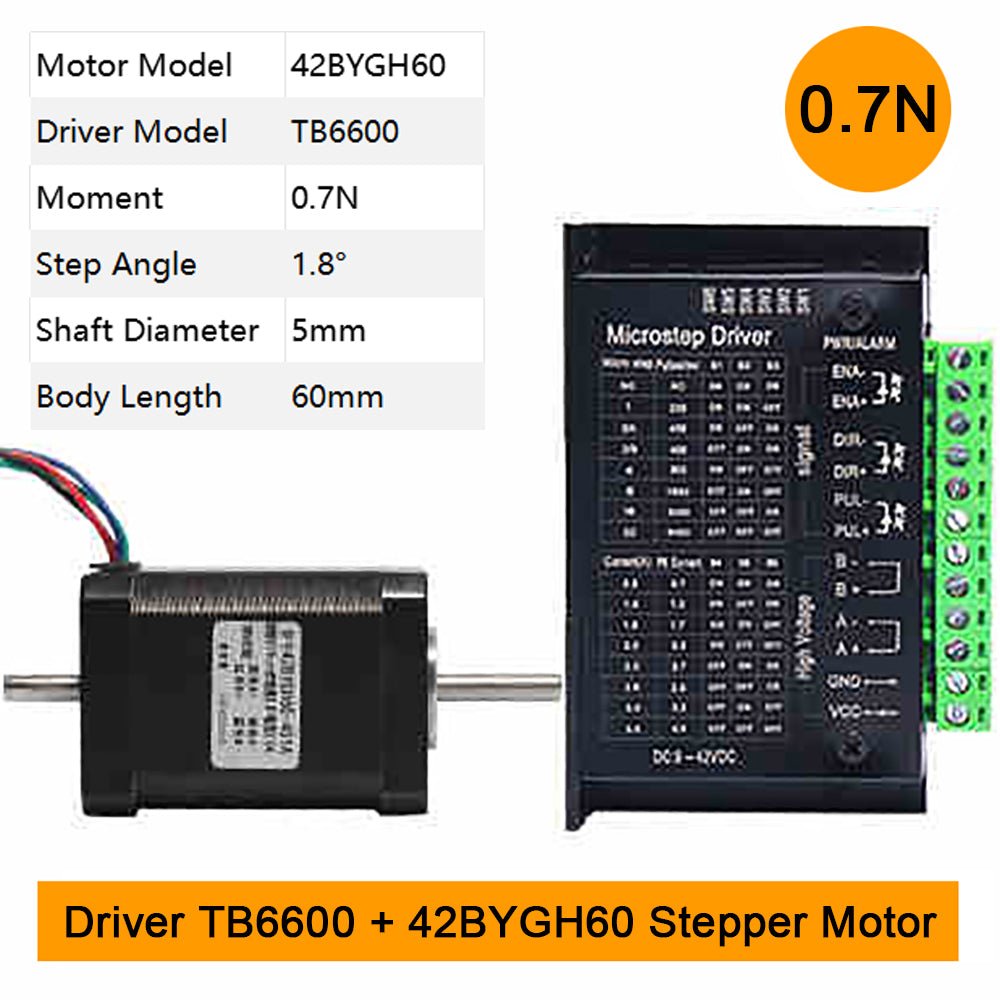

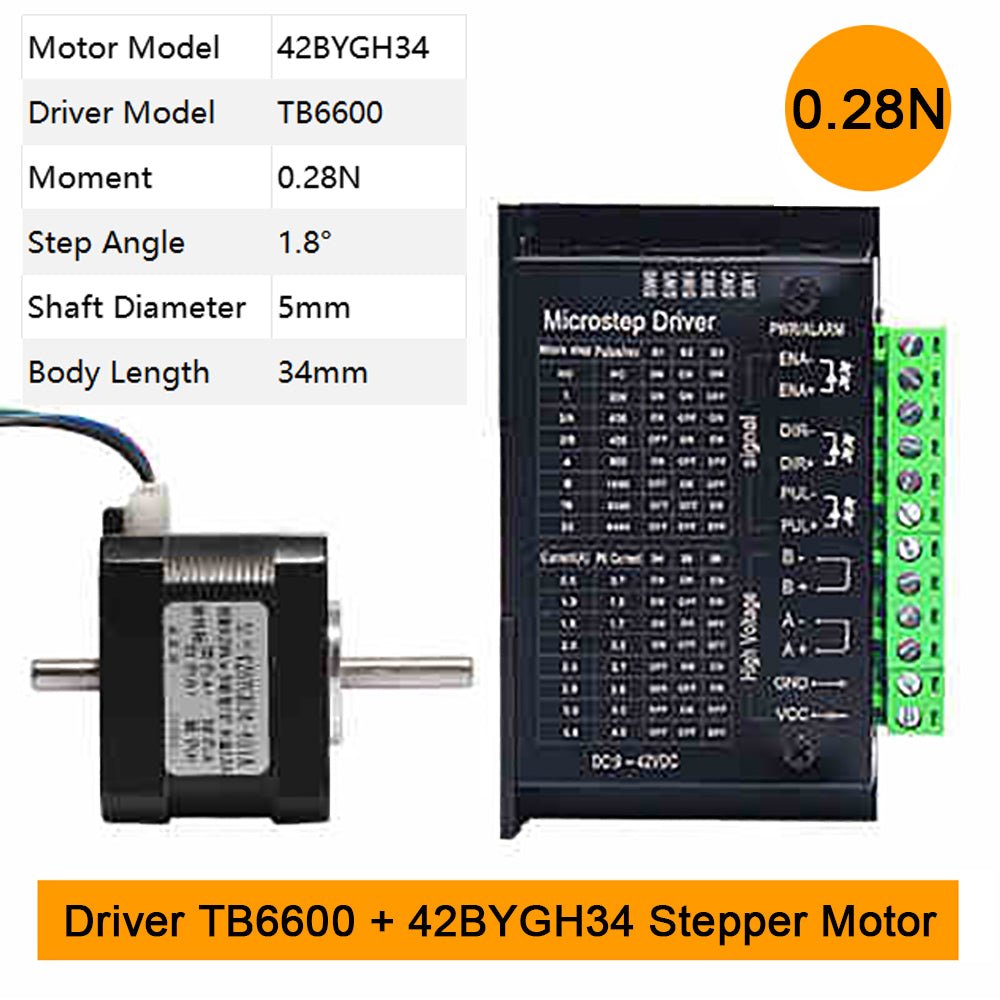

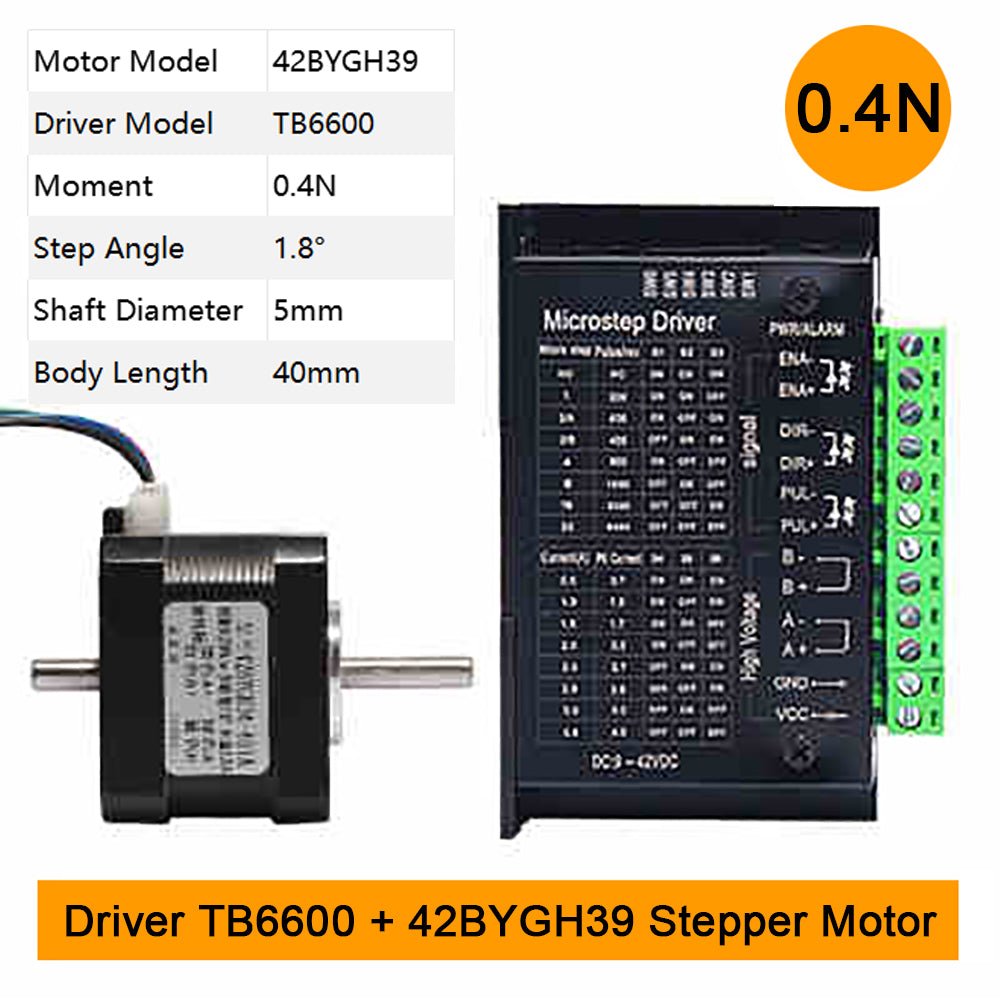

● Driver model: TB6600 upgraded version (not referring to the chip inside the driver being TB6600)
> Control signal: (Control signal 3.3V/5V/24V universal, no series resistor required)
> Input voltage: DC (direct current) 9-42V (recommended DC24V)
> Current: Speed adaptive circuit for two-phase stepper motors below 4A, automatic current optimization
> Detail score: 6400
> Various protections: overcurrent, overvoltage, undervoltage, short circuit, etc
> Offline: Offline (ENA) protection function

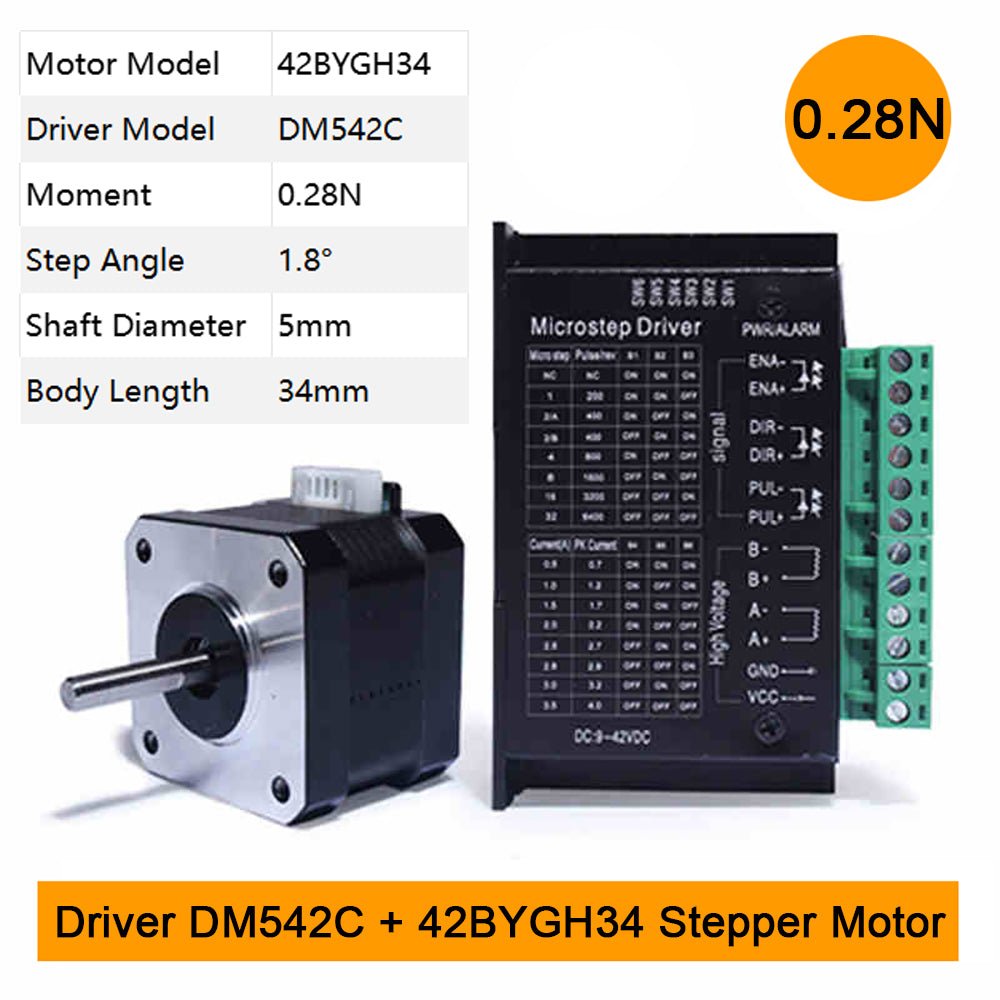

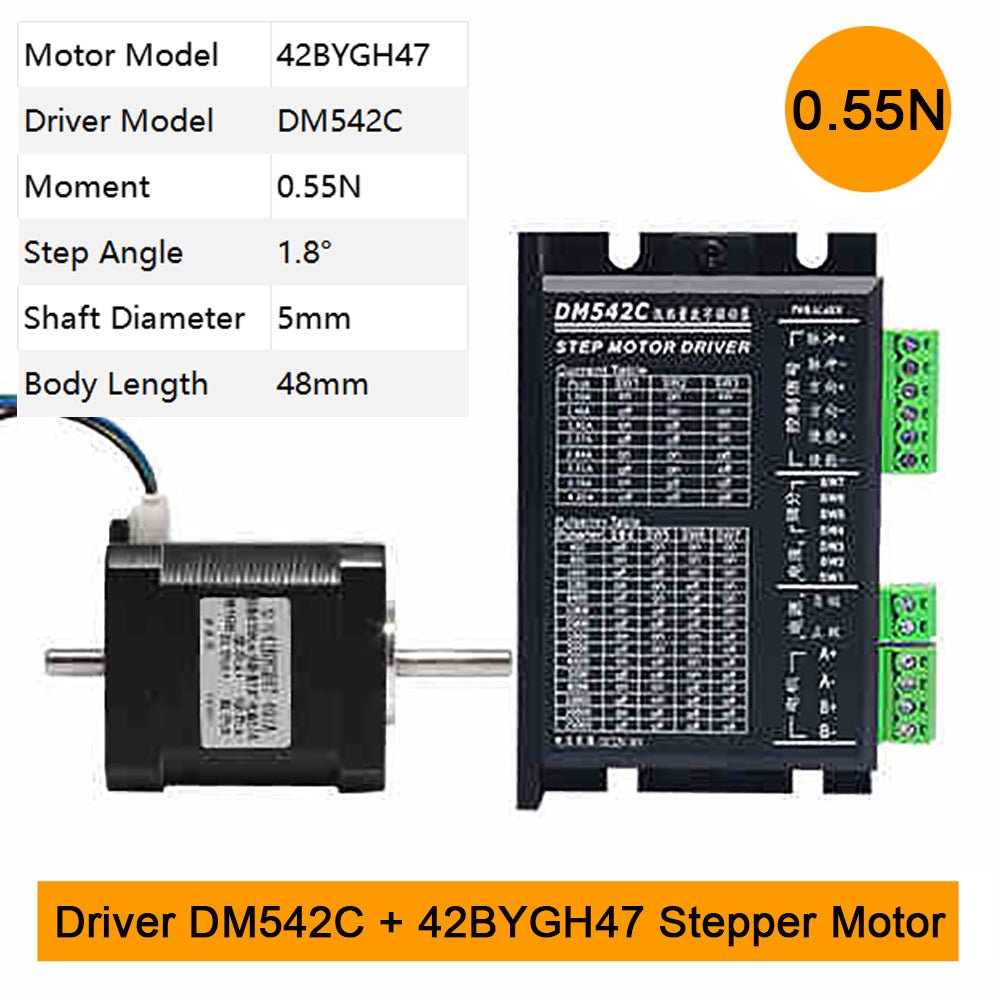

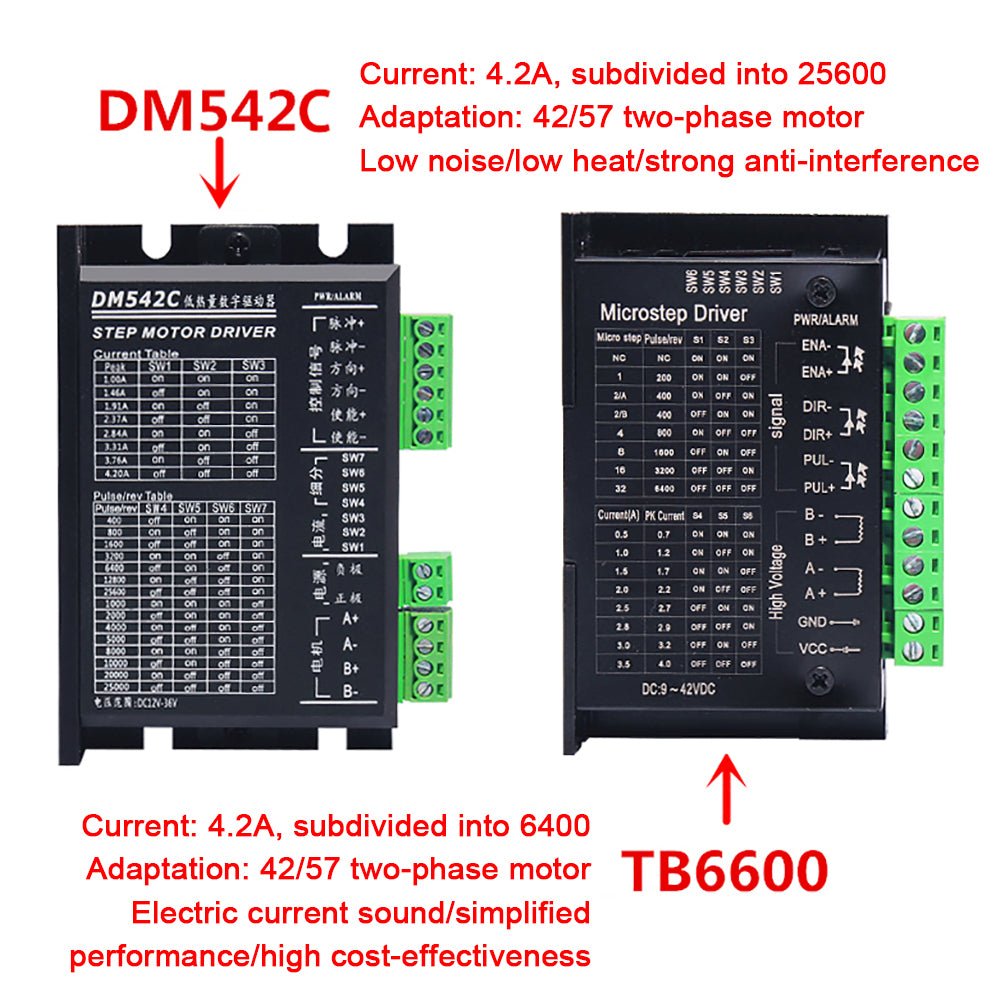

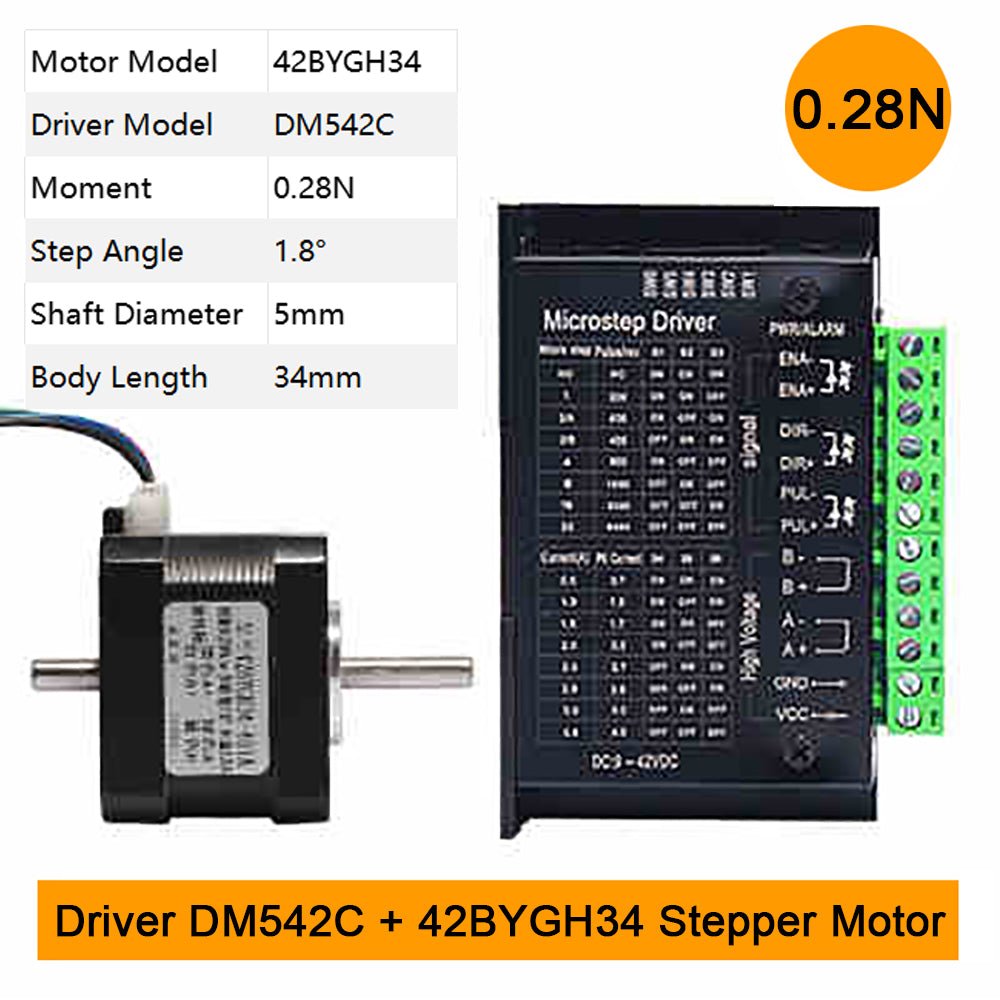

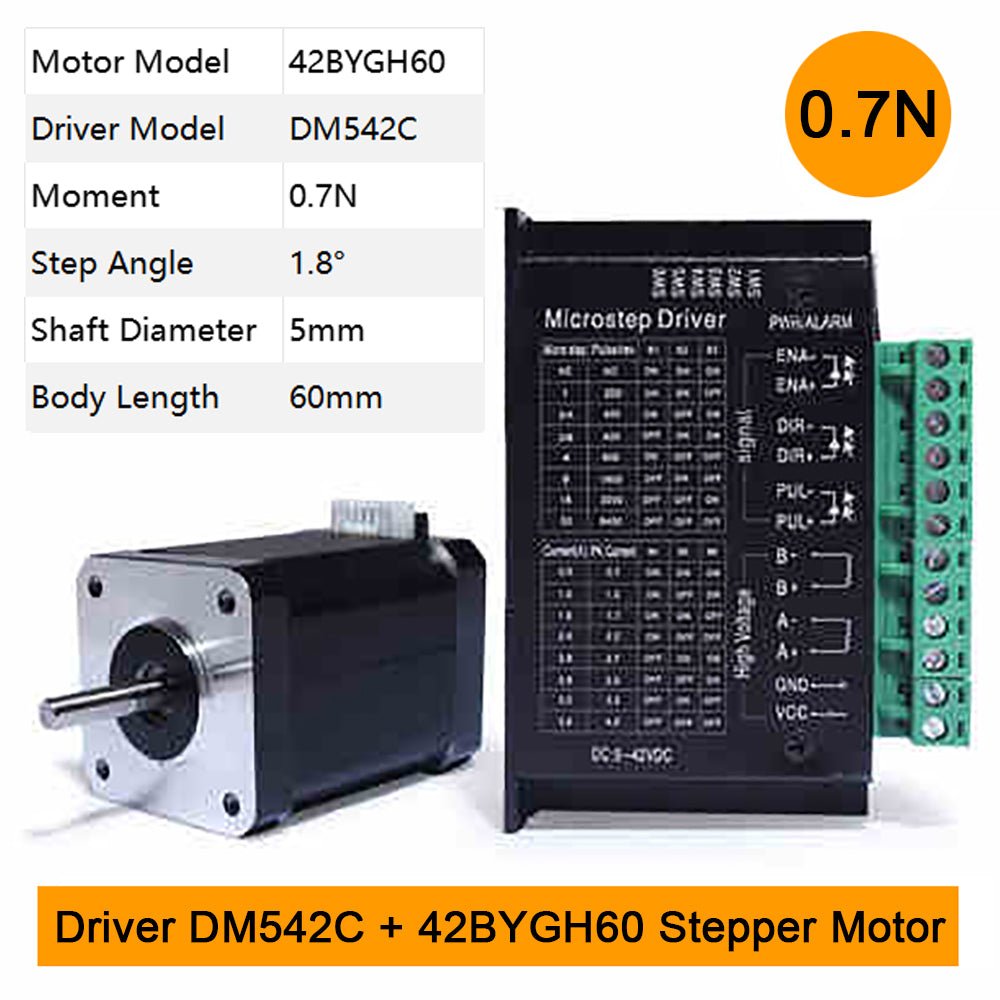

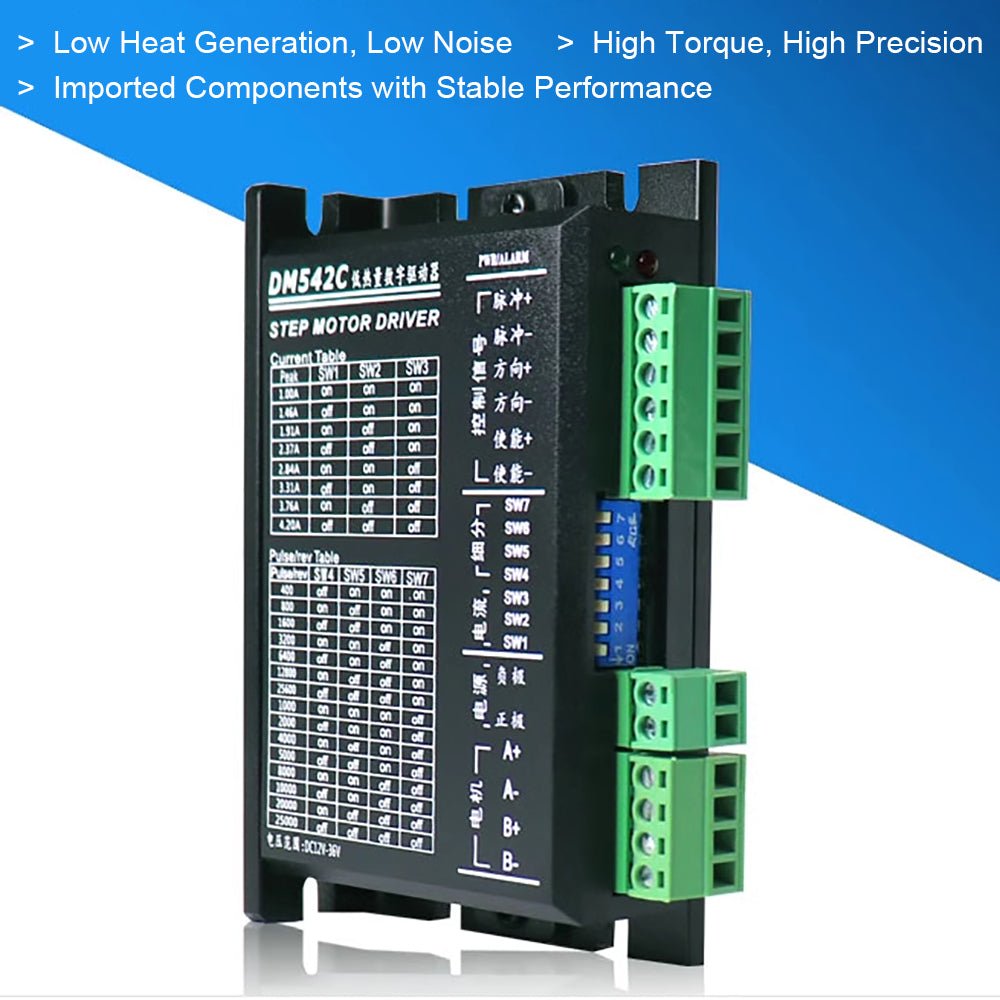

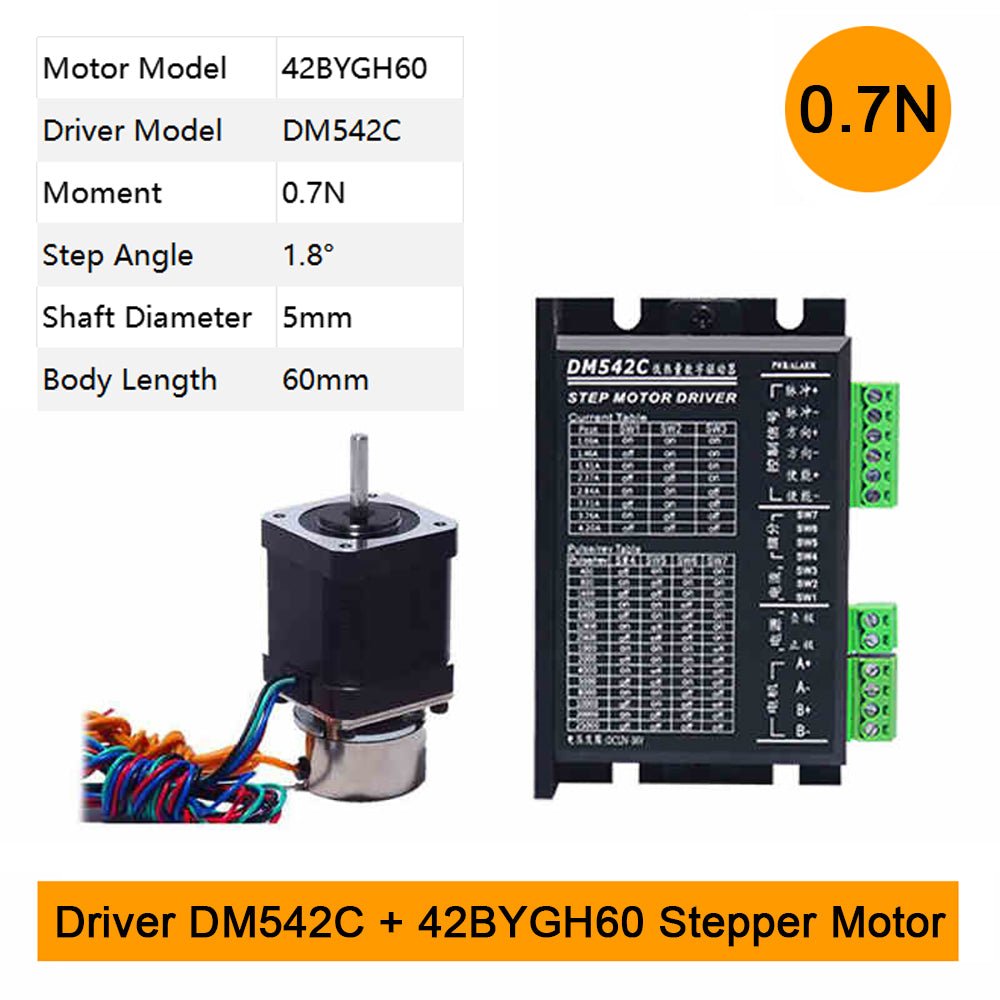

● Driver Model: DM542C Low Heat Digital Driver
> Control signal: (Control signal 3.3V/5V/24V universal, no series resistor required)
> Input voltage: DC (direct current) 9-36V (recommended DC24V)
> Current: A unique speed adaptive circuit for two-phase stepper motors below 4A, with automatic current optimization
> Subtle score: 25600 subdivision, 15 levels of subdivision to choose from
> Various protections: overcurrent, overvoltage, undervoltage, short circuit, etc
> Offline: Offline (ENA) protection function

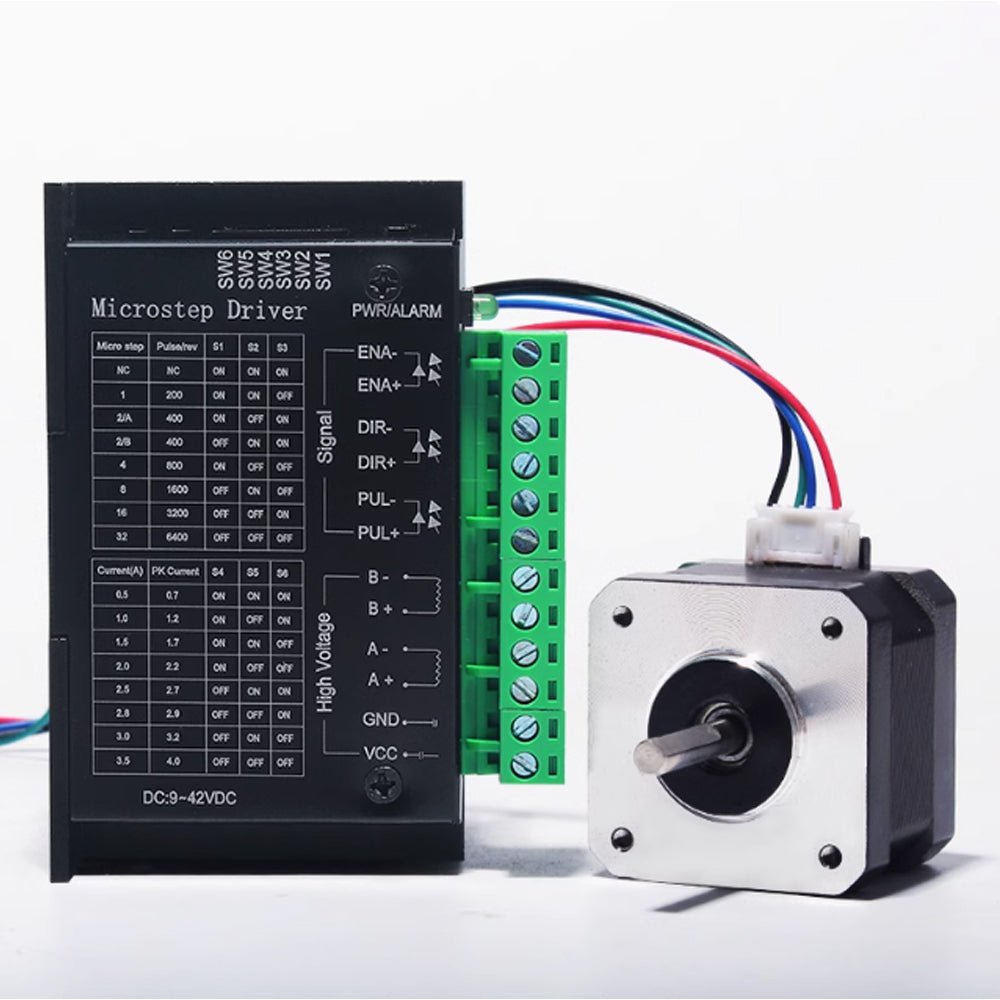

● Control signal connection:
> PUL+: Pulse signal input positive.
> PUL -: Pulse signal input negative.
> DIR+: Motor forward and reverse control forward.
> DIR -: Motor positive and negative control for reverse rotation
> ENA+: Motor offline control positive (usually not connected).
> ENA -: Motor offline control negative (usually not connected)

HIGH QUALITY TO BE TRUSTWORTHY:

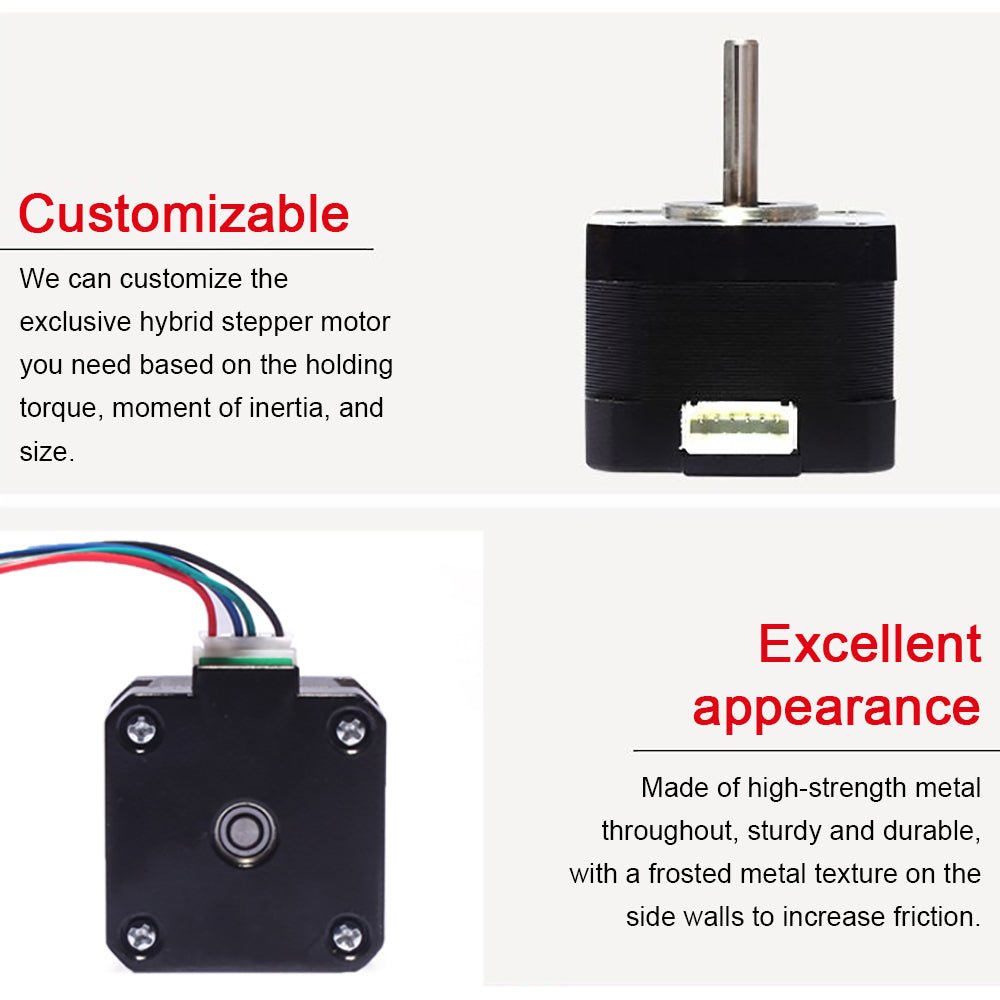

Customizable: You can customize the exclusive hybrid stepper motor you need based on the holding torque, moment of inertia, and size.
Excellent appearance: Made entirely of high-strength metal, sturdy and durable, with a frosted metal texture on the side walls to increase friction.

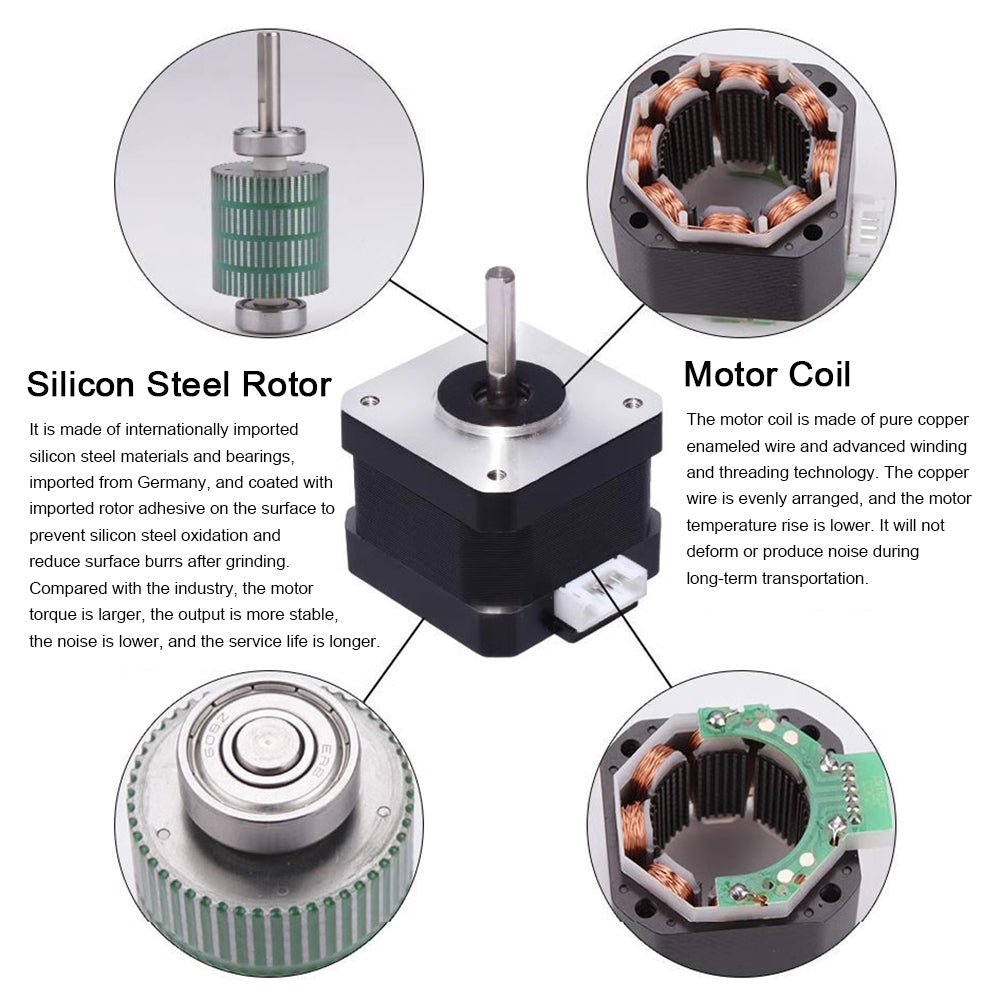

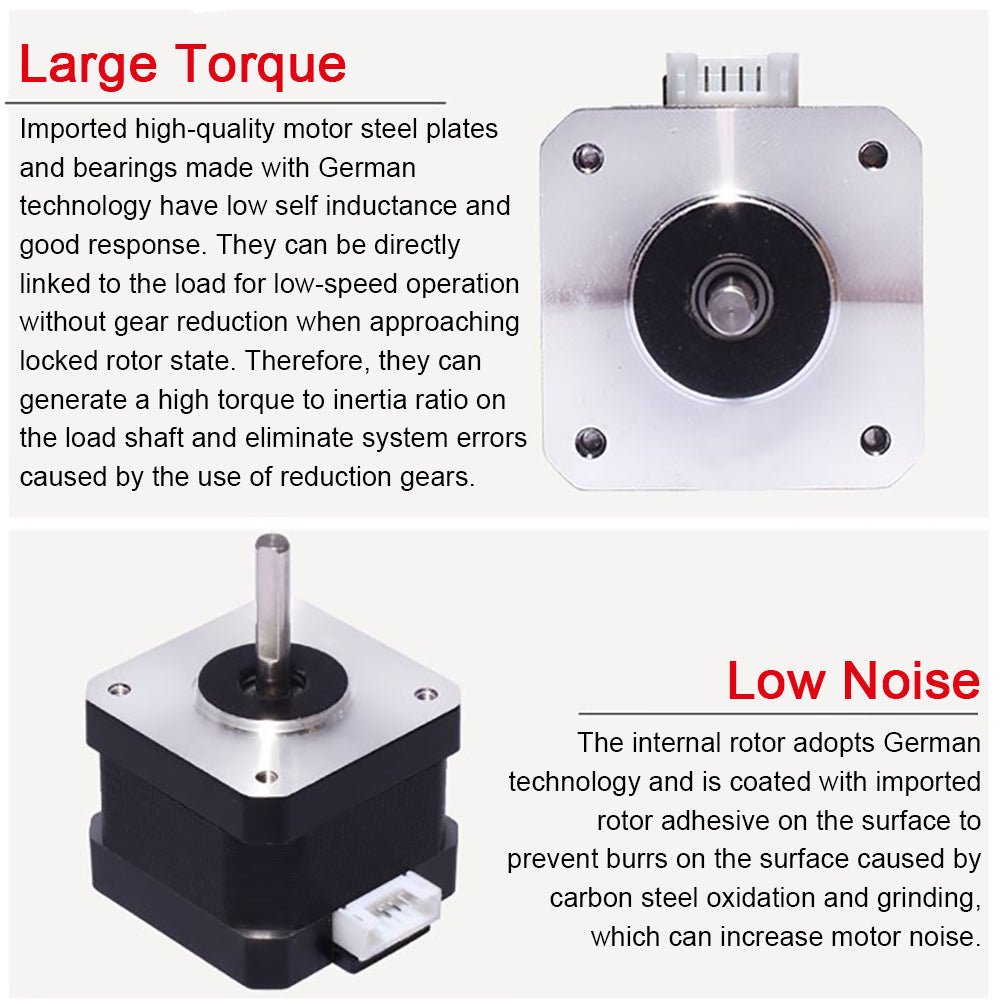

High torque: Imported high-quality motor steel plates, bearings made with German technology, small self inductance reactance, good response, can be directly linked to the load for low-speed operation without gear reduction when approaching a locked rotor state. Therefore, it can generate a high torque to inertia ratio on the load shaft and eliminate system errors caused by the use of reduction gears.
Low noise: The internal rotor adopts German technology and is coated with imported rotor glue on the surface to prevent burrs on the surface caused by carbon steel oxidation and grinding, which can increase motor noise.
