1. Product core introduction

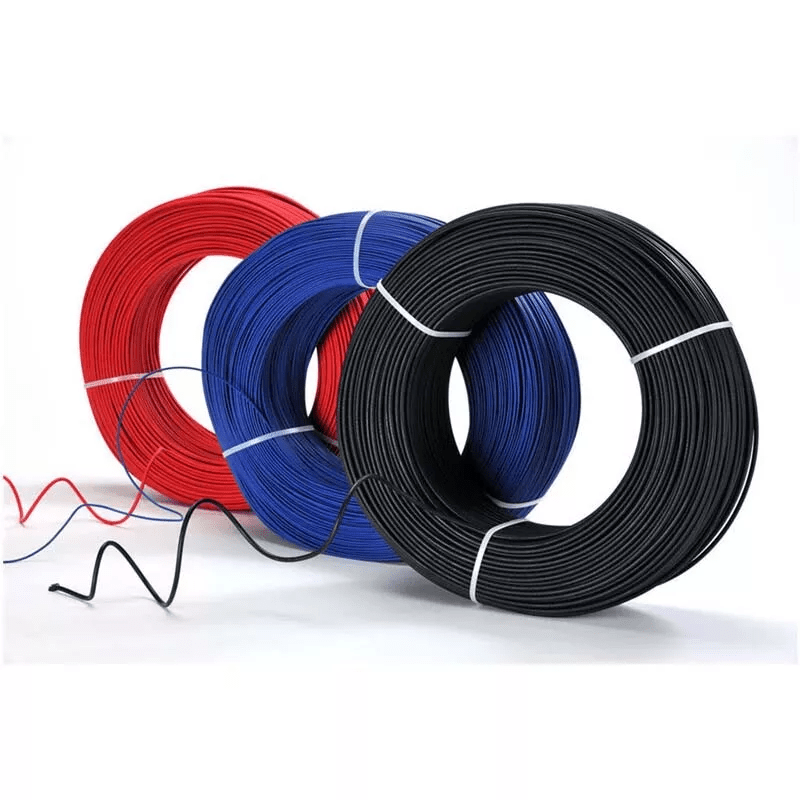

Flexible silicone stranded cable with 14/16/18/20/22/24/28/30 AWG and 4 eye-catching colours. This cable complies with the UL3239 silicone wire standard and is designed to provide DIY enthusiasts and professionals with a high quality, reliable electrical connection solution for a variety of applications such as electronic projects, automotive upgrades, and other creative and practical projects.
2. The main characteristics of the product

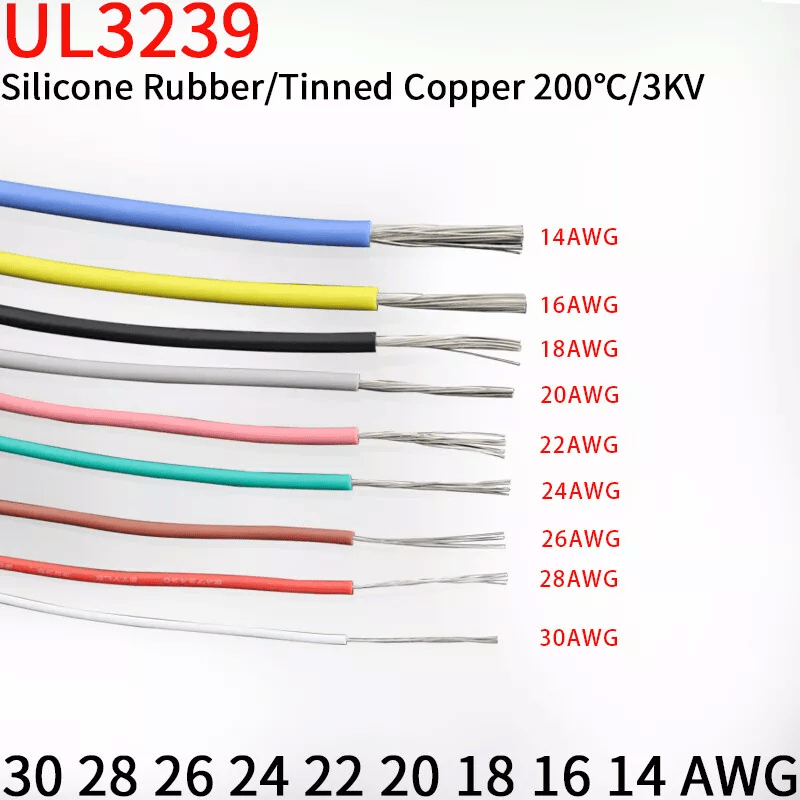

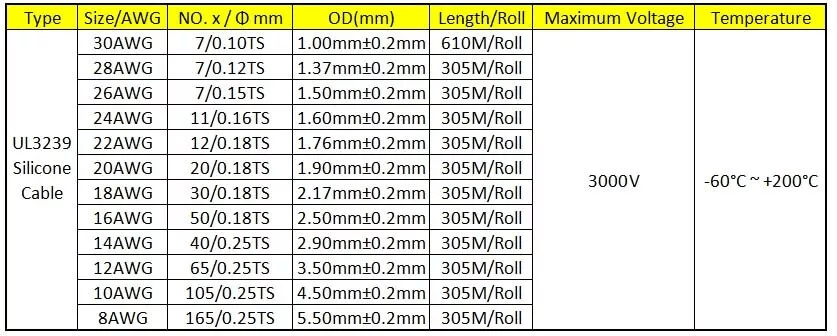

Comprehensive AWG Series: Offering a wide range of sizes from 14AWG to 30AWG, the AWG series precisely meets the current carrying capacity requirements of all types of electrical equipment. In high-power industrial equipment or large electronic devices, such as welding machines, industrial motors, etc., the thicker 14AWG - 18AWG sizes can ensure the stable transmission of strong currents and avoid overheating of the line; while for precision electronic instruments, small smart home devices, automotive electronic parts, etc., the thin gauge of 28AWG - 30AWG can not only satisfy the requirements of fine signal transmission and low-power power supply, but also provide flexible wiring in limited space. Flexible wiring in limited space, effectively optimising the design of the electrical system and improving overall performance and safety.
Excellent silicone material characteristics: the use of high-quality flexible silicone as the insulation layer, giving the cable excellent flexibility, can easily achieve multi-angle bending, twisting, perfectly adapted to a variety of complex installation environment. Whether it is in the narrow and crowded electronic equipment, or need to frequently bend the car modification line, can easily carry out wiring operations, greatly reducing the difficulty of installation, significantly improve work efficiency. At the same time, the silicone material has excellent resistance to high and low temperatures, and can maintain stable physical and electrical properties under extreme temperature conditions (such as high-temperature engine compartments or cold outdoor environments), effectively preventing the insulation layer from aging, hardening, and cracking, ensuring the long-term reliable operation of the cable, greatly extending its service life, and reducing the cost of maintenance and the frequency of replacement.
Advanced stranded structure design: the conductor structure made of multiple strands of fine copper wires is tightly stranded, which further enhances the flexibility and tensile strength of the cable, enabling it to maintain the integrity of the internal conductor structure and reduce the risk of breakage in application scenarios where the cable is subject to frequent movement, vibration, or tugging by external forces (e.g., connection of automated production line equipment, electronic circuits in a moving car) and guaranteeing the stable transmission of power and signals. The wire structure can still keep the internal conductor structure intact, reducing the risk of breakage and ensuring stable transmission of power and signal. Moreover, the stranded wire structure is better than the solid conductor in dealing with electromagnetic interference, which can effectively reduce the influence of external electromagnetic signals on the transmitted signals, improve the purity and stability of the signal transmission, ensure the precise operation of various sensitive electronic equipment, and enhance the anti-interference capability of the entire electrical system.

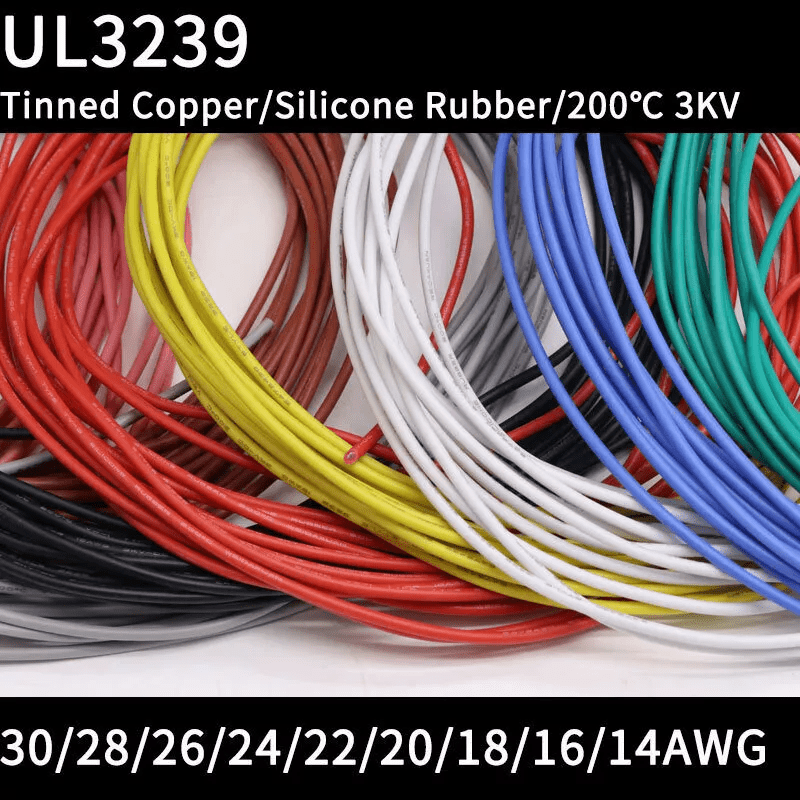

Distinctive 4-colour identification system: Equipped with 4 different colours of cable sheaths, it provides a clear and convenient way to differentiate the lines for complex electrical wiring work. Users can assign different colours to different functional lines, such as power lines, signal lines, earth lines, control lines, etc., according to their own habits or common electrical standards, making the wiring layout more neat and orderly, easy to identify and manage. In the process of equipment installation and commissioning, troubleshooting and maintenance, it can help users quickly locate the target line, save time and energy, greatly improve work efficiency and accuracy, and reduce operational errors and safety hazards caused by line confusion.
3. Product use scene
DIY and repair of electronic equipment: In the process of electronic enthusiasts making their own electronic products (such as homemade computer motherboards, audio amplifiers, robot controllers, etc.) as well as repairing electronic equipment, the multi-specification characteristics of this cable can meet the diversified needs of different electronic components for current and signal transmission. Its soft silicone material facilitates flexible wiring in the narrow circuit board space, avoiding the extrusion or damage to other precision components; and the 4-color marking helps to clearly distinguish between various types of circuits, facilitating the rapid construction, debugging circuits as well as subsequent troubleshooting and repair, ensuring the normal operation of the electronic equipment and optimizing its performance, stimulating the creative potential of DIY enthusiasts, and enhancing the convenience and efficiency of the maintenance of electronic equipment.
Car modification and electrical upgrading: car audio system upgrading, car lighting modification (such as xenon headlights, LED daytime running lights, etc.), electric seat installation, car electronic equipment retrofitting (such as car recorder, car navigation, reversing radar, etc.) and other automotive modification projects, the reliability and flexibility of the electrical connection requirements are very high. UL3239 cables' high temperature resistance, flexibility, and the advantages of multi-specification make it a perfect match for The complex environment of the car engine compartment and the car cabin. For example, in the car audio modification, according to the amplifier power and speaker configuration can be accurately selected appropriate AWG specifications, through the soft silicone cable to achieve efficient and stable audio signal transmission, to avoid sound quality distortion caused by improper wiring; in the automotive electronic equipment retrofitting, its good insulation and anti-interference ability to ensure stable operation of the equipment, and effectively enhance the comfort, safety and functionality of the car! In the automotive electronic equipment retrofitting, its good insulation and anti-interference ability can ensure the stable operation of the equipment, which can effectively improve the comfort, safety and functionality of the car, and meet the car owner's personalised car modification needs.
Industrial automation and equipment manufacturing: in industrial automation production lines (such as robot arm control, automated machine tool electrical connection, sensor data transmission, etc.), industrial equipment manufacturing (such as motor drive, instrumentation control, electrical control cabinet wiring, etc.) and industrial equipment maintenance field, the cable can withstand high temperature in industrial environments, high humidity, strong vibration, electromagnetic interference and other harsh conditions. Different specifications of the cable can be used to transmit power supply, control signals and data signals, to meet the strict requirements of industrial equipment for high precision, high reliability and high stability of the electrical connection. At the same time, 4-colour cable facilitates technicians to quickly identify and maintain lines in complex industrial wiring systems, troubleshooting in a timely manner, reducing downtime, improving production efficiency, safeguarding the continuity and stability of industrial production, and creating greater economic benefits for industrial enterprises.
Smart Home System Integration and Expansion: With the popularity of smart home technology, the flexibility and multi-specification characteristics of UL3239 cable can meet the installation and integration process of home smart lighting control system, smart curtain motor drive, smart home appliance connection (such as smart refrigerator, smart washing machine, smart air conditioner, etc.), smart security system (such as cameras, smart door locks, human body sensors, etc.). The flexible and multi-specification features of UL3239 cable can meet the diversified needs of smart home system on wiring. Its good insulation performance and stability can ensure reliable communication and power supply between smart devices, avoiding equipment failure, signal interruption or control failure due to electrical problems, creating a convenient, comfortable and safe smart home living environment for users, and improving the overall performance and user experience of smart home systems.
4. Product use instructions
Preparation before installation:
Comprehensively and meticulously check the appearance of the cable, focusing on whether there are any quality problems such as breakage, scratches, flaking insulation, loose strands, oxidation and discolouration of copper wires. If any abnormality is found, stop using it immediately and contact the supplier for replacement in time to ensure that the cables put into use are intact in terms of physical structure and electrical performance. At the same time, according to the actual application scenarios and equipment connection requirements, accurately select the required cable AWG specifications and colours, and prepare professional installation tools such as wire strippers, crimping pliers, electrician's knife, insulating tape, heat-shrinkable tubing, welding tools (if welding connection), etc., to ensure the precision, applicability and good condition of the tools, to avoid damage to the cable due to inappropriate tools in the process of installation, which affects its normal performance and life. and life.
Precautions for use:
Always use this cable in strict compliance with the rated voltage and current parameters specified clearly in the product specification, and it is strictly prohibited to exceed its permissible maximum value under any circumstances. Otherwise, it may cause serious electrical safety accidents, such as overheating of the cable and fire, short-circuiting and burning of equipment, or even endanger personal safety. When connecting multiple electrical devices to form a system, be sure to accurately calculate the total power and total current of the system, combined with the current-carrying capacity of the cable, and reasonably distribute the load, to ensure that the selected cable can safely and stably carry the operating current of the entire system, and to avoid all kinds of potential risks and problems caused by overloading.
Try to avoid prolonged exposure of the cable to harsh environmental conditions such as high temperatures, open flames, humidity and corrosive chemicals. Although the cable has a certain degree of high temperature and corrosion resistance, but long-term exposure to extreme harsh environments will still have an adverse effect on its performance, accelerate the aging of the insulation layer, reduce the conductor conductivity, thereby affecting the service life of the cable and electrical safety performance. If you can not avoid the above unfavourable environmental factors in actual use, you should take effective protective measures in a timely manner, such as the use of fire, water, corrosion-resistant wire troughs, casing, shielding, etc. for a full range of cable protection, to ensure that the cable in the harsh environment is still able to maintain a stable and reliable operating state, extend its service life, reduce maintenance costs and safety risks.
Regularly carry out a comprehensive inspection of the connection parts and overall appearance of the cable, especially after the equipment has experienced a long period of operation, frequent starts and stops, poor working conditions (such as high temperature, high humidity, strong vibration) or suffered from accidental impact of external forces, it is more important to strengthen the inspection efforts and frequency. Carefully check whether there is a loose connection, oxidation corrosion, insulation layer damage, stranded wire scattered and other abnormalities, such as any problem found, should immediately stop for repair or replacement of damaged parts, to ensure that the cable is always in a normal, safe working condition, to protect the stable operation of the entire electrical system and personnel and equipment safety. At the same time, in the process of equipment maintenance, overhaul or other operations involving the electrical system, be sure to pay attention to the protection of cables, to avoid unnecessary damage to the cable due to human negligence, misoperation or improper external forces, affecting its normal use of performance and life.
