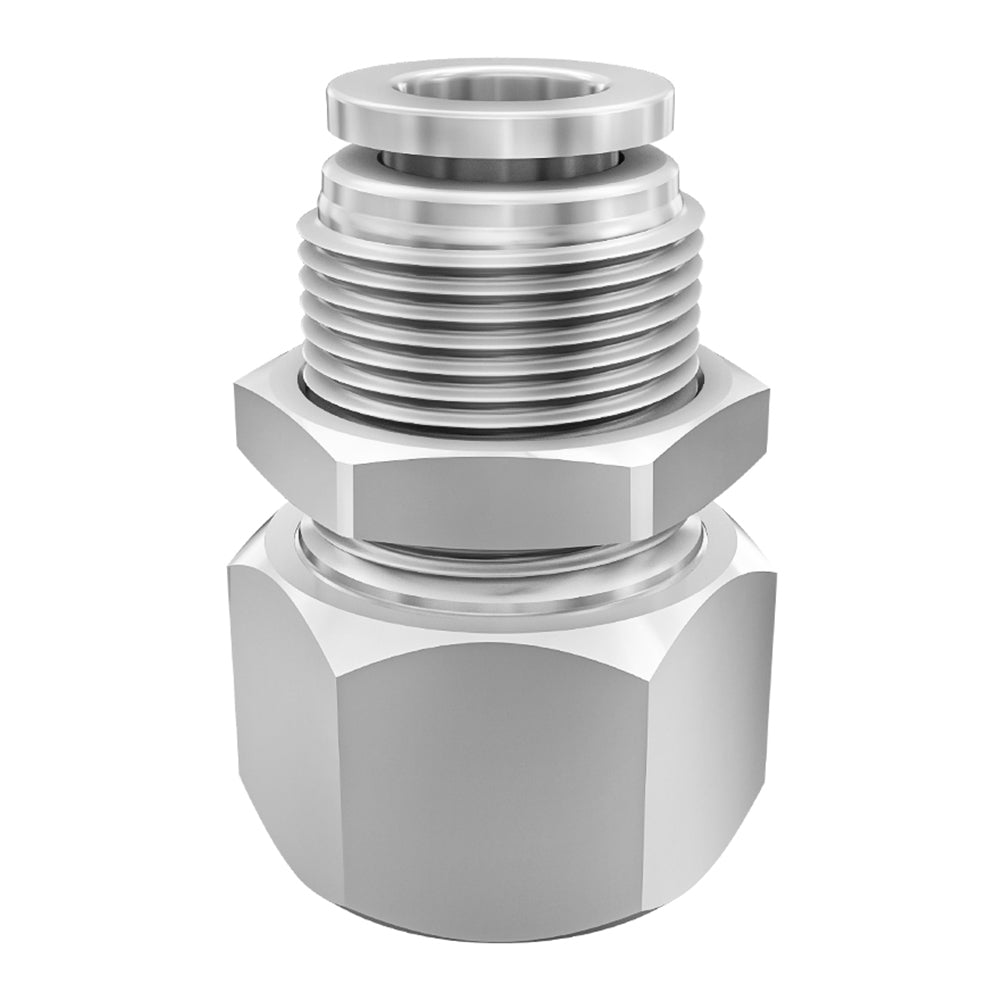

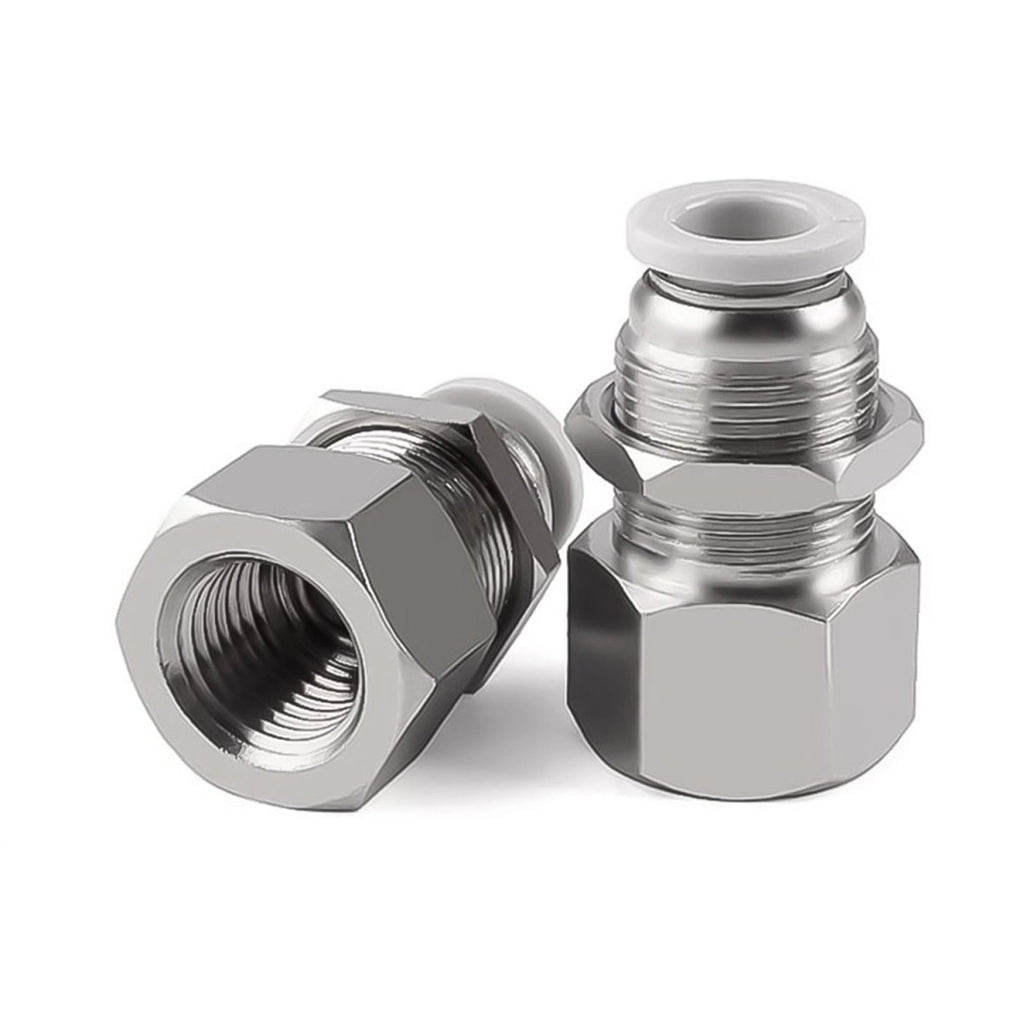

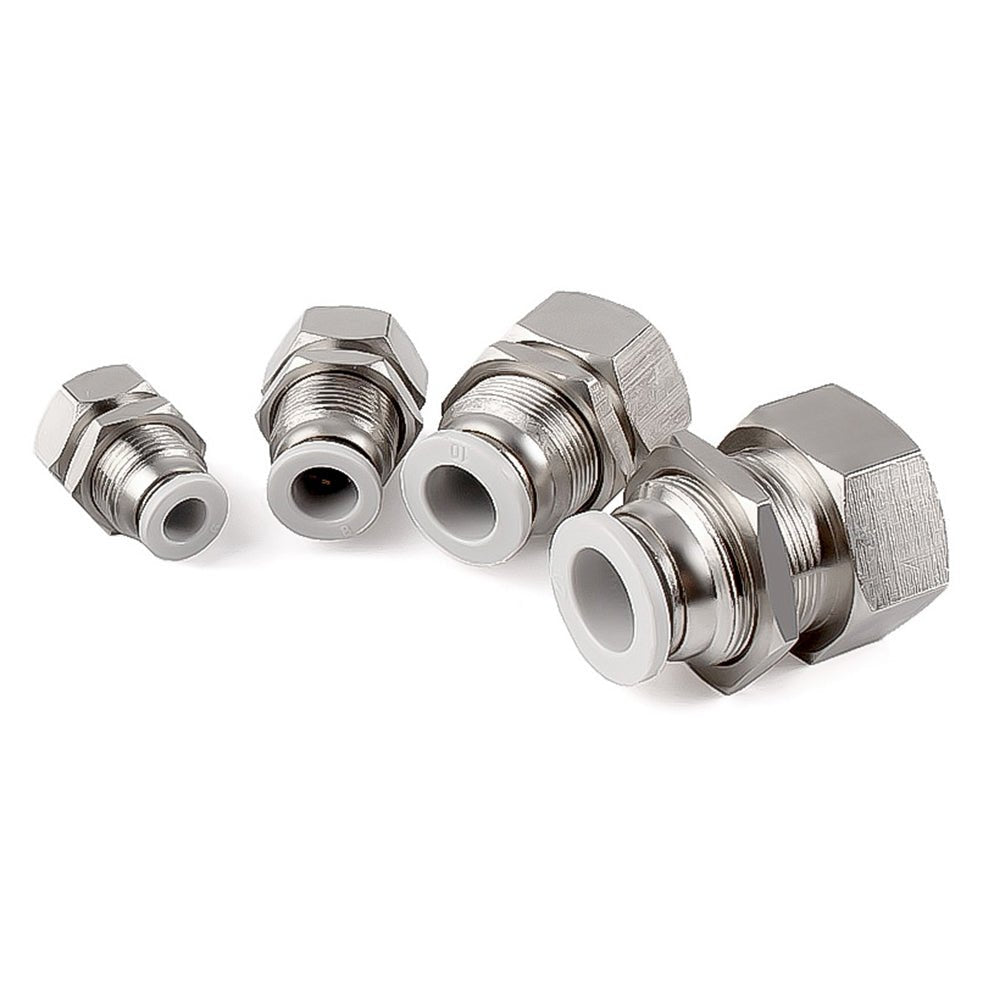

Pneumatic Push In Connect Air Fitting Female Bulkhead Connector Hose Tube 4-16mm

Pneumatic Push In Connect Air Fitting Female Bulkhead Connector Hose Tube
Description:
100% BRAND NEW AND HIGH QUALITY
Specifications
Brand: home DIYer
Measurement System: Metric
Main Body Material:Copper Nickel Plated
Circlip: Stainless Steel
Sealing: NBR O-rings
Working pressure: 0~1.0MPA
Applicable tube: PU Air Hose
Applicable temperature: -5°C to 60°C
Thread Type: Internal thread

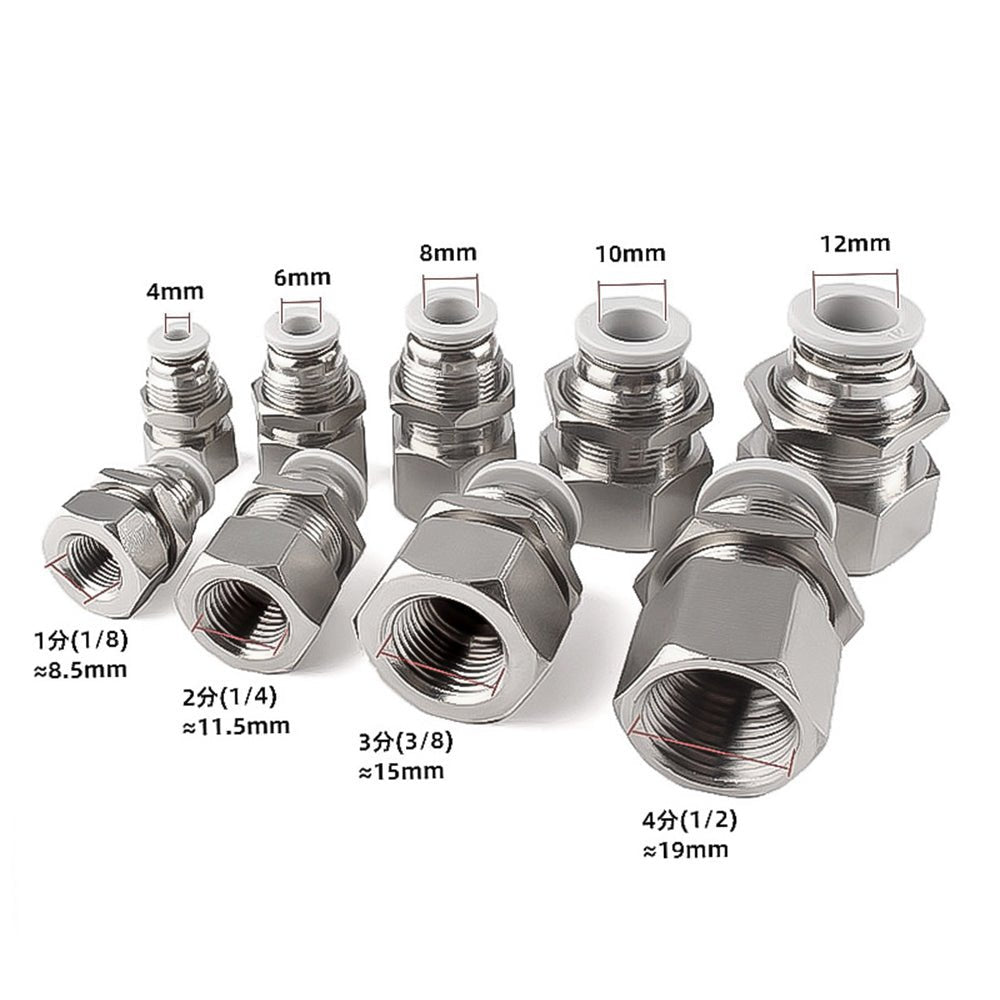

Tube Compatibility: Φ4/6/8mm
Features:
✔ Panel-Mount Design – Integrated locknut for secure installation on equipment panels.

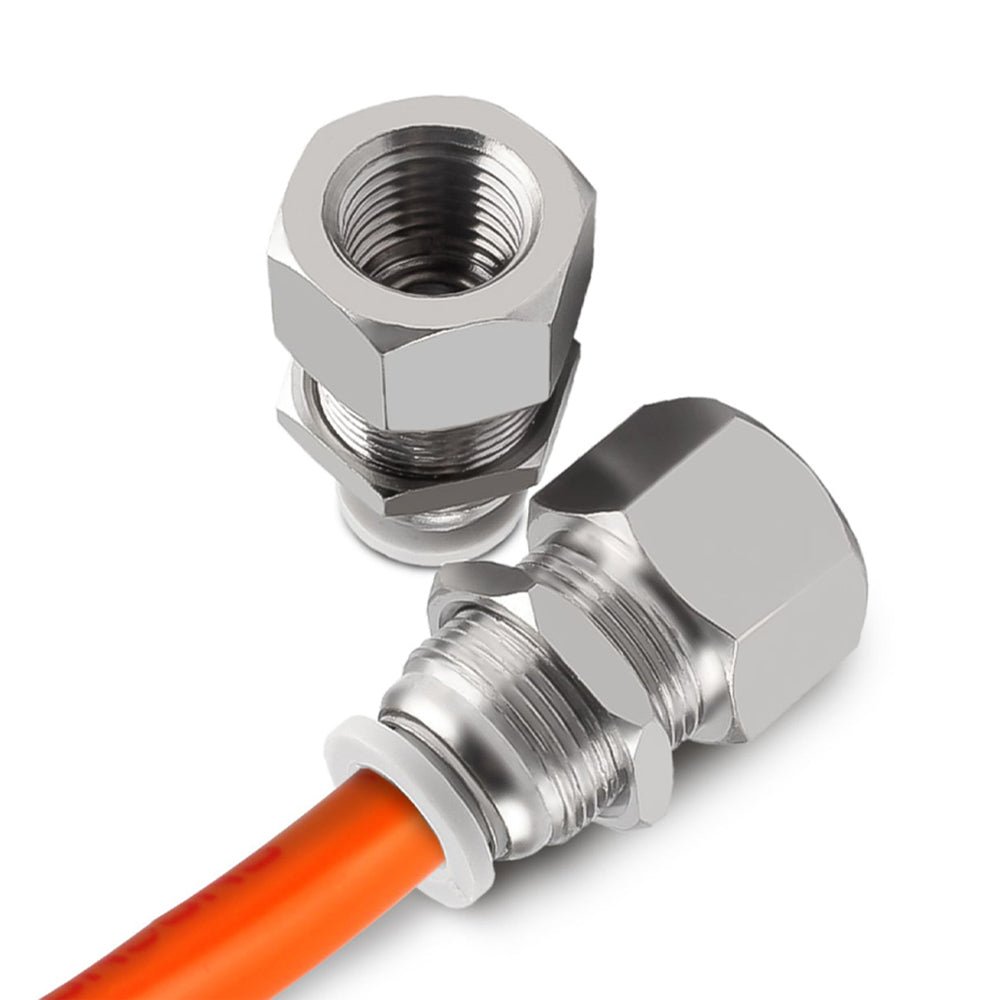

✔ Dual-End Connection – Internal thread for component attachment + quick-release tubing port.
✔ Tool-Free Tubing – Single-hand tube insertion/extraction, reducing maintenance time.
✔ Dual Sealing System – Stainless steel collet + dynamic seal prevents leakage under vibration.
✔ Full-Bore Flow Path – Minimizes pressure drop for consistent airflow.
Applications
Industrial machinery (CNC, injection molding)
Mobile pneumatic systems (AGVs, construction equipment)
High-vibration environments (stamping machines, assembly lines)
Cleanroom/dust-sensitive setups (medical devices, electronics)
