What Type of Rivets Are Best for Leather?

Why Rivet Choice Matters: strength, aesthetics, and serviceability

When you pick a rivet, you're making trade-offs. Sometimes you need permanence; other times you want the ability to upgrade, repair, or swap components. Below are the main decision factors:

• Shear strength & load capacity — Some rivets handle shear load better than others. Structural leather that bears weight needs a rivet with very high shear strength.
• Reusability — For modular designs (removable straps, interchangeable parts), you want a rivet that can be removed and reused without damaging leather.
• Aesthetics — The rivet finish, head style, and color affect the design. Double-cap rivets offer a polished look; Chicago screws look more utilitarian but neat.
• Ease of installation — Do you have access to a press, rivet setter, or only hand tools? Some rivets require specialized tools, while others need only a screwdriver.
• Thickness compatibility — Matching post length to leather thickness is crucial. Too short and the joint won’t hold; too long and the interior looks clumsy.
• Corrosion resistance — Outdoor gear or pet collars need weather-resistant materials like stainless steel or plated brass to avoid tarnish and rust.

Pro tip: For leather goods sold or used in the U.S., users expect a combination of premium appearance and serviceability. That’s why many small brands choose Chicago screws in stainless or brass finishes — they look good and allow future repairs.

Overview — Common Types of Rivets & Fasteners for Leather

Leatherworkers use a handful of fastener families. Below, we list the commonly used ones and a short note about the best use cases. Later sections will deep-dive into the top picks.

Tubular Rivets

Tubular rivets are hollow in the center and compress when set. They’re economical and ideal for light to medium leather where the goal is a low-profile join (e.g., decorative straps or soft wallets). They are not easily removable and offer moderate strength.

Double-Cap Rivets (Solid Cap / Decorative Rivets)

Double-cap rivets have matching decorative heads on both sides, creating a polished look. They’re commonly used in fashion leatherwork — belts, purses, and high-end accessories. They’re permanent once set and usually require a hammer or press.

Single-Cap Rivets & Snap Rivets

Single-cap and snap rivets are used to attach thinner materials or create snap closures. Snap rivets add a fast-opening function rather than acting as a fixed structural join.

Copper Rivets (Solid)

Solid copper rivets are the traditional choice for heavy-duty leatherwork — think saddlery and rugged boots. They’re peened (hammered) to form a permanent joint. Copper is strong and ages attractively, but installation requires more effort and specialized tools.

Chicago Screws / Sex Bolts / Binding Posts

Chicago screws (also called sex bolts, binding posts, or post-and-screw fasteners) are two-piece fasteners consisting of a hollow post and a mating screw. They are widely used in leather for their reusability and clean look. The post is usually installed from the inside, and the screw tightens from the outside. Because they’re removable, they’re excellent for adjustable straps, modular gear, or items that might need repairs.

Rivet Screws & Threaded Inserts

Threaded inserts and rivet screws combine rivet strength with threaded functionality, enabling repeated screw-ins without wearing out the leather or the hole. These are common when you need to mount hardware that might be detached often.

Specialty Fasteners (Blind Rivets, Pop Rivets)

Blind rivets (pop rivets) are used when access to only one side of the material is available. They require a rivet gun and are less common in fine leatherwork, but can be used for utility pieces.

Deep Dive — Why Chicago screws (a.k.a. leather rivets screw) are often the best choice

Chicago screws are beloved by makers for several reasons. We’ll explore the technical details and practical benefits, and then walk through typical use cases. Wherever the guide mentions this product, it's linking to a widely available, budget-friendly set of M4 Chicago screws in five colors—handy for prototyping and small-run production.

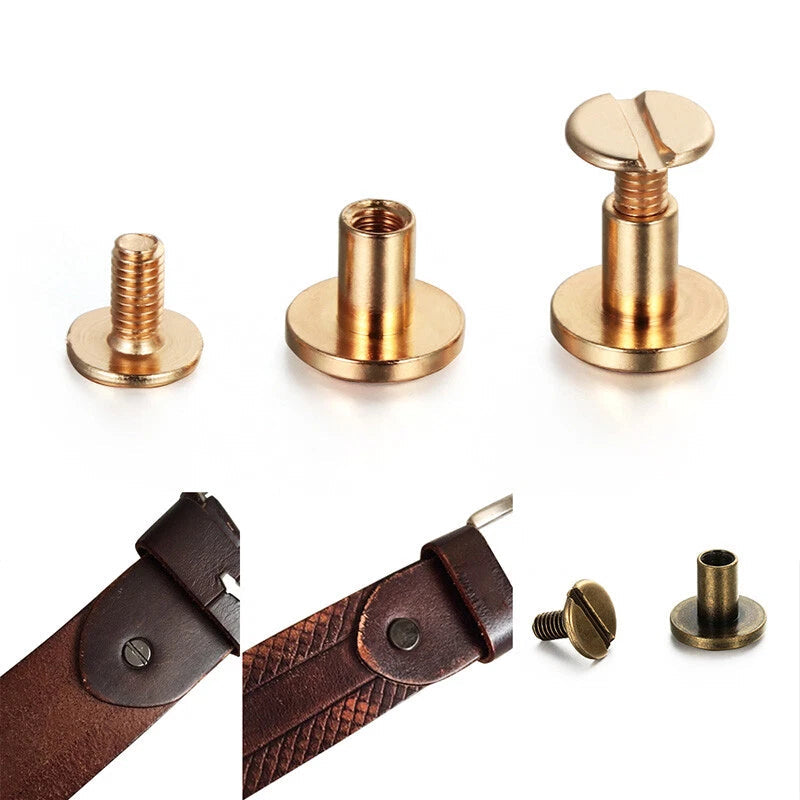

How Chicago Screws Work

A Chicago screw has two parts:

1. The post (or barrel) — a hollow tube with a decorative head on the outside and an internal threaded receptacle.
2. The screw (or bolt) — screws into the post from the other side, drawing the two materials together.

Because the screw and post are separate pieces, you can unscrew them to disassemble the leather joint — very useful when you want to replace straps or access inner layers for repair.

Practical Advantages

• Reusability: Unscrew to separate components — ideal for modular designs.
• Easy installation: Typically requires only a hole punch and screwdriver; no peening or heavy tools.
• Low leather stress: Threading eliminates the 'mushrooming' effect seen with peened rivets that can stress leather when removed.
• Adjustable clamping: Tighten to compress layers appropriately without over-crushing the leather.
• Range of finishes & colors: Available in brass, stainless steel, black oxide, or colorful plated finishes — useful for design matching.

Limitations & When to Avoid Chicago Screws

While highly versatile, Chicago screws are not always the structural optimum:

• Shear strength: While adequate for most consumer applications, the shear strength of a Chicago screw depends on post diameter and thread engagement; a solid peened copper rivet will generally offer higher shear resistance.
• Head diameter & bearing area: Chicago screws can have smaller head diameters than traditional rivet caps; consider a washer or backing plate for very soft leathers.
• Vibration & loosening: In extremely high-vibration settings (e.g., motorcycle saddle attachments), screws can potentially loosen. Applying a thread-locking compound or using lock-washers mitigates this.

Typical Use Cases

Real-world example (mini case)

A small leather brand prototyped three belt designs: one with peened copper rivets, one with double-cap rivets, and one with Chicago screws. The Chicago screw belt scored highest in consumer testing because testers liked the ability to change buckles and repair the belt without cutting and re-stitching—saving the brand time and reducing returns.

Comparison Chart: Which Rivet to Use for Your Leather Project

Use this quick reference to pick a fastener category depending on your project’s needs.

Note: For most consumer leather goods combining aesthetic and serviceability, Chicago screws are an excellent first choice.

Materials & Finishes — How They Affect Durability & Look

Material choice determines corrosion resistance, strength, and long-term appearance. Below are common options and when to choose them.

Stainless Steel

Pros: Excellent corrosion resistance, high strength, modern look.
Cons: Can be slightly more costly; bright stainless steel may not match vintage aesthetics.

Brass & Brass-Plated

Pros: Warm tone, ages attractively, good corrosion resistance with proper plating.
Cons: Solid brass screws can be softer than stainless and may wear threads faster if repeatedly removed.

Black Oxide / Black Nickel

Pros: Contemporary low-profile look is popular for tactical gear and black-leather fashion.
Cons: Some finishes may rub off over long-term use, depending on plating quality.

Colored Plated Finishes

Pros: Great for matching leathers, decorative uses, and accessories.
Cons: Wear over time is visible on frequently handled parts.

Choosing Material by Use Case (Short Table)

Sizing, Drill Bits & Choosing the Right Post Length

Getting the correct post length and hole size is one of the most common mistakes. Below are concrete rules and a chart to make sizing predictable.

Basic sizing rule

Measure the total stacked thickness of the leather (including lining, foam, or fabric). Add 1–2 mm for a snug fit if you want a tighter clamp, or use the exact recommended post length if available from the fastener spec.

Recommended Drill Bit Sizes vs Fastener Type

Measuring stack thickness

Use calipers or a ruler to measure combined thickness. Many makers prefer a post length that equals the stack thickness + 1.0 mm to ensure a snug clamp after the screw seats. If the screw is too short, the joint will feel loose. If the post is too long, the screw may bottom out before the head is tight against the leather.

Hole preparation tips

• Always use a quality leather punch or hollow punch. A clean hole protects the leather fibers and avoids unsightly tearing.
• For layered assemblies, consider a slightly countersunk entry to let the screw head sit flush if the design calls for it.
• If using a drill, clamp the piece to avoid wobble; use low RPM and a backing board to prevent blowout.

Step-by-step Installation Guide — Chicago Screws & Other Rivets

Below you'll find practical step-by-step instructions for installing Chicago screws, tubular rivets, and peened copper rivets. The Chicago screw workflow is the most commonly requested, and we include pro tips for a professional finish.

Tools you will want

• Leather hole punch set (punch sizes to match fasteners)
• Calipers or ruler
• Cross-head & flat-head screwdrivers (or compatible driver bits)
• Soft backing board (plywood or cutting board)
• Optional: thread-locking compound (Loctite Blue), small washer, or felt behind the post for thin leathers

Installing Chicago screws (M4 example)

1. Mark your hole: Use a template, center punch, or awl to mark where the fastener will be placed.
2. Punch the hole: Using a 4.0 mm or slightly smaller punch (4.0 mm recommended for M4 posts), make a clean hole. If using a drill, use a 4.0 mm bit and a backing board.
3. Test-fit the post: Insert the post through the hole from the inside; it should fit snugly without forcing.
4. Insert the screw: From the exterior side, thread the screw into the post. Hand-tighten until snug.
5. Final seating: Use a screwdriver to fully seat the screw. Avoid over-tightening; the leather should be compressed but not crushed.
6. Optional security: For high-vibration or load-bearing applications, a drop of blue thread-locker on the screw threads before final tightening reduces loosening. If future removal is anticipated, skip the permanent thread-locker or use a removable thread-locker.
7. Finishing: Clean the leather around the hole, edge-dye if necessary, and use a light coat of leather conditioner to blend the area.

Installing Tubular and Double-Cap Rivets (brief)

These typically require a rivet setter (or anvil/press): align parts, insert through holes, and set via hammer or press until the rivet is tight. Finish with a small mallet and ensure heads are even.

Installing Solid Copper Rivets (peened)

1. Punch the correct hole.
2. Insert the copper rivet through the layers.
3. Place on a hard anvil; peen the tail with a rivet setter until the tail flares and clamps tight.
4. Polish and clean the surface if desired. Copper will patina over time.

Common mistakes & how to avoid them

• Wrong post length: Measure stack thickness before ordering fasteners.
• Oversized hole: If the hole is too big, use a slightly larger post or add a backing washer; avoid forcing smaller posts into oversized holes.
• Over-tightening screws: This can crush leather and cause the head to bite into the surface; aim for snug, not bone-crushing tight.

Applications & Real-world Case Studies

Below are detailed, realistic scenarios showing how rivet choice changes the product outcome.

Case Study 1: Reconfigurable Camera Harness

A small camera accessories brand wanted a harness where the lens strap could be swapped for different camera sizes. They used stainless steel Chicago screws to connect straps to the harness base. The result: customers could swap straps in seconds, repairs were simple, and the brand saved returns because users could replace worn straps without sending the whole harness back.

Case Study 2: Handmade Leather Wallets

A leatherworker used double-cap rivets for aesthetics on high-end wallets. They chose copper and polished the heads for a luxe finish. Since wallets are low-stress and not serviceable, a permanent rivet was the right call. The pieces positioned as premium sold at higher margins.

Case Study 3: Equestrian Tack Repair

Saddlery requires extreme reliability. A tack repair shop replaced worn strap points with solid copper rivets — peened and hammered under a press. The peened rivet is permanent and offers the highest shear capacity for animal safety.

Case Study 4: Motorcycle Jacket with Removable Liner

To allow seasonal liner removal, a manufacturer used stainless Chicago screws to attach liners. It gave customers convenience and allowed the same jacket to be used year-round. The manufacturer used a thread-locker to prevent screws from loosening under vibration.

Care, Maintenance & Long-term Considerations

Even quality fasteners benefit from occasional check-ups. Here’s a seasonal maintenance checklist for leather goods using fasteners:

• Every 3–6 months: Check the tightness of Chicago screws and tighten by hand; avoid over-tightening.
• After exposure to saltwater: Rinse stainless fittings in fresh water and dry; apply a thin oil if necessary for non-stainless finishes.
• Annually: Inspect rivet heads for wear. If threads are stripped, replace the post and screw.
• Leather conditioning: Condition the area around hardware to keep leather supple and reduce stress concentrations.

Troubleshooting — Common Problems & Fixes

Problem: Screw backing out

Solutions: Apply a removable thread locker (blue Loctite), use a thin washer behind the screw head, or use a slightly longer post to increase engagement length. For very high vibration, consider peened rivets.

Problem: Hole enlargement or tearing

Solutions: Use a leather washer or felt under the head to distribute the load. Replace the fastener with a larger head diameter or add a small metal reinforcing washer on the interior.

Problem: Screw stripped threads

Solutions: Replace the screw & post. For repeated removals, choose a harder material (stainless over plated brass), or use a threaded insert if attaching hardware to leather-backed wood or composite.

Problem: Misaligned holes

Solutions: Re-punch aligned holes; for visible locations, repair the cosmetic hole with an edge dye and place a slightly larger fastener to hide the old hole.

Glossary & Helpful Resources

Post:

The hollow part of a Chicago screw, which the bolt threads into.

Peen:

To hammer the tail of a rivet to spread it and form a permanent head.

Shear strength:

The capacity to withstand forces that try to slide two joined parts past each other.

Bearing area:

The surface area over which the fastener head contacts the material — larger areas spread load and reduce localized wear.

Appendix: Sizing Worksheet, Templates & Quick Reference Charts

Use the quick reference below as a printable cheatsheet when ordering fasteners or preparing to punch holes.

Tip: Keep a small assortment of post lengths (8mm, 10mm, 12mm, 15mm) for prototyping. This saves time and prevents ordering errors.

Conclusion — The Best Rivet for Leather, Summarized

For most modern leather goods combining practicality and appearance, the best initial choice is the Chicago screw — or, in SEO-friendly product language, a leather rivet screw. It offers the best balance of strength, serviceability, and ease of installation for makers and small brands. For permanent, heavy-load applications, solid copper or peened rivets remain the most robust option.

If you’re prototyping or building small batches, try an assorted kit of M4 Chicago screws to test finishes and post lengths. A convenient starter kit is here: 100 Set Chicago Screws for Leather — assorted 5-color M4 leather rivet screw kit. It’s an affordable way to decide which finish and post length fits your design before committing to bulk orders.

Final practical checklist:

• Measure your leather stack thickness precisely.
• Decide on permanence vs. reusability.
• Choose the correct material for the environment (stainless steel for outdoors).
• Test a single fastener before a production run.
