Materials List
- Angle Iron: Base support for bench mounting.
- Flat Metal Bar: Heavy-duty bending lever.
- High-Strength Bolts & Nuts: Durable pivot assembly.
- Ball Bearings: For smooth, friction-free movement.
- Washers: Precise height alignment.
Step-by-Step Guide
Step 1: Prepare the Base and Lever
First, prepare a piece of angle iron for the base and a flat iron bar for the lever. Secure the angle iron and drill two holes into one side. Drill two matching holes at the end of the flat bar.
Step 2: Assembly
Connect the flat bar to the angle iron using a bolt. This bolt acts as the main pivot for the bender. Place two small bearings onto the bolt and secure them with a nut; the wire will bend around these bearings to form its curve.
Step 3: Roller Setup
Insert a bolt into the second hole of the angle iron base. Add three small bearings and lock them tightly with a nut. This acts as a fixed anchor to hold one end of the wire in place, preventing it from sliding during the bend.
Step 4: Calibration
In the remaining hole on the lever (flat bar), insert a bolt and add a stack of washers. Secure it with a nut. This is the moving axis that will travel in a circle around the center pivot, pushing the wire to create the bend.
How to Use
Placement

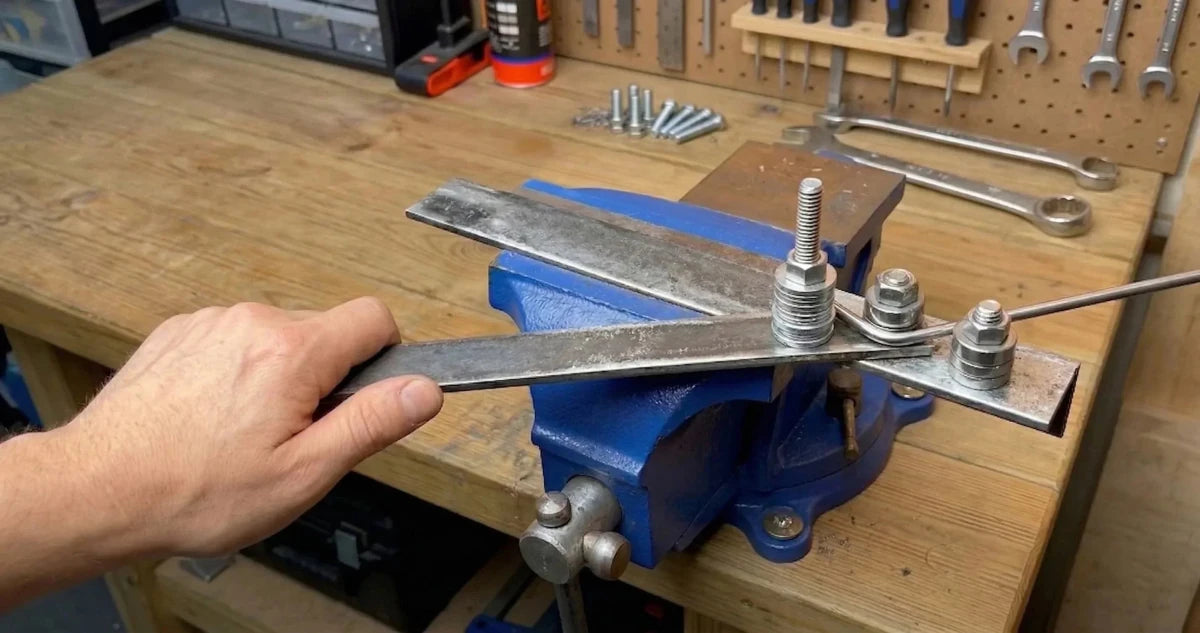

Slide your wire or metal rod between the center bearing and the fixed limit axis.
Bending
Grip the end of the lever and rotate it. The active axis will push the wire around the center pivot, using leverage to bend the metal easily.
By adjusting your rotation angle, you can create various shapes like U-hooks or clean 90-degree angles. Now you know how to build a practical wire bender using basic metal parts. It is a great tool for bending rebar, wire, or copper tubing in a home workshop.
