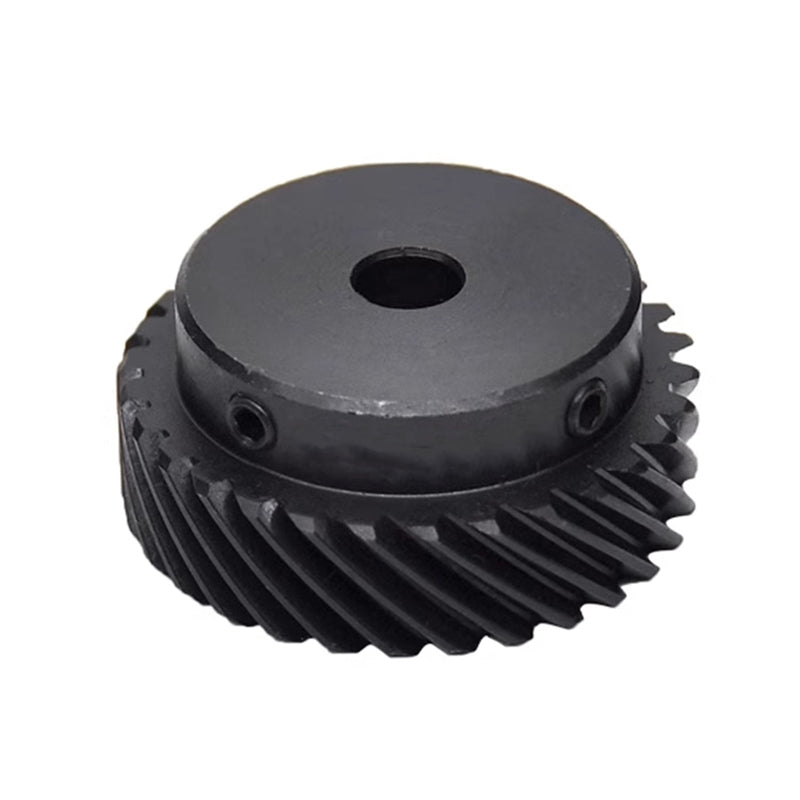

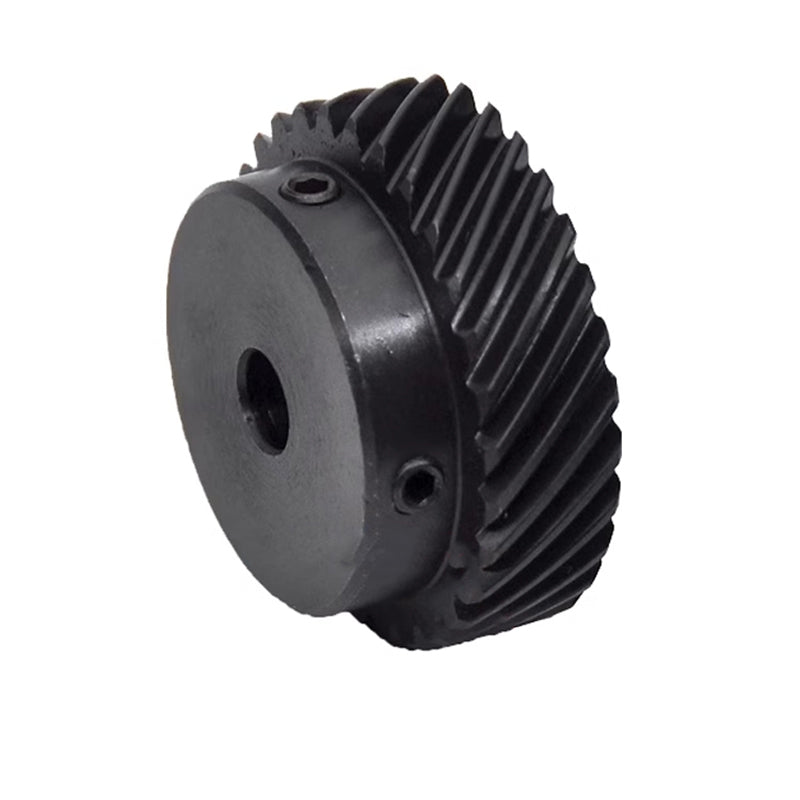

1 MOD 45° Helical Step Gear 45-60T Steel

No reviews

Inner Diameter: 8mm
Teeth: 45 Teeth
Direction Of Rotation: Left Spiral
Price:
Sale price$14.30 USD
Stock:
Only 30 units left

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Bancontact Diners Club Discover Google Pay iDEAL Wero Mastercard PayPal Shop Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Expert

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM
24-Hour Fast Ship
🚚
Arrives in 3-14 days
🌍
Global Reach
↩️
30-Day Returns
🌱 1 tree planted with every purchase

Description

1 MOD 45° Helical Step Gear 45# Steel A-Type Left/Right Hand 45-60 Teeth

⚙️ Gear Profile

• Module: 1 MOD
• Helix Angle: 45°±0.5°
• Step Height: 5mm

🔩 Technical Specs

• Teeth: 45-60T (Customizable)
• Material: 45# Carbon Steel
• Hardness: 50-55HRC

✅ Key Advantages

🔄 Bi-Directional Drive

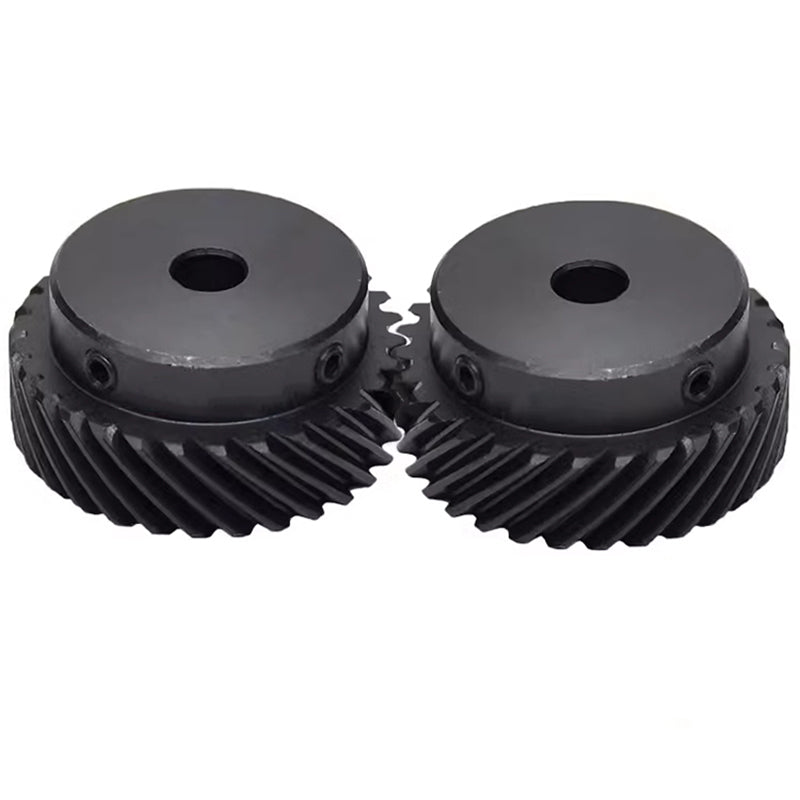

Available in left/right hand configurations for complex gear trains

🔊 Silent Operation

45° helix angle ensures smooth engagement with ≤65dB noise level

⚡ High Torque

Withstands 200N·m torque load with induction hardened teeth

📏 Precision Specifications

Parameter Value Tolerance
Pressure Angle 20° ±0.25°
Tooth Width 10mm ±0.02mm
Runout 0.03mm MAX

🏭 Industrial Applications

  • ✅ Robotic Joints
  • ✅ CNC Index Tables
  • ✅ Packaging Machinery
  • ✅ Automotive Transmissions
  • ✅ 3D Printing Rotary Stage
  • ✅ Industrial Conveyors
