3:1 Glue-Lined Heat Shrink Tubing — Waterproof Wire Insulation for Demanding Connections
When a standard heat shrink sleeve just isn't enough — when you're splicing wires in an engine bay, sealing a marine connector, or protecting a cable run exposed to rain and vibration — you need a dual-wall solution that actually bonds to the substrate. Electricians, automotive technicians, marine riggers, and serious DIYers all face the same problem: moisture and mechanical stress find every gap a single-wall tube leaves behind.

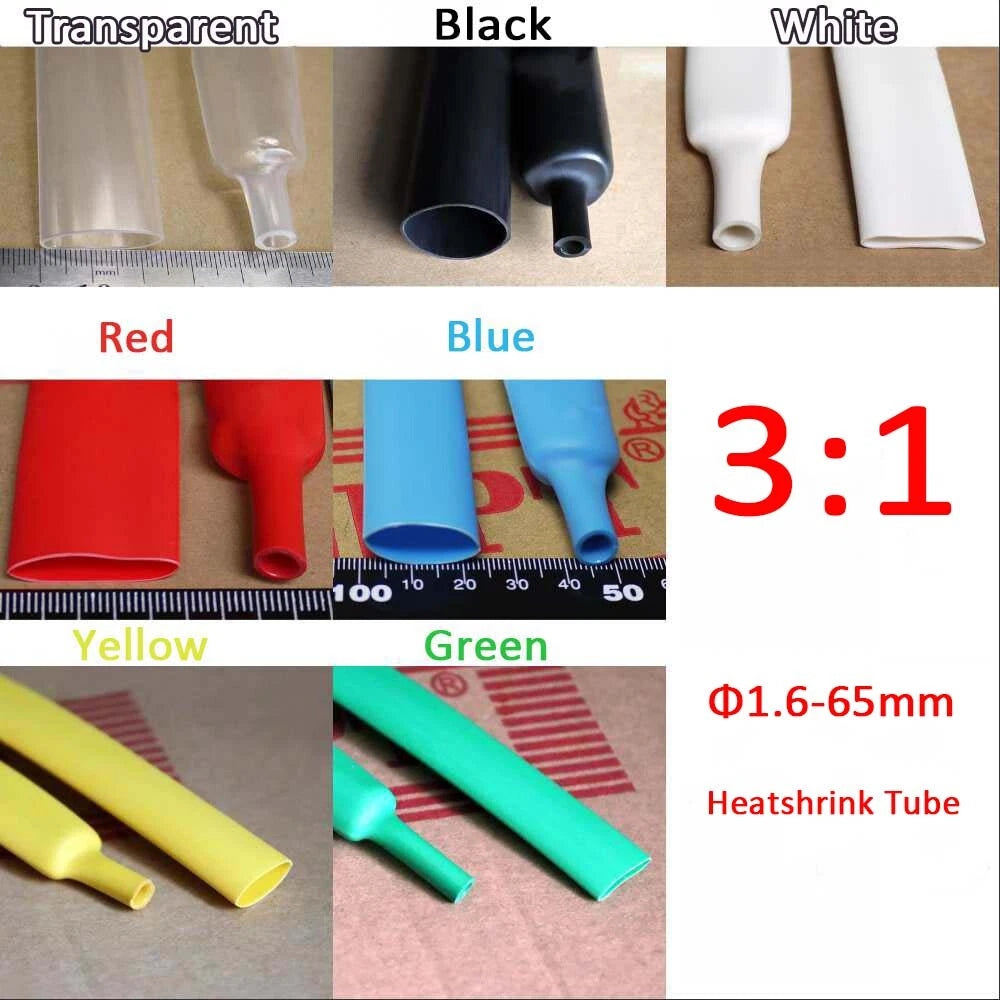

Each piece of this heat shrink tubing features a dual-wall construction: an outer polyolefin jacket that shrinks at a 3:1 ratio, and an inner hot-melt adhesive lining that flows and bonds to the wire or connector beneath it. Available in unshrunk diameters from 1.6mm (≈1/16") to 65mm (≈2-9/16"), with 7 color options (White, Black, Red, Yellow, Green, Blue, Transparent) and lengths of 1m (≈3.3 ft) or 5m (≈16.4 ft) per piece.
Typical use cases include automotive wiring harness repair and battery terminal insulation, marine and outdoor electrical connection sealing, cable strain relief at panel entry points, and color-coded wire identification in multi-conductor bundles. The wide diameter range — from fine 26 AWG signal wires up to large cable bundles and conduit ends — makes this a single SKU family that covers most shop and field needs.
ℹ️ Compatibility Note: This tubing is designed for use with copper and aluminum wire, standard connector bodies, and most thermoplastic cable jackets. It is not recommended for use over PTFE (Teflon) insulation or silicone-jacketed wire, as the adhesive may not bond reliably to those surfaces.

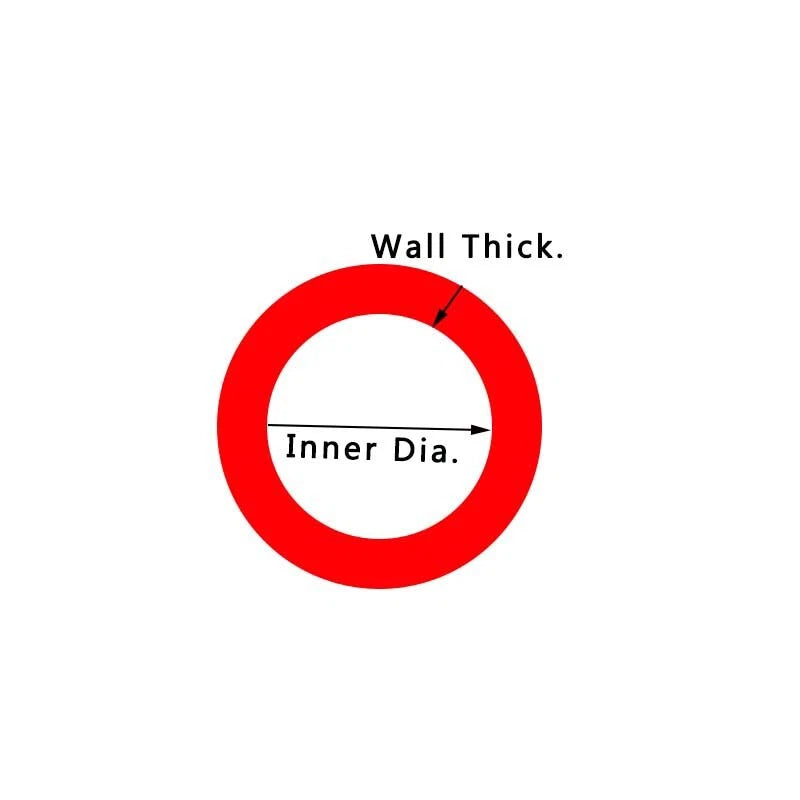

⚠️ Size Tip: The diameter listed is the unshrunk inner diameter. Choose a size 10–20% larger than your wire or connector OD. After shrinking, the tubing will reach approximately 1/3 of the listed diameter. If you are unsure, please contact us to confirm fit before ordering.
✅ Key Features of These 3:1 Glue-Lined Heat Shrink Tubes
-
🔒Waterproof Adhesive Inner Wall — The hot-melt glue lining flows when heated, filling gaps and bonding to the wire jacket to create a moisture-resistant seal — ideal for outdoor wiring and marine electrical connections.
-
📐3:1 Shrink Ratio — Shrinks to approximately one-third of its original diameter, conforming tightly to irregular shapes, stepped connectors, and cable transitions where standard 2:1 tubing falls short.
-
📏Wide Diameter Range — Sixteen unshrunk sizes from Φ1.6mm (≈1/16") to Φ65mm (≈2-9/16") cover fine signal wires, power cables, and large cable bundle entry points in a single product family.
-

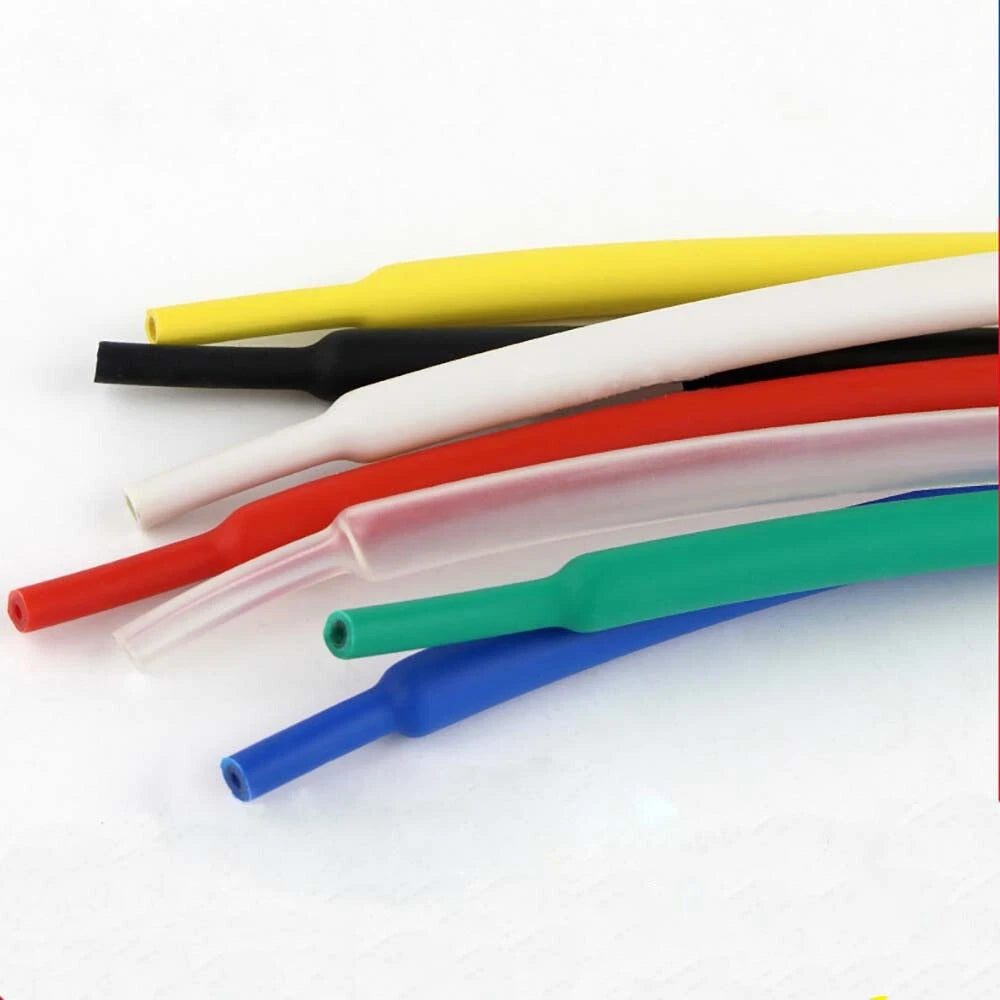

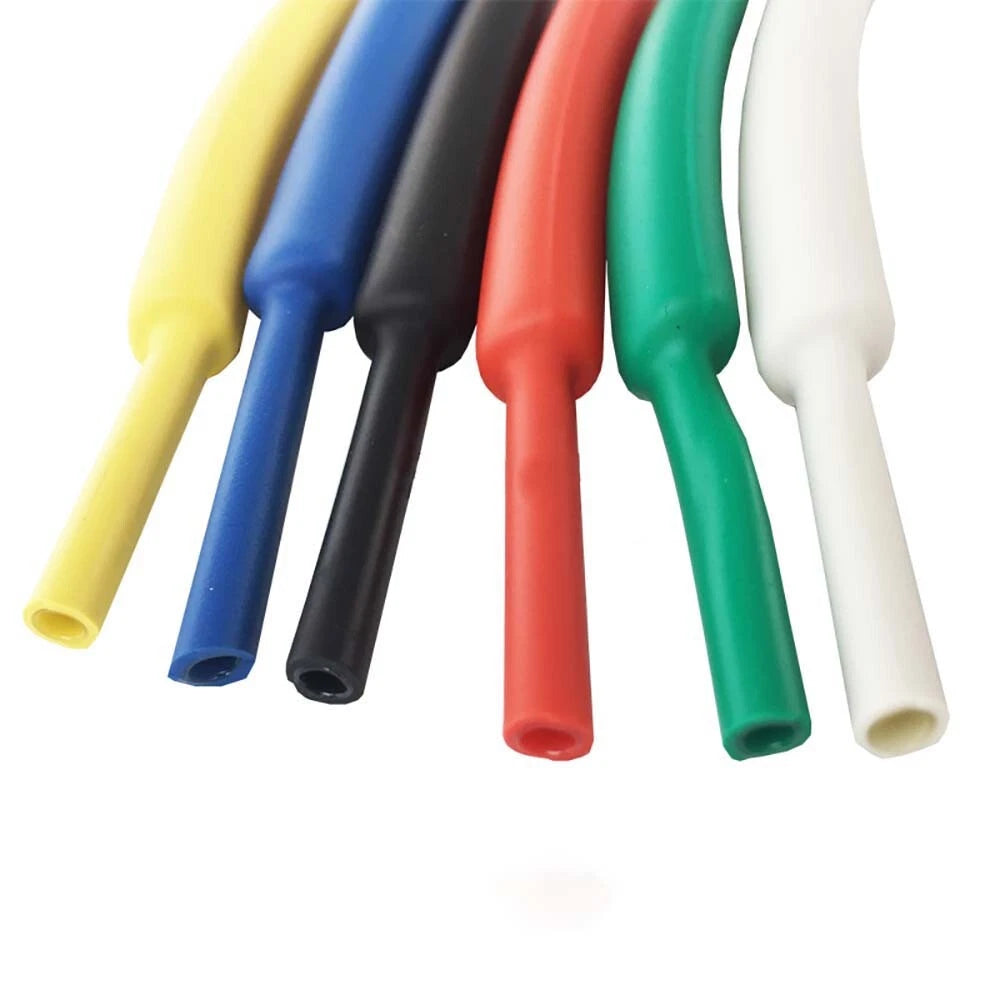

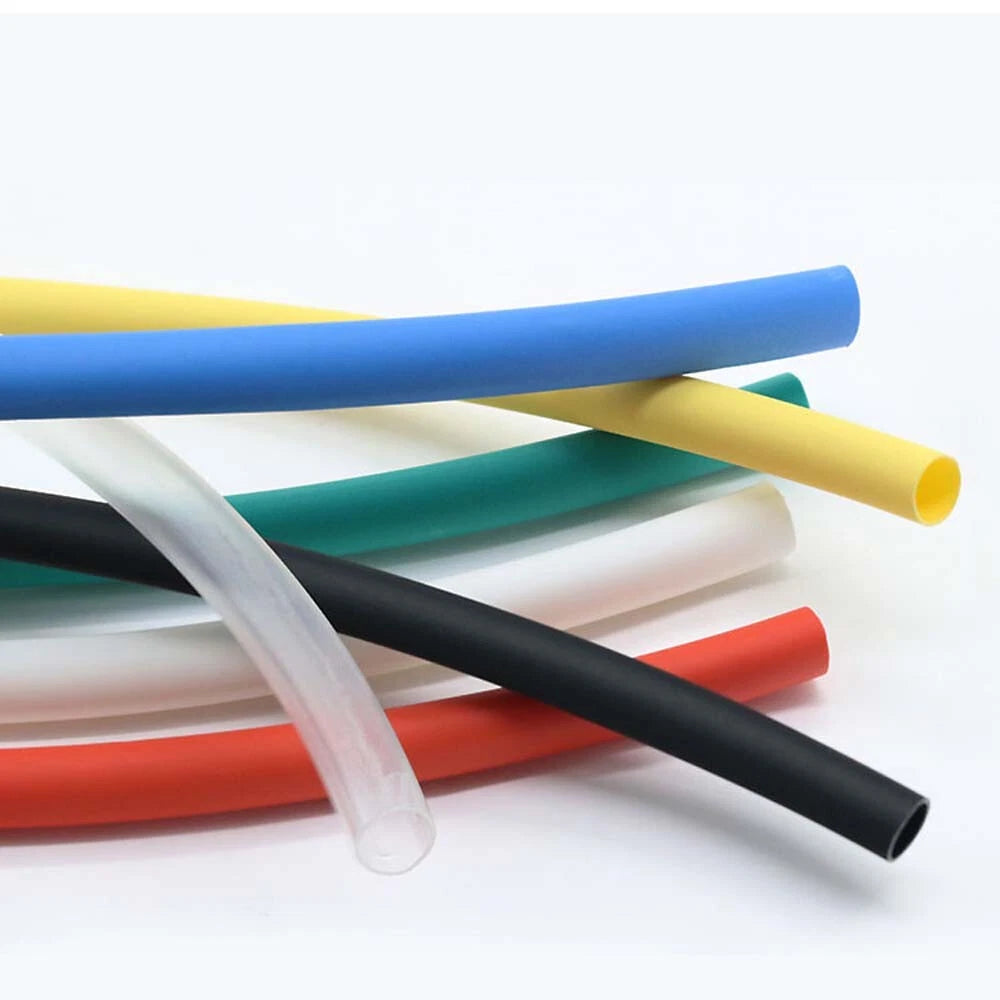

🎨7 Color Options Including Transparent — Color-code circuits with White, Black, Red, Yellow, Green, or Blue; choose Transparent when you need to visually inspect the connection after installation without cutting the sleeve.
-
🔧Strain Relief at Connection Points — The bonded dual-wall construction adds mechanical rigidity at splice points and connector entries, reducing flex fatigue on solder joints and crimp terminals.
-
✂️Cut-to-Length Flexibility — Available in 1m and 5m lengths so you can cut exactly what each job requires — no waste on short repairs, enough material for longer cable runs or batch work.
📐 Technical Specifications — 3:1 Dual-Wall Glue-Lined Heat Shrink Tubing
| Construction |
Dual-wall: polyolefin outer layer + hot-melt adhesive inner lining |
| Shrink Ratio |
3:1 (shrinks to approximately 1/3 of listed diameter) |

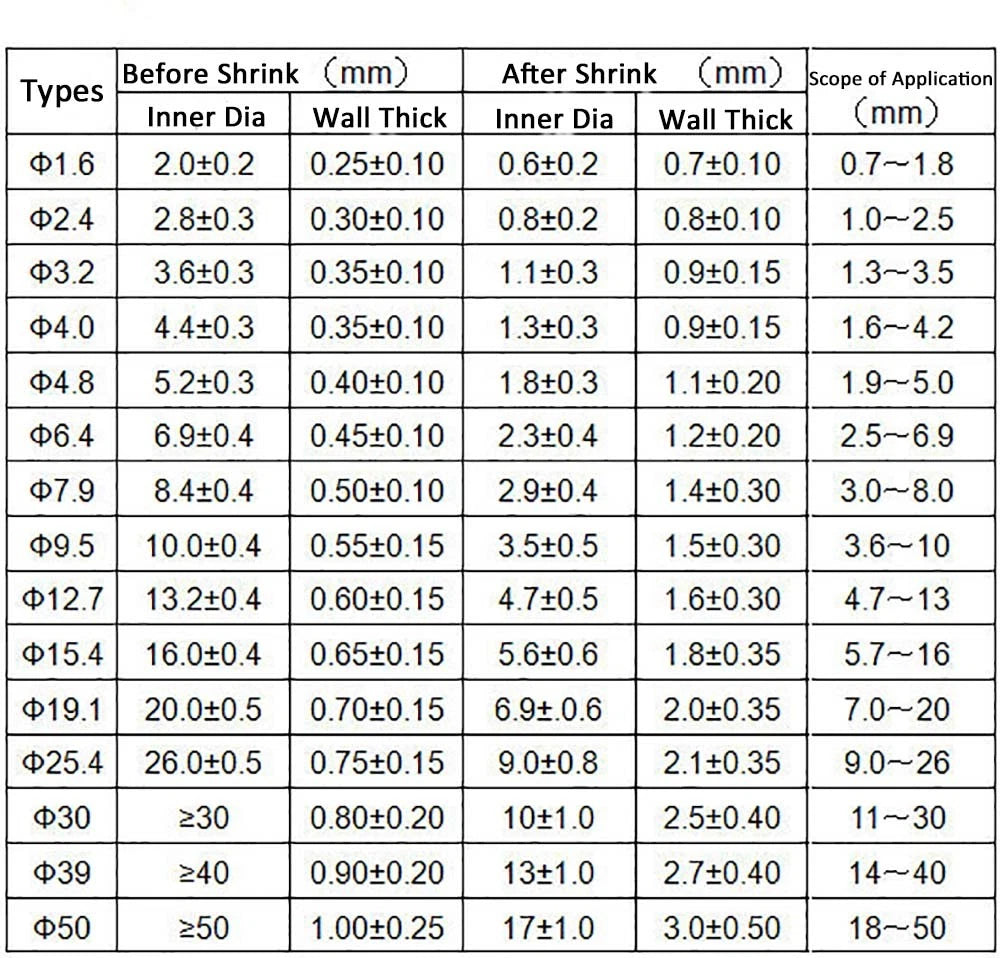

| Unshrunk Diameter Options |
Φ1.6mm, Φ2.4mm, Φ3.2mm, Φ4mm, Φ4.8mm, Φ6.4mm, Φ7.9mm, Φ9.5mm, Φ12.7mm, Φ15.4mm, Φ19.1mm, Φ25.4mm, Φ30mm, Φ39mm, Φ50mm, Φ65mm |
| Shrunk Diameter (approx.) |
Φ0.5mm–Φ21.7mm (varies by size; see variant options) |
| Available Colors |
White, Black, Red, Yellow, Green, Blue, Transparent |
| Available Lengths |
1m (≈3.3 ft) / 5m (≈16.4 ft) |
| Shrink Temperature (outer) |
Typically begins at ~90°C (194°F) |
| Adhesive Activation Temperature |
Typically ~120–135°C (248–275°F) |
| Recommended Application Tool |
Heat gun (150–200°C / 300–390°F); open flame not recommended |
| Waterproof / Moisture Seal |
Yes — adhesive inner wall bonds to substrate when activated |
| Suitable Substrates |
Copper wire, aluminum wire, standard connector bodies, most thermoplastic cable jackets |
| Not Recommended For |
PTFE (Teflon) or silicone-jacketed wire (adhesive bond may be unreliable) |
| Voltage Rating |
See variant options / Contact us to confirm for specific applications |
| Operating Temperature Range |
See variant options / Contact us to confirm |
❓ Frequently Asked Questions
How do I choose the right diameter of heat shrink tubing?
Select an unshrunk diameter that is slightly larger than the widest part of the object you need to cover — typically 10–20% larger. After shrinking at a 3:1 ratio, the tubing will conform tightly. For example, a Φ6.4mm (1/4") tube shrinks down to approximately Φ2.1mm. When in doubt, size up rather than down — you can always apply more heat to tighten the fit, but you cannot stretch tubing that is too small.
What temperature is needed to activate the shrink and melt the adhesive?
The outer polyolefin layer generally begins shrinking at around 90°C (194°F), while the inner adhesive typically activates and flows at around 120–135°C (248–275°F). A heat gun set to 150–200°C (300–390°F) is recommended for consistent results. Avoid open flames, which can scorch the tubing unevenly and may not fully activate the adhesive layer.
Is this heat shrink tubing suitable for outdoor or marine use?
Yes. The glue-lined construction creates a waterproof seal around the substrate, making it well-suited for outdoor wiring, marine electrical connections, and other moisture-exposed environments. The adhesive inner wall bonds to the wire jacket to block water ingress. For fully submerged or continuous immersion applications, contact us to confirm suitability for your specific use case.
What is the shrink ratio and what does 3:1 mean?
A 3:1 shrink ratio means the tubing will shrink to approximately one-third of its original (unshrunk) diameter when heat is applied. This is significantly more than standard 2:1 tubing, making it suitable for irregular shapes, connectors, and stepped transitions where a tighter, more conforming fit is needed. The 3:1 ratio also allows the tubing to cover a wider range of substrate sizes with a single piece.
Can I use this tubing on automotive wiring and connectors?
Yes. The dual-wall glue-lined design is commonly used in automotive wiring harness repair, battery terminal insulation, and connector sealing. The adhesive layer bonds to the wire insulation and connector body, providing both mechanical strain relief and moisture protection. It is generally compatible with the temperature ranges found in engine bays, though we recommend confirming the operating temperature rating for high-heat locations.
What wire gauges does each diameter size fit?
Wire gauge compatibility depends on the unshrunk inner diameter. As a general guide:
- Φ1.6mm (1/16") — typically fits 26–22 AWG
- Φ3.2mm (1/8") — typically fits 20–18 AWG
- Φ6.4mm (1/4") — typically fits 16–14 AWG
- Φ9.5mm (3/8") — typically fits 12–10 AWG
- Φ12.7mm (1/2") and larger — suited for 8 AWG and above, cable bundles, and connector bodies
Always verify against your specific wire OD before ordering. If you are unsure, contact us with your wire gauge and we can recommend the correct size.
Does the transparent variant provide the same waterproof protection?
Yes. The transparent variant uses the same dual-wall glue-lined construction as the colored options, providing equivalent waterproof and adhesive sealing performance. It is particularly useful when you need to visually inspect the underlying wire, solder joint, or connector after installation without cutting the sleeve open.
