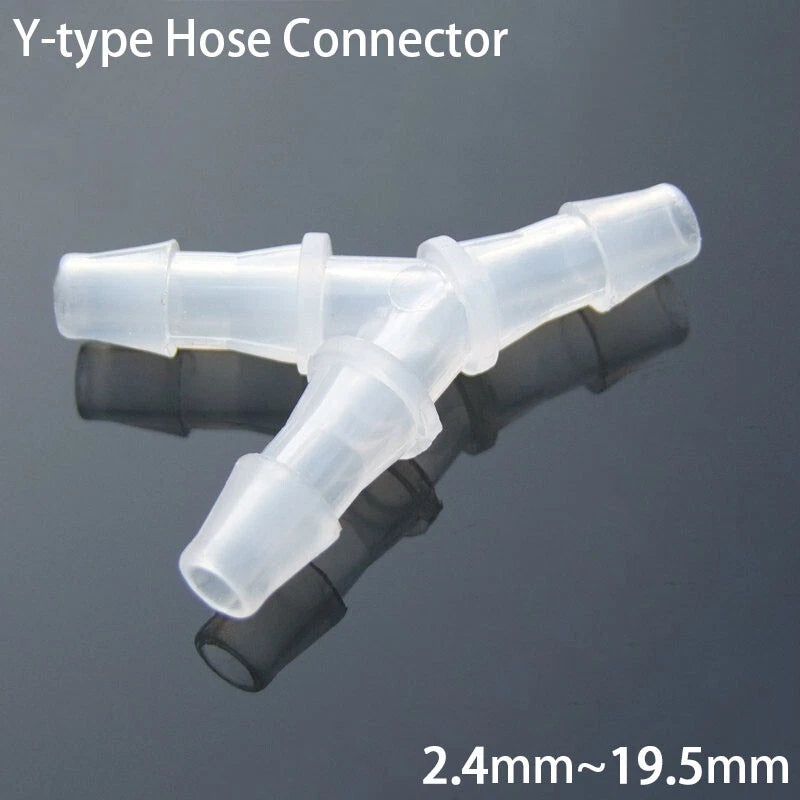

3-Way Y Type Tube Hose Pipe Joint Plastic Tube Connector Barbed 2.4mm~19.5mm

Roll over image to zoom in Click on image to zoom

3-Way Y Type Tube Hose Pipe Joint Plastic Tube Connector Barbed 2.4mm~19.5mm

HomeDIYer

No reviews

By HomeDIYer®

Size(mm): 2.4mm

Packing Quantity: 1 Pcs

Price:

$3.43 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

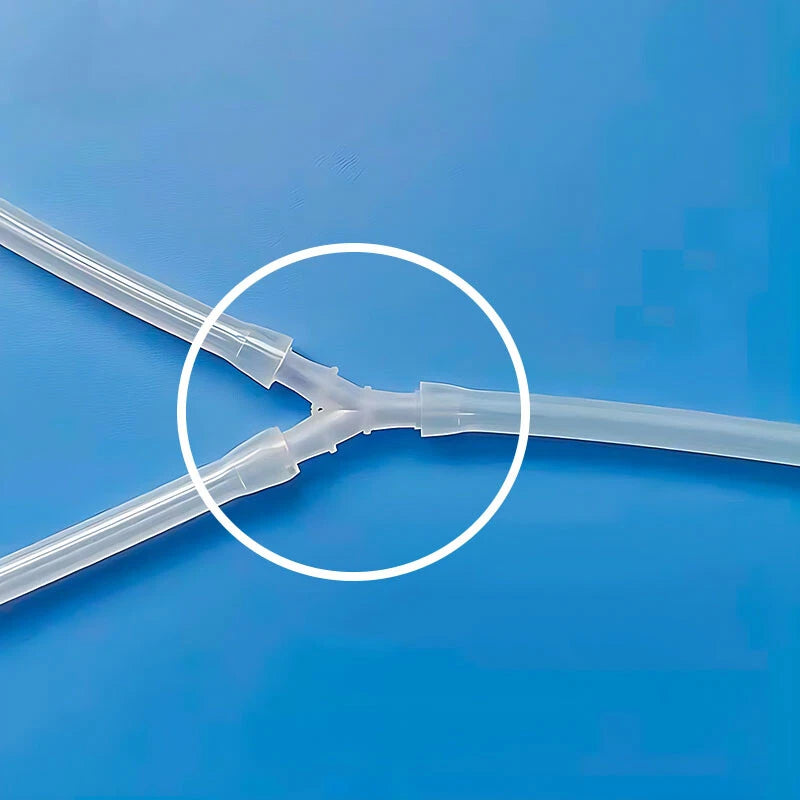

3-Way Y-Type Barbed Hose Connectors — Reliable Splits for Every Fluid Line

When a single water line needs to feed two separate zones — a drip irrigation row, a secondary aquarium filter, or a DIY coolant loop — a loose or ill-fitting junction is the last thing you want. These 3-way Y-type barbed tube connectors give hobbyists, gardeners, and small-scale builders a secure, tool-free way to branch any flexible hose without clamps or adhesives.

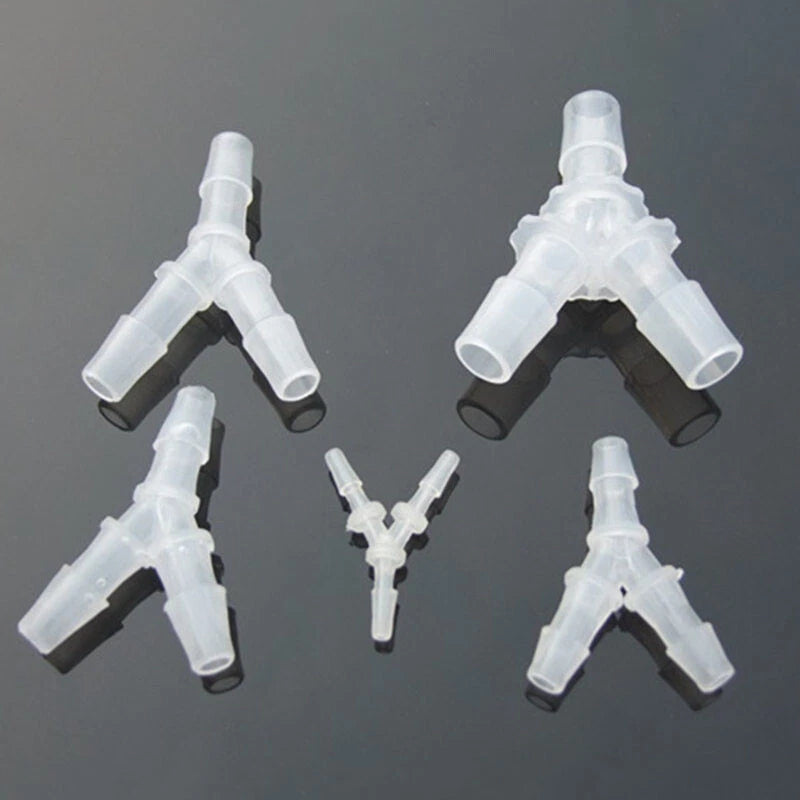

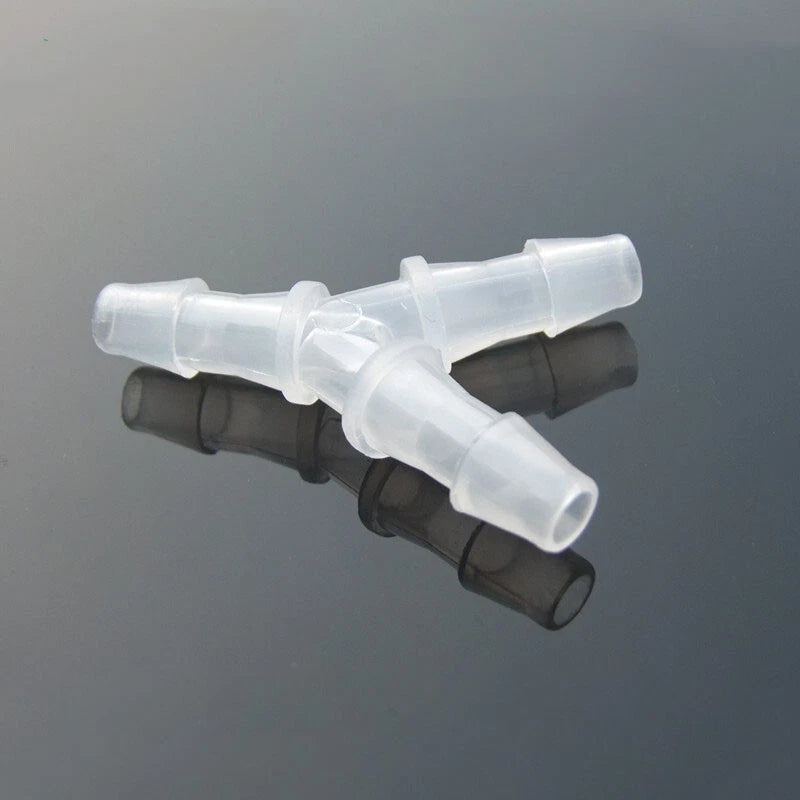

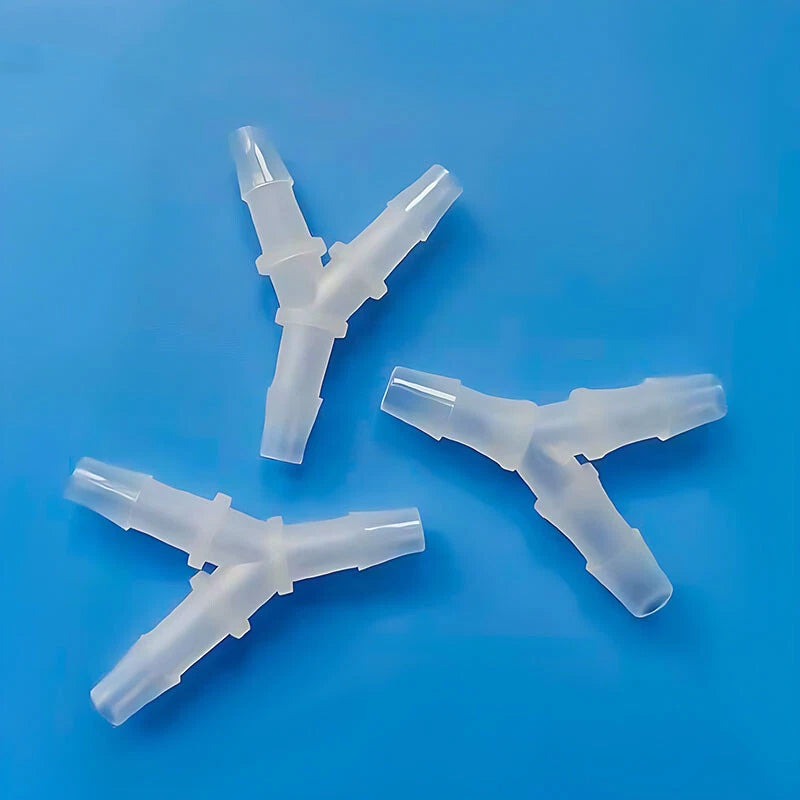

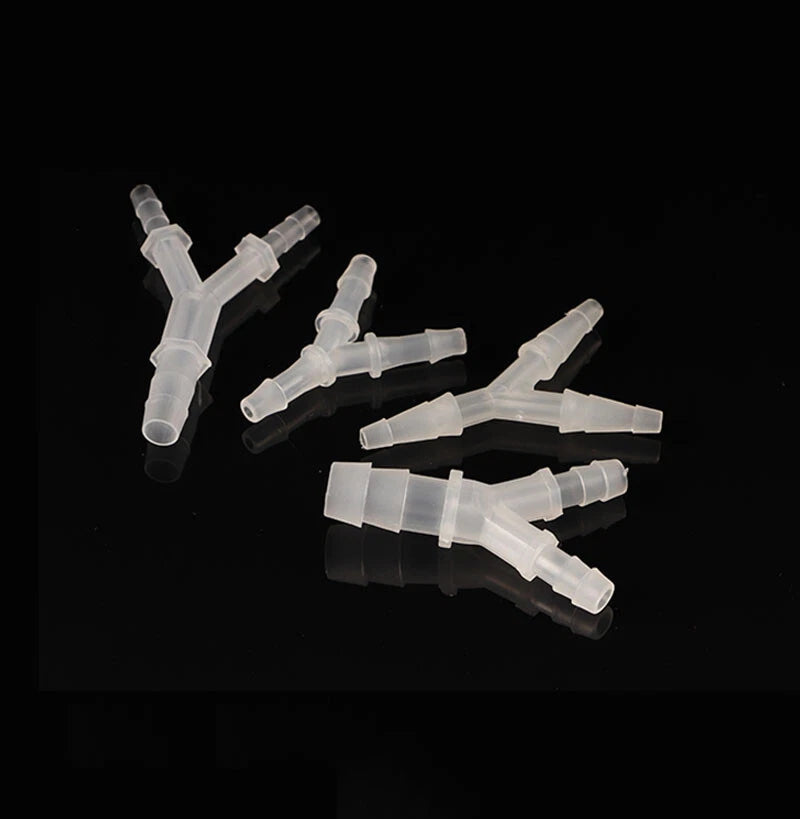

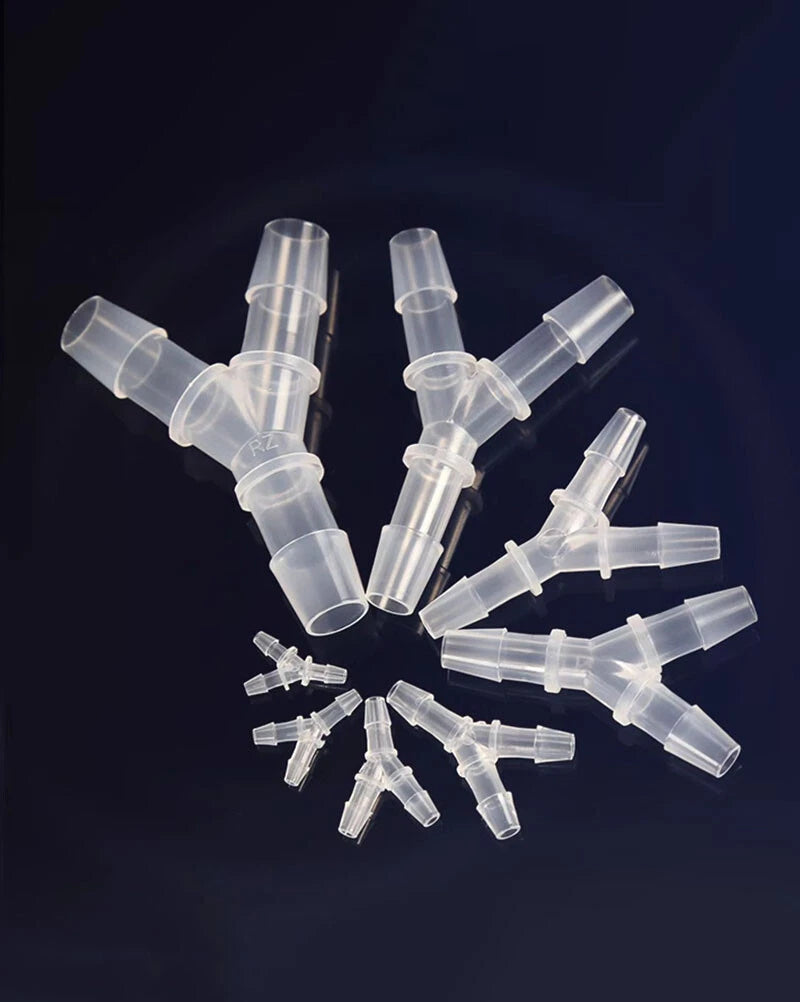

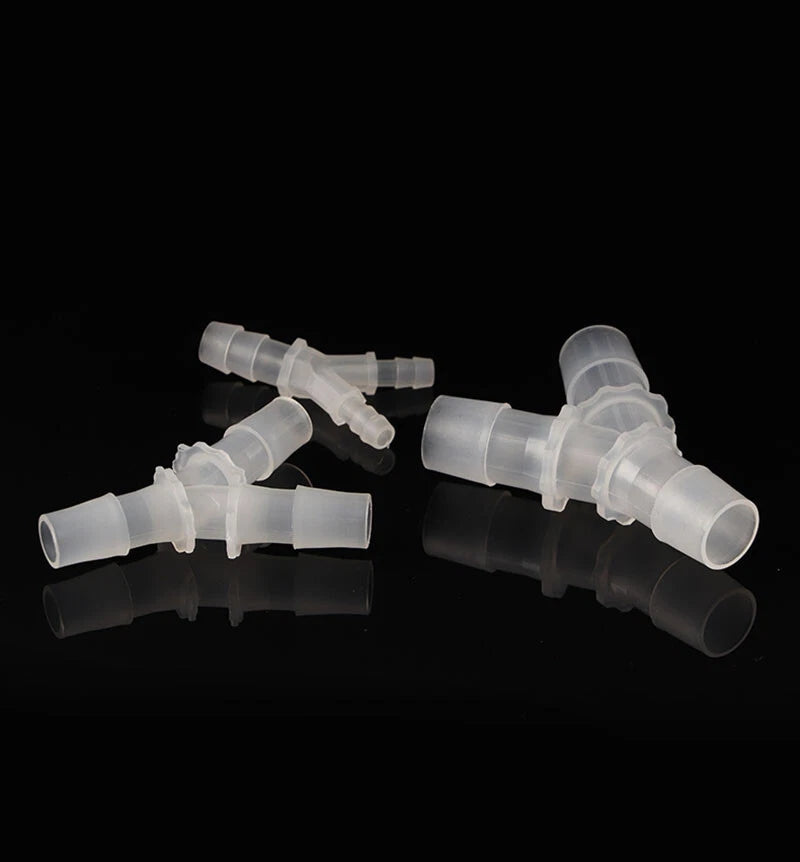

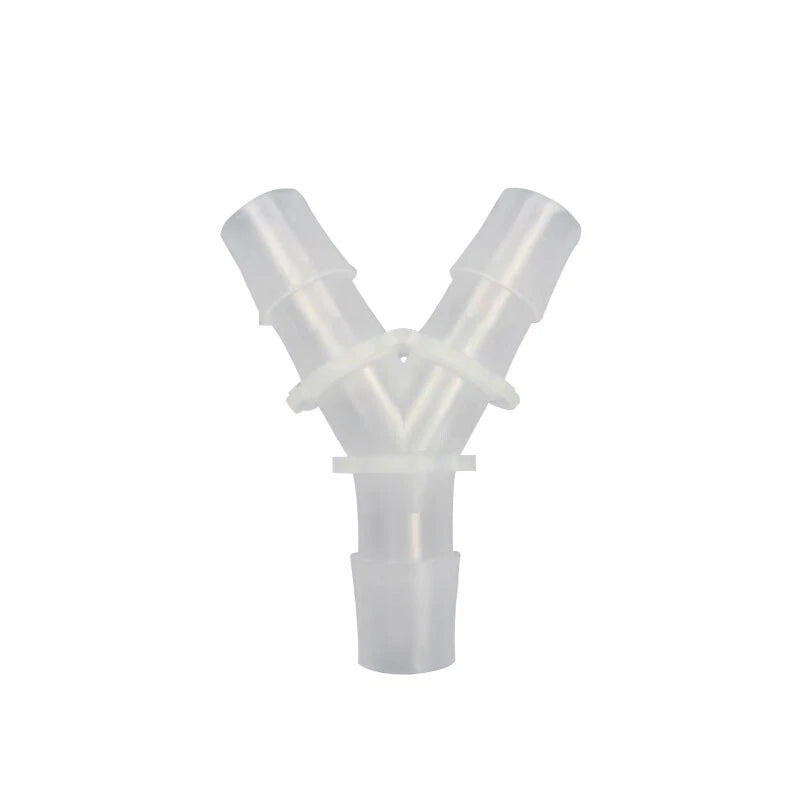

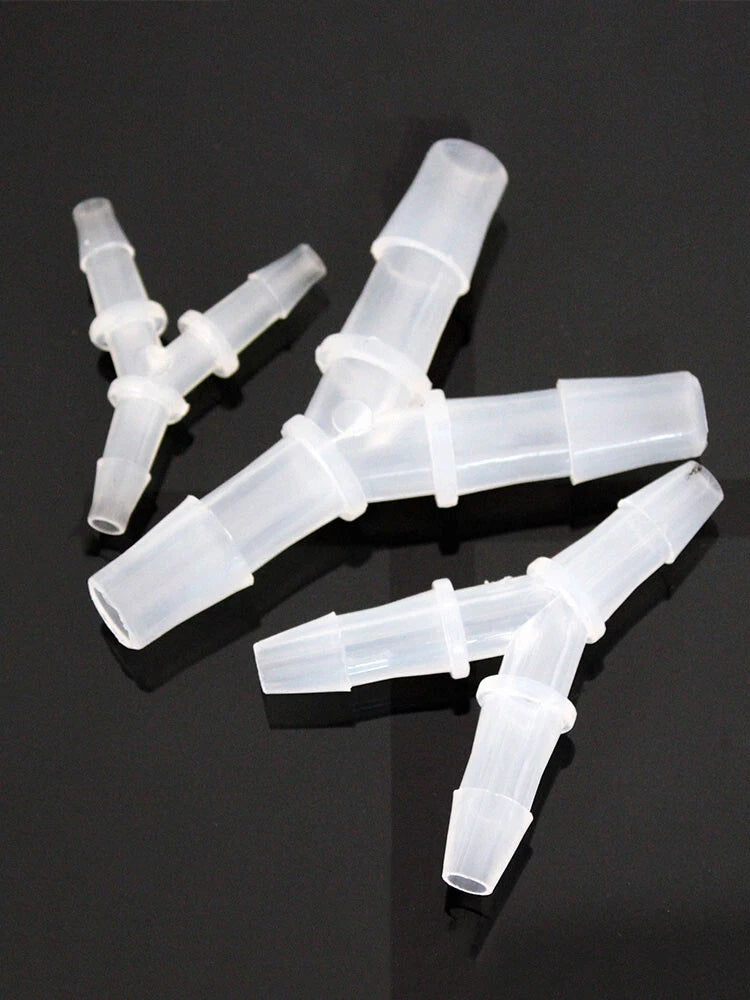

Each connector is molded from rigid plastic and features three barbed ports arranged in a Y configuration. Single-bore sizes range from 2.4 mm (~3/32 in) to 19.5 mm (~49/64 in), covering the most common flexible tubing diameters. Stepped reducer variants — including 4-6-4 mm, 4-8-4 mm, 4-10-4 mm, 6-8-6 mm, 6-10-6 mm, 8-10-8 mm, 8-12-8 mm, and 10-12-10 mm — let you branch between two different hose diameters in a single fitting.

Typical use cases include low-pressure drip irrigation manifolds, aquarium and pond aeration splits, laboratory tubing networks, and hobby pneumatic circuits where a Y-branch barbed hose fitting is needed to distribute air or liquid flow without soldering or threading.

⚠️ Designed for flexible PVC, silicone, and polyurethane tubing. Match the barb diameter to your tubing's inner diameter for a secure push-fit seal. Not rated for high-pressure or steam applications.

✅ Key Features of These Y-Type Barbed Hose Connectors

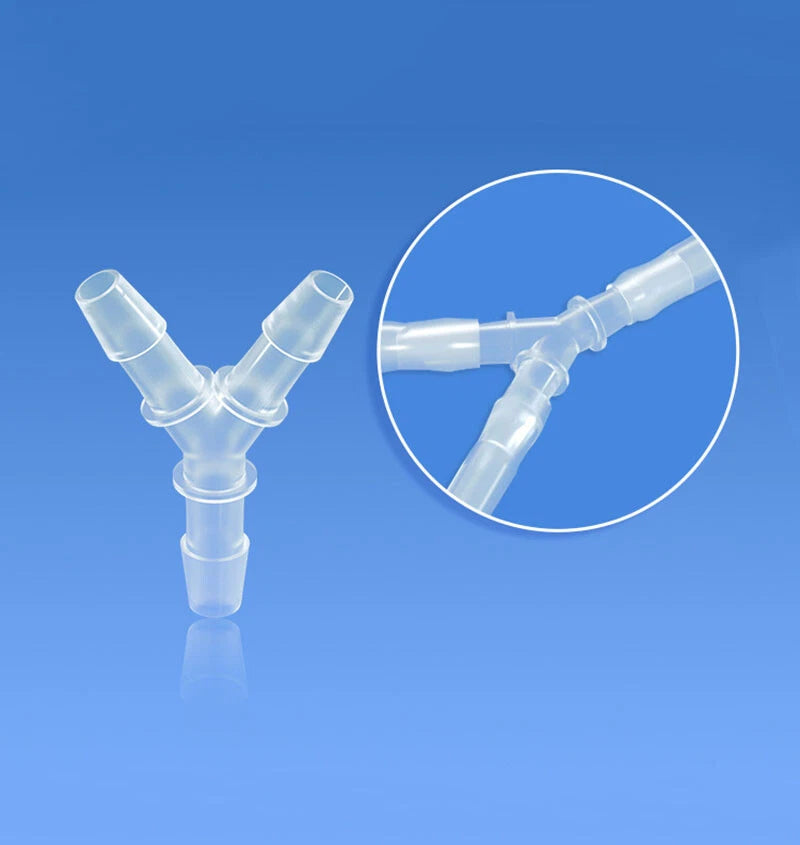

🔀 True Y-Branch Layout — Three barbed ports at equal angles split one inlet into two outlets (or merge two lines into one) without flow restriction.
📐 21 Size Options — Single-bore sizes from 2.4 mm to 19.5 mm plus eight stepped reducer configurations cover a wide range of flexible tubing diameters in one product family.
🔒 Barbed Retention Design — Circumferential barbs grip the inner wall of flexible tubing to resist pull-out without requiring hose clamps under typical low-pressure conditions.
🧪 Rigid Plastic Construction — Molded from a hard plastic that holds its shape under moderate fluid pressure and resists deformation when tubing is pushed on.
🔧 Tool-Free Installation — Push tubing firmly over each barb by hand; no wrenches, adhesives, or thread tape required for assembly.
📦 Flexible Pack Quantities — Available in 1, 5, 10, 20, 30, or 50-piece packs so you can order exactly what a single repair or a full irrigation run requires.

📐 Technical Specifications — Y-Type Barbed Tube Connectors

Connector Type	3-Way Y-Branch Barbed
Port Configuration	1 inlet × 2 outlets (symmetrical Y)

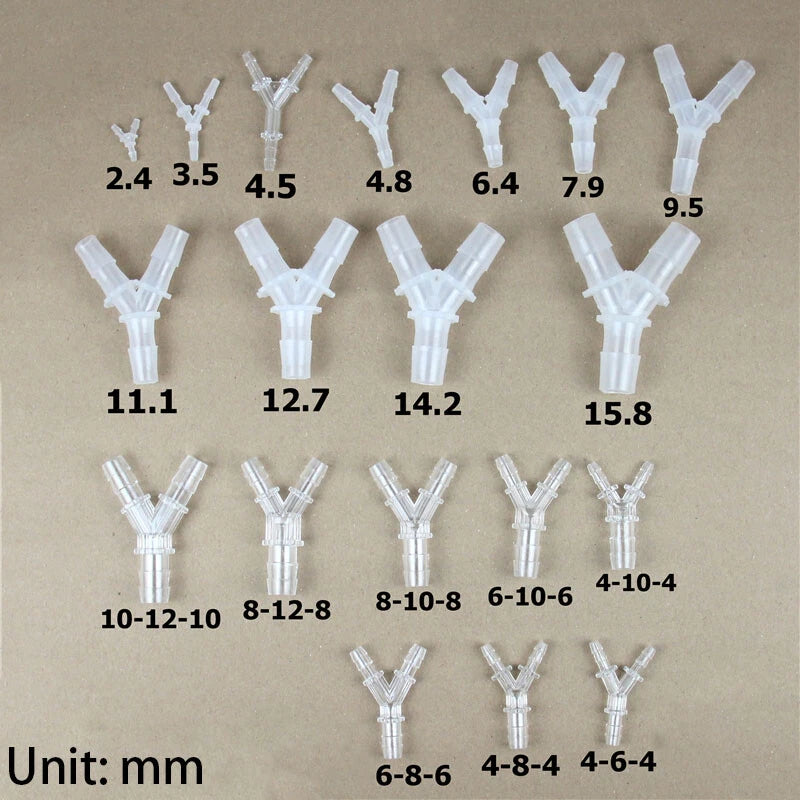

Single-Bore Sizes	2.4, 3.5, 4.5, 4.8, 6.4, 7.9, 9.5, 11.1, 12.7, 14.2, 15.8, 17.5, 19.5 mm
Stepped Reducer Sizes	4-6-4, 4-8-4, 4-10-4, 6-8-6, 6-10-6, 8-10-8, 8-12-8, 10-12-10 mm
Material	Rigid plastic (PVC-compatible)
Compatible Tubing	Flexible PVC, silicone, polyurethane
Pressure Rating	See variant options — suitable for low-pressure applications
Installation Method	Push-fit barbed (tool-free)
Pack Quantities	1, 5, 10, 20, 30, 50 Pcs
Color / Finish	See variant options

❓ Frequently Asked Questions

How do I choose the right barb size for my tubing?

Match the barb diameter to your tubing's inner diameter (ID), not the outer diameter. For example, if your tubing has a 6.4 mm ID, select the 6.4 mm barb size. A barb that is slightly larger than the ID creates a tighter, more secure grip; a barb that is smaller than the ID will not seal reliably.

When should I use a stepped reducer variant instead of a single-bore size?

Use a stepped reducer (e.g., 6-10-6 mm) when you need to branch a larger main line into two smaller lines, or merge two smaller lines into one larger outlet. The center port diameter differs from the two side ports, allowing you to connect hoses of different inner diameters in a single fitting.

Do I need hose clamps with these barbed connectors?

For most low-pressure applications — drip irrigation, aquarium aeration, and hobby pneumatics — the barbs alone provide sufficient retention when the tubing ID closely matches the barb diameter. For higher-flow or higher-pressure setups, adding small worm-drive hose clamps over each barb is recommended for added security.

Are these connectors compatible with silicone tubing?

Yes. Silicone tubing is flexible enough to stretch over the barbs and form a reliable seal. Because silicone is more elastic than PVC, the barb grip is typically very secure. Confirm the barb diameter matches your silicone tubing's inner diameter before ordering.

Can these fittings be used outdoors or in wet environments?

The rigid plastic construction is suitable for outdoor drip irrigation and pond/aquarium use where the connector is exposed to water. Prolonged UV exposure may cause gradual discoloration over time. For buried or fully submerged installations, confirm compatibility with your specific fluid and environment before use.

What is the maximum pressure these connectors can handle?

These connectors are designed for low-pressure fluid and air distribution — typical applications include drip irrigation (generally under 30 PSI), aquarium aeration, and hobby pneumatic circuits. They are not rated for steam, high-pressure compressed air lines, or pressurized plumbing systems. Contact us to confirm suitability for your specific pressure requirements.

How many pieces should I order for a drip irrigation project?

Count the number of Y-branch points in your irrigation layout, then add 10–15% extra for adjustments or future expansion. The 10-piece and 20-piece packs are popular for small garden rows, while the 30-piece and 50-piece packs suit larger beds or multi-zone systems. Ordering in bulk reduces the per-unit cost significantly.

🛒 Select your Size(mm) and Packing Quantity above, then add to cart.
