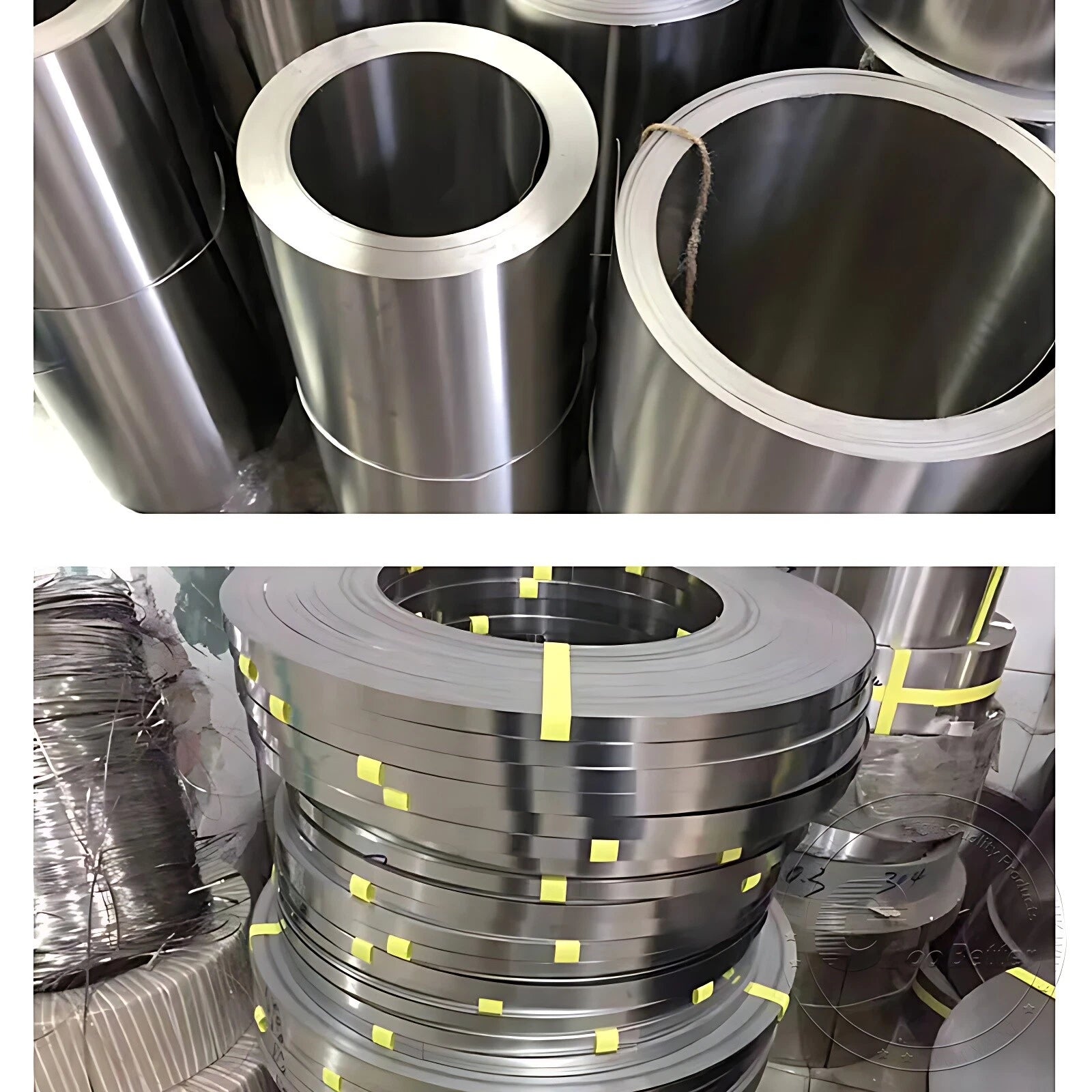

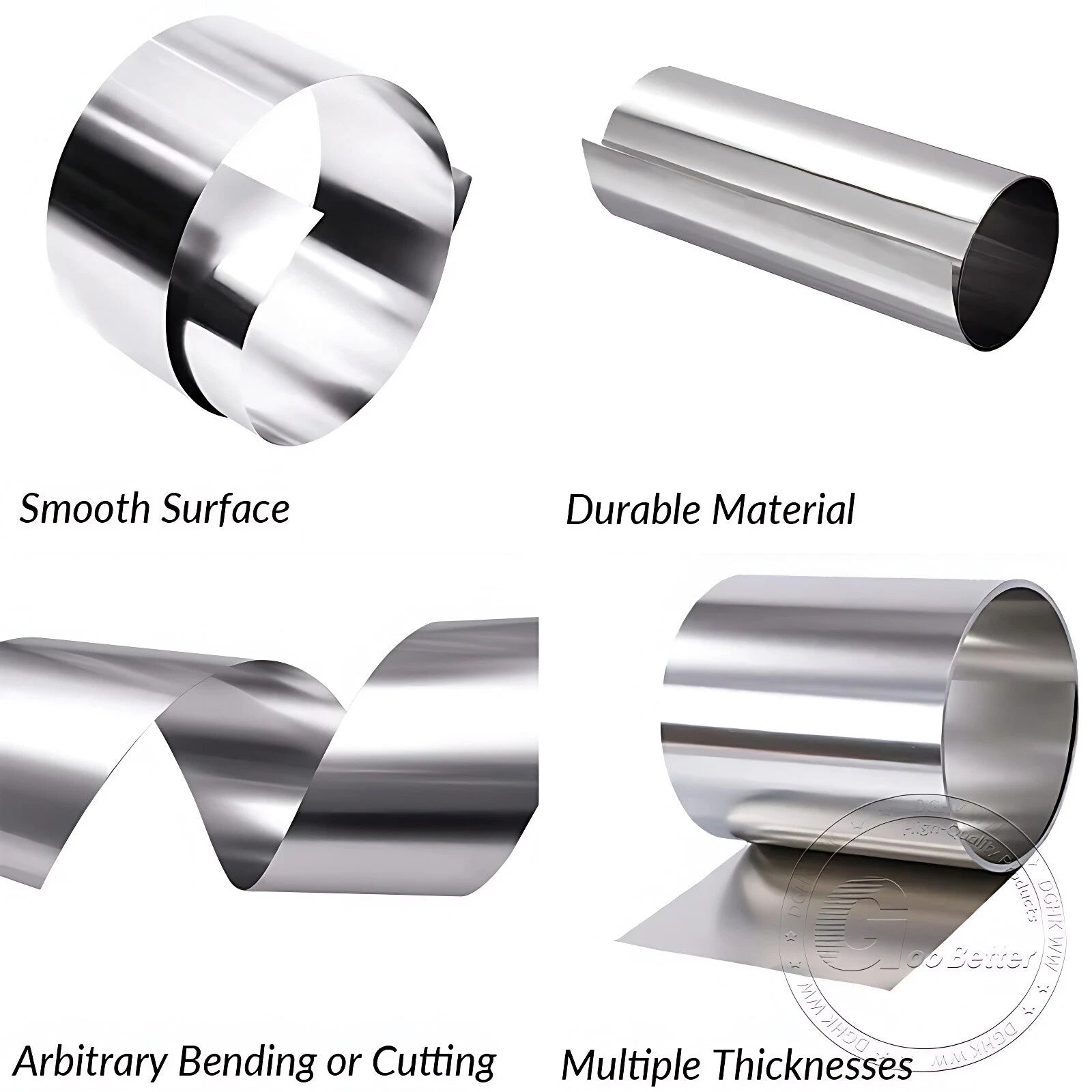

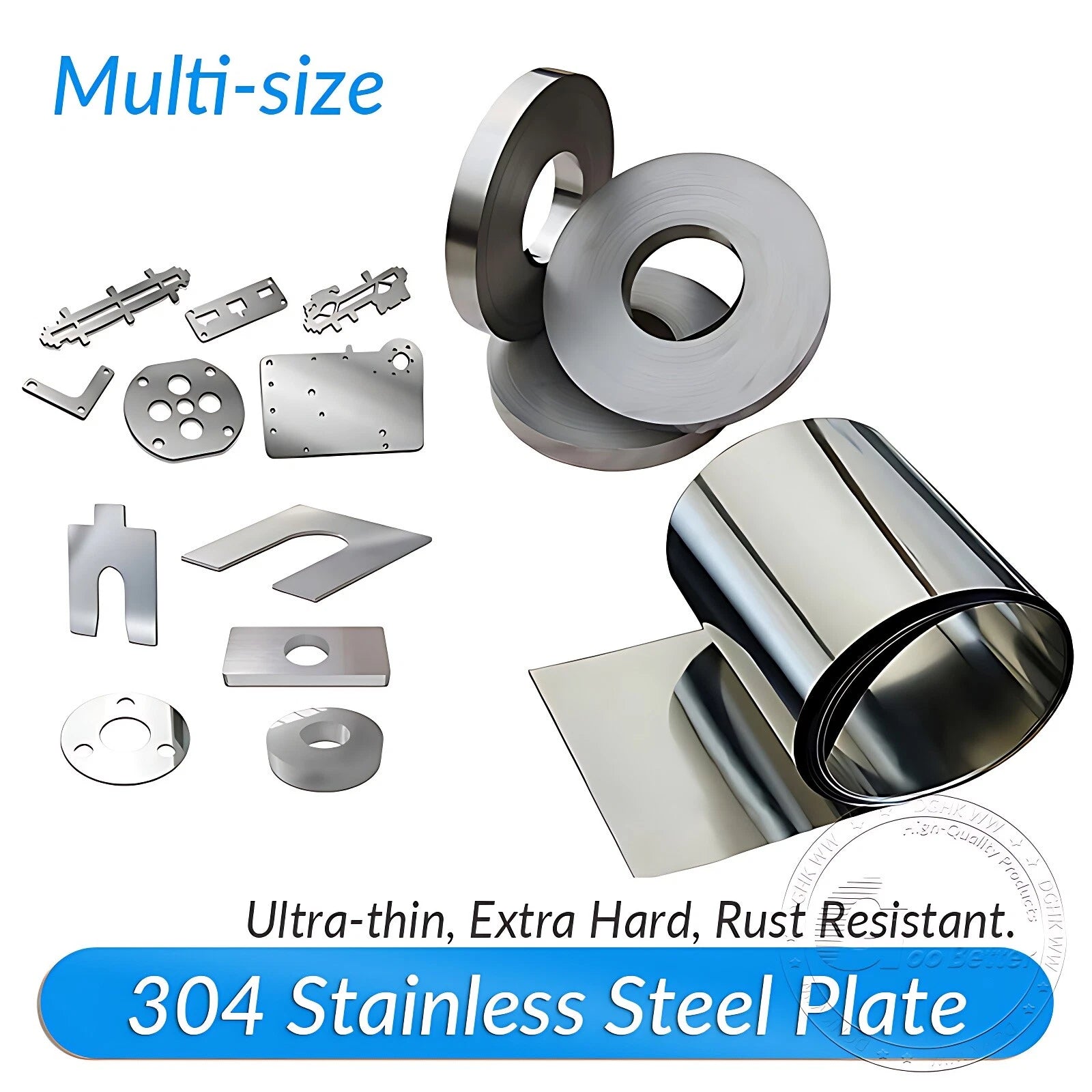

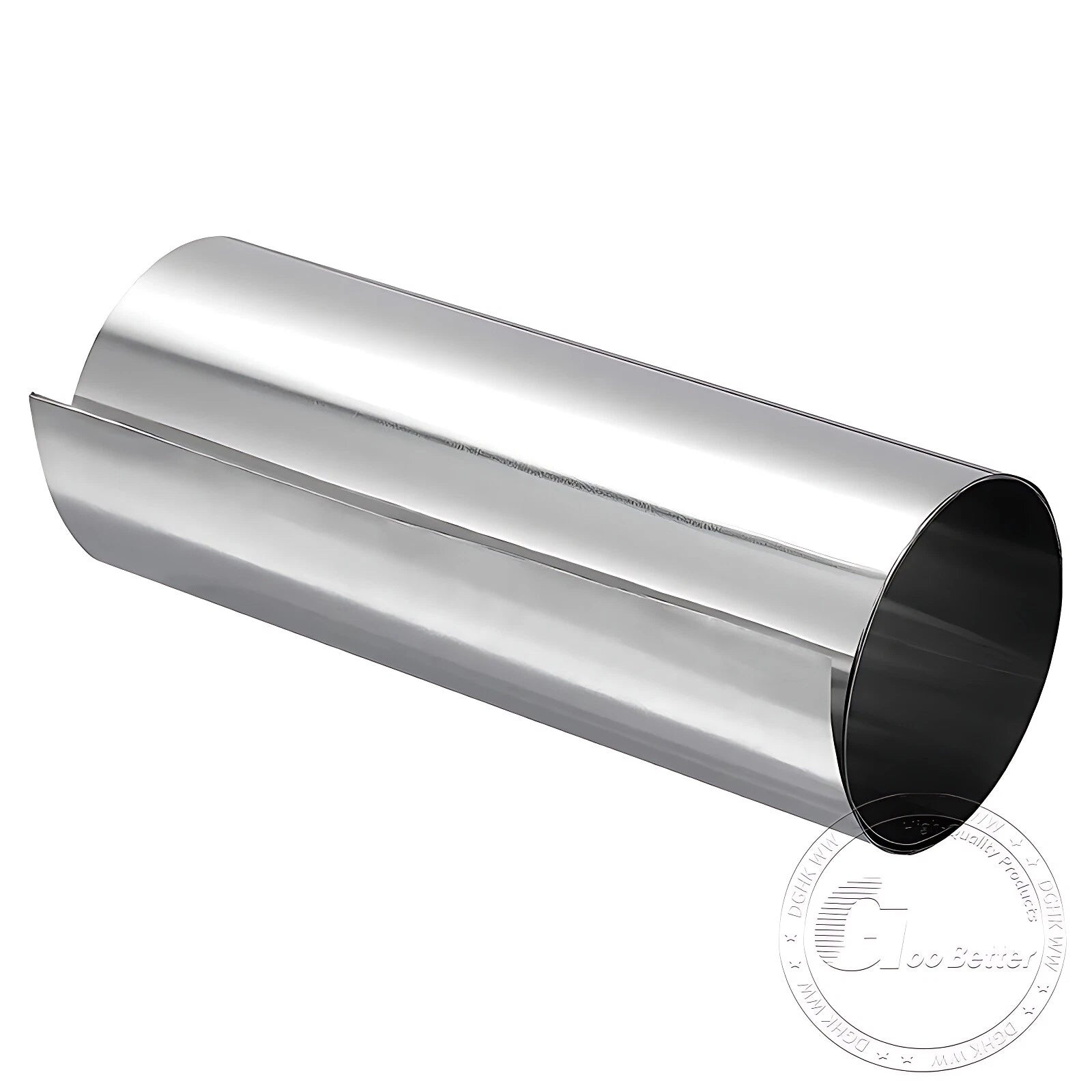

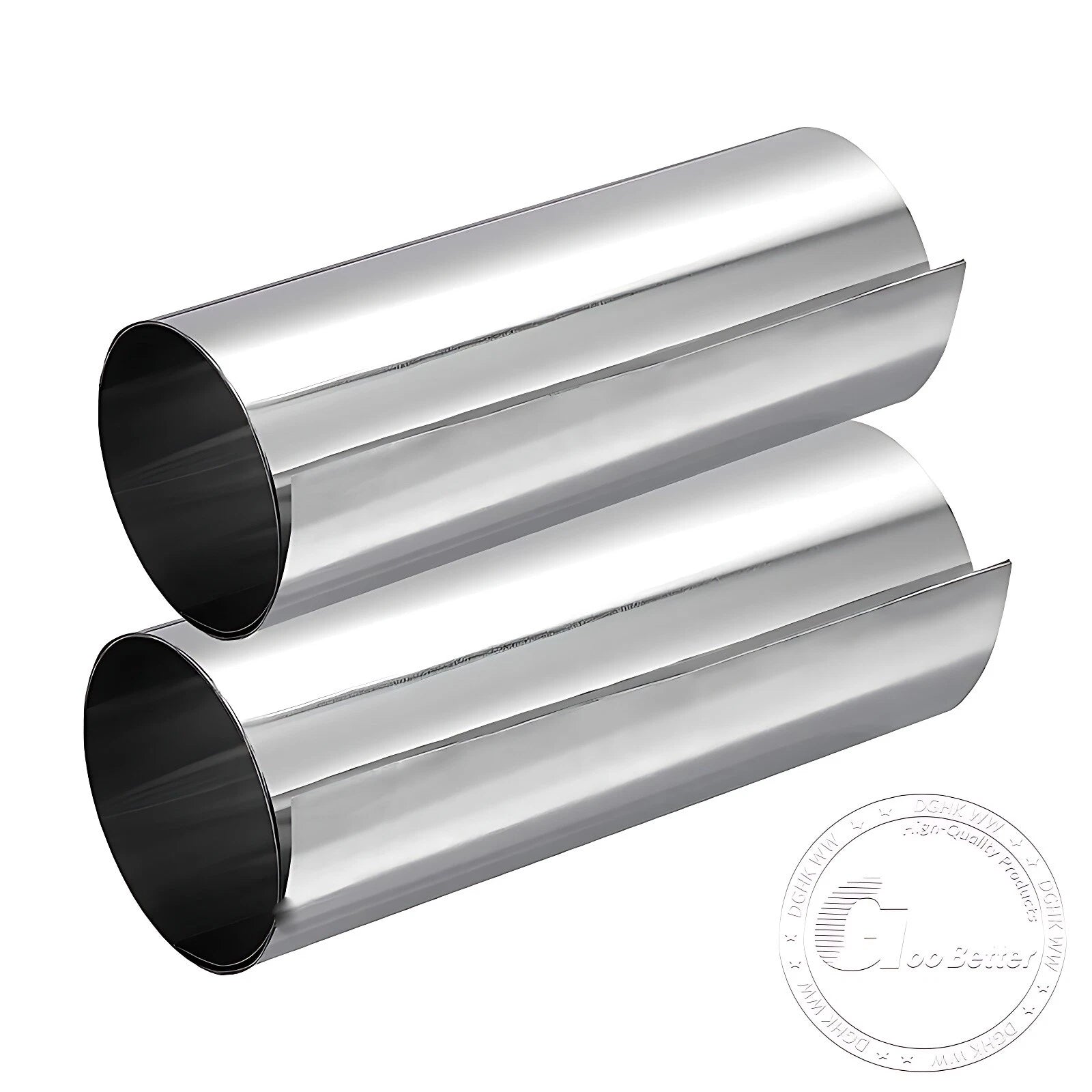

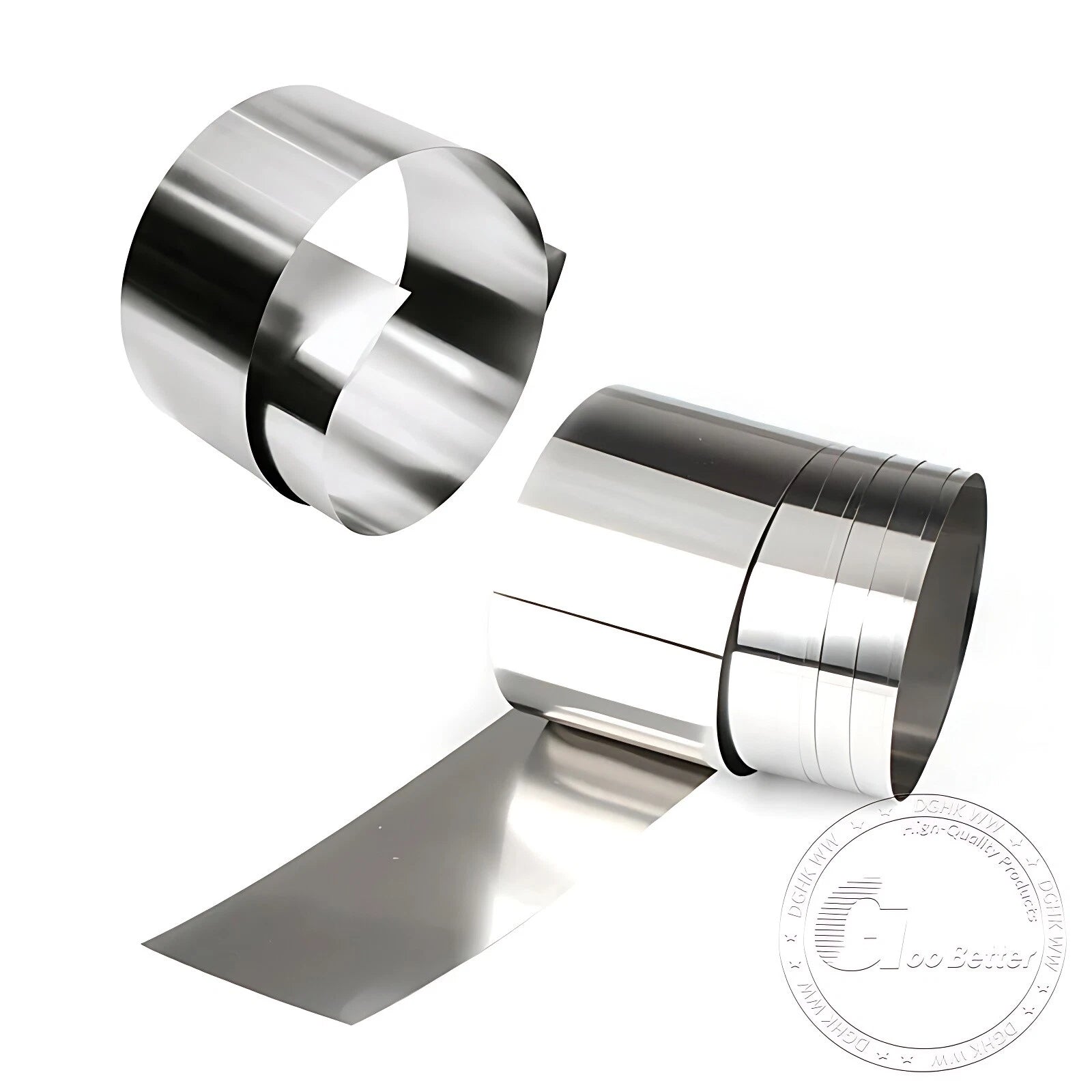

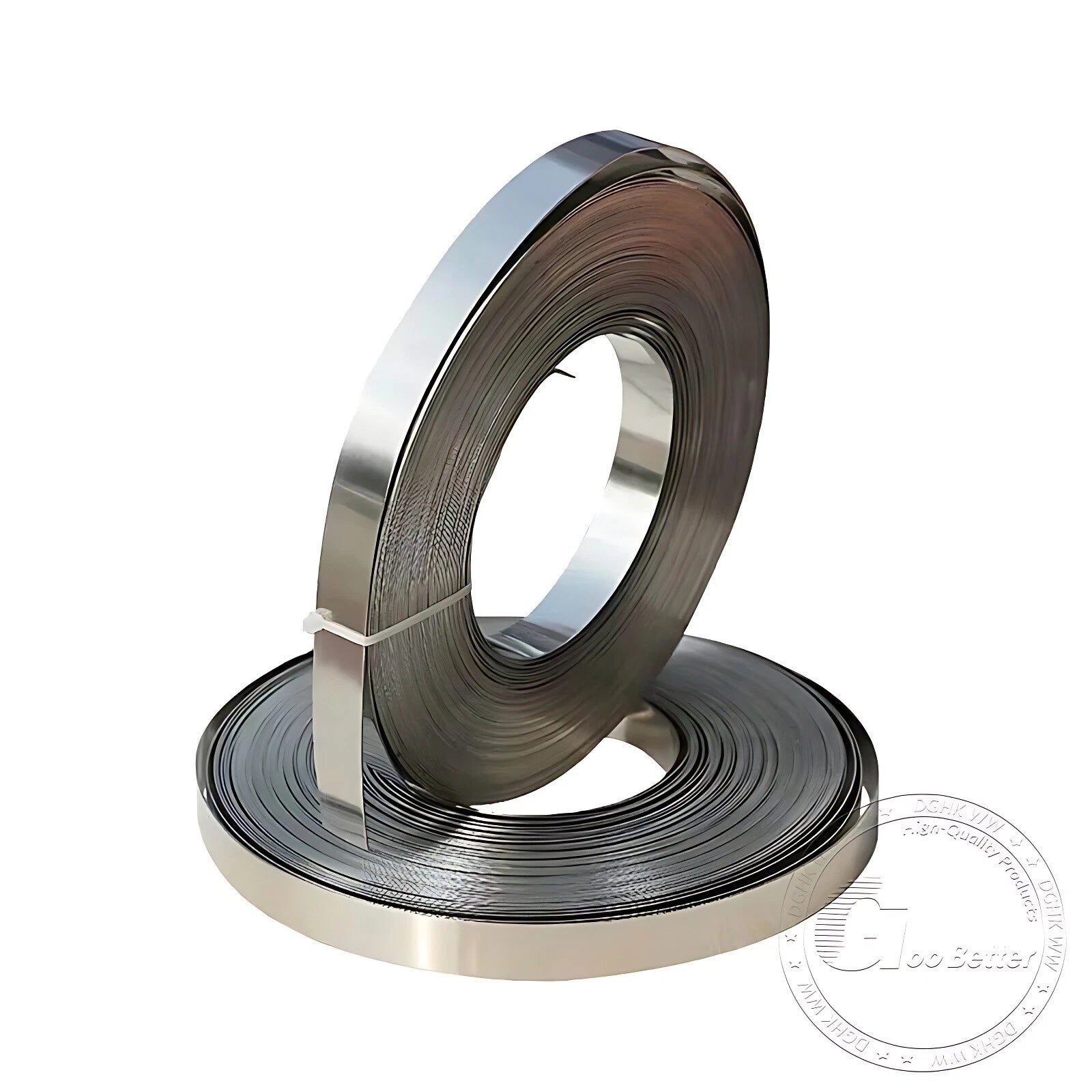

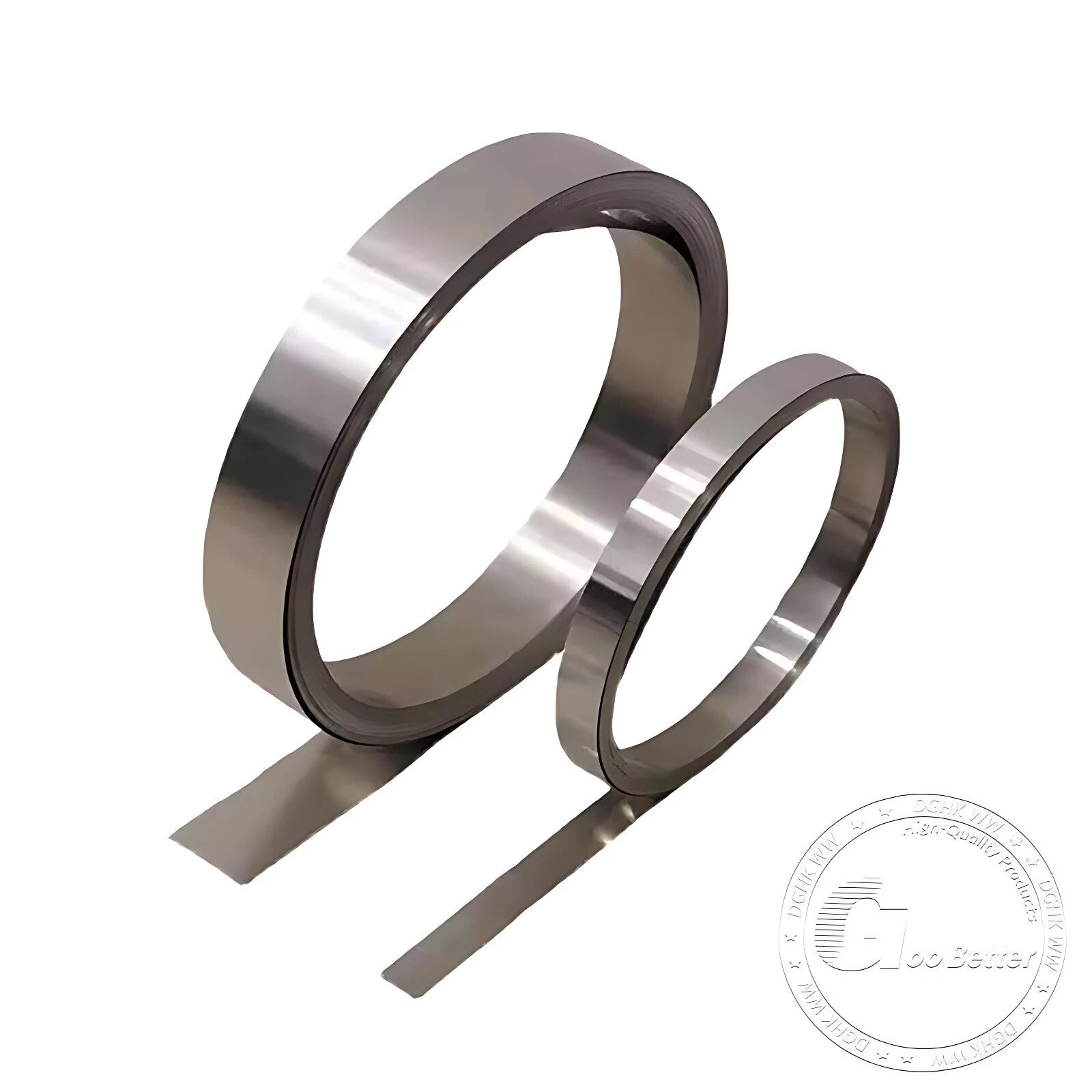

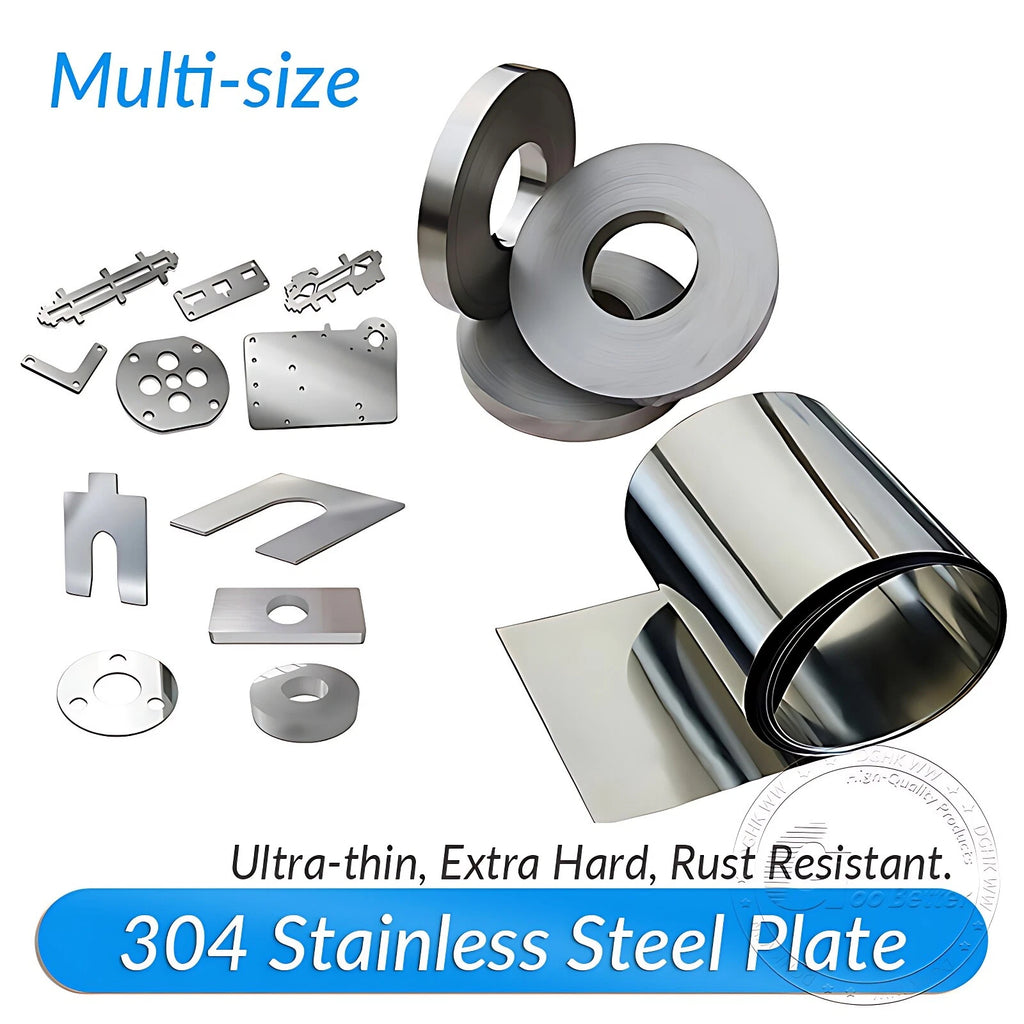

304 Stainless Steel Thin Plate Band Foil Sheet 0.01mm-0.5mm Metal Strip Roll

Measure the gap you need to fill with a feeler gauge, then select the closest single thickness or combine two strips. For machine-tool shimming, 0.05 mm – 0.2 mm covers most bearing and ways adjustments. For gasket replacement, match the original gasket's compressed thickness. If you're unsure, order one step thinner than your measurement — it's easier to add a second layer than to remove material.

For light-duty banding — securing insulation, bundling pipes, or edge-protecting panels — yes. 304 stainless at 0.3 mm – 0.5 mm thickness provides adequate tensile strength for most banding tasks. For heavy-load structural strapping that must resist sustained tension above roughly 500 N, consult a structural engineer and consider a heavier gauge or a dedicated banding alloy.

304 stainless steel resists rust in most outdoor atmospheric conditions. The chromium oxide passive layer regenerates when scratched, providing ongoing protection. However, in coastal or marine environments with prolonged salt-spray exposure, surface staining (tea staining) can occur over time. For continuous saltwater immersion, 316-grade stainless is the recommended alternative. Periodic cleaning with a mild stainless cleaner maintains appearance.

Yes. Thinner gauges (0.01 mm – 0.1 mm) cut cleanly with sharp scissors, rotary cutters, or a craft knife and straight edge. Mid-range gauges (0.1 mm – 0.3 mm) work well with aviation snips or a guillotine shear. Thicker strips (0.3 mm – 1.0 mm) are best cut with metal shears, an angle grinder with a thin cutting disc, or a CNC laser/plasma cutter for precision shapes. Always wear cut-resistant gloves when handling thin-gauge metal edges.

Measure the diameter or perimeter of the component you're wrapping or shielding, then add 10–20 mm overlap. For a 2-inch (50 mm) exhaust pipe wrap, the 50 mm or 100 mm width works well depending on whether you want a single-pass wrap or a wider shield panel. For flat heat shields mounted near headers, the 150 mm – 300 mm widths provide enough coverage to cut custom shapes without seaming.

No. 304 and 316 are both austenitic stainless steels, but 316 adds 2–3% molybdenum, which significantly improves resistance to chloride pitting and crevice corrosion. For most indoor, automotive, HVAC, and general fabrication uses, 304 performs identically to 316 at a lower cost. Choose 316 only when the part will be in prolonged contact with saltwater, chlorinated water, or aggressive industrial chemicals.

TIG welding is the preferred method for thin-gauge 304 stainless — it provides precise heat control that minimizes warping in foil-thickness material. MIG welding works for strips 0.3 mm and above. Silver soldering is possible with appropriate flux and filler. Standard tin-lead solder does not bond reliably to stainless without aggressive acid flux, which can cause corrosion at the joint. For thicknesses below 0.1 mm, adhesive bonding or mechanical fastening is often more practical than welding.
