Nylon Pneumatic Push Fit Connectors — Reliable Tube Joining for Air & Water Lines

When a leaking joint or mismatched fitting brings a pneumatic project to a halt, the right push fit connector makes all the difference. These nylon pneumatic push fit connectors are designed for DIYers, workshop builders, and small-scale automation users who need a fast, tool-free way to join, branch, or terminate tubing in compressed air and water line systems.

Each connector is molded from engineering-grade nylon with a corrosion-resistant brass or nylon internal collet mechanism. The range covers tube outer diameters from 4 mm to 16 mm (approximately 5/32" to 5/8") and includes straight connectors, reducing connectors, T-pieces, Y-pieces, cross pieces, elbows, plugs, caps, bulkhead fittings, throttle valves, directional valves, pneumatic hose, and more — all sold individually so you buy exactly what you need.

Typical applications include workshop air tool distribution lines, irrigation and garden water systems, pneumatic automation rigs, and laboratory bench tubing setups. Whether you need a nylon push fit elbow for a tight corner, a reducing T-piece to branch two different tube sizes, or a throttle check valve to control cylinder speed, this range covers the most common push-to-connect fittings in a single listing.

⚙️ Compatibility: Designed for nylon (PA) and polyurethane (PU) pneumatic tubing with outer diameters of 4, 5, 6, 8, 10, 12, 14, and 16 mm. Thread variants use BSP (British Standard Pipe) parallel threads in 1/8", 1/4", 3/8", and 1/2" sizes. Verify your tube OD and thread standard before ordering.

✅ Key Features of These Nylon Pneumatic Push Fit Connectors

🔧Tool-Free Push-to-Connect — Insert the tube and the internal collet grips it instantly. No clamps, no thread tape, no tools required for most configurations.
📐Wide Size Range (4–16 mm OD) — Covers the most common pneumatic tube diameters used in workshop and light industrial applications, with reducing variants to bridge different sizes.

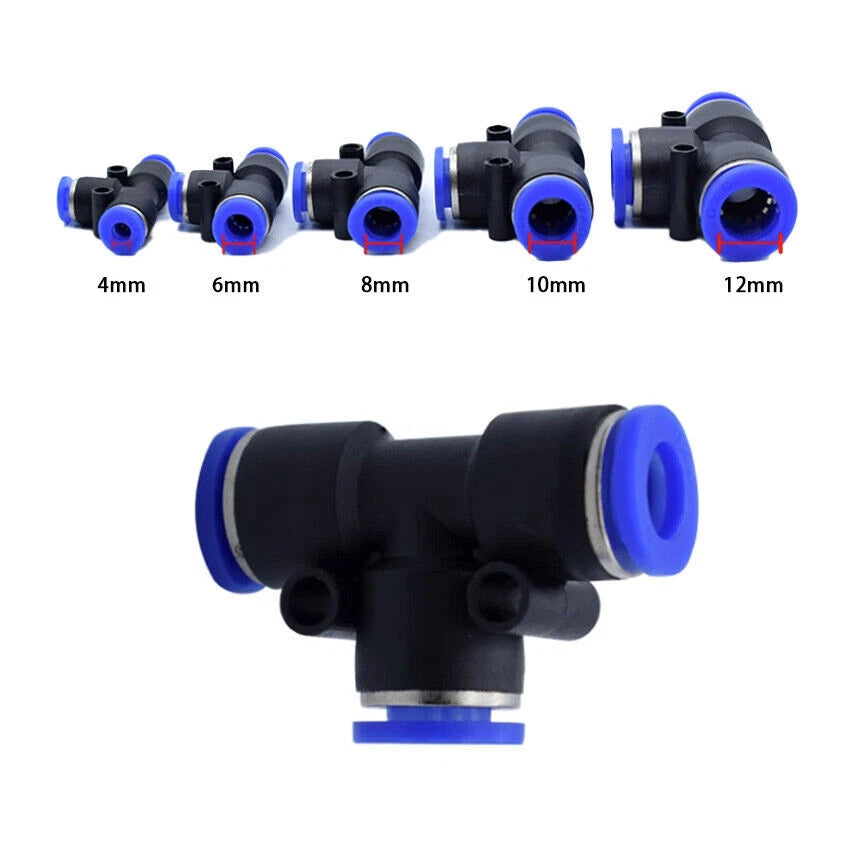

🔀30+ Execution Types — Straight connectors, reducing connectors, T-pieces, Y-pieces, cross pieces, elbows (90°), reducing elbows, plugs, caps, bulkhead fittings, brass bulkheads, throttle check valves, pneumatic throttles, directional valves, distributors, mufflers, and more.
🌊Suitable for Air & Water Lines — Rated for use in compressed air systems and low-pressure water lines. Nylon body resists moisture and common workshop fluids.

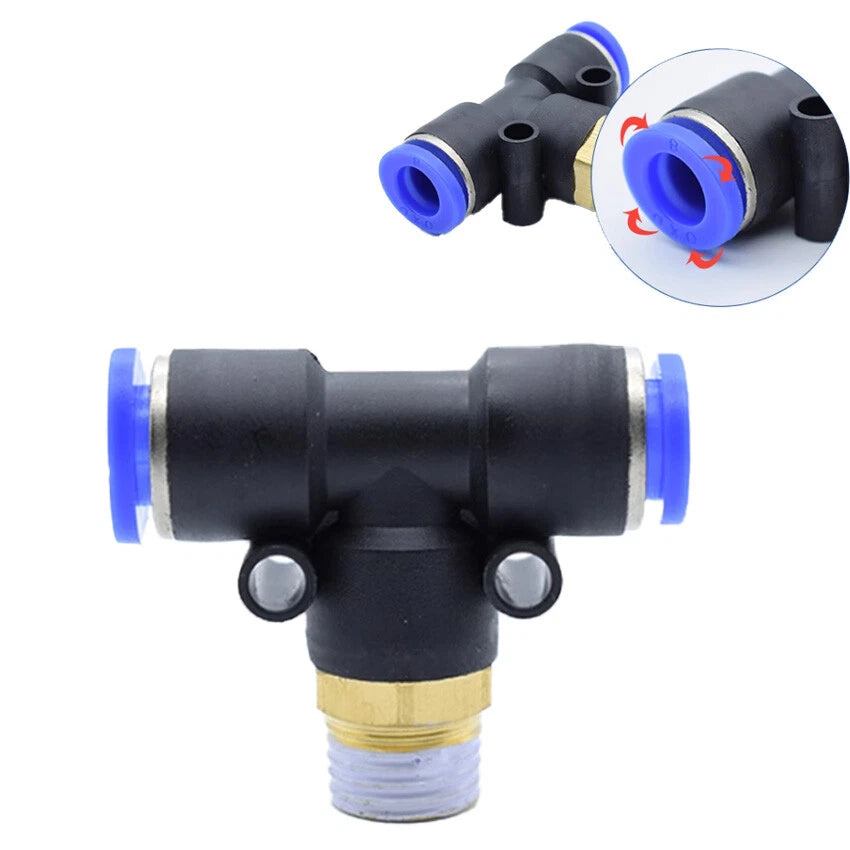

🔩BSP Thread Options Available — Many variants include male or female BSP threaded ports (1/8", 1/4", 3/8", 1/2") for direct connection to valves, cylinders, and manifolds.
📦Sold Individually — Buy Only What You Need — Each unit is priced and sold as a single piece, so you can mix and match execution types and sizes without buying a kit with parts you won't use.

📐 Technical Specifications — Nylon Pneumatic Push Fit Connectors

Tube Outer Diameter Range	4 mm – 16 mm (approx. 5/32" – 5/8")
Thread Standards (where applicable)	BSP 1/8", 1/4", 3/8", 1/2"
Body Material	Engineering-grade nylon (PA)
Collet / Insert Material	Nylon or brass (varies by execution type)
Seal Type	O-ring (NBR, typically)
Working Pressure	See variant options
Working Temperature	See variant options
Compatible Tube Types	Nylon (PA), Polyurethane (PU)

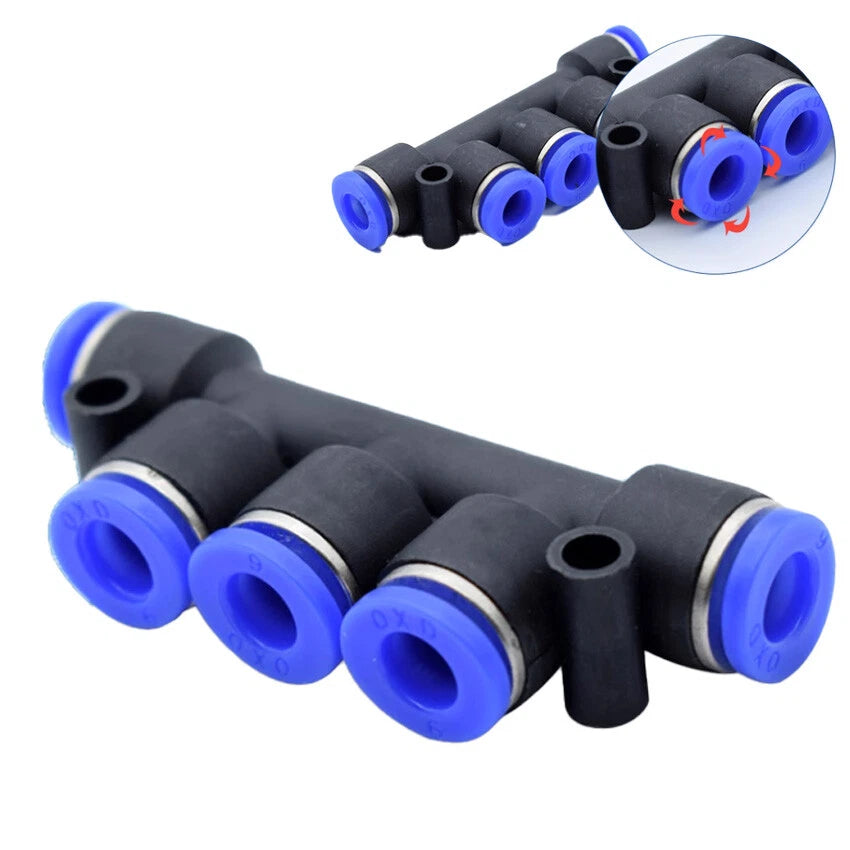

Execution Types Available	Straight connector, reducing connector, T-piece, T-piece reducing, Y-piece, Y-piece reducing, cross piece, elbow 90°, reducing elbow 90°, plug, cap, bulkhead fitting, brass bulkhead, throttle check valve, pneumatic throttle, directional valve (3/2), distributor, muffler, and more
Packaging	1 piece per unit
Hose Options (where selected)	Outer diameter 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm — sold per 1 m length

❓ Frequently Asked Questions

How do I know which tube outer diameter to select?

Measure the outside diameter of your existing tubing with a caliper or ruler. Common pneumatic tube sizes are 4, 6, 8, 10, 12, and 16 mm OD. The connector size must match the tube OD exactly — the internal collet is sized to grip a specific diameter. If you are replacing an existing fitting, check the markings on the old connector or the tube packaging.

What is the difference between a reducing connector and a standard connector?

A standard (equal) connector joins two tubes of the same outer diameter. A reducing connector has two different port sizes — for example, 8 mm × 6 mm — allowing you to connect a larger tube to a smaller one. Reducing T-pieces and Y-pieces work the same way, with the reduced port on the branch leg.

Are these fittings suitable for water lines as well as air?

Yes. The nylon body and NBR O-ring seal are compatible with both compressed air and low-pressure water applications such as garden irrigation, aquarium tubing, and bench water lines. They are not rated for hot water or steam. For high-pressure water systems, verify the working pressure specification for your chosen variant before use.

Do the threaded variants use BSP or NPT threads?

The threaded variants in this listing use BSP (British Standard Pipe) parallel threads, which are the standard in most European and Australian pneumatic systems. NPT (National Pipe Taper) threads, common in North American systems, have a different thread angle and pitch and are not directly interchangeable. If your valve or cylinder uses NPT ports, you will need an NPT-to-BSP adapter or a different fitting series.

How do I release the tube from a push fit connector?

To release the tube, press the collet ring (the outer ring around the tube entry) firmly toward the connector body while simultaneously pulling the tube straight out. Do not twist or angle the tube during release, as this can damage the collet teeth. Depressurize the line before attempting to disconnect any fitting.

Can I reuse these connectors after disconnecting the tube?

Push fit connectors can typically be reconnected several times, but repeated disconnection and reconnection can wear the collet teeth over time. If a connector no longer grips the tube firmly or shows visible damage to the collet, replace it. For permanent or high-cycle installations, consider using a new connector each time for reliability.

What is the throttle check valve used for?

A throttle check valve (also called a flow control valve) is used to regulate the speed of a pneumatic cylinder by restricting airflow in one direction while allowing free flow in the other. It is typically installed on the exhaust port of a cylinder to control the extension or retraction speed. The adjustment screw lets you fine-tune the flow rate without tools.

🛒 Select your Execution type and Size above, then add to cart.
