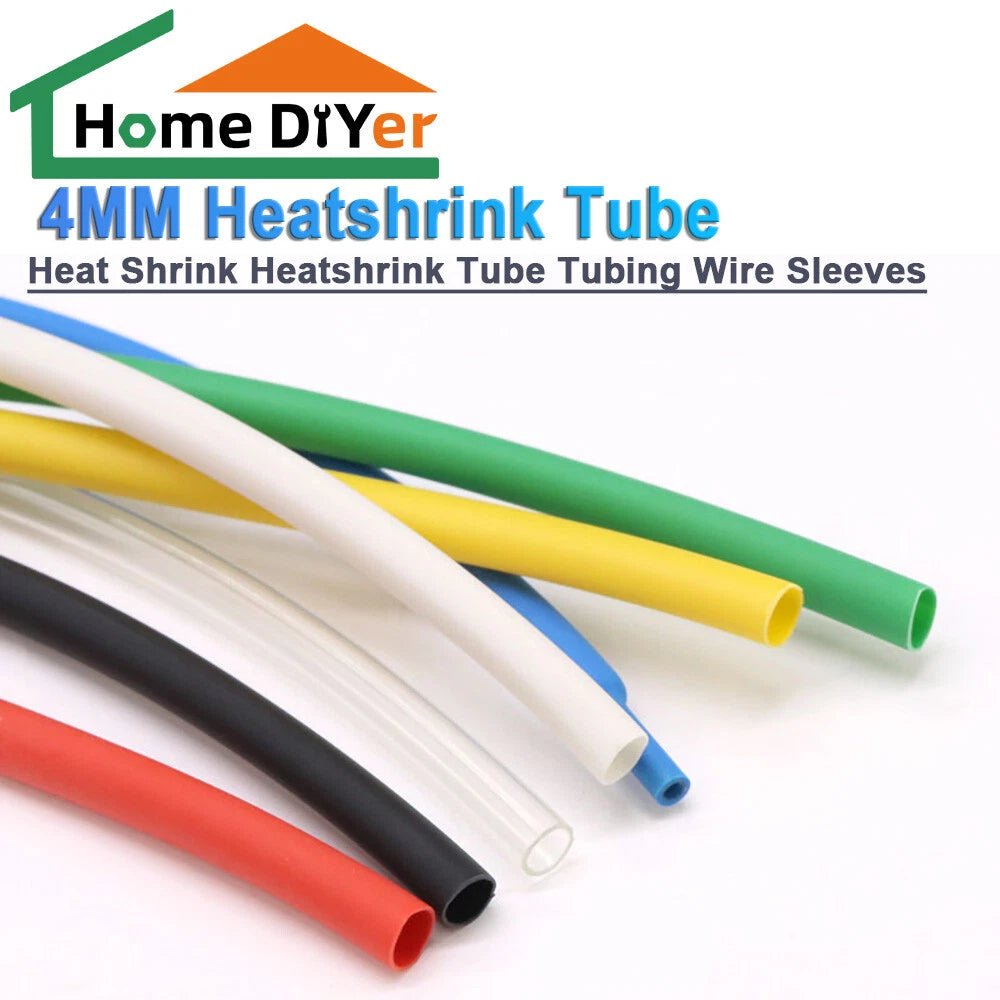

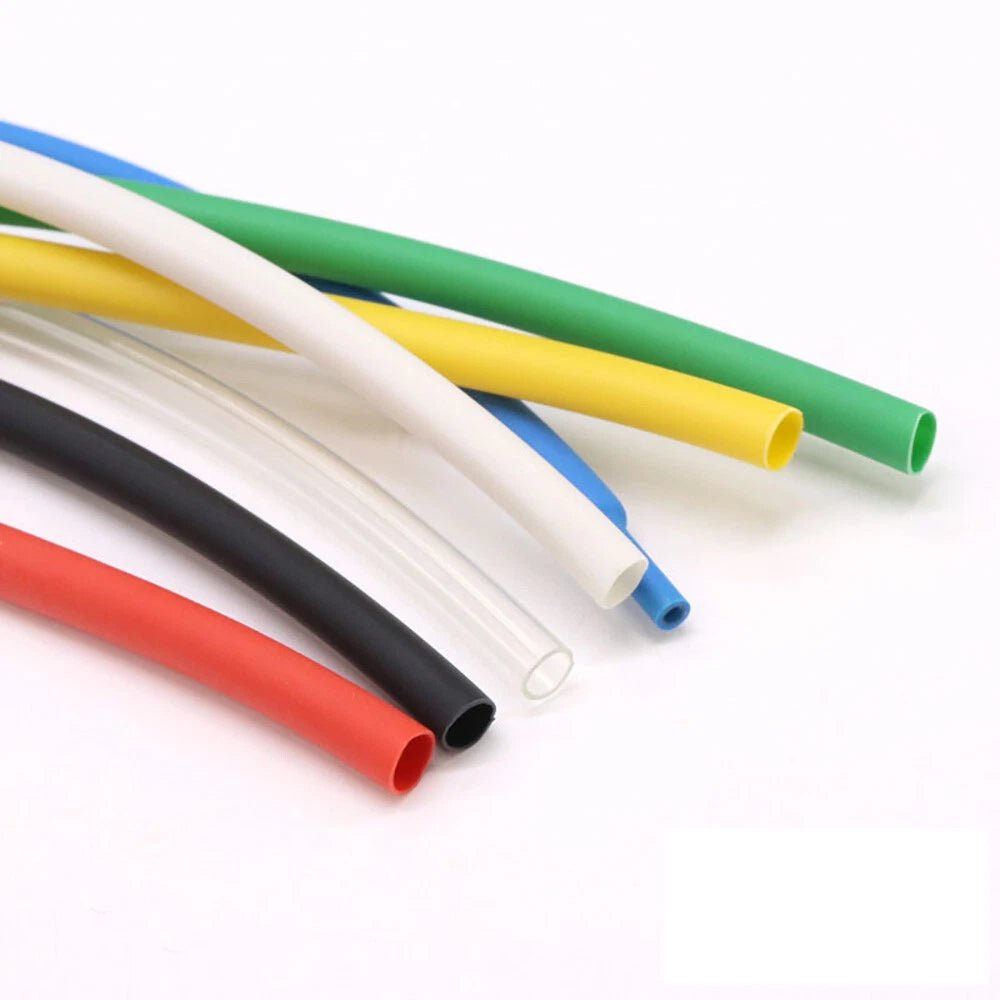

4mm Heat Shrink Tubing — 2:1 / 3:1 Glue-Lined / 4:1 / PTFE Wire Sleeving

HomeDIYer

No reviews

By HomeDIYer®

Size: 2∶1-PTFE

Color: Transparent

Packaging (pcs): 5

Price:

$36.04 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

4mm Heat Shrink Tubing — Versatile Wire Sleeving for Automotive, Marine & Electronics

A loose wire splice that corrodes after one rainy season, a connector that pulls apart under vibration, or a cable bundle that chafes through its jacket on a sharp edge — these are the failure points that 4mm heat shrink tubing is built to prevent. Whether you're a DIY automotive enthusiast rewiring a trailer harness, an electronics hobbyist tidying up a PCB build, or a marine technician sealing bilge pump connections, the right shrink ratio and material make the difference between a repair that lasts and one that fails.

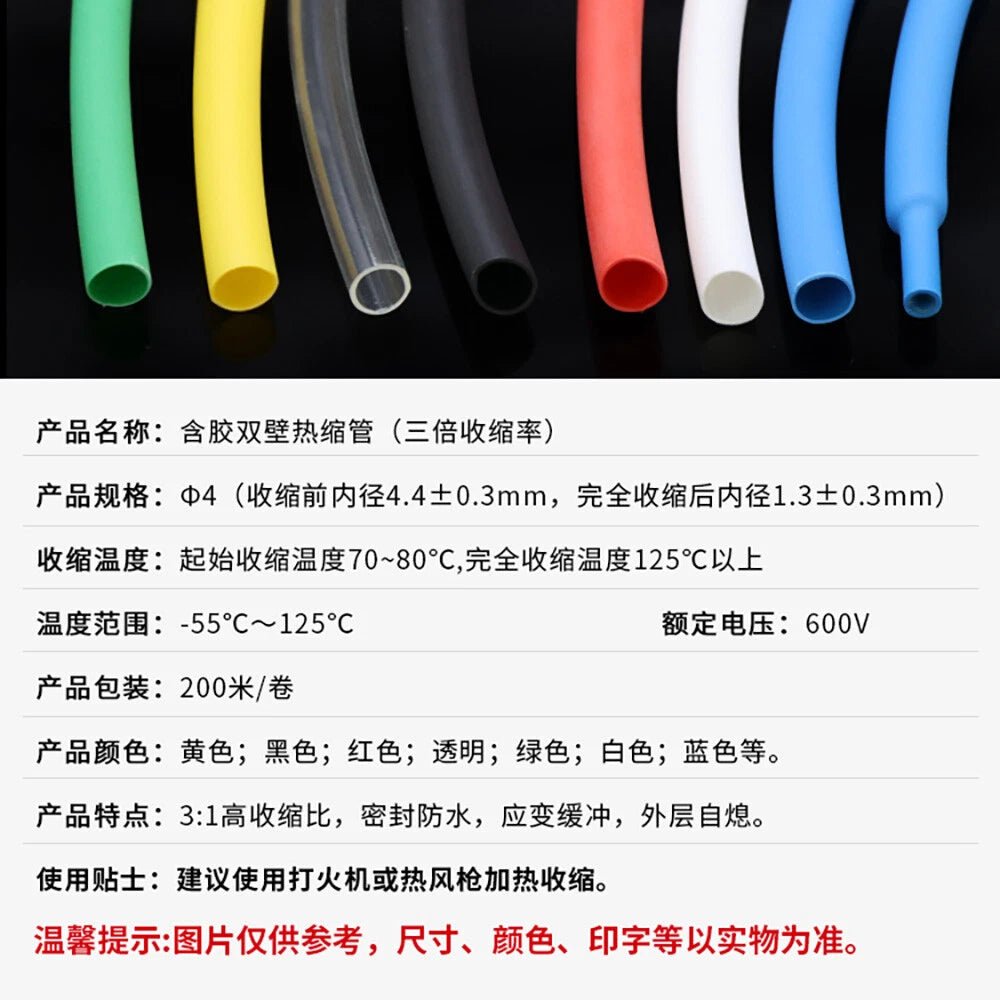

Each pack contains 5, 10, or 15 pieces of 4mm heat shrink tubing with a nominal inner diameter of 4mm (≈5/32") before shrinking. Five distinct types are available: 2:1 polyolefin (recovers to ≈2mm / ≈5/64") for standard wire insulation; 2:1-PTFE for high-temperature and chemically resistant applications; 3:1 with glue (dual-wall adhesive-lined, recovers to ≈1.3mm / ≈1/16") for waterproof seals on automotive and outdoor connections; 4:1 polyolefin (recovers to ≈1mm / ≈3/64") for maximum diameter reduction; and 4:1-PTFE for extreme-environment use. Colors span 13 options: Black, White, Red, Green, Yellow, Blue, Transparent, Bright Black, Yellow-green, Gray, Purple, Orange, and Brown.

Typical use cases include sealing automotive trailer wiring connectors and battery terminal leads with the 3:1 glue-lined variant, color-coding signal and power wires in Arduino and Raspberry Pi projects with the 2:1 standard colors, protecting solder joints on marine bilge pump and navigation light wiring with the adhesive-lined waterproof heat shrink, and insulating high-temperature sensor leads in engine bays or industrial equipment with the PTFE variants.

ℹ️ Compatibility: Fits wires and cable bundles with an outer diameter up to approximately 4mm (≈5/32") before shrinking. The 3:1 and 4:1 variants accommodate a wider range of wire ODs within a single piece. PTFE variants require a heat source capable of reaching 250°C+ (482°F+). Verify your wire OD and heat tool capability before ordering.

✅ Key Features of These 4mm Heat Shrink Tubing Wire Sleeves

🔥 Five Shrink Types in One Listing — Choose from 2:1 polyolefin, 2:1-PTFE, 3:1 adhesive-lined (with glue), 4:1 polyolefin, or 4:1-PTFE to match your exact application — from basic wire color coding to waterproof automotive connector sealing.
💧 Waterproof Adhesive Lining (3:1 Variant) — The dual-wall 3:1 glue-lined tubing melts an inner hot-melt adhesive layer as it shrinks, bonding to the wire jacket and creating a moisture-resistant seal for marine cable splices, trailer wiring, and outdoor electrical connections.
🧪 PTFE Options for Extreme Environments — The 2:1-PTFE and 4:1-PTFE variants handle operating temperatures up to typically 260°C (500°F) and resist acids, fuels, and solvents — suited for engine bay sensor wiring, RF coax terminations, and laboratory instrument leads.
🎨 13 Colors for Wire Identification — Black, White, Red, Green, Yellow, Blue, Transparent, Bright Black, Yellow-green, Gray, Purple, Orange, and Brown let you color-code wire harnesses and cable bundles for fast, error-free identification during future service.
⚡ Electrical Insulation & Strain Relief — Once fully recovered, the tubing forms a continuous insulating sleeve that prevents short circuits at solder joints and splice points, and reduces mechanical stress on conductors under vibration or repeated flexing.
📦 Flexible Pack Sizes (5 / 10 / 15 pcs) — Order the quantity that fits your project. The 15-piece pack offers the lowest per-piece cost and keeps a consistent color or type on hand for ongoing automotive wiring or electronics repair work.

📐 Technical Specifications — 4mm Heat Shrink Tubing

Nominal Inner Diameter (before shrink)	4mm (≈5/32")
2:1 Recovered Inner Diameter	Typically ≈2mm (≈5/64")
3:1 Recovered Inner Diameter (with glue)	Typically ≈1.3mm (≈1/16")
4:1 Recovered Inner Diameter	Typically ≈1mm (≈3/64")
Available Types / Shrink Ratios	2:1 Polyolefin · 2:1-PTFE · 3:1 with Glue (dual-wall) · 4:1 Polyolefin · 4:1-PTFE
Material — Standard Variants	Polyolefin (halogen-free, generally RoHS-compliant)
Material — PTFE Variants	Polytetrafluoroethylene (PTFE)
Operating Temp — Polyolefin	Typically −55°C to +125°C (−67°F to +257°F)
Operating Temp — PTFE	Typically −65°C to +260°C (−85°F to +500°F)
Activation Temp — Polyolefin	Typically ≈90°C (194°F); full recovery at ≈120°C (248°F)
Activation Temp — PTFE	Typically ≥250°C (482°F) — confirm heat source before use
Adhesive Lining (3:1 variant)	Hot-melt adhesive inner wall; moisture-resistant seal when fully recovered
Colors Available	Black, White, Red, Green, Yellow, Blue, Transparent, Bright Black, Yellow-green, Gray, Purple, Orange, Brown
Pack Sizes	5 pcs / 10 pcs / 15 pcs
Length per Piece	See variant options
Compliance	Polyolefin variants generally RoHS-compliant; contact us to confirm certification documents

❓ Frequently Asked Questions

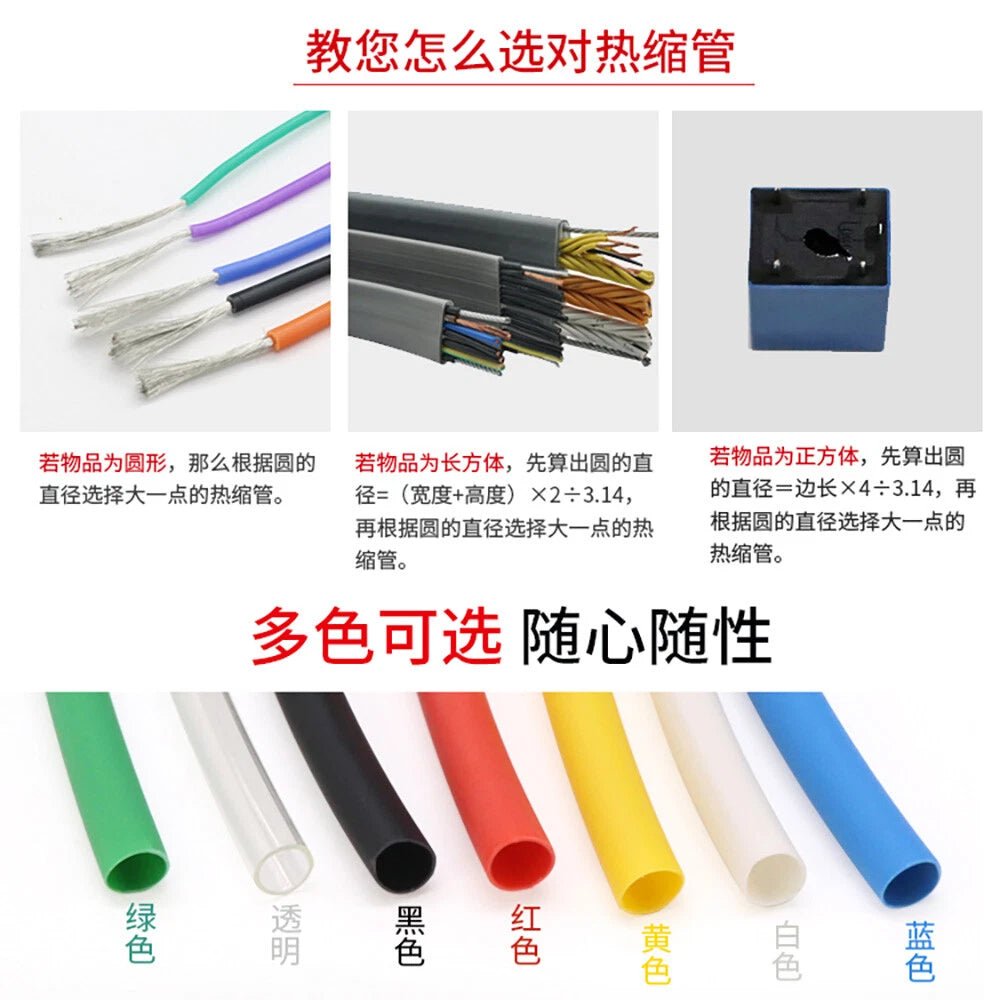

What wire size fits inside 4mm heat shrink tubing?

4mm heat shrink tubing (nominal inner diameter before shrinking) typically fits wires and cable bundles with an outer diameter up to approximately 3.5–4mm (≈5/32"). For the 2:1 ratio variants, the recovered inner diameter is generally around 2mm (≈5/64"). For 3:1 and 4:1 variants, the recovered diameter is smaller, allowing coverage of a wider range of wire sizes. Always measure your wire or bundle OD before selecting a variant.

What is the difference between 2:1, 3:1 (with glue), and 4:1 shrink ratios?

The shrink ratio describes how much the tubing contracts when heated. A 2:1 ratio shrinks the tube to half its original inner diameter — suitable for standard wire insulation and color coding. The 3:1 (with glue) variant contains a hot-melt adhesive lining that melts and flows around the wire as it shrinks, creating a waterproof, strain-relieving seal — ideal for outdoor, marine, and automotive connections. The 4:1 ratio provides the greatest diameter reduction, useful when you need to cover a wide range of wire sizes with a single piece of tubing.

Is the 3:1 glue-lined tubing waterproof?

Yes — the 3:1 (with glue) variant is a dual-wall, adhesive-lined heat shrink tube. When fully heated, the inner adhesive layer melts and bonds to the wire jacket, creating a moisture-resistant seal that generally provides IP67-equivalent protection for the splice or connector it covers. It is widely used for automotive wiring harnesses, marine cable splices, and outdoor electrical connections where water ingress is a concern.

What temperature is needed to shrink this tubing, and what tool should I use?

Standard polyolefin variants (2:1 and 3:1 with glue) typically activate at around 90°C (194°F) and fully recover at approximately 120°C (248°F). A heat gun on low or medium is the recommended tool — avoid open flames, which can scorch or unevenly shrink the tubing. The PTFE variants (2:1-PTFE and 4:1-PTFE) require significantly higher temperatures — generally above 250°C (482°F) — so confirm your heat source can reach that range before ordering.

Can I use this heat shrink tubing in automotive or outdoor applications?

Yes. The standard 2:1 polyolefin variant provides basic UV and moisture resistance suitable for light outdoor use. The 3:1 (with glue) variant is specifically designed for automotive wiring harnesses, trailer connectors, and outdoor cable splices where a waterproof seal is required. The PTFE variants offer superior chemical resistance and a wider operating temperature range, making them suitable for engine bay wiring and industrial sensor leads.

What is the operating temperature range for each variant?

Polyolefin variants (2:1 and 3:1 with glue) typically operate from −55°C to +125°C (−67°F to +257°F). PTFE variants (2:1-PTFE and 4:1-PTFE) generally handle −65°C to +260°C (−85°F to +500°F), making them suitable for high-temperature environments such as engine bays, industrial ovens, and laboratory instruments.

How do I choose between the 5, 10, and 15-piece packs?

The 5-piece pack is well suited for a single repair job or a small project with a few connections. The 10-piece pack works well for automotive wiring projects or electronics builds with multiple splices. The 15-piece pack offers the best per-piece value and is a good choice if you work with wire regularly, need consistent color coding across a harness, or want to keep spares on hand for future repairs.

🛒 Select your size, color, and pack quantity above, then add to cart — ships from our US warehouse.
