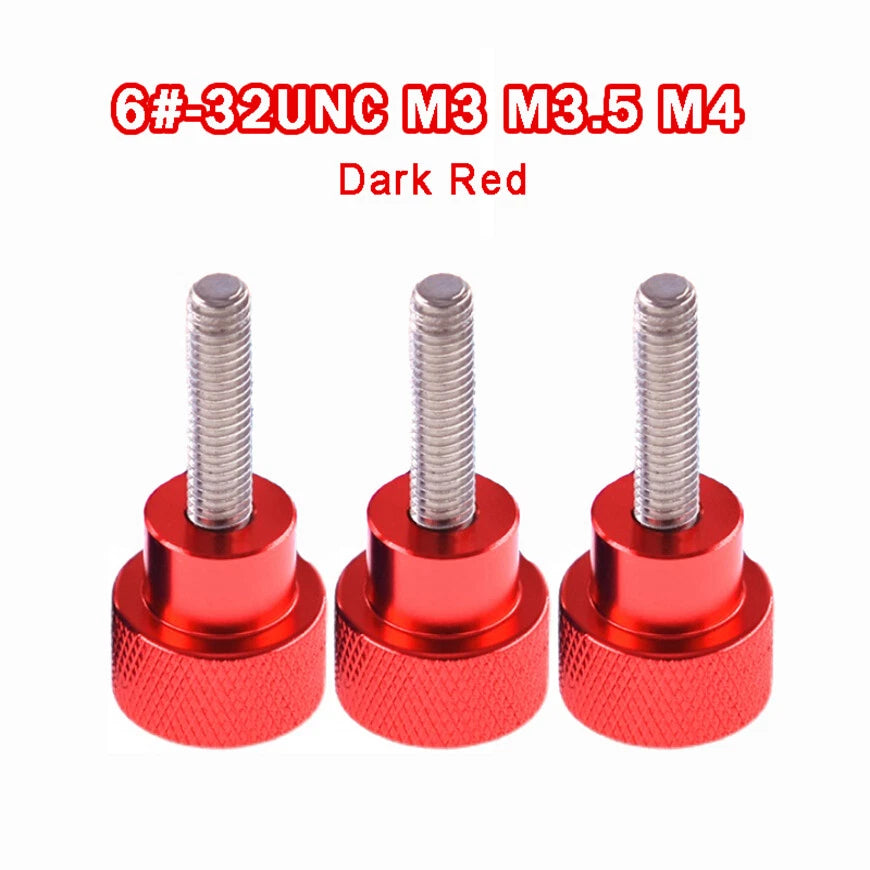

Knurled Thumb Screws in Dark Red — Tool-Free Fastening for Electronics, Enclosures & DIY Builds
When you're repeatedly opening panels, swapping components, or assembling enclosures without a screwdriver nearby, a standard hex bolt becomes a genuine obstacle. These dark red knurled thumb screws are designed for makers, electronics hobbyists, and DIY builders who need fast, hand-tightened fastening without sacrificing holding strength.
Each thumb screw features a dual-material construction: an aluminum knurled head for a secure, comfortable grip and a stainless steel threaded shank for corrosion resistance and thread durability. Available in four thread standards — UNC 6#-32, M3, M3.5, and M4 — with thread lengths ranging from 4mm to 80mm (approximately 5/32 in to 3-1/8 in), covering a wide range of panel thicknesses and standoff depths.
Typical use cases include securing 3D printer access panels, mounting Raspberry Pi or Arduino enclosure lids, fastening rack-mount equipment covers, and assembling custom aluminum extrusion frames where tool-free access is needed regularly. The dark red anodized finish also serves as a visual marker in multi-fastener assemblies.
🔩
Compatible with standard UNC 6#-32, M3, M3.5, and M4 threaded holes, inserts, and standoffs. Verify panel thickness against selected thread length before ordering.
✅ Key Features of These Knurled Thumb Screws
✋
Knurled Grip Head
The diamond-knurled aluminum head provides firm finger grip for confident hand-tightening — no tool required in most panel and enclosure applications.
⚙️
Stainless Steel Threaded Shank
The threaded portion is stainless steel, offering corrosion resistance and reliable thread engagement across repeated installation and removal cycles.
📏
Wide Size Range
Four thread standards (UNC 6#-32, M3, M3.5, M4) and lengths from 4mm to 80mm (5/32 in to 3-1/8 in) cover most panel, enclosure, and frame fastening needs.
🎨
Dark Red Anodized Finish
The anodized dark red color adds a distinctive visual marker in multi-fastener builds and provides a surface layer that resists minor abrasion and oxidation on the aluminum head.
🔄
Dual-Material Construction
Aluminum head keeps weight low while the stainless steel shank maintains thread integrity — a practical combination for lightweight enclosures and electronics chassis.
🧩
Broad Thread Compatibility
Fits standard UNC and metric threaded holes, inserts, and brass standoffs commonly found in electronics enclosures, aluminum extrusion systems, and DIY panel builds.

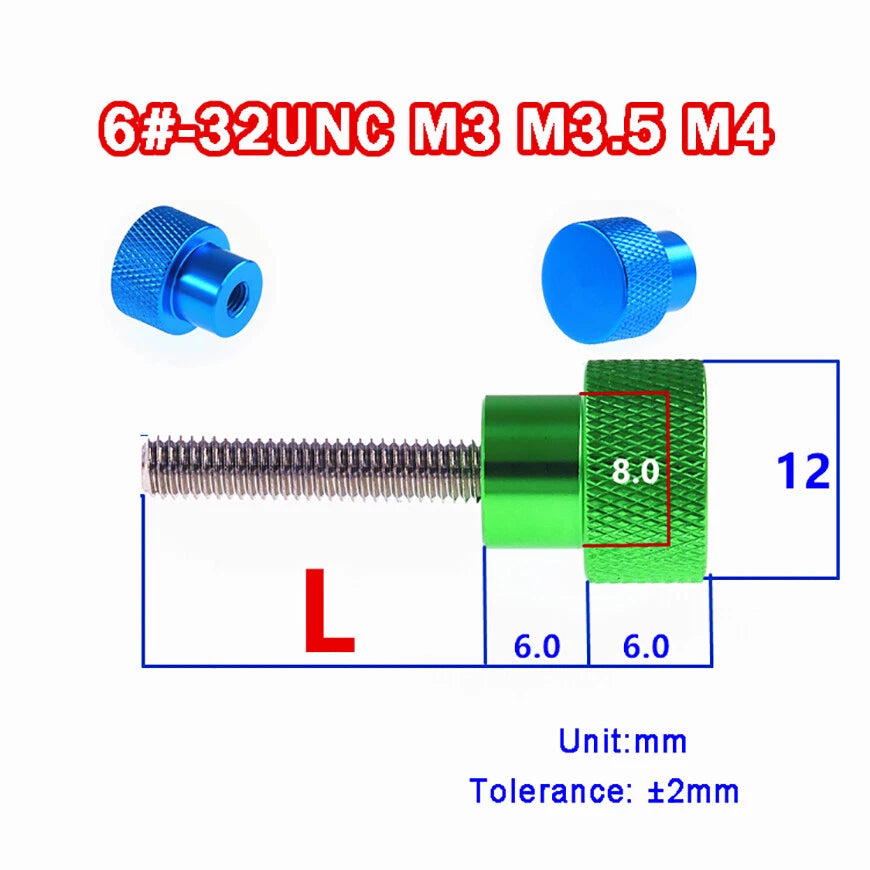

📐 Technical Specifications — Knurled Thumb Screws
| Product Type |
Knurled Thumb Screw |
| Head Material |
Aluminum (anodized) |
| Shank Material |
Stainless Steel |
| Head Color / Finish |
Dark Red anodized |
| Thread Standards |
UNC 6#-32 / M3 / M3.5 / M4 |
| Thread Length Range |
4mm – 80mm (approx. 5/32 in – 3-1/8 in) |
| Head Style |
Knurled cylindrical thumb head |
| Drive Style |
Hand-tightened (no tool drive) |
| Head Diameter |
See variant options |
| Head Height |
See variant options |
| Packing Quantity |
1 pc per unit (as selected) |
| Applicable Standards |
See variant options |
❓ Frequently Asked Questions
How do I choose the correct thread length for my application?
Measure the total thickness of the panel or material the screw must pass through, then add the depth of the threaded hole or insert. Select a thread length equal to or slightly shorter than this combined measurement to ensure full thread engagement without bottoming out. For blind holes, leave at least 1–2 thread pitches of clearance at the bottom.
What is the difference between UNC 6#-32 and the metric M3 / M3.5 / M4 options?
UNC 6#-32 is a Unified National Coarse thread standard common in North American electronics and enclosure hardware (approximately 3.5mm nominal diameter, 32 threads per inch). M3, M3.5, and M4 are ISO metric threads with 0.5mm pitch, used widely in European and international electronics, 3D printer hardware, and aluminum extrusion systems. They are not interchangeable — match the thread standard to your existing threaded holes or inserts.
Can these thumb screws be used in outdoor or humid environments?
The stainless steel shank provides good corrosion resistance for indoor and moderately humid environments. The anodized aluminum head also resists surface oxidation. For prolonged outdoor exposure or salt-spray environments, consider applying a light coating of anti-corrosion grease to the threads and inspect periodically for any surface degradation on the aluminum head.
How much torque can these thumb screws handle before the head strips or the shank fails?
These are designed for hand-tightening applications — typical finger torque of 0.1–0.5 N·m depending on size. They are not rated for high-torque tool-driven applications. Using a tool to over-tighten may damage the knurled head or strip the threaded insert. For structural or high-vibration applications requiring precise torque, contact us to confirm suitability.
Are these compatible with brass threaded inserts and heat-set inserts in 3D-printed parts?
Yes. M3, M3.5, and M4 variants are compatible with standard brass heat-set inserts and press-fit threaded inserts commonly used in FDM 3D-printed enclosures. Ensure the insert inner thread matches the selected screw thread standard. UNC 6#-32 variants are compatible with standard 6-32 brass inserts used in electronics enclosures.
What does the dark red color indicate — is it a coating or anodizing?
The dark red finish on the aluminum head is an anodized surface treatment, not a paint or powder coat. Anodizing integrates into the aluminum surface rather than sitting on top, making it more durable and resistant to chipping or peeling under normal handling. It also serves as a useful visual identifier in assemblies with multiple fastener types or colors.
Can I use these in aluminum extrusion frame builds (e.g., 2020 or 2040 profiles)?
M3 and M4 variants are commonly used with T-nuts in 2020 and 2040 aluminum extrusion systems for access panels and removable covers. Select the thread length based on your T-nut depth and panel thickness. M3.5 and UNC 6#-32 are less common in extrusion systems but work with appropriate T-nuts or threaded brackets.
🛒 Select your thread diameter and length above, then add to cart.
