Black Heat Shrink Tubing — Reliable Insulation & Waterproof Protection for Every Wire Job
Exposed wire splices, corroded connectors, and bare terminals are a headache for electricians, automotive technicians, marine riggers, and DIY enthusiasts alike. Whether you're repairing a vehicle harness, sealing an outdoor junction box, or tidying up a home electronics project, having the right black heat shrink tubing on hand makes the difference between a lasting repair and one that fails at the worst moment.

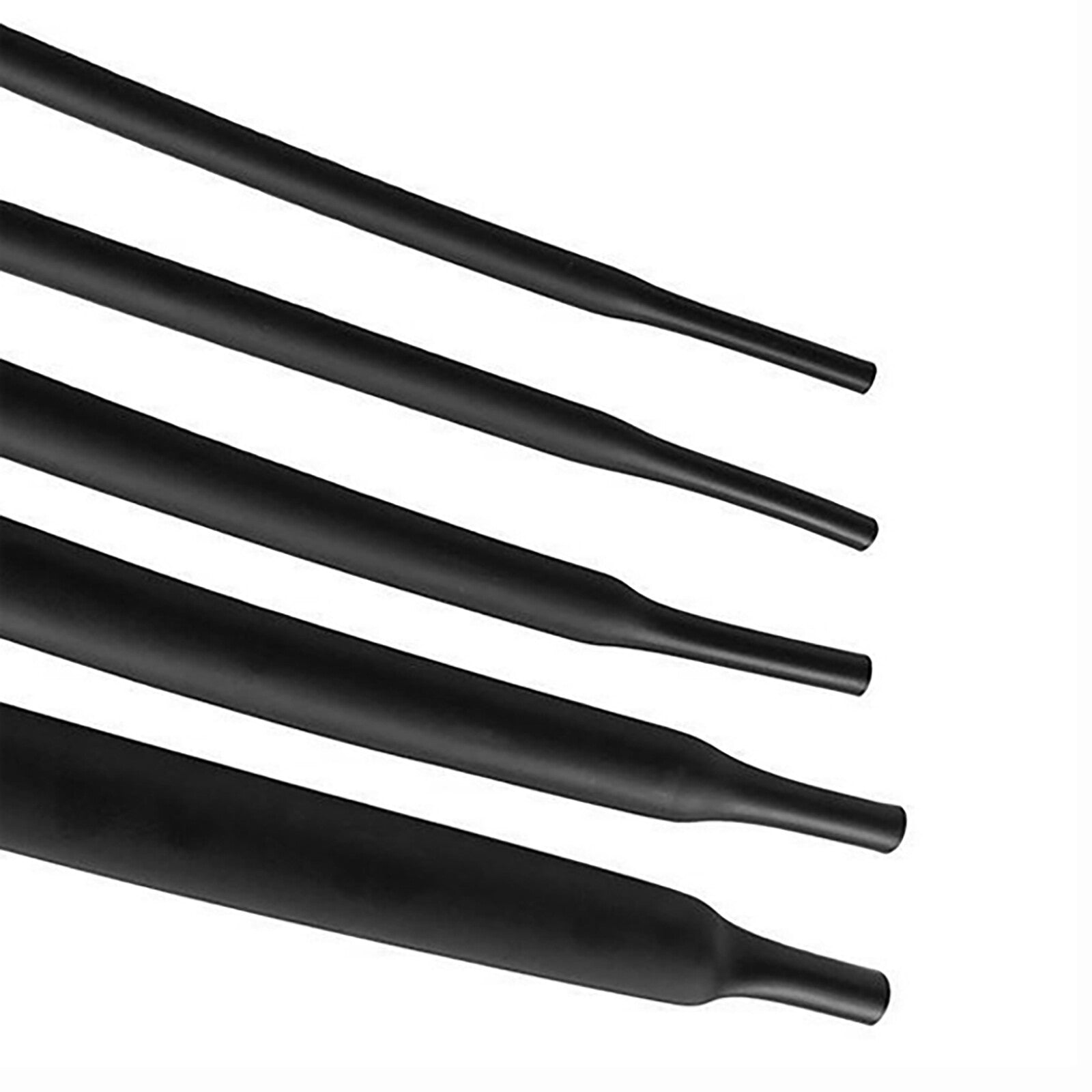

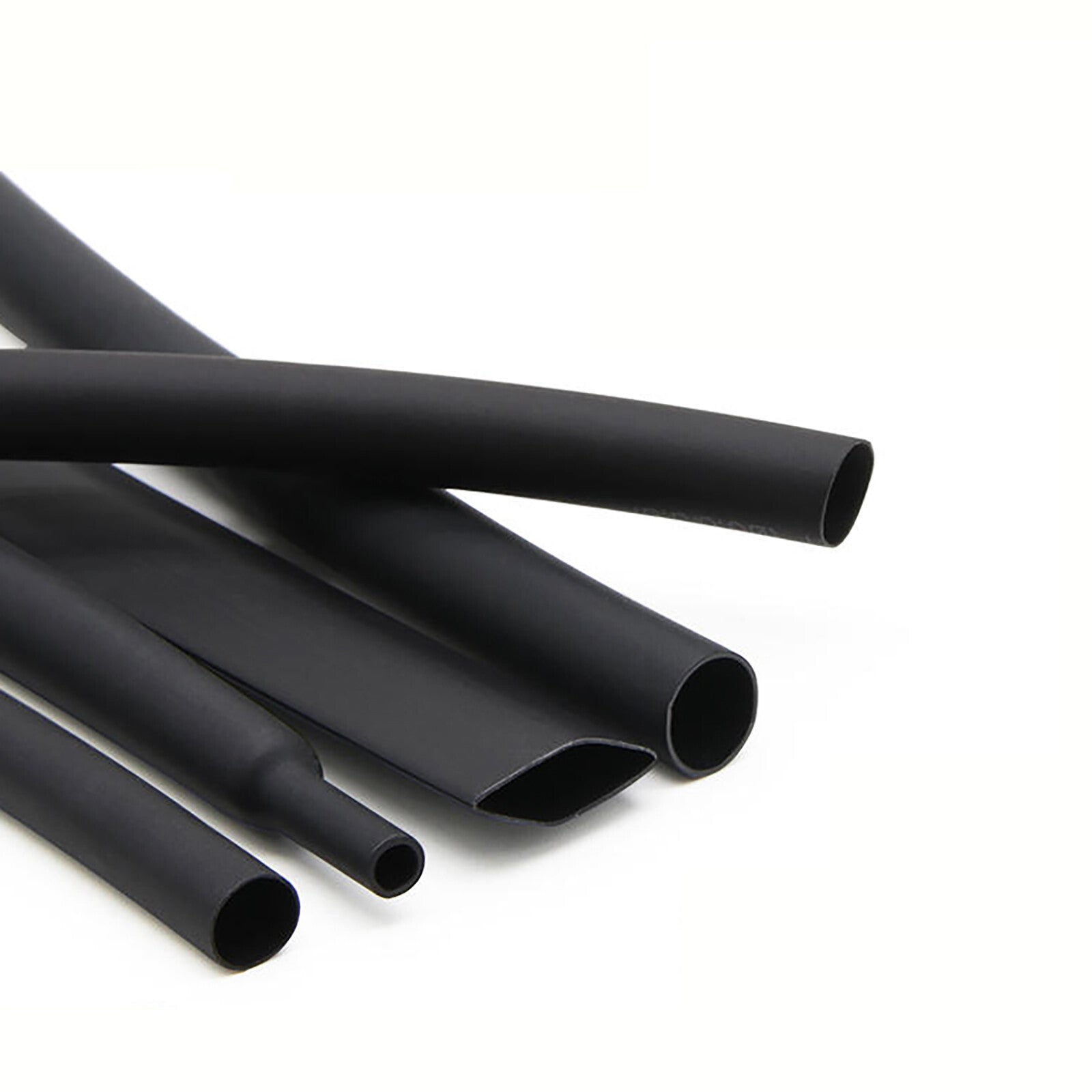

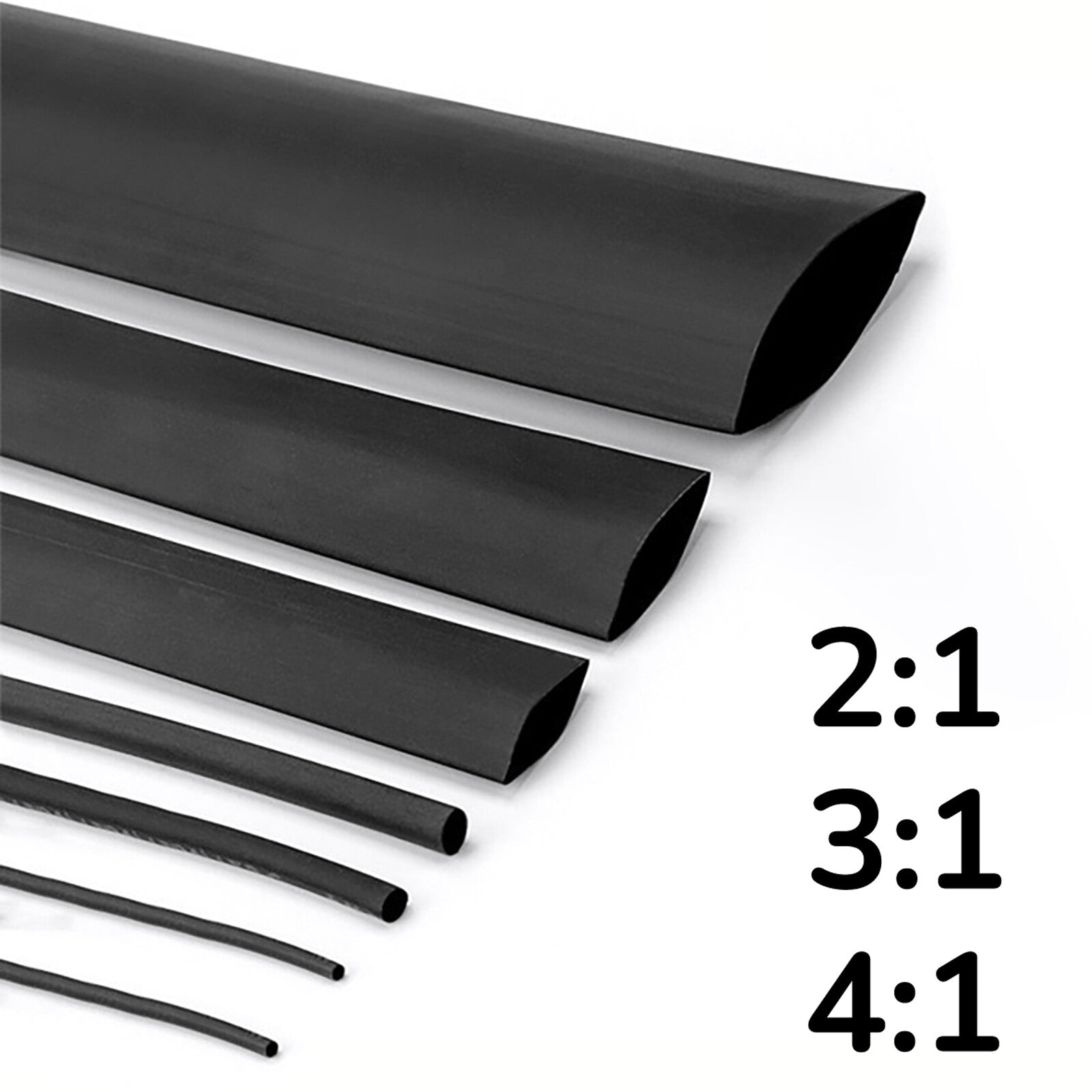

Each piece of tubing is made from flexible polyolefin material and is available in four shrink ratio types — 2:1, 3:1, 3:1 Dual Wall Glue Inside, and 4:1 Dual Wall Glue Inside — with diameters ranging from 1mm (≈3/64") to 60mm (≈2-3/8") and cut lengths of 1m (≈39"), 2m (≈79"), 5m (≈197"), and 10m (≈394"). The dual wall glue-lined variants feature an inner hot-melt adhesive layer that flows when heated, forming a moisture-resistant, strain-relieved seal around connectors and cable ends.
Typical applications include automotive wiring harness repair and connector sealing, marine and outdoor electrical junction protection, home and workshop wire management, and industrial cable bundling where abrasion resistance and insulation are required. The black finish blends cleanly into most wiring environments and resists UV degradation better than lighter colors.
🔌
Compatibility: Fits standard wire gauges, butt connectors, ring terminals, and cable bundles. Select the diameter that slides freely over your component before shrinking. Dual wall glue-lined types are recommended for waterproof automotive, marine, and outdoor connections.
⚠️
Size tip: The listed diameter is the supplied (pre-shrink) inner diameter. After heating, a 2:1 tube recovers to ~50%, a 3:1 to ~33%, and a 4:1 to ~25% of the original diameter. If you are unsure, measure your wire or connector OD and contact us to confirm the best size.
✅ Key Features of These Black Heat Shrink Tubes
-
🔥Multiple Shrink Ratios — Choose from 2:1 for standard wire insulation, 3:1 for irregular shapes, or 3:1 / 4:1 dual wall glue-lined for waterproof heat shrink tubing applications on connectors and terminals.
-
💧Glue-Lined Waterproof Seal — The dual wall adhesive-lined variants melt an inner hot-melt layer when heated, creating a moisture-resistant barrier ideal for marine wiring, outdoor junction boxes, and automotive connector sealing.
-
📏Wide Diameter Range — Available from 1mm (≈3/64") to 60mm (≈2-3/8"), covering everything from fine instrument wire to large battery cables and conduit transitions.
-
✂️Cut-to-Length Flexibility — Sold in 1m, 2m, 5m, and 10m lengths so you can order exactly what your project needs without waste, whether it's a single splice or a full wiring harness repair.
-
🛡️Polyolefin Construction — The outer layer provides electrical insulation, abrasion resistance, and flexibility across a wide temperature range, making this black heatshrink sleeve suitable for both indoor and outdoor environments.
-
🚗Automotive & Marine Ready — The black color resists UV degradation, and the glue-lined options meet the demands of engine bay wiring, trailer connectors, boat rigging, and other high-vibration or high-moisture environments.
📐 Technical Specifications — Black Heat Shrink Tubing
| Material |
Polyolefin (outer); Hot-melt adhesive (inner, dual wall variants only) |
| Color |
Black |
| Shrink Ratios Available |
2:1 · 3:1 · 3:1 Dual Wall Glue Inside · 4:1 Dual Wall Glue Inside |
| Supplied Diameter Range |
1mm (≈3/64") – 60mm (≈2-3/8") |
| Available Lengths |
1m (≈39") · 2m (≈79") · 5m (≈197") · 10m (≈394") |
| Typical Shrink Temperature |
Begins ~70–90°C (158–194°F); Full recovery ~120°C (248°F) |
| Longitudinal Shrinkage |
Typically 5–10% (allow extra length when cutting) |
| Wall Thickness (post-shrink) |
See variant options |
| Operating Temperature Range |
Contact us to confirm for specific ratio/size |
| Application Tool |
Heat gun recommended; avoid open flame |
| Recommended Use |
Wire insulation, connector sealing, cable bundling, strain relief, waterproofing (dual wall) |
❓ Frequently Asked Questions
How do I choose the right diameter for my heat shrink tubing?
Measure the outer diameter of the wire or connector you need to cover, then select a tubing size that is slightly larger before shrinking. For a 2:1 ratio tube, the recovered diameter is typically half the supplied diameter. For example, a 6mm (≈1/4") tube will shrink down to approximately 3mm. For dual wall glue-lined types, allow a bit more room so the adhesive can flow and seal properly. When in doubt, size up — a slightly loose fit before shrinking is better than a tube that won't slide over your component.
What is the difference between 2:1, 3:1, and 4:1 shrink ratios?
The ratio describes how much the tubing shrinks in diameter when heat is applied. A 2:1 tube shrinks to half its original diameter — suitable for most standard wire insulation tasks. A 3:1 tube shrinks to one-third, giving more coverage flexibility for irregular shapes or connectors. A 4:1 tube shrinks to one-quarter of its original size, making it ideal for covering large connectors, cable transitions, or bundled wires where a single tube needs to grip tightly around a much smaller recovered diameter.
What does "Dual Wall Glue Lined" mean and when should I use it?
Dual wall glue-lined heat shrink tubing has an outer polyolefin layer and an inner hot-melt adhesive layer. When heated, the adhesive melts and flows around the wire or connector, creating a waterproof, strain-relieved seal. This type is generally recommended for outdoor wiring, marine applications, automotive connectors, and anywhere moisture ingress is a concern. Standard single-wall tubing provides insulation and abrasion protection but does not create a watertight seal.
Can this heat shrink tubing be used outdoors or in wet environments?
The standard 2:1 and 3:1 single-wall versions provide basic insulation and abrasion resistance but are not inherently waterproof. The 3:1 Dual Wall Glue Inside and 4:1 Dual Wall Glue Inside variants create a watertight seal when properly applied and are generally suitable for outdoor, marine, and automotive use. The black color also offers better UV resistance than clear or light-colored tubing. Always verify the specific operating temperature and environmental rating for your application before use in extreme conditions.
What temperature is needed to shrink this tubing, and can I use a lighter?
Polyolefin heat shrink tubing typically begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun is the recommended tool — it provides even, controlled heat. Avoid open flames such as lighters or torches, which can scorch the tubing, create uneven shrinkage, or damage the underlying wire insulation. For dual wall glue-lined types, ensure the adhesive has fully melted and flowed before removing the heat source.
Is this tubing compatible with standard wire gauges and connector types?
Yes. With diameters ranging from 1mm (≈3/64") to 60mm (≈2-3/8"), this tubing is compatible with a wide range of wire gauges, butt connectors, ring terminals, spade connectors, and cable bundles. Always match the supplied (pre-shrink) diameter to the component you are covering, leaving a small clearance for easy installation. If you are covering a connector with a larger body and a smaller wire exit, a higher shrink ratio (3:1 or 4:1) will generally provide a better fit.
How much length should I cut for each application?
Heat shrink tubing typically shrinks longitudinally by about 5–10% in addition to the radial shrinkage, so cut your piece slightly longer than the area you need to cover. For a splice or connector, extending the tubing at least 10–15mm (≈1/2") beyond each end of the joint is generally recommended to ensure full coverage and a secure seal. For dual wall glue-lined types, a longer overlap helps the adhesive flow out to the edges for a complete waterproof bond.
