What is the difference between 2:1 and 4:1 shrink ratio?

A 2:1 ratio shrinks to half the original diameter; a 4:1 ratio shrinks to one-quarter. The 4:1 ratio is better suited for irregular shapes, connectors, or situations where you need to cover a range of diameters with a single piece of tubing.

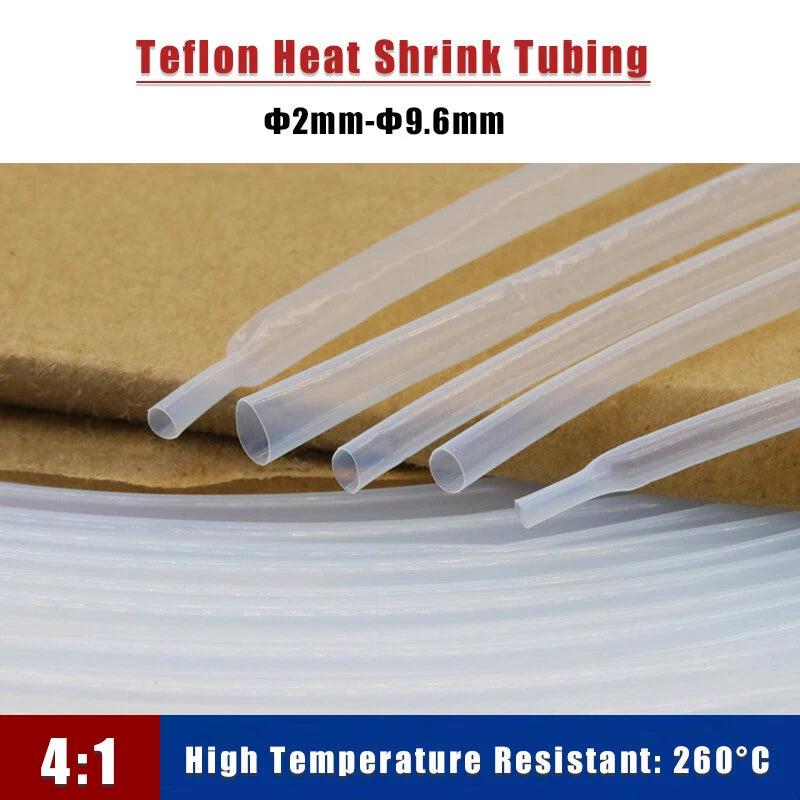

Clear PTFE Heat Shrink Tubing 4:1 Ratio — φ2mm to φ9.6mm, High Temp 260°C

Roll over image to zoom in Click on image to zoom

Clear PTFE Heat Shrink Tubing 4:1 Ratio — φ2mm to φ9.6mm, High Temp 260°C

HomeDIYer

No reviews

By HomeDIYer®

Diameter: φ2mm

Length: 1 Meter

Price:

$4.90 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Clear PTFE Heat Shrink Tubing — Reliable Insulation for High-Temp Wiring Projects

When standard PVC or polyolefin sleeves fall short in demanding environments, electricians, automotive technicians, and electronics hobbyists turn to PTFE heat shrink tubing. Whether you're routing wires through an engine bay, protecting sensor leads in industrial equipment, or insulating delicate PCB connections, ordinary sleeving simply can't handle the heat, chemicals, or mechanical stress involved.

This clear PTFE heat shrink tubing features a 4:1 shrink ratio, shrinking to approximately one-quarter of its supplied diameter for a snug, conforming fit over connectors, splices, and irregular shapes. Available in five diameters — φ2mm (≈5/64"), φ4mm (≈5/32"), φ6mm (≈15/64"), φ8mm (≈5/16"), and φ9.6mm (≈3/8") — and lengths from 1 meter (≈3.3 ft) to 5 meters (≈16.4 ft). The transparent wall lets you visually confirm wire placement before and after shrinking.

Typical use cases include insulating automotive wiring harnesses and sensor cables, protecting thermocouple leads and heating element connections in industrial ovens, and sleeving laboratory or chemical-handling lines where resistance to solvents and acids is essential.

🔌 Compatibility: Suitable for copper, aluminum, and stranded wire. Works with standard heat guns. Select diameter based on your cable's outer diameter before shrinking. See variant options for all available sizes.

✅ Key Features of These Clear PTFE Heat Shrink Tubes

🌡️260°C Continuous Rating — Withstands sustained temperatures up to 260°C (500°F), making it a dependable choice for engine bay wiring and industrial cable insulation where heat resistance is non-negotiable.
🔍4:1 Shrink Ratio — Shrinks to one-quarter of its original diameter, conforming tightly around connectors, terminals, and irregular cable profiles where standard 2:1 tubing won't seal properly.
👁️Crystal-Clear Wall — Transparent PTFE construction lets you verify wire alignment and inspect connections without removing the sleeve — useful for quality control in electronics assembly.
⚗️Chemical and Solvent Resistance — Resistant to oils, fuels, acids, and most industrial solvents, making this PTFE cable sleeve suitable for laboratory, chemical processing, and automotive fluid environments.
⚡Excellent Electrical Insulation — Low dielectric constant and high dielectric strength make this tubing effective for insulating wire splices, terminals, and sensitive electronic components.
📏Multiple Diameters and Cut Lengths — Choose from φ2mm to φ9.6mm in 1–5 meter lengths, so you get exactly the quantity you need without waste — ideal for both small repairs and larger wiring projects.

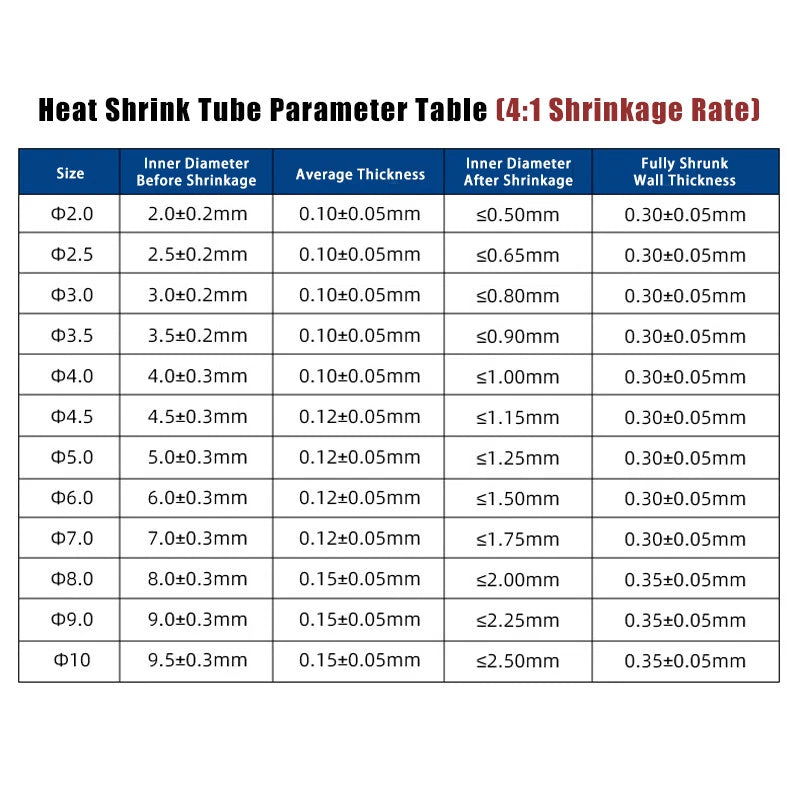

📐 Technical Specifications — PTFE Heat Shrink Tubing

Material	PTFE (Polytetrafluoroethylene)
Color / Appearance	Clear (transparent)
Shrink Ratio	4:1
Available Diameters (Supplied)	φ2mm (≈5/64"), φ4mm (≈5/32"), φ6mm (≈15/64"), φ8mm (≈5/16"), φ9.6mm (≈3/8")
Available Lengths	1m (≈3.3 ft), 2m (≈6.6 ft), 3m (≈9.8 ft), 4m (≈13.1 ft), 5m (≈16.4 ft)
Max Continuous Use Temperature	260°C (500°F)
Shrink Activation Temperature	Typically 327°C (620°F) — use a heat gun
Wall Thickness (after shrink)	See variant options
Electrical Insulation	Yes — suitable for wire and terminal insulation
Chemical Resistance	Resistant to oils, fuels, acids, and most solvents
Moisture Resistance	Yes — PTFE does not absorb water
Adhesive Inner Lining	No — does not form a waterproof seal; use adhesive-lined tubing for sealing
Application Method	Heat gun (recommended); avoid open flame
Sold As	Per meter length — select diameter and length above

⚠️ Note: This tubing does not include an adhesive inner lining and does not form a waterproof seal on its own. For moisture-sealing applications, contact us to confirm the right product.

❓ Frequently Asked Questions

How do I choose the right diameter for my wire or cable?

Measure the outer diameter of your wire or connector before shrinking. With a 4:1 shrink ratio, the tubing shrinks to approximately one-quarter of its supplied diameter — for example, φ8mm tubing shrinks down to roughly 2mm. Choose a supplied diameter at least 20–30% larger than your cable's outer diameter to allow easy insertion, then apply heat evenly along the length.

What temperature is needed to shrink this PTFE tubing?

PTFE heat shrink tubing typically begins to shrink at around 327°C (620°F). A heat gun set to high is generally sufficient. Avoid open flames, which can cause uneven shrinkage or surface discoloration. Move the heat gun steadily along the tubing for uniform results.

Can this tubing handle high-temperature environments after shrinking?

Yes. Once shrunk, this PTFE electrical cable sleeve is rated for continuous use up to 260°C (500°F). It is commonly used in engine bays, industrial control panels, heating elements, and other sustained high-heat applications where standard polyolefin tubing would degrade.

Is PTFE heat shrink tubing resistant to chemicals and solvents?

PTFE is generally resistant to a wide range of chemicals, including oils, fuels, hydraulic fluids, acids, and most industrial solvents. It is a common choice for laboratory tubing, chemical processing lines, and automotive fluid environments. If you have a specific chemical compatibility question, contact us to confirm.

Can I use this tubing outdoors or in wet environments?

PTFE is inherently moisture-resistant and does not absorb water, so it performs well in outdoor and damp conditions. However, this tubing does not have an adhesive inner lining, so it does not create a fully waterproof seal on its own. For applications requiring moisture sealing, adhesive-lined heat shrink tubing is typically recommended.

What is the difference between a 2:1 and 4:1 shrink ratio, and which do I need?

A 2:1 ratio shrinks to half the original diameter; a 4:1 ratio shrinks to one-quarter. The 4:1 ratio is better suited for covering connectors, irregular shapes, or situations where you need one piece of tubing to fit a range of cable diameters. If you're sleeving a uniform round wire, a 2:1 ratio may be sufficient — but the 4:1 gives you more flexibility.

Is this tubing electrically insulating? What voltage rating should I expect?

Yes. PTFE is an excellent electrical insulator with a very low dielectric constant. This clear PTFE heat shrink tubing is well-suited for insulating wire splices, terminals, and electronic components. Specific voltage ratings vary by wall thickness after shrinking — contact us to confirm if you have a specific dielectric requirement.

🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
