When you need to split or branch a water line without losing visibility of flow, standard opaque fittings leave you guessing. Aquarium builders, pond keepers, and irrigation DIYers who demand full visual control of their plumbing rely on clear PVC tee connectors to monitor water movement at every junction — no guesswork, no hidden blockages.

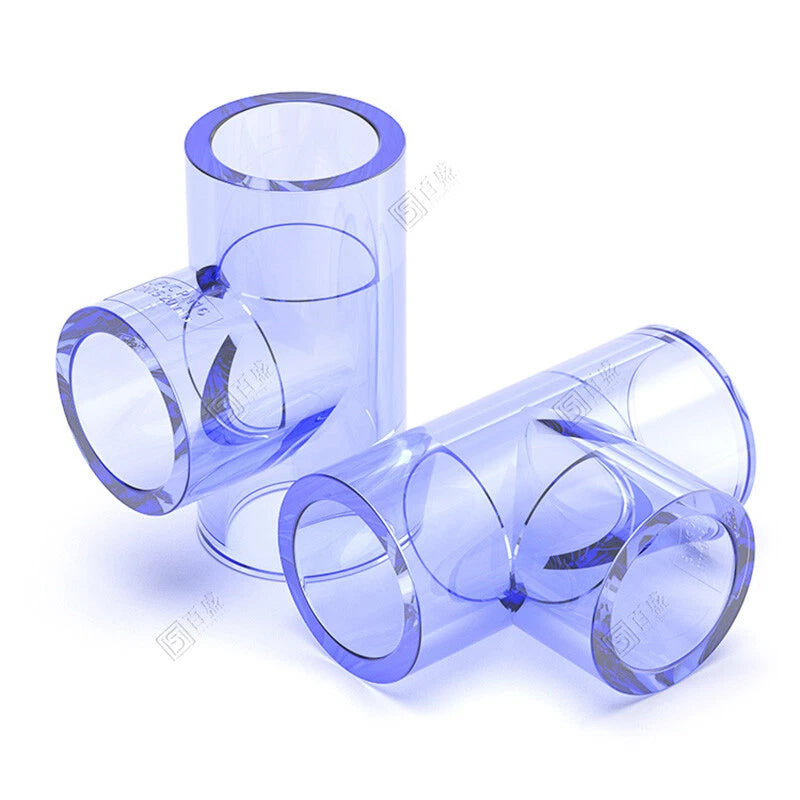

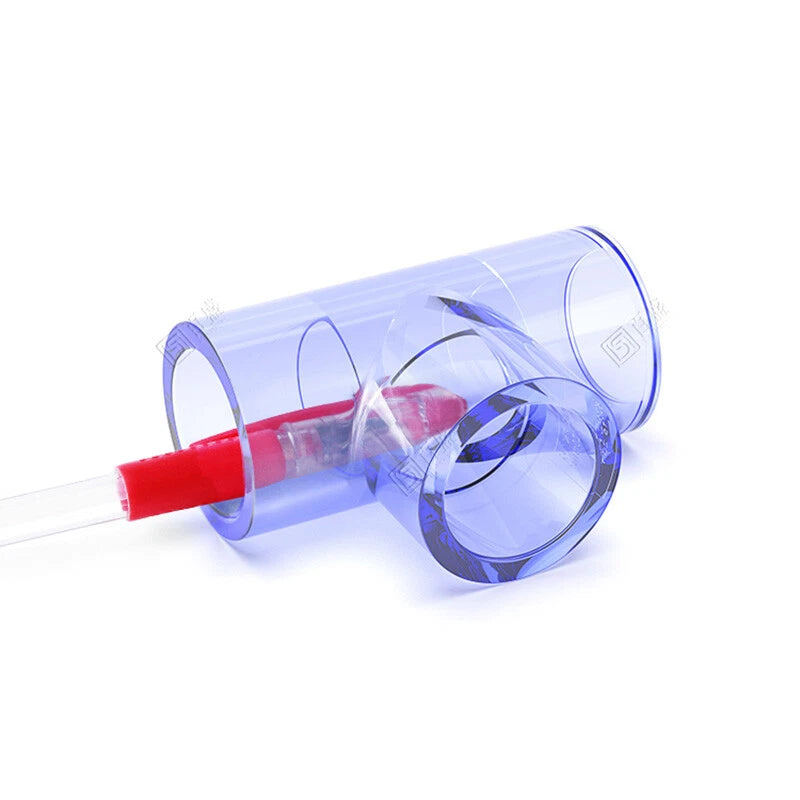

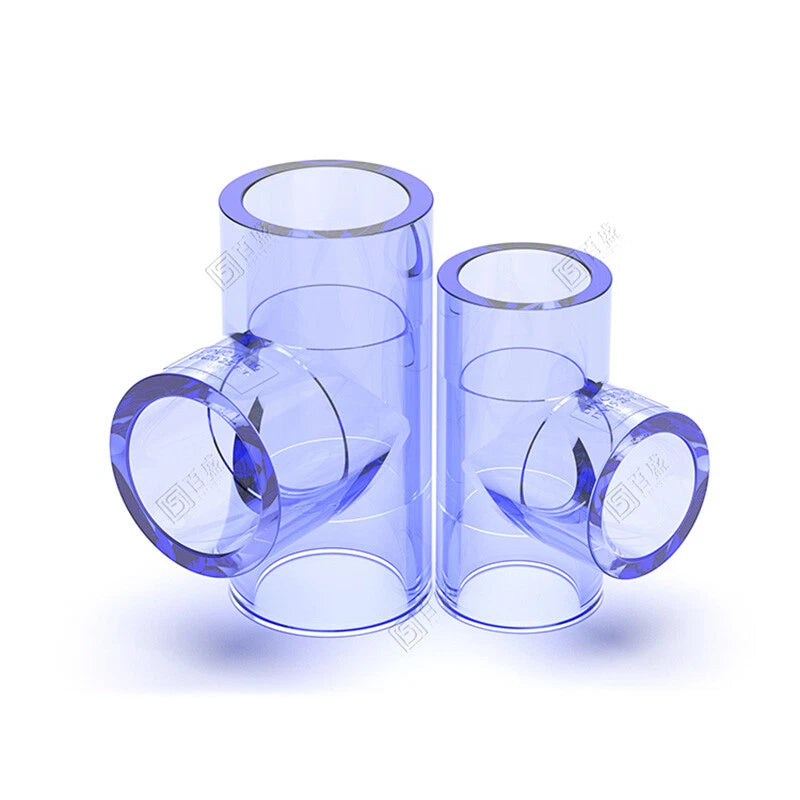

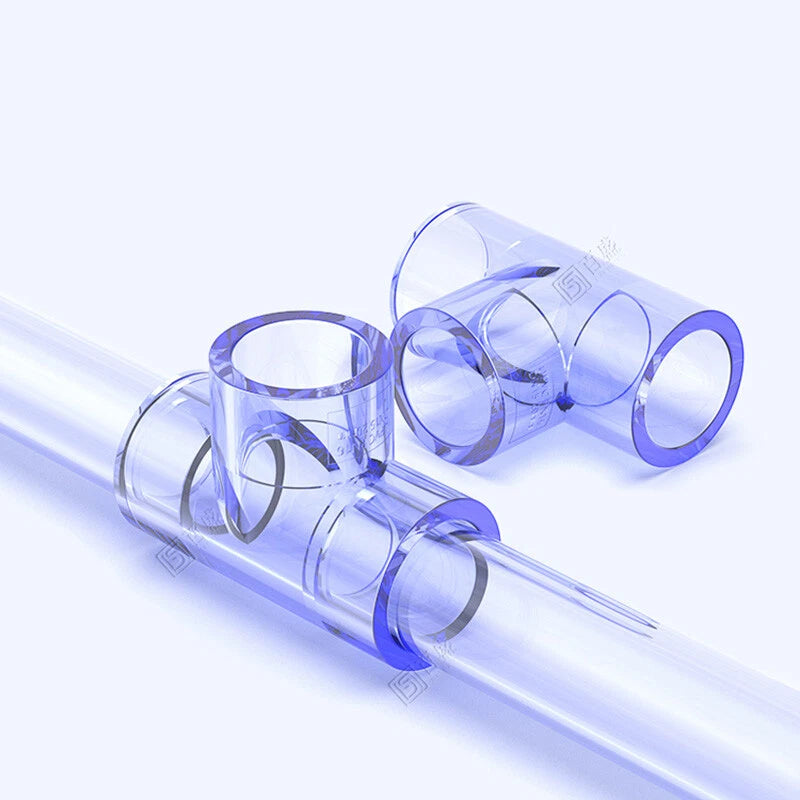

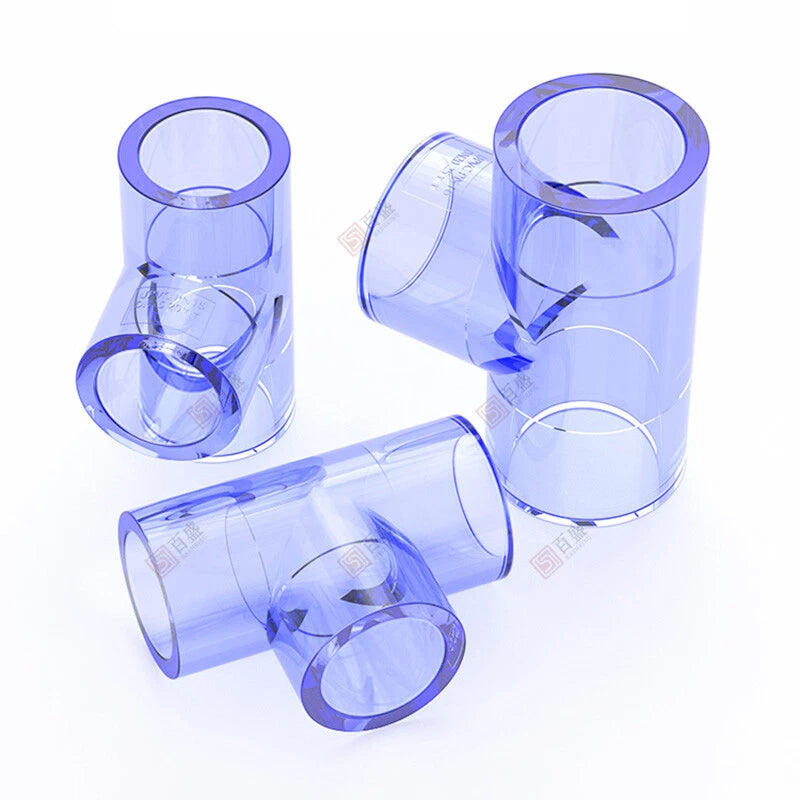

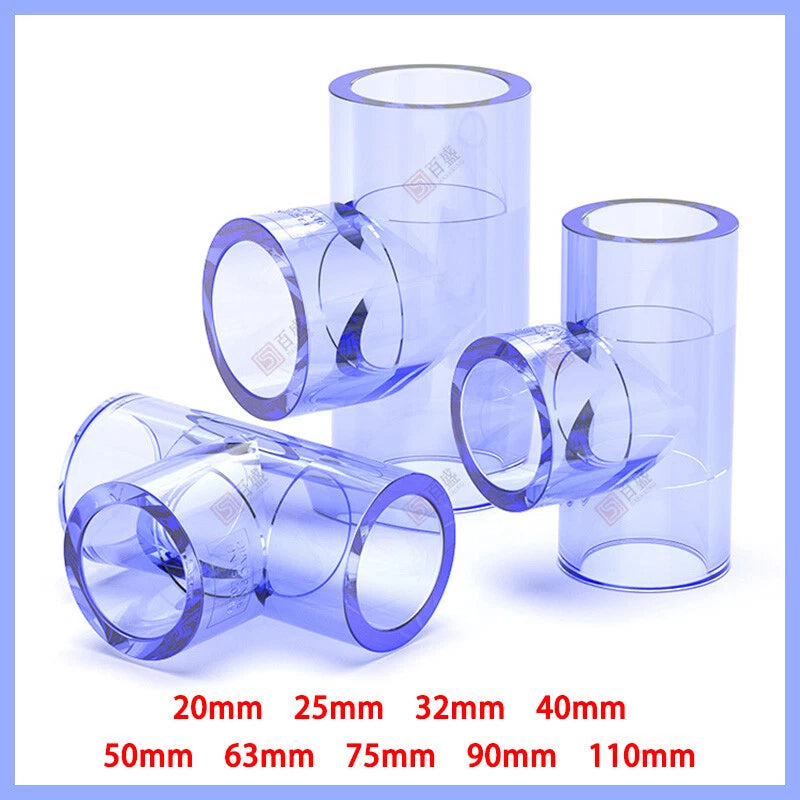

Each clear PVC tee T-piece connector is made from transparent rigid PVC, offering a smooth bore interior and a solvent-weld (adhesive) socket on all three ports. Available in inner diameter sizes from 20mm (~3/4 in) up to 110mm (~4-1/3 in), these fittings accommodate a wide range of pipe schedules. Wall thickness is proportional to bore size, typically 2-5mm depending on the variant selected.
Typical applications include aquarium sump return manifolds where flow visibility is critical, koi pond filtration bypass loops, greenhouse drip-irrigation branch lines, and hydroponics nutrient-delivery networks. The transparent body also makes these fittings a go-to choice for display plumbing in retail fish tanks and water feature installations.
| Material | Rigid transparent PVC (uPVC) |
|---|---|
| Connection Type | Solvent-weld (adhesive socket) |
| Inner Diameter Range | 20mm - 110mm (approx. 3/4 in - 4-1/3 in) |
| Wall Thickness | See variant options |
| Outer Diameter | See variant options |
| Fitting Type | Equal tee (T-piece), 3-port |
| Port Configuration | All three ports equal bore |
| Colour / Finish | Clear / transparent |
| Pressure Rating | See variant options |
| Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Compatible Fluid | Fresh water, salt water, chlorinated water, pond treatments |
| Quantity per Order | 1 / 2 / 3 / 4 / 5 pieces (select above) |
Measure the inner diameter (ID) of your existing pipe, or check the pipe nominal size label. The fitting ID should match your pipe outer diameter (OD) for a snug solvent-weld fit. If you are unsure, test-fit a short offcut before cementing. Available sizes run from 20mm to 110mm to cover most standard metric PVC pipe schedules.
Use a standard rigid PVC solvent cement (also labelled PVC pipe glue or PVC adhesive). Apply primer first if recommended by the cement manufacturer for your pipe schedule. CPVC-specific cement is not required. Allow the joint to cure for the time specified on the cement packaging before pressurising the line.
Yes. Rigid uPVC solvent-weld fittings are widely used in pressurised domestic plumbing and irrigation. The exact pressure rating varies by bore size — larger diameters carry lower pressure ratings. For aquarium sumps and pond pumps operating at typical head pressures, these fittings are well within specification. Check the variant options for pressure data on your specific size.
Rigid transparent PVC can develop a slight amber tint with prolonged UV exposure outdoors. For outdoor pond installations, consider wrapping exposed fittings with UV-resistant tape or housing them in a shaded filter box. In indoor aquariums with standard lighting, the material remains clear for extended periods under normal operating conditions.
This is an equal tee — all three ports share the same inner diameter. If you need to branch to a smaller pipe, you would pair this fitting with a separate reducer socket or bushing on the branch port. Reducing tee variants are not included in this listing.
These fittings are designed for rigid PVC pipe with a solvent-weld connection. Flexible PVC or silicone tubing cannot be solvent-welded. For flexible tubing, you would need barbed or compression-style fittings instead. However, you can connect flexible tubing to the outlet of a rigid PVC run that terminates with one of these tees.
A basic sump return manifold with one main feed and two branch outlets typically requires 1-2 tee fittings. More complex multi-tank or multi-zone systems may need 3-5 pieces. Ordering a multipack (up to 5 pcs) reduces per-unit cost and ensures you have spares on hand for future modifications or repairs.
