Countersunk Head Sleeve Anchor Expansion Bolts M8 M10 — Zinc-Plated Carbon Steel

HomeDIYer
No reviews

By HomeDIYer®

Price:
$44.59 USD
Stock:
In stock (500 units), ready to be shipped

Payment & Security

Amazon American Express Apple Pay Bancontact Diners Club Discover Google Pay iDEAL Wero Mastercard PayPal Shop Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion
🎯 BULK DISCOUNT: Buy More, Save More!
Buy 2 Items
5% OFF
Buy 4 Items
10% OFF
Buy 6 Items
15% OFF
✅ Auto-discount • 🔄 Mix & match
Expert

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM
WhatsApp WhatsApp Email
⚡
24-Hour Fast Ship
🚚
Arrives in 3-14 days
🌍
Global Reach
↩️
30-Day Returns
🌱 1 tree planted with every purchase

Description

Countersunk Sleeve Anchor Expansion Bolts — Flush-Mount Strength in Concrete & Masonry

When you need a fastener that disappears into the surface and still holds firm, standard hex-head anchors fall short. Contractors, framers, and serious DIYers working on concrete floors, masonry walls, and structural brackets know the frustration of bolt heads that stick up, catch on fixtures, or simply look unfinished. These countersunk head sleeve anchor expansion bolts are engineered for exactly those situations — delivering a clean, flush-mount result without sacrificing holding power.

Each set contains sleeve anchor expansion bolts in your chosen size and pack quantity. The bolts are manufactured from carbon steel with a zinc-plated finish for corrosion resistance. Size options span M8 (8mm diameter) and M10 (10mm diameter), with lengths ranging from 52mm (≈2") up to 202mm (≈7-15/16"), covering thin-fixture attachments all the way to deep embedment in thick concrete. Pack sizes range from 5 to 100 pieces to suit single-job needs or bulk project requirements.

Typical applications include anchoring door frame sills and threshold tracks to concrete slabs, securing stair stringers and handrail posts to masonry, fastening equipment bases and machinery mounts where a flush surface is required, and attaching framing ledgers or shelf brackets to block or brick walls. The cross (Phillips) drive on the countersunk head makes installation straightforward with standard tooling.

✅ Compatible with solid concrete, brick, and block masonry  |  M8 (8mm hole) & M10 (10mm hole)  |  Standard metric coarse thread (M8×1.25 / M10×1.5)

✅ Key Features of These Countersunk Sleeve Anchor Expansion Bolts

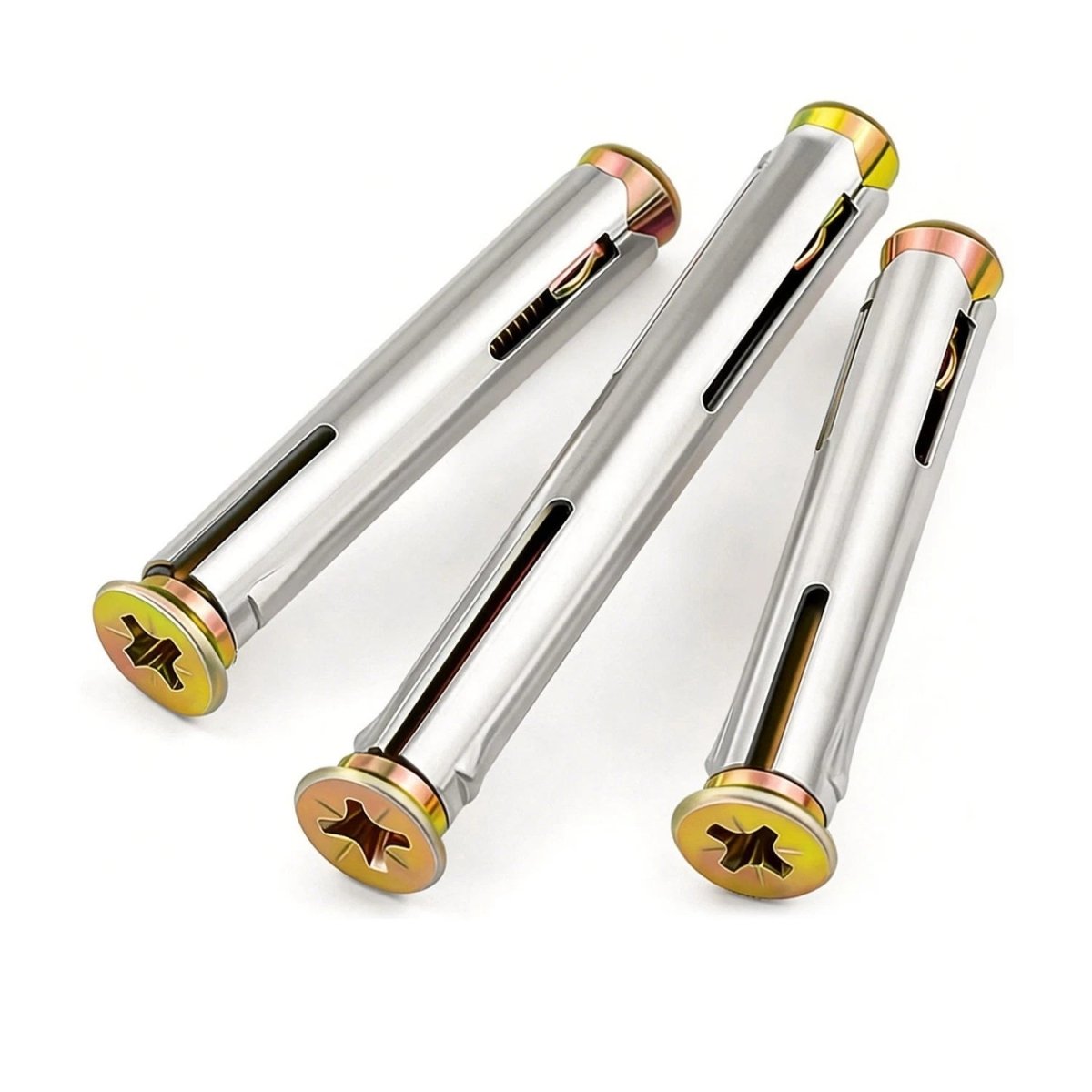

  • 🔩 Flush Countersunk Head — The flat, cross-drive head sits level with or recessed below the fixture surface, eliminating snag points and delivering a clean finish on flooring tracks, door frames, and structural brackets.
  • 🛡️ Zinc-Plated Carbon Steel — The zinc coating provides a protective barrier against oxidation, making these anchors suitable for interior concrete work and covered outdoor installations where moisture exposure is moderate.
  • 📏 Wide Size Range — M8 & M10, 52mm to 202mm — Whether you're anchoring a thin bracket or embedding deep into a thick concrete wall, the available length range covers the most common sleeve anchor applications in residential and light commercial construction.

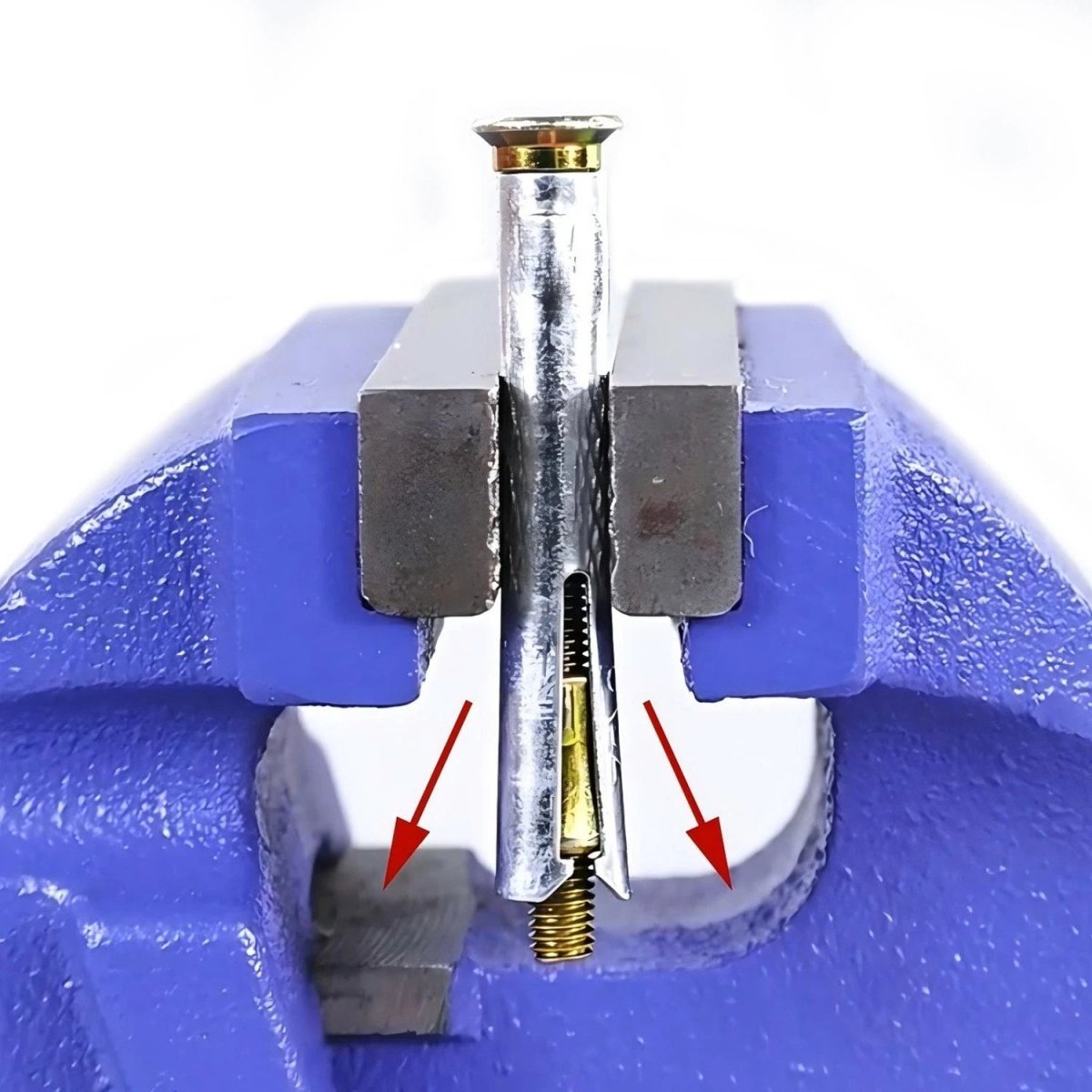

  • ⚙️ Sleeve Expansion Mechanism — As the bolt is tightened, the sleeve expands outward against the drilled hole walls, creating a mechanical interlock that resists both tensile pull-out and shear forces in solid masonry.
  • 🔧 Standard Metric Thread Compatibility — M8 (1.25mm pitch) and M10 (1.5mm pitch) coarse threads work with off-the-shelf metric nuts, washers, and fixtures — no proprietary hardware required for installation or replacement.
  • 📦 Flexible Pack Quantities — Available in packs of 5, 10, 20, 25, 40, 50, or 100 pieces so you can order exactly what your project needs — from a single repair job to a full framing or flooring installation run.

📐 Technical Specifications — Countersunk Sleeve Anchor Expansion Bolts

Product Type Countersunk Head Sleeve Anchor Expansion Bolt
Head Style Countersunk (Flat Head), Cross / Phillips Drive
Material Carbon Steel
Surface Finish Zinc-Plated
Available Diameters M8 (8mm / 5/16")  |  M10 (10mm / 3/8")

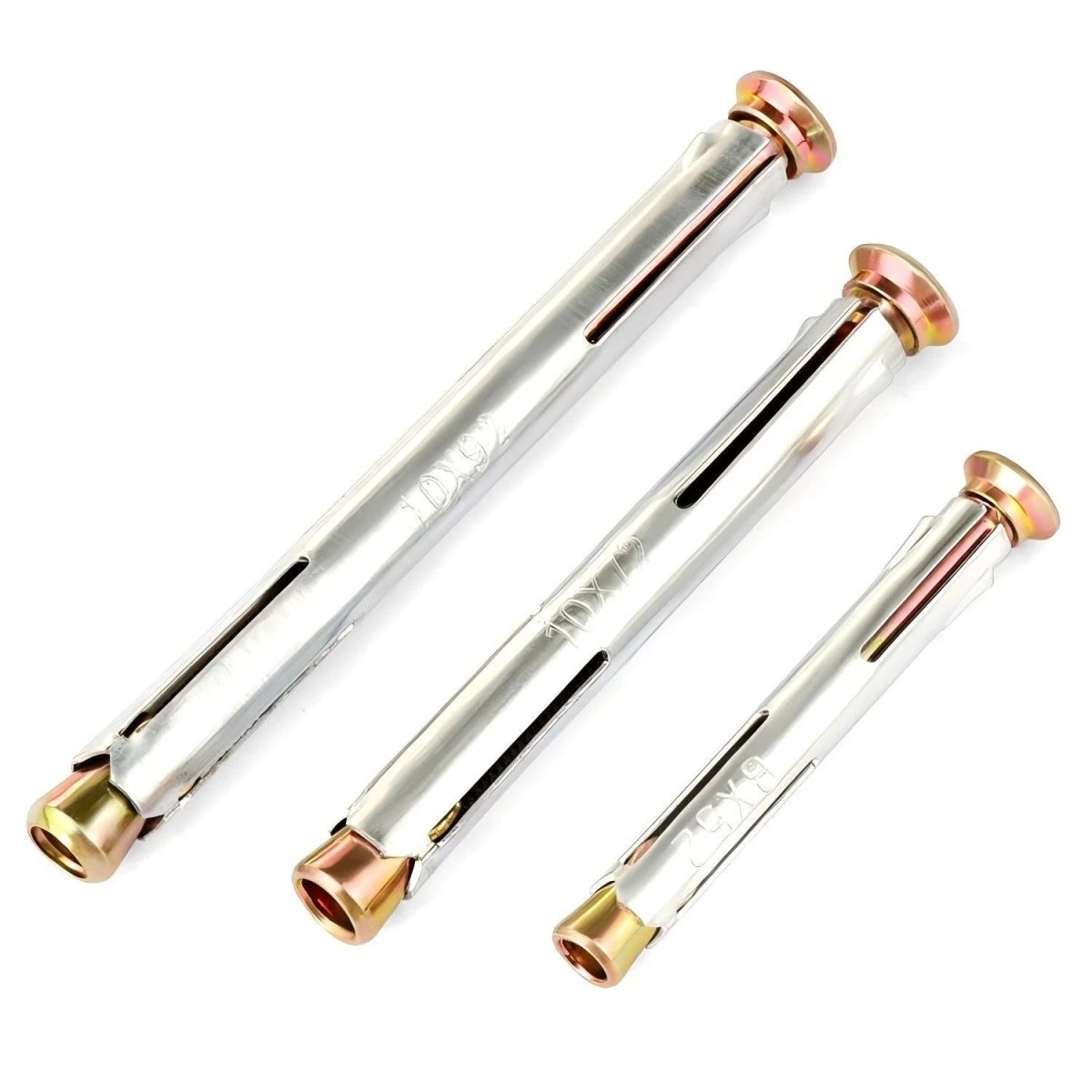

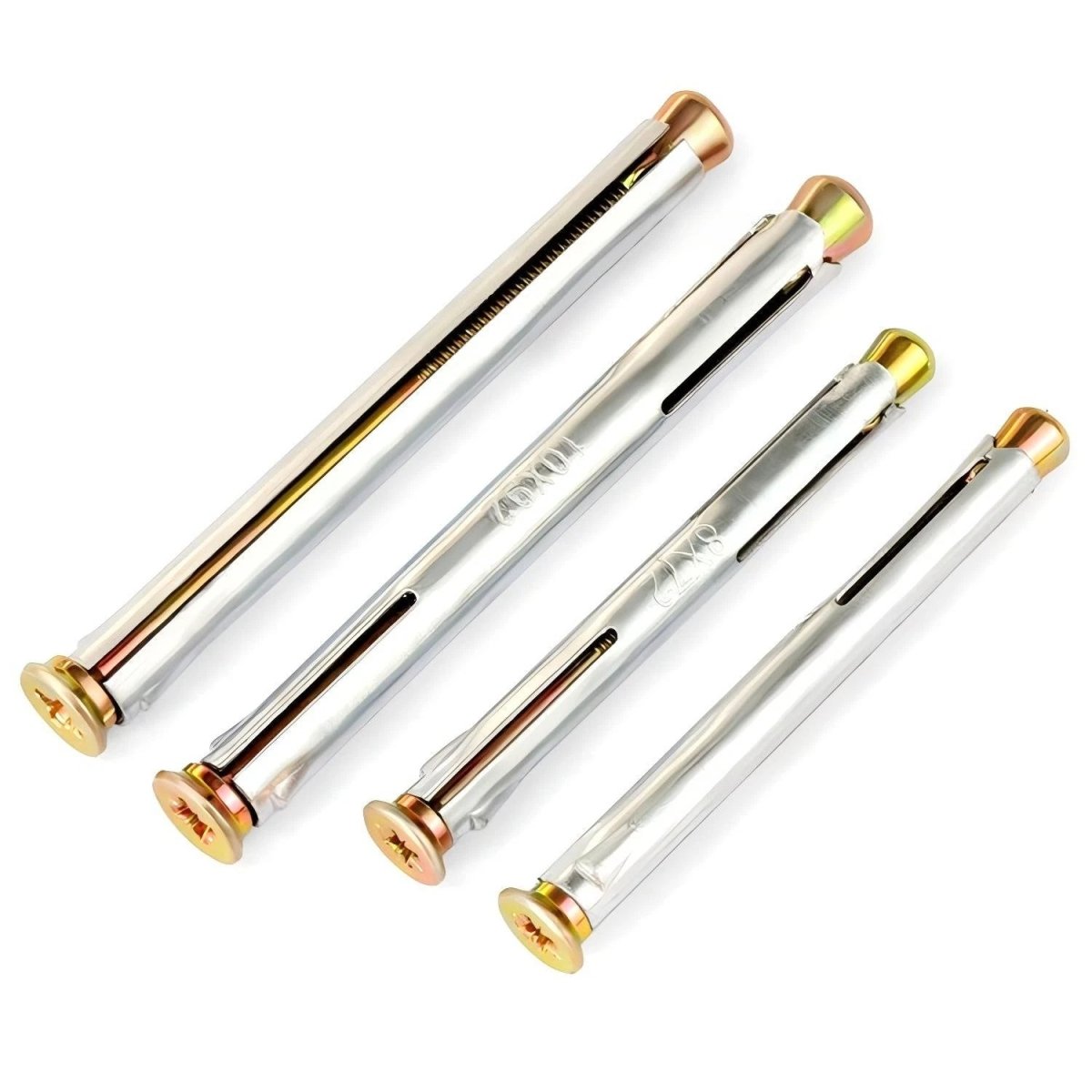

Available Lengths 52mm (≈2"), 72mm (≈2-13/16"), 92mm (≈3-5/8"), 112mm (≈4-7/16"), 132mm (≈5-3/16"), 152mm (≈6"), 172mm (≈6-3/4"), 182mm (≈7-3/16"), 202mm (≈7-15/16")
Thread Standard Metric Coarse — M8×1.25mm pitch  |  M10×1.5mm pitch
Required Drill Bit 8mm carbide masonry bit (M8)  |  10mm carbide masonry bit (M10)
Compatible Base Materials Solid concrete, brick, block masonry
Pack Quantities 5, 10, 20, 25, 40, 50, or 100 pieces (see variant options)
Minimum Embedment Depth Typically ≥4× bolt diameter (≥32mm for M8 / ≥40mm for M10)
Load Capacity See variant options — contact us to confirm for structural applications
Country of Origin Contact us to confirm
⚠️ Installation Note: Always use a hammer drill with a carbide-tipped masonry bit. Drill the hole to the full anchor length, clear dust from the hole, insert the anchor, and tighten until the sleeve is fully expanded. Do not over-torque. For safety-critical structural applications, consult a licensed engineer.

❓ Frequently Asked Questions

How do I choose the right length for my sleeve anchor expansion bolt?

A general rule: the anchor embedment depth should be at least 4× the bolt diameter. For M8 bolts, aim for at least 32mm (≈1-1/4") of embedment into the base material; for M10, at least 40mm (≈1-9/16"). Add the thickness of the fixture being fastened to determine the total bolt length needed. For example, fastening a 20mm bracket with an M8 bolt typically calls for a 52mm (≈2") or 72mm (≈2-13/16") anchor.

What load capacity can these sleeve anchors handle?

Load capacity depends on the base material strength, embedment depth, and edge/spacing distances. In standard concrete (≥C20/25), M8 sleeve anchors generally support tensile loads of 3–6 kN and shear loads of 5–9 kN; M10 anchors typically handle 5–10 kN tensile and 8–14 kN shear. Always consult a structural engineer for safety-critical applications.

Are these expansion bolts suitable for outdoor or wet environments?

These bolts feature a zinc-plated finish that provides moderate corrosion resistance, making them suitable for covered outdoor areas and occasional moisture exposure. For continuously wet, coastal, or fully exposed outdoor installations, stainless steel anchors are generally recommended for long-term performance.

What base materials are these sleeve anchors compatible with?

These countersunk sleeve anchors are designed for use in solid concrete, brick, block, and other solid masonry materials. They are not recommended for hollow block, drywall, or soft/crumbling substrates. If you are unsure whether your base material qualifies, contact us before ordering.

What thread standard do these bolts use — are they compatible with standard metric hardware?

Yes. These anchors use standard metric coarse threads — M8 (1.25mm pitch) and M10 (1.5mm pitch) — compatible with standard metric nuts, washers, and fixtures available at any hardware store. No proprietary hardware is required.

Do I need a special drill bit to install these anchors?

Yes. Use a carbide-tipped masonry or hammer drill bit matching the anchor diameter — an 8mm bit for M8 anchors and a 10mm bit for M10 anchors. A hammer drill is strongly recommended for concrete; a rotary drill may be used for softer masonry. Drill the hole to the full anchor length, blow out the dust, then insert and tighten the anchor.

Why choose a countersunk head over a hex head sleeve anchor?

The countersunk (flat) head sits flush with or below the surface of the fixture, eliminating protrusions that could snag clothing, equipment, or create trip hazards. This makes them ideal for flooring tracks, stair stringers, door frames, and any application where a clean, low-profile finish matters. Hex head anchors are generally easier to install with a wrench but leave a raised head above the surface.

🛒 Select your size and pack quantity above, then add to cart — ships from our US warehouse.
