Door Hinge Jig Router Template — Precise Mortise Cuts Without the Guesswork
Chiseling door hinge mortises by hand is slow, inconsistent, and unforgiving—one slip and the door won't hang right. This door hinge jig is built for DIY homeowners and professional contractors who need repeatable, accurate results on every install.

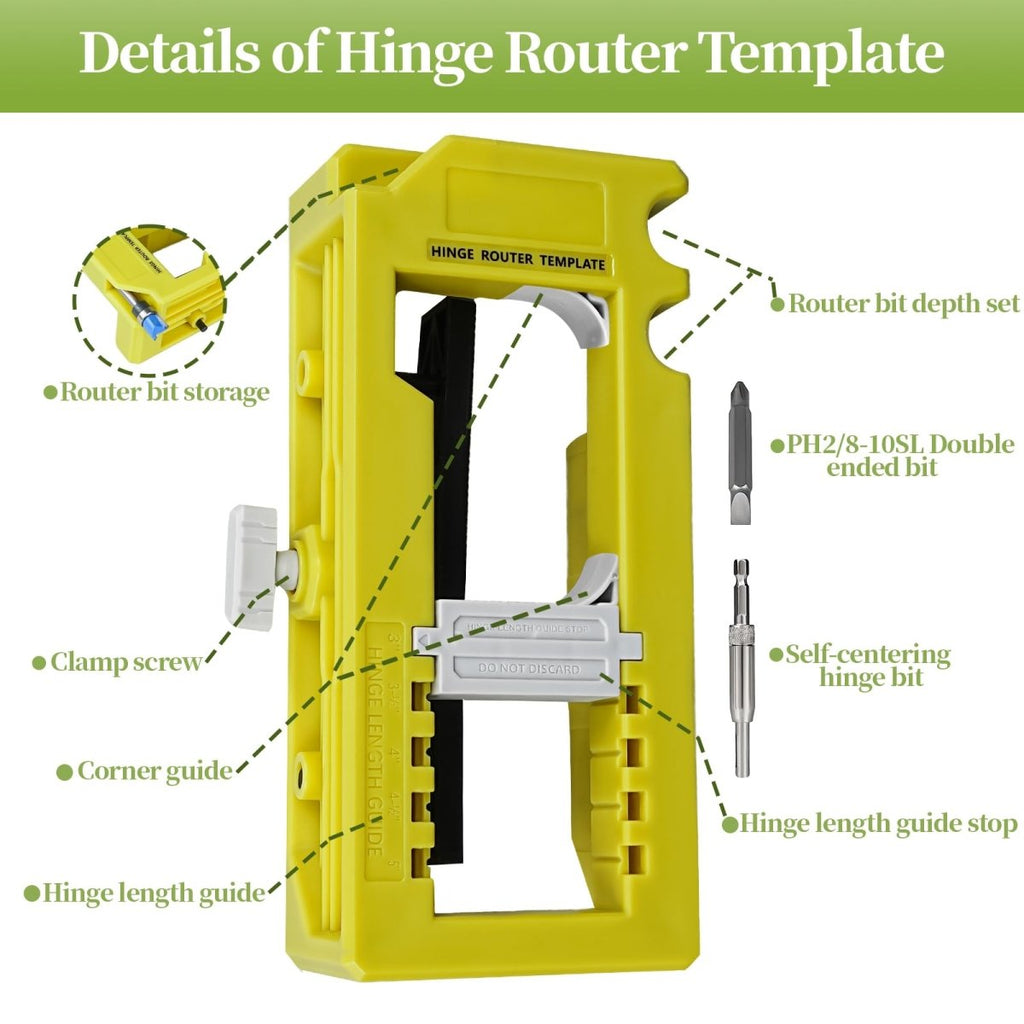

The kit includes a fully adjustable hinge mortise template, a built-in depth gauge, two interchangeable plastic inserts (round-corner and square-corner), a router bit, a self-centering hinge drill bit, and a double-ended screwdriver bit. Compatible with hinges from 76–127 mm (3"–5") in length and 6–16 mm (1/4"–5/8") in thickness.
Use it for new door installations, replacing worn hinges on interior doors, or speeding up multi-door renovation projects. Works seamlessly with any compact router or mortising tool—making it the go-to door hinge installation kit for clean, professional results every time.
✅

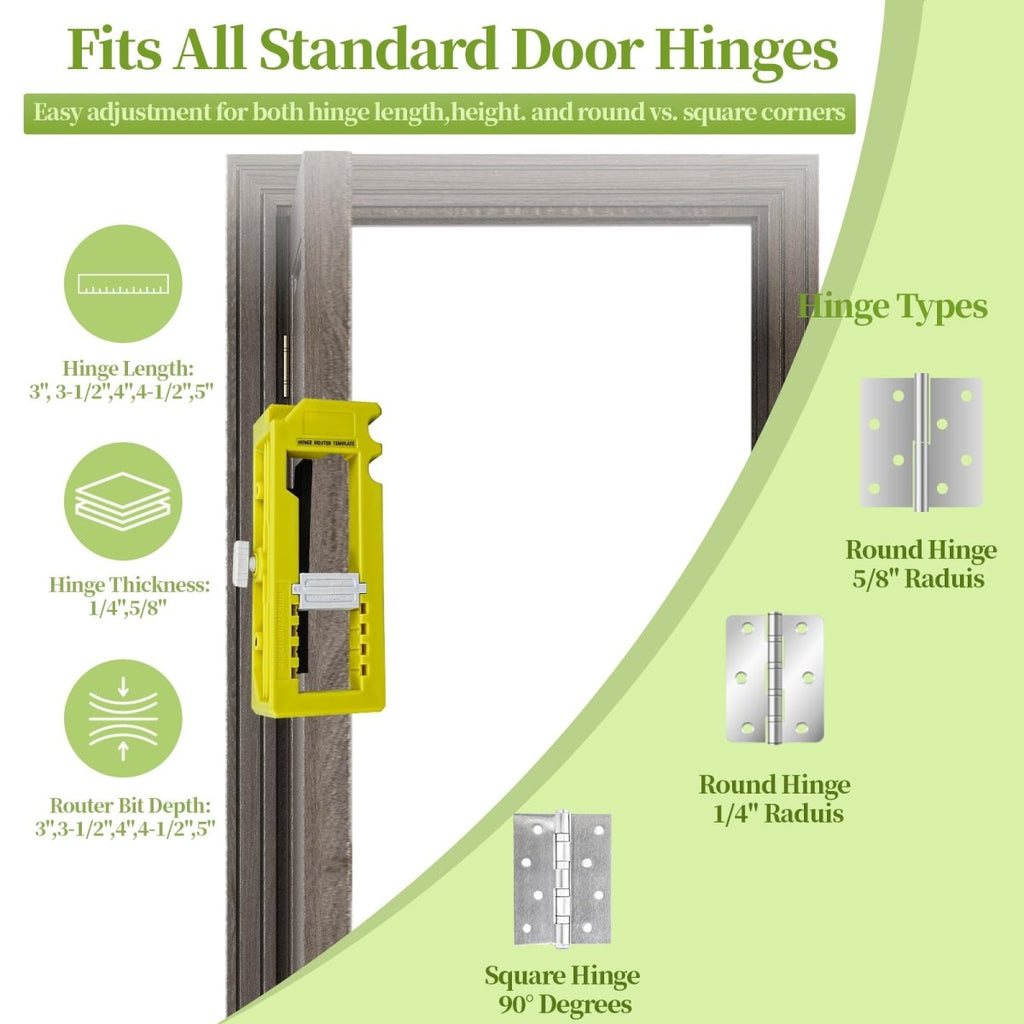

Compatible with standard door hinges 3"–5" (76–127 mm) long, 1/4"–5/8" (6–16 mm) thick — round-corner and square-corner styles
✅ Key Features of This Door Hinge Jig Router Template
-
📏

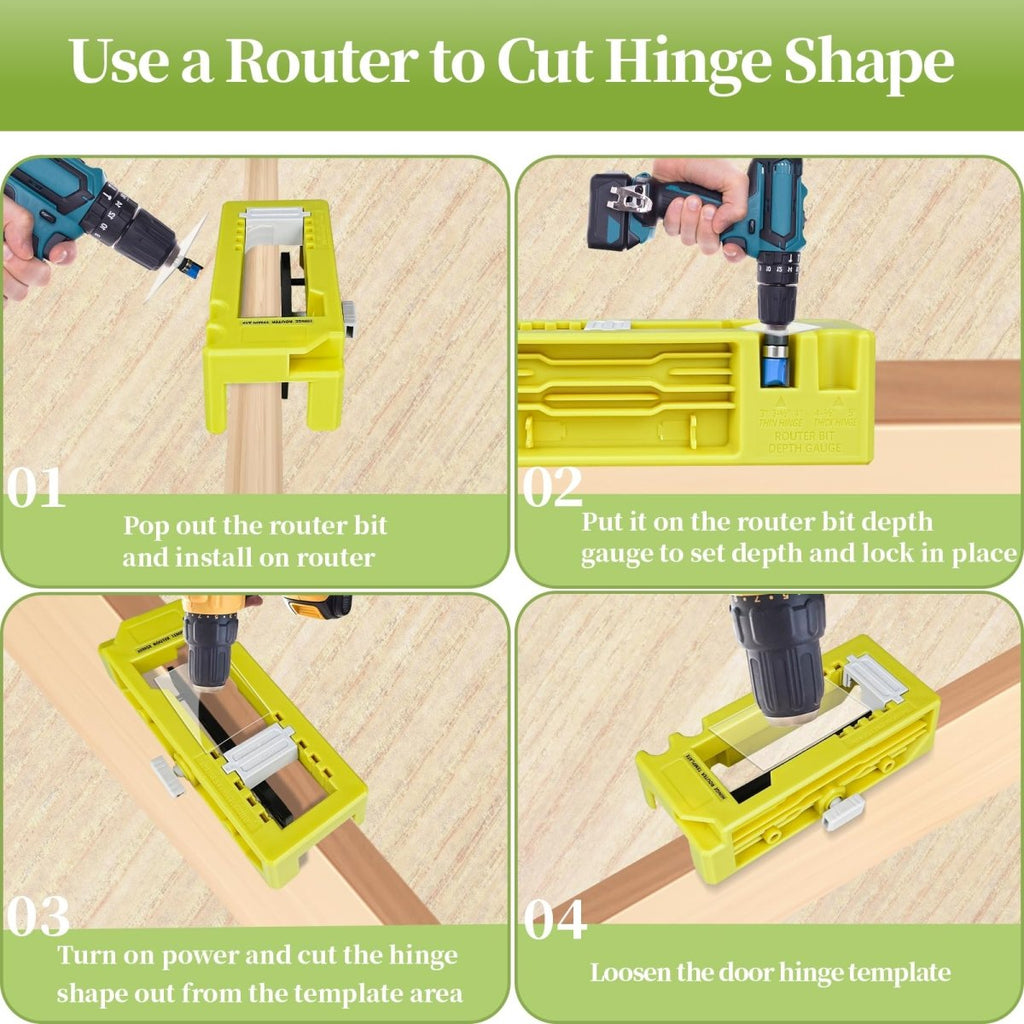

Built-In Depth Gauge: Sets the exact router bit cutting depth for flush, perfectly recessed mortises—no measuring tape required.
-
🔧

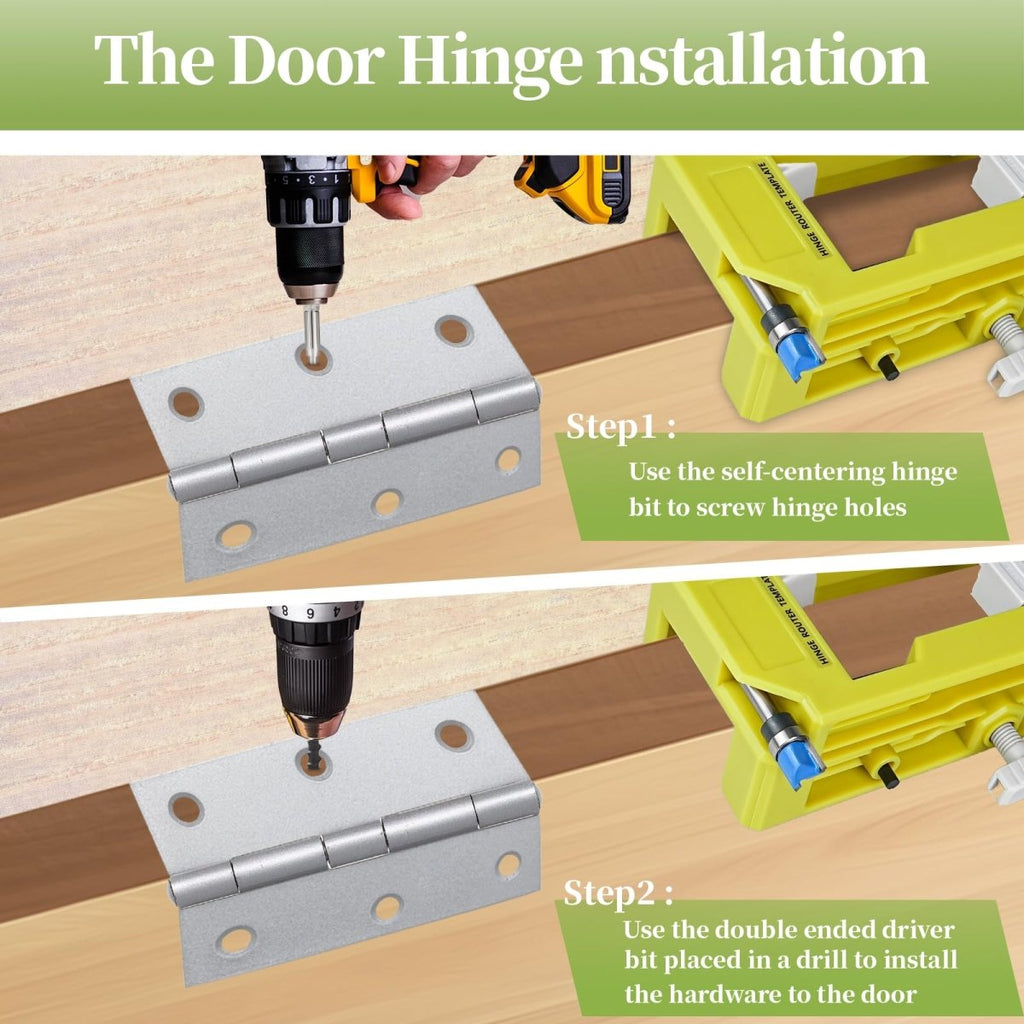

Self-Centering Hinge Bit: Automatically centers pilot holes on hinge screw slots for perfectly aligned fasteners every time.
-
🔲
Dual Interchangeable Inserts: Swap between round-corner and square-corner plastic inserts to match any standard hinge style without additional tools.
-
🛡️
Non-Marring Silicone Pads: Silicone non-slip pads on both sides grip the door surface firmly without scratching or denting the wood finish.
-
✂️
No Hammer or Chisel Needed: Pair with any compact router or mortising tool (not included) to cut clean mortises in a fraction of the time.
-
🔄

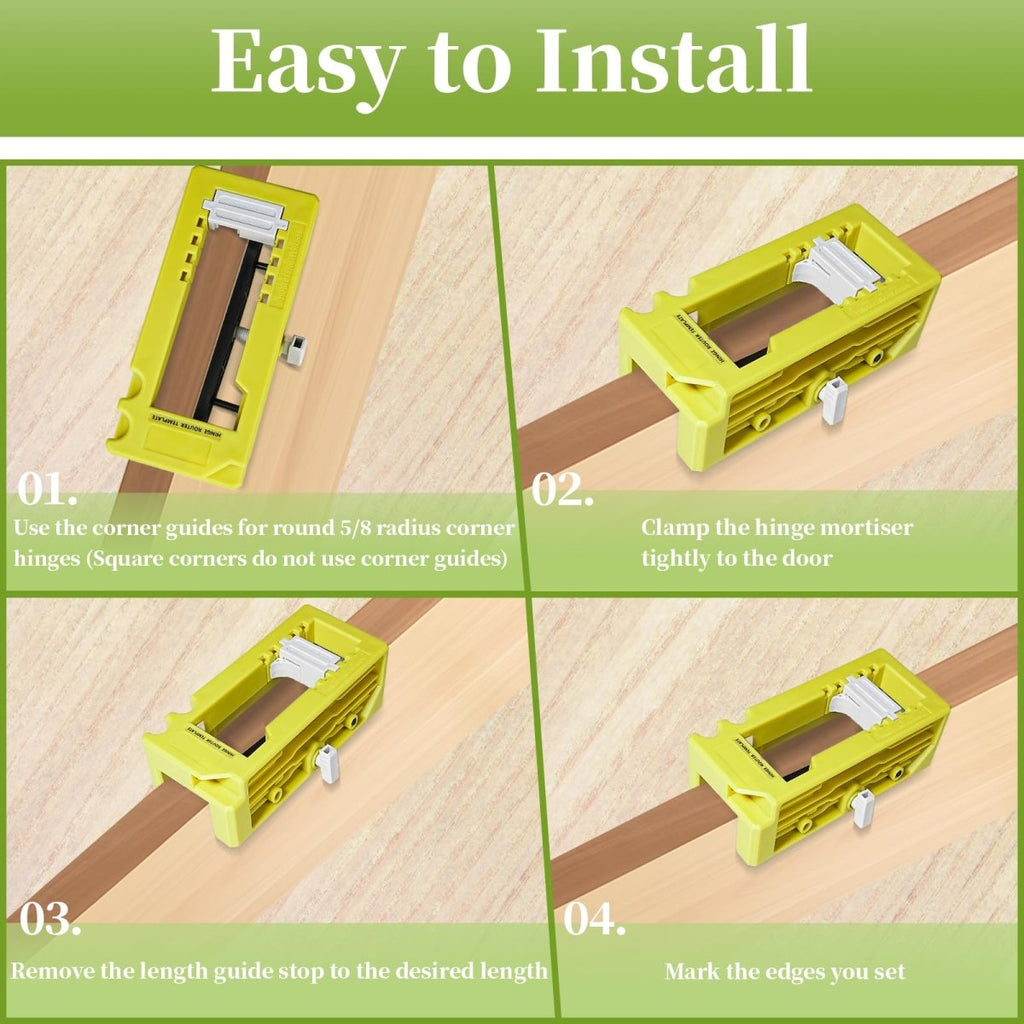

Fully Adjustable Template: Dial in any hinge length, depth, and corner radius—one jig handles your entire range of standard door hinges.
🎯 Who Is This For?
🏠
DIY Homeowners
Hanging a new interior door or replacing old hinges? This jig makes it a one-person job—no carpentry experience required.
🔨
Carpenters & Contractors
Speed up multi-door installs on renovation sites. Consistent depth and positioning across every door, every time.
🏬
Property Maintenance Teams
Standardize hinge replacement across multiple units with a single adjustable template that fits all common hinge sizes.
| Hinge Length Range |
3" to 5" (76–127 mm) |
| Hinge Thickness Range |
1/4" to 5/8" (6–16 mm) |
| Corner Styles |
Round-corner and square-corner (interchangeable inserts) |
| Material |
Durable plastic body with silicone non-slip pads |
| Depth Gauge |
Built-in, adjustable |
| Router Compatibility |
Compact router or mortising tool (not included) |
| Installation Surface |
Door face only (not suitable for door jamb) |
| Included Bits |
Router bit, self-centering hinge bit, PH2/8-10SL screwdriver bit |
❓ Frequently Asked Questions
What hinge sizes does this jig fit?
This door hinge jig accommodates standard hinges from 3" to 5" (76–127 mm) in length and 1/4" to 5/8" (6–16 mm) in thickness. Both round-corner and square-corner hinge styles are supported via the two included interchangeable inserts.
Do I need a router, or can I use a chisel?
This jig is designed to be used with a compact router or mortising tool for best results. While the template can guide a sharp chisel, it is optimized for router use. A router (not included) will deliver the cleanest, most consistent mortise cuts.
Can this jig be used on the door jamb as well?
No—this jig is designed for door face installation only. It is not suitable for cutting mortises on the door jamb side. For jamb-side work, a separate jamb hinge template would be required.
How do I switch between round-corner and square-corner hinges?
Simply remove the installed plastic insert and swap in the alternate corner insert included in the kit. No tools are needed for the swap—the inserts click in and out by hand.
Will the jig scratch or damage my door finish?
No. The jig features silicone non-slip pads on both contact surfaces. These pads grip the door firmly to prevent movement during routing while protecting the wood or painted finish from scratches and dents.
Is this suitable for a beginner with no carpentry experience?
Yes. The built-in depth gauge, self-centering drill bit, and adjustable length guide remove the guesswork from hinge installation. As long as you are comfortable operating a compact router, this jig will guide you to professional results on your first try.

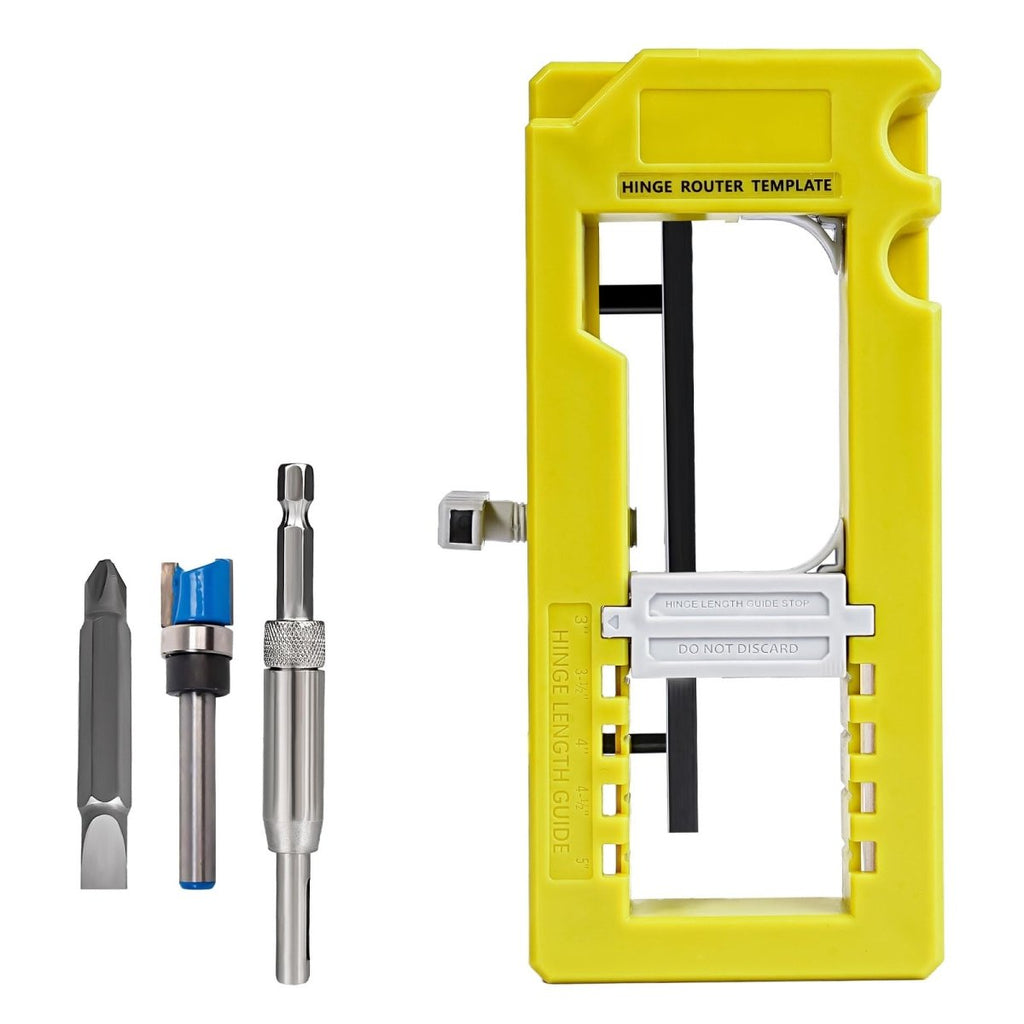

📦 What's in the Box
- Door Hinge Mortise Jig × 1
- Router Drill Bit × 1
- Self-Centering Hinge Drill Bit × 1
- PH2/8-10SL Double-Ended Screwdriver Bit × 1
- User Manual × 1
