Engineers, hobbyists, and equipment builders who work in wet, chemically aggressive, or electrically sensitive environments know the frustration of steel bearings that corrode, seize, or conduct stray currents. Full ceramic miniature ball bearings made from ZrO2 zirconia eliminate those failure modes entirely, giving you a rolling element that performs where steel cannot.

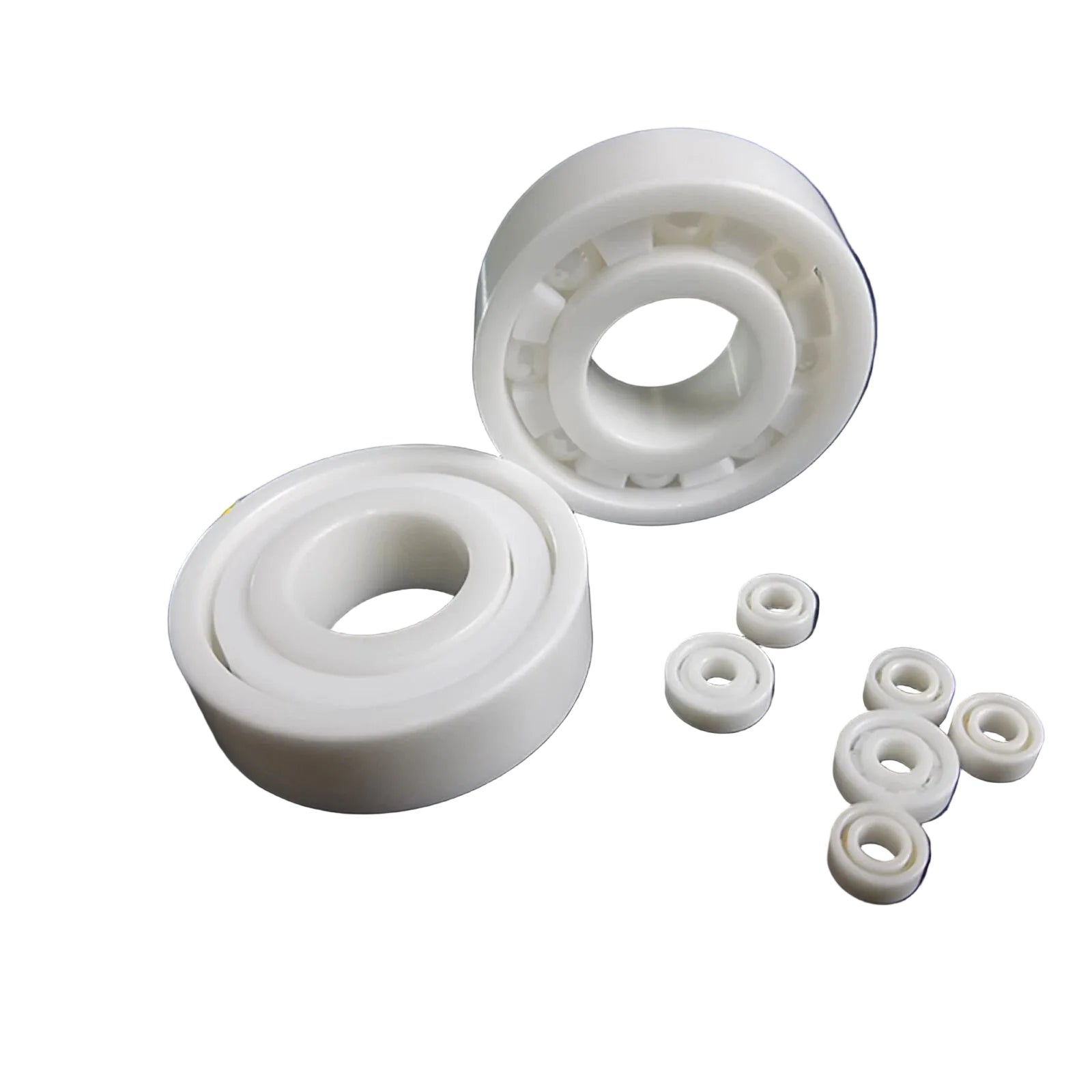

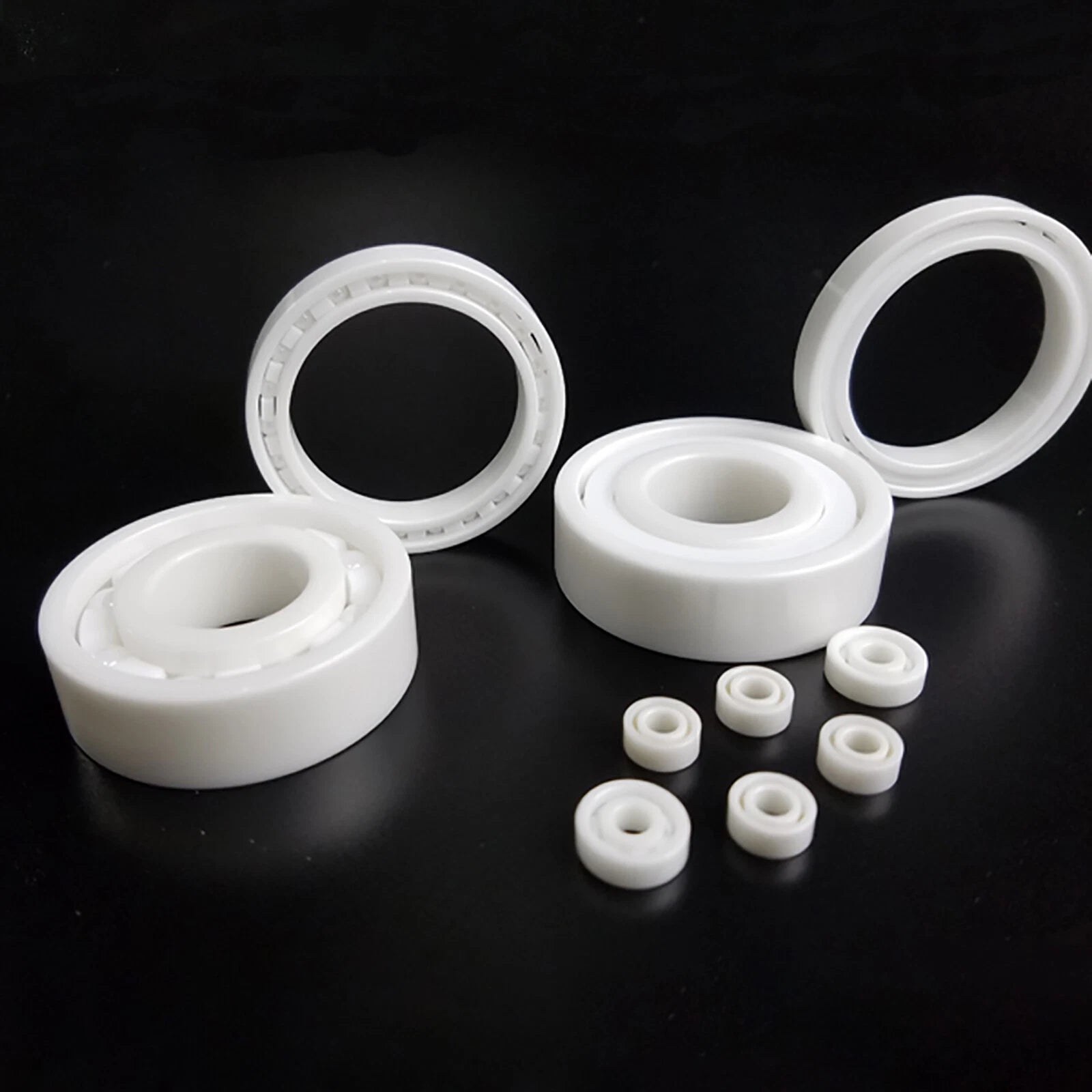

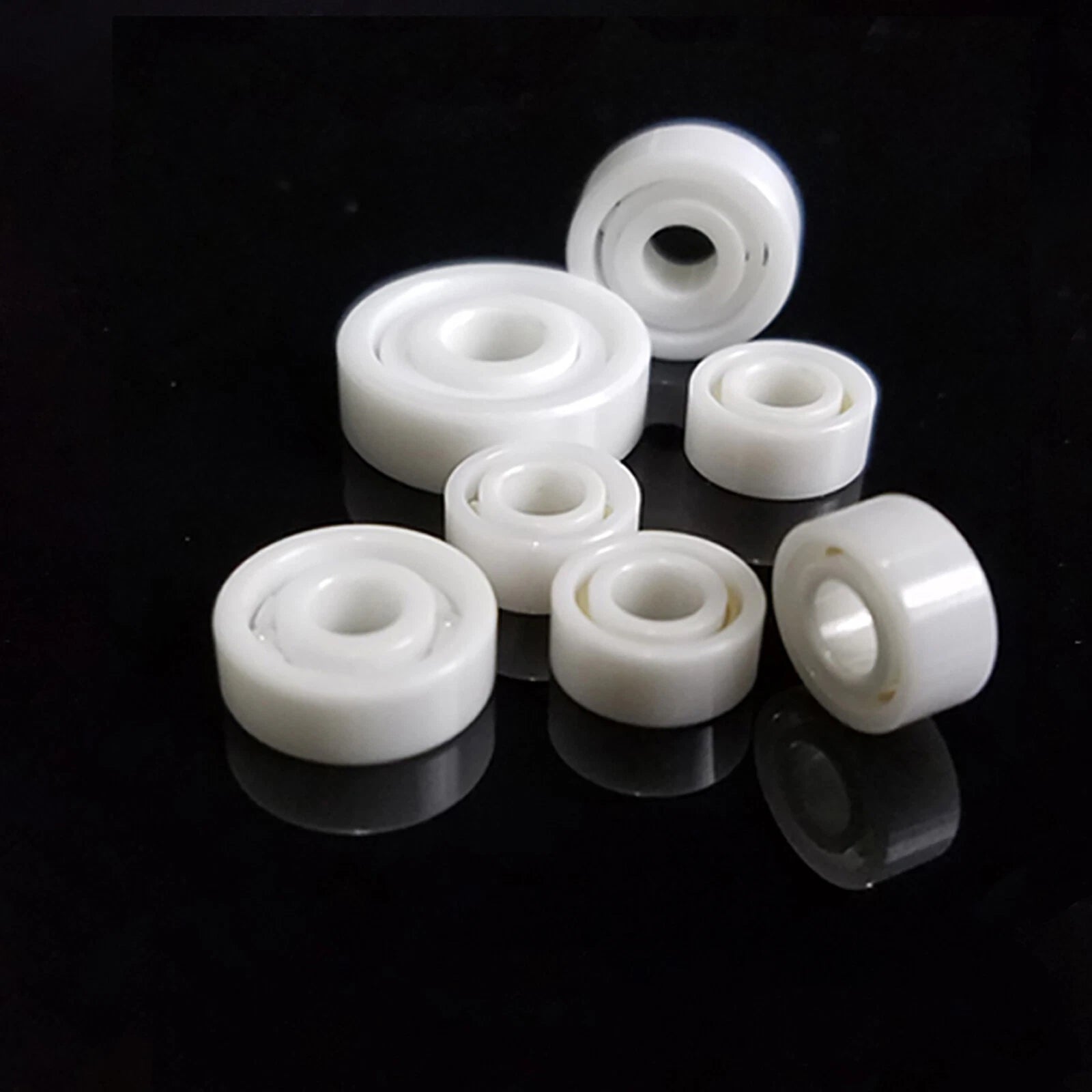

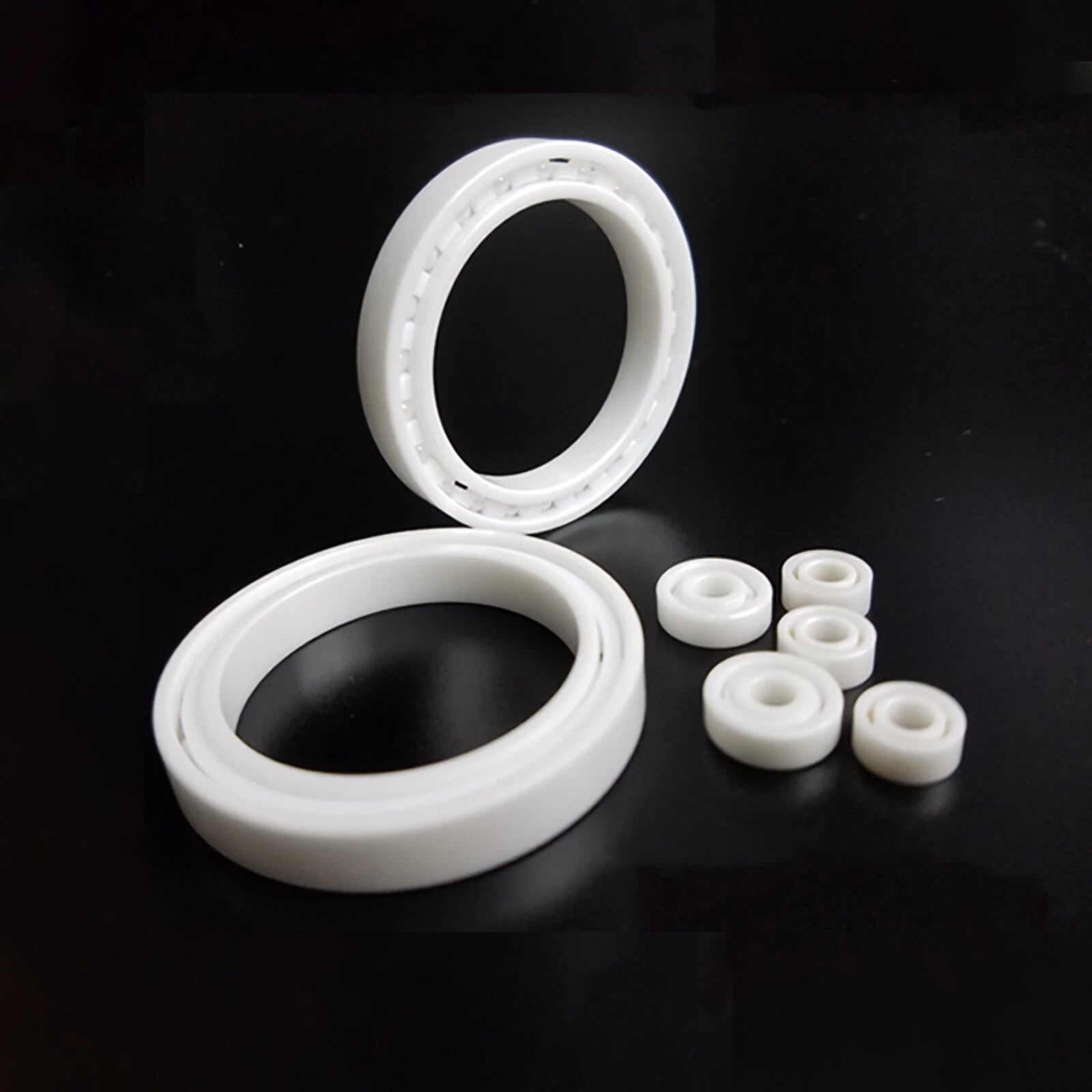

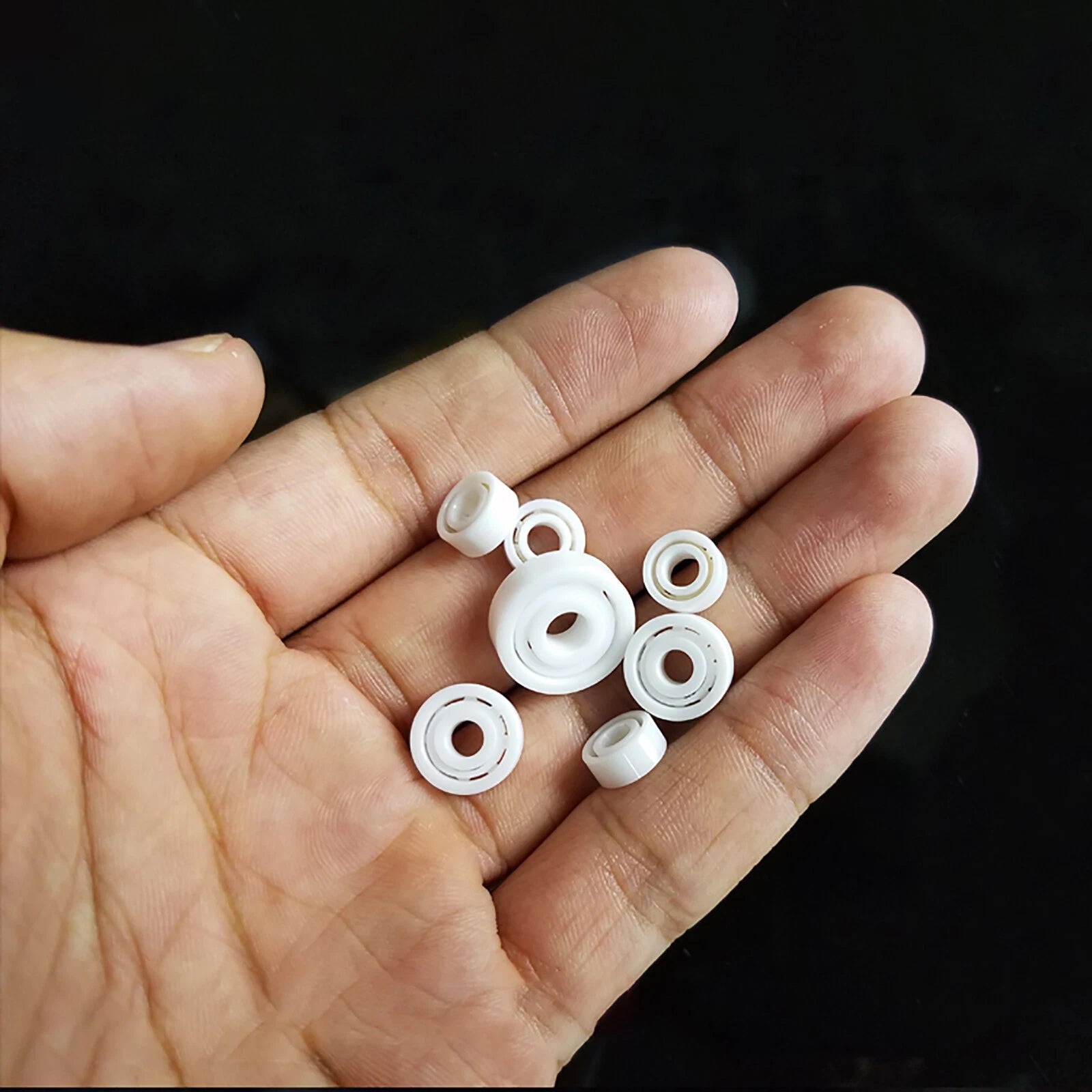

These full ceramic miniature ball bearings ZrO2 zirconia cover the 603 through 699 series, spanning inner diameters from 3 mm (0.118 in) to 9 mm (0.354 in), outer diameters from 7 mm (0.276 in) to 26 mm (1.024 in), and widths from 2 mm (0.079 in) to 8 mm (0.315 in). Both the rings and the rolling balls are manufactured from zirconium dioxide (ZrO2), with no metallic components in the load path.
Typical applications include RC drone motor shafts requiring non-magnetic bearings, laboratory pump spindles exposed to acids or solvents, food-processing equipment where lubricant contamination is a concern, and high-speed dental or surgical handpieces where sterilization cycles demand corrosion immunity. The compact miniature form factor also suits precision optical instruments and thin-section robotic joints.
| Material (Rings & Balls) | Zirconium Dioxide (ZrO2) — Full Ceramic |
|---|---|
| Series Coverage | 603, 604, 605, 606, 607, 608, 609, 623, 624, 625, 626, 627, 628, 629, 683, 684, 685, 686, 687, 688, 689, 693, 694, 695, 696, 697, 698, 699 |
| Inner Diameter (ID) Range | 3 mm – 9 mm (0.118 in – 0.354 in) |
| Outer Diameter (OD) Range | 7 mm – 26 mm (0.276 in – 1.024 in) |
| Width Range | 2 mm – 8 mm (0.079 in – 0.315 in) |
| Bearing Type | Open (unshielded) miniature radial ball bearing |
| Retainer / Cage | See variant options |
| Dynamic Load Rating | See variant options |
| Static Load Rating | See variant options |
| Max Speed (dry / lubricated) | Contact us to confirm |
| Operating Temperature | Typically −40 °C to +300 °C (dry, no lubricant) |
| Electrical Conductivity | Non-conductive (insulating) |
| Magnetic Properties | Non-magnetic |
| Packing Quantity Options | 1 pcs / 10 pcs |
| Dimensional Standard | ISO 618 miniature bearing envelope |
Match the bearing number to your shaft diameter (inner diameter) and housing bore (outer diameter). For example, a 608 bearing has an 8 mm ID, 22 mm OD, and 7 mm width — the same envelope as a standard skateboard or fidget-spinner bearing. Check the size table in the variant selector: each option lists the series number followed by ID × OD × Width in millimeters. If your housing was designed for a steel bearing of the same series number, the ZrO2 ceramic replacement will be a direct drop-in dimensionally.
ZrO2 zirconia is one of the toughest engineering ceramics, with flexural strength typically in the 900–1200 MPa range. For miniature bearings in the 603–699 size range, the ceramic construction handles the radial and axial loads typical of light-duty to medium-duty applications such as RC motors, small pumps, and precision instruments. They are not intended for heavy shock loads or impact-dominant environments where steel bearings would be the correct choice. Contact us with your specific load and speed requirements if you need confirmation for a critical application.
Full ceramic bearings can run dry in many applications because ceramic-on-ceramic contact generates less friction heat than steel and does not require oil film for corrosion protection. However, adding a compatible lubricant (PTFE-based grease or ceramic-compatible oil) typically extends service life and reduces noise at higher speeds. Avoid petroleum-based greases in chemically aggressive environments — use a lubricant rated for the specific media the bearing will contact.
Yes. ZrO2 zirconia is chemically inert to most dilute acids, alkalis, and saltwater. It is widely used in marine, chemical processing, and food-grade applications for this reason. Concentrated hydrofluoric acid (HF) and hot concentrated phosphoric acid are exceptions — consult a materials engineer if your application involves these specific chemicals. The full ceramic construction means there are no steel rings or cages to corrode, unlike hybrid ceramic bearings that retain steel rings.
Hybrid ceramic bearings use ceramic balls (typically Si3N4 silicon nitride) but retain steel inner and outer rings. Full ceramic bearings — like these ZrO2 models — use ceramic for both the rings and the balls. Full ceramic bearings are fully non-magnetic, fully electrically insulating, and fully corrosion-resistant throughout the entire bearing assembly. Hybrid bearings offer some of these benefits but the steel rings remain susceptible to corrosion and conduct electricity. For applications requiring complete electrical isolation or full corrosion immunity, full ceramic is the correct choice.
ZrO2 zirconia is biocompatible and is used in dental implants and surgical tools, making it a suitable material for food-contact and medical-adjacent applications. These bearings contain no metallic components that could contaminate food streams or trigger metal detectors. For regulated medical device applications, verify that your specific use case and jurisdiction requirements are met. For food processing, the non-porous ceramic surface does not harbor bacteria and can withstand steam cleaning and sanitizing agents that would corrode steel bearings.
The 1-piece option is suited for prototyping, single-unit repairs, or testing fit before committing to a larger quantity. The 10-piece pack offers a lower per-unit cost and is practical for production builds, maintenance kits, or applications where you anticipate periodic bearing replacement. Compare the per-unit price between the two pack sizes in the variant selector to calculate your savings at volume.
