When standard steel balls fail under corrosive media, high temperatures, or electromagnetic interference, engineers and precision machinists turn to G5-grade silicon nitride (Si₃N₄) ceramic ball bearings. Whether you are rebuilding a spindle, specifying components for a chemical pump, or sourcing rolling elements for a medical device, finding the right diameter in the right quantity without compromising on grade tolerance is a persistent challenge.

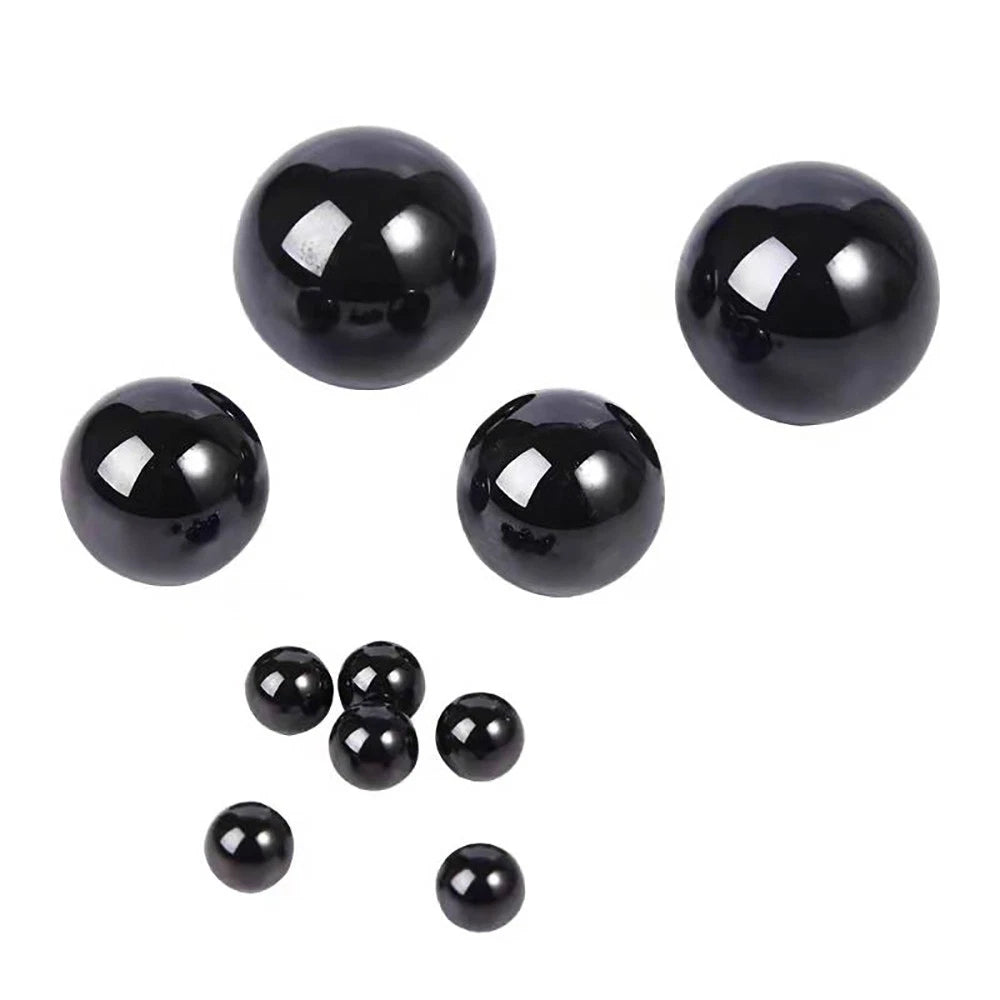

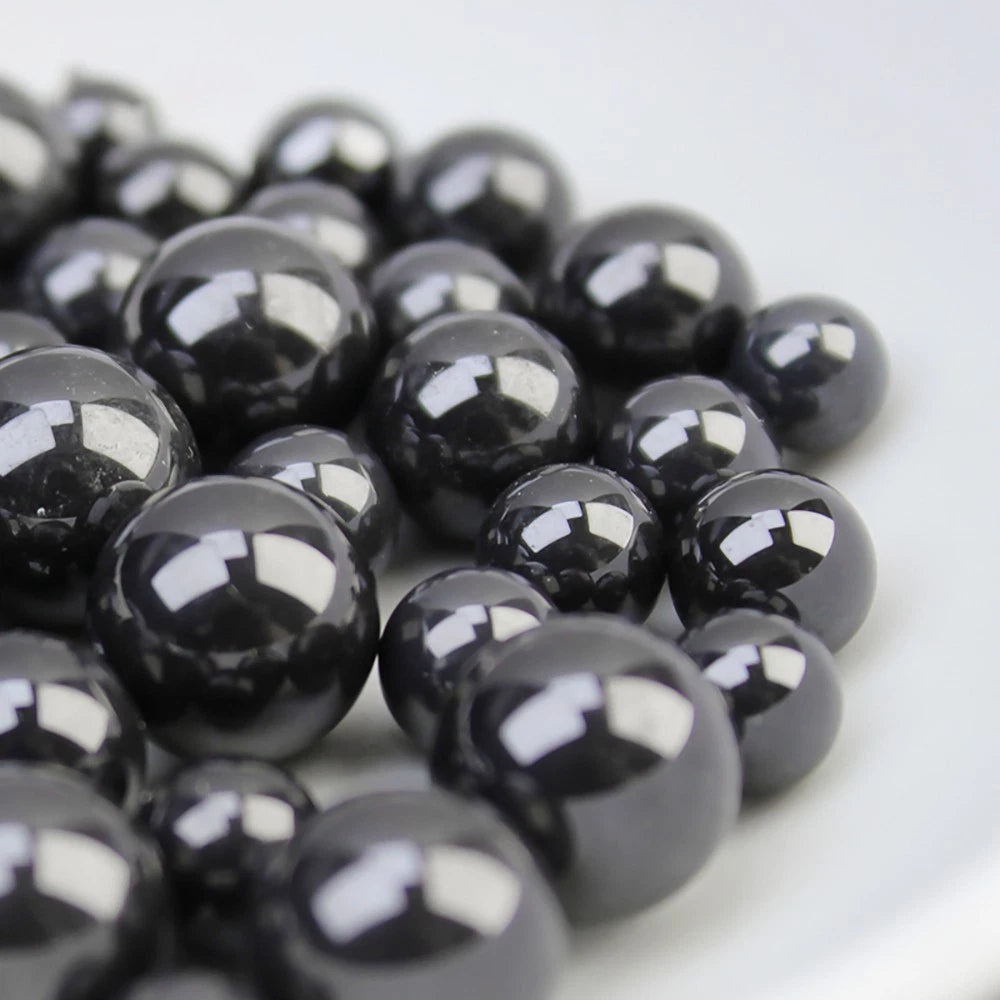

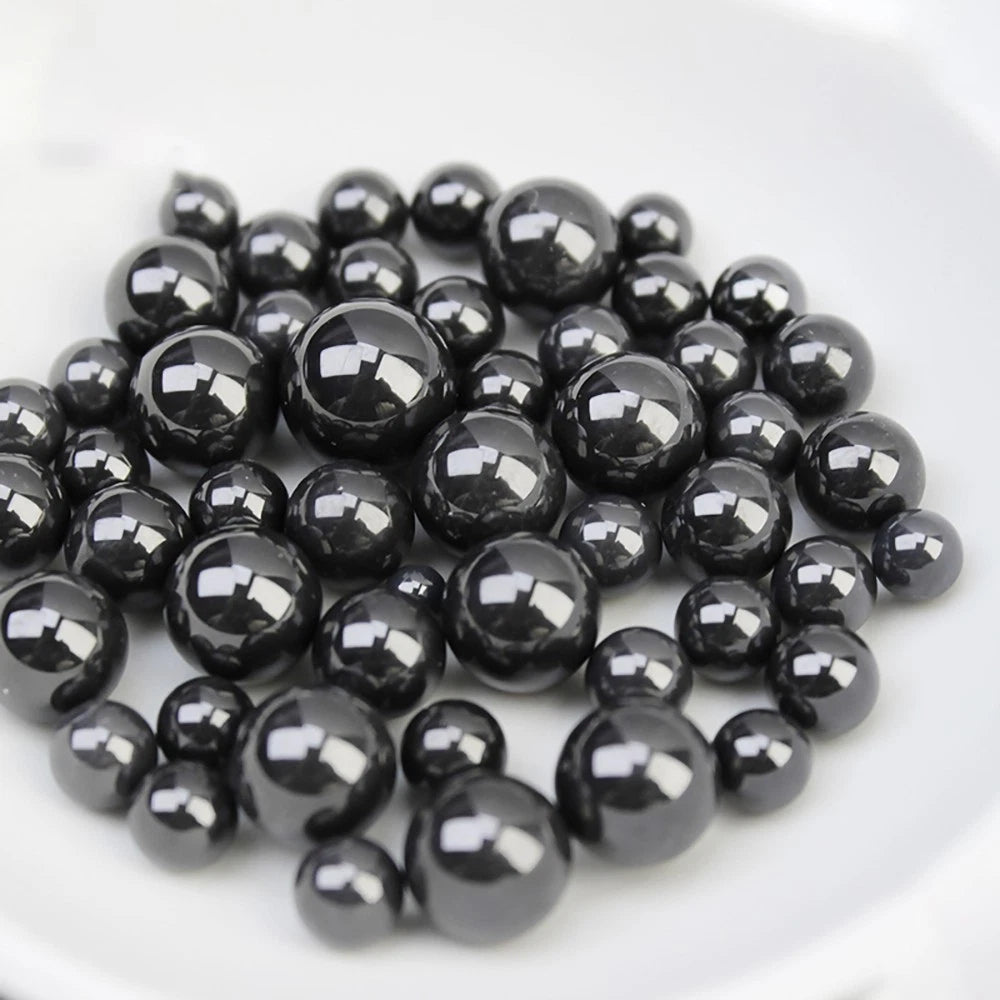

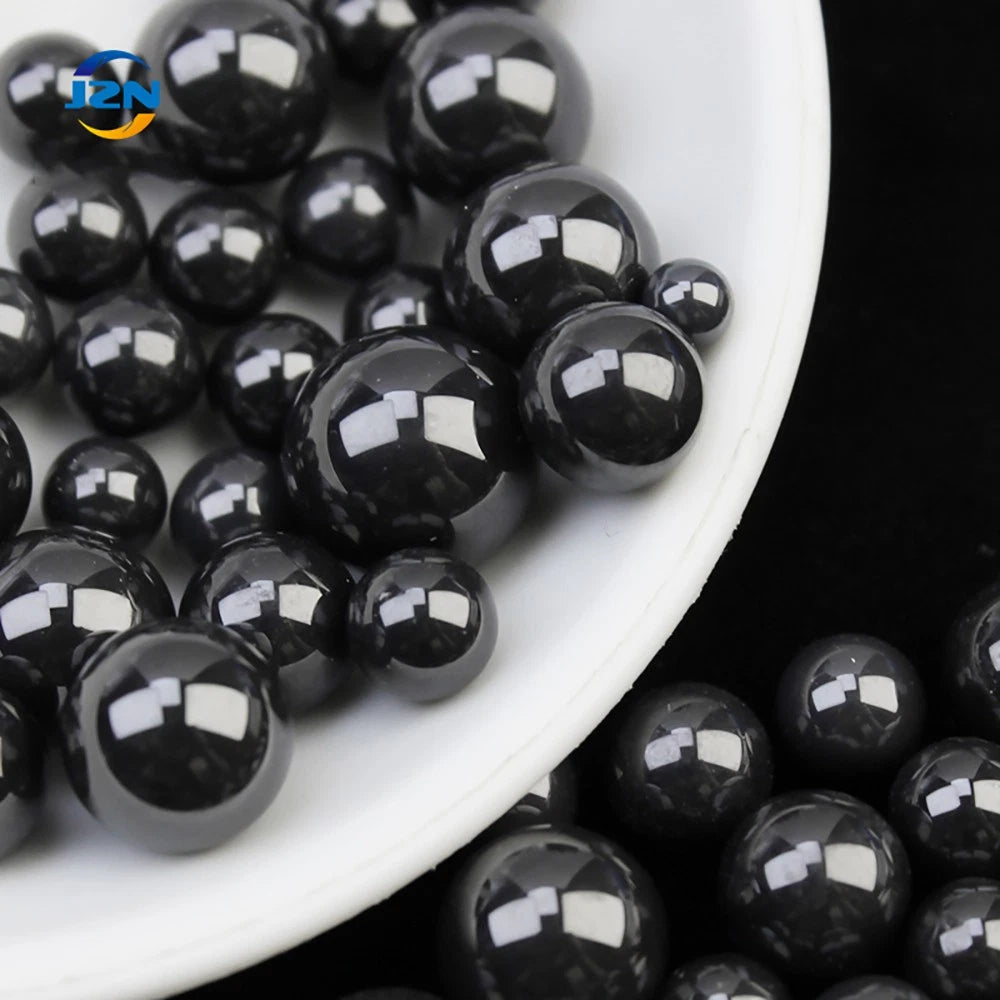

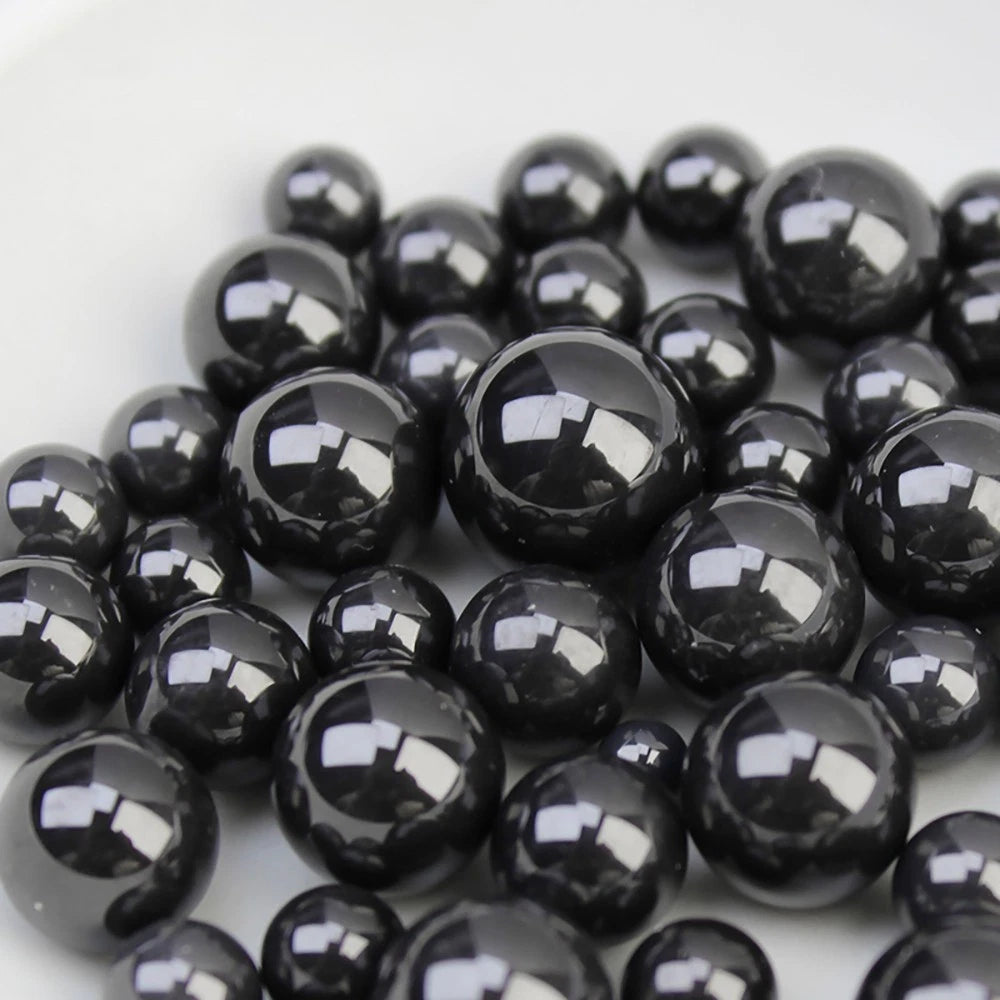

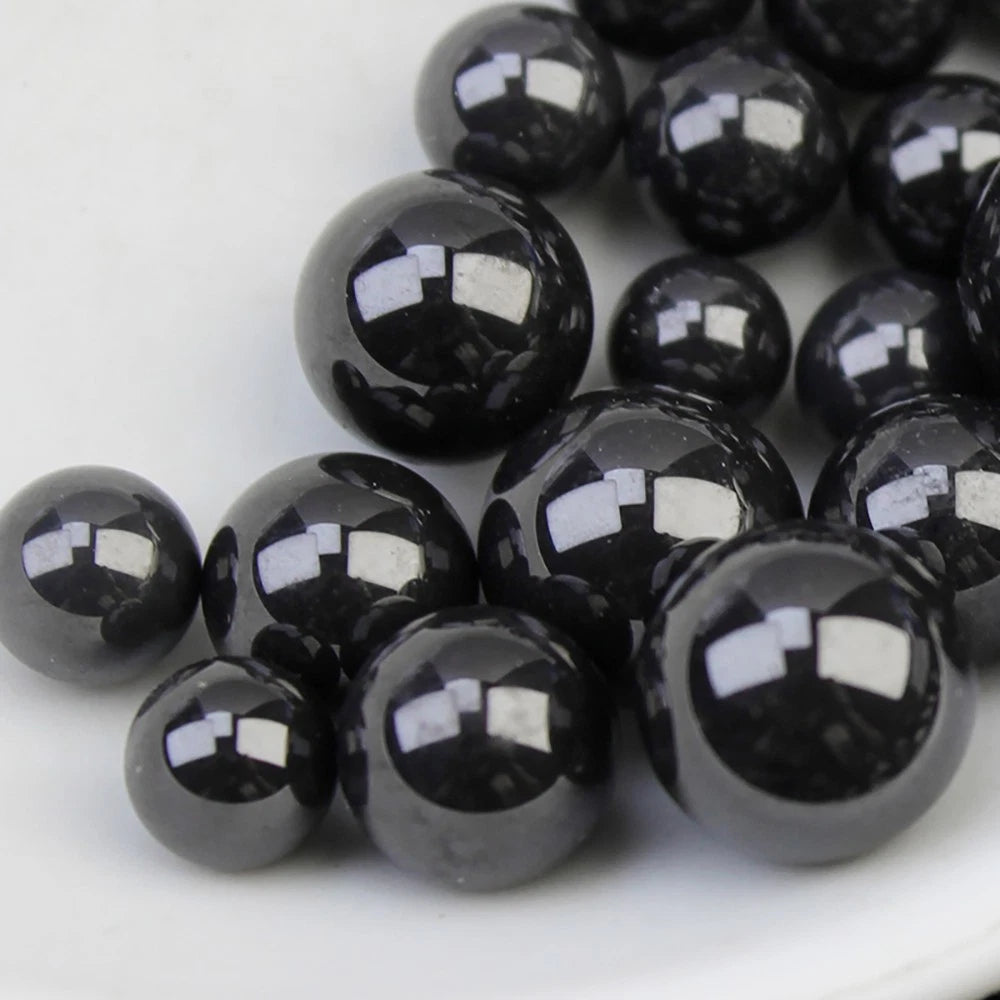

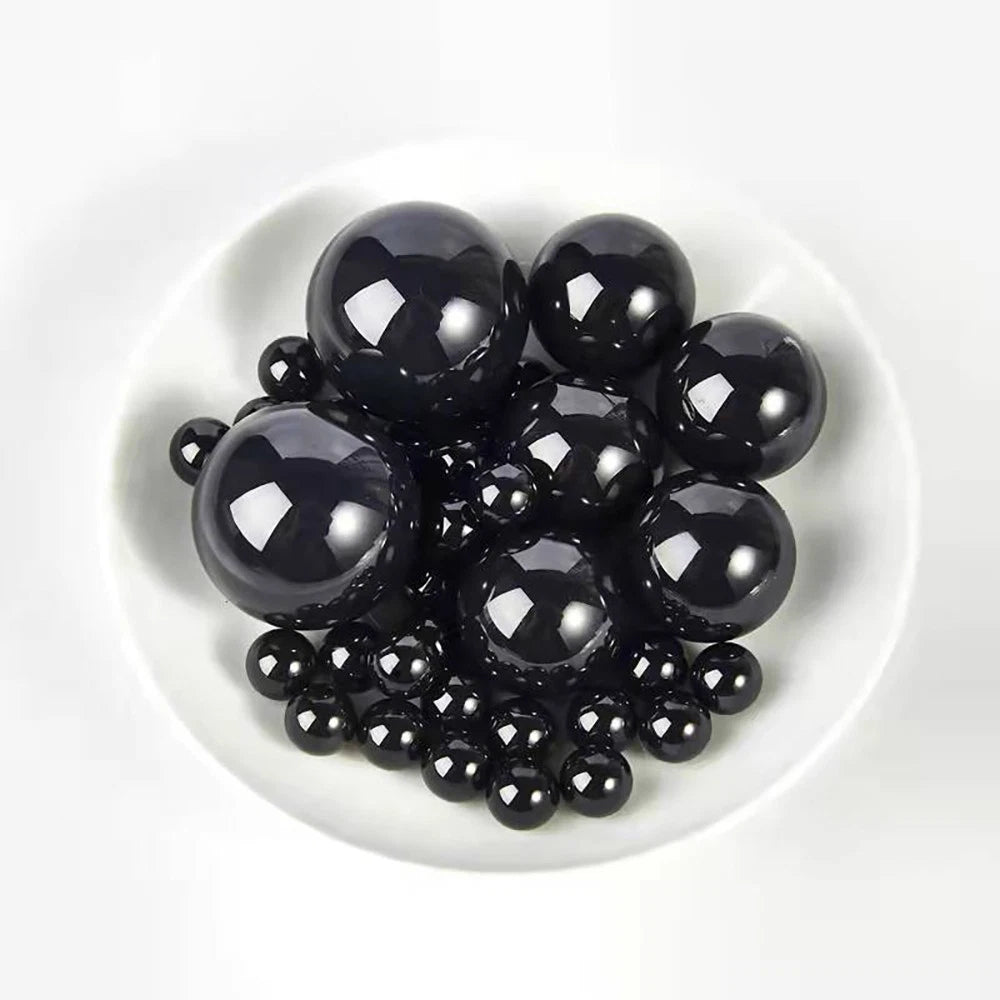

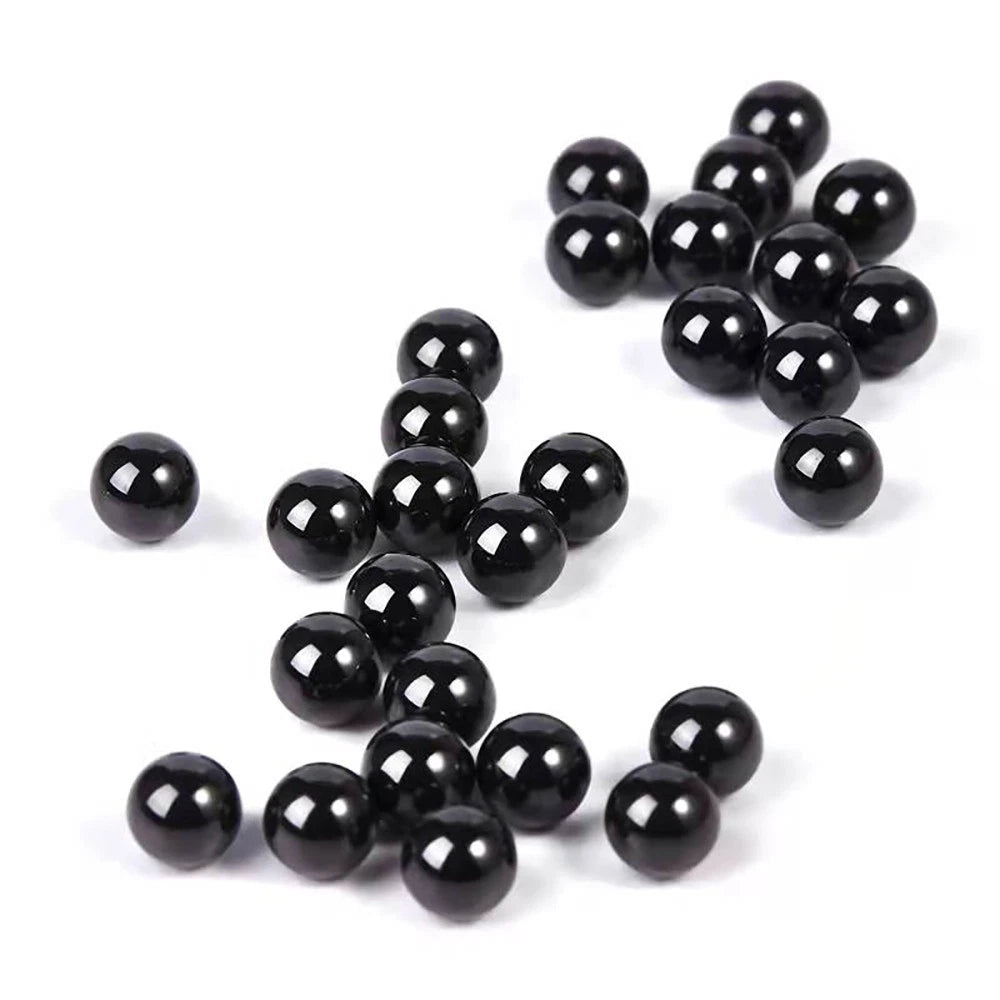

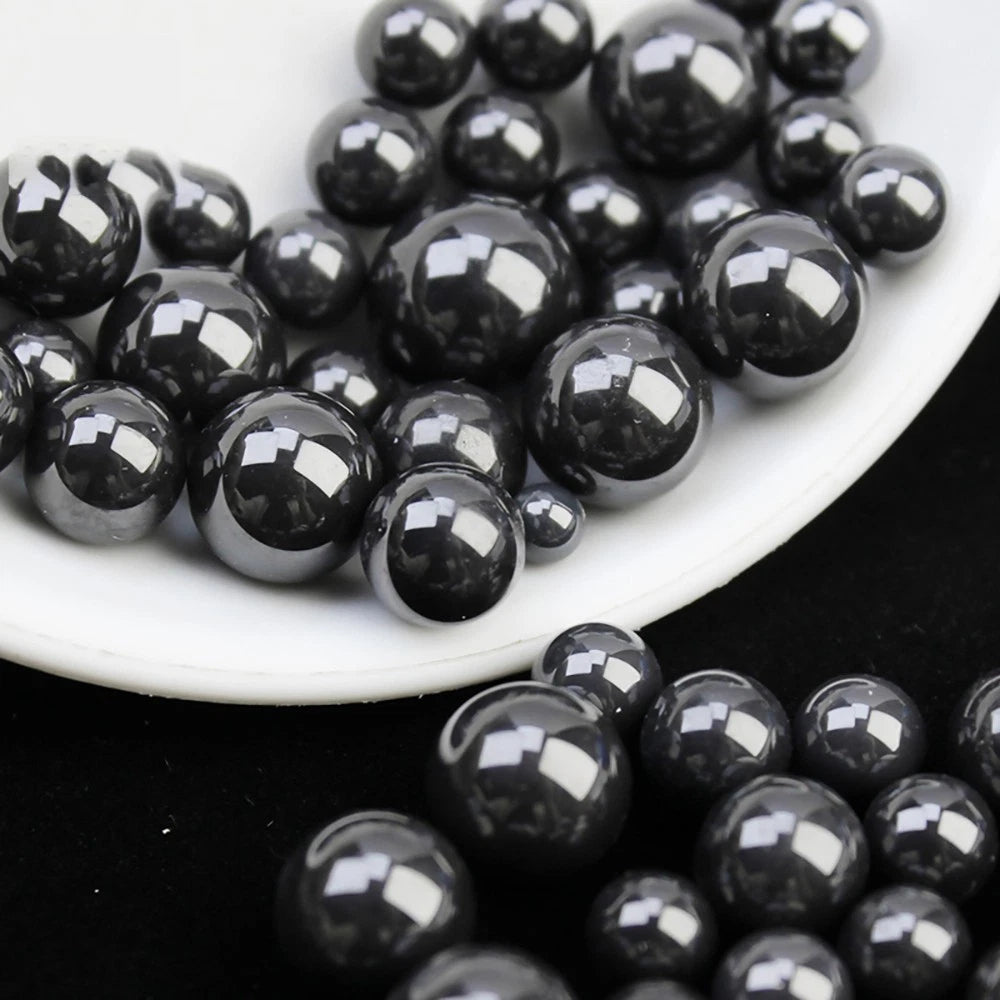

These G5 ceramic balls are manufactured from dense silicon nitride (Si₃N₄) and are available in diameters ranging from 0.8 mm (approximately 0.031 in) to 25.4 mm (1.00 in), covering both metric and fractional inch sizes. Each ball meets ABEC/ISO G5 roundness and surface-finish tolerances, with a typical surface roughness of Ra ≤ 0.010 µm and a sphericity deviation within 0.13 µm for the smallest sizes, scaling proportionally for larger diameters.
Typical deployment scenarios include high-speed spindle bearings in CNC machining centers where reduced centrifugal force extends tool life, corrosion-resistant pump bearings in chemical processing lines handling acids or saline solutions, and non-magnetic rolling elements in MRI-compatible or semiconductor fabrication equipment where steel contamination is unacceptable.
Sphericity and surface finish meet ISO 3290 Grade 5 tolerances — the same standard used in precision spindle and aerospace bearing applications.
Silicon nitride retains structural integrity at continuous operating temperatures up to approximately 800 °C (1,472 °F), far exceeding the limits of bearing-grade steel.
Si₃N₄ is inert to most acids, alkalis, and organic solvents, making these balls suitable for pump, valve, and flow-control applications in aggressive media.
Zero magnetic permeability and high electrical resistivity eliminate interference in MRI equipment, semiconductor tools, and precision measurement instruments.
At approximately 3.2 g/cm³ — roughly 40 % lighter than steel — these balls reduce centrifugal force at high RPM, lowering heat generation and extending bearing service life.
Sixty-three diameter options from 0.8 mm to 25.4 mm, including fractional inch sizes, allow direct replacement of both metric and imperial rolling elements without custom machining.
| Material | Silicon Nitride (Si₃N₄) |
|---|---|
| Grade | G5 (ISO 3290 / ABEC Grade 5) |
| Diameter Range | 0.8 mm – 25.4 mm (0.031 in – 1.000 in) |
| Surface Roughness (Ra) | ≤ 0.010 µm (typical for G5) |
| Density | Approximately 3.2 g/cm³ |
| Hardness | Approximately 1,500 HV (Vickers) |
| Max. Continuous Use Temperature | Approximately 800 °C (1,472 °F) |
| Electrical Resistivity | > 10¹² Ω·cm (electrically insulating) |
| Magnetic Properties | Non-magnetic |
| Finish | Precision-lapped, mirror finish |
| Available Quantities | See variant options |
| Diameter (specific) | See variant options |
Measure the inner diameter of your bearing race using a calibrated micrometer or bore gauge. The ball diameter must match the race groove radius — typically the ball diameter equals the race groove radius multiplied by approximately 1.03 to 1.05 for standard deep-groove geometry. If you are replacing existing balls, measure a sample ball directly. Both metric (e.g., 3 mm, 6 mm, 10 mm) and fractional inch sizes (e.g., 1/8 in = 3.175 mm, 1/4 in = 6.35 mm) are available in this listing.
The grade number refers to the maximum allowable deviation from a perfect sphere, measured in units of 0.1 µm (100 nm). A G5 ball has a maximum sphericity deviation of 0.5 µm, while G10 allows up to 1.0 µm and G25 up to 2.5 µm. G5 is the appropriate choice for precision spindles, high-speed bearings, and applications where vibration and noise must be minimized. For general-purpose or lower-speed applications, G10 or G25 may be sufficient at a lower cost.
Yes. Silicon nitride ceramic balls are routinely used in hybrid ceramic bearings, where the balls are ceramic but the inner and outer races remain steel (typically 52100 bearing steel or stainless steel). This configuration is the most common upgrade path for high-speed spindles and corrosion-resistant applications. For full-ceramic bearings, ceramic races (typically zirconia or silicon nitride) are required. Verify the race groove radius and conformity before assembly.
Silicon nitride is chemically inert to most acids (including hydrochloric and sulfuric acid at moderate concentrations), alkalis, and organic solvents. It is widely used in chemical pumps, marine equipment, and food-processing machinery where stainless steel balls would corrode or contaminate the process fluid. For highly concentrated hydrofluoric acid or strong oxidizing environments above 1,000 °C, consult a materials engineer before specifying Si₃N₄.
For prototyping or single-bearing replacement, quantities of 1, 2, or 5 pieces are available for most diameters. For small production runs or maintenance stock, packs of 10, 20, or 50 pieces offer a lower per-unit cost. Quantities of 100, 200, or 500 pieces are available for larger diameters where applicable, providing the best per-piece economics for volume assembly or MRO inventory. Select the diameter and quantity combination from the variant selectors above.
Silicon nitride balls are approximately 40 % lighter than steel balls of the same diameter. At high rotational speeds, centrifugal force pushes balls outward against the outer race — a force that scales with mass. Lighter balls generate less centrifugal load, which reduces contact stress, friction, and heat generation. Lower operating temperature means less lubricant degradation and longer grease or oil service intervals. In high-speed spindle applications, ceramic hybrid bearings routinely achieve DN values (bore diameter in mm × RPM) 20–40 % higher than all-steel equivalents.
Silicon nitride has a lower coefficient of friction than steel and can operate with reduced lubrication in many applications. Standard bearing greases (lithium-complex, polyurea, or PFPE for high-temperature or chemical environments) are compatible. In dry or vacuum environments, Si₃N₄ exhibits better dry-running characteristics than steel, though some lubrication is still recommended for maximum service life. Avoid lubricants containing chlorinated additives in corrosive environments, as these can attack steel races even when the balls themselves are unaffected.
