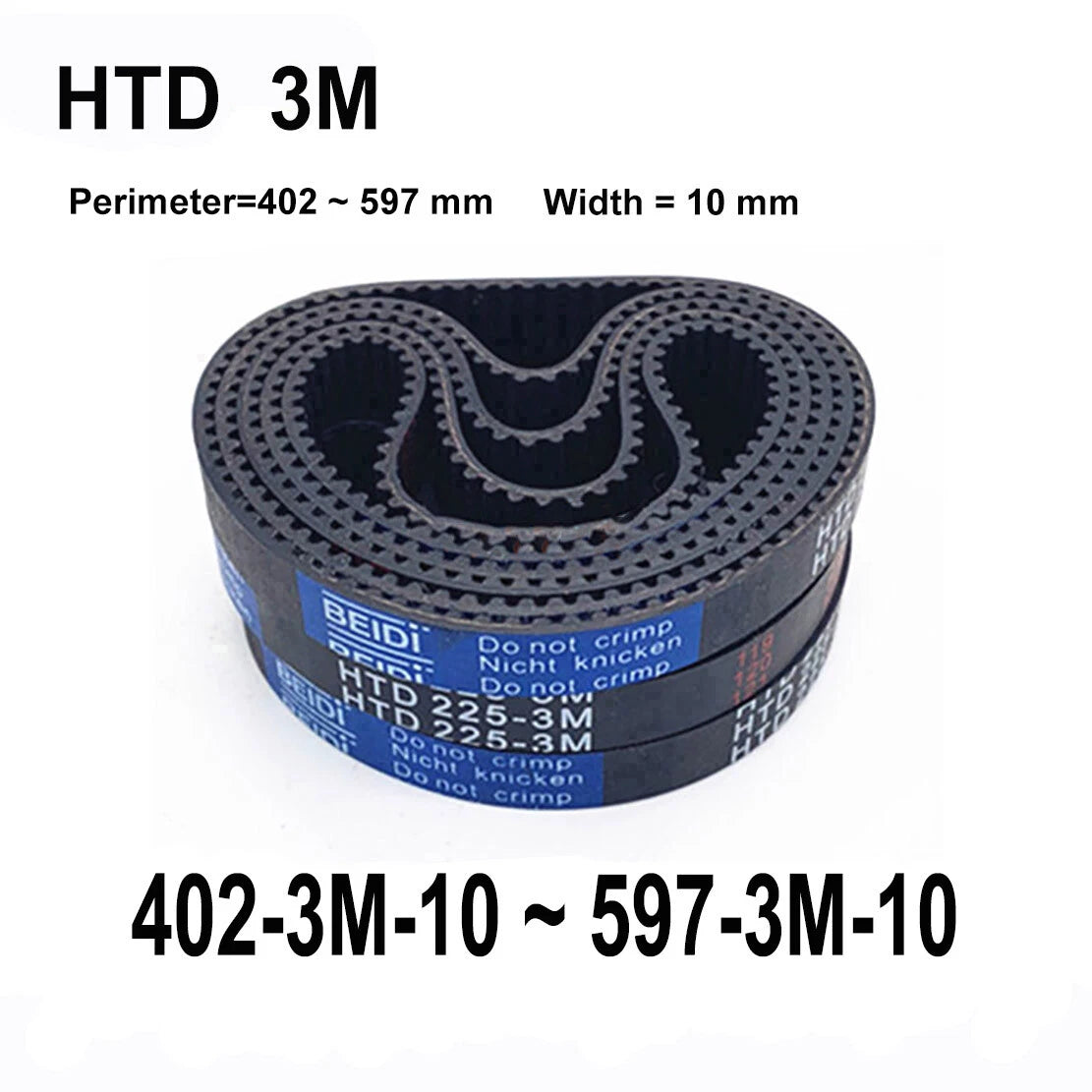

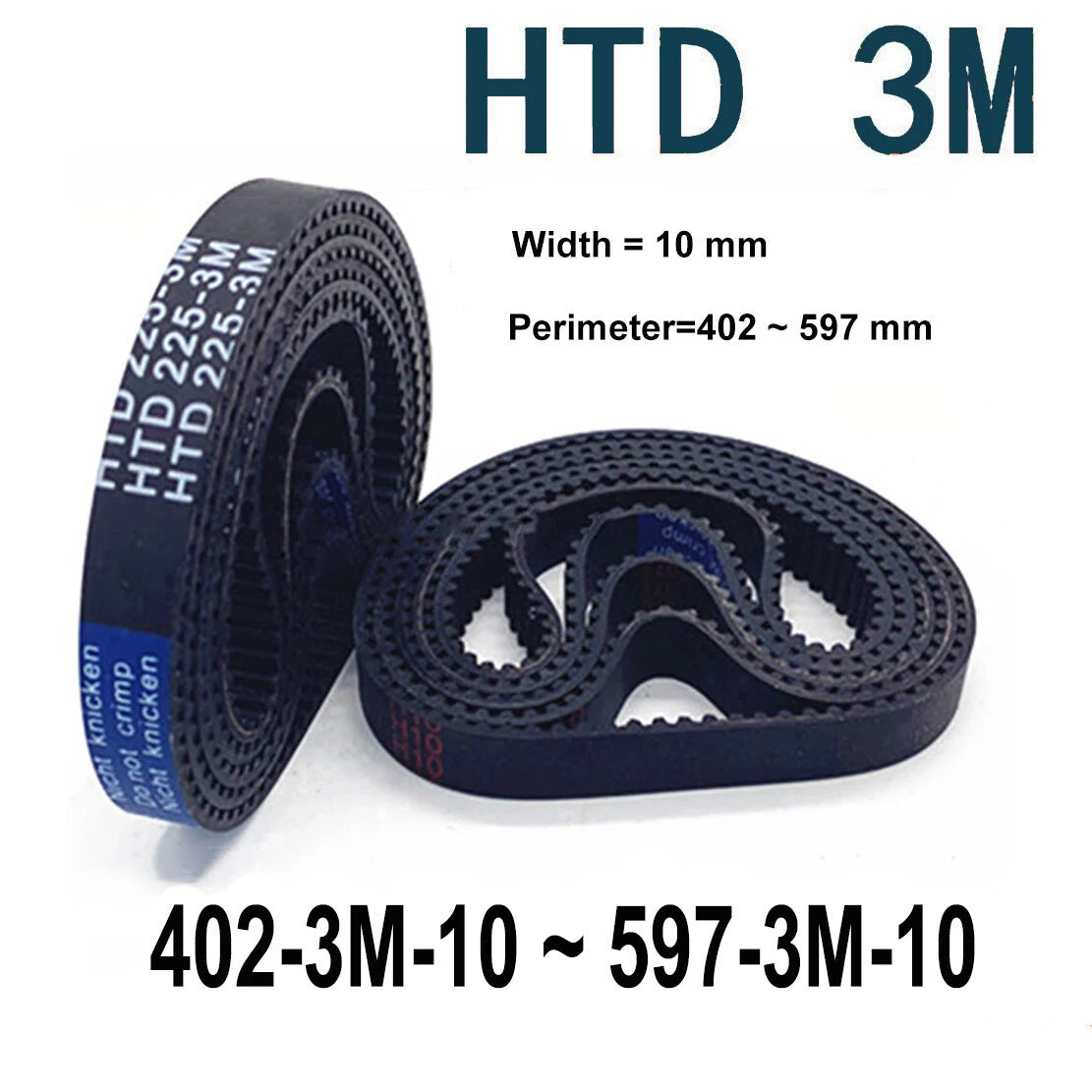

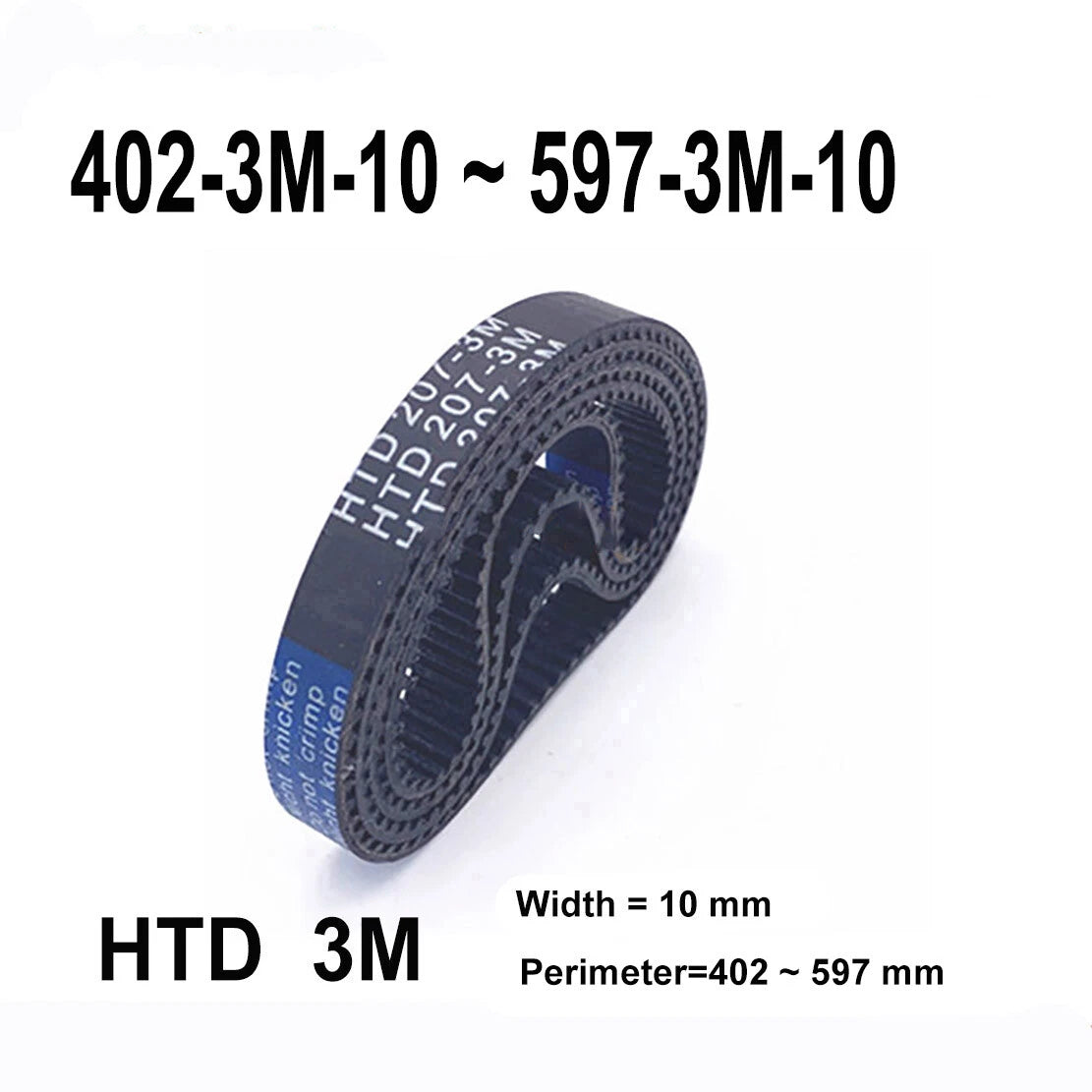

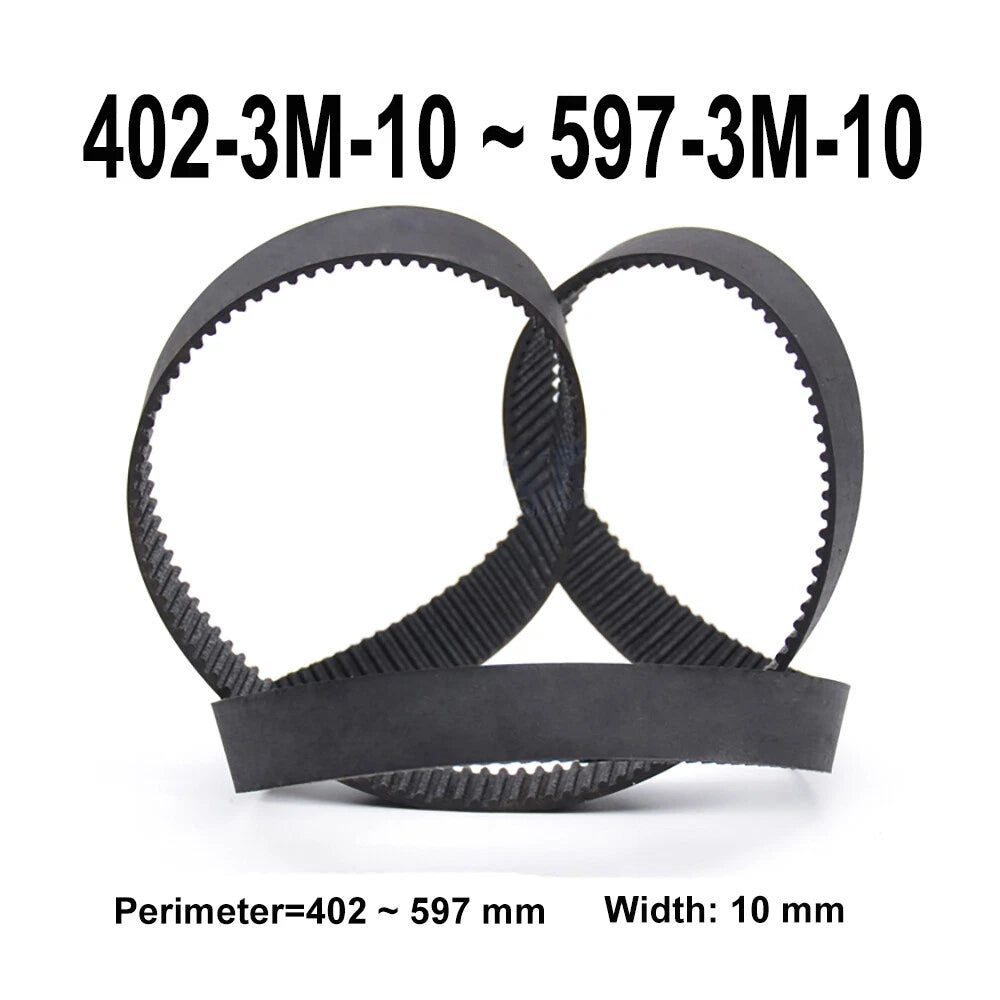

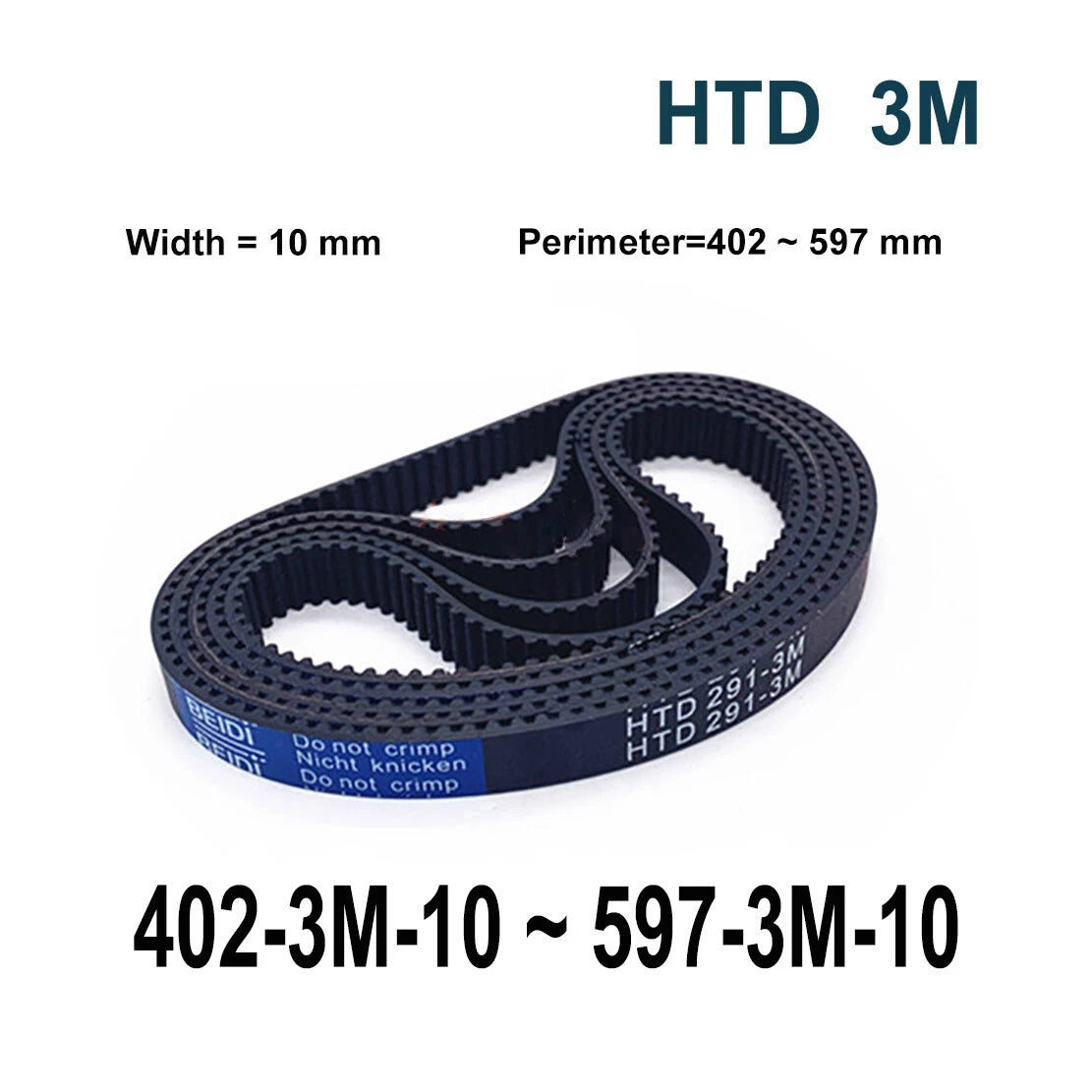

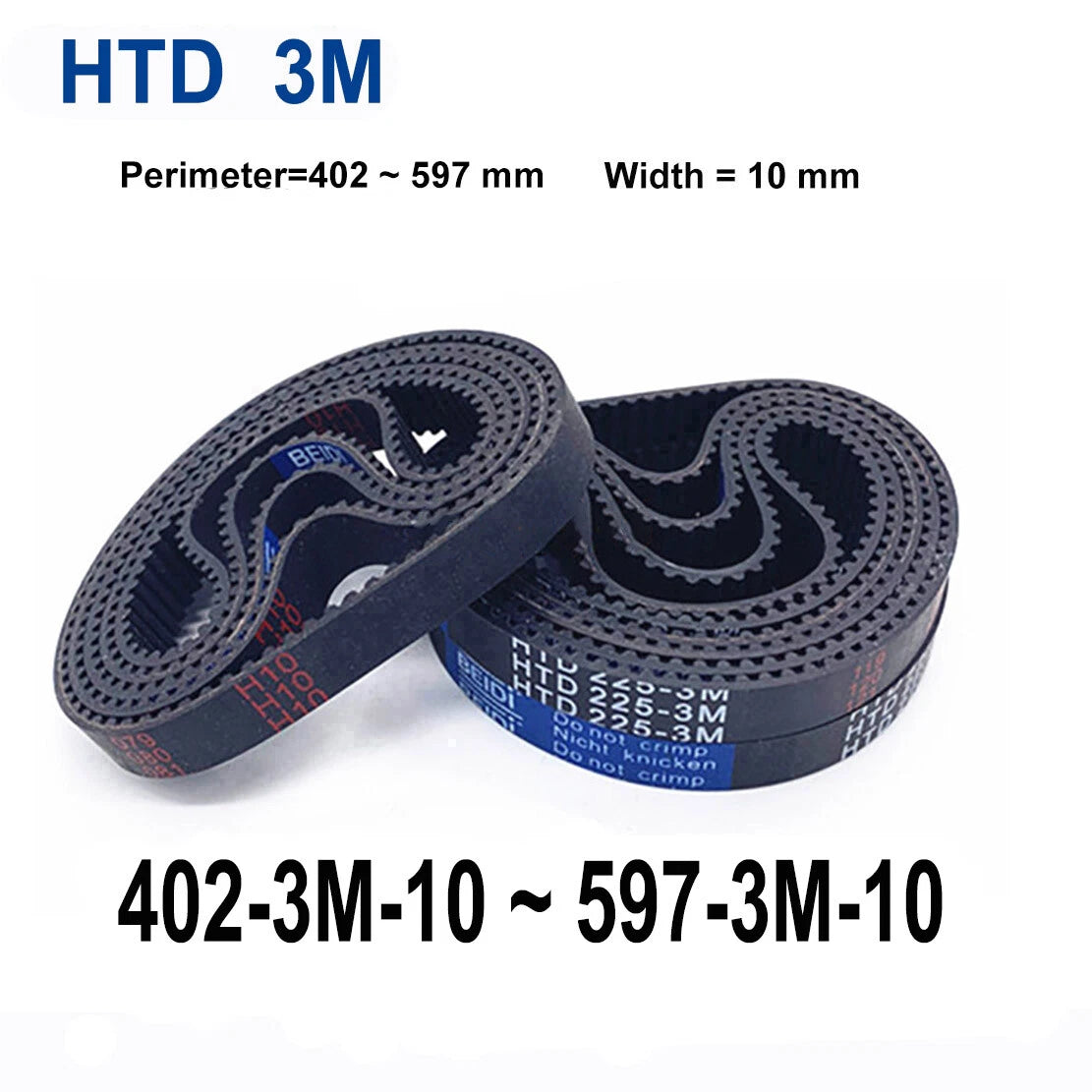

HTD 3M Timing Belt 10mm Wide — Reliable Closed Loop Drive for Precision Motion Systems

When a slipping or stretched drive belt throws off your 3D print layers, derails your CNC cut path, or causes positioning errors in your automation rig, the fix starts with the right replacement. This HTD 3M closed loop timing belt is built for engineers, makers, and repair technicians who need a dependable synchronous drive component without guesswork. Available in 61 perimeter sizes from 402mm (≈15.8") to 597mm (≈23.5"), this listing covers the most common mid-range belt lengths used in desktop motion systems.

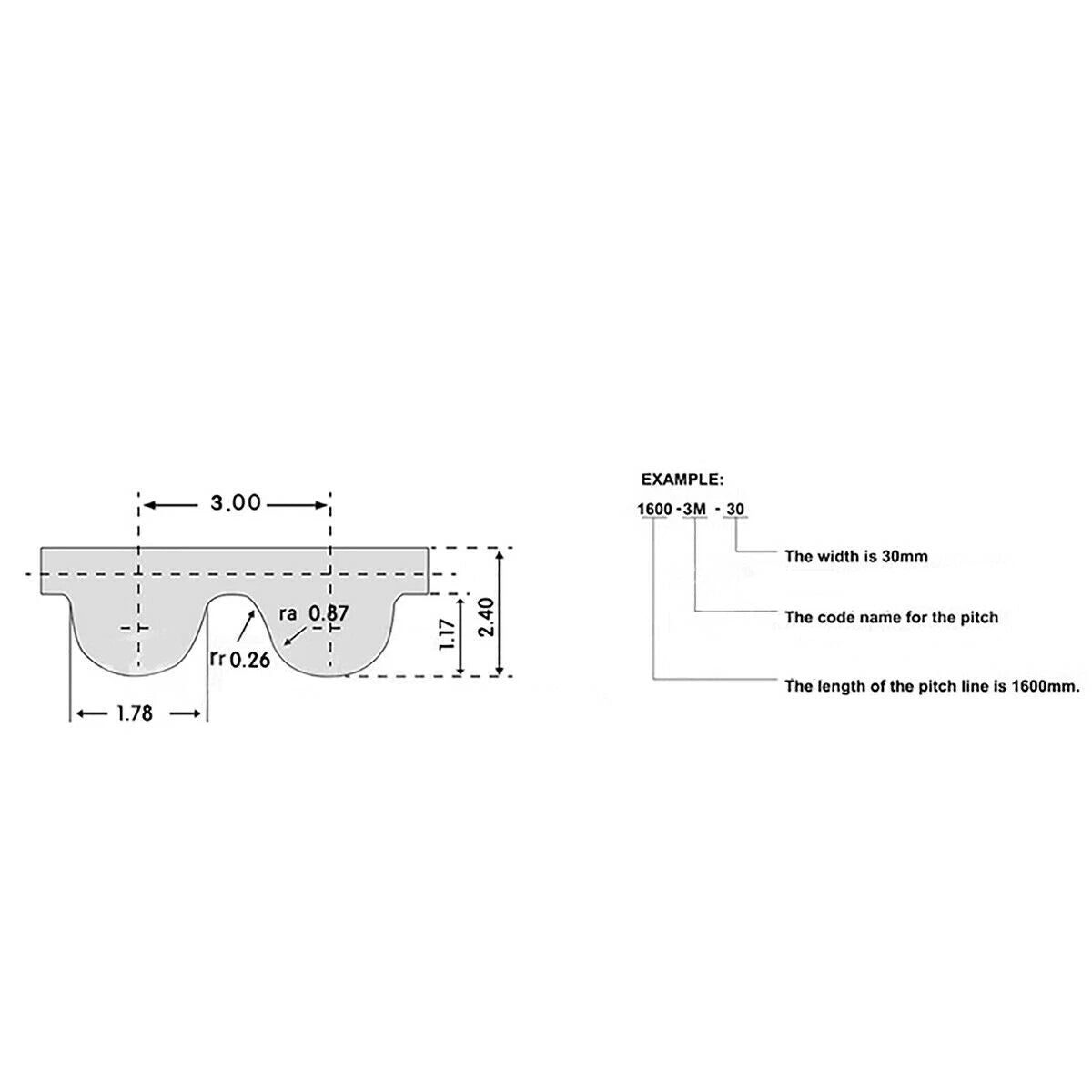

Each belt is a closed loop (endless) synchronous belt with a 3mm HTD tooth pitch and a 10mm (≈3/8") width. The HTD tooth profile — a rounded, curvilinear design — distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress under dynamic loads. Cord reinforcement (typically fiberglass or steel) runs the full perimeter to resist elongation under tension. Sizes are expressed as total perimeter in millimeters (e.g., 450-3M = 450mm perimeter, 3mm pitch, available in multiple widths — this listing is 10mm width only).

Typical use cases include FDM 3D printer X/Y axis drives (CoreXY, Cartesian, and delta configurations), desktop CNC router feed axes, laser engraver gantry drives, pick-and-place machine transport belts, and small robotic joint actuators. The 10mm width HTD 3M belt is a widely adopted standard in open-source motion platforms, making it a straightforward drop-in replacement for worn or broken drive belts in these systems.

🔗 Compatibility Note: These belts require HTD 3M pulleys only (3mm pitch, rounded tooth profile). They are not compatible with GT2, T2.5, MXL, or other tooth profiles. Verify your pulley spec before ordering.

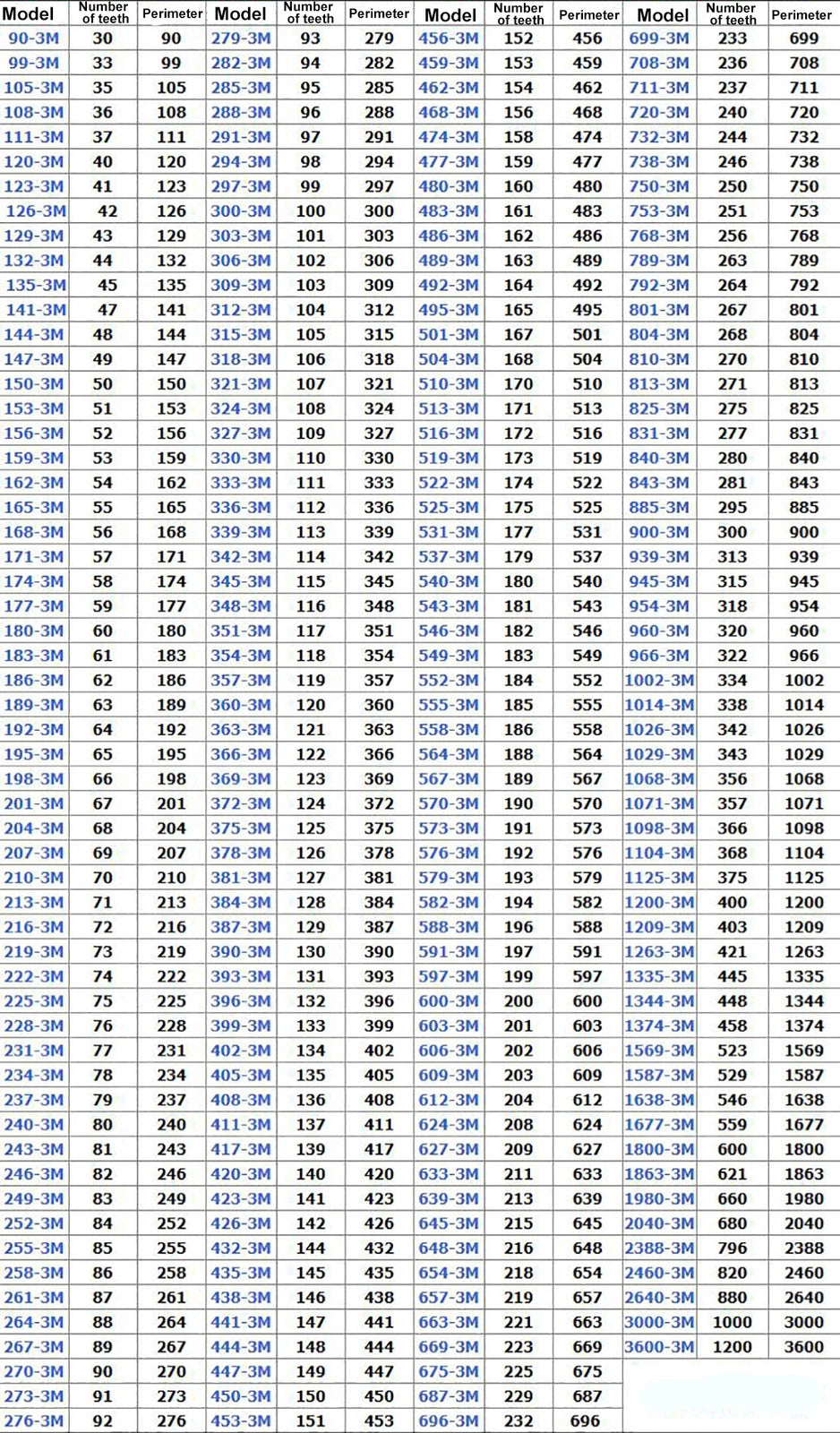

📏 Size Tip: The size code (e.g., "450-3M") refers to the total belt perimeter in mm, not the span between pulleys. Measure your existing belt or calculate from your pulley center distance before selecting a size.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • ⚙️HTD Tooth Profile — The rounded curvilinear tooth geometry of the HTD 3M profile spreads load over a larger contact area than trapezoidal teeth, reducing stress concentration and improving durability in high-cycle drive applications like 3D printer axis belts.
  • 🔄Closed Loop Construction — Endless (seamless) loop design eliminates the weak joint found in cut-to-length belts, delivering consistent tension and tooth engagement throughout the full rotation — critical for repeatable positioning in CNC and 3D printing drives.
  • 📐61 Perimeter Sizes Available — Covers 402mm to 597mm in 3mm increments, matching the most common mid-range belt lengths used in desktop motion systems. Select your exact perimeter from the variant dropdown to get a direct replacement without modification.
  • 🧵Cord-Reinforced for Low Stretch — Internal tensile cord (typically fiberglass or steel) runs the full belt perimeter to resist elongation under load, maintaining consistent tooth pitch and preventing the gradual position drift that occurs with unreinforced rubber belts.
  • 📦Multi-Pack Quantity Options — Available in 1, 2, 3, or 4 belts per order. Stock matched pairs for CoreXY machines, keep spares on hand for workshop use, or outfit multiple axes in a single purchase — with per-unit cost savings at higher quantities.
  • 🏭10mm Standard Width — The 10mm belt width is a widely adopted standard in open-source motion platforms including Voron, RatRig, and many commercial desktop CNC routers, making this a direct drop-in replacement for worn synchronous drive belts without pulley changes.

📐 Technical Specifications — HTD 3M Timing Belt

Belt Type HTD (High Torque Drive) Closed Loop Synchronous Belt
Tooth Pitch 3mm (HTD 3M profile)
Belt Width 10mm (≈3/8")
Perimeter Range 402mm (≈15.8") to 597mm (≈23.5") — see variant options for exact size
Tooth Profile HTD curvilinear (rounded) — not compatible with GT2, T2.5, or MXL
Construction Endless (closed loop / seamless)
Reinforcement Tensile cord (typically fiberglass or steel) — contact us to confirm
Body Material Neoprene rubber (typically) — contact us to confirm exact compound
Tooth Facing Nylon fabric (typically)
Compatible Pulleys HTD 3M pulleys only (3mm pitch, rounded tooth)
Quantity per Order 1, 2, 3, or 4 belts — select from QTY option
Typical Applications 3D printers, CNC routers, laser engravers, robotics, automation

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. For example, a 450mm belt (≈17.7" perimeter) is commonly used in mid-size 3D printer X/Y axes. Always verify against your machine's spec sheet. If you're between sizes, generally size up to avoid over-tensioning. The size code in the variant name (e.g., "450-3M") is the total belt perimeter in mm — not the span between pulleys.

What load can an HTD 3M timing belt handle?

HTD 3M belts are generally rated for light-to-medium power transmission. For a 10mm wide belt, maximum allowable tangential force is typically around 80–120 N, though this varies by speed, pulley diameter, and wrap angle. Always apply an appropriate service factor (typically 1.3–2.0) based on your application's shock and duty cycle. For high-torque or continuous industrial use, consult the belt manufacturer's load tables.

Can I use this timing belt outdoors or in wet environments?

HTD 3M belts are generally constructed from neoprene rubber, which offers moderate resistance to moisture, mild oils, and temperature variation (typically –20°C to +80°C / –4°F to +176°F). They are not typically rated for continuous outdoor UV exposure, immersion, or aggressive chemical environments. For outdoor or high-humidity applications, consider adding a protective enclosure and inspect the belt periodically for cracking or swelling.

What pulley tooth profile is compatible with HTD 3M belts?

These belts use the HTD (High Torque Drive) tooth profile with a 3mm pitch. They are compatible with HTD 3M pulleys only. Do not mix with GT2 (2mm pitch), GT3, T2.5, MXL, or other profiles — the tooth geometry is not interchangeable and will cause skipping, accelerated wear, or belt failure. Verify your pulley is labeled "HTD 3M" before ordering.

How do I decide between buying 1, 2, 3, or 4 belts?

Order 1 belt for a single-axis replacement. Order 2 if your machine uses matched pairs — for example, CoreXY printers use two belts of the same length for the X and Y axes. Order 3–4 for multi-axis machines, to keep workshop spares, or to reduce per-unit cost. Buying in quantity is generally more economical if you maintain multiple machines or anticipate future replacements.

What machines commonly use HTD 3M closed loop timing belts?

HTD 3M closed loop belts are widely used in: FDM 3D printers (Cartesian, CoreXY, and delta configurations — including Voron, RatRig, Ender, and Prusa derivatives), desktop CNC routers (X/Y feed axes), CO₂ and diode laser engravers (gantry drives), pick-and-place machines, and small robotic arm joints. The 10mm width is a common standard for motion control axes requiring moderate torque and precise, repeatable positioning.

What is the difference between an open-end belt and a closed loop belt?

A closed loop (endless) belt has no seam — it forms a continuous loop molded as a single piece. This eliminates the weak point of a mechanically joined belt and ensures consistent tension and tooth pitch throughout the full rotation. An open-end belt is sold by the meter and requires a connector or clamp to form a loop. This product is a closed loop belt, making it the correct choice for continuous rotary drive applications.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
