HTD3M Closed Loop Timing Belt — Precise Motion Control for 3D Printers, CNC & Robotics

When a slipping or stretching drive belt throws off your print layers, ruins a CNC cut, or causes positioning errors in your robot arm, the root cause is almost always an under-spec belt. Engineers, makers, and machine builders who need repeatable, slip-free motion rely on closed-loop HTD3M timing belts with a steel wire tension core — not the fiberglass-cord alternatives that creep under load.

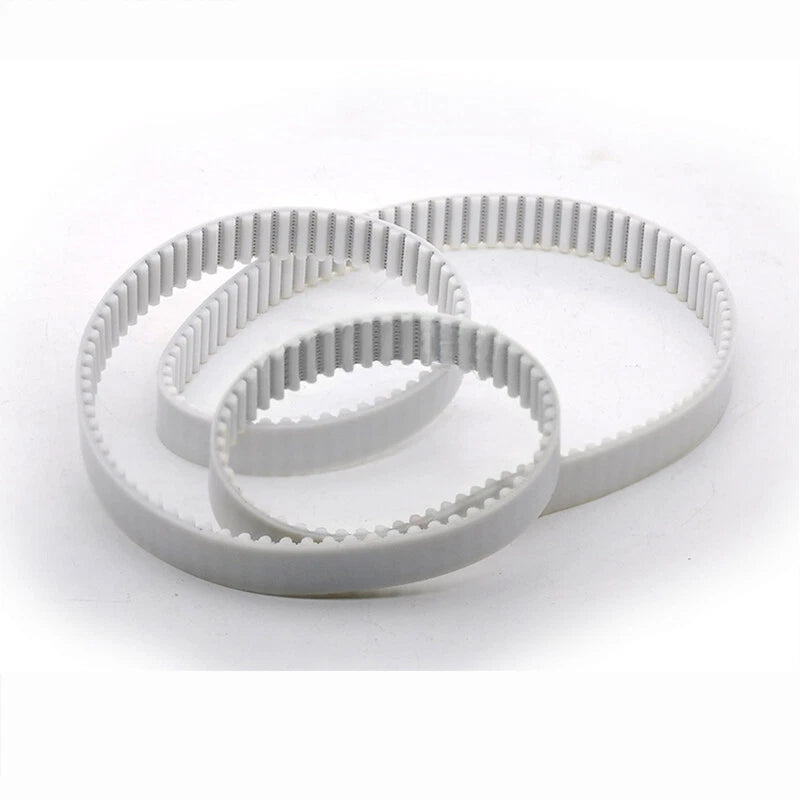

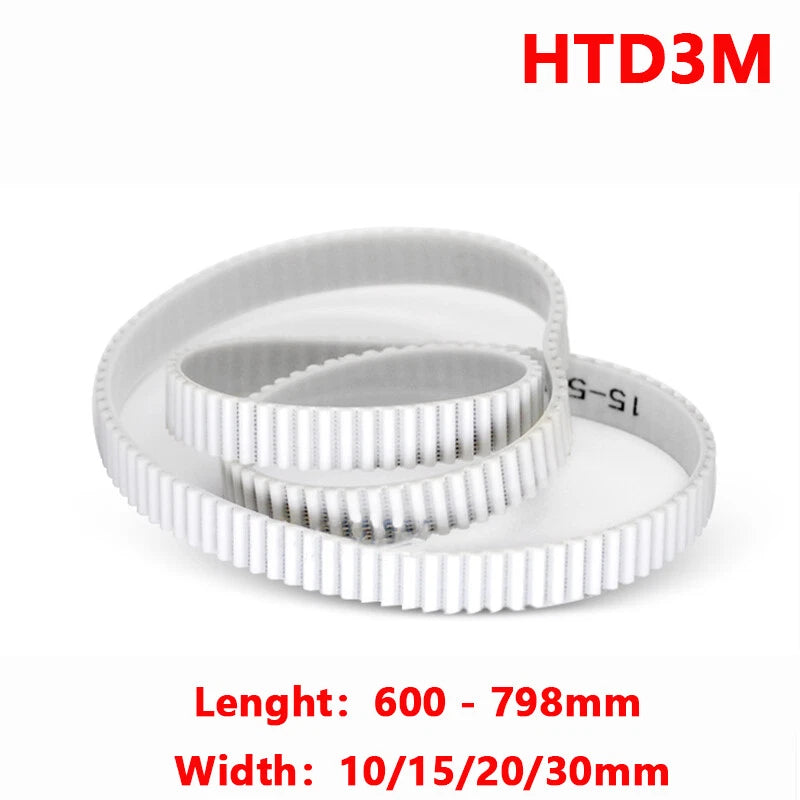

Each belt in this listing is a single closed-loop HTD3M timing belt. The body is molded from polyurethane (PU) with built-in steel wire tension cords running the full perimeter. The tooth profile follows the HTD 3M standard: 3mm pitch, rounded tooth form. Perimeter options range from 600mm (200 teeth) to 798mm (266 teeth) in 3mm increments. Width options are 10mm, 15mm, 20mm, and 30mm — select the combination that matches your pulley spec.

Typical use cases include FDM 3D printer X/Y axis drives (replacing worn Ender, Voron, or CoreXY belts), desktop CNC router feed drives, laser engraver gantry belts, robotic joint actuators, and light conveyor systems. The HTD3M closed loop timing belt format is the go-to choice wherever a standard GT2 belt lacks the torque capacity or where a longer perimeter is needed.

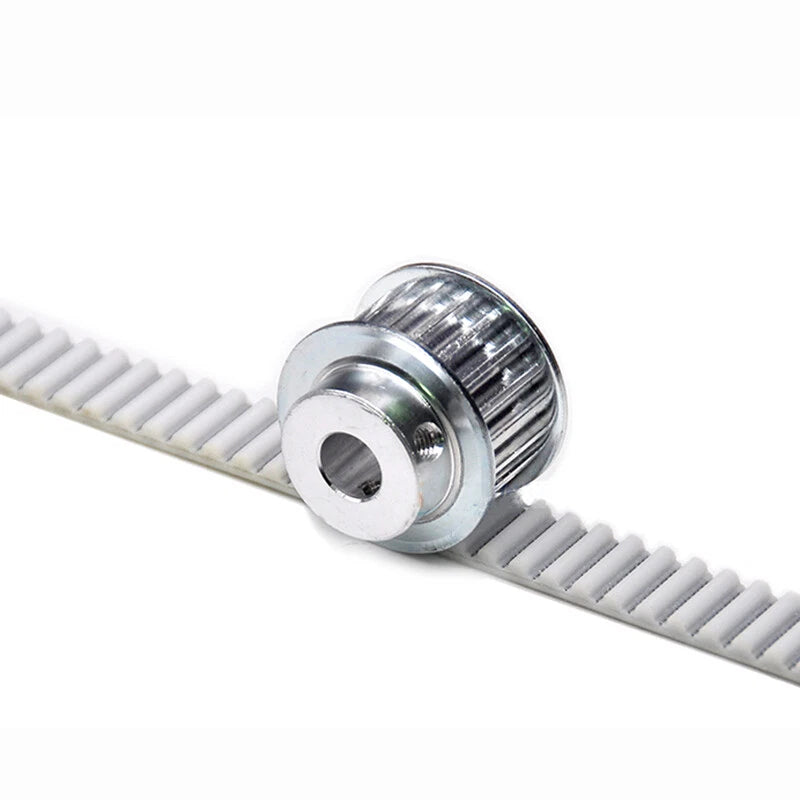

ℹ️ Compatibility: Fits any standard HTD3M pulley (3mm pitch, rounded tooth). Verify your pulley groove width is ≥ the belt width you select. Not interchangeable with GT2 (2mm pitch) or T5 pulleys.

✅ Key Features of These HTD3M Closed Loop Timing Belts

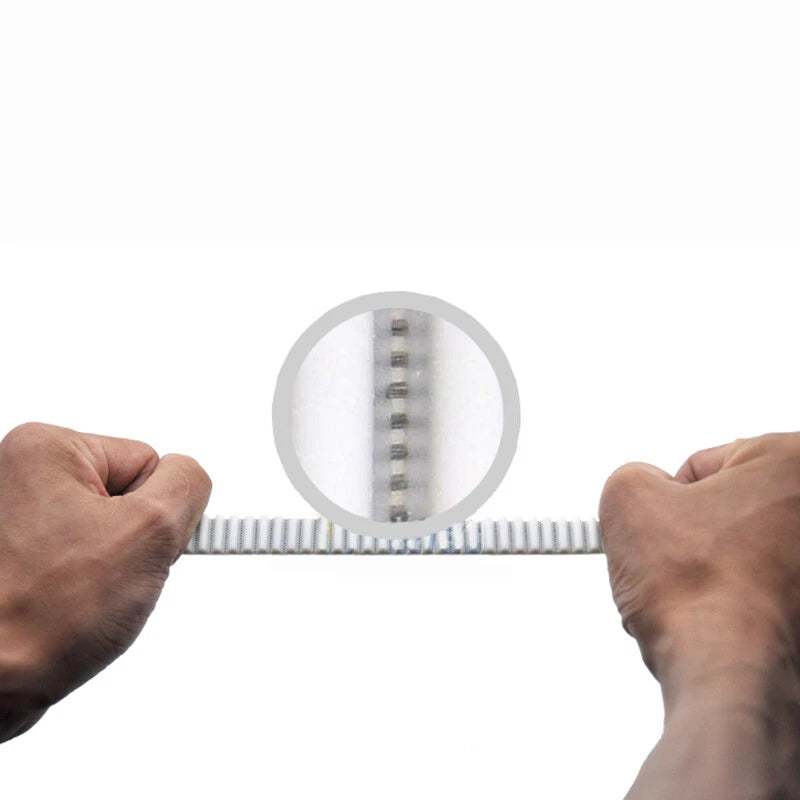

🔩Steel Wire Tension Core — Built-in steel wire cords resist elongation under load, maintaining consistent center-to-center distance and reducing positioning drift in CNC and 3D printer applications.
🧱Polyurethane Body — PU construction offers better abrasion resistance and oil tolerance than neoprene, making these HTD3M belts suitable for light industrial and workshop environments.
📐3mm HTD Pitch Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear risk at higher torque levels.
🔄True Closed Loop — Seamless loop construction eliminates the splice joint found in cut-to-length belts, providing uniform stiffness and balance around the full perimeter.
📏Wide Size Selection — Perimeters from 600mm to 798mm (3mm steps) and widths of 10, 15, 20, and 30mm cover the most common HTD3M closed loop timing belt sizes used in desktop automation and light industrial drives.
🚀Drop-In Replacement — Standard HTD3M dimensions mean these belts fit existing pulleys without modification, making them a straightforward replacement for worn or broken drive belts in 3D printers and CNC routers.

📐 Technical Specifications — HTD3M Closed Loop Timing Belt

Belt Type	Closed Loop (Endless) Timing Belt
Tooth Profile	HTD3M (High Torque Drive, 3mm pitch, rounded)
Pitch	3mm
Perimeter Range	600mm (200 teeth) – 798mm (266 teeth), in 3mm increments
Perimeter in Inches	≈ 23.6" (600mm) – ≈ 31.4" (798mm)
Width Options	10mm / 15mm / 20mm / 30mm
Body Material	Polyurethane (PU)
Tension Member	Built-in steel wire cord
Tooth Count	See variant options (200–266 teeth depending on perimeter)
Compatible Pulleys	Standard HTD3M pulleys (3mm pitch)
Tensile Strength	See variant options — contact us to confirm for your load
Operating Temperature	Contact us to confirm for your application
Quantity per Order	1 belt per unit

⚠️ Size Tip: The perimeter listed is the outer loop circumference. Measure your existing belt or calculate from your pulley center distance before ordering. Each 3mm step = 1 additional tooth.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 300mm center distance with two 30mm pitch-diameter pulleys typically needs a belt around 660mm. Always verify against your machine's spec sheet. Available sizes range from 600mm (200 teeth) to 798mm (266 teeth) in 3mm increments — that's 600mm ÷ 25.4 ≈ 23.6" up to 798mm ÷ 25.4 ≈ 31.4".

What width should I choose — 10mm, 15mm, 20mm, or 30mm?

Width determines load capacity. For light-duty 3D printers and small CNC routers, 10mm is generally sufficient. For mid-range CNC machines and robotics joints, 15–20mm is typically recommended. For high-torque industrial drives or wide-format equipment, 30mm provides the greatest load rating. When in doubt, match the width of your existing pulley groove.

What is the tensile strength of these PU steel wire timing belts?

The built-in steel wire tension cord provides significantly higher tensile strength than standard fiberglass-cord belts. Exact load ratings vary by width — wider belts carry proportionally higher loads. For specific tensile values for your application, please contact us to confirm before ordering for critical load-bearing drives.

Can these belts be used outdoors or in humid environments?

Polyurethane (PU) generally offers better resistance to moisture, oils, and mild chemicals compared to neoprene belts. These belts are suitable for indoor industrial environments with occasional moisture exposure. For prolonged outdoor UV exposure or chemical immersion, contact us to confirm suitability for your specific conditions before purchasing.

Are these belts compatible with standard HTD3M pulleys?

Yes. These belts follow the HTD (High Torque Drive) 3M profile standard — 3mm pitch with a rounded tooth profile. They are compatible with any standard HTD3M pulley. Always verify that your pulley groove width matches or exceeds the belt width you select. These are not compatible with GT2 (2mm pitch) or T5 pulleys.

What machines commonly use HTD3M closed loop timing belts?

HTD3M belts are widely used in FDM 3D printers (X/Y axis drives on Ender, Voron, CoreXY builds), desktop CNC routers, laser engravers, robotic arms, conveyor systems, and precision motion platforms. The 3mm pitch provides a good balance of speed and torque for most light-to-medium duty automation applications.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference: 600mm ≈ 23.6" | 660mm ≈ 26.0" | 700mm ≈ 27.6" | 750mm ≈ 29.5" | 798mm ≈ 31.4". Each size step is 3mm (≈ 0.12").
