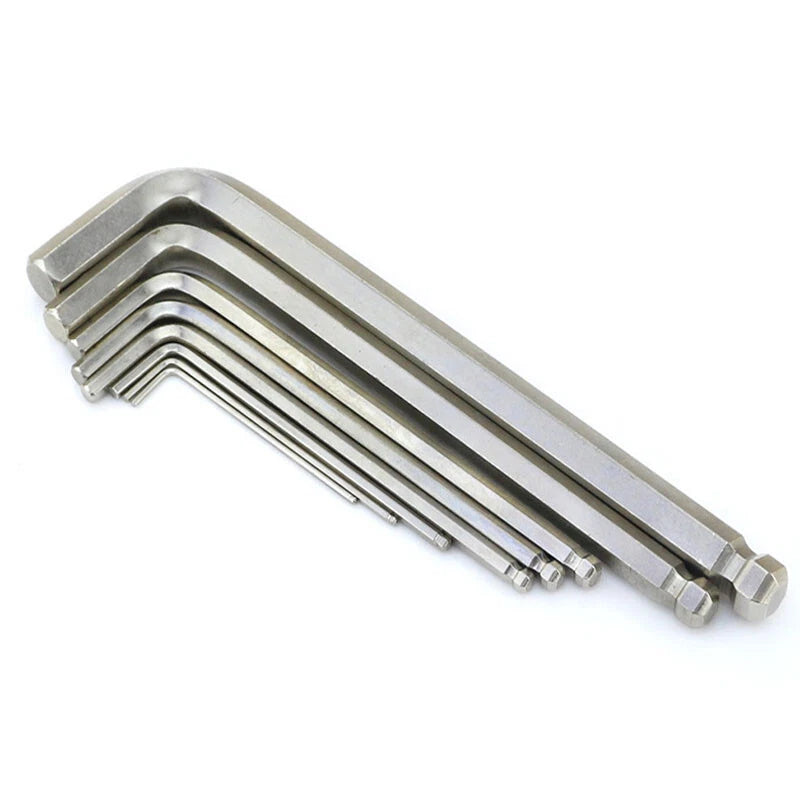

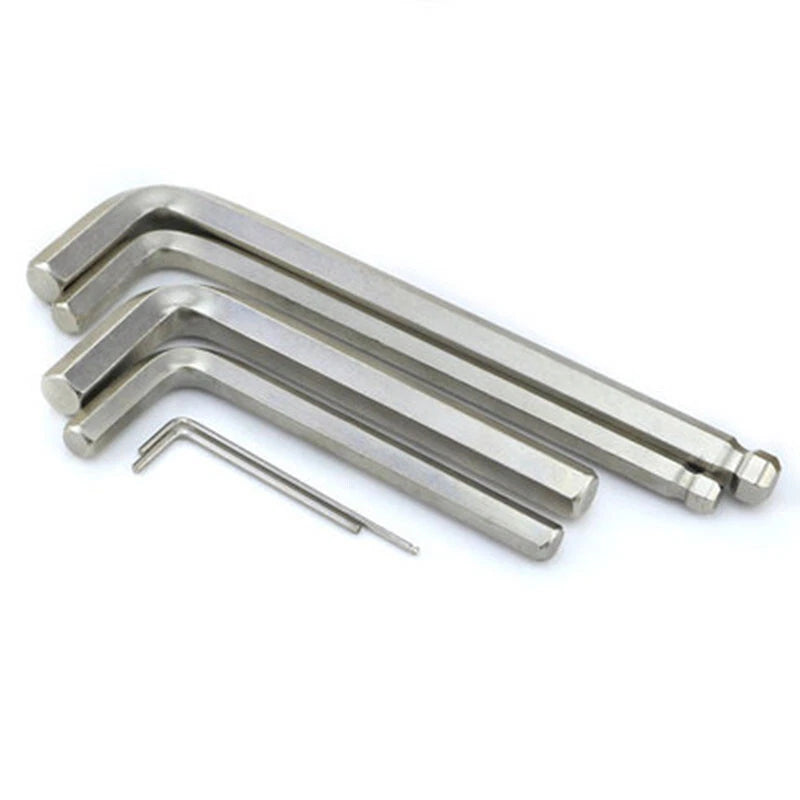

L-shaped Allen Key Ball Head/Flat Head Hex Wrench Tools Nickel-plated 1/16-1/2

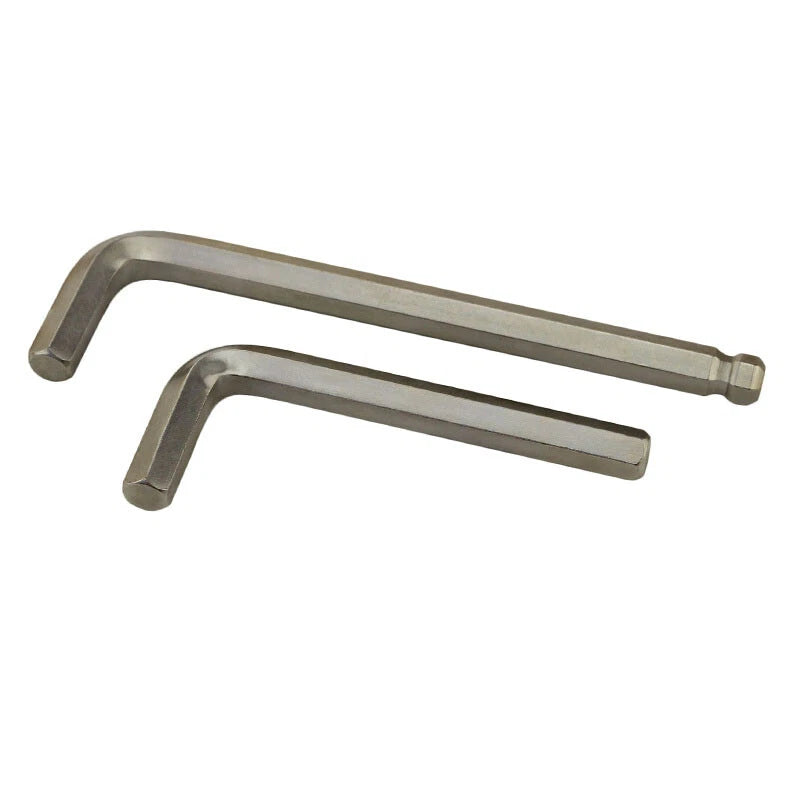

The Ball Head tip has a rounded end that allows the wrench to engage a hex socket at an angle — typically up to approximately 25–30° off-axis. This is useful when you cannot position the wrench perfectly straight due to surrounding components. The Flat Head tip is a standard hex profile that must be inserted straight into the socket, but it transfers more torque and is less likely to slip under heavy load. Use Ball Head for access; use Flat Head for final tightening.

Common refers to a standard-length L-arm suitable for most everyday fastening tasks. Lengthen refers to an extended-arm version that provides greater reach into deep recesses and a longer moment arm, which reduces the force you need to apply to achieve the same torque. If you are working on machinery with deeply recessed cap screws or need to reduce hand fatigue during repetitive tasks, the Lengthen type is the better choice.

Measure the width across the flats of the hex socket opening on your fastener — this is the hex key size you need. For fractional inch fasteners, common sizes include 1/8", 3/16", 1/4", 5/16", 3/8", and 1/2". If you are unsure, a set of calipers or a hex key gauge will give you an accurate measurement. Using a wrench that is even slightly too small will round the socket corners.

The nickel-plated coating provides meaningful corrosion resistance for typical workshop and garage conditions, including occasional moisture exposure. For prolonged outdoor use or submersion, we recommend wiping the wrench dry after use and storing it in a dry location. The coating is not a substitute for stainless steel in highly corrosive environments, but it significantly extends service life compared to uncoated alloy steel.

These wrenches are sized in fractional inches (Imperial). While some fractional inch sizes are very close to metric equivalents — for example, 3/16" is approximately 4.76 mm, close to but not identical to 5 mm — using an Imperial wrench on a metric fastener (or vice versa) risks rounding the socket. For metric fasteners, use metric hex keys. Check your fastener specification before selecting a size.

These alloy steel wrenches are designed for standard hand-tool torque levels appropriate to their size. Larger sizes (3/8", 1/2") can handle correspondingly higher torque. The Flat Head tip is recommended for high-torque final tightening because it maintains full contact across all six flats of the socket. The Ball Head tip should be used for initial threading and access, then switched to Flat Head for final torque where possible. Do not use extension bars or hammers on these wrenches.

If you already own a hex key set but have lost or worn out a specific size, or if you need a Lengthen arm in a size not included in your existing set, ordering a single piece is more economical than replacing the entire set. It also lets you stock a specific size in both Ball Head and Flat Head styles without redundancy.
