Aluminium Knurled Thumb Screws — Tool-Free Fastening for M3 to M10 Applications
When you need to open an enclosure, adjust a jig, or swap a panel without reaching for a screwdriver, a standard hex bolt becomes a frustration. These aluminium head knurled thumb screws are built for engineers, makers, and technicians who need repeatable hand-tightened fastening across a wide range of thread sizes and grip depths.
Each thumb screw pairs a knurled aluminium alloy head — available in anodized Red or Black — with a stainless steel threaded shaft. Thread sizes span M3 through M10, shaft lengths run from 6 mm (0.24 in) up to 135 mm (5.31 in), and head dimensions cover four combinations: D12×H12 mm, D12×H20 mm, D16×H20 mm, and D20×H20 mm, giving you precise control over grip diameter and clamping depth.
Typical use cases include 3D printer bed levelling knobs, electronics enclosure access panels, CNC fixture clamping, laboratory instrument covers, and any assembly where frequent hand-adjustment is required without tooling. The knurled surface maintains grip even with light machine oil on the fingers.
⚙️
Compatible with standard ISO metric threads (M3, M4, M5, M6, M8, M10). Verify head clearance using the Head φ × H(mm) option before ordering.
✅ Key Features of These Aluminium Knurled Thumb Screws
🔩
Stainless Steel Shaft
The threaded shank is stainless steel, resisting corrosion in humid workshops, outdoor enclosures, and light wash-down environments.
🎨
Anodized Aluminium Head
The knurled head is aluminium alloy with an anodized finish in Red or Black — lightweight, corrosion-resistant, and visually distinct for colour-coded assemblies.
✋
Knurled Grip Surface
The diamond-pattern knurl provides secure finger purchase for confident hand-tightening without slipping, even in gloved or slightly oily conditions.
📐
Wide Size Range
Thread diameters M3 through M10 and shaft lengths from 6 mm to 135 mm cover the majority of metric fastening needs in a single product family.
⚖️
Multiple Head Geometries

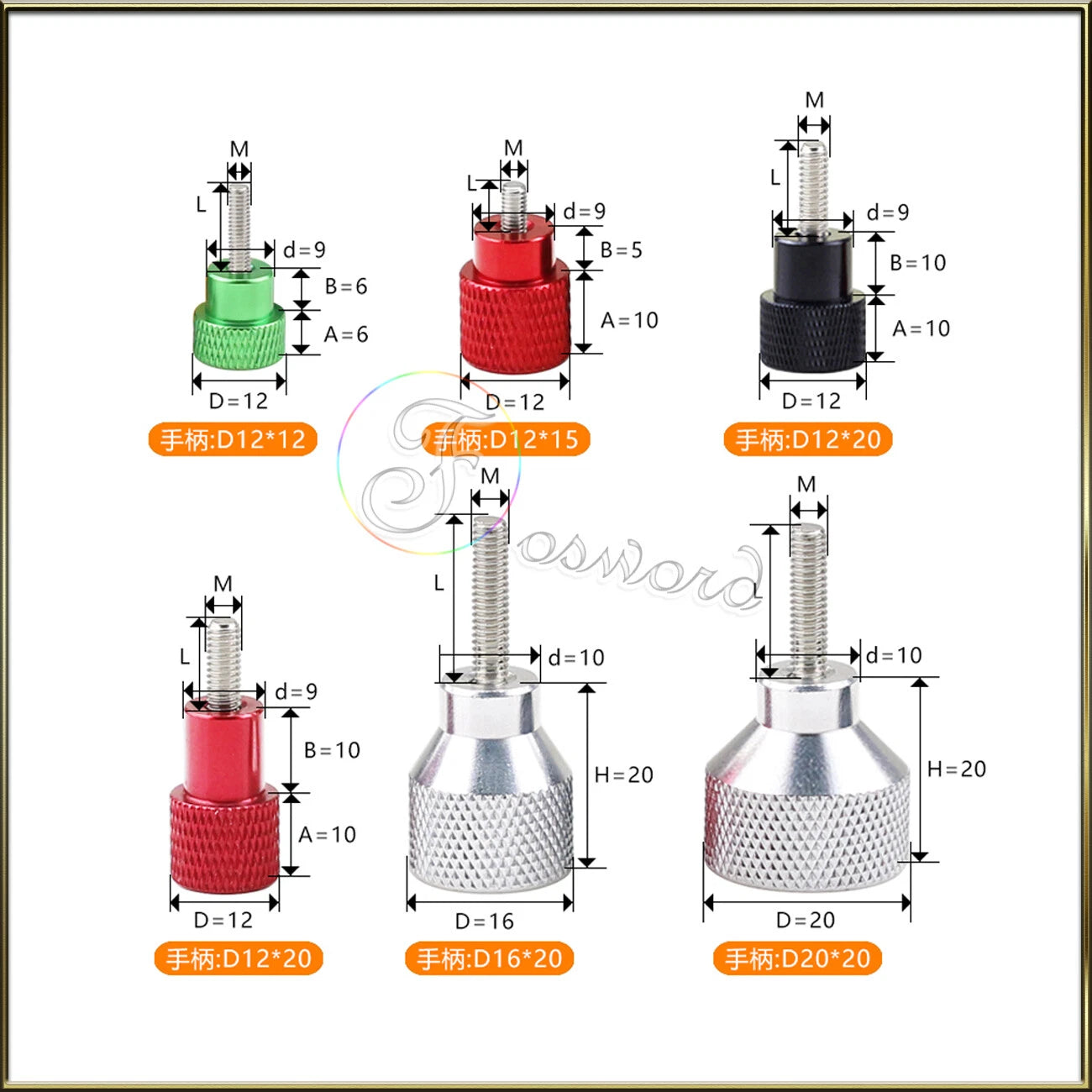

Four head size options (D12×H12, D12×H20, D16×H20, D20×H20) let you match grip diameter and height to your panel thickness and torque requirement.
🔄
Tool-Free Assembly
Designed for frequent removal and reinstallation by hand — ideal for access panels, inspection covers, and adjustable fixtures that need regular attention.
📐 Technical Specifications — Aluminium Knurled Thumb Screws
| Thread Standard |
ISO Metric (M3, M4, M5, M6, M8, M10) |
| Shaft Material |
Stainless Steel |
| Head Material |
Aluminium Alloy |
| Head Finish |
Anodized (Red or Black) |
| Head Diameter × Height |
D12×H12 mm / D12×H20 mm / D16×H20 mm / D20×H20 mm |
| Shaft Length Range |
6 mm – 135 mm (0.24 in – 5.31 in) — see variant options |
| Drive Type |
Hand (knurled, no tool required) |
| Colour Options |
Red, Black |
| Thread Pitch |
See variant options |
| Weight |
See variant options |
❓ Frequently Asked Questions
Which thread size should I choose for my application?

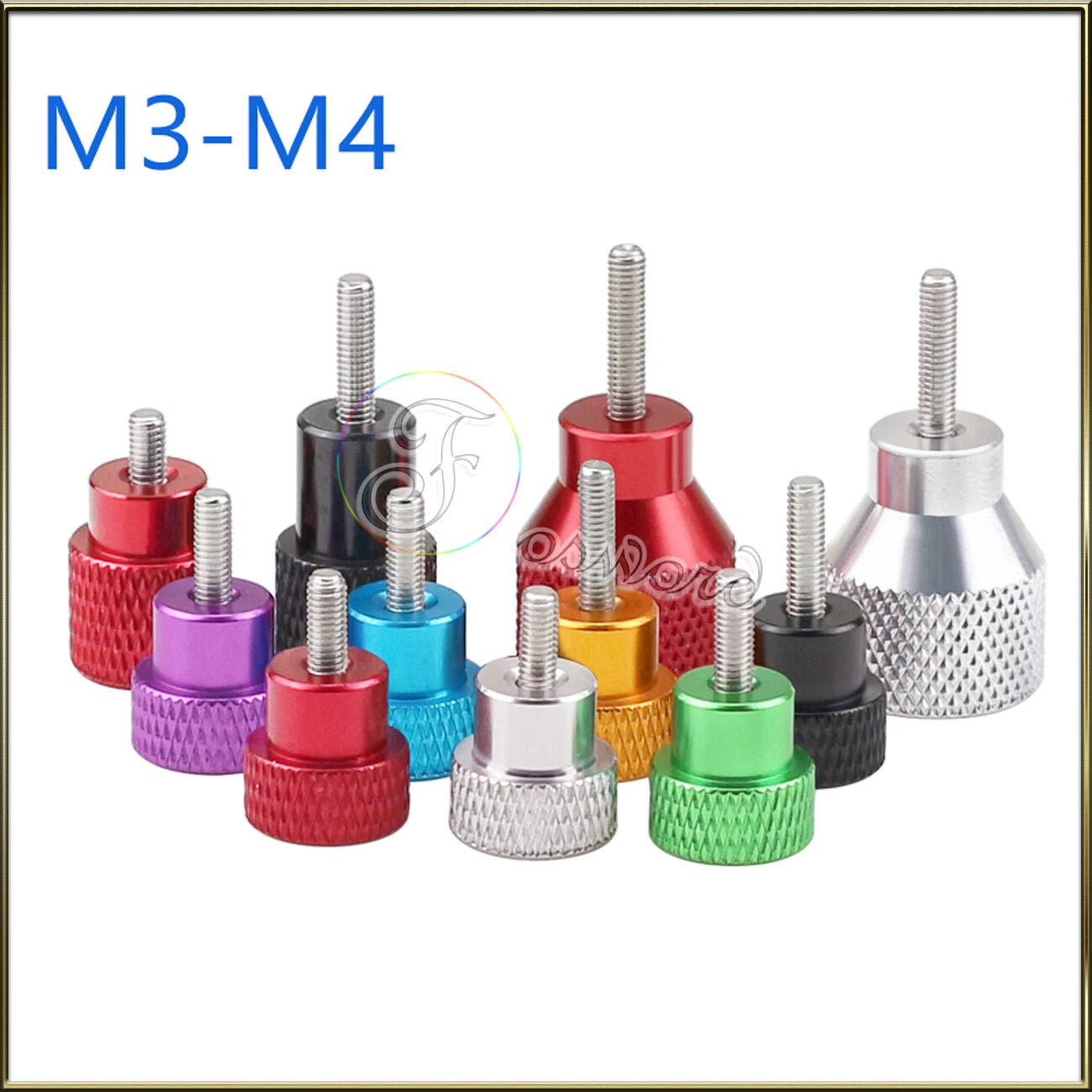

Match the thread size to your existing tapped hole or nut. M3 and M4 suit lightweight panels and electronics enclosures; M5 and M6 are common for 3D printer beds and instrument covers; M8 and M10 handle heavier fixtures and structural clamping. If you are tapping a new hole, M5 is a practical general-purpose starting point.
What head size should I select — D12, D16, or D20?
The head diameter determines how much grip surface your fingers contact and how much clamping force you can apply by hand. D12 mm heads suit confined spaces and lightweight panels. D16 mm and D20 mm heads give more torque leverage and are better for thicker panels or applications where a firm seal is needed. The H12 vs H20 height affects how far the head protrudes above the surface.
Are these screws strong enough for structural use?
These thumb screws are designed for hand-tightened, frequently adjusted connections — not high-torque structural joints. The stainless steel shaft provides solid corrosion resistance and adequate tensile strength for panel retention, fixture adjustment, and instrument covers. For joints requiring torque wrench tightening or vibration-critical assemblies, a standard hex bolt is more appropriate.
Will the anodized finish hold up in outdoor or humid environments?
Anodized aluminium resists oxidation and light moisture well. The stainless steel shaft adds further corrosion resistance. These screws are suitable for indoor workshops, light outdoor enclosures, and humid environments. For continuous immersion or salt-spray exposure, contact us to confirm suitability for your specific conditions.
Can I use these on a 3D printer bed or CNC fixture?
Yes. M3×6 to M3×20 variants with D12 heads are widely used for 3D printer bed levelling. For CNC fixtures, M5 or M6 variants with D16 or D20 heads provide the grip area needed for repeatable hand-tightening. Select the shaft length that matches your standoff or panel stack height.
Are Red and Black versions identical except for colour?
Yes. Both colours use the same aluminium alloy head and stainless steel shaft. The anodized colour is purely aesthetic and does not affect mechanical performance. Colour-coding can be useful for distinguishing adjustment points in multi-axis fixtures or for visual identification on complex assemblies.
How do I measure the correct shaft length?
Shaft length is measured from the underside of the head to the tip of the thread. Add together: your panel or material thickness, any washer thickness, and the minimum thread engagement depth (typically 1× the thread diameter for aluminium, 1.5× for steel). Choose the next standard length up from that total to ensure full thread engagement.
🛒 Select your Screws Colour, Thread × Length, and Head size above, then add to cart.
