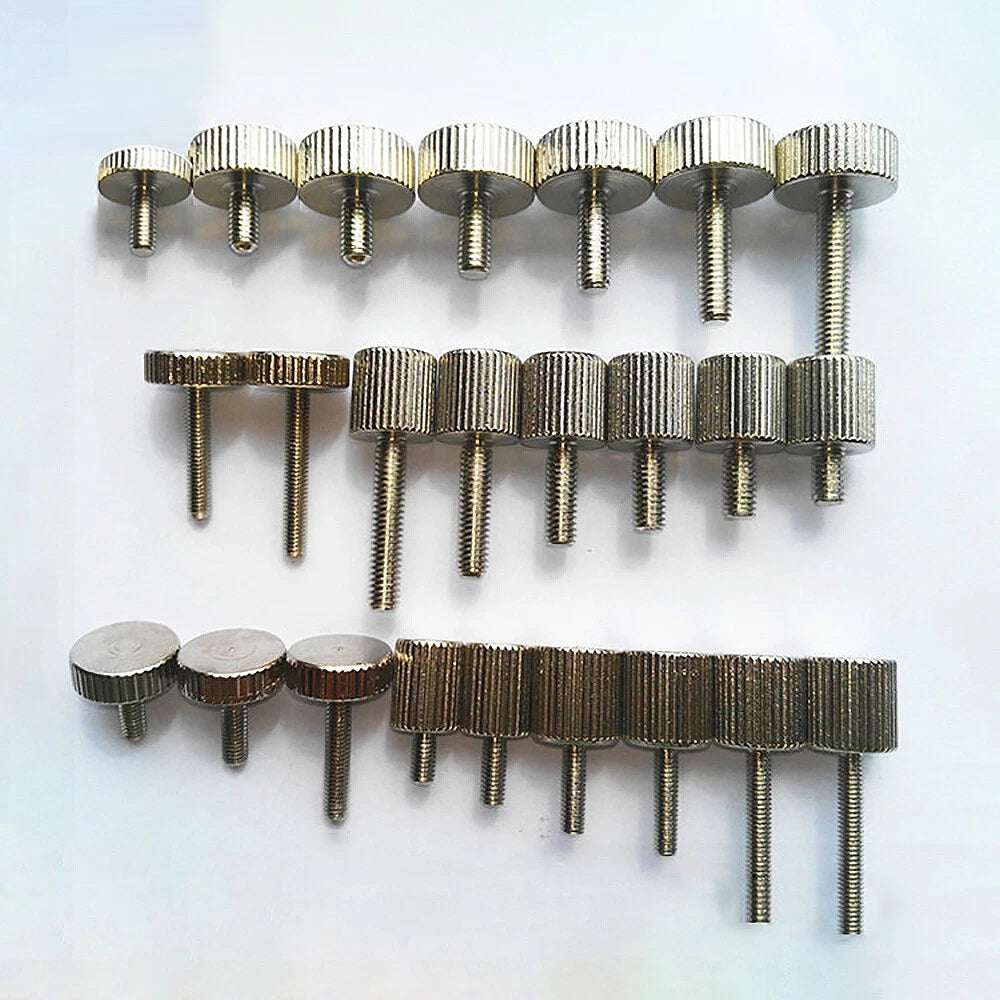

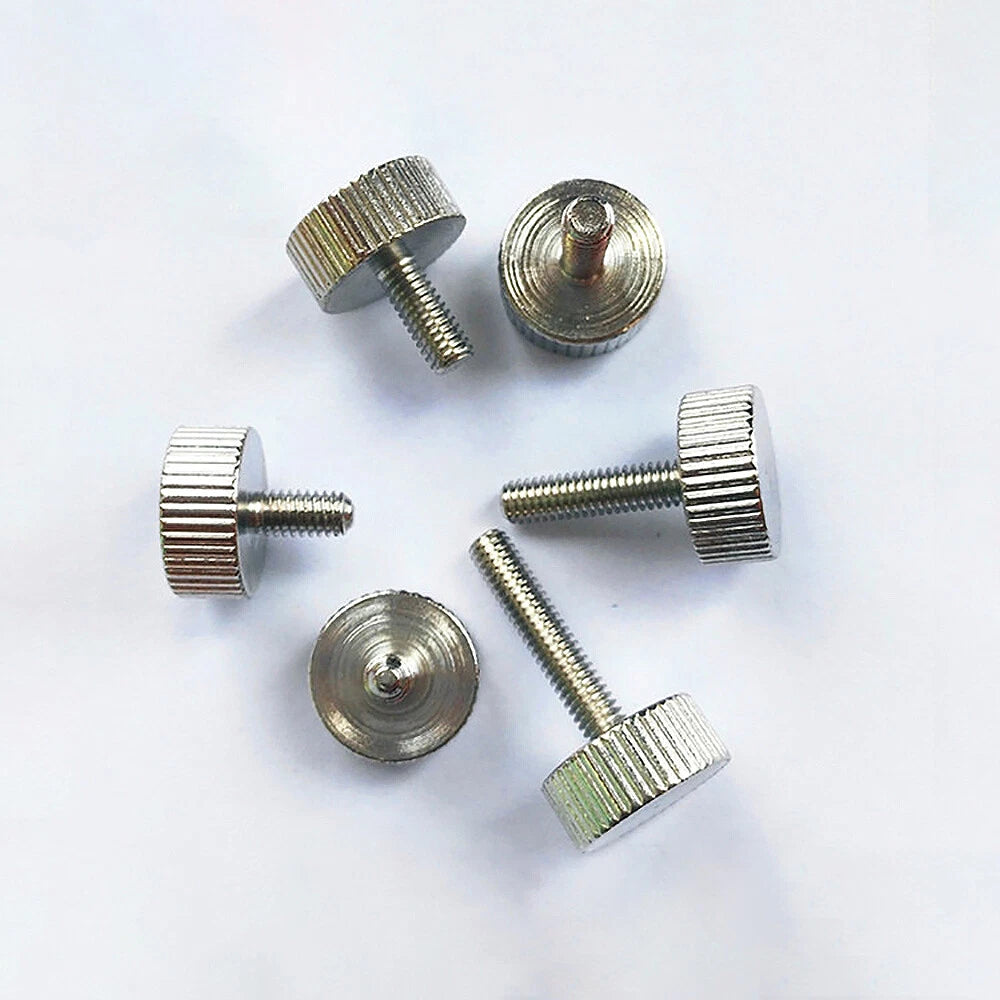

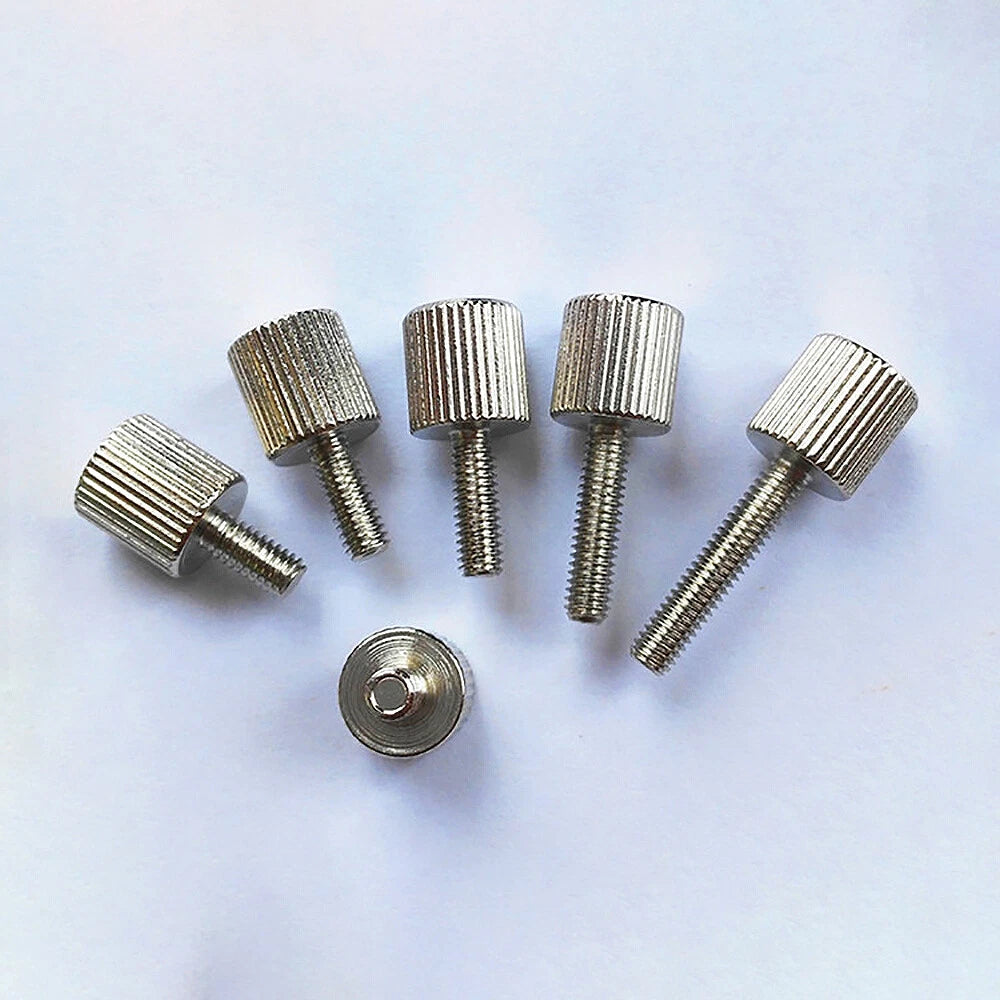

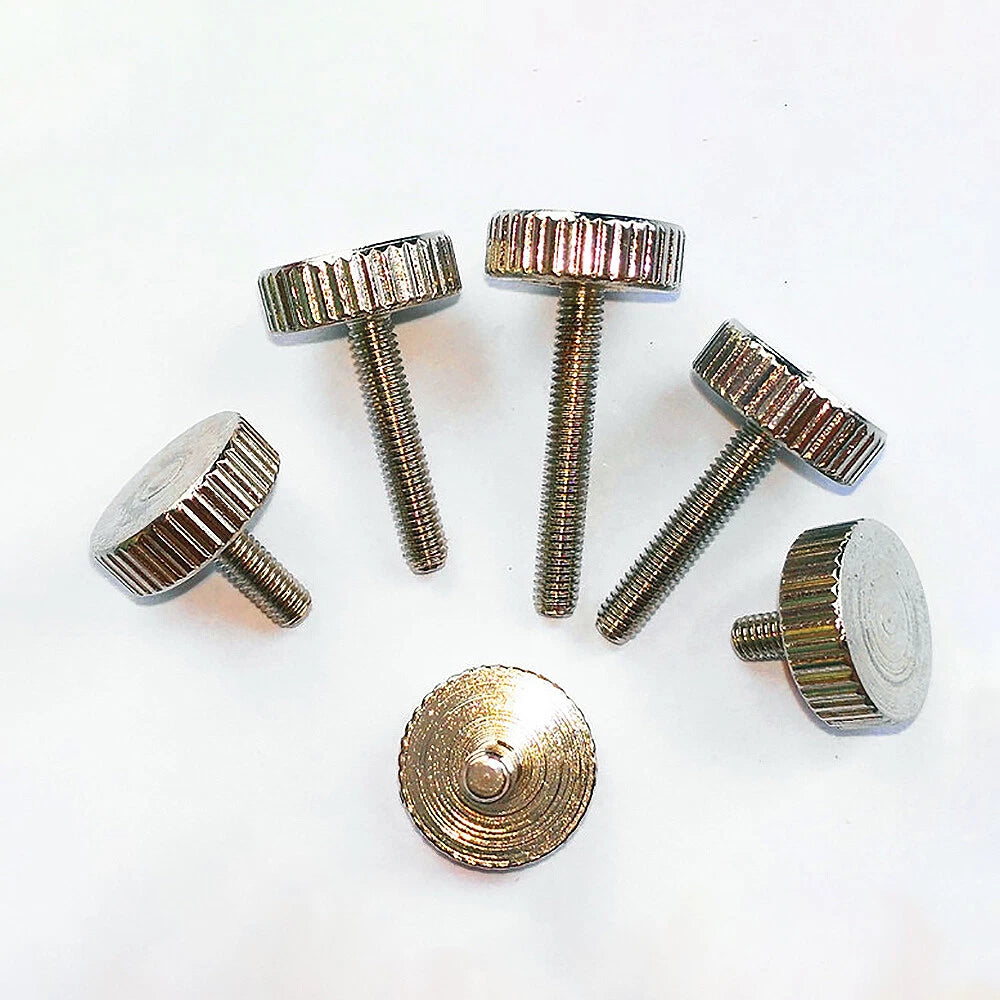

M3/M4x6mm-20mm Set Screws Carbon Steel Knurled Thumb Screw Flat Thumb Screws

Match the thread diameter to your existing threaded hole or insert. M3 (3 mm diameter) is common in smaller electronics enclosures, PC motherboard standoffs, and lightweight aluminum extrusion frames. M4 (4 mm diameter) is used in heavier-duty panel retention, thicker extrusion profiles, and applications where higher clamping force is needed. If you're unsure, measure the hole diameter or check your enclosure's spec sheet.

As a general rule, choose a shank length that provides at least 1.5× the thread diameter of engagement depth into the receiving material. For a 3 mm panel with a threaded insert behind it, a 6–8 mm shank is typically sufficient. For thicker assemblies or when passing through a panel into a nut, measure the total stack thickness and add 2–3 mm for full thread engagement. When in doubt, size up — a slightly longer screw with a captured nut is more forgiving than one that bottoms out.

These thumb screws are made from carbon steel, which offers good mechanical strength but has limited inherent corrosion resistance compared to stainless steel. For indoor applications — PC builds, electronics enclosures, workshop jigs — they perform reliably. For environments with consistent moisture, salt air, or chemical exposure, consider applying a light coating of machine oil for protection, or contact us to discuss alternative material options.

Yes, these are well-suited for aluminum extrusion assemblies when paired with the appropriate T-nut or drop-in nut for your extrusion profile (typically 2020, 3030, or 4040 series). Select the M3 or M4 variant to match your T-nut thread, and choose a shank length that clears the extrusion wall thickness. The flat knurled head sits cleanly against extrusion faces without requiring a countersink.

These are designed for hand-tightening applications — not high-torque structural fastening. Carbon steel M3 and M4 screws at this head size are appropriate for panel retention, cover plates, and access doors where finger-tight is the intended installation method. If your application requires a specific clamping force or torque spec, contact us to confirm suitability before ordering.

Head thickness affects how much the screw protrudes above the panel surface and how much grip surface your fingers contact. The 4 mm thick head sits lower-profile and is preferred when clearance above the panel is limited — such as inside a PC case with tight cable routing. The 10 mm thick head provides more knurled surface area for grip, making it easier to tighten and loosen in open or frequently accessed locations. Choose based on your clearance constraints and how often you'll be removing the screw.

The product title references "set screws" in a general sense, but these are flat-head knurled thumb screws intended for panel retention and tool-free fastening — not for the specific set screw application of locking a shaft or collar (which typically uses a headless cup-point or cone-point screw). If you need a headless set screw for shaft locking, contact us to confirm the right product for your use case.
