M5 M6 Knurled Thumb Screws — Tool-Free Fastening with A2 Stainless Steel Durability
When you need to secure panels, enclosures, or jigs repeatedly without reaching for a screwdriver, standard fasteners become a daily frustration. Makers, fabricators, and maintenance technicians who work with frequently accessed covers or adjustable fixtures need a fastener they can tighten and release by hand — reliably, every time. These knurled thumb screws are designed exactly for that workflow.

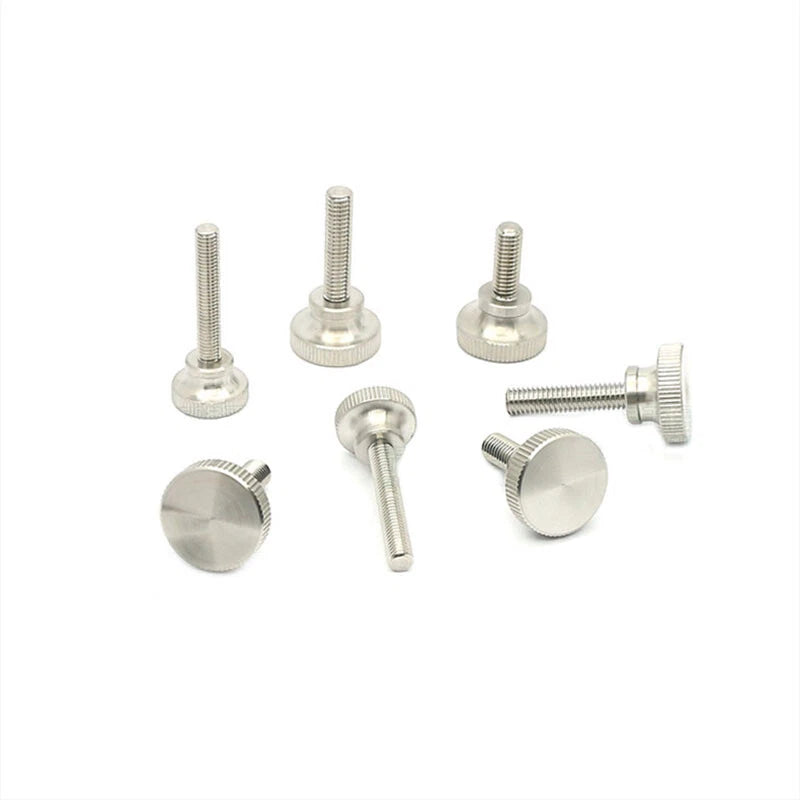

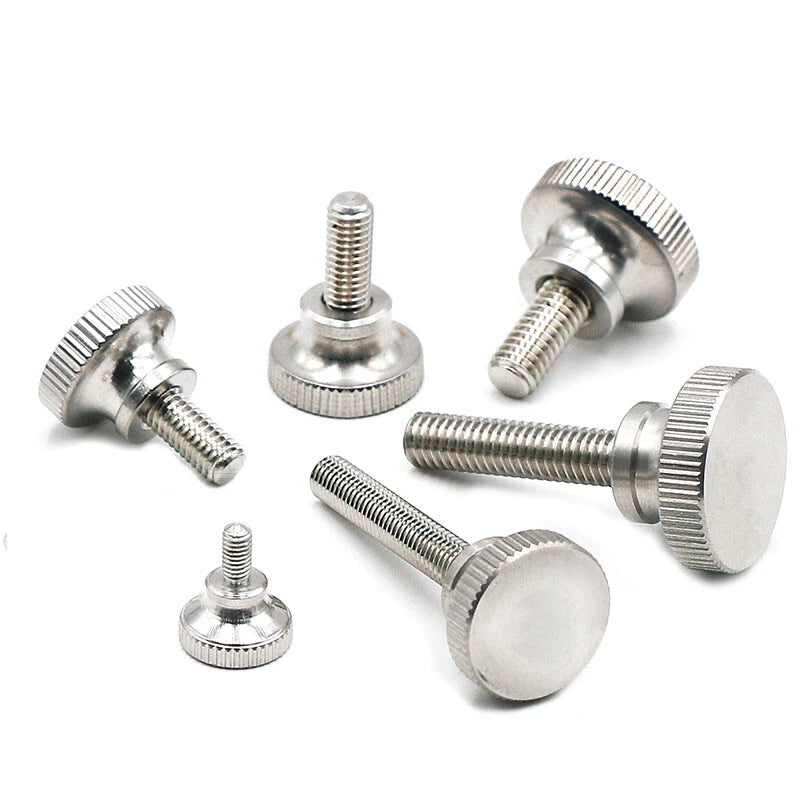

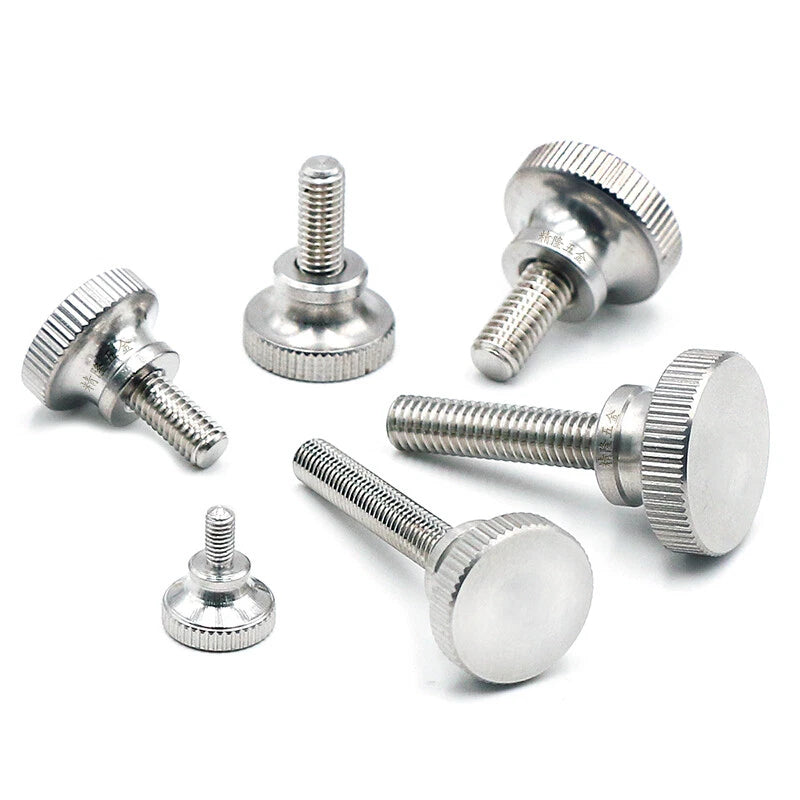

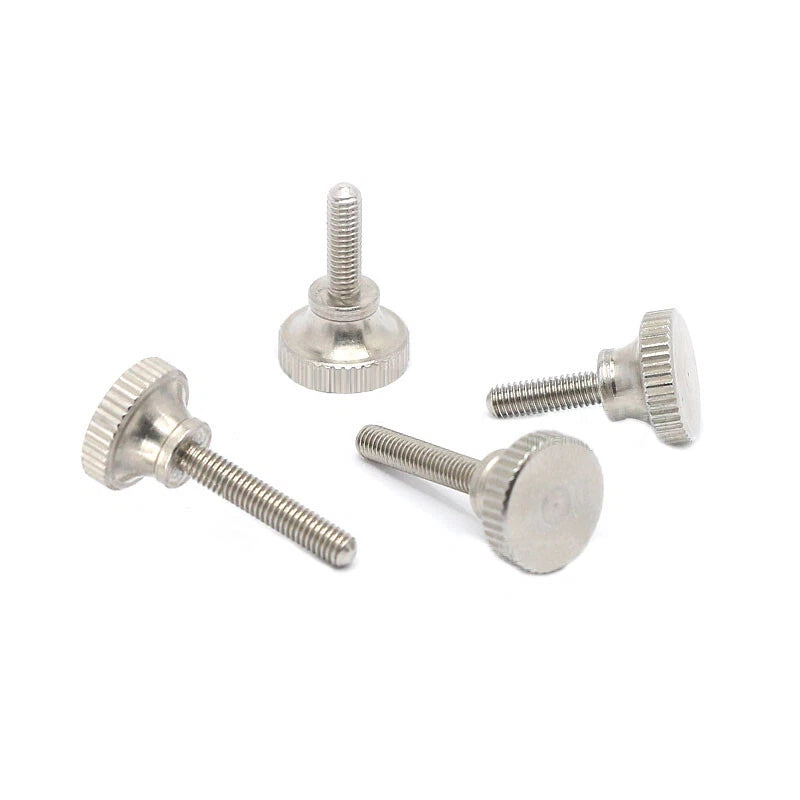

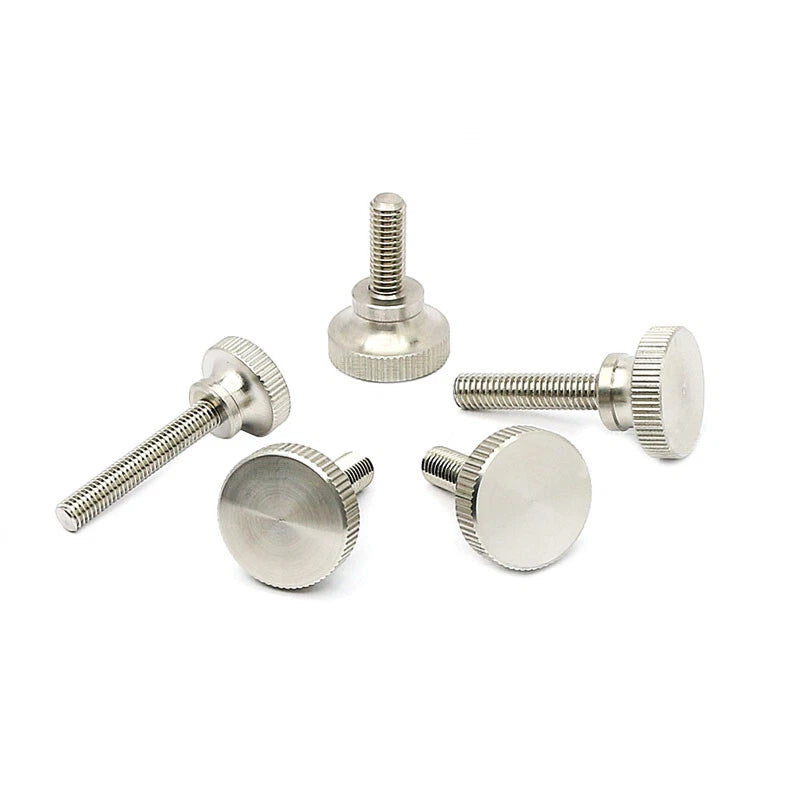

Each thumb screw is machined from A2 (304) stainless steel to ISO metric standards, featuring a high-profile knurled head for a secure finger grip. Thread diameters cover M5 and M6, with shank lengths ranging from 8 mm (5/16 in) to 40 mm (1-9/16 in). The fully threaded shank engages standard metric nuts and tapped holes without play or cross-threading risk.
Typical applications include electronics enclosure panels requiring frequent access, optical bench and camera rig adjustments, 3D printer frame assembly, CNC machine guard fixings, and laboratory instrument covers — anywhere hand-tightened knurled thumb screws replace tool-dependent fasteners for faster, repeatable access.
🔩
Compatibility: Fits standard M5 and M6 metric tapped holes and hex nuts. Verify thread pitch (M5 = 0.8 mm, M6 = 1.0 mm) matches your application before ordering.
✅ Key Features of These Knurled Thumb Screws
🔧
Tool-Free Operation
High-profile knurled head provides enough grip surface to tighten and loosen by hand, eliminating the need for a screwdriver or wrench in routine access scenarios.
🛡️
A2 Stainless Steel (Grade 304)
Resists oxidation and surface corrosion in indoor and light outdoor environments. Suitable for humid workshops, lab settings, and electronics enclosures.
📐
Wide Size Range
Available in M5 and M6 thread diameters with shank lengths from 8 mm to 40 mm (approx. 5/16 in to 1-9/16 in), covering the majority of panel-fastening applications.
⚙️
Fully Threaded Shank
The entire shank length is threaded to ISO metric standards, allowing engagement depth to be adjusted by varying nut position or tapped hole depth.
📦
Flexible Pack Quantities
Available in packs of 1, 2, 4, 5, 8, or 10 pieces — order exactly what your project requires without overstocking.
🔁
Consistent Metric Dimensions
Manufactured to metric system standards with uniform thread pitch per size (M5 × 0.8 mm, M6 × 1.0 mm), ensuring interchangeability across fixtures and assemblies.

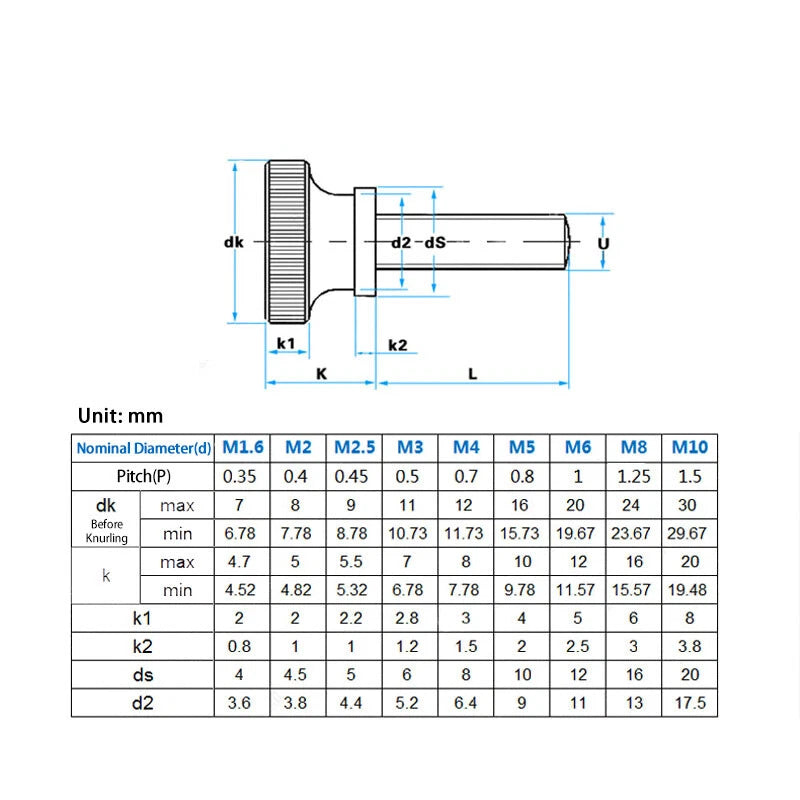

📐 Technical Specifications — Knurled Thumb Screws
| Type |
Knurled Thumb Screw, High Head |
| Material |
A2 Stainless Steel (Grade 304) |
| Drive Style |
Thumb (hand-tightened, no tool required) |
| Head Style |
High Head (knurled) |
| Thread Standard |
ISO Metric |
| Thread Sizes Available |
M5, M6 |
| Thread Pitch |
M5 × 0.8 mm / M6 × 1.0 mm |
| Shank Lengths Available |
8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40 mm |
| Grade |
A2 (ISO 3506) |
| Finish |
Natural stainless (uncoated) |
| Pack Quantities |
1, 2, 4, 5, 8, 10 pcs |
| Thread Engagement |
See variant options |
| Head Diameter |
See variant options |
❓ Frequently Asked Questions
What is the difference between M5 and M6 thumb screws, and how do I choose?
M5 has a 5 mm nominal thread diameter with a 0.8 mm pitch; M6 has a 6 mm diameter with a 1.0 mm pitch. Choose based on the tapped hole or nut size already in your assembly. If you are designing a new fixture, M6 is generally preferred for higher clamping loads, while M5 suits lighter panels and electronics enclosures where space is limited.
How strong are A2 stainless steel thumb screws compared to standard steel?
A2 stainless steel (Grade 304) has a tensile strength of approximately 500–700 MPa depending on processing. It is lower than hardened carbon steel grades (8.8 or 10.9) but sufficient for panel retention, instrument covers, and adjustable fixtures where hand-tightening torque is the limiting factor. For high-vibration or structural load applications, consider a threaded insert with a separate locking mechanism.
Are these thumb screws corrosion-resistant for outdoor or humid environments?
A2 stainless steel resists oxidation and light corrosion in indoor, humid, and mildly corrosive environments. It is not rated for continuous salt-spray or marine immersion — for those conditions, A4 (316) stainless would be more appropriate. For typical workshop, laboratory, or light outdoor enclosure use, A2 performs reliably without surface treatment.
What length thumb screw do I need for my panel thickness?
Add your panel thickness to the required thread engagement depth (typically 1× to 1.5× the thread diameter for stainless into steel). For example, a 3 mm panel with an M5 nut requires at least 3 mm + 5 mm = 8 mm shank length. Always allow a small clearance margin. If clamping two panels, add both thicknesses plus the nut height.
Can these thumb screws be used with standard hex nuts and threaded inserts?
Yes. The fully threaded shank conforms to ISO metric standards, so it is compatible with any standard M5 or M6 hex nut, wing nut, flange nut, or threaded insert (heat-set, press-fit, or tapped) of the matching pitch. Verify the nut or insert pitch matches: M5 × 0.8 mm or M6 × 1.0 mm.
How much torque can I apply by hand, and is that enough to secure my assembly?
Typical hand-tightening torque on a knurled thumb screw is approximately 0.3–1.0 Nm depending on head diameter and finger grip. This is sufficient for panel retention, instrument covers, and non-structural fixtures. If your application requires a defined clamping force, use a torque wrench on the hex portion of the shank (if accessible) or specify a locking compound for vibration resistance.
What pack size should I order for a project?
For a single enclosure with 4 fastening points, a pack of 4 or 5 gives one spare. For production runs or workshop stock, packs of 8 or 10 reduce per-unit cost. Single-piece packs are useful for replacement or prototyping. Select the pack quantity that matches your immediate need — all sizes ship as the same fastener type, just in different quantities.
