When you need a fastener you can tighten and release by hand — without reaching for a wrench — standard hex bolts slow you down. Makers, photographers, and equipment technicians who work with camera tripods, jigs, enclosures, and DIY fixtures need knurled thumb screws that grip firmly, release cleanly, and add a pop of colour to their builds. These M5 M6 M8 M10 knurled thumb screws are engineered for exactly that workflow.

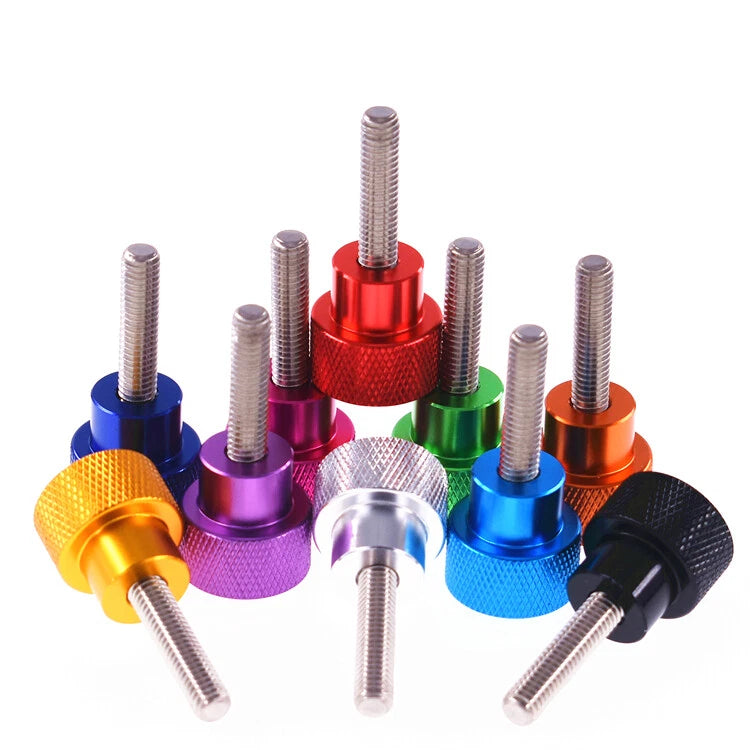

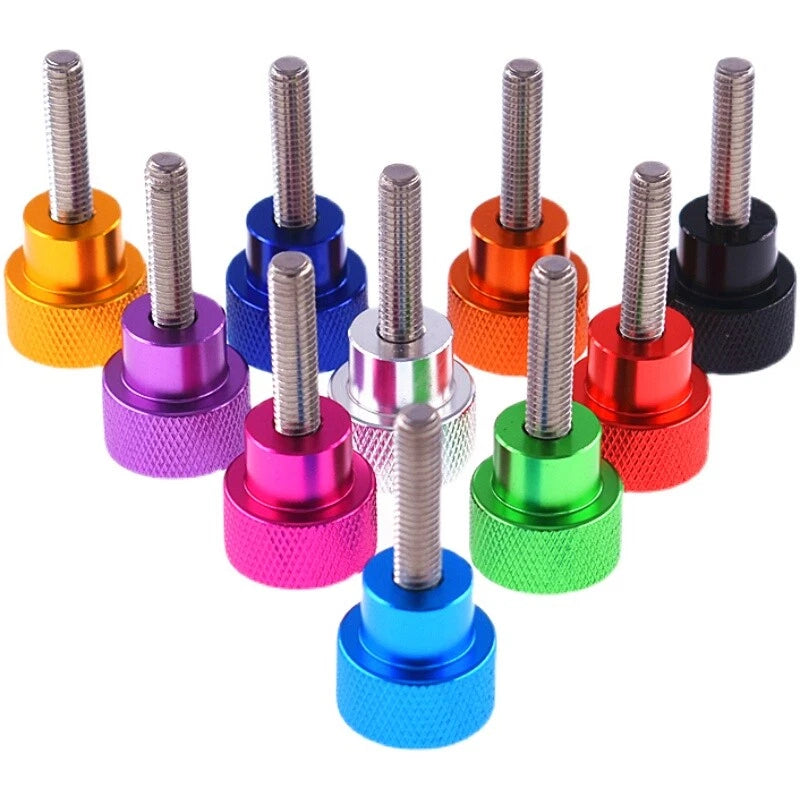

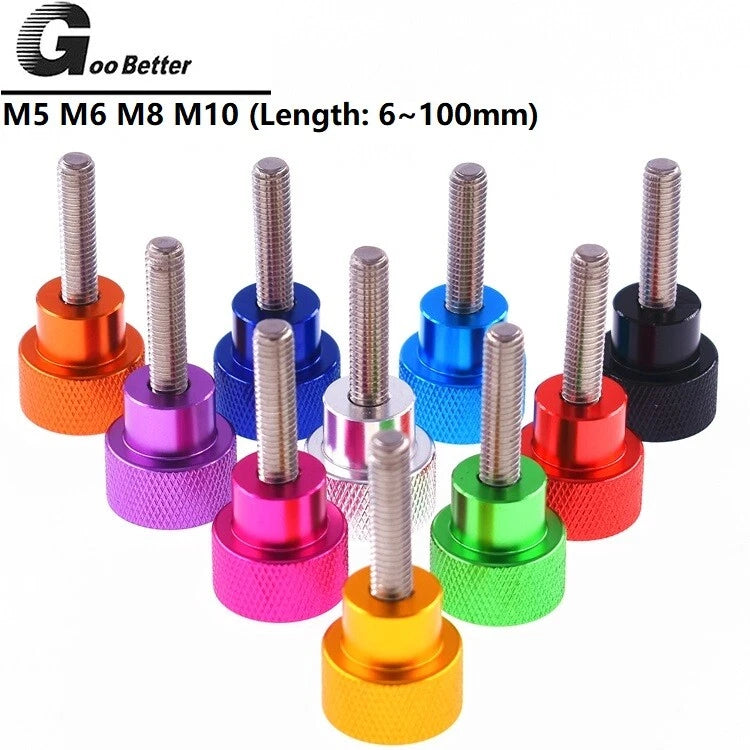

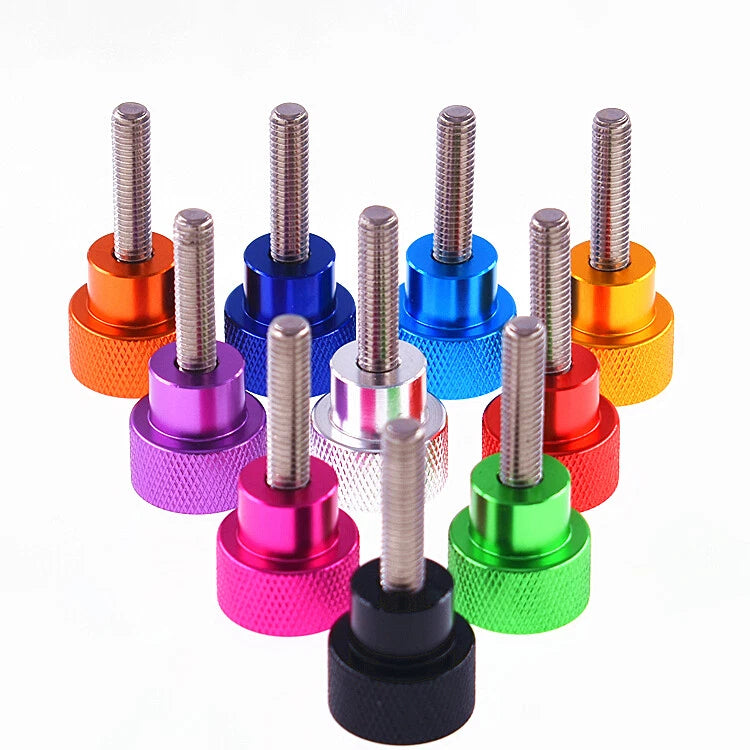

Each screw features a dual-material construction: an anodized aluminum alloy knurled head for comfortable hand torque and a stainless steel threaded shank for corrosion resistance and thread durability. Thread diameters span M5, M6, M8, and M10 (approximately 0.20", 0.24", 0.31", and 0.39"), with shank lengths ranging from 6 mm to 100 mm (approx. 0.24" to 3.94"). The colourful anodized finish allows colour-coded assembly and adds visual distinction to panels and equipment.
Typical use cases include camera tripod quick-release plates and accessory rails, 3D printer frame assembly and bed-levelling knobs, electronics enclosure panels requiring frequent access, and DIY woodworking jigs or fixture clamping systems where tool-free adjustment is essential.
| Material — Head | Aluminum Alloy (anodized) |
|---|---|
| Material — Shank | Stainless Steel |
| Head Style | Flat Knurled |
| Drive Style | Thumb (hand-drive, no tool required) |
| Thread Standard | Metric (ISO) |
| Thread Diameters | M5, M6, M8, M10 |
| Shank Length Range | 6 mm – 100 mm (approx. 0.24" – 3.94") |

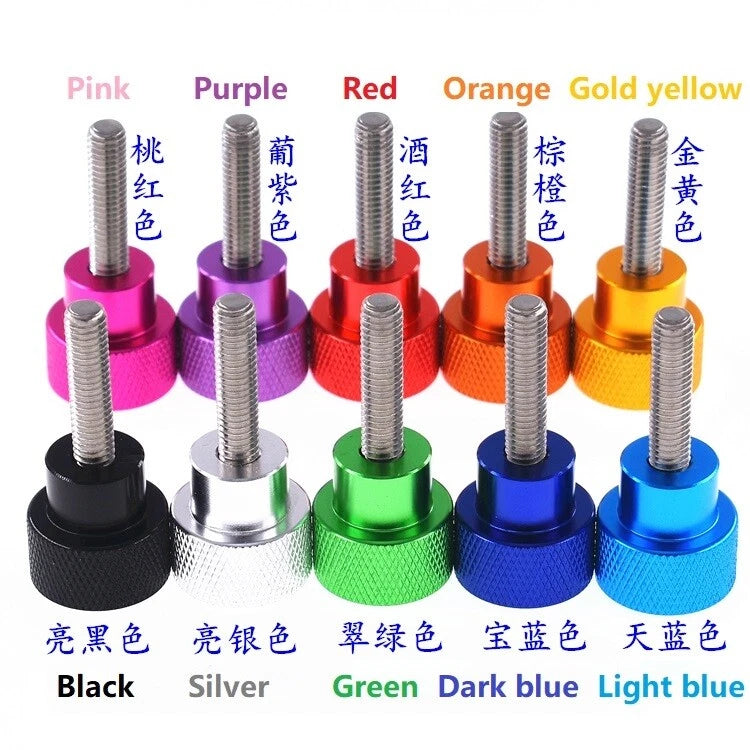

| Finish | Anodized (multi-colour) |
| Thread Pitch | See variant options |
| Head Diameter | See variant options |
| Head Height | See variant options |
| Pack Quantity | 1 / 2 / 5 pieces (select above) |
Match the thread diameter (M5, M6, M8, or M10) to your tapped hole or threaded insert size. For length, measure the depth of the threaded hole and select a shank length that engages at least 1.5× the thread diameter for secure holding — for example, an M6 screw should engage at least 9 mm of thread. If the screw passes through a panel, add the panel thickness to the required engagement depth.
These screws are designed for hand-tightened, non-structural applications such as panel access covers, camera accessories, 3D printer adjustments, and jig fixtures. The stainless steel shank provides solid thread engagement, but because they are hand-tightened without torque tools, they are not recommended for high-vibration or load-bearing structural joints that require specified torque values.
Yes. The threaded shank is stainless steel, which offers good resistance to rust and oxidation in typical indoor and light outdoor environments. The aluminum alloy head is anodized, which also provides a protective oxide layer. For harsh marine or chemical environments, verify suitability with your specific exposure conditions before use.
Yes. These screws follow the ISO metric thread standard. M5, M6, M8, and M10 designations are universally compatible with metric tapped holes, heat-set inserts, and threaded nuts of the same size. Always confirm the thread pitch of your existing hardware matches the standard coarse pitch for each diameter (M5×0.8, M6×1.0, M8×1.25, M10×1.5) before ordering.
Yes — these knurled thumb screws are well-suited for camera tripod quick-release plates, accessory rails, and mounting brackets that use M5 or M6 metric threads. The hand-grip knurled head allows fast, tool-free tightening and loosening in the field. Confirm the thread size and length required by your specific tripod or accessory before purchasing.
Order 1 piece if you need a single replacement or want to test fit before committing. Order 2 pieces for paired applications such as bilateral panel latches or dual-rail fixtures. Order 5 pieces for projects requiring multiple fastening points — such as 3D printer bed-levelling corners, multi-panel enclosures, or jig assemblies — where having spares on hand prevents project delays.
No. The colour is an anodized surface treatment on the aluminum head and does not affect thread engagement, clamping force, or corrosion resistance. Anodizing actually hardens the surface slightly and improves wear resistance compared to bare aluminum. Colour selection is purely aesthetic and functional for colour-coded identification.
