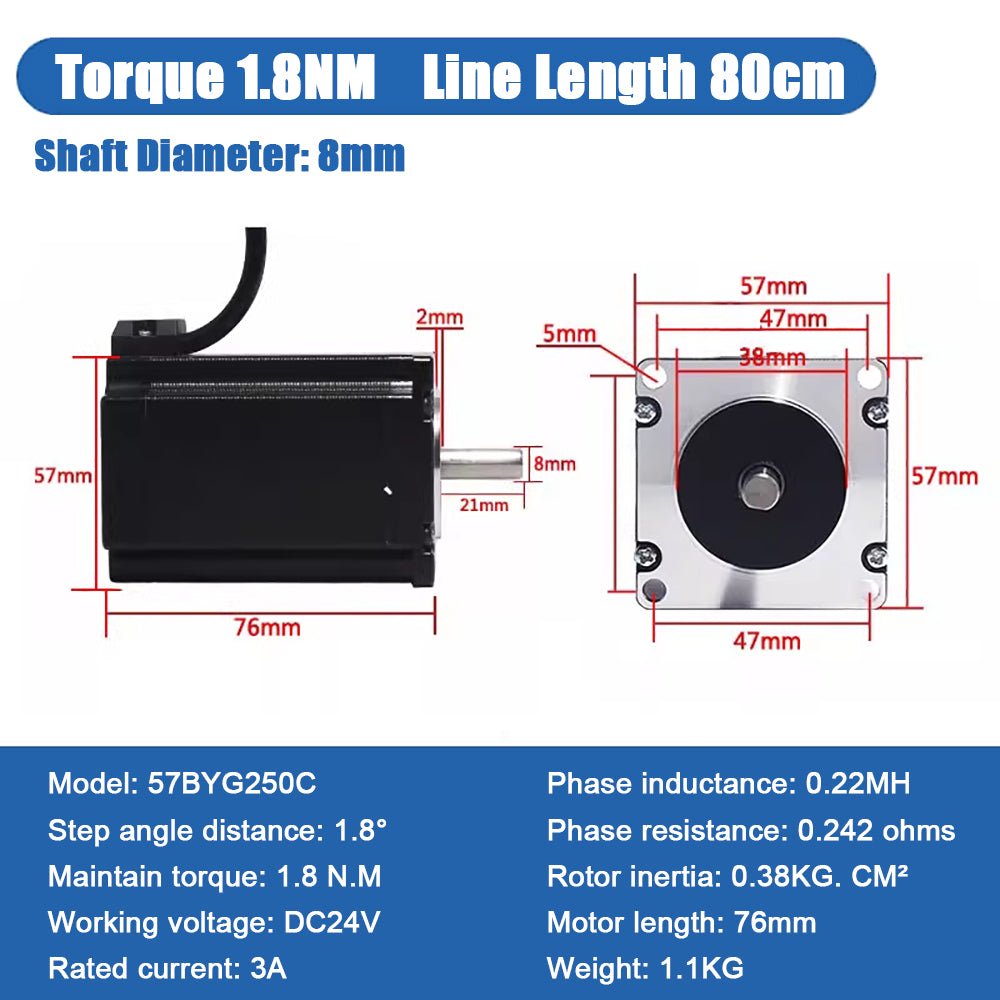

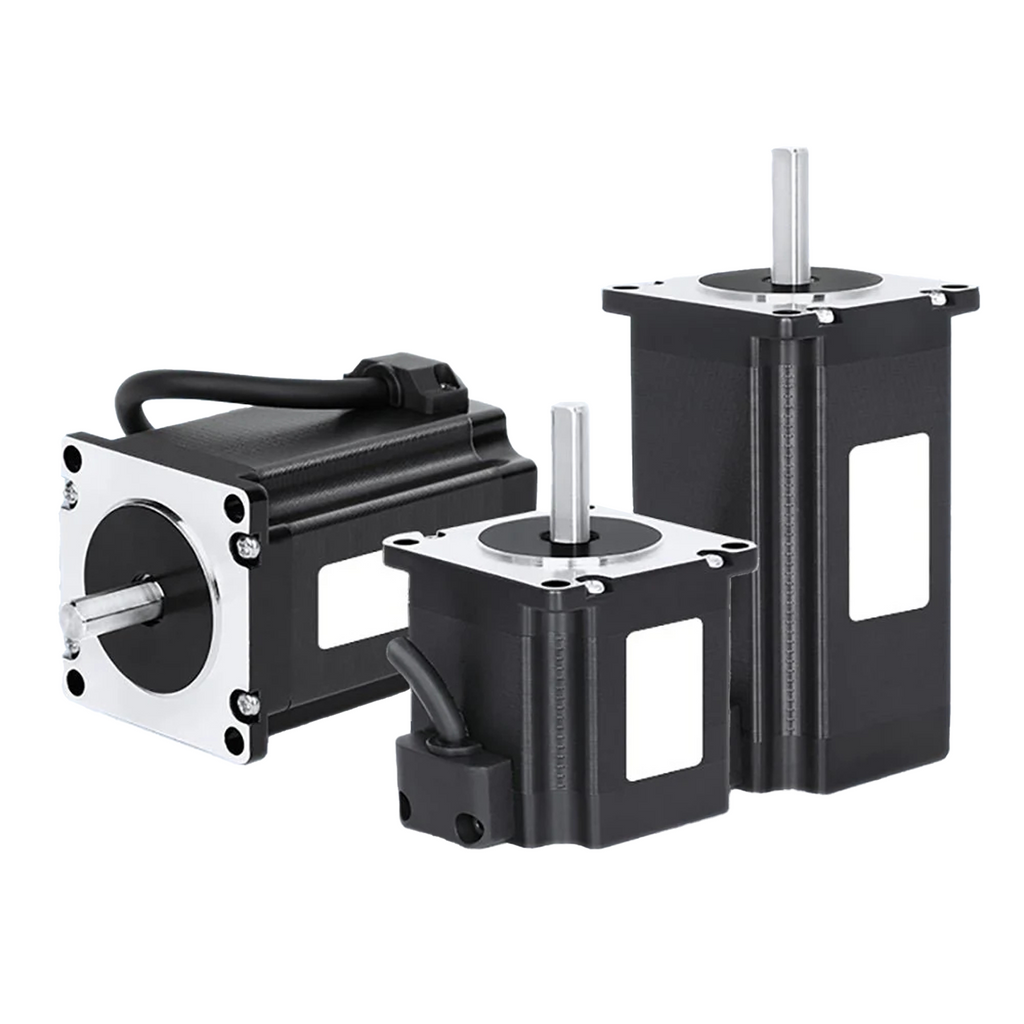

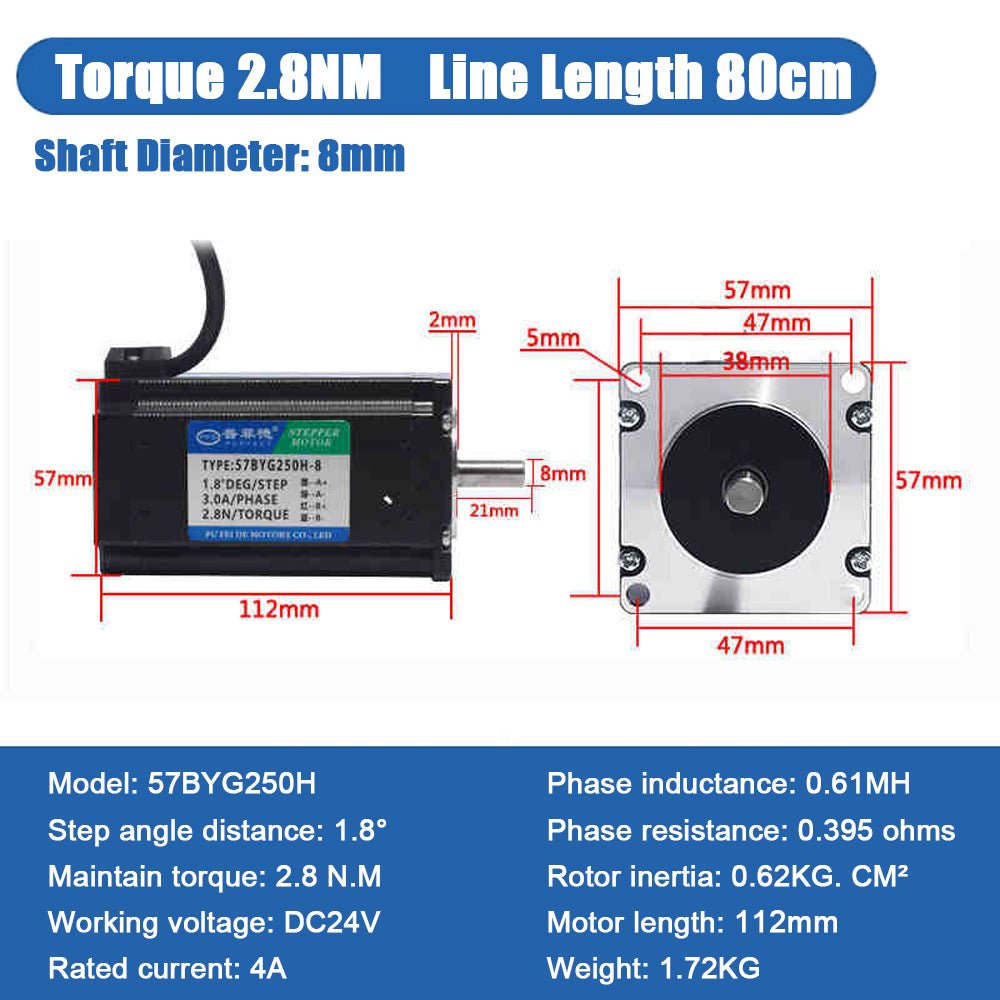

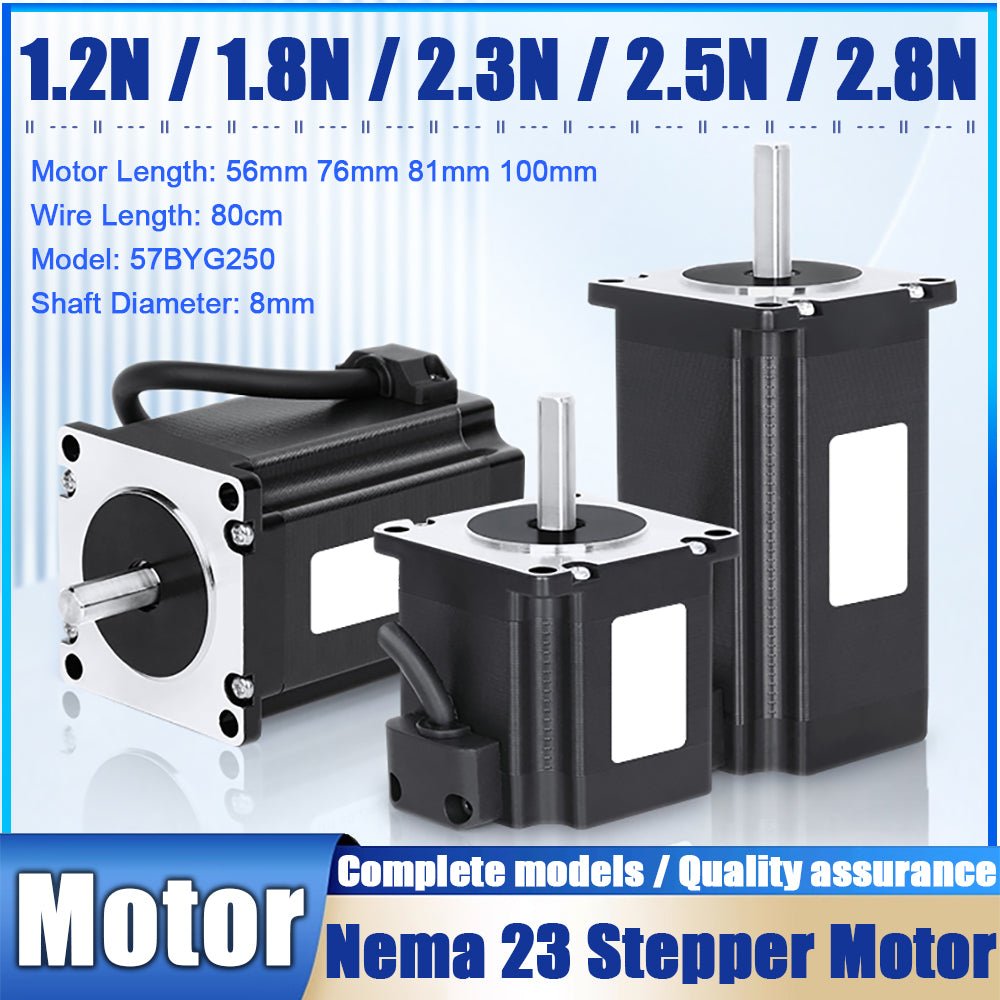

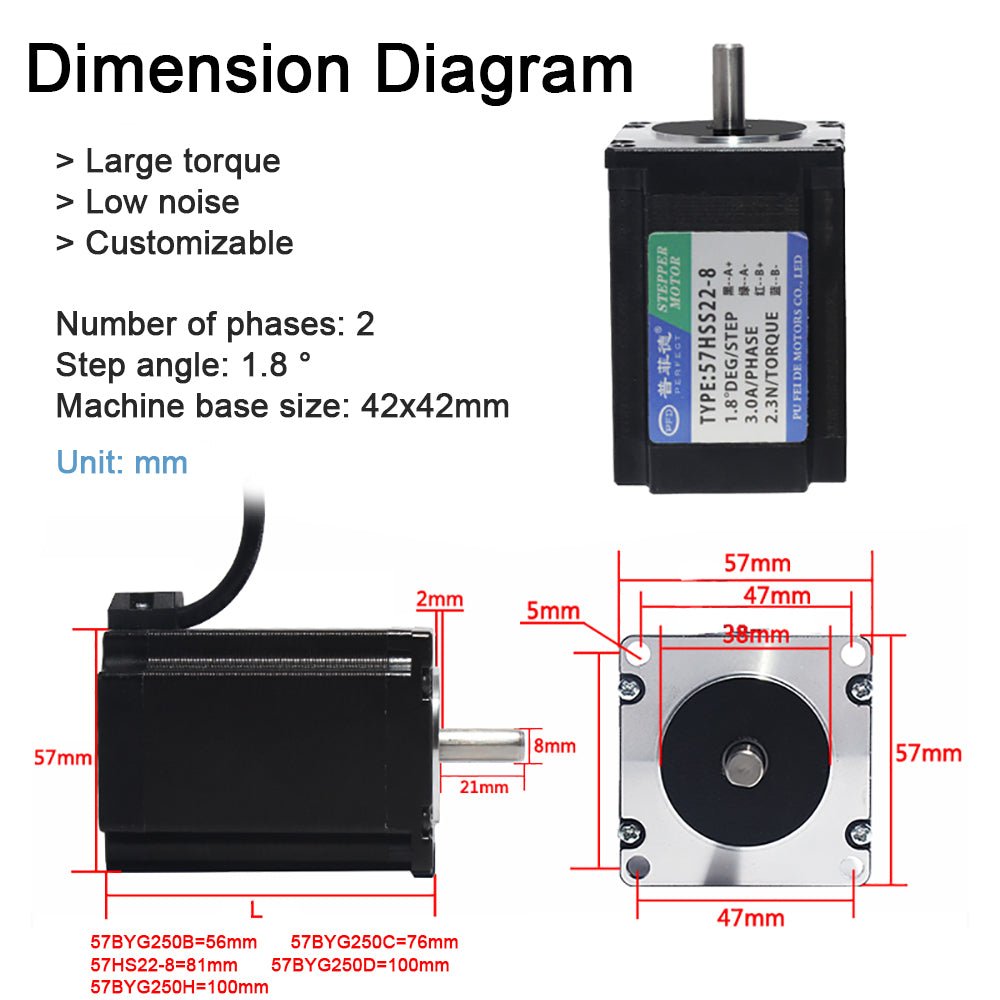

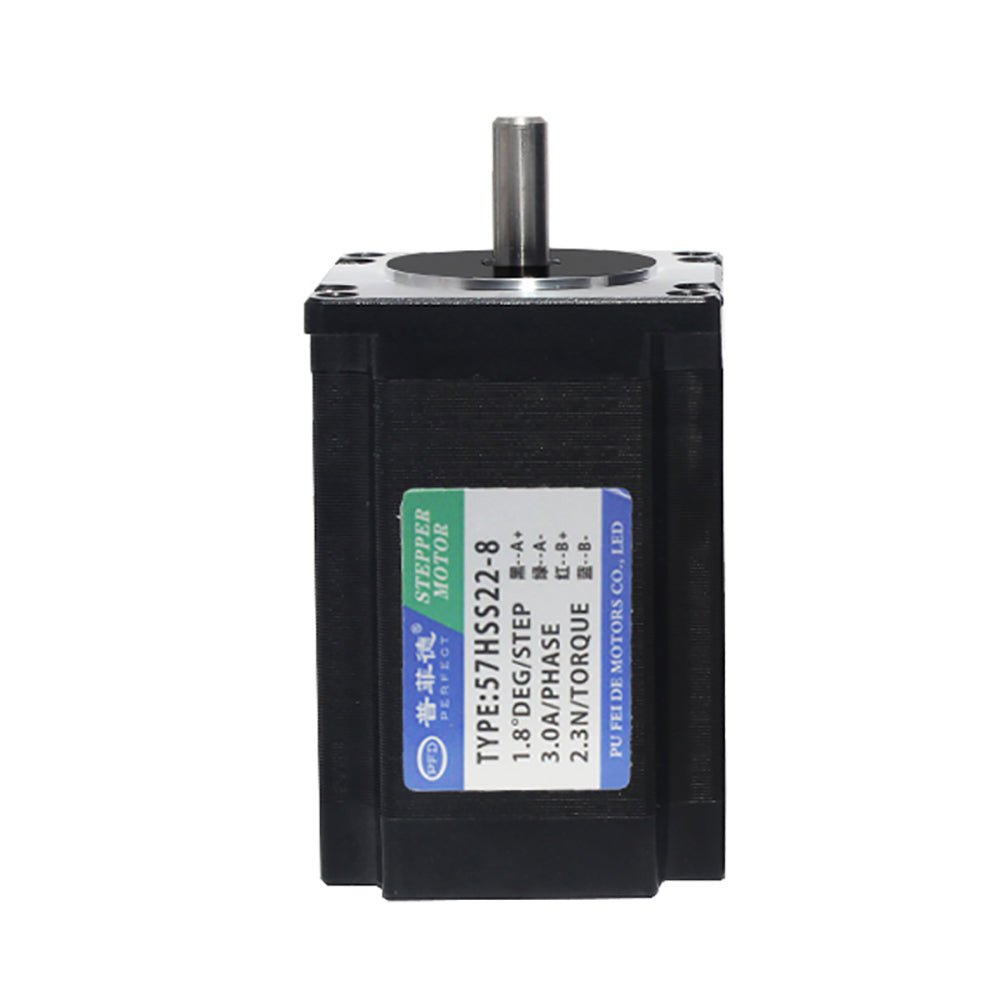

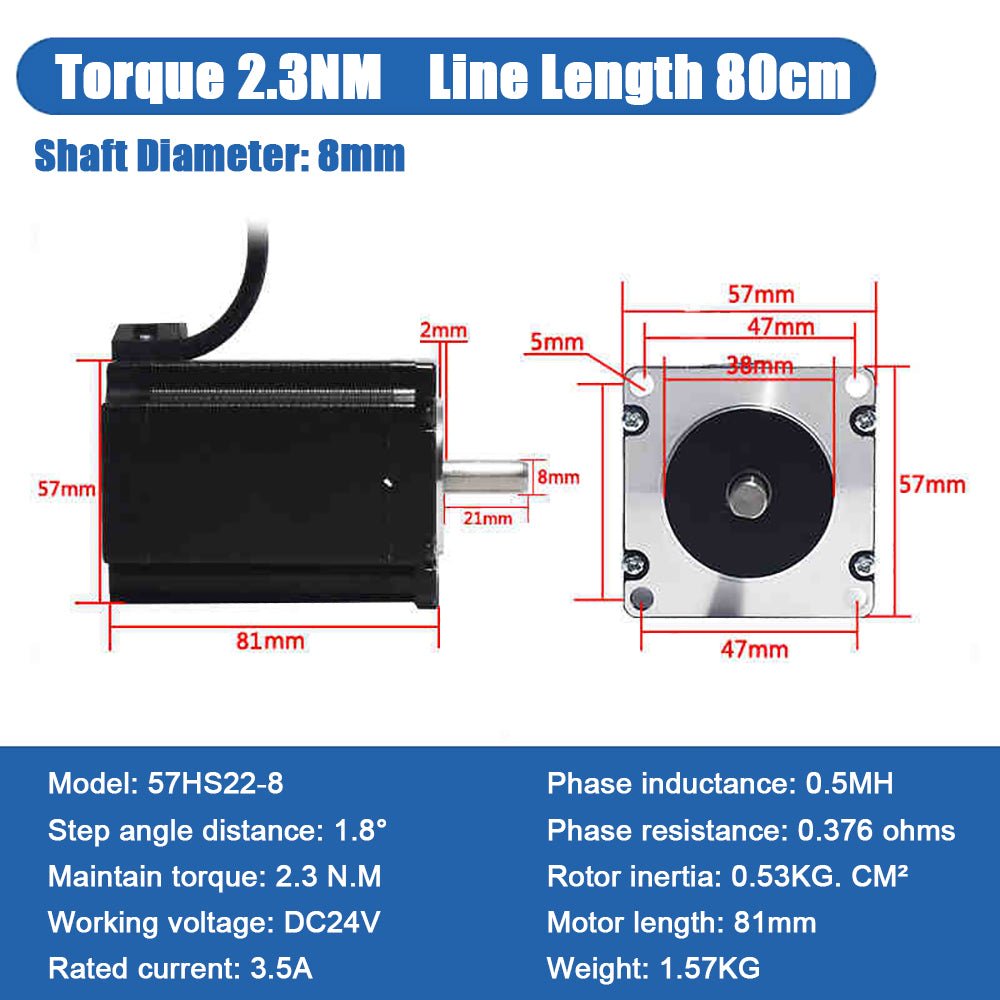

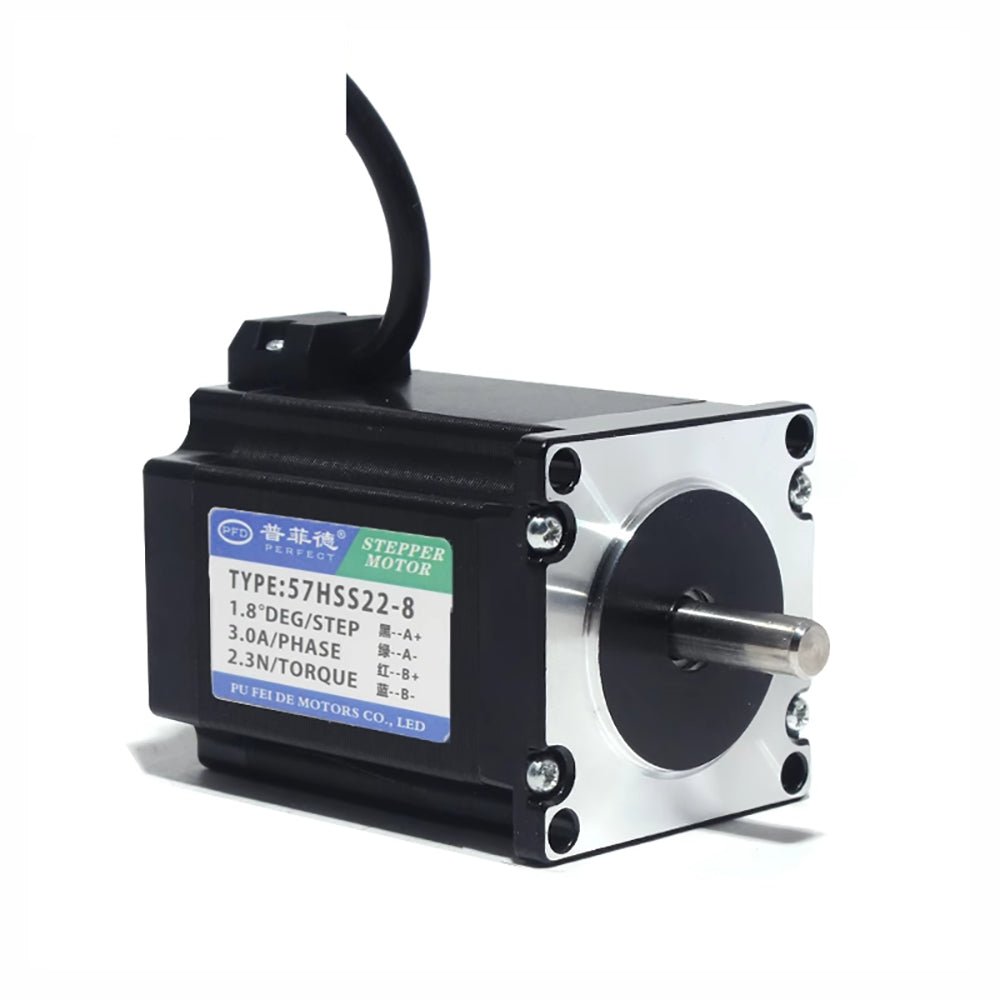

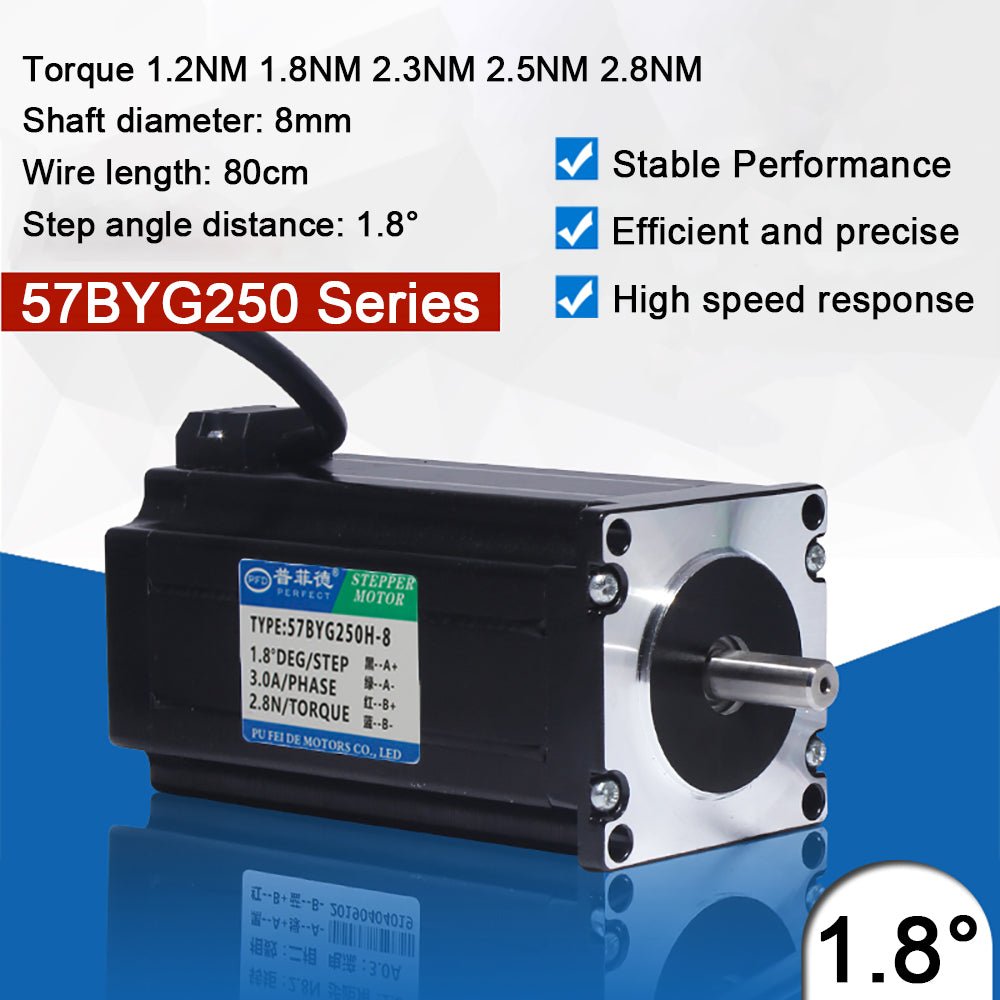

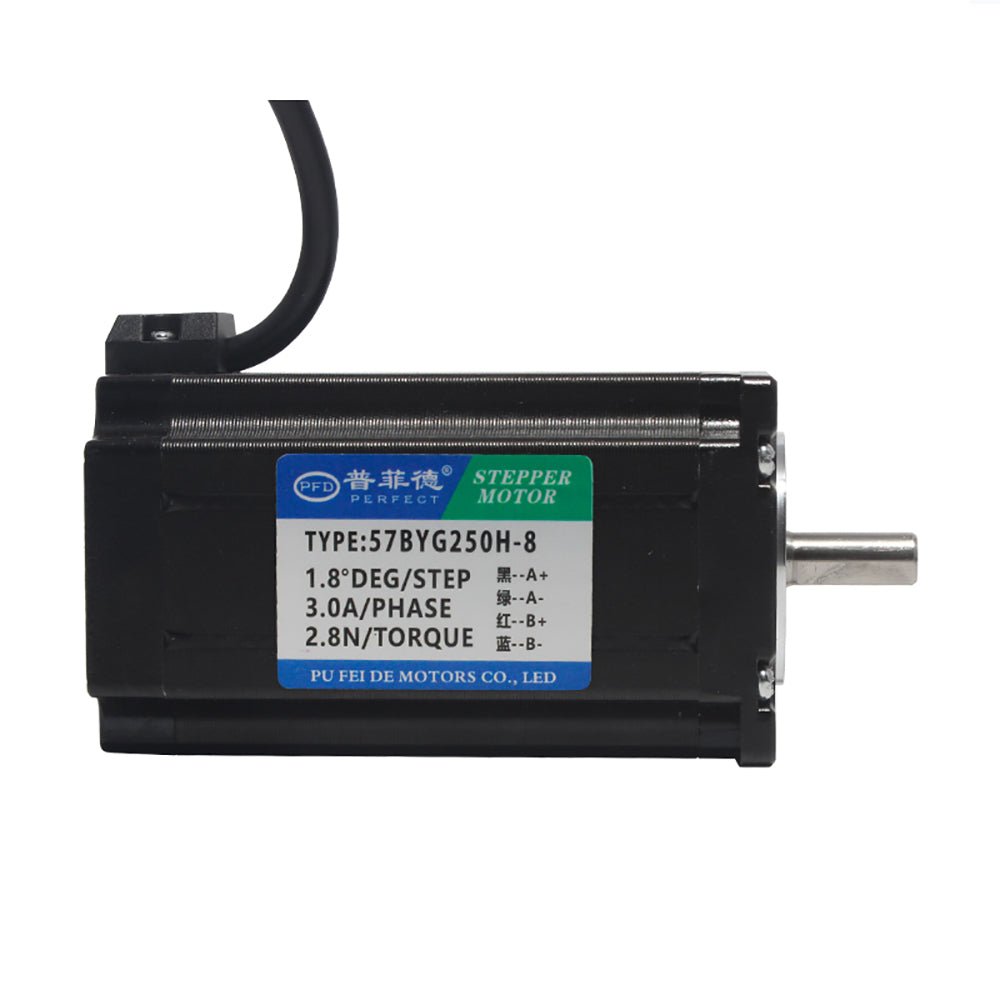

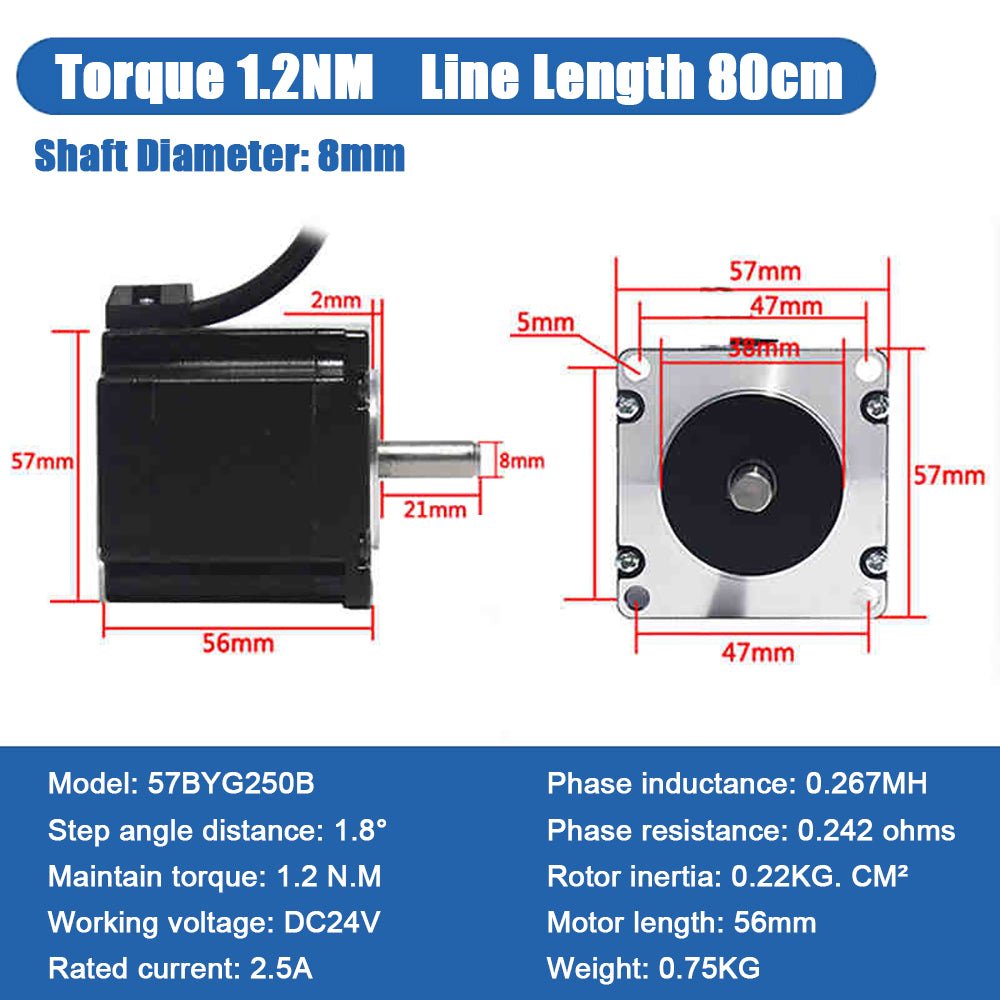

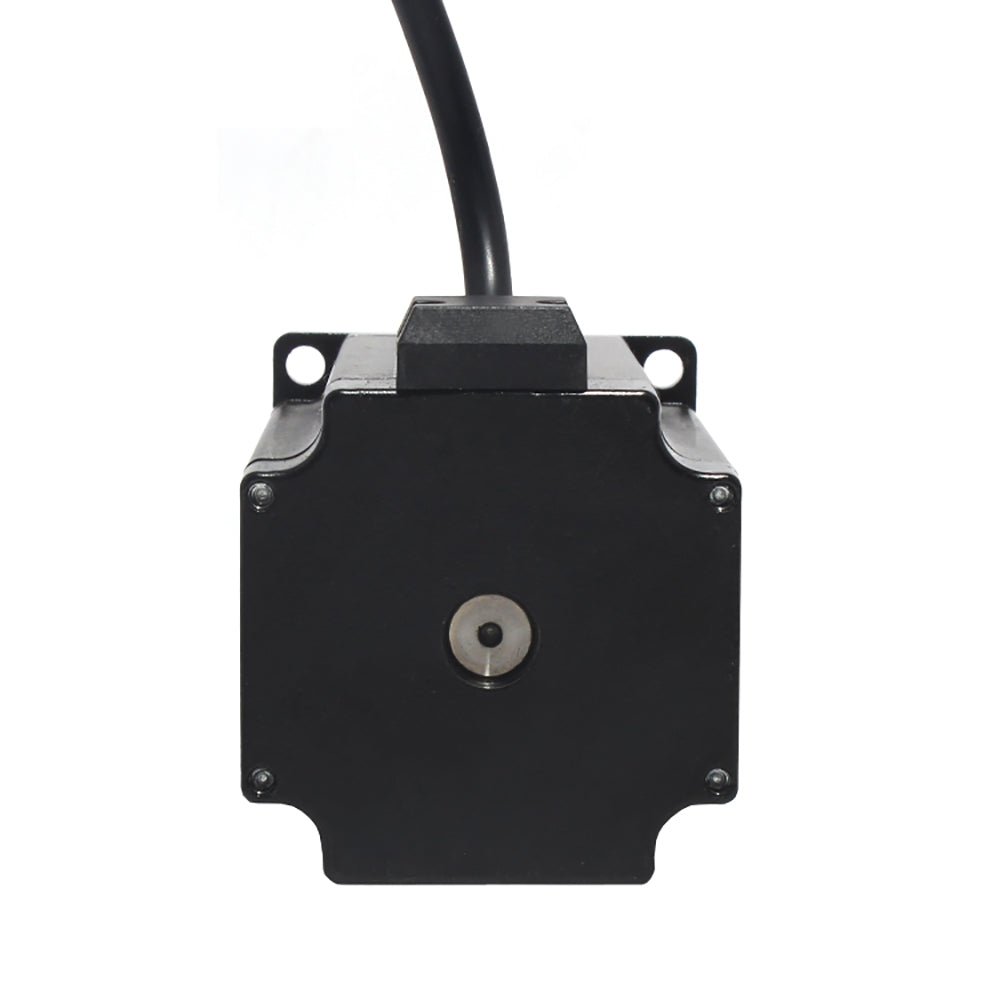

● Product Name: 57 Step Motor
● Step angle: 1.8 degrees (two-phase)
● Shaft length: 21mm
● Output shaft diameter: 8mm
● Output method: single axis

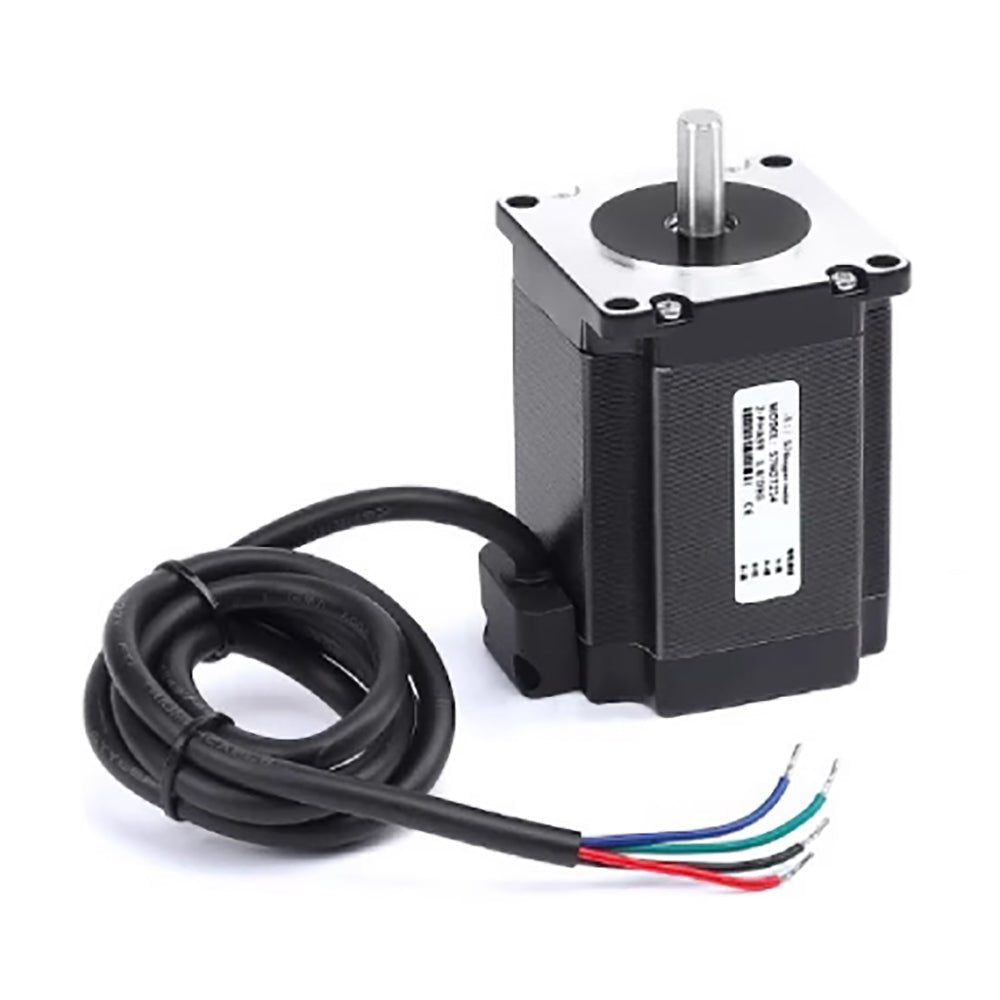

● Outgoing method: Two phase four lead out wires (black A+green A - red B+blue B -)
● Motor outgoing line: 80cm
HIGH QUALITY TO BE TRUSTWORTHY:
Customizable: You can customize the exclusive hybrid stepper motor you need based on the holding torque, moment of inertia, and size.
Excellent appearance: Made entirely of high-strength metal, sturdy and durable, with a frosted metal texture on the side walls to increase friction.

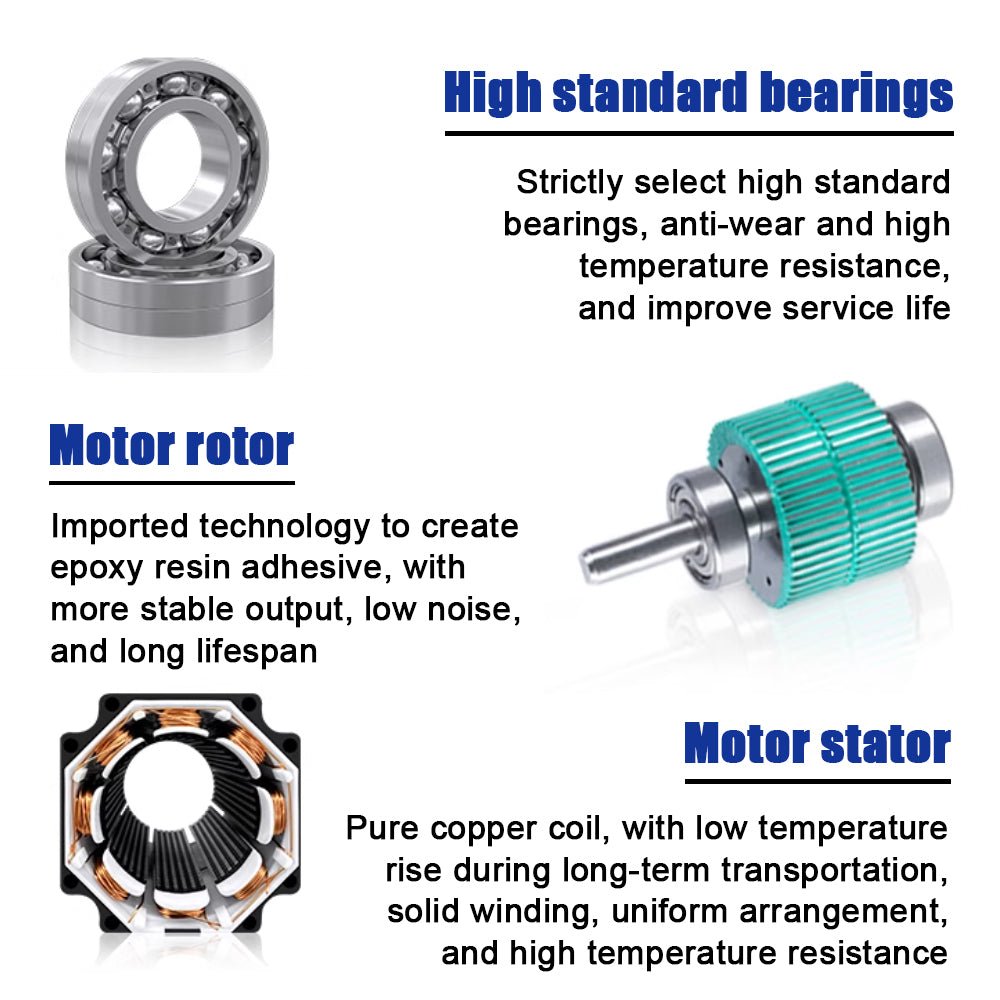

High torque: Imported high-quality motor steel plates, bearings made with German technology, small self inductance reactance, good response, can be directly linked to the load for low-speed operation without gear reduction when approaching a locked rotor state. Therefore, it can generate a high torque to inertia ratio on the load shaft and eliminate system errors caused by the use of reduction gears.
Low noise: The internal rotor adopts German technology and is coated with imported rotor glue on the surface to prevent burrs on the surface caused by carbon steel oxidation and grinding, which can increase motor noise.
PRODUCT USAGE

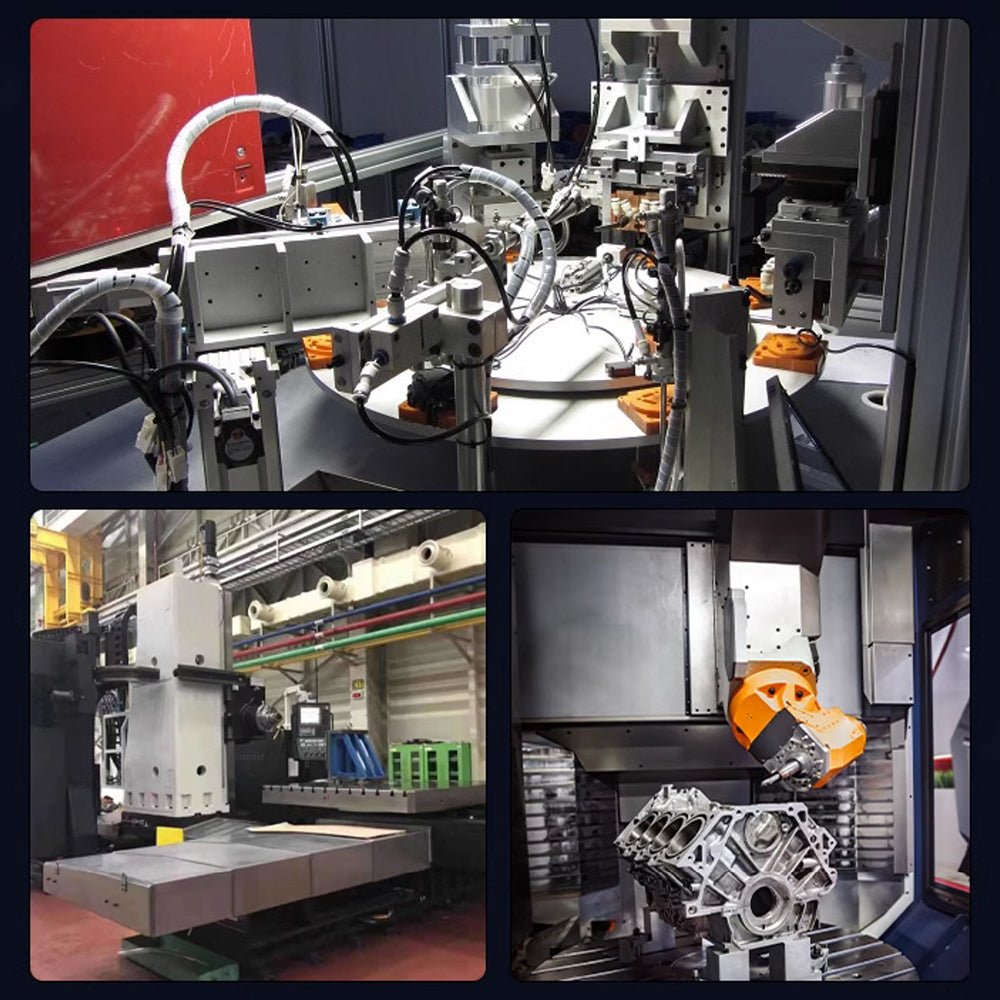

Suitable for various automation equipment and instruments in the field of motion control, such as intelligent logistics, photovoltaic industry, barrier gate industry, and textile industry.
