When a metal-on-metal roller leaves marks on your track, squeals under load, or chips away at a delicate surface, the problem isn't the mechanism — it's the wrong wheel material. Engineers, fabricators, and serious DIYers who need a rolling element that grips without gouging, absorbs vibration, and resists moisture turn to polyurethane-coated ball bearing guide wheels as the go-to solution.

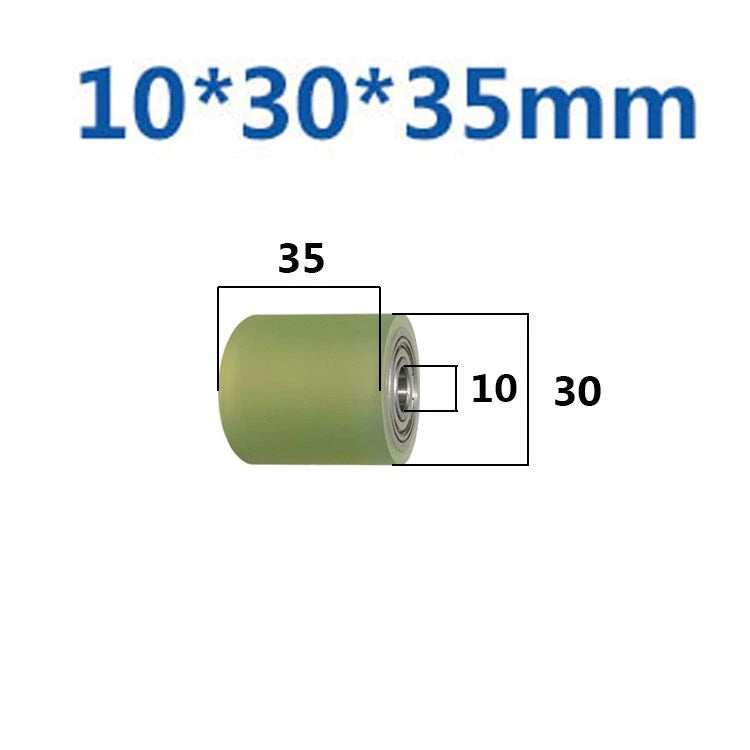

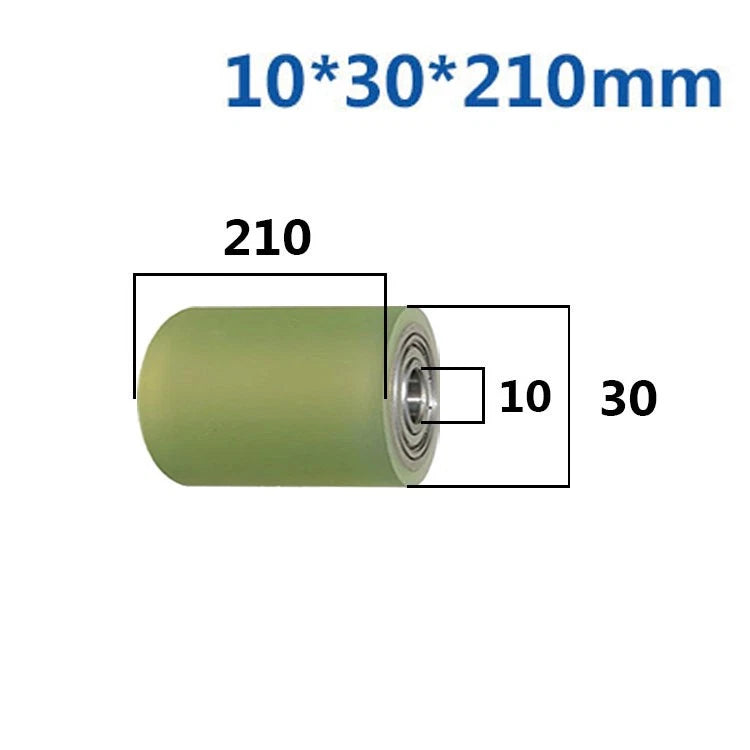

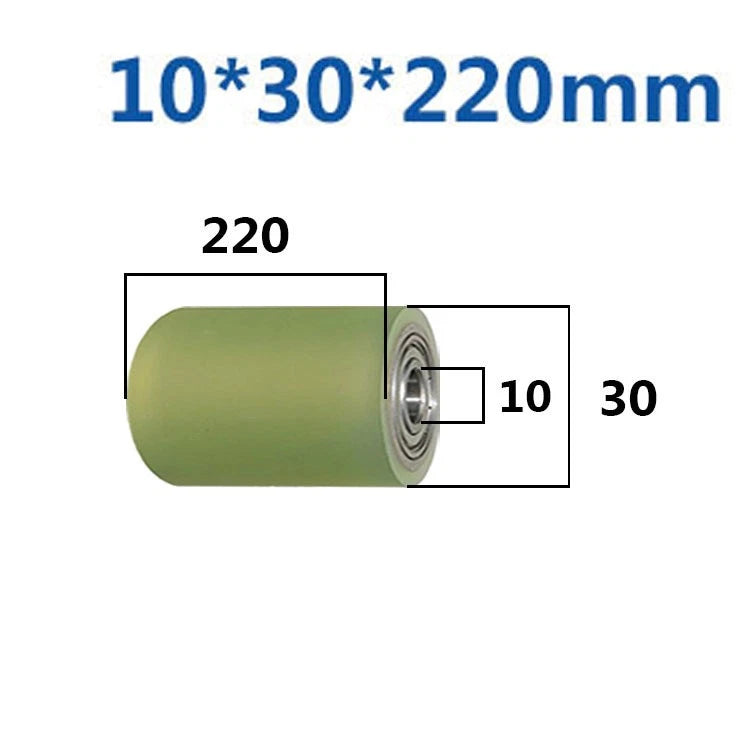

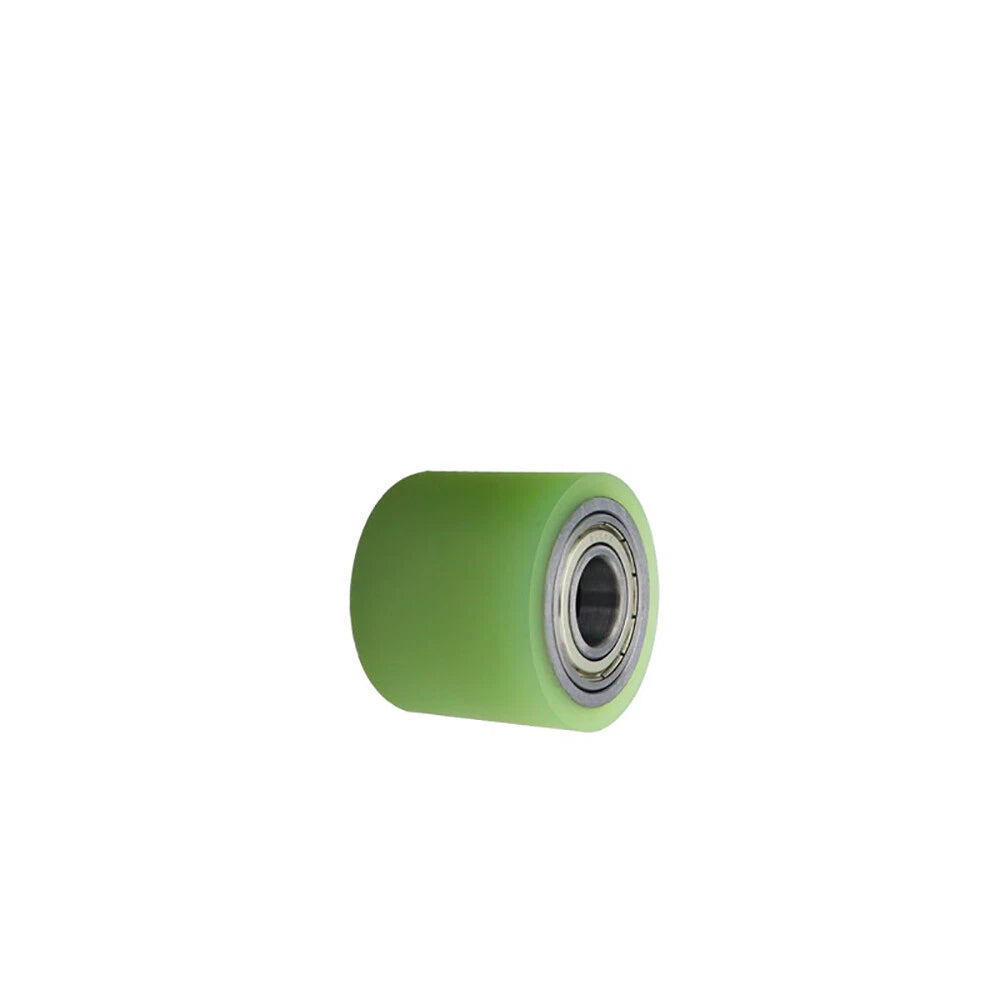

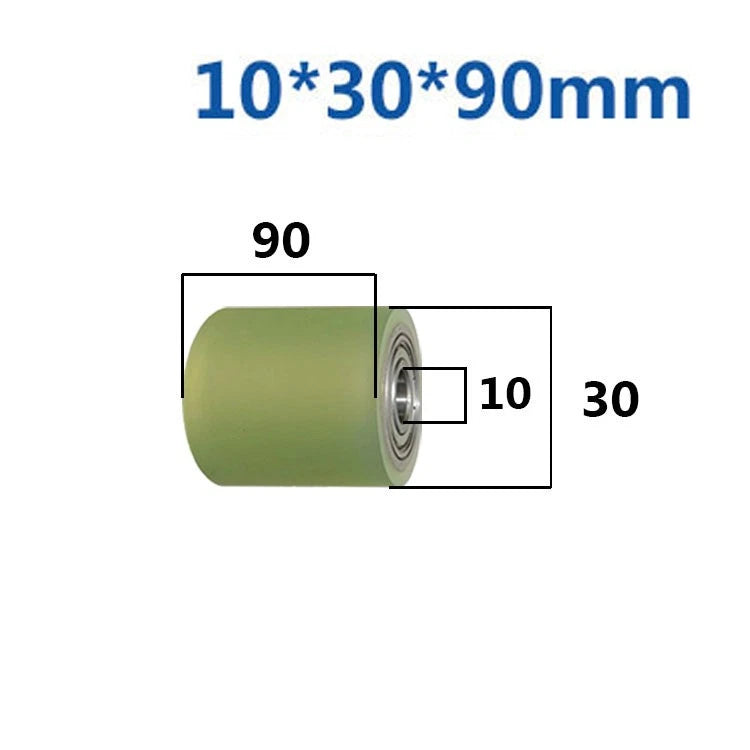

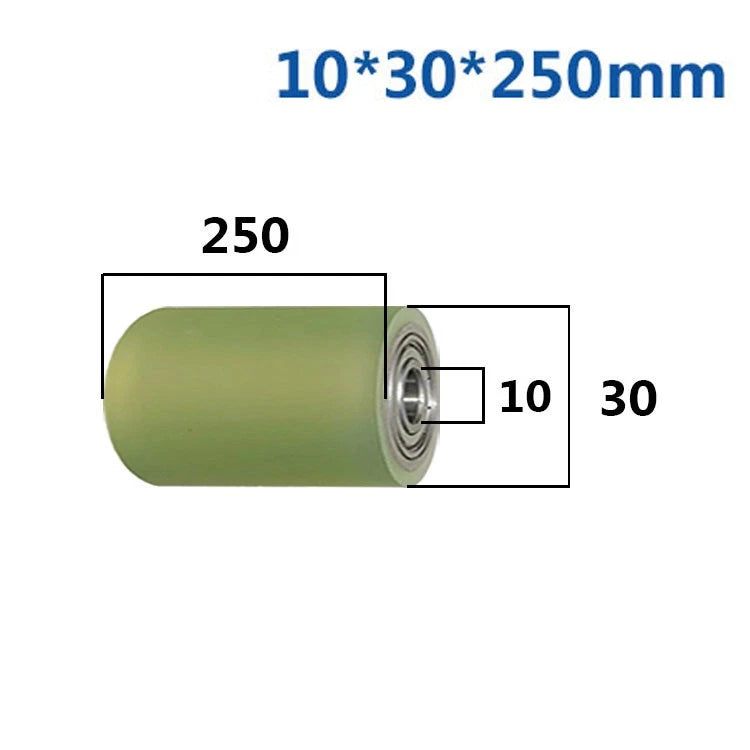

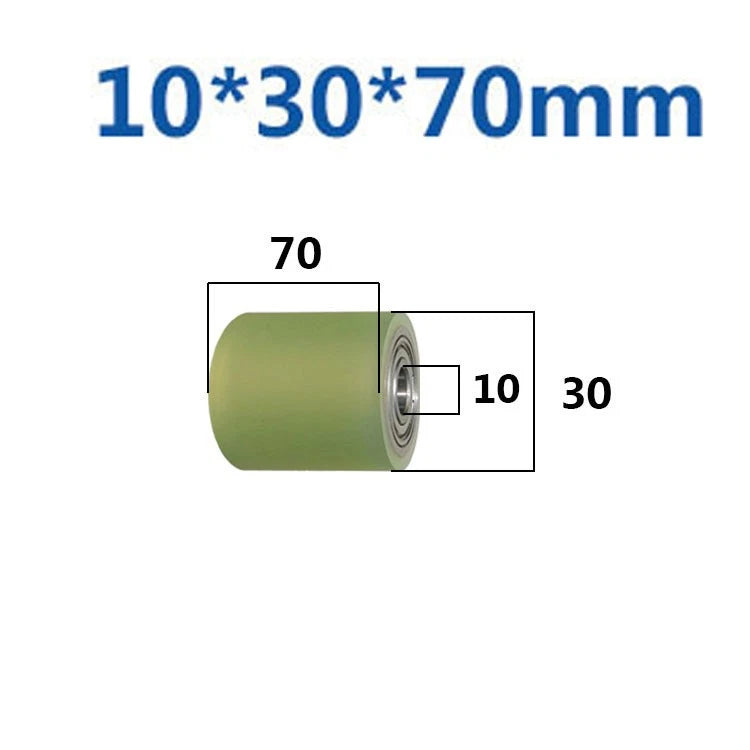

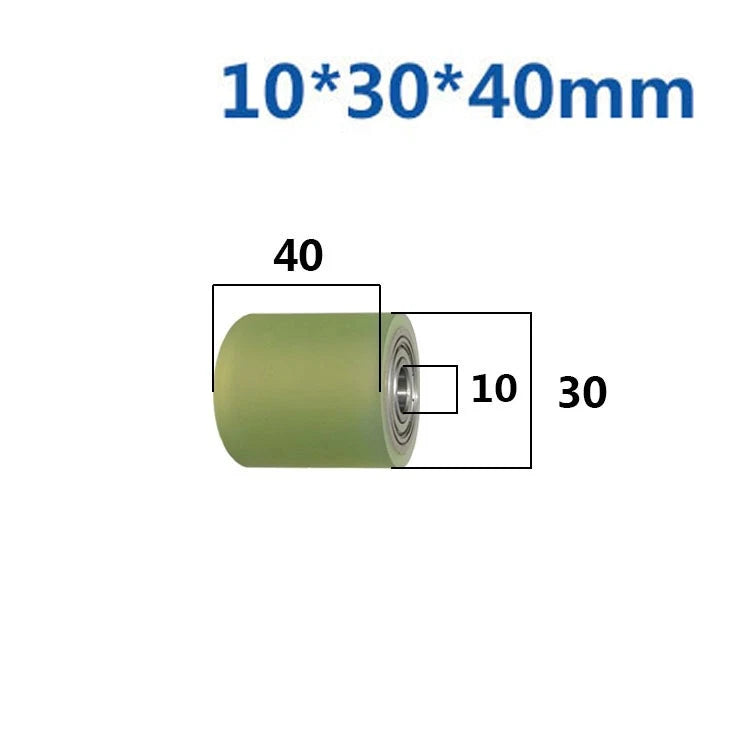

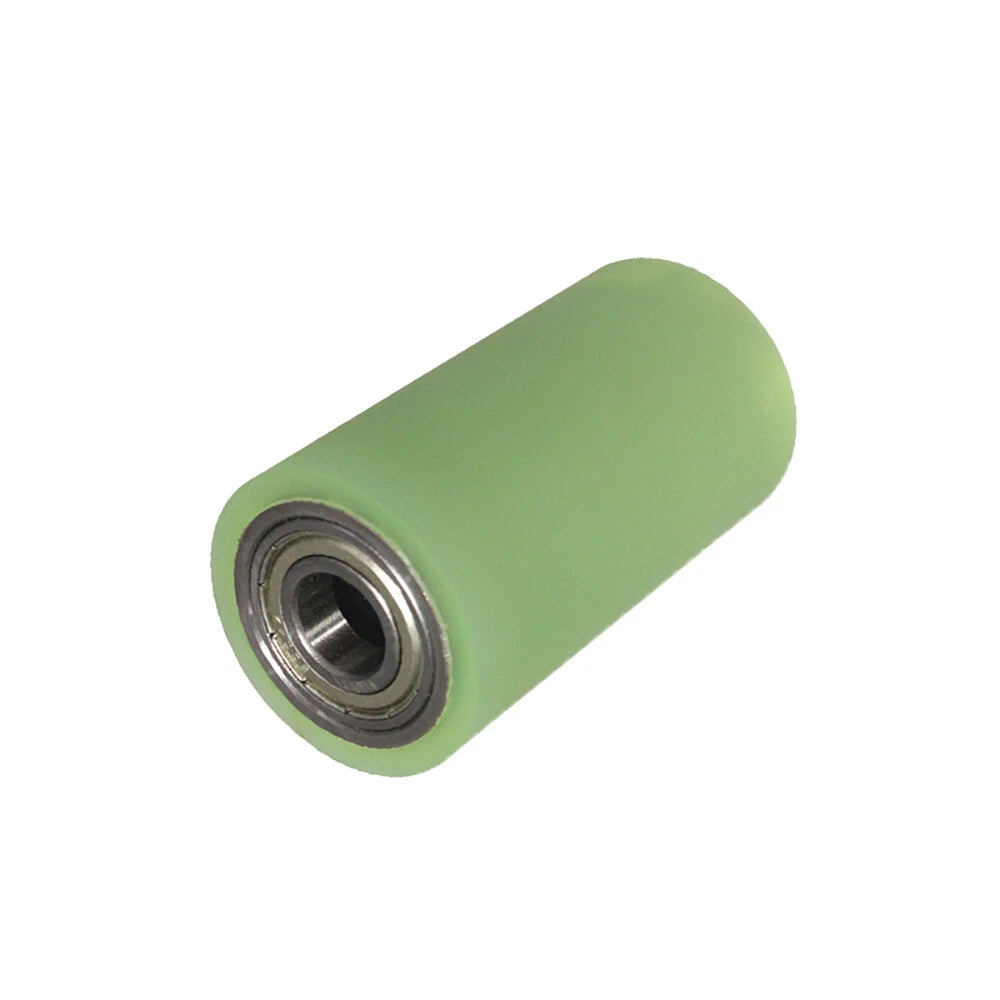

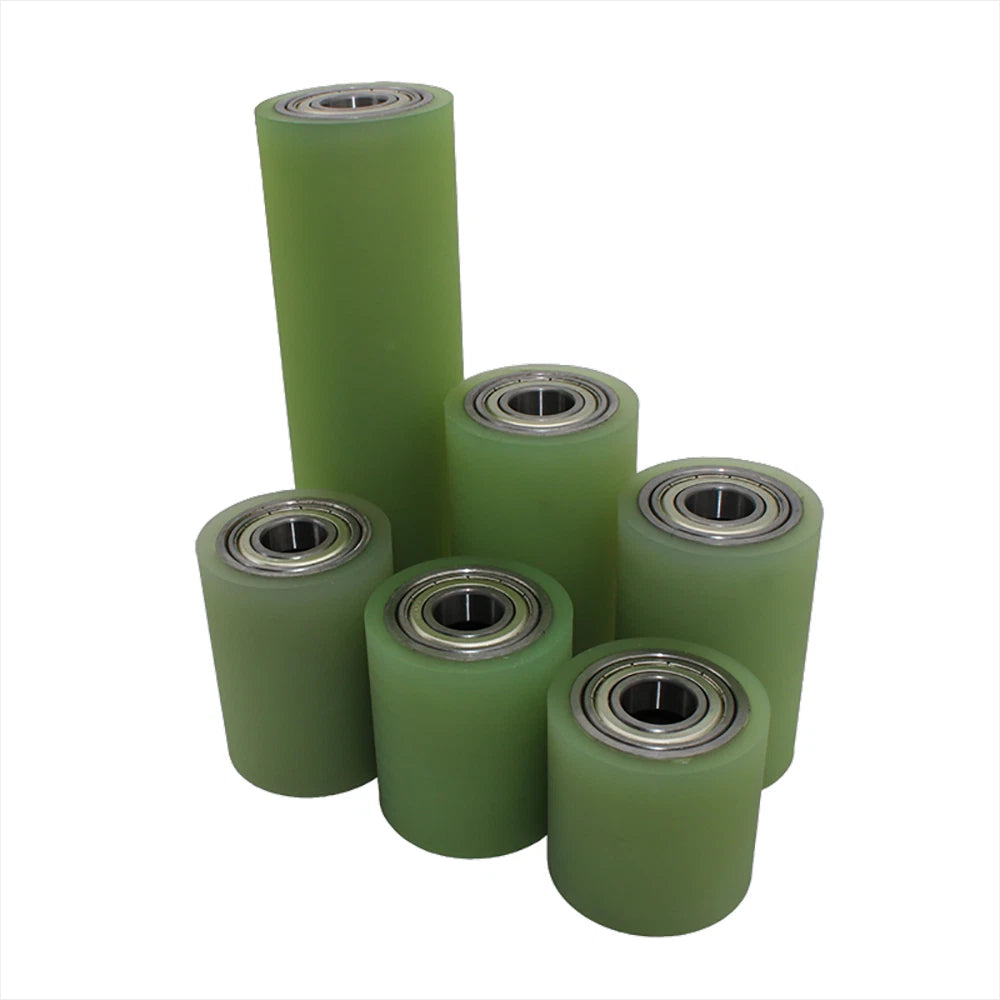

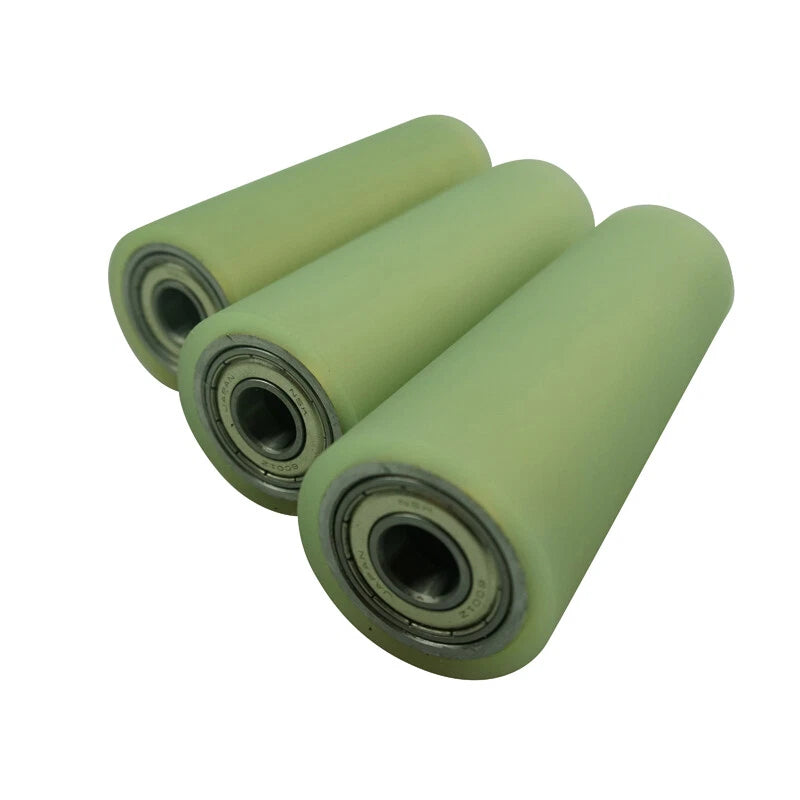

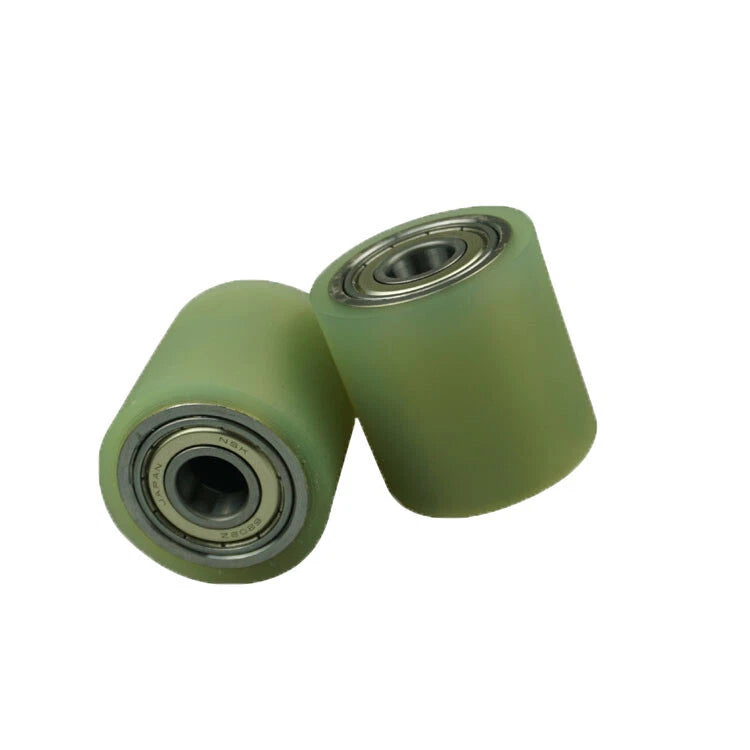

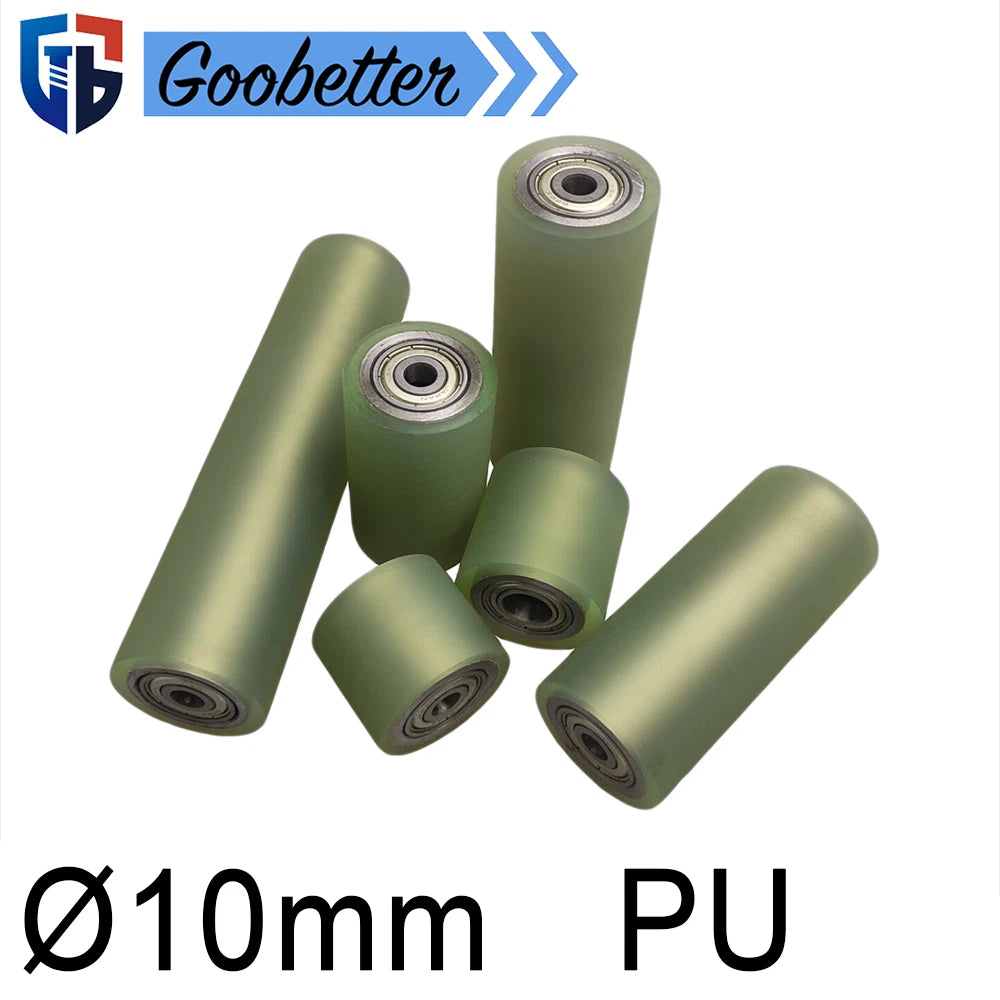

These Ø10mm polyurethane ball bearing guide wheels feature a 10mm bore inner diameter and a 30mm outer diameter, with a molded polyurethane (PU) tread bonded directly over a precision radial ball bearing. Available lengths run from 20mm to 400mm (approximately 0.79 in to 15.75 in), covering a wide range of track widths and span requirements. The PU coating is cast over the bearing shell, creating a single integrated unit with no adhesive joint to delaminate under load.
Typical use cases include linear guide systems on woodworking sleds and CNC router gantries, sliding door and drawer track rollers where noise reduction is critical, and conveyor or tensioner pulley applications in light-duty automation where a non-marring rolling surface is required. The combination of a sealed ball bearing core and a resilient outer tread makes these wheels a reliable choice for both indoor workshop builds and light outdoor enclosures.

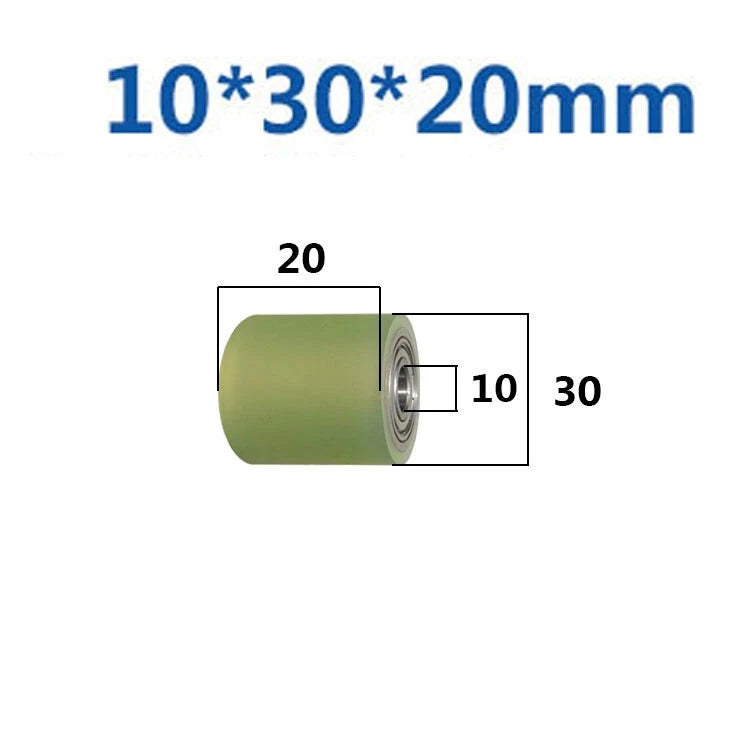

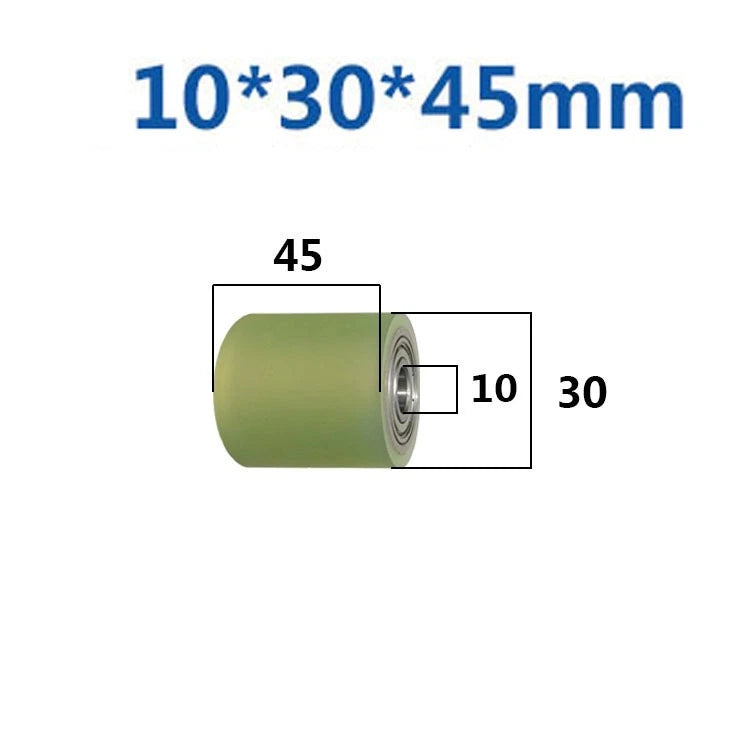

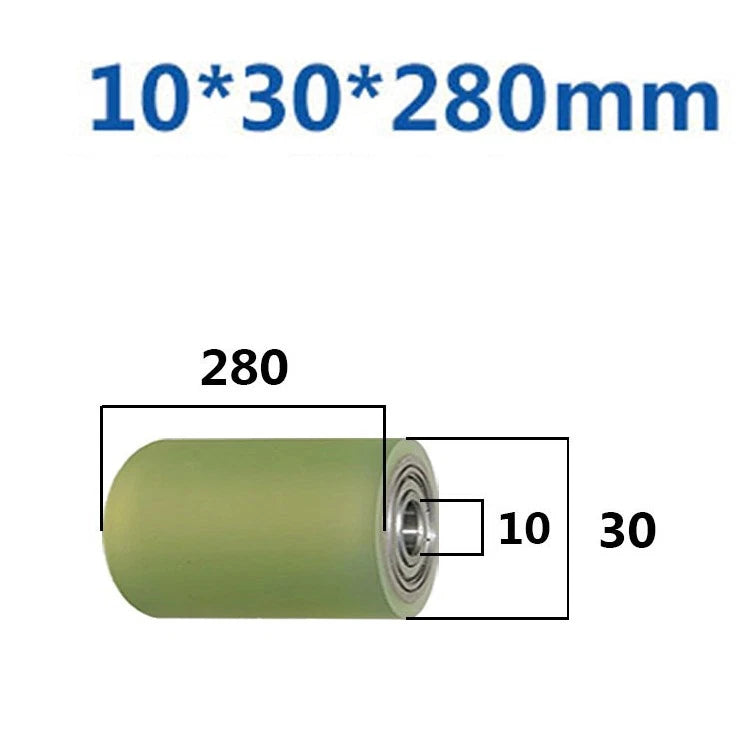

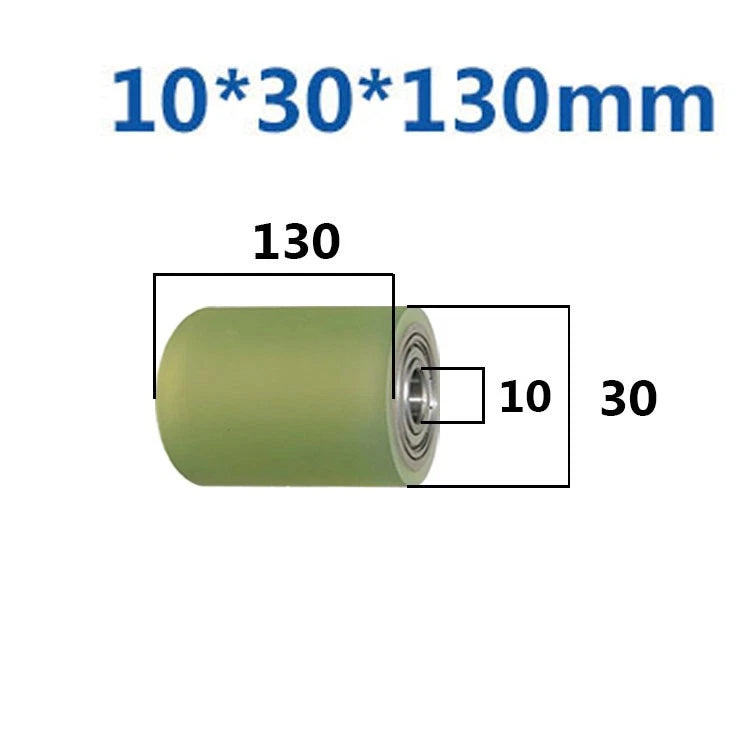

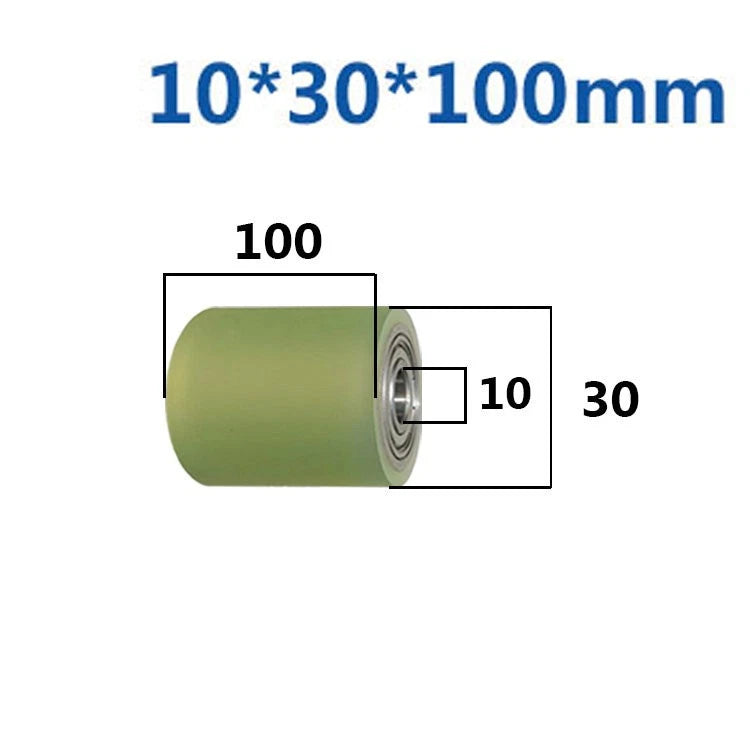

| Inner Diameter (Bore) | 10 mm (0.394 in) |
|---|---|
| Outer Diameter | 30 mm (1.181 in) |

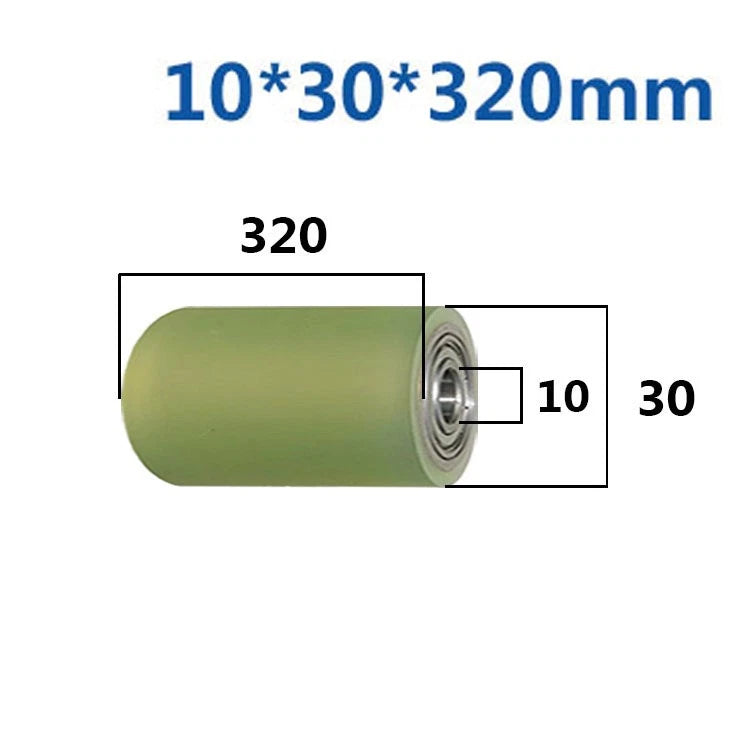

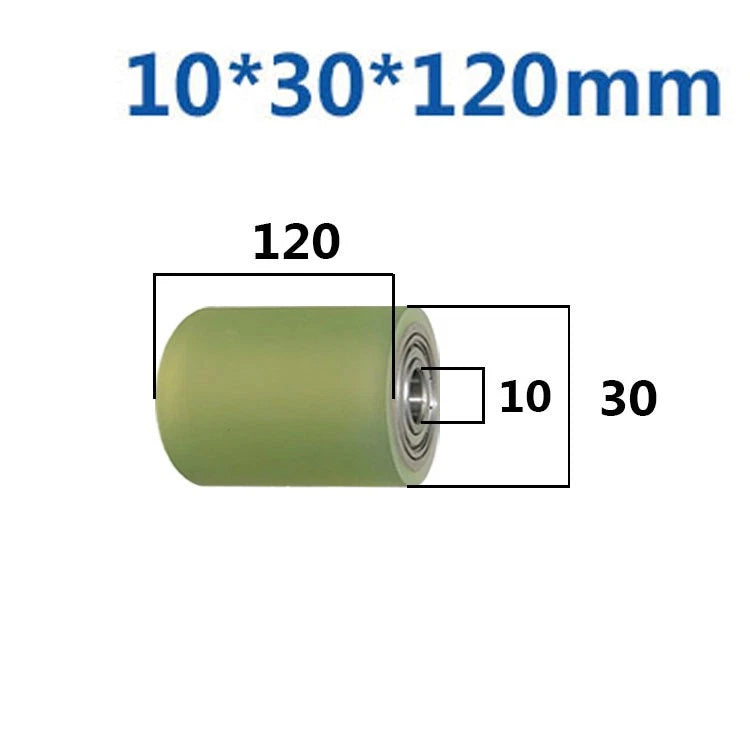

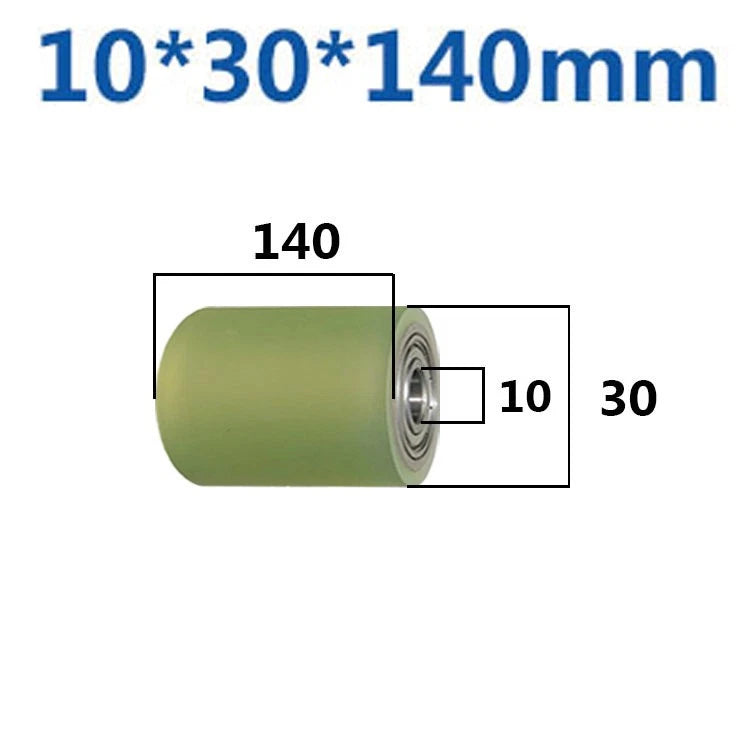

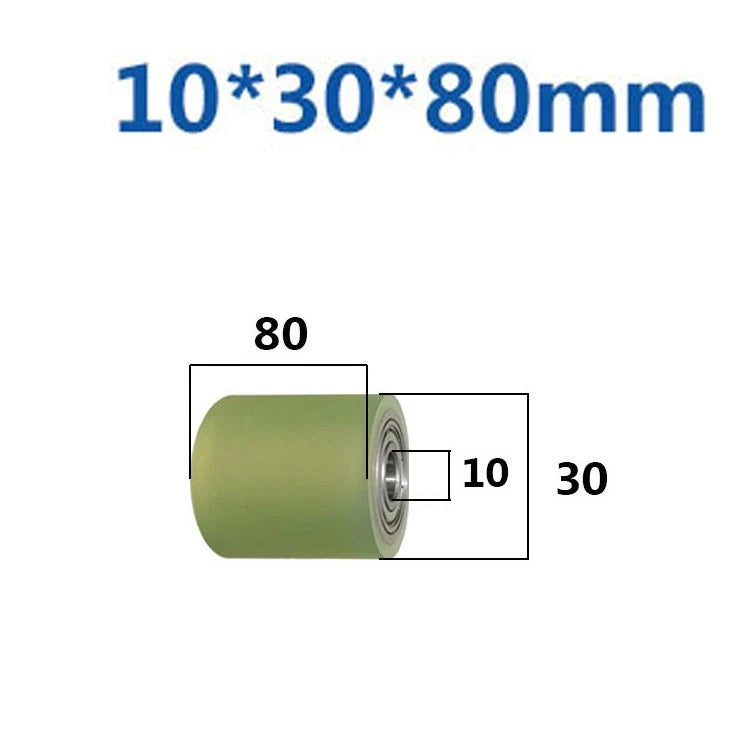

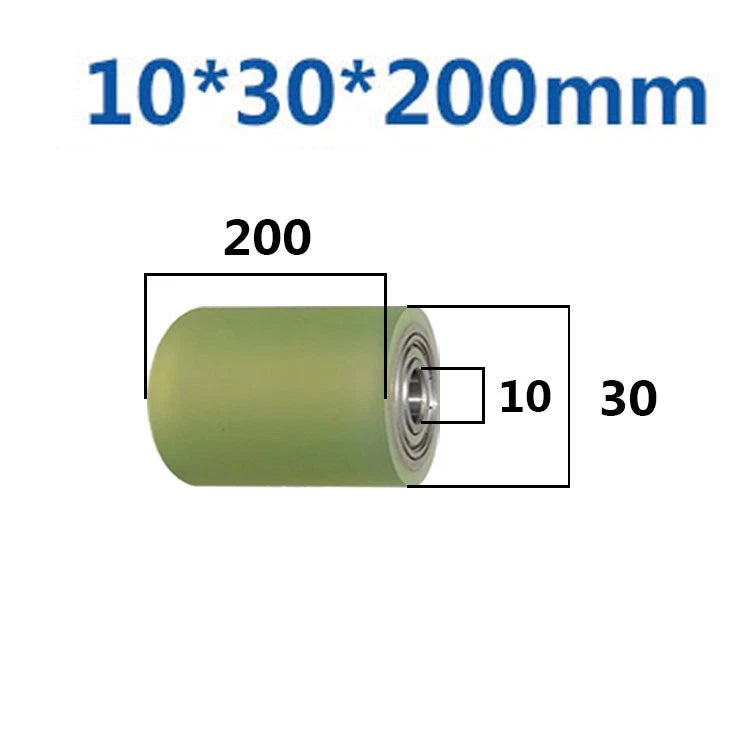

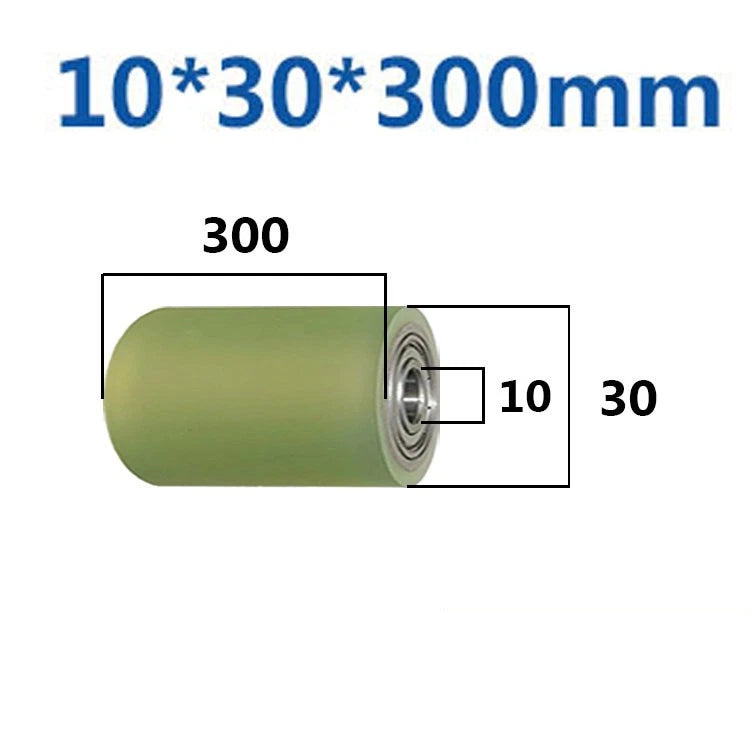

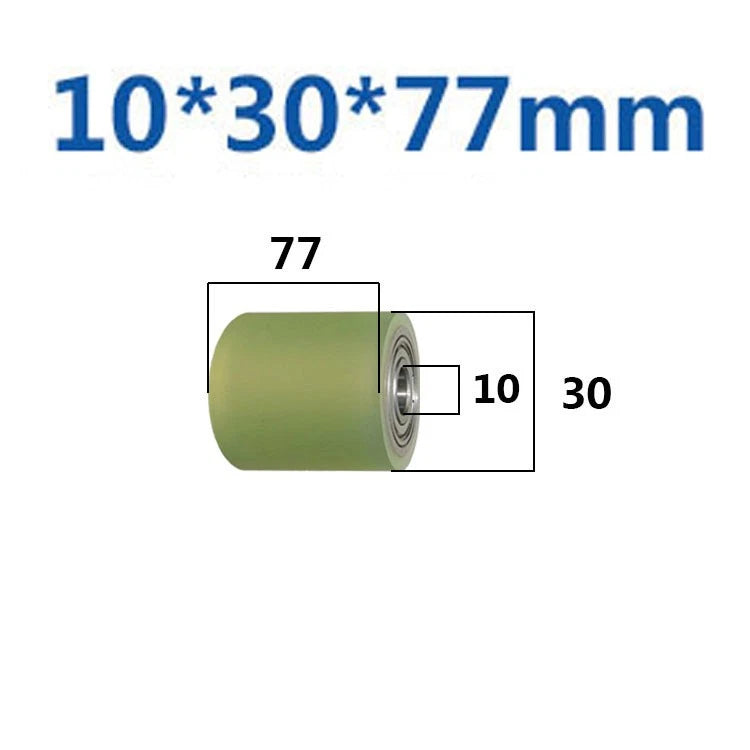

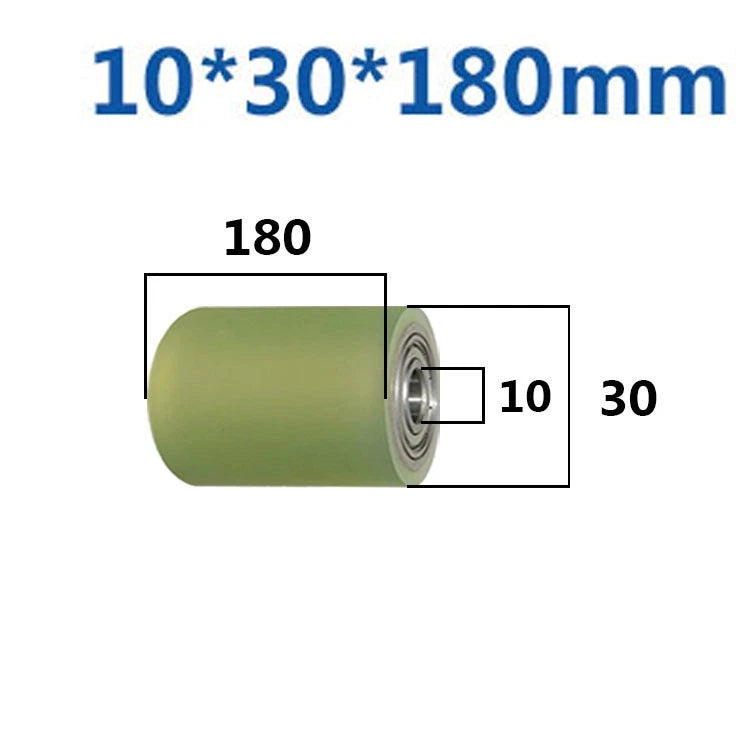

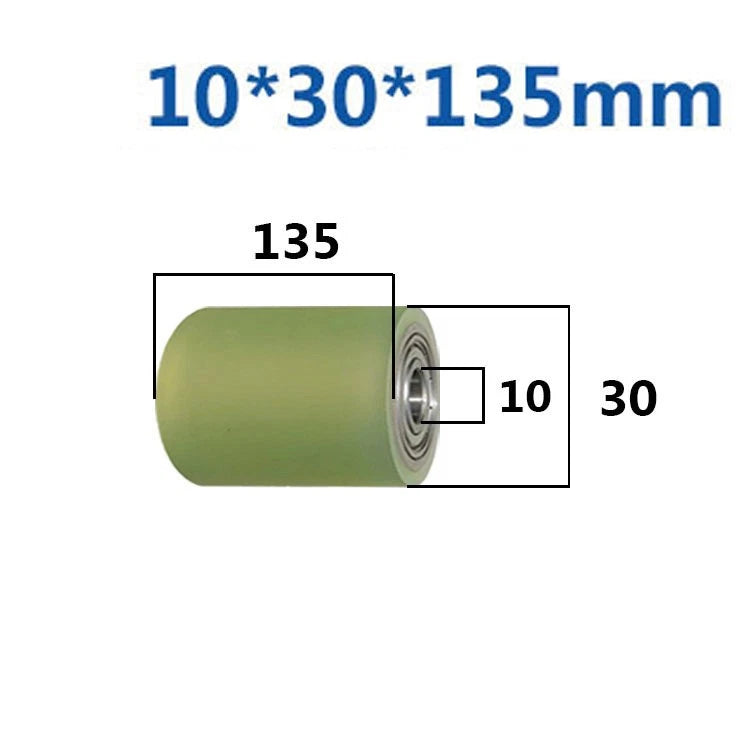

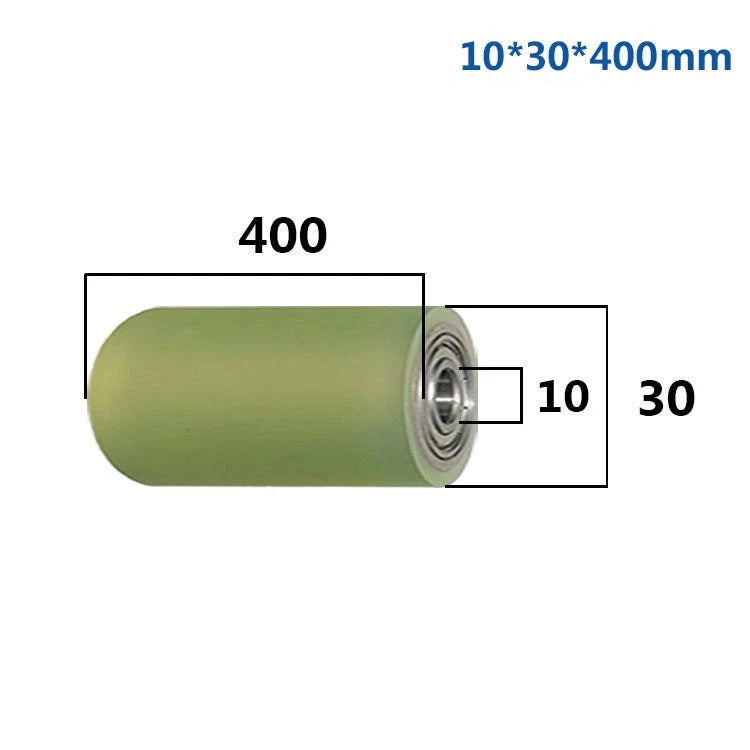

| Available Lengths | 20 mm – 400 mm (0.79 in – 15.75 in); see variant options |
| Tread Material | Molded polyurethane (PU) |
| Bearing Type | Sealed radial ball bearing |
| Bearing Seal | See variant options |
| Load Capacity | See variant options |

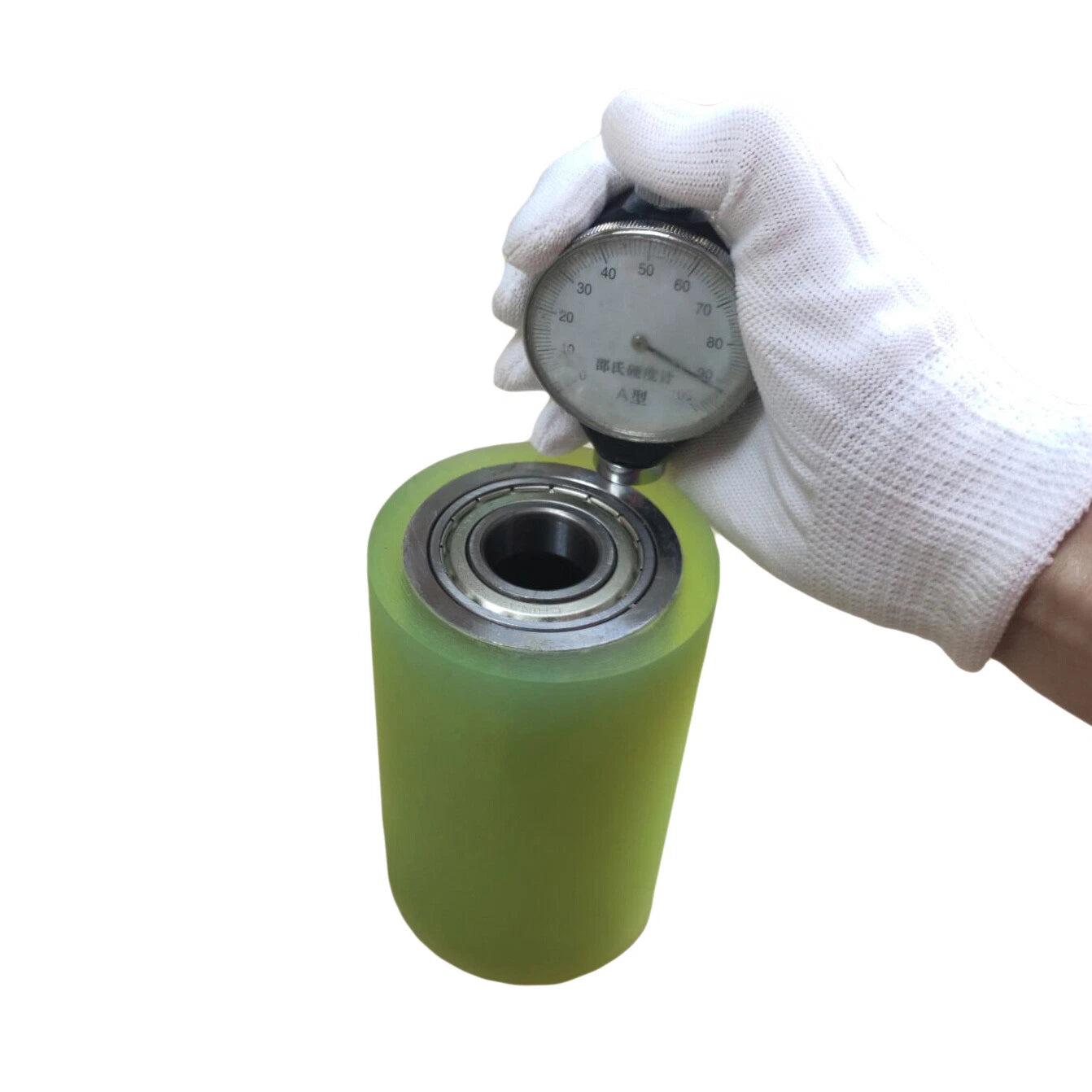

| Hardness (PU Tread) | Typically 80–95 Shore A (contact us to confirm) |
| Finish | Natural polyurethane over bearing shell |
| Quantity per Pack | 1 / 2 / 4 / 10 pcs (see variant options) |
| Recommended Shaft OD | 10 mm |
Measure the width of your track groove, rail span, or pulley channel. The wheel length should match or be slightly shorter than the usable span so the bearing seats flush without overhang. For sliding door tracks, measure the groove depth and add clearance for the frame. When in doubt, order one piece in your target length first to verify fit before purchasing a larger quantity.
The bore (inner diameter) is 10mm. These wheels are designed to mount on a 10mm OD shaft or axle. If your existing shaft is a different diameter, you will need a bushing or a different wheel series. Do not force-fit a larger shaft, as this will damage the bearing races and void any dimensional accuracy.
Yes. The polyurethane is molded directly over the bearing shell in a single casting process, creating a mechanical and chemical bond between the tread and the metal core. There is no separate adhesive layer that can delaminate under load or heat. The assembly is intended as a single-use integrated unit rather than a serviceable component with a replaceable tread.
The polyurethane tread resists water, light oils, and common cleaning agents, making these wheels suitable for covered outdoor enclosures, damp workshops, and light wash-down environments. The sealed ball bearing limits moisture ingress to the rolling elements. However, prolonged submersion or exposure to strong solvents (ketones, concentrated acids) can degrade the PU tread over time. For fully submerged or chemically aggressive environments, contact us to confirm suitability.
Polyurethane sits between nylon and rubber in the hardness spectrum. Compared to nylon, PU offers better abrasion resistance and a higher coefficient of friction, which reduces slippage on smooth tracks. Compared to steel, PU is significantly quieter, non-marring, and self-damping under vibration. The trade-off is a lower maximum load rating than a solid steel roller of the same diameter, so verify your load requirements before substituting PU wheels in a heavy-duty application.
Installation typically requires only a shaft, two retaining clips or set-screw collars, and a wrench or hex key depending on your mounting hardware. Slide the wheel onto the 10mm shaft, position it at the correct lateral location, and secure with your chosen retention method. No press-fit or specialized bearing installation tools are required because the bearing is already integrated into the wheel assembly.
For a single replacement on an existing mechanism, the 1-piece option lets you minimize cost and confirm the fit before committing to more. For a symmetrical build such as a sliding door or a dual-rail gantry, the 2-piece pack covers one axis. The 4-piece pack suits a four-corner carriage or a small conveyor with two drive and two idler positions. The 10-piece pack is cost-effective for production runs, spare-parts inventory, or multi-axis builds where you need consistent wheel dimensions across the entire assembly.
