PVDF Heat Shrink Tubing — Reliable Insulation for Demanding Electrical Applications
Whether you're chasing a wiring fault under the hood, building a marine electrical panel, or protecting sensor leads in an industrial control cabinet, loose or unprotected wire ends are a constant frustration. Exposed conductors corrode, abrade, and short — and standard PVC sleeving often can't handle the heat, chemicals, or UV exposure that real-world environments throw at it. That's where PVDF heat shrink tubing steps in.

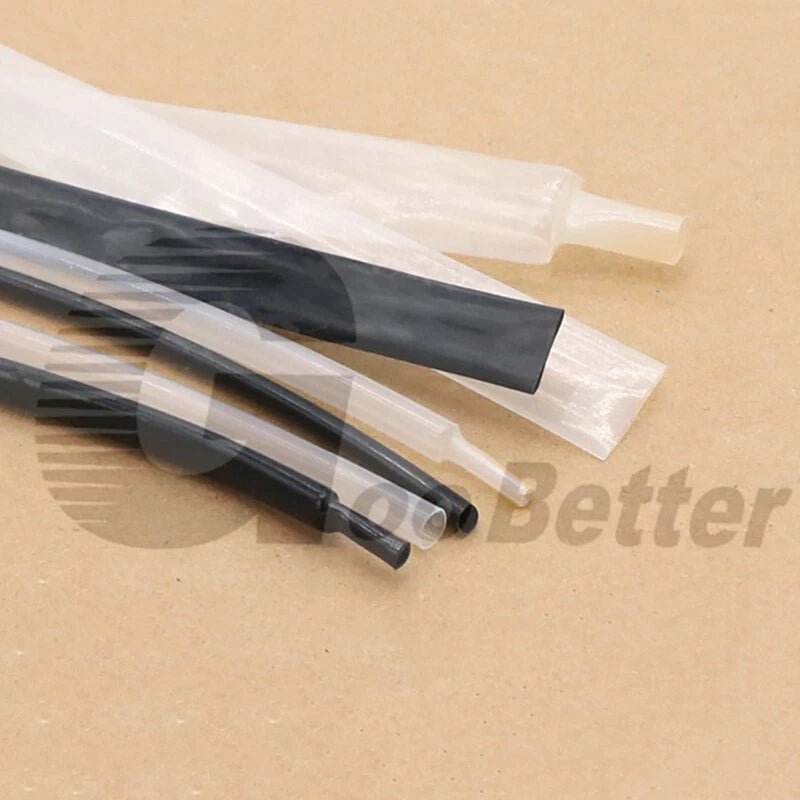

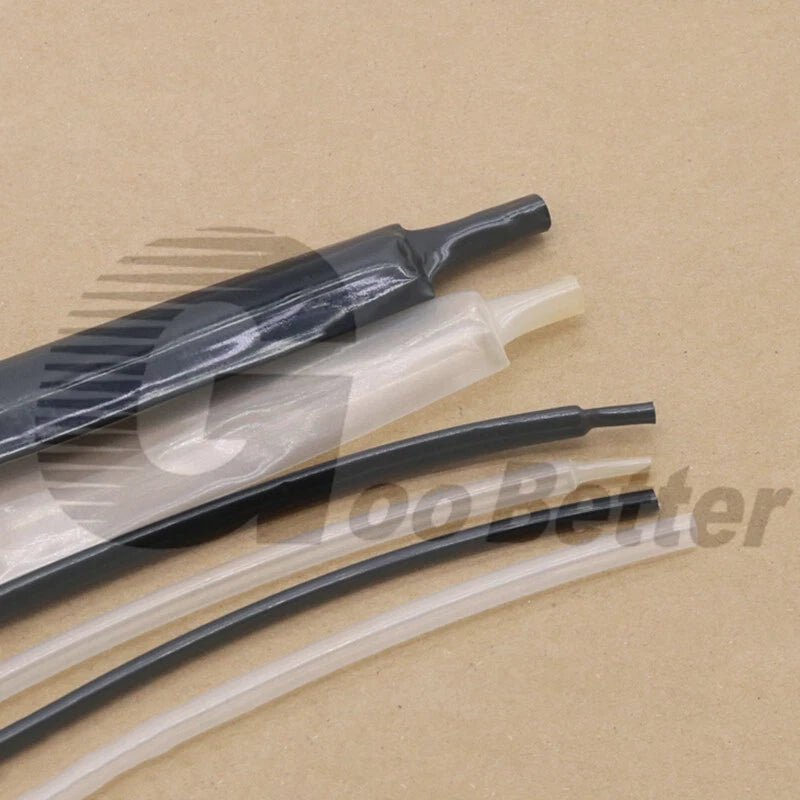

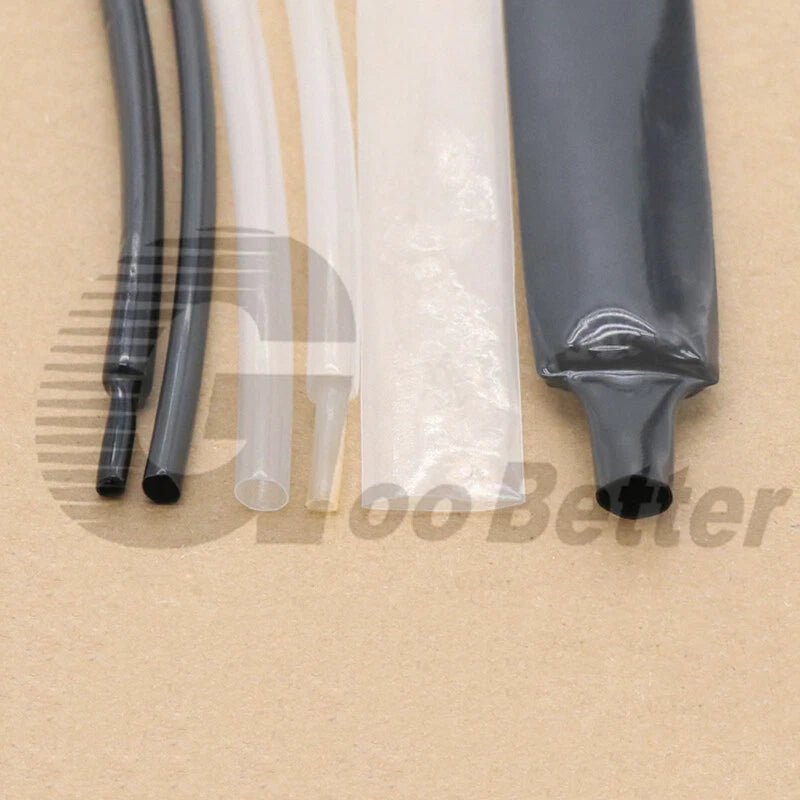

This listing covers PVDF heat shrink tubing available in unshrunk diameters from Ø0.8mm (≈1/32") up to Ø25.4mm (1"), in Black or Clear, and in cut lengths of 1 meter (≈39") through 10 meters (≈393"). PVDF (polyvinylidene fluoride) is a semi-crystalline fluoropolymer with a 2:1 shrink ratio, offering a tight, conforming fit over cables, connectors, terminals, and tubing. Wall thickness and recovered diameter vary by size — see the specifications table below or contact us to confirm for your exact variant.
Typical use cases include automotive wiring harness protection and heat shrink sleeving for car cables, marine and RV electrical insulation where moisture and UV resistance are critical, and industrial sensor lead protection in chemical or high-temperature environments. The Clear variant is especially popular for quality-control inspection of colour-coded wiring after installation.
🔌
Compatibility: Suitable for copper, aluminium, and tinned conductors. Works with standard heat guns (typically 175°C / 347°F activation). Not recommended for use over live conductors during shrinking. Confirm recovered diameter against your cable OD before ordering.
✅ Key Features of These PVDF Heat Shrink Tubes
-
🧪Chemical-Resistant Fluoropolymer — PVDF resists fuels, oils, hydraulic fluids, and many solvents, making it a dependable choice for automotive and industrial heat shrink sleeving where PVC would degrade.
-
☀️UV & Weather Stable — Unlike standard polyolefin tubing, PVDF maintains its integrity under prolonged UV exposure, making it suitable for outdoor wiring protection and marine electrical insulation.
-
📏Wide Size Range in One Listing — From Ø0.8mm for fine wire insulation up to Ø25.4mm for large cable bundles, you can source the exact diameter you need without ordering from multiple suppliers.
-

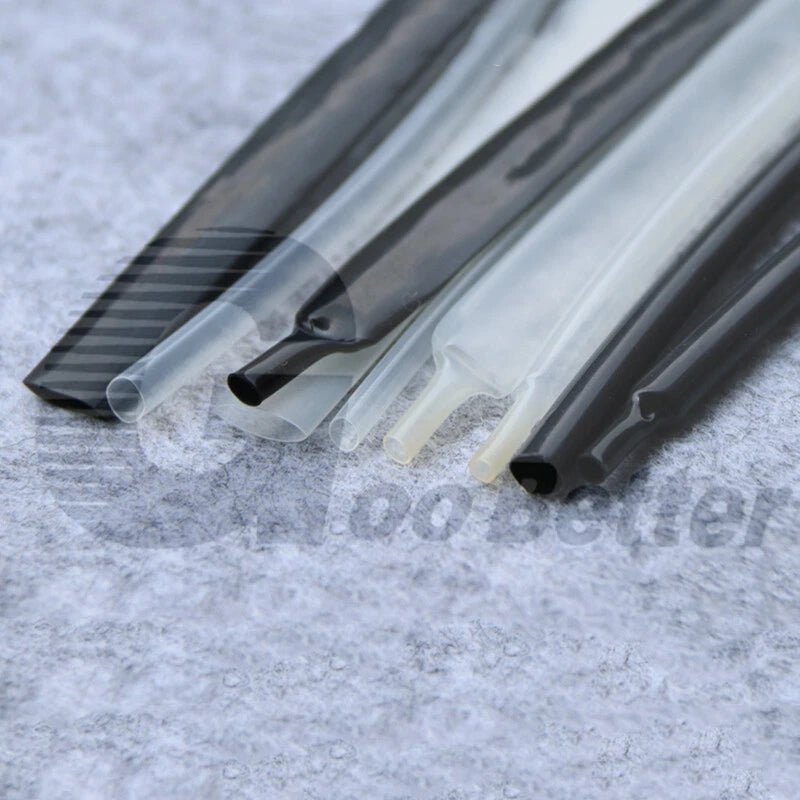

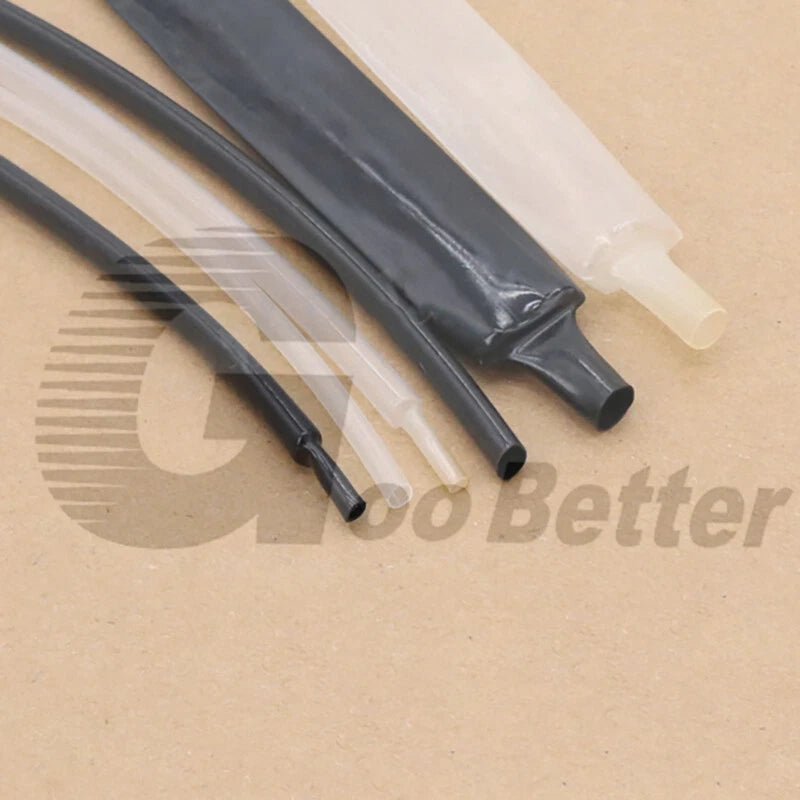

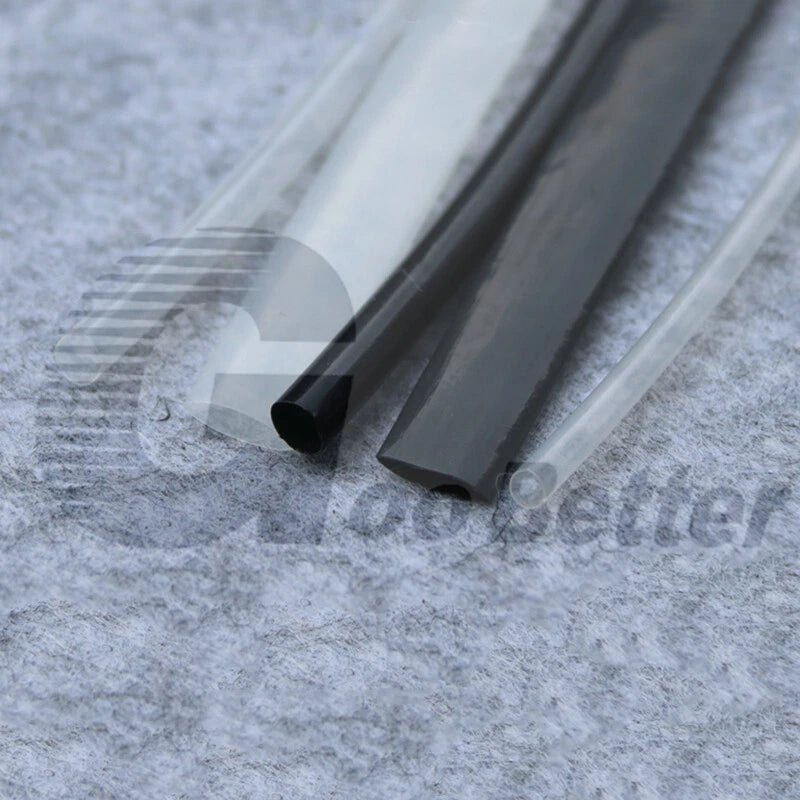

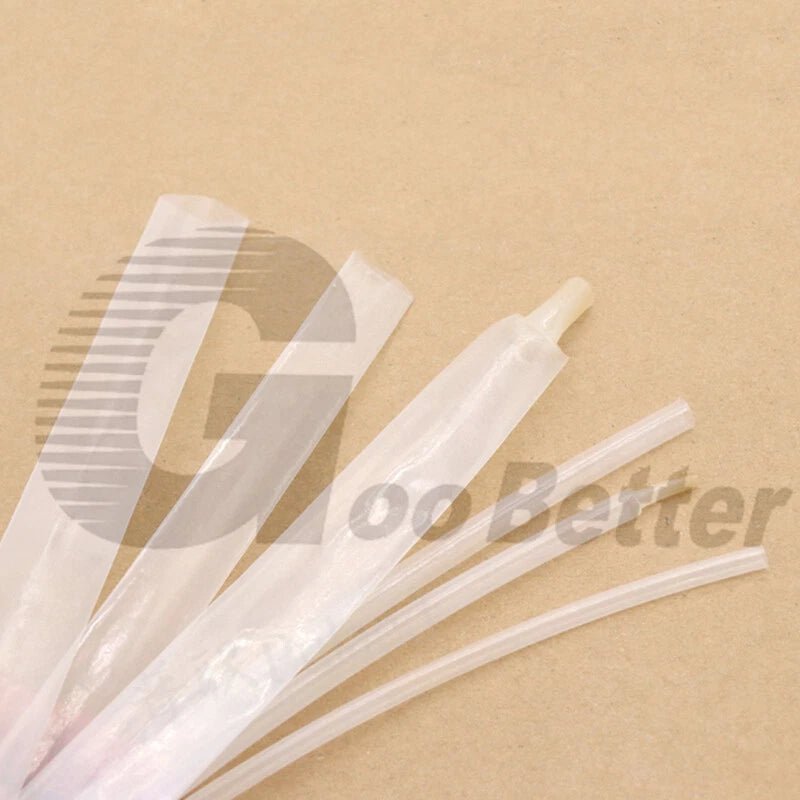

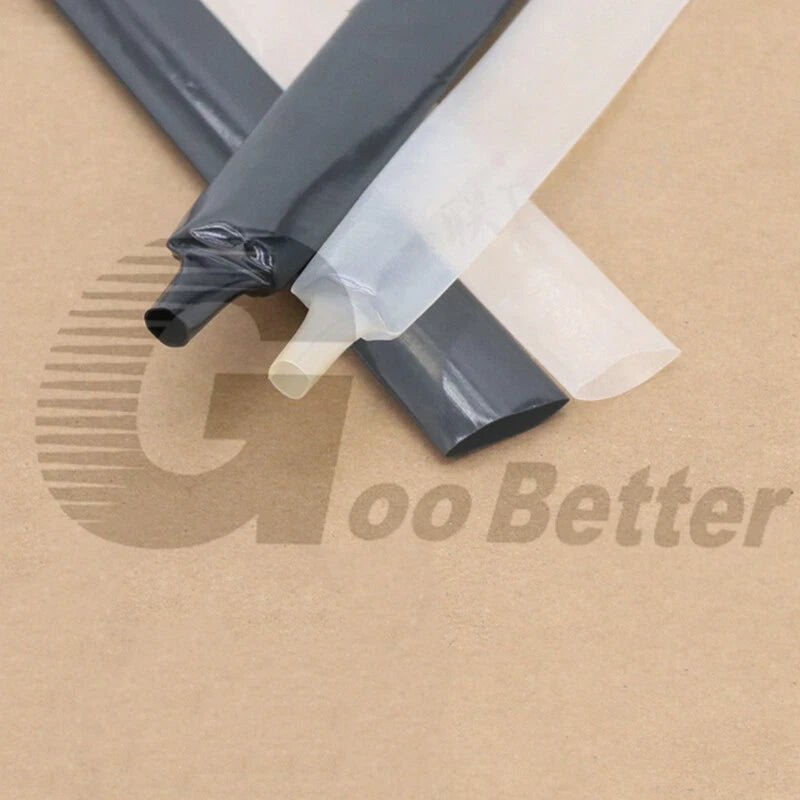

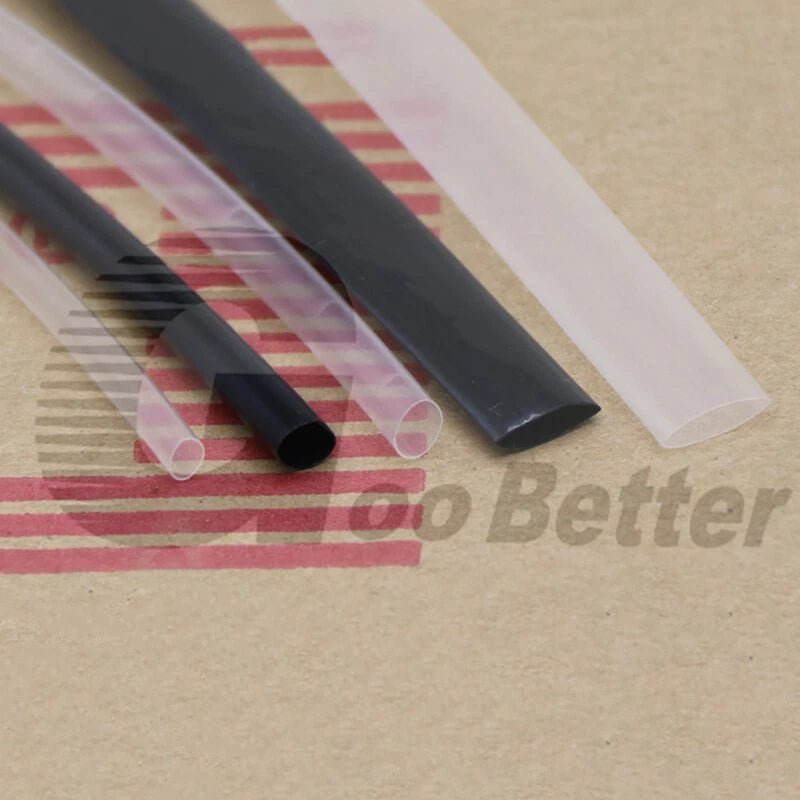

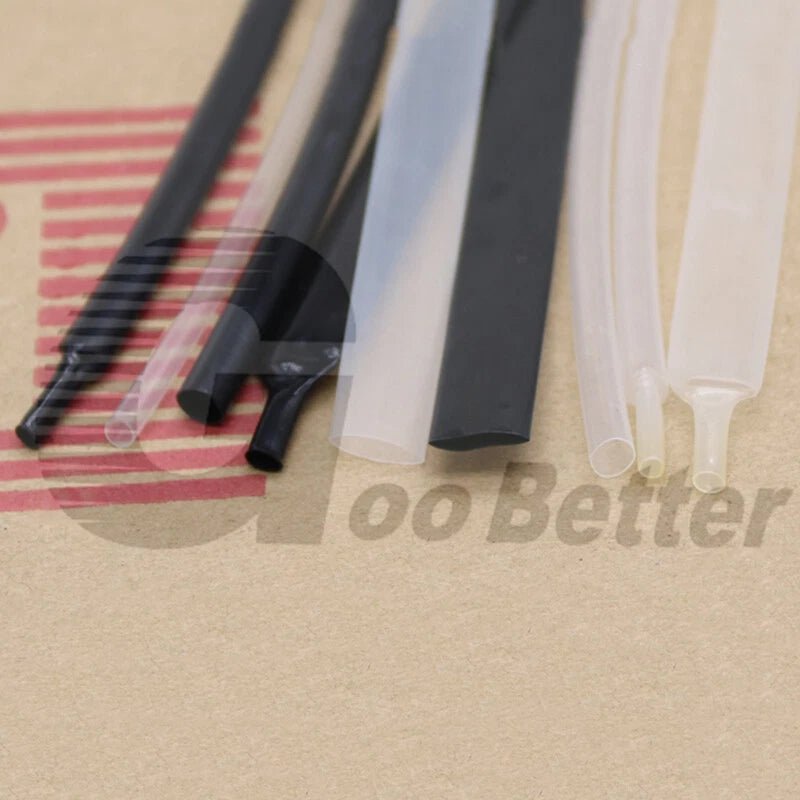

🎨Black & Clear Options — Choose Black for a finished, professional look on car cable heat shrink applications, or Clear to allow post-installation visual inspection of wire colour coding and solder joints.
-
✂️Flexible Cut Lengths — Available from 1 meter to 10 meters, so you can order exactly what your project requires — whether it's a single connector repair or a full wiring harness build.
-
🔥Consistent 2:1 Shrink Ratio — Shrinks evenly and conformally around irregular shapes, providing a secure, vibration-resistant sleeve that stays in place on connectors, terminals, and splices.
📐 Technical Specifications — PVDF Heat Shrink Tubing
| Material |
PVDF (Polyvinylidene Fluoride) |
| Shrink Ratio |
2:1 (typically) |
| Available Diameters (Unshrunk) |
Ø0.8mm, Ø1.2mm, Ø1.6mm, Ø2.4mm, Ø3.2mm, Ø4.8mm, Ø6.4mm, Ø8mm, Ø9.5mm, Ø12.7mm, Ø15.4mm, Ø19.1mm, Ø25.4mm |
| Available Lengths |
1m (≈39"), 2m (≈79"), 3m (≈118"), 4m (≈157"), 5m (≈197"), 8m (≈315"), 10m (≈393") |
| Colours |
Black, Clear |
| Typical Shrink Temperature |
~175°C (347°F) |
| Operating Temperature Range |
See variant options / Contact us to confirm |
| Voltage Rating |
Contact us to confirm for your specific size |
| Wall Thickness (Recovered) |
See variant options |
| UV Resistance |
Yes — inherent to PVDF material |
| Chemical Resistance |
Fuels, oils, hydraulic fluids, many solvents |
| Application Method |
Heat gun recommended |
⚠️
Size Note: Diameter listed is the unshrunk (expanded) inner diameter. After shrinking, the recovered diameter will be approximately half the listed size. Always measure your cable or component OD and select the next size up. If you're unsure, contact us before ordering.
❓ Frequently Asked Questions
How do I choose the right diameter for my application?
Select a diameter that is slightly larger than the cable or component you need to cover before shrinking. PVDF tubing typically has a 2:1 shrink ratio, so a Ø4.8mm tube will shrink down to approximately Ø2.4mm. Measure your cable's outer diameter and choose the next size up. For example, a 3mm cable would generally work well with the Ø4.8mm option.
What temperature is needed to shrink PVDF tubing?
PVDF heat shrink tubing typically requires a shrink temperature of around 175°C (347°F). A heat gun is generally recommended over an open flame for even, controlled shrinkage. Always follow the specific product datasheet for exact activation temperatures.
Is PVDF heat shrink tubing suitable for outdoor or marine use?
Yes. PVDF (polyvinylidene fluoride) is inherently resistant to UV radiation, moisture, and many chemicals, making it well-suited for outdoor, marine, and harsh-environment applications. It generally outperforms standard PVC or polyolefin tubing in corrosive or wet conditions.
What is the voltage rating of this heat shrink tubing?
PVDF heat shrink tubing is typically rated for use in low-to-medium voltage electrical applications. Exact voltage ratings vary by wall thickness and diameter — please contact us to confirm the rating for your specific size before use in high-voltage environments.
Can I use this tubing for automotive wiring harnesses?
Absolutely. PVDF heat shrink tubing is a popular choice for automotive wiring harnesses, sensor leads, and connector insulation due to its resistance to fuels, oils, and engine heat. The smaller diameters (Ø0.8mm–Ø3.2mm) are especially well-suited for fine wire bundling in vehicles.
What is the difference between Black and Clear variants?
Both colours offer the same PVDF material properties. The Clear variant allows visual inspection of the underlying wire or component after installation, which is useful for quality control or colour-coded wiring. Black provides a cleaner, more finished appearance and is generally preferred for automotive and industrial applications.
How much length do I need for my project?
We offer lengths from 1 meter up to 10 meters per order. For small repairs or prototyping, 1–2 meters is generally sufficient. For wiring harness builds or larger installations, 5–10 meter lengths offer better value. You can also order multiple lengths of the same diameter.
🛒 Select your diameter, colour, and length above, then add to cart — ships from our US warehouse.
