Red Heat Shrink Tubing 2:1 — Reliable Insulation & Cable Protection for Every Wire Job
Whether you're chasing a wiring fault under the dash, tidying up a home automation panel, or finishing a custom RC build, loose or exposed wire ends are a constant frustration. This red heat shrink tubing gives electricians, hobbyists, and DIYers a clean, secure way to insulate splices, protect terminals, and color-code wiring harnesses — all in one step.

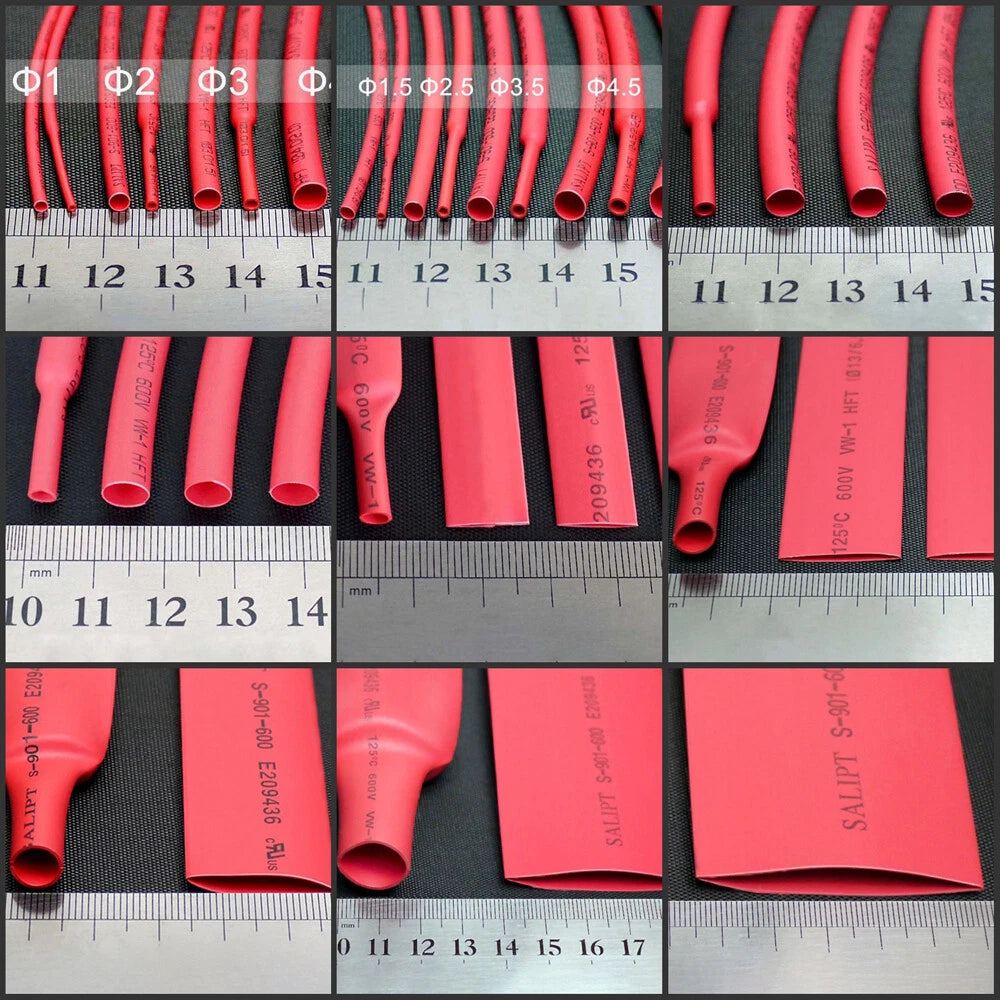

Each listing covers a single color (red) in a wide range of diameters from Φ0.6mm (≈0.024") up to Φ80mm (≈3.15"), available in lengths of 1M (≈3.3 ft), 3M (≈9.8 ft), 5M (≈16.4 ft), 10M (≈32.8 ft), and 25M (≈82 ft). The tubing is made from polyolefin with a 2:1 shrink ratio, meaning it shrinks to half its original inner diameter when heat is applied, forming a snug, uniform sleeve around the wire or connector.
Typical applications include automotive wire repair and harness color-coding, electronics prototyping and PCB lead insulation, marine and outdoor cable management where moisture resistance is needed, and RC/hobby wiring where a clean red finish helps identify positive leads at a glance.
🔵 Compatibility: Fits standard wire gauges from 28 AWG up to large cable bundles. Works with heat guns, soldering station hot-air attachments, and dedicated shrink tools. Suitable for automotive, marine, electronics, and general electrical wiring applications.
⚠️ Size tip: Select a diameter 10–20% larger than your wire's outer diameter before shrinking. After a 2:1 shrink, the tubing will grip firmly. If you're unsure, size up — you can always go tighter, but you can't stretch it back.
✅ Key Features of These Red Heat Shrink Tubes
-
🔴Bold Red Color-Coding — The vivid red finish makes it easy to identify positive leads, phase wires, or specific circuits in automotive wiring harnesses and control panels at a glance.
-
📐Wide Diameter Range — Available from Φ0.6mm to Φ80mm, covering everything from fine PCB leads and 28 AWG signal wires to large cable bundles and thick battery cables.
-

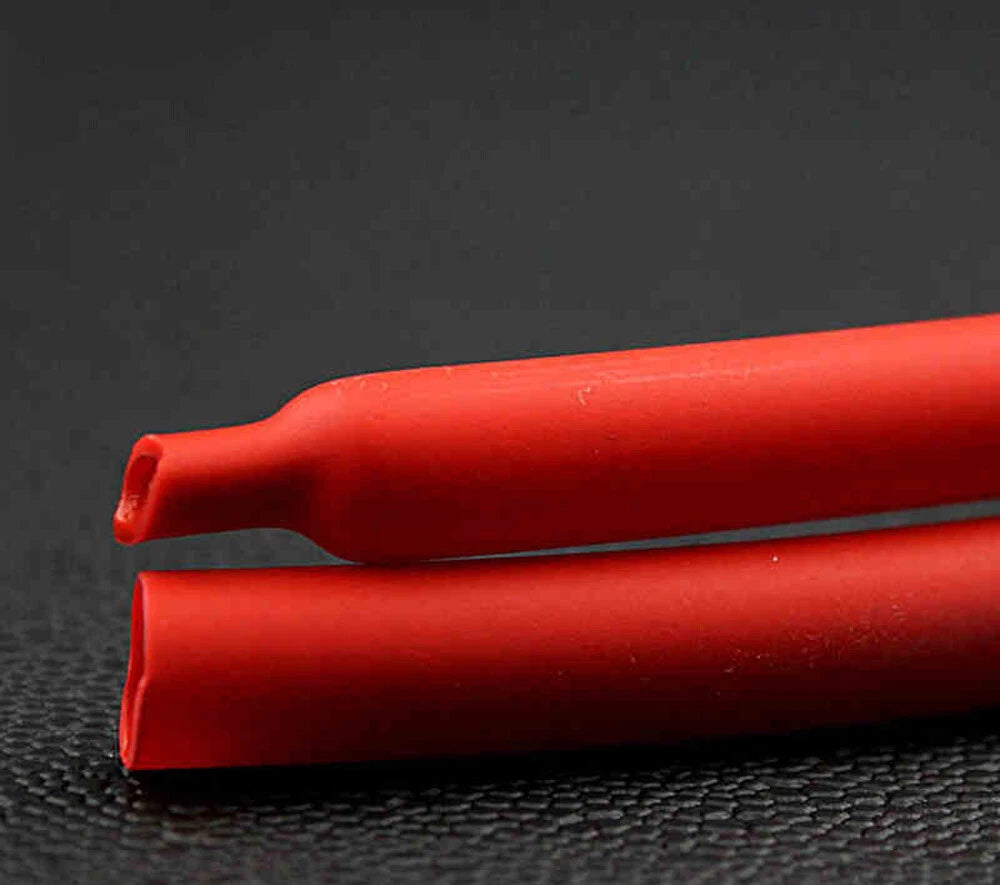

🔥2:1 Shrink Ratio — Shrinks to exactly half its original inner diameter, conforming tightly around wires, connectors, and terminals for a secure, rattle-free fit without adhesive.
-
⚡Polyolefin Insulation — The flame-retardant polyolefin material provides solid electrical insulation and resists oils, solvents, and mild abrasion — useful for under-hood automotive cable sleeving and workshop wiring.
-
✂️Cut-to-Length Flexibility — Sold in 1M to 25M continuous rolls so you can cut exactly what you need for each splice or connector, reducing waste on both small repairs and large wiring projects.
-
💧Moisture-Resistant Sleeve — Once shrunk, the tubing forms a close-fitting sleeve that resists moisture ingress, helping protect wire splices and terminals in damp environments like engine bays and outdoor enclosures.

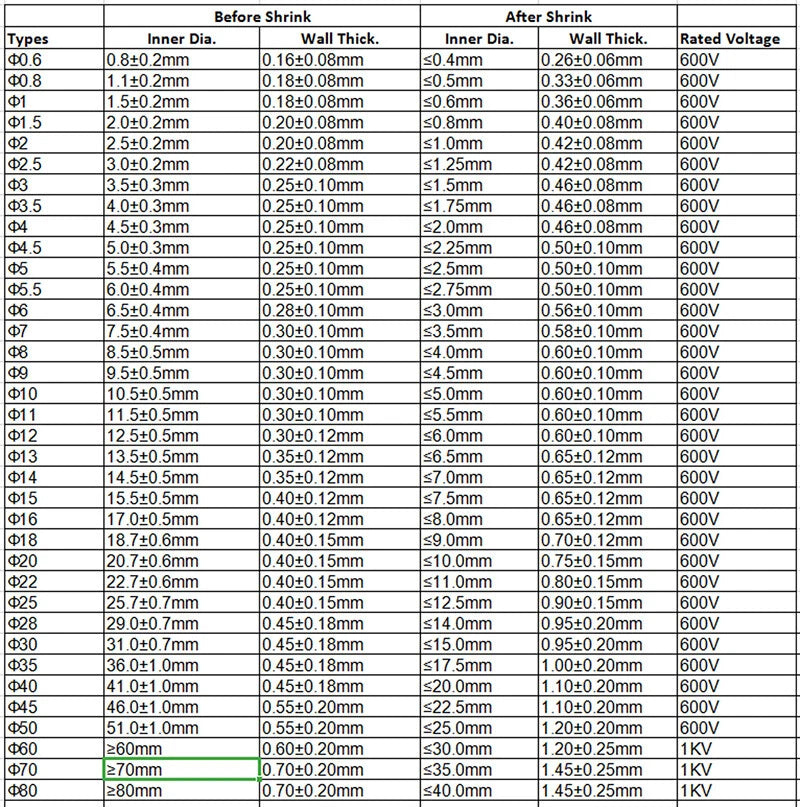

📐 Technical Specifications — Red Heat Shrink Tubing
| Material |
Polyolefin (flame-retardant) |
| Color |
Red |
| Shrink Ratio |
2:1 |
| Diameter Range (before shrink) |
Φ0.6mm (≈0.024") — Φ80mm (≈3.15") |
| Minimum Shrink Diameter |
Φ0.3mm — Φ40mm (after 2:1 shrink) |
| Available Lengths |
1M (≈3.3 ft), 3M (≈9.8 ft), 5M (≈16.4 ft), 10M (≈32.8 ft), 25M (≈82 ft) |
| Shrink Temperature |
Typically ~120°C (248°F) full shrink; activates ~90°C (194°F) |
| Operating Temperature |
Generally –55°C to +125°C (–67°F to +257°F) |
| Voltage Rating |
See variant options / Contact us to confirm for high-voltage use |
| Flame Retardancy |
Generally meets UL 224 / RoHS-compliant formulation |
| Recommended Tool |
Heat gun (low-to-medium setting); avoid open flame |
❓ Frequently Asked Questions
How do I choose the right diameter for my wires?
Measure the outer diameter of the wire or connector you need to cover, then select a tubing size that is slightly larger — typically 10–20% wider than the bare diameter. After shrinking at a 2:1 ratio, the tubing will grip the wire firmly. For example, a 4mm wire generally works well with Φ5mm or Φ6mm tubing before shrinking.
What temperature is needed to shrink this tubing?
Standard polyolefin 2:1 heat shrink tubing typically activates at around 90°C (194°F) and fully shrinks at approximately 120°C (248°F). A heat gun set to low-to-medium is generally sufficient. Avoid open flames, which can scorch or uneven-shrink the tubing.
Can this red heat shrink tubing be used outdoors?
Standard polyolefin heat shrink tubing provides good moisture resistance and UV tolerance for short-term outdoor use. For prolonged outdoor or marine exposure, an adhesive-lined (3:1) variant is generally recommended for a fully waterproof seal. Contact us to confirm suitability for your specific environment.
What is the shrink ratio and what does 2:1 mean?
A 2:1 shrink ratio means the tubing shrinks to half its original inner diameter when heat is applied. For example, Φ10mm tubing will shrink down to approximately Φ5mm, conforming tightly around the wire or component inside.
Is this tubing RoHS compliant and safe for electrical use?
This heat shrink tubing is made from polyolefin, which is generally RoHS-compliant and rated for standard electrical insulation applications. It is flame-retardant in most formulations. For safety-critical or high-voltage applications, please contact us to confirm the exact rating for your use case.
Can I cut the tubing to a custom length?
Yes. The tubing is sold in continuous lengths (1M, 3M, 5M, 10M, and 25M) and can be cut to any length with scissors or a utility knife before or after shrinking. This makes it easy to use for both short connector repairs and longer cable runs.
What wire gauges does each diameter size fit?
As a general guide: Φ1mm fits approximately 28–30 AWG wires; Φ3mm fits around 18–22 AWG; Φ6mm suits 12–14 AWG; Φ10mm and above are typically used for cable bundles, connectors, or larger gauge wiring. Always measure the actual outer diameter of your wire bundle for the most accurate fit.
