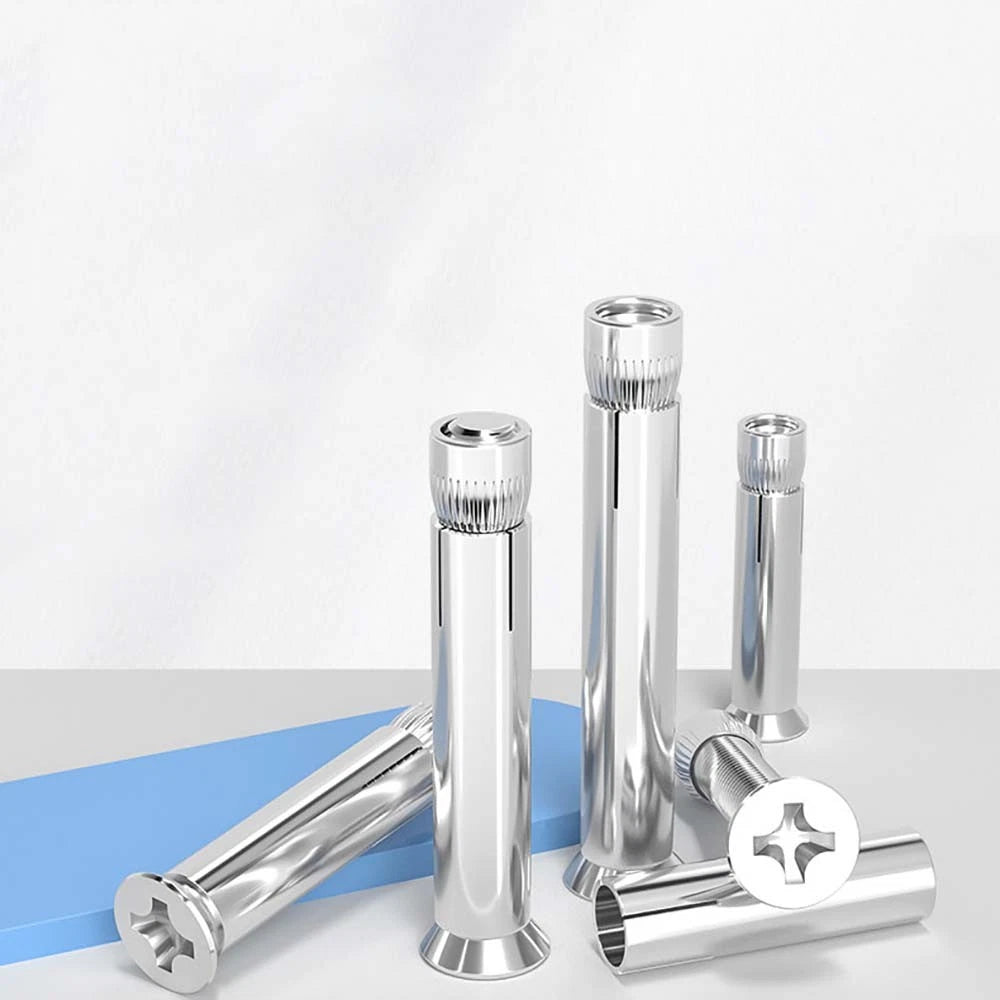

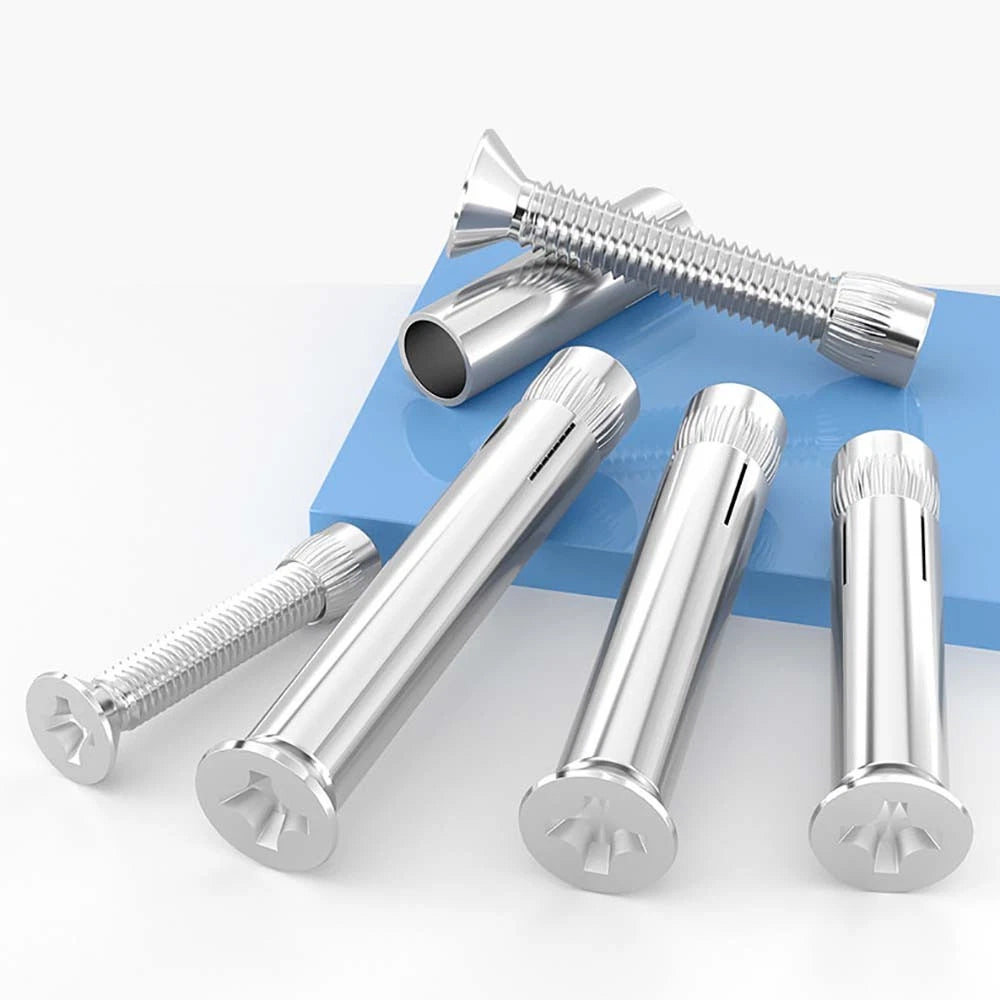

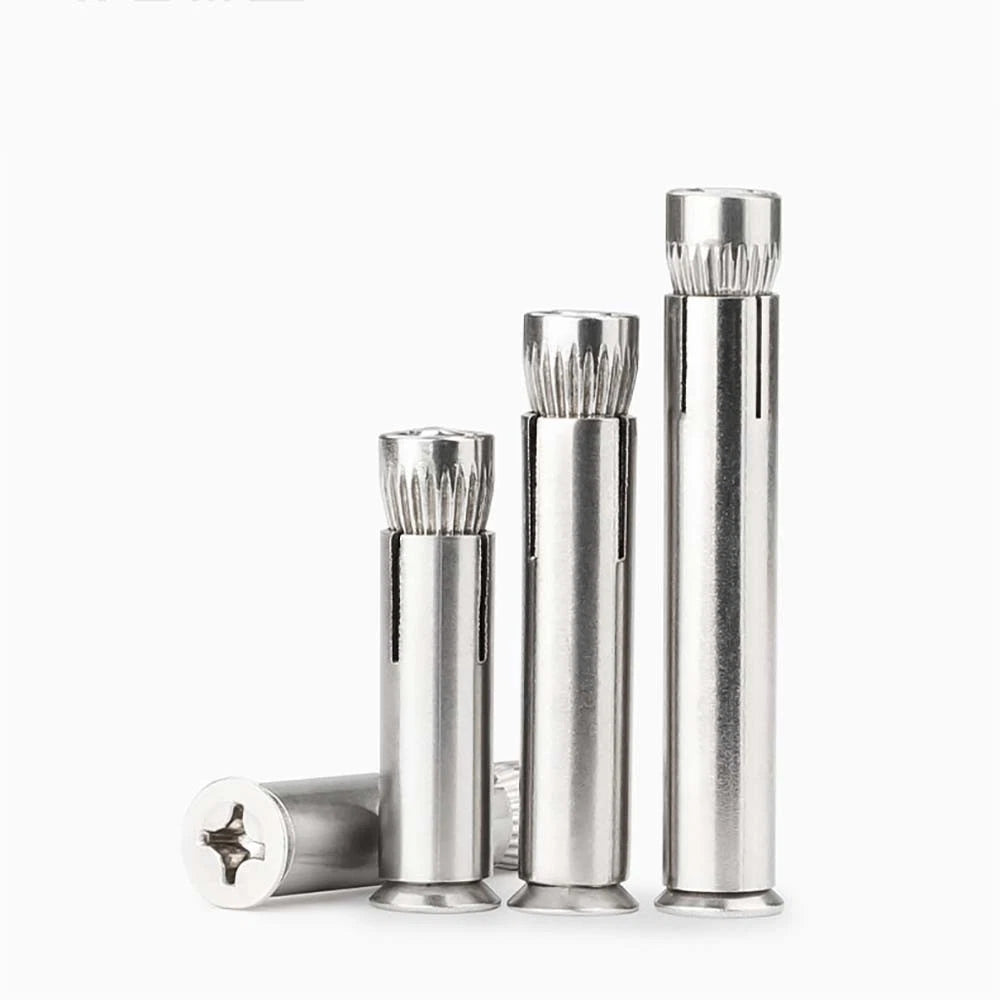

Countersunk Phillips Sleeve Anchor Expansion Bolts — Flush-Mount Fastening for Concrete & Masonry
When you need a fastener that disappears into the surface — no protruding head, no snagged cables, no trip hazard — standard hex-head anchors fall short. Contractors, DIYers, and fabricators working with concrete slabs, brick walls, and masonry block need a countersunk sleeve anchor expansion bolt that sits perfectly flush while delivering a reliable mechanical grip. These countersunk Phillips sleeve anchor expansion bolts are built for exactly that job.

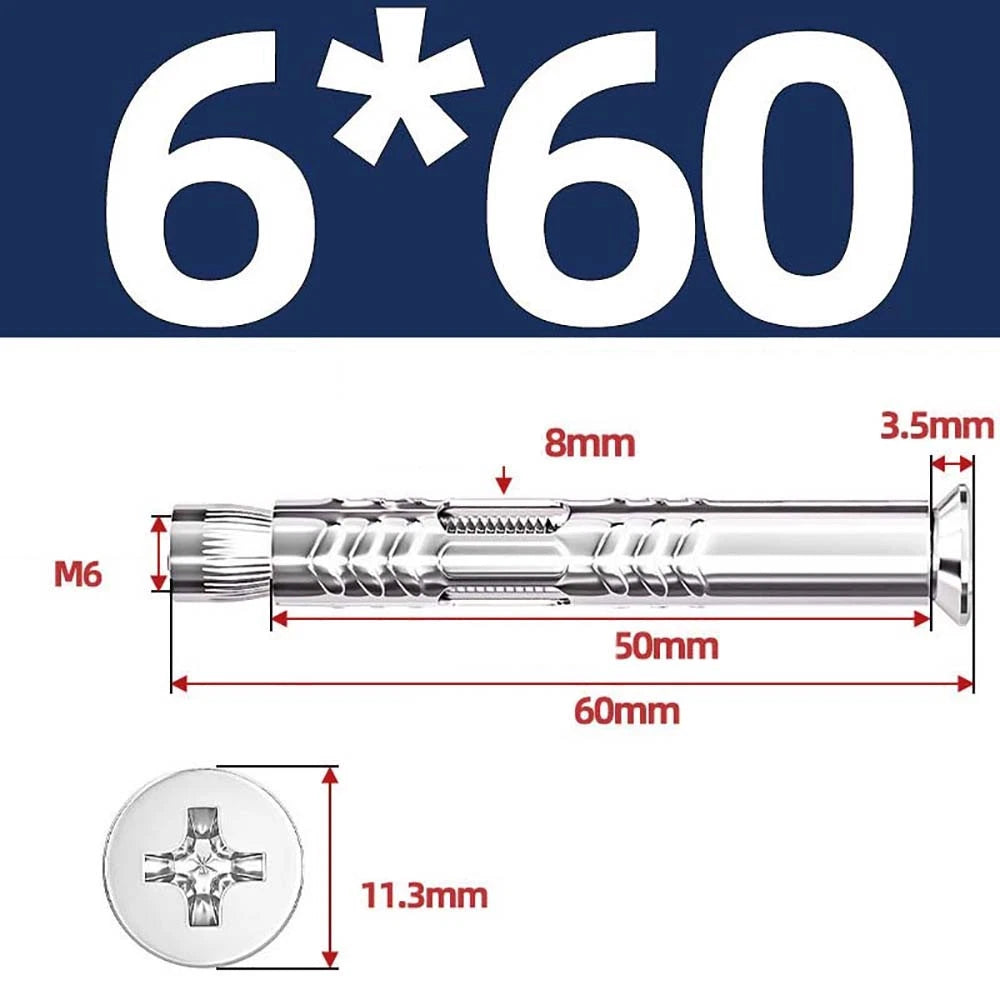

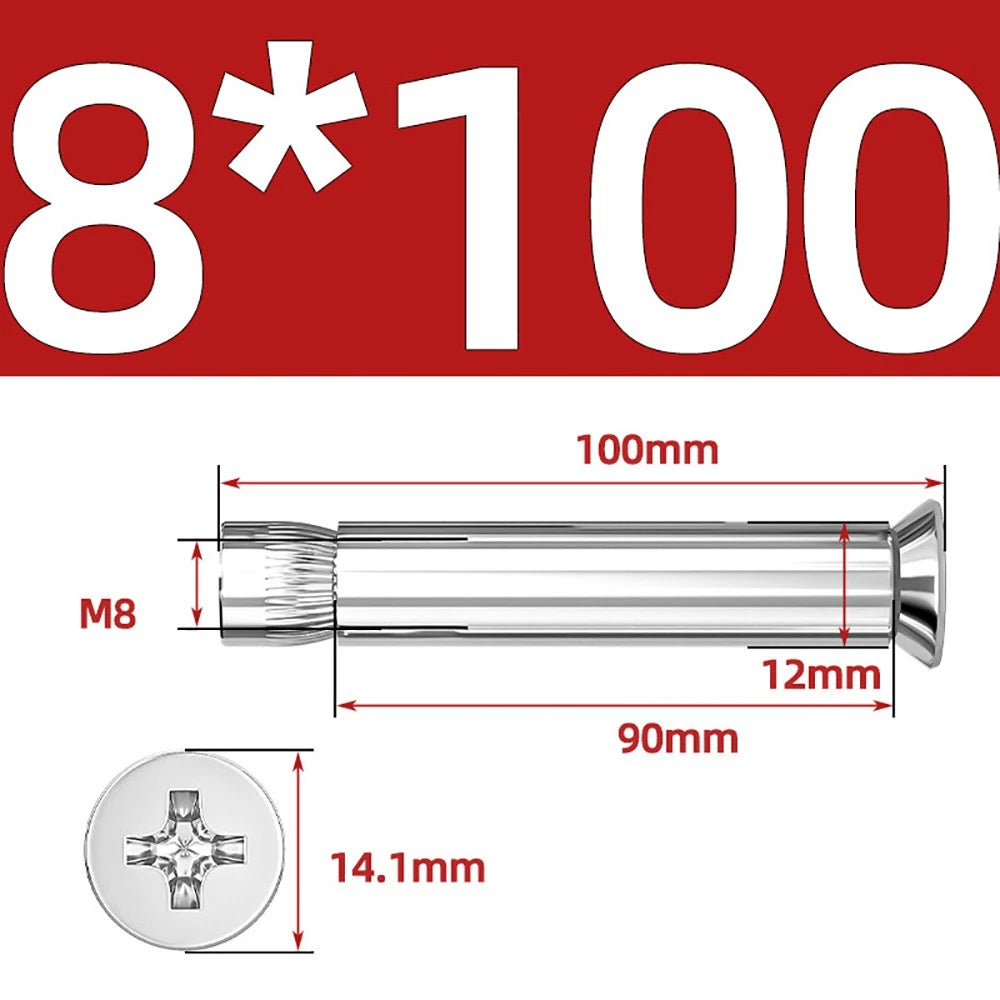

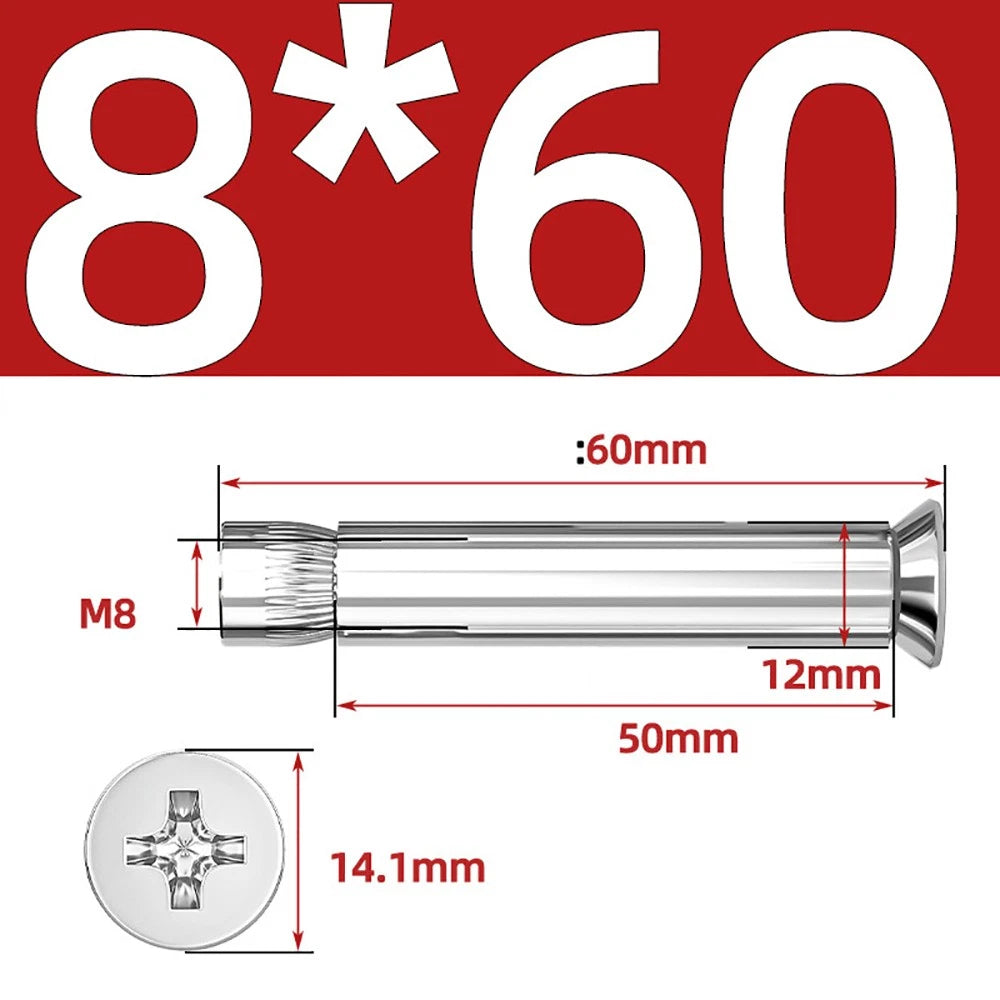

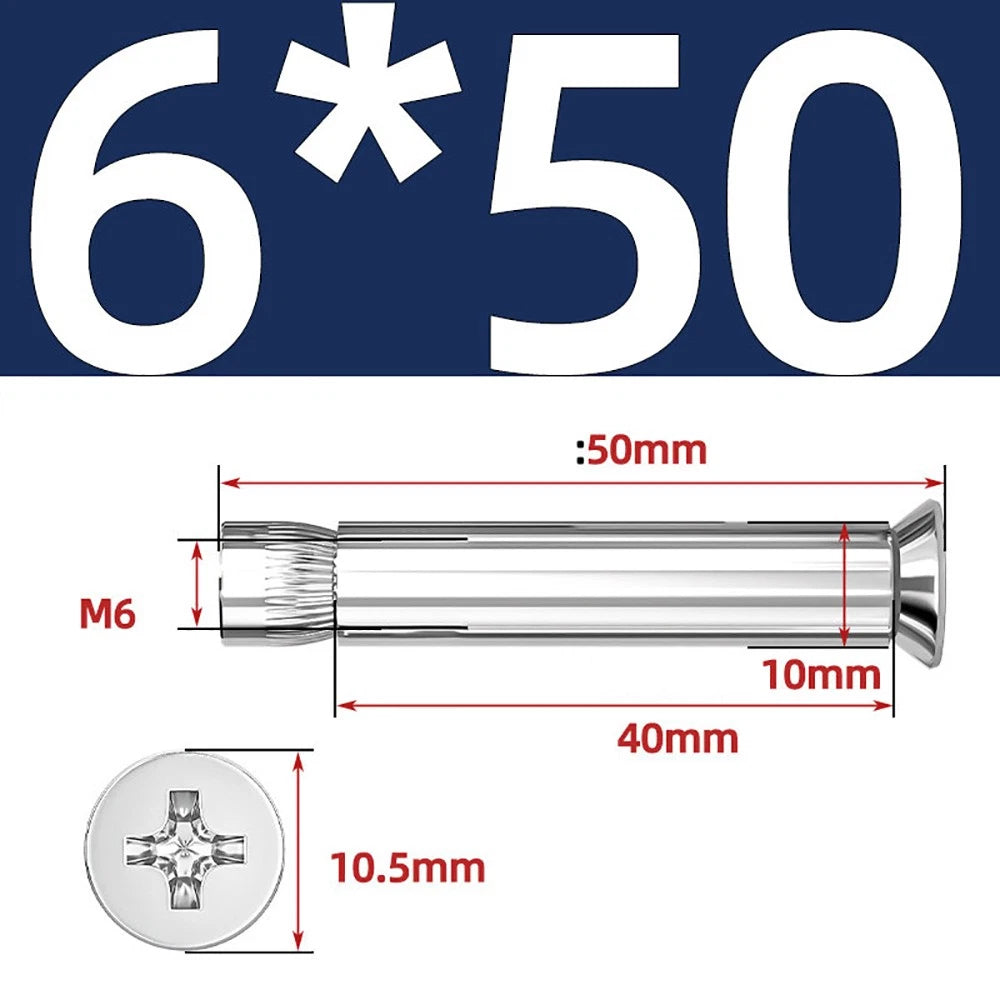

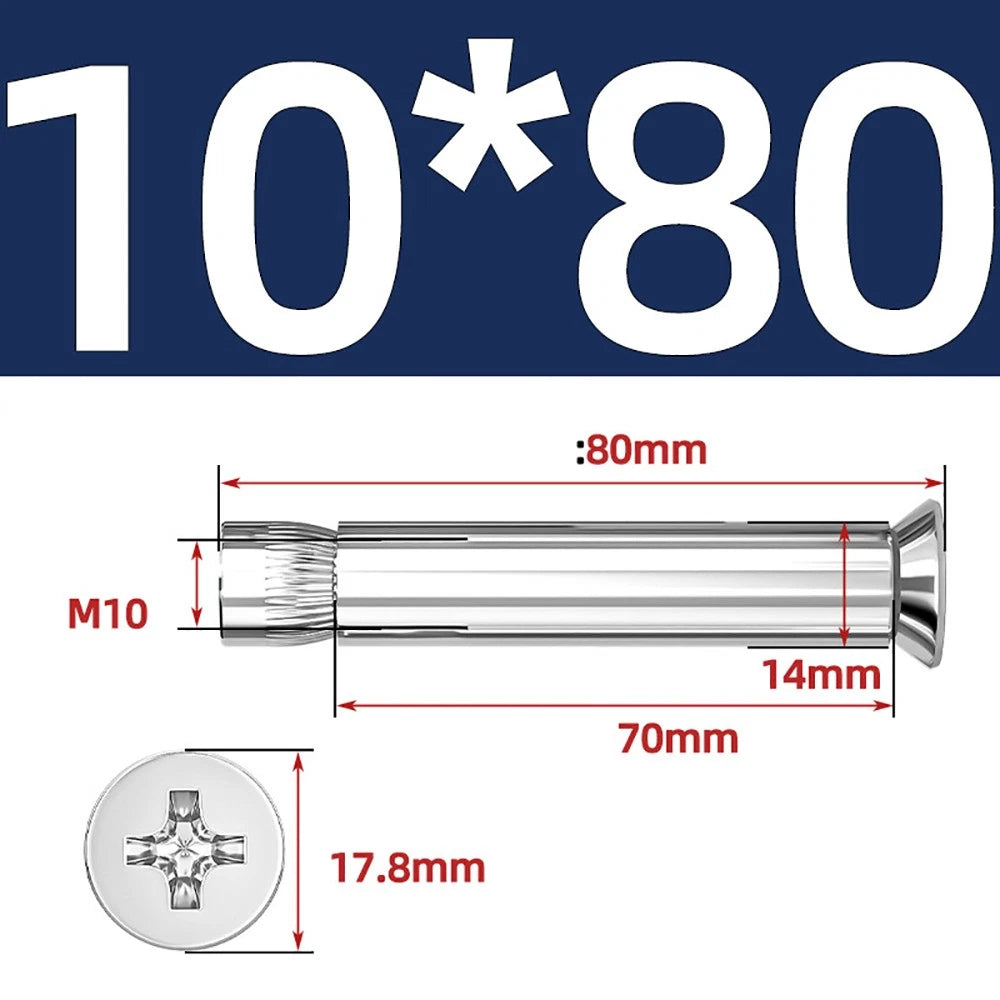

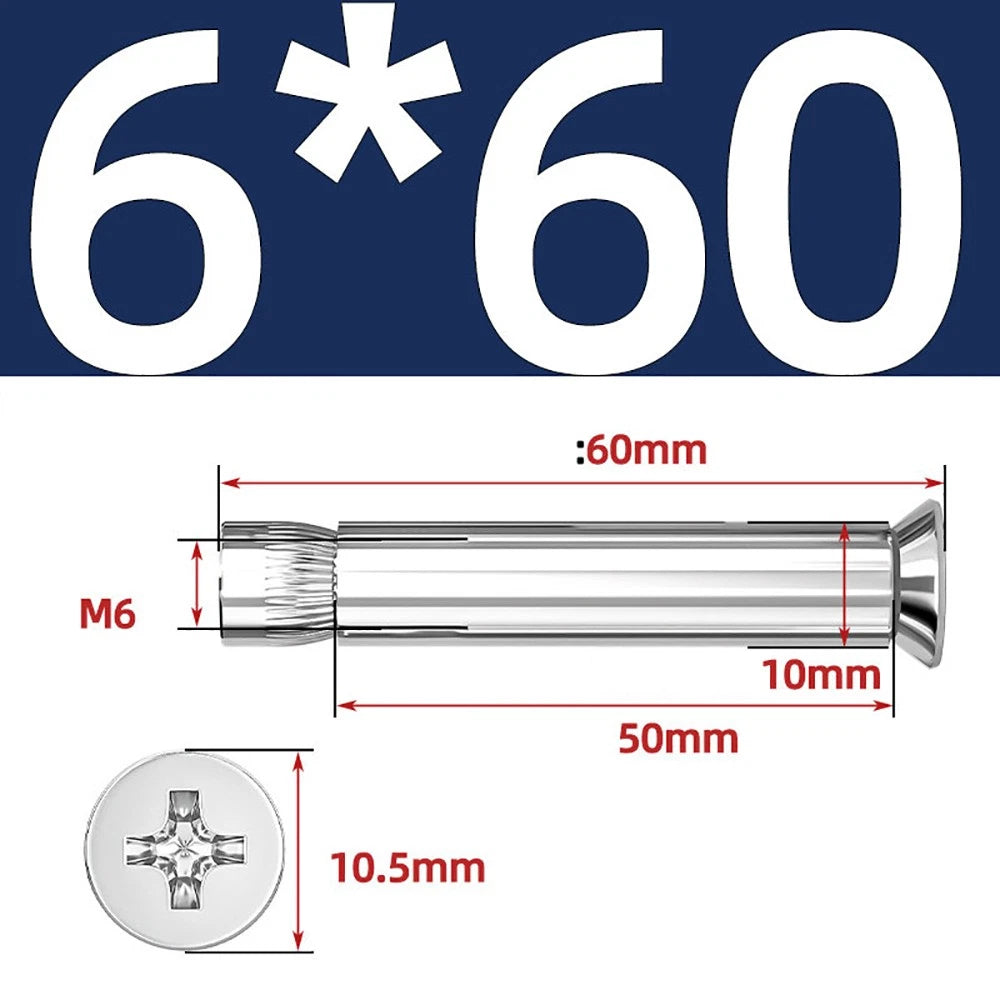

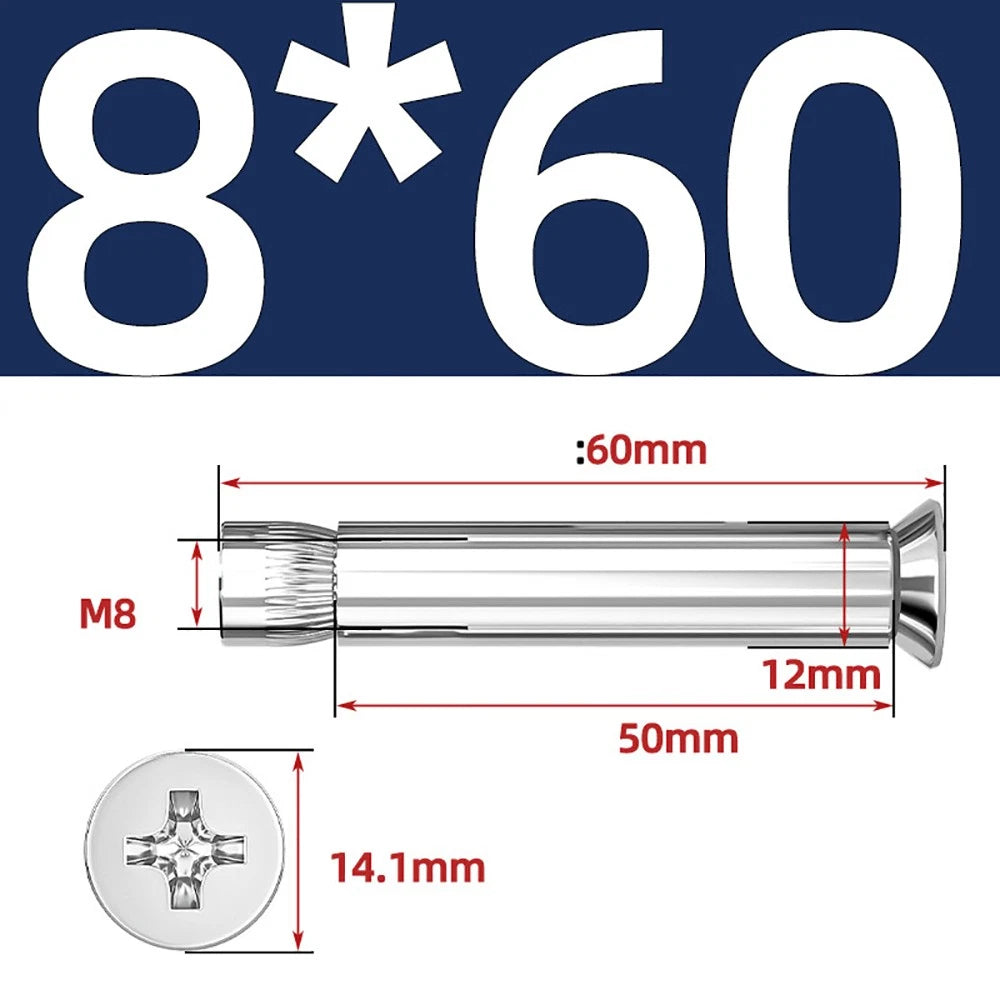

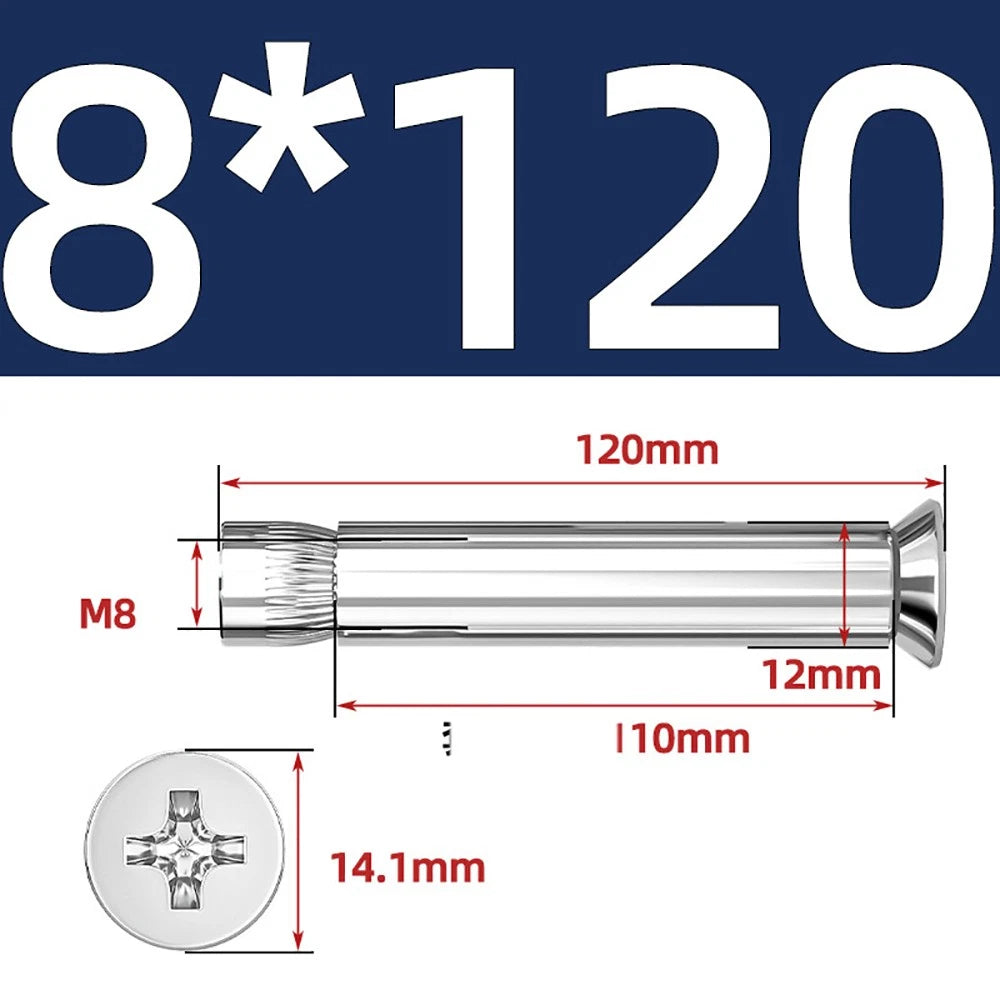

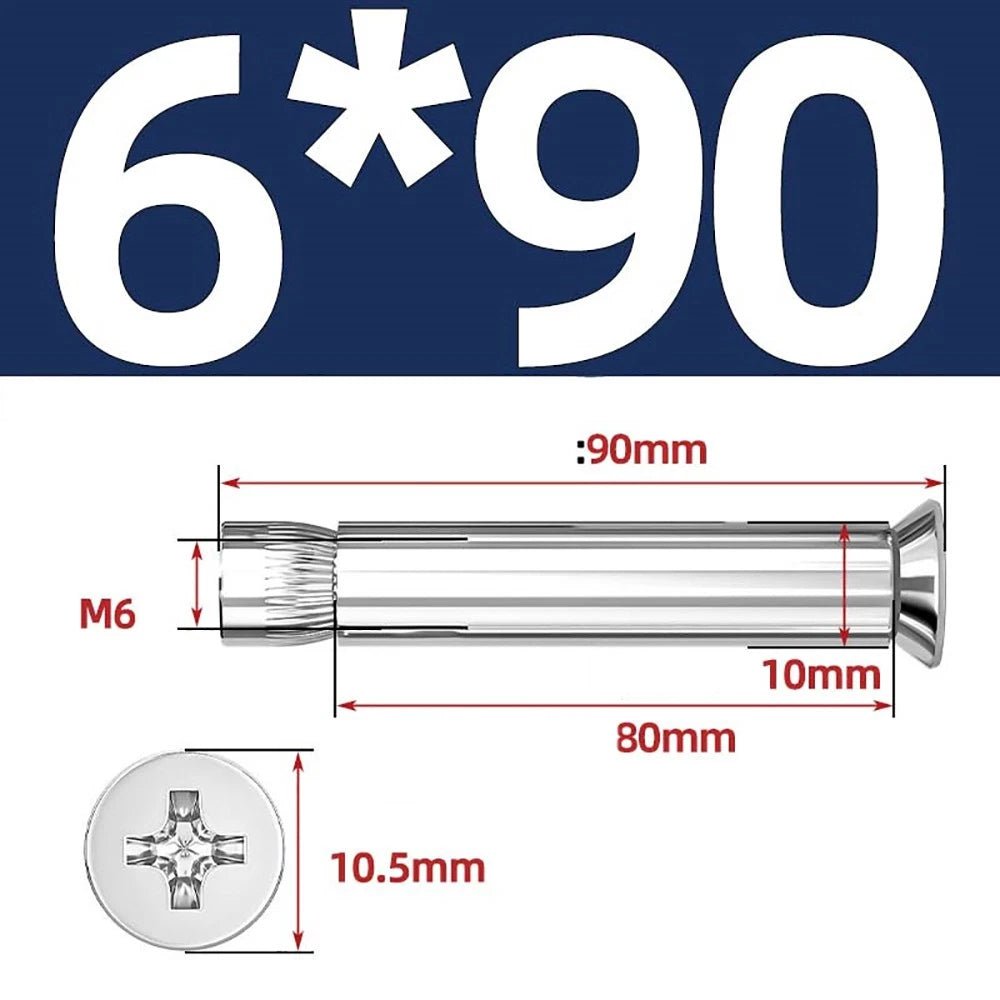

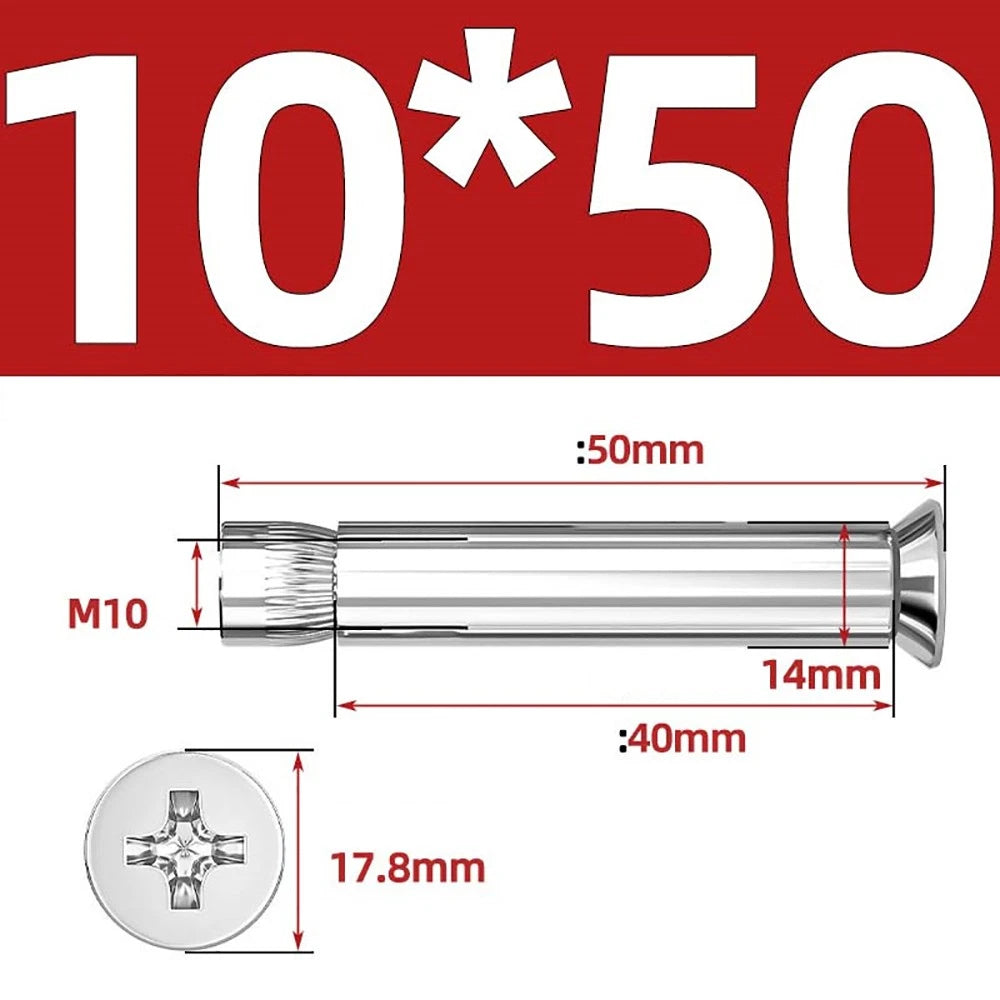

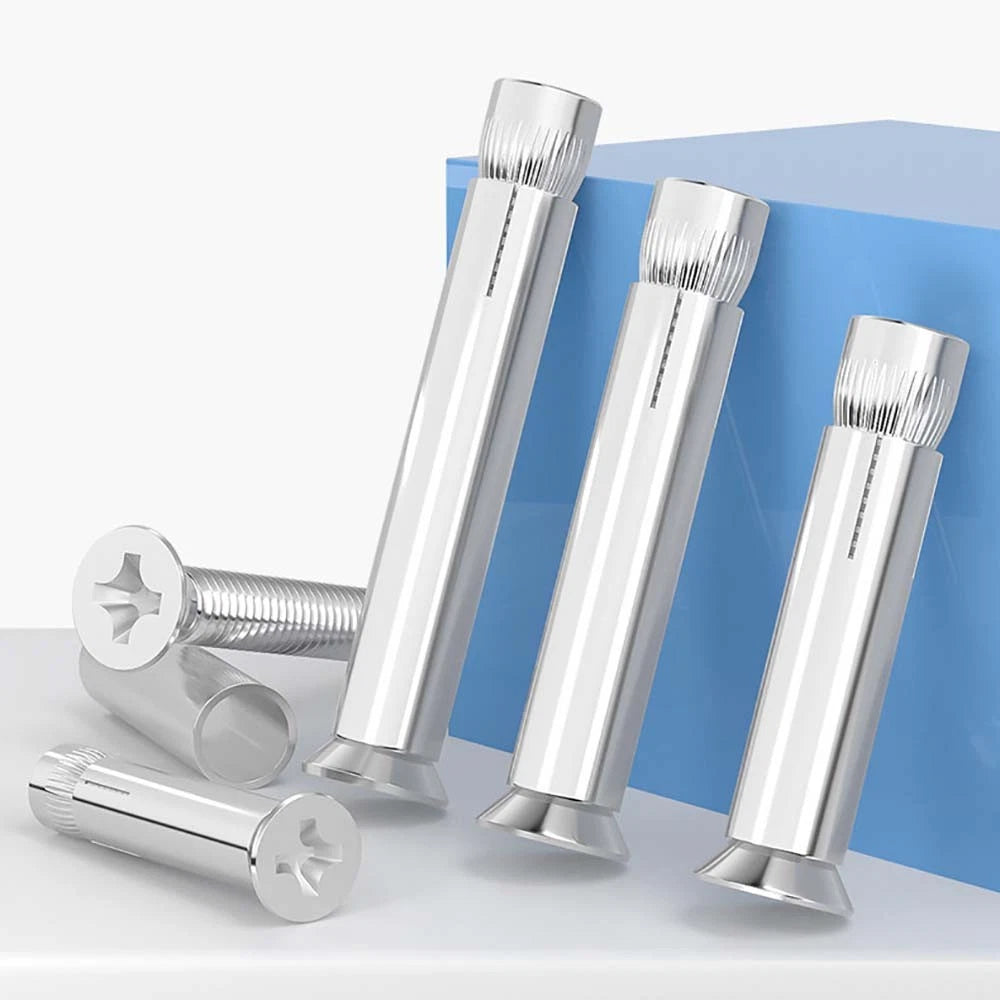

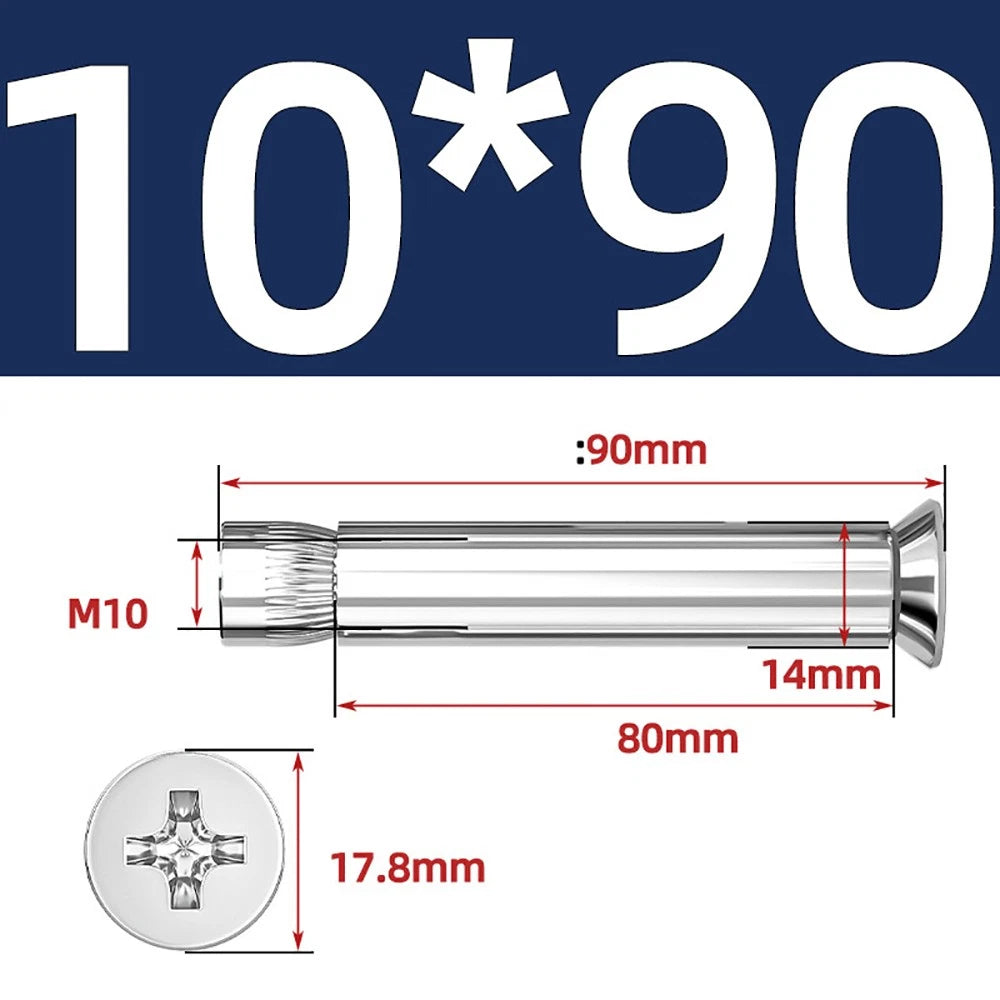

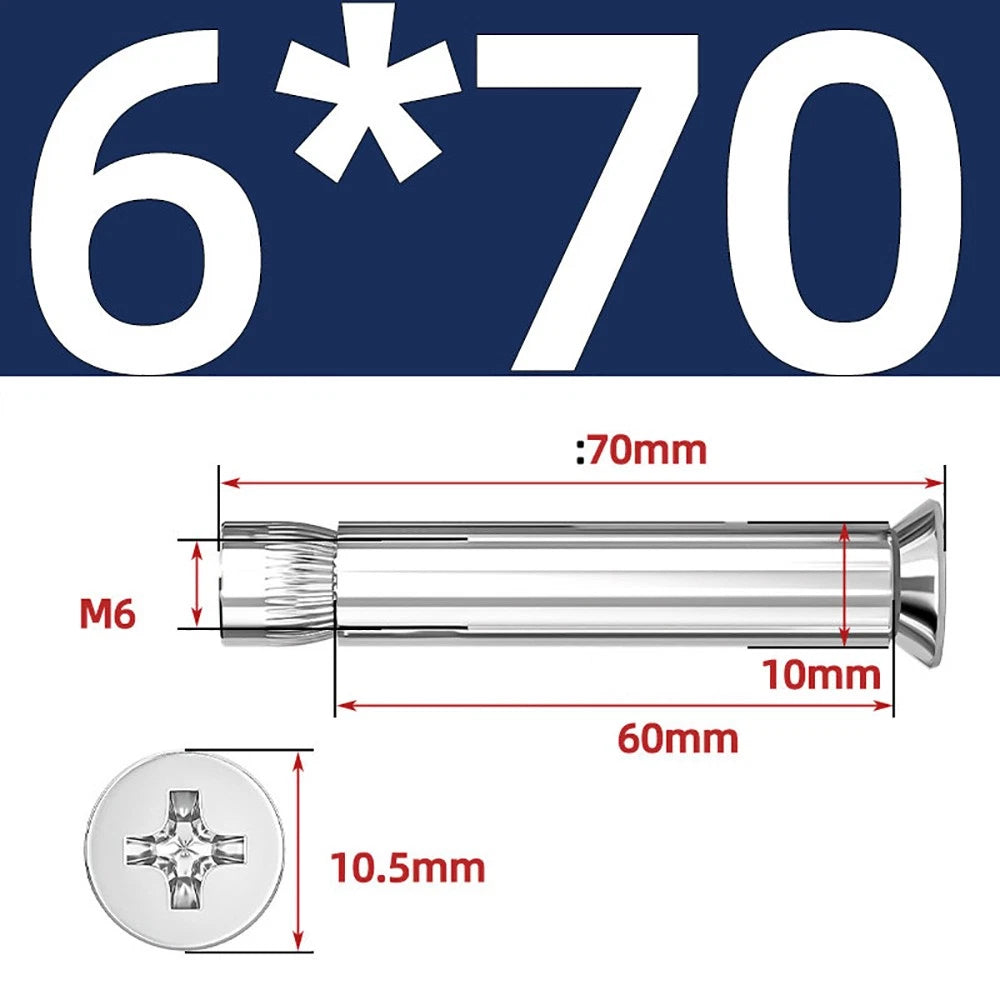

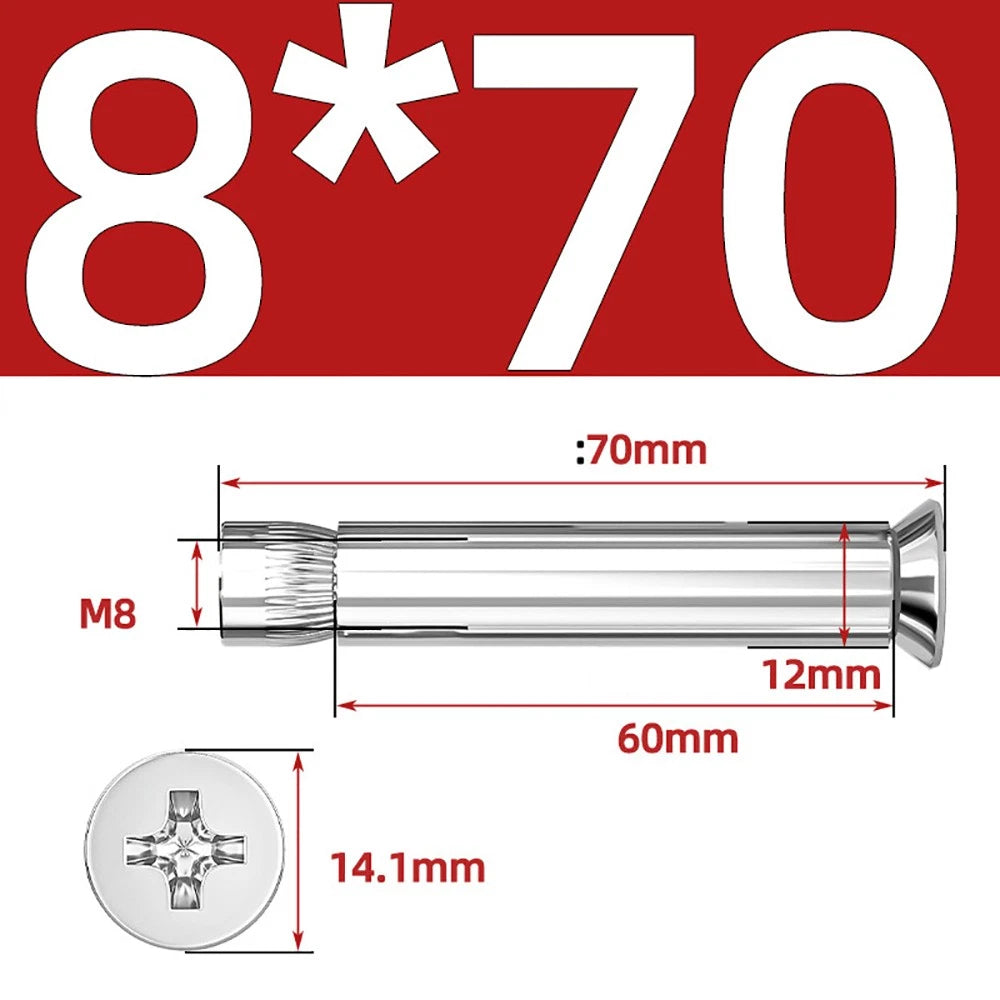

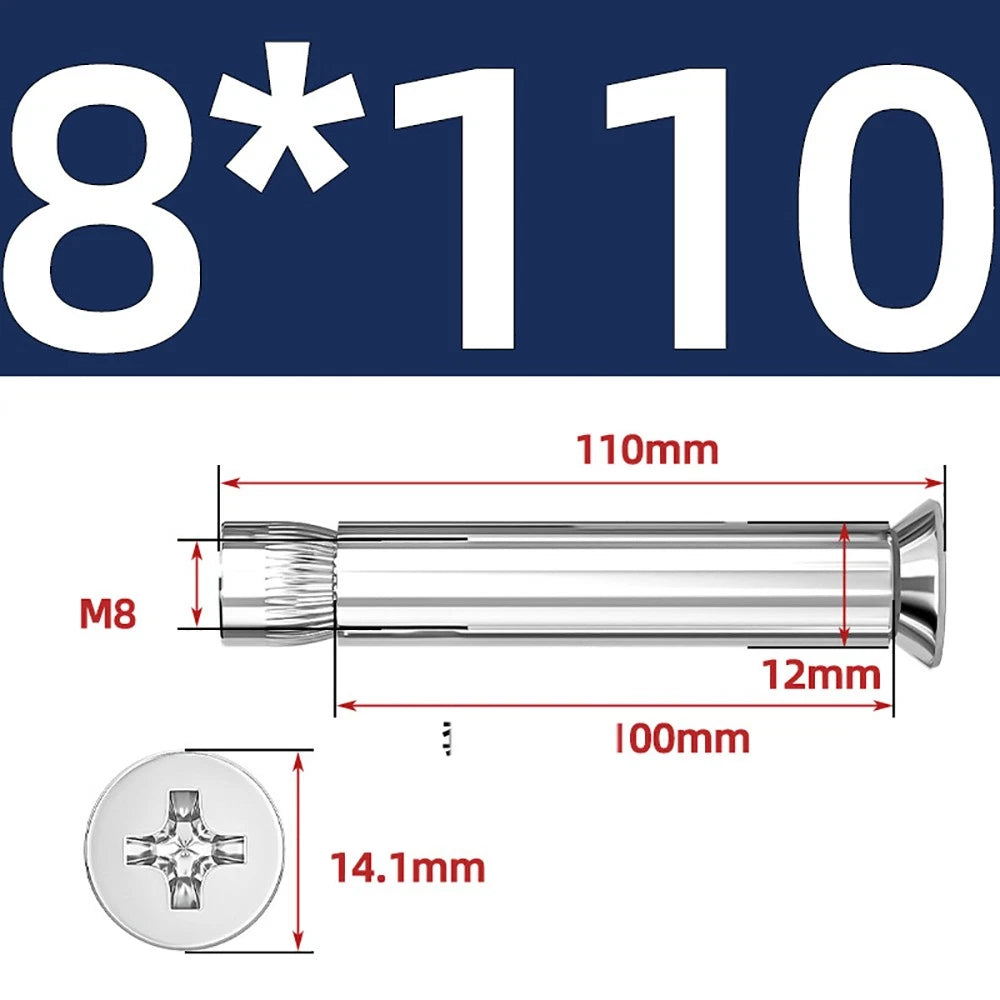

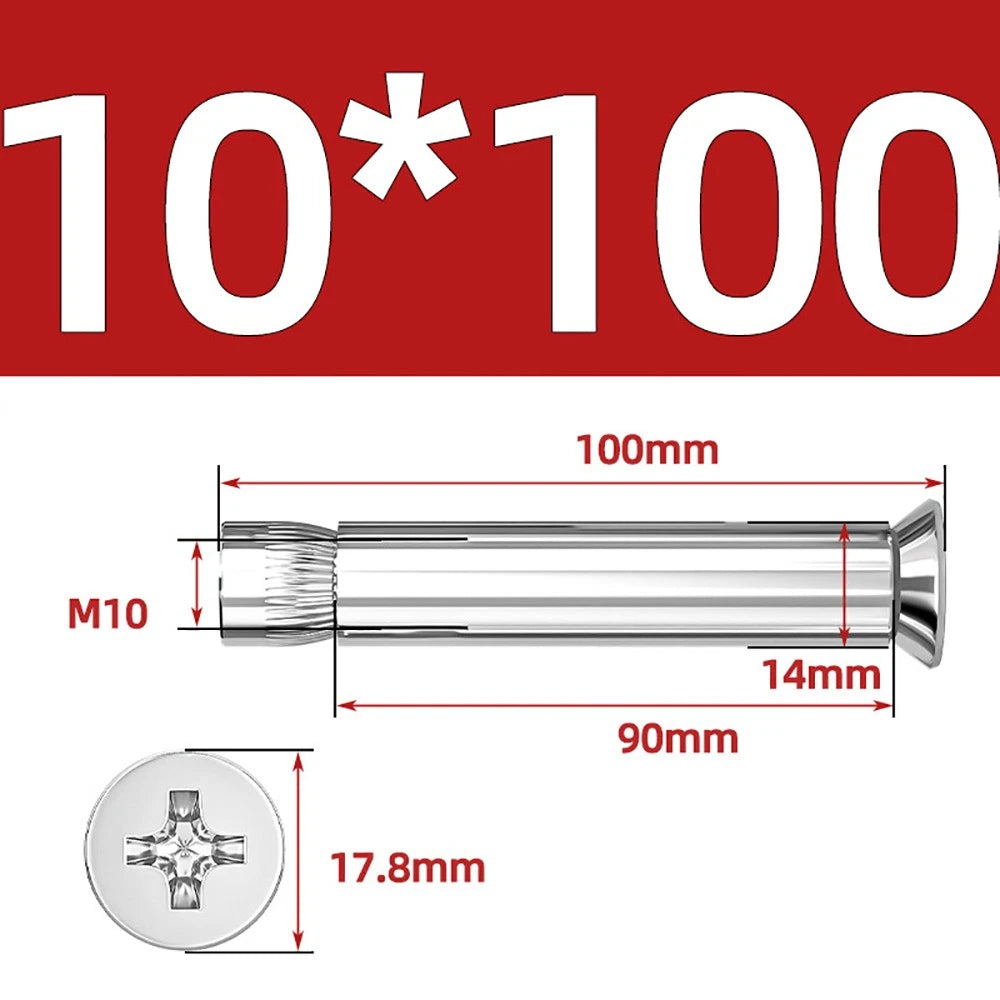

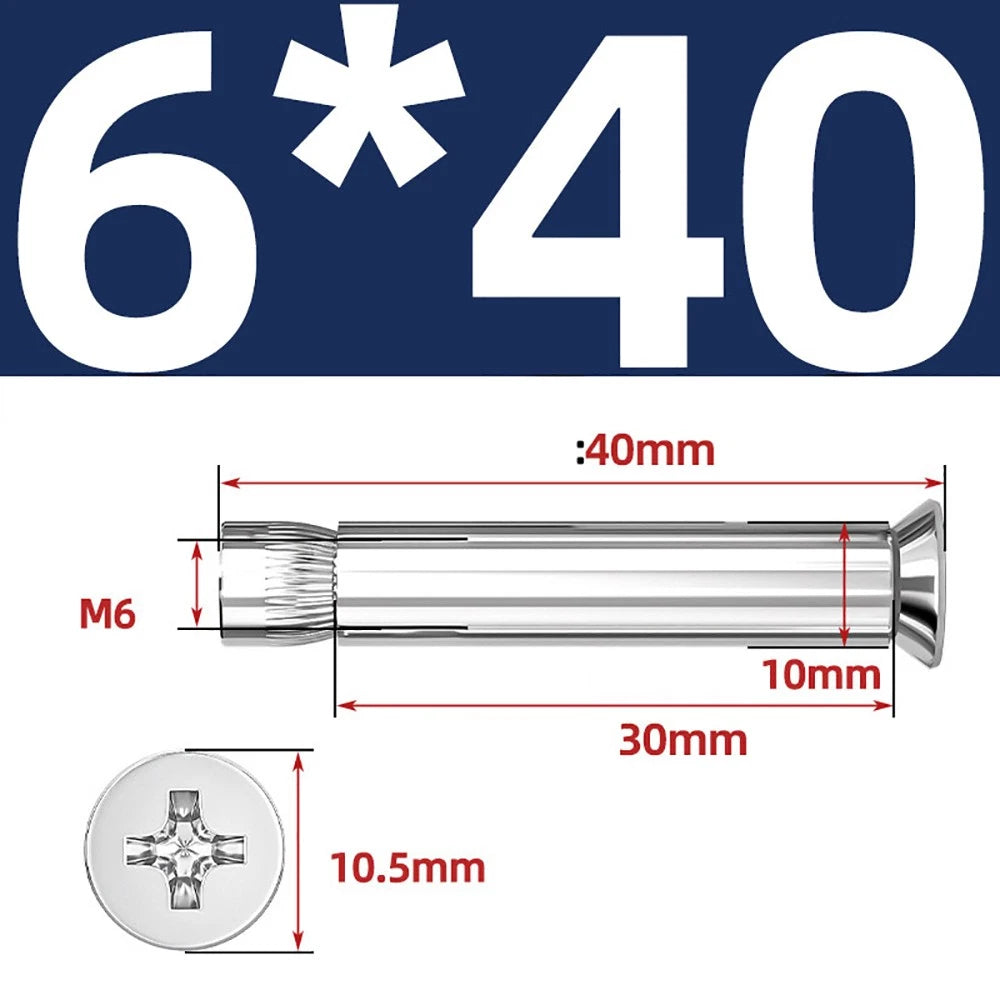

Each listing covers a single anchor unit (quantity selectable as 1, 2, 5, or 10 pieces per order). Thread diameters range from M6 (≈1/4") through M8 (≈5/16"), M10 (≈3/8"), and M12 (≈1/2"). Lengths span 40mm (≈1-9/16") to 200mm (≈7-7/8") depending on the size selected. Three material options are available: 304 stainless steel for corrosion-resistant outdoor use, 201 stainless steel for general indoor and sheltered applications, and color zinc for decorative or dry indoor installations. Head style options include A Type (standard countersunk angle) and B Type (alternate countersunk profile) — both driven with a standard Phillips screwdriver or bit.
Typical use cases include anchoring shelf brackets and handrails to concrete walls, securing electrical conduit straps and cable trays to masonry, flush-mounting steel plates and structural brackets to concrete floors, and fastening outdoor fixtures to brick or block where a clean surface finish is required. The flush-head design is especially valued in flooring, stair, and ramp applications where a protruding fastener head creates a safety or aesthetic issue.
ℹ️
Compatibility: Designed for solid concrete, brick, and dense masonry. Not recommended for hollow block, drywall, or soft substrates. Verify hole diameter matches the anchor thread size before ordering.
⚠️

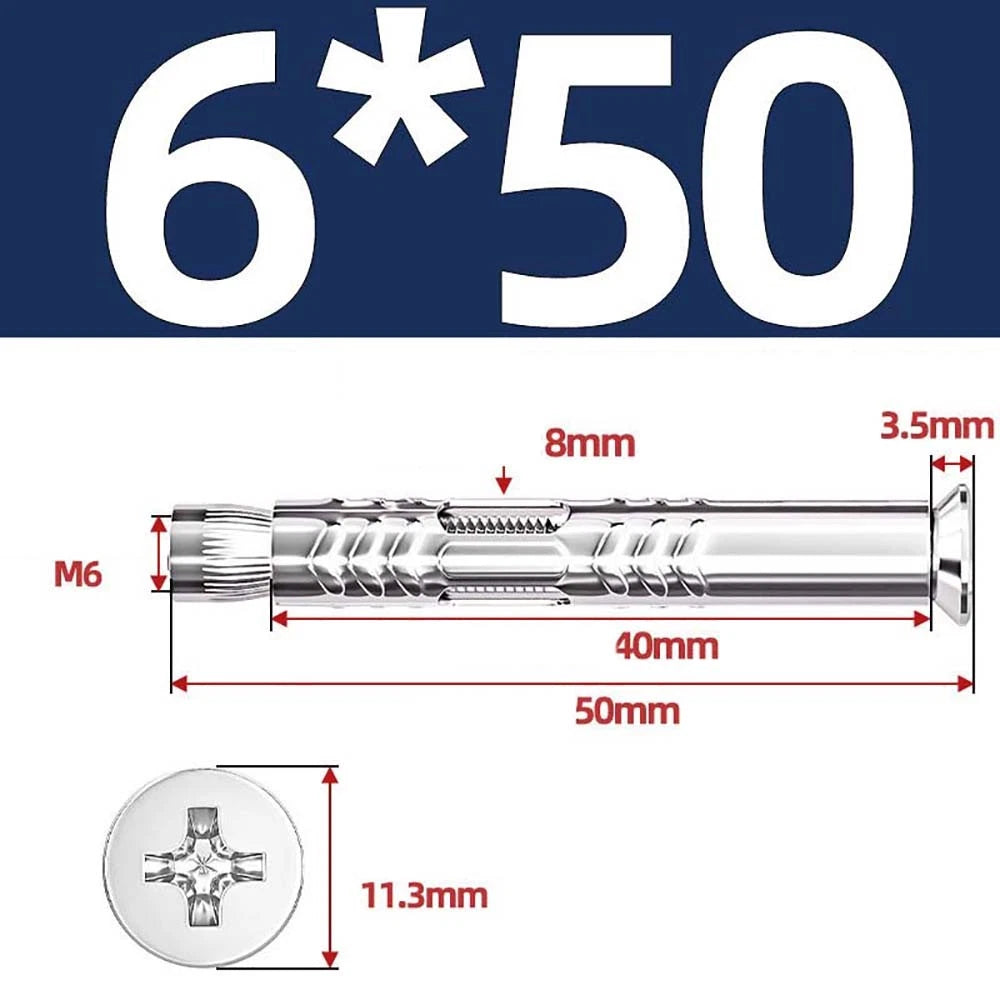

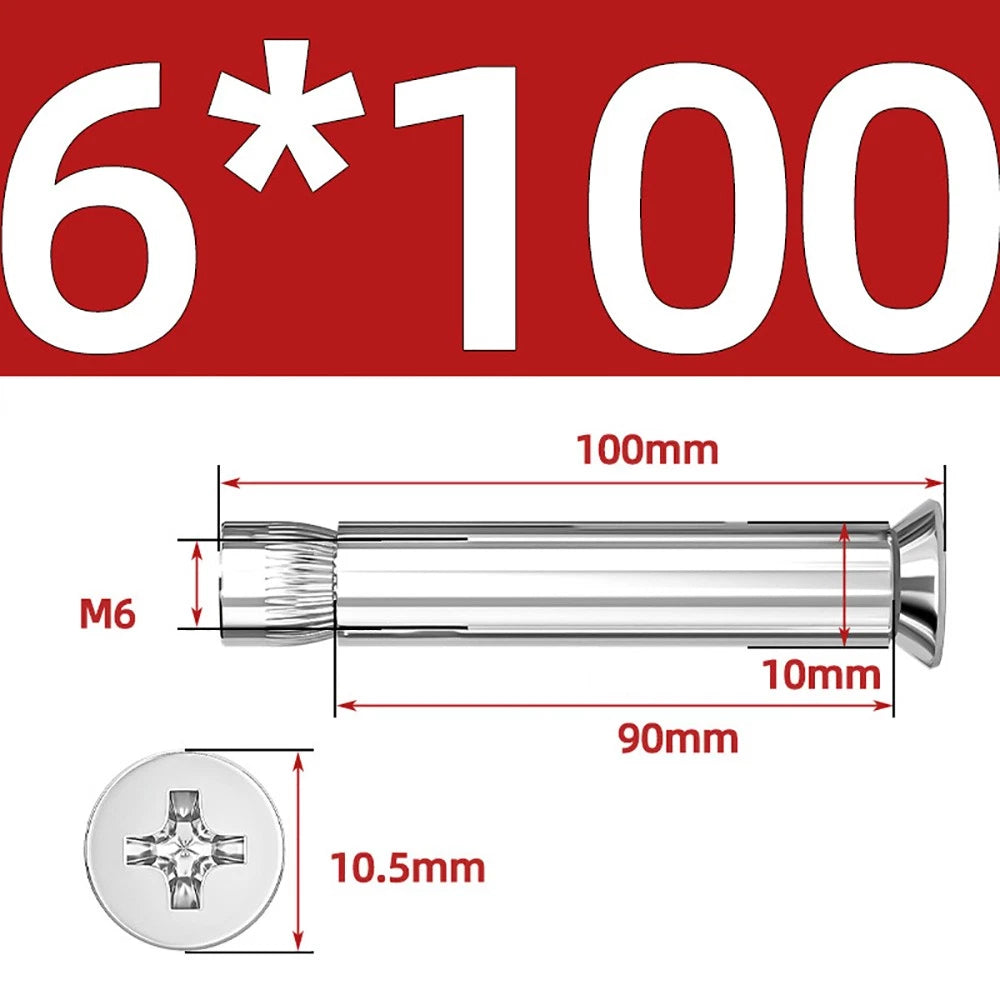

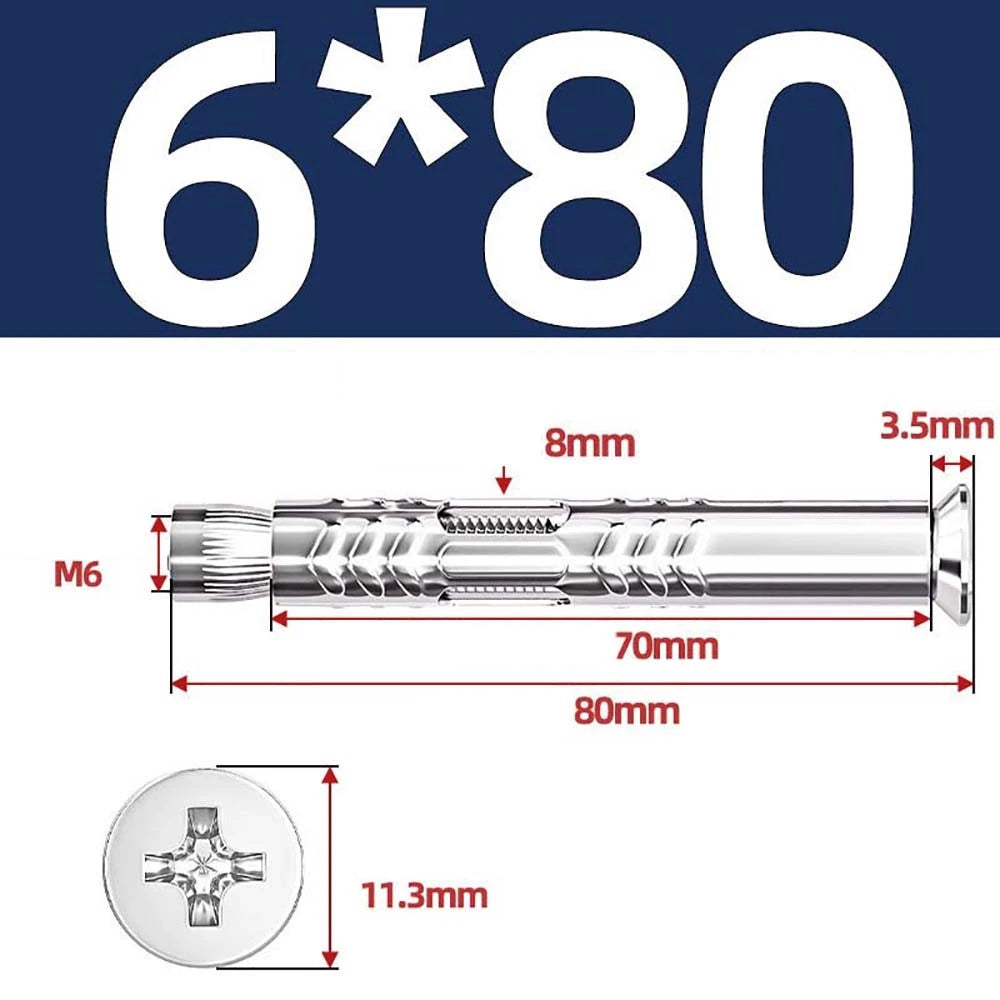

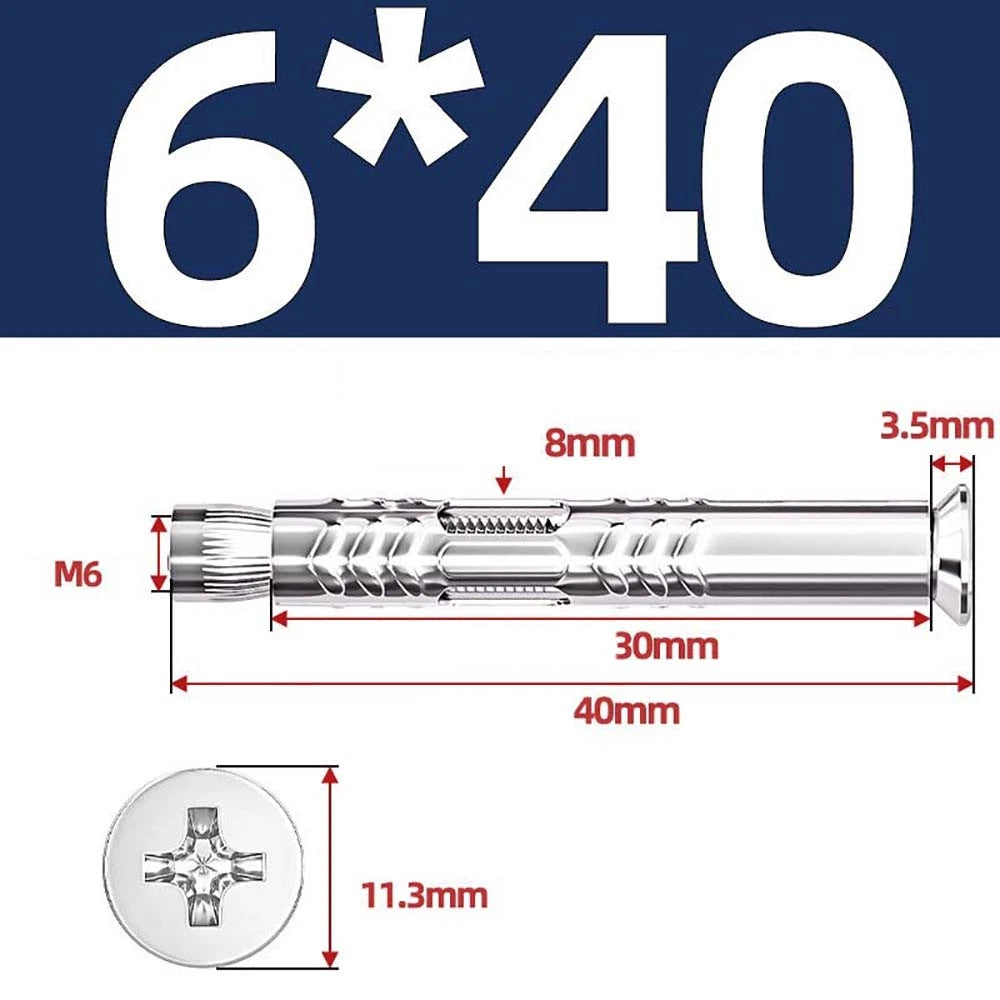

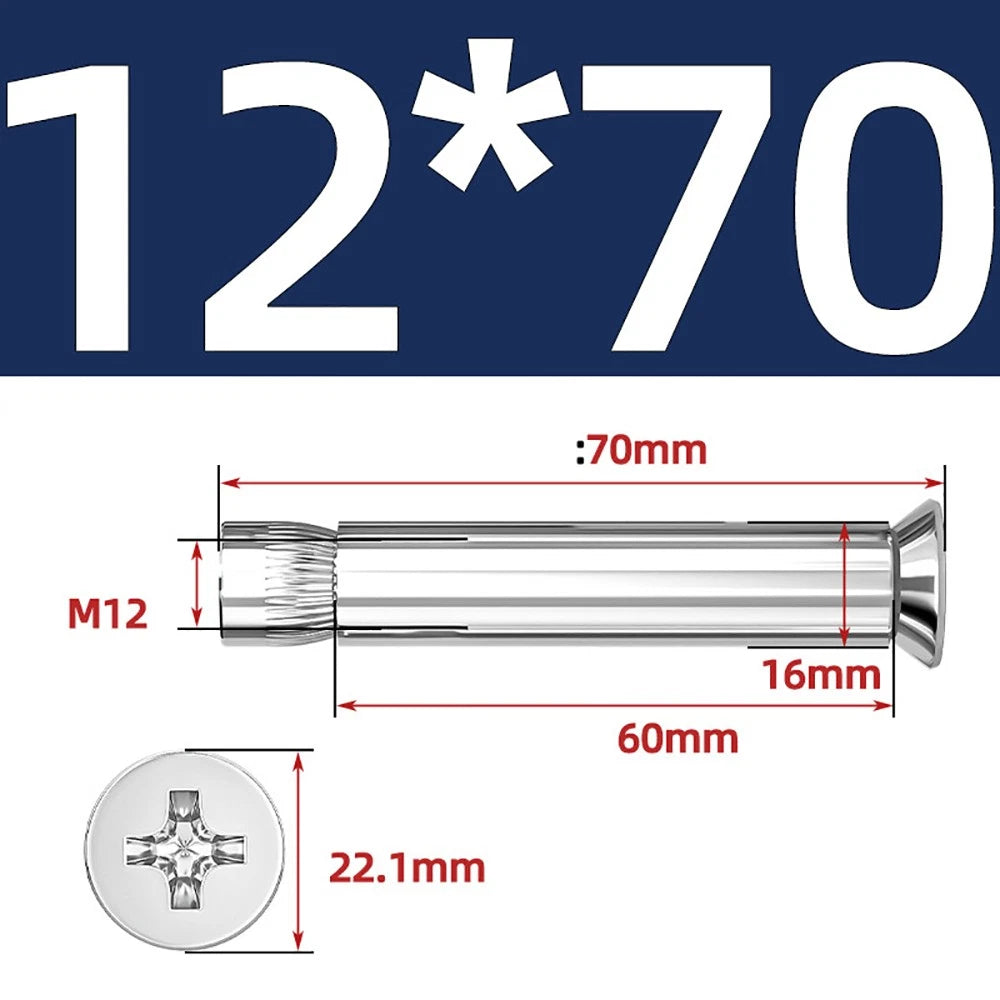

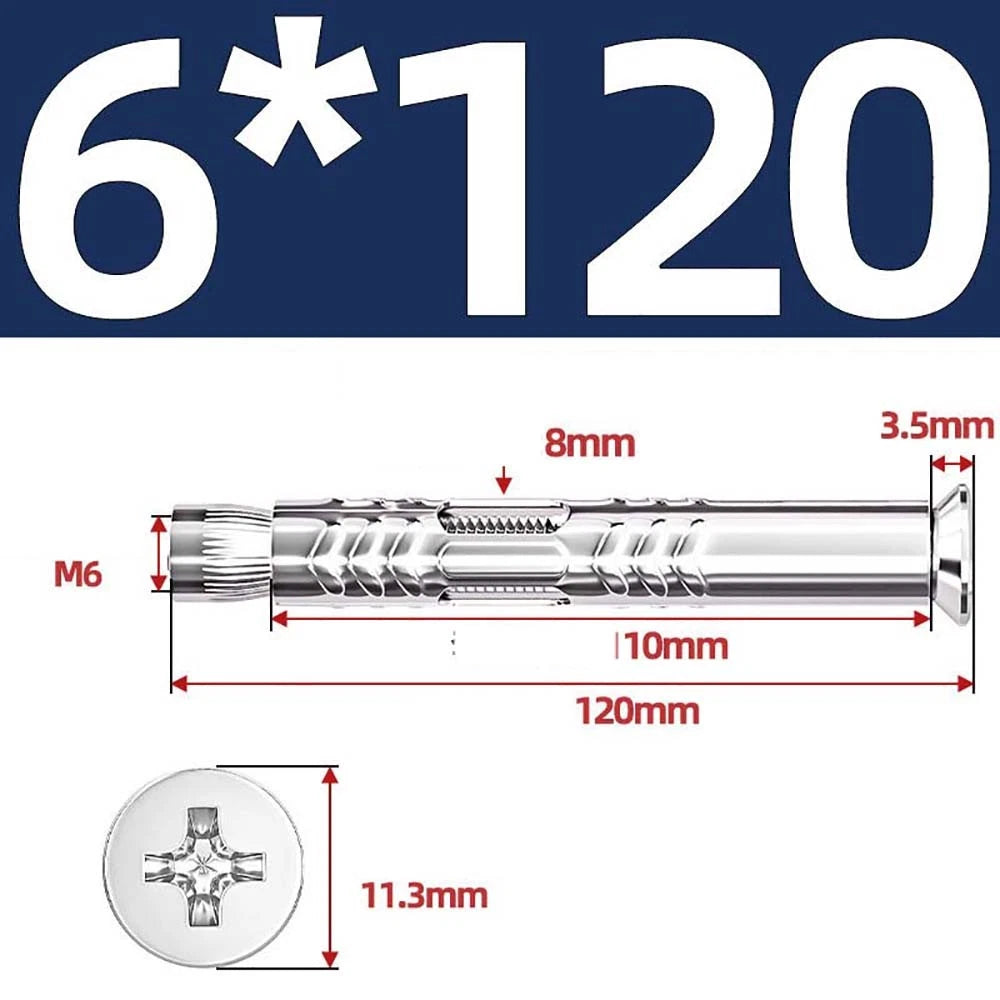

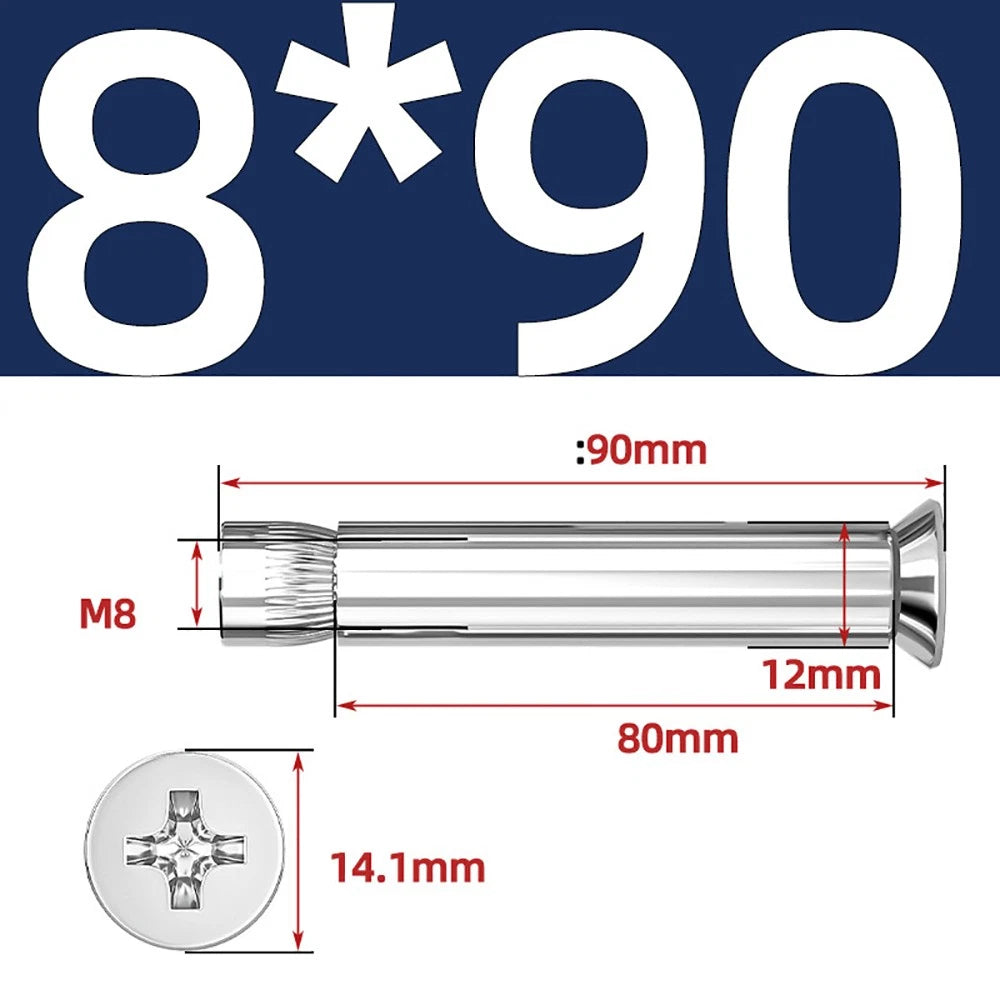

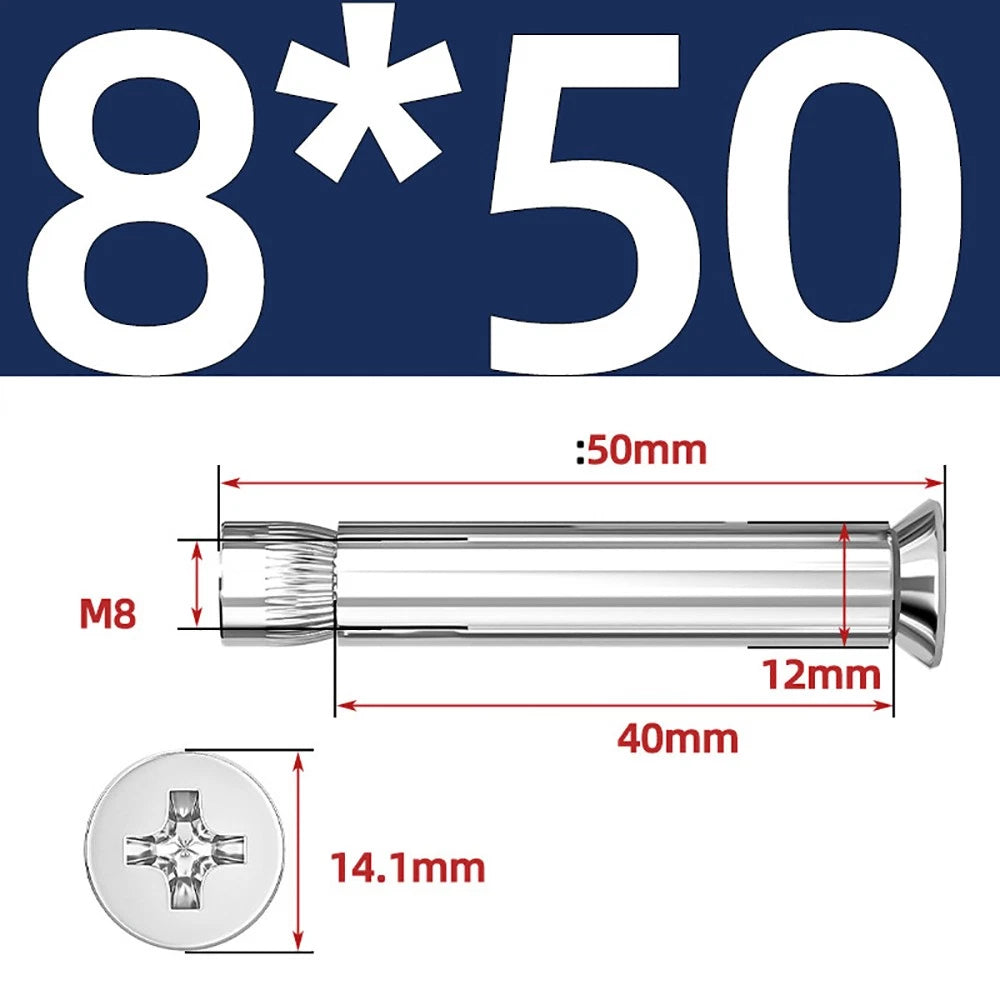

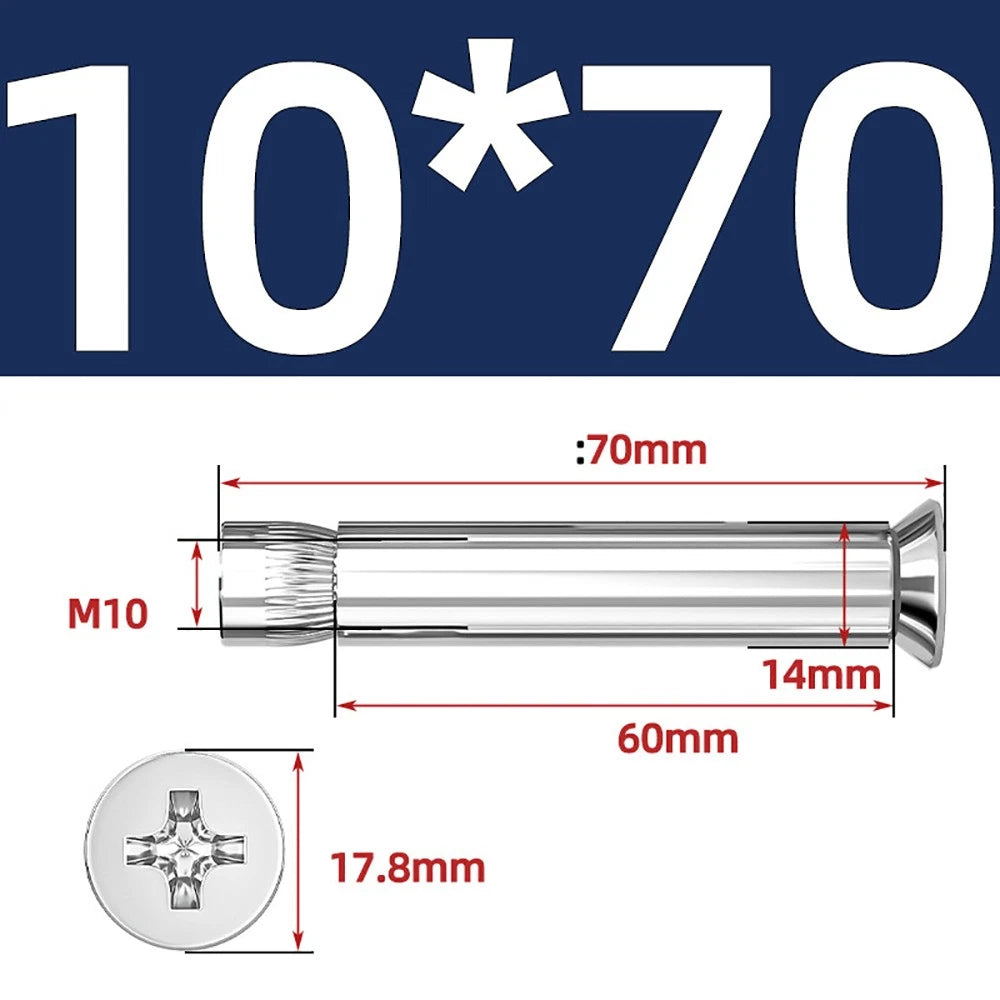

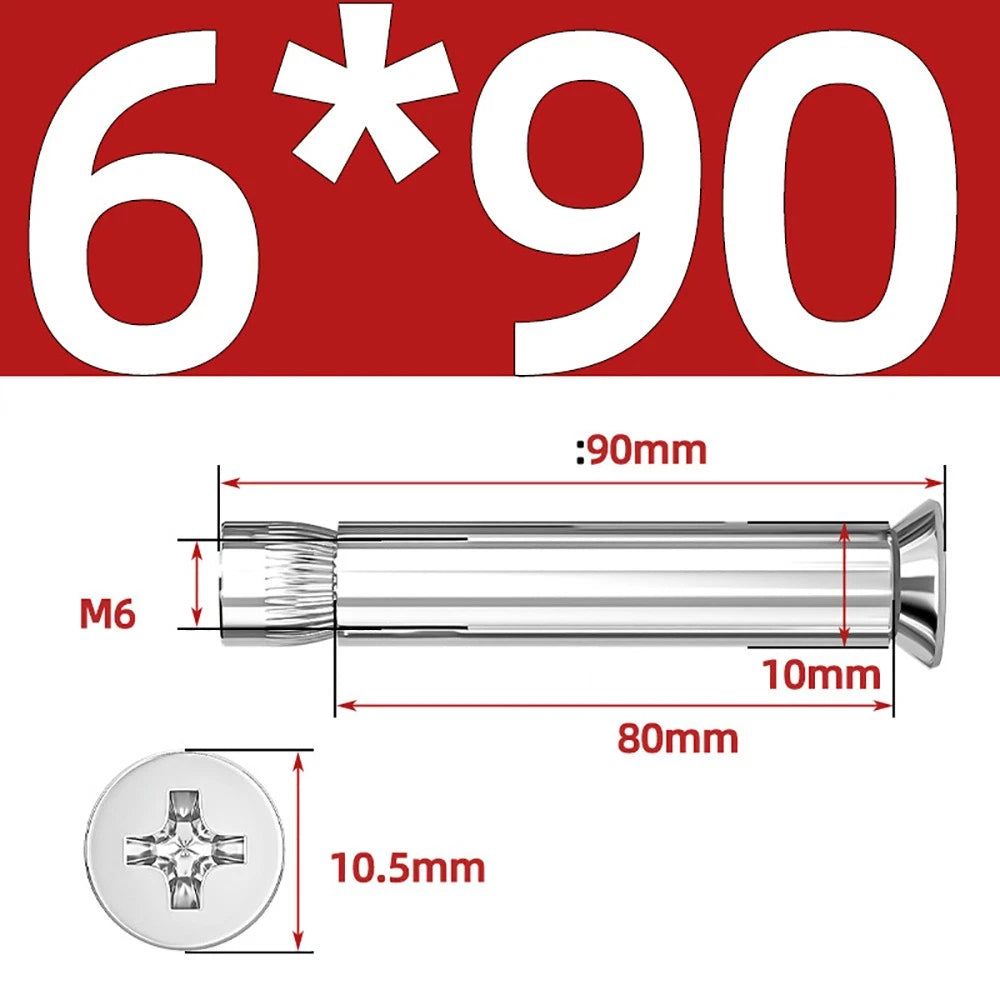

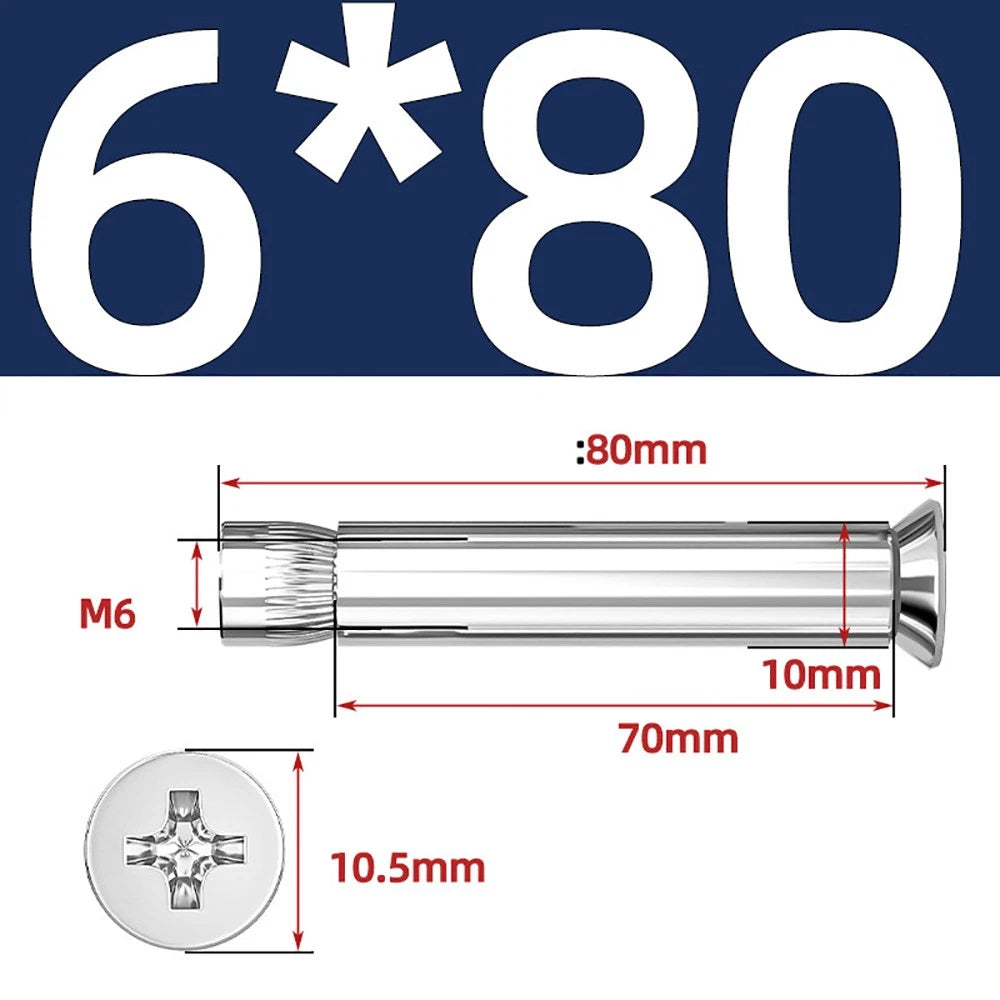

Confirm your size before ordering: Thread diameter, length, head type (A or B), and material grade are set per variant. Review the variant selector carefully — dimensions are listed in the Size option for each SKU.
✅ Key Features of These Countersunk Sleeve Anchor Expansion Bolts
-
🔩Flush Countersunk Head — The flat countersunk profile sits level with the surface after installation, eliminating snag points in flooring, ramp, and wall-mount applications where a protruding head is unacceptable.
-
🛡️Three Material Grades — Choose 304 stainless steel for outdoor and moisture-exposed installations, 201 stainless steel for general-purpose indoor use, or color zinc for decorative dry-environment fastening — all in one product listing.
-
📐Wide Size Range: M6 to M12 — Covers the most common metric anchor sizes for residential and light commercial concrete fastening, from M6 (≈1/4") bracket screws up to M12 (≈1/2") structural anchors.
-
🔧Phillips Drive for Fast Installation — Compatible with standard Phillips #2 and #3 bits and impact drivers, making these sleeve anchor expansion bolts faster to drive than hex-socket alternatives in tight spaces.
-

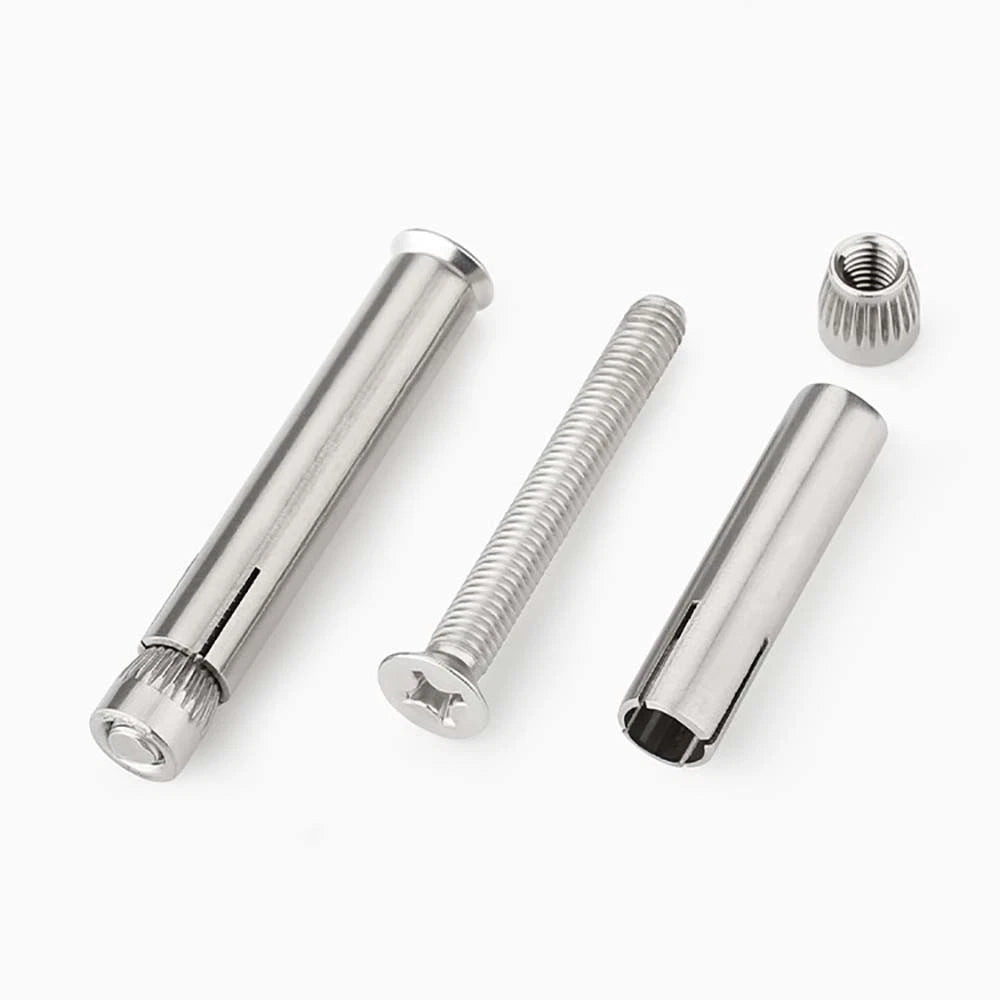

🏗️Mechanical Expansion Sleeve — The expansion sleeve grips the drilled hole wall as the bolt is tightened, creating a secure mechanical anchor in solid concrete and masonry without adhesive or chemical setting.
-
📦Flexible Pack Quantities — Order 1, 2, 5, or 10 pieces per variant to match your project scope — whether you need a single replacement anchor or a full pack for a multi-point installation.

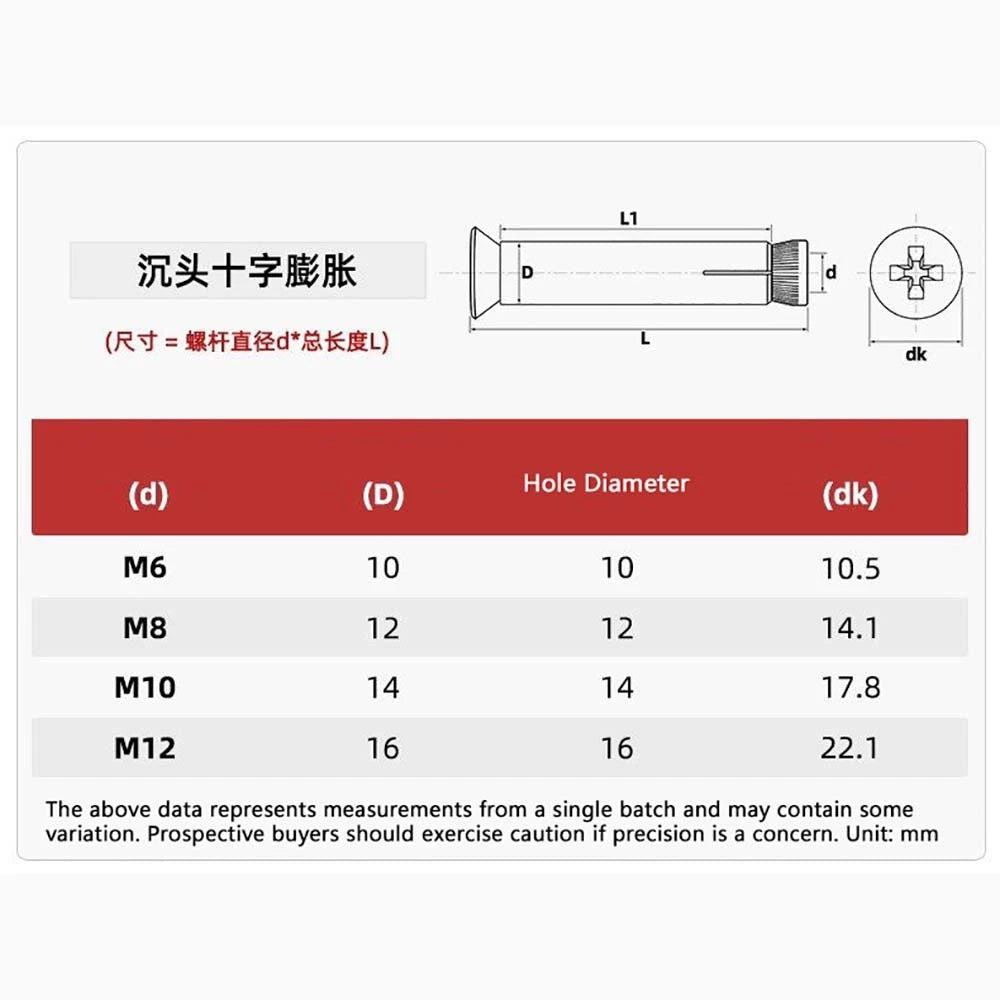

📐 Technical Specifications — Countersunk Sleeve Anchor Expansion Bolts
| Product Type |
Sleeve Anchor Expansion Bolt, Countersunk Phillips Head |
| Head Style |
A Type (standard countersunk) / B Type (alternate countersunk) — see variant |
| Drive Type |
Phillips (cross recess) |
| Thread Diameter |

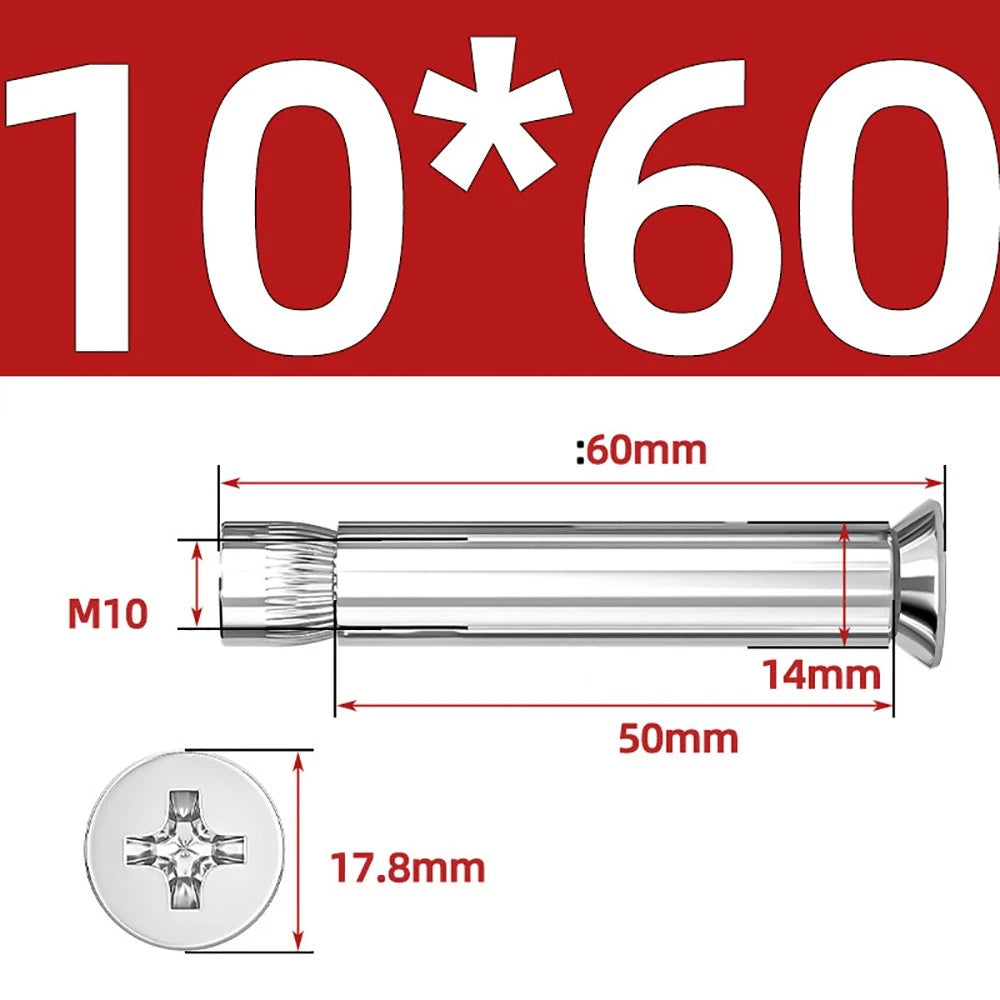

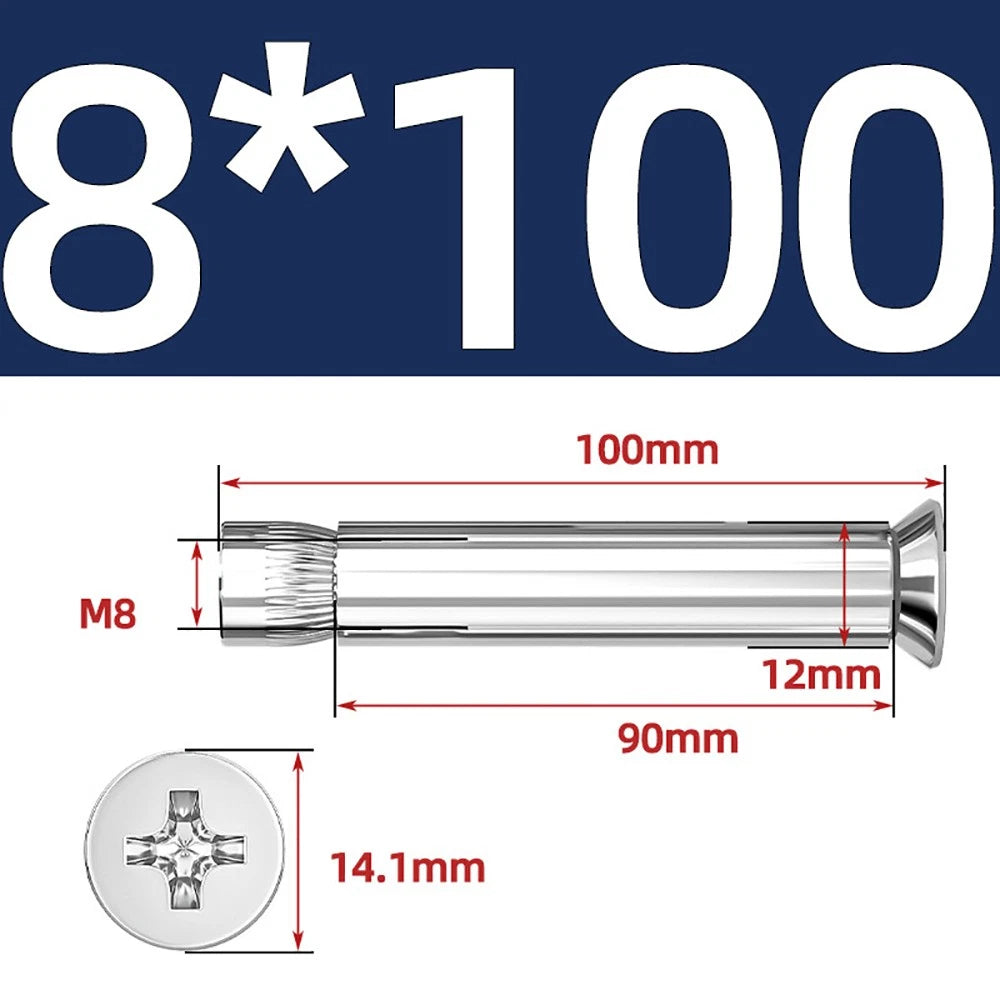

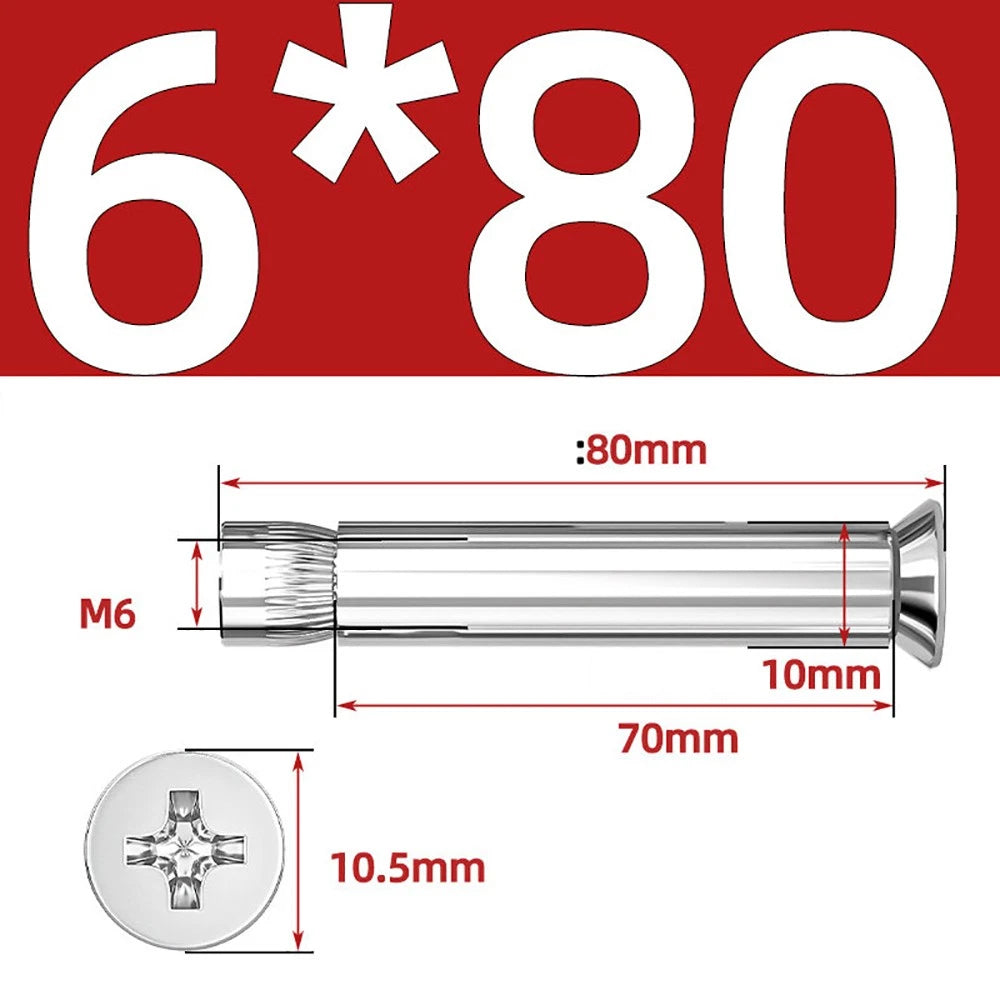

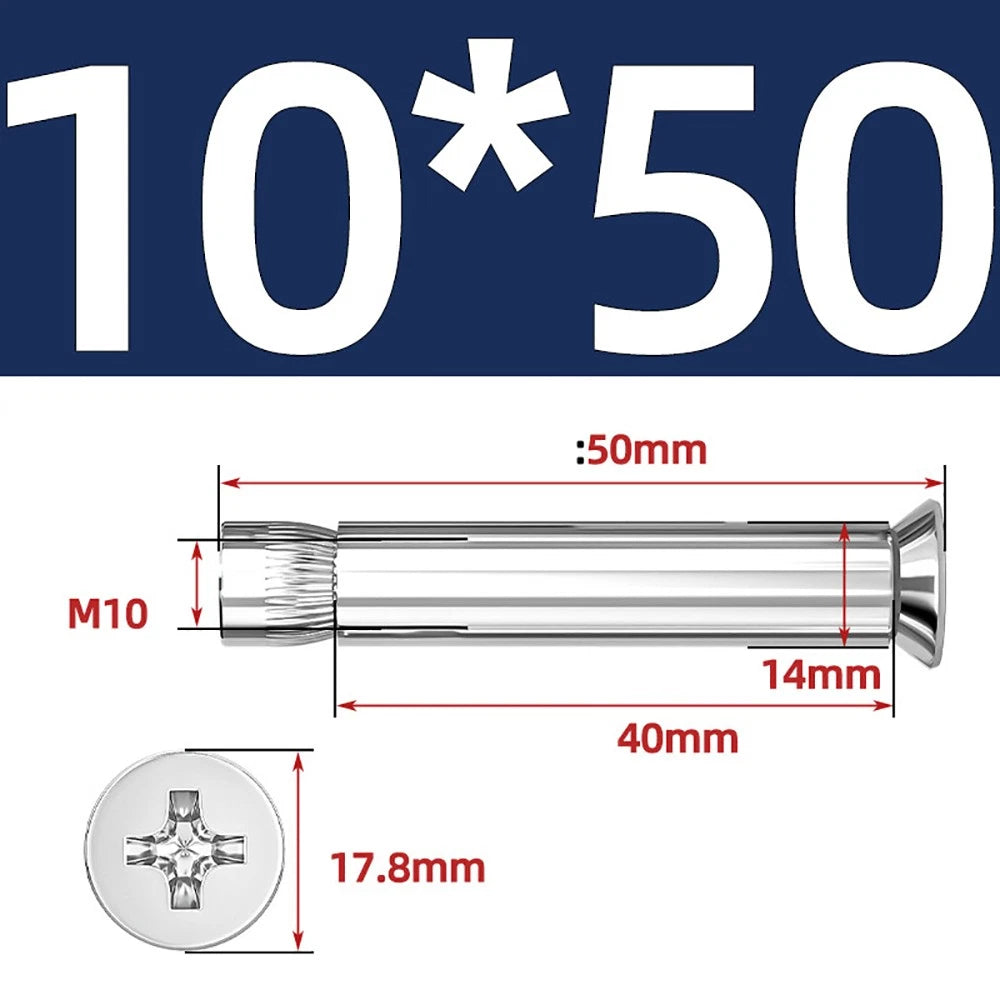

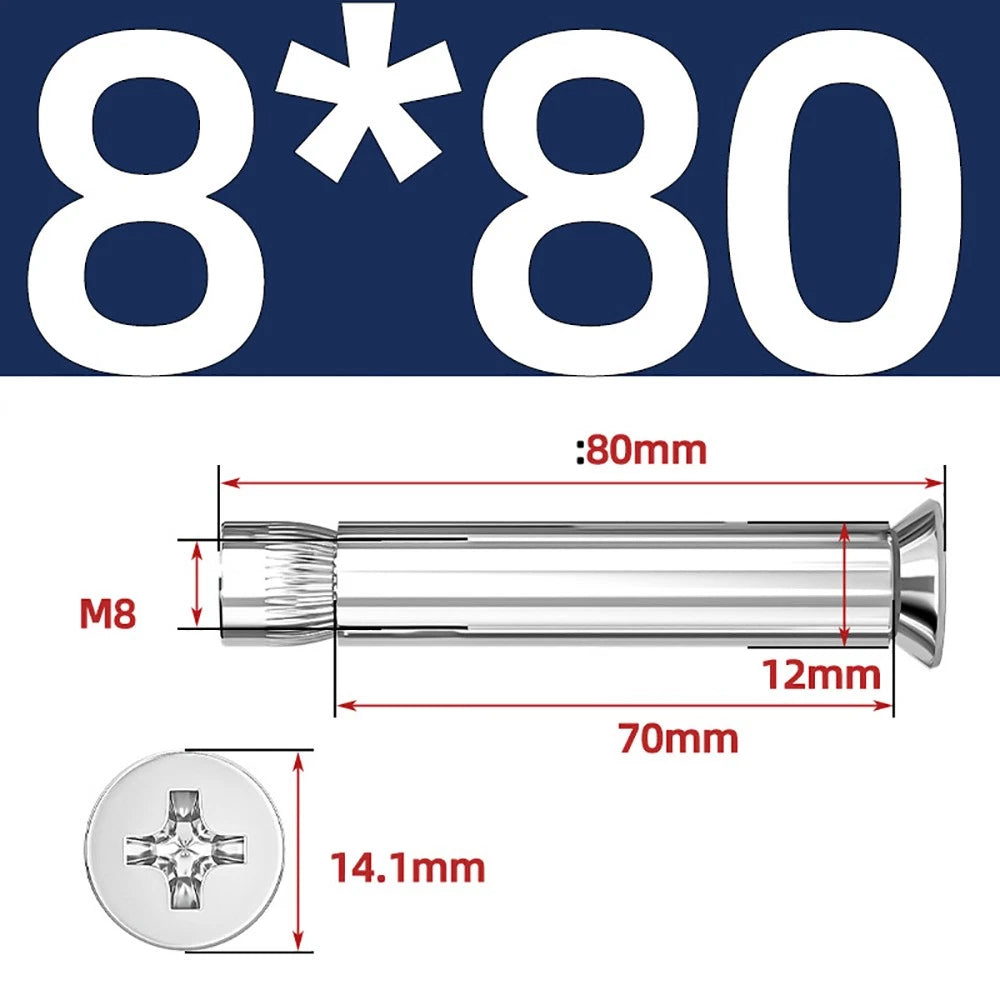

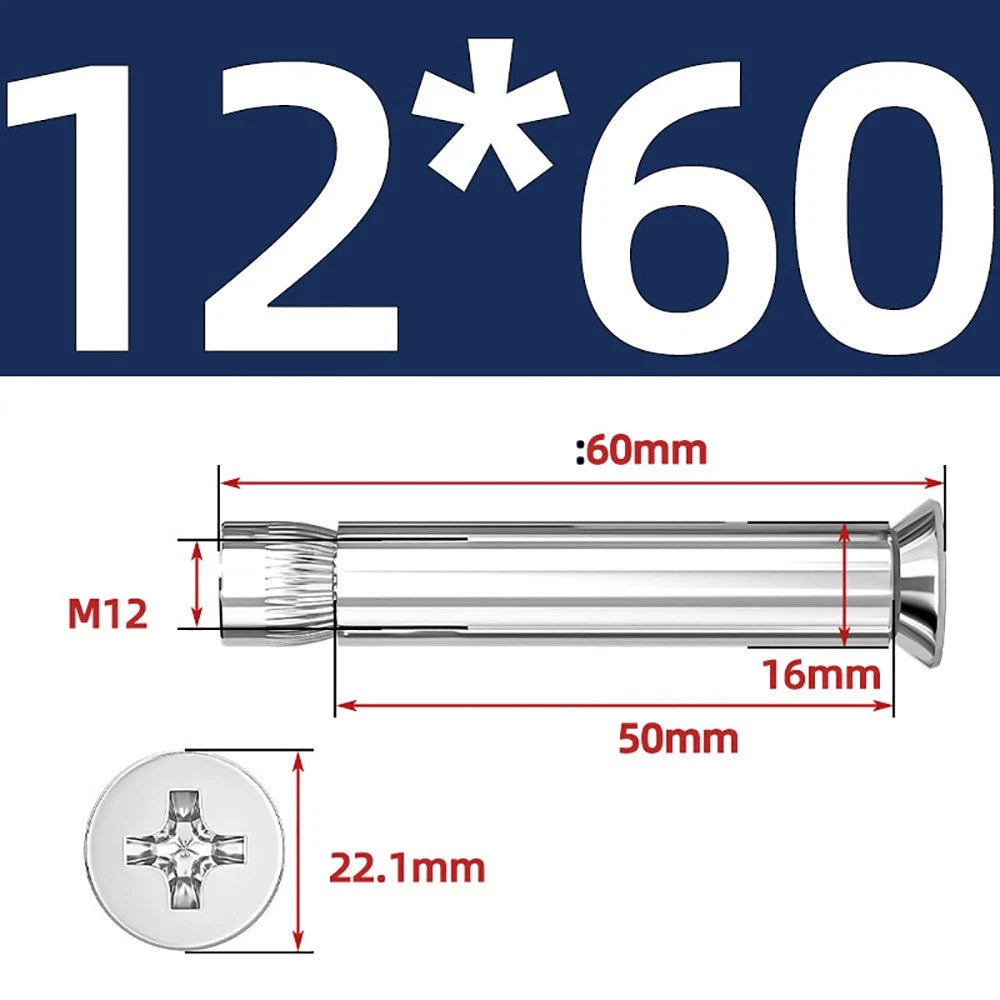

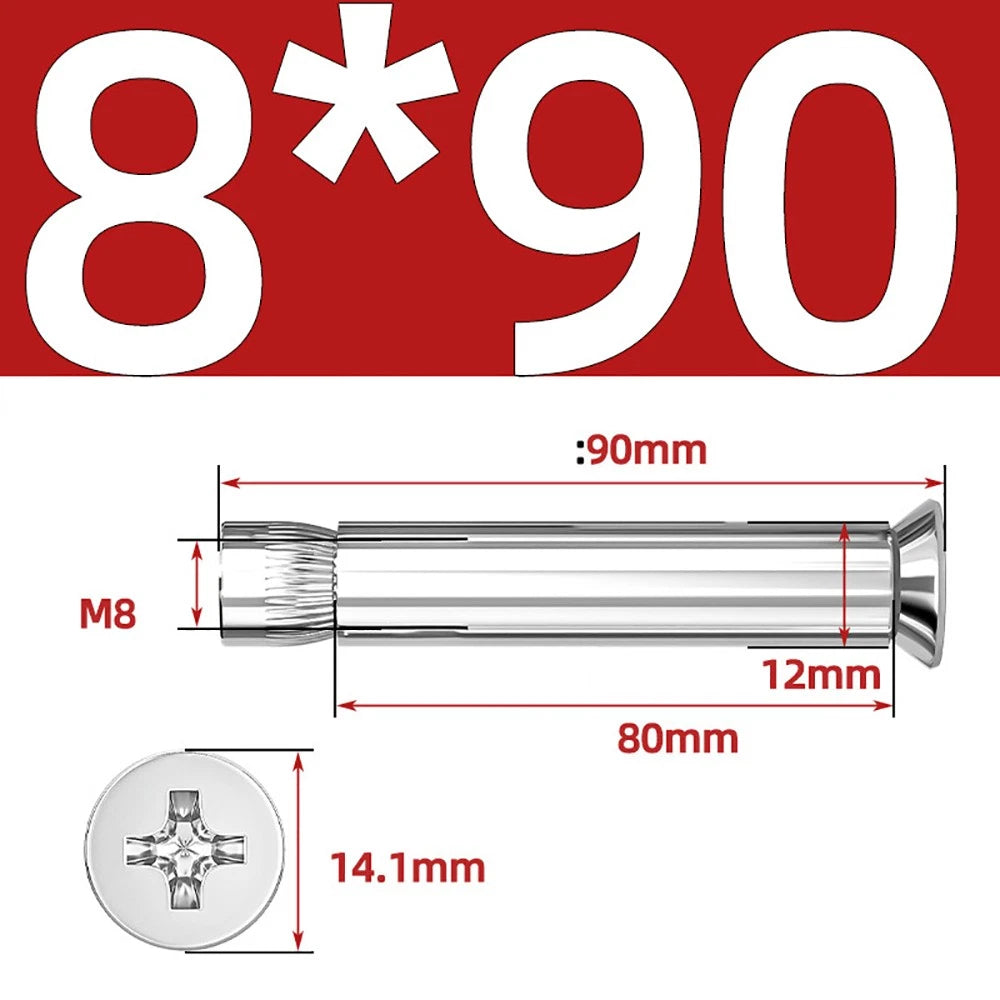

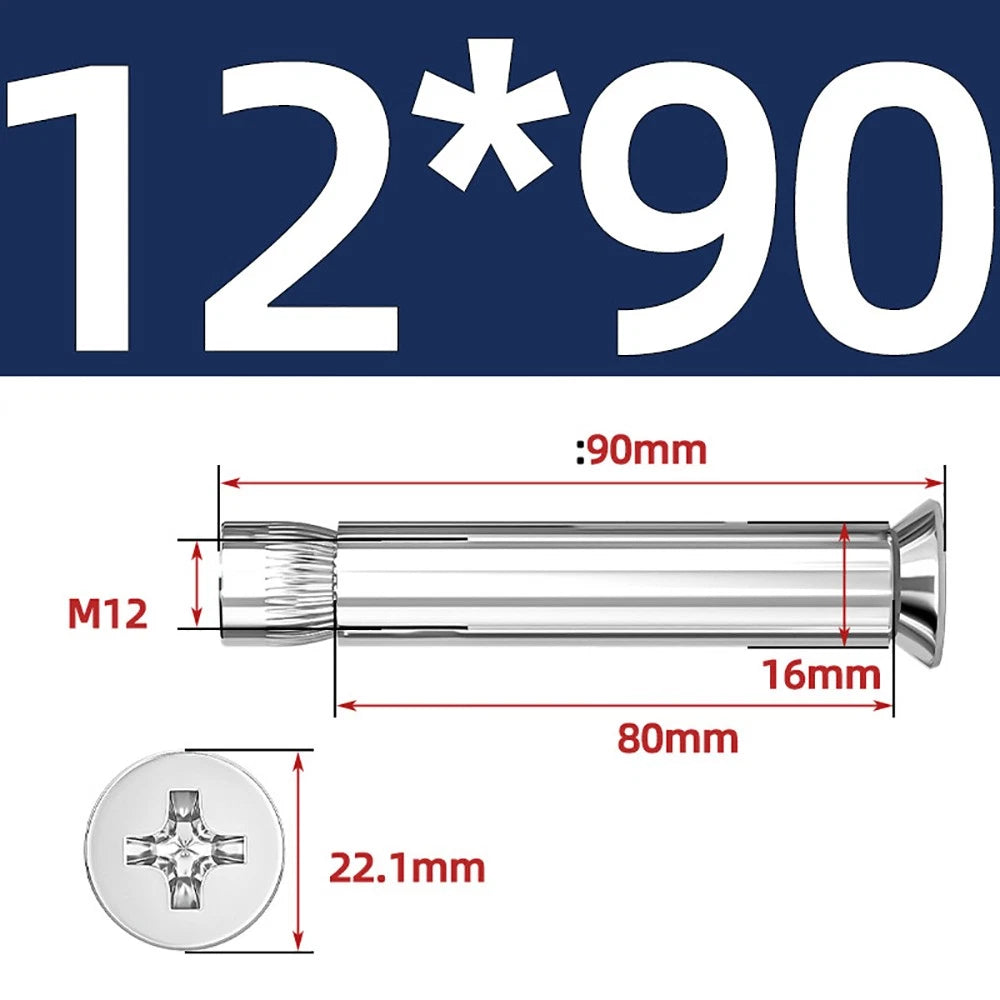

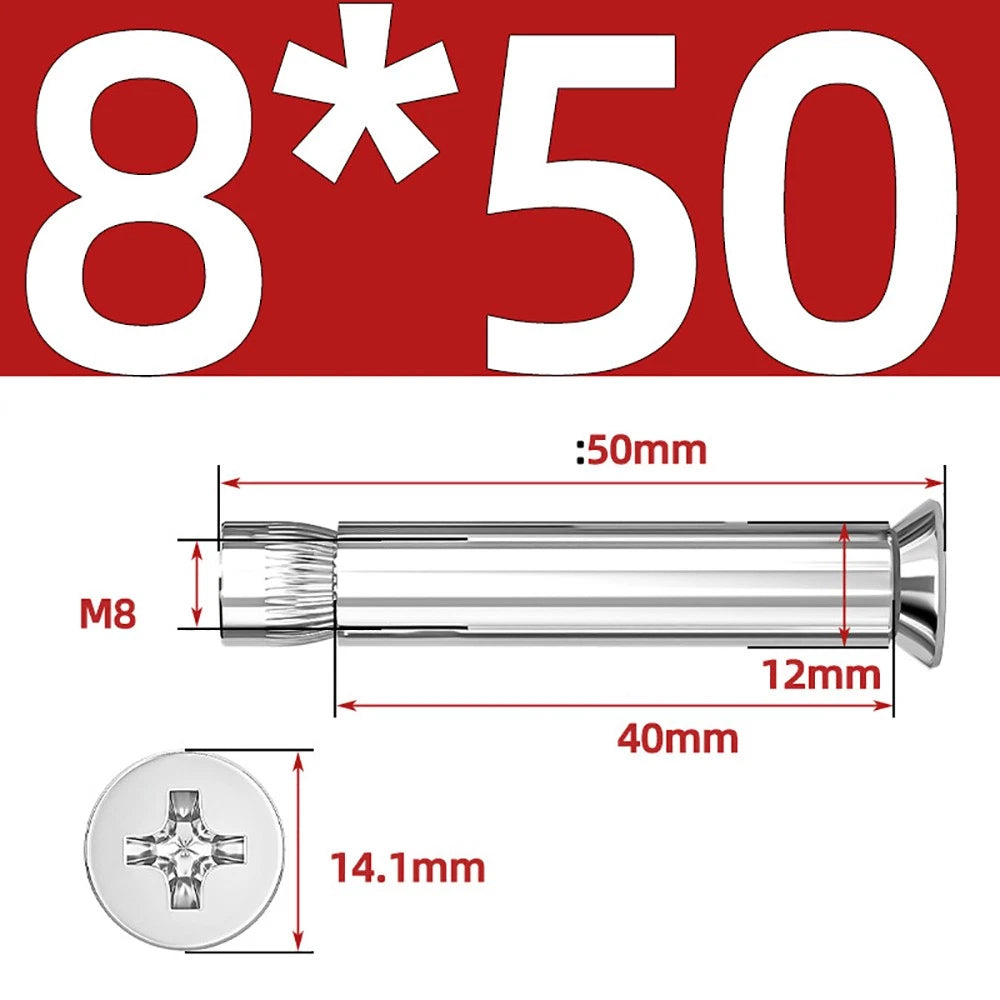

M6 (≈1/4") · M8 (≈5/16") · M10 (≈3/8") · M12 (≈1/2") |
| Thread Standard |
ISO Metric Coarse (M6×1.0 · M8×1.25 · M10×1.5 · M12×1.75) |
| Length Range |
40mm (≈1-9/16") to 200mm (≈7-7/8") — see variant for exact length |
| Material Options |
304 Stainless Steel · 201 Stainless Steel · Color Zinc |
| Finish |
304 SS: brushed/natural · 201 SS: brushed/natural · Color Zinc: zinc-plated with color coating |
| Compatible Base Materials |
Solid concrete, brick, dense masonry block |
| Anchor Mechanism |
Mechanical expansion sleeve |
| Pack Quantity |
1 Pc · 2 Pcs · 5 Pcs · 10 Pcs — see Amount variant |
| Tensile / Shear Strength |
See variant options — varies by diameter and embedment depth |
| Certifications / Standards |
Contact us to confirm |
❓ Frequently Asked Questions
How do I choose the right length for my sleeve anchor?
Generally, the anchor length should equal the fixture thickness plus the minimum embedment depth into the base material. For most concrete applications, a minimum embedment of 25–40mm is typically recommended. For example, if your bracket is 10mm (≈3/8") thick and you need 30mm (≈1-3/16") embedment, choose at least a 40mm (≈1-9/16") anchor. Always confirm the required embedment for your specific load before ordering.
What load can these sleeve anchor expansion bolts handle?
Load capacity depends on the thread diameter, embedment depth, and base material compressive strength. In general, M6 anchors are typically suited for lighter structural loads, while M10–M12 anchors handle heavier applications. Consult an engineer or refer to anchor load tables for your specific installation — we recommend not exceeding the rated working load for the diameter and embedment used.
Can these expansion bolts be used outdoors or in wet environments?
304 stainless steel variants offer good corrosion resistance and are generally suitable for outdoor and mildly corrosive environments. 201 stainless steel provides moderate corrosion resistance for indoor or sheltered outdoor use. Color zinc variants are best suited for dry indoor applications. For marine or highly corrosive environments, 316 SS is typically recommended — contact us if you need guidance on material selection.
What thread standard do these sleeve anchors use, and are they compatible with standard metric hardware?
These anchors use standard ISO metric coarse threads — M6×1.0mm pitch, M8×1.25mm, M10×1.5mm, and M12×1.75mm. They are compatible with standard metric nuts, washers, and threaded inserts. They are not compatible with UNC/UNF inch-thread hardware.

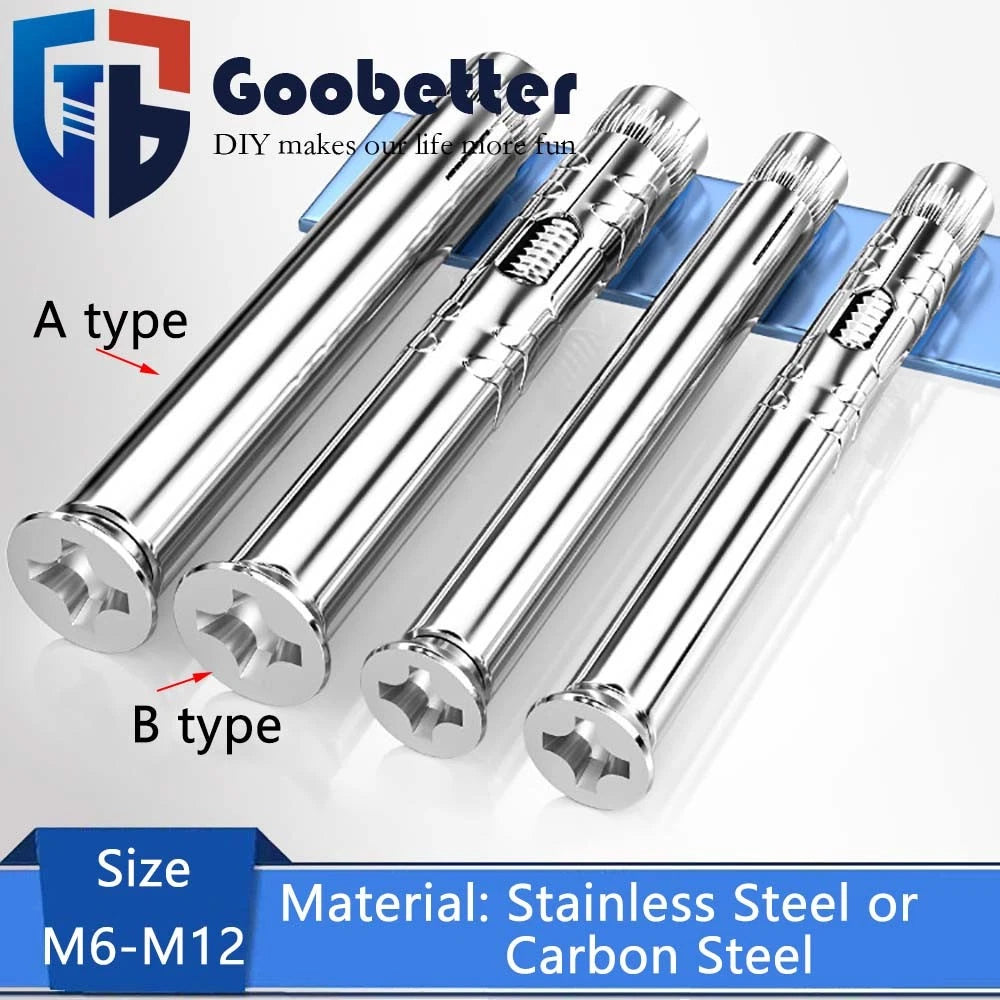

What is the difference between A Type and B Type head styles?
A Type features a standard countersunk flat head profile that sits flush with the surface when fully driven into a properly countersunk hole. B Type generally has a slightly different countersunk head angle or diameter — review the product images for each variant to confirm which profile matches your fixture's countersink geometry. Both types use a Phillips drive.
What base materials are these sleeve anchors compatible with?
Sleeve anchor expansion bolts are generally compatible with solid concrete, brick, and dense masonry block. They are not typically recommended for hollow block, aerated concrete (AAC), drywall, or soft substrates where the expansion sleeve cannot grip the hole wall properly. Always verify the base material before installation.
How do I install a sleeve anchor expansion bolt correctly?
Drill a hole matching the anchor's thread diameter and required depth into the base material using a hammer drill and masonry bit. Clean dust from the hole with a brush or compressed air. Insert the anchor through the fixture into the hole, then tighten with a Phillips driver or impact driver to expand the sleeve against the hole wall. Do not over-torque — this can crack the base material or strip the thread. Countersink the fixture hole to match the head angle for a flush finish.
🛒 Select your size, head type, material, and quantity above, then add to cart — ships from our US warehouse.
