Stainless Steel 0.5mm Sheet for Engineering Crafts DIY Model Makers & Hobbyists

Select the width closest to — but not smaller than — your required dimension. For example, if your part needs a 45 mm wide strip, choose the 50 mm option and trim to final size. All variants share the same 1000 mm length, so factor that into your cut plan to minimise offcuts.

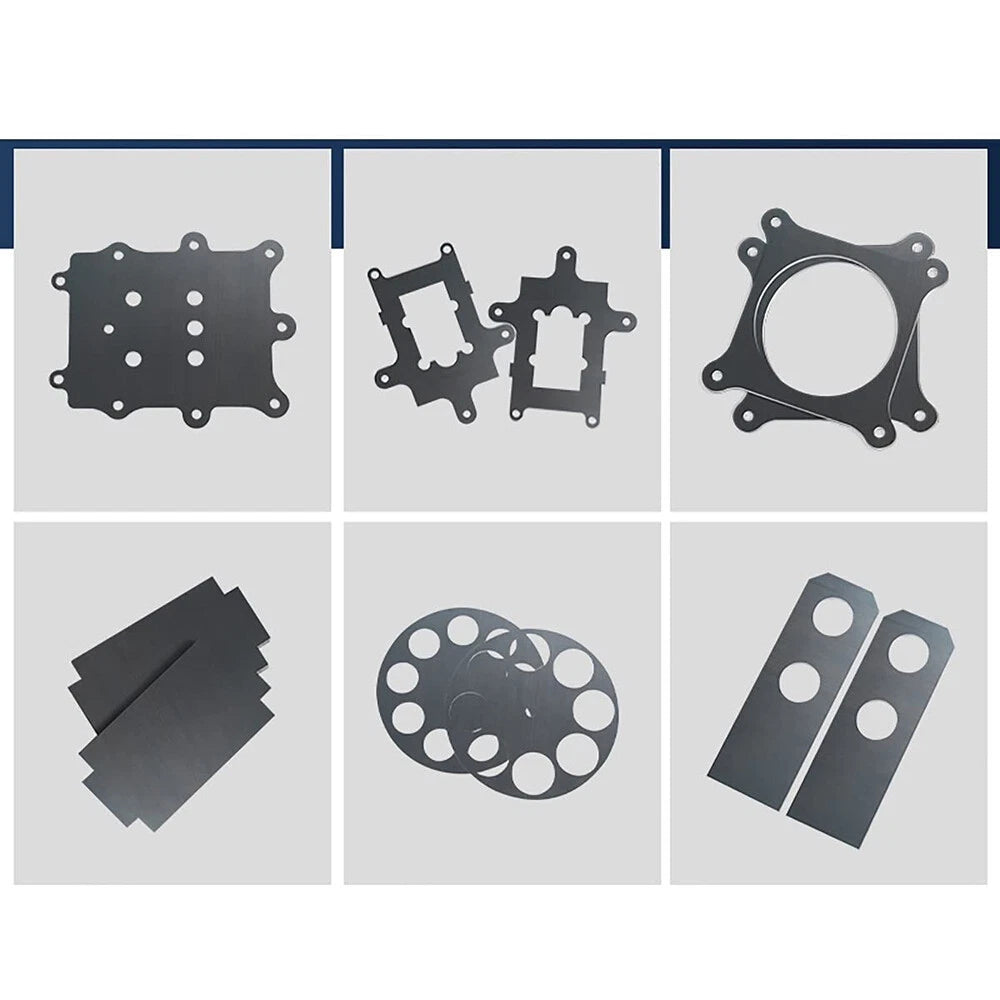

At 0.5 mm, 304 stainless steel is suitable for light structural applications such as brackets, gussets, and reinforcing plates where the sheet is supported or formed. It is not intended as a standalone load-bearing member in high-stress applications. For unsupported spans under significant load, a thicker gauge is recommended.

304 stainless steel resists oxidation and mild corrosion well in most indoor and sheltered outdoor environments. It is not fully immune to corrosion in prolonged exposure to salt spray, chlorinated water, or strong acids. For marine or highly corrosive environments, 316-grade stainless steel would be a more appropriate choice.

Yes. At 0.5 mm thickness, the sheet cuts cleanly with quality tin snips or aviation shears. Straight cuts can also be scored and snapped using a sharp utility knife and a metal straight edge. For curved or complex profiles, a jigsaw with a metal-cutting blade, a laser cutter, or a waterjet cutter will give cleaner results.

Yes. 0.5 mm 304 stainless steel is within the cutting range of most CO₂ and fibre laser cutters, as well as waterjet and CNC plasma systems. Always verify your machine's rated capacity for stainless steel at this gauge before cutting. CNC routing with carbide tooling is possible but generates significant heat — use appropriate feeds, speeds, and coolant.

Yes. Annealed 304 stainless steel at 0.5 mm is quite formable. It can be bent using a sheet metal brake, folded over a straight edge, or formed around a mandrel. Allow for springback — stainless steel springs back more than mild steel, so overbend slightly to achieve your target angle. Avoid very tight bend radii (less than 0.5 mm) to prevent cracking at the bend line.

Choose 0.5 mm when weight, formability, and ease of cutting are priorities — typical for model making, decorative inlays, shim stock, and thin cladding. Move to a thicker gauge (1 mm+) when you need greater rigidity, higher load capacity, or resistance to denting in high-traffic areas. If you are unsure, contact us to confirm the right specification for your application.
