When a failed bearing brings a drone, RC car, or precision instrument to a halt, the culprit is almost always an undersized component that couldn't handle the load or the environment. Engineers, hobbyists, and repair technicians who work with miniature rotating assemblies need stainless steel mini deep groove ball bearings they can trust to run quietly, resist corrosion, and fit exactly where standard bearings won't.

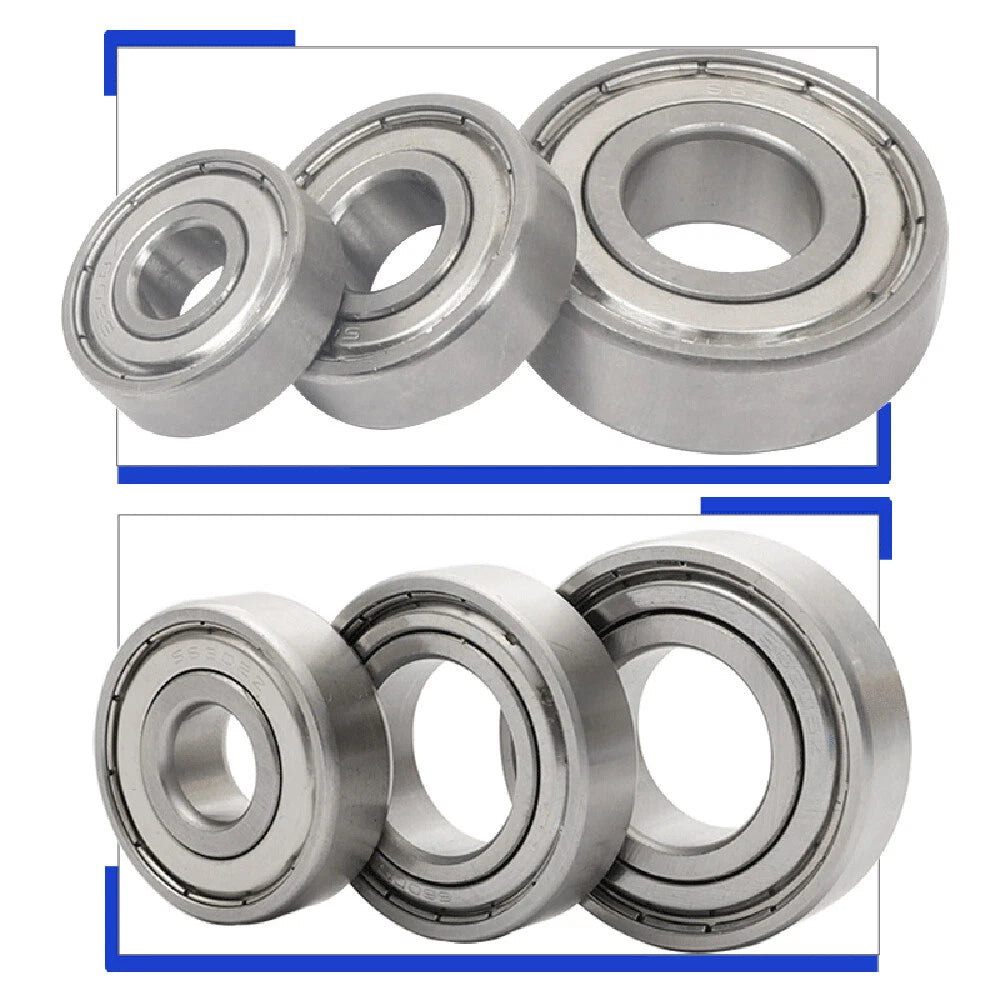

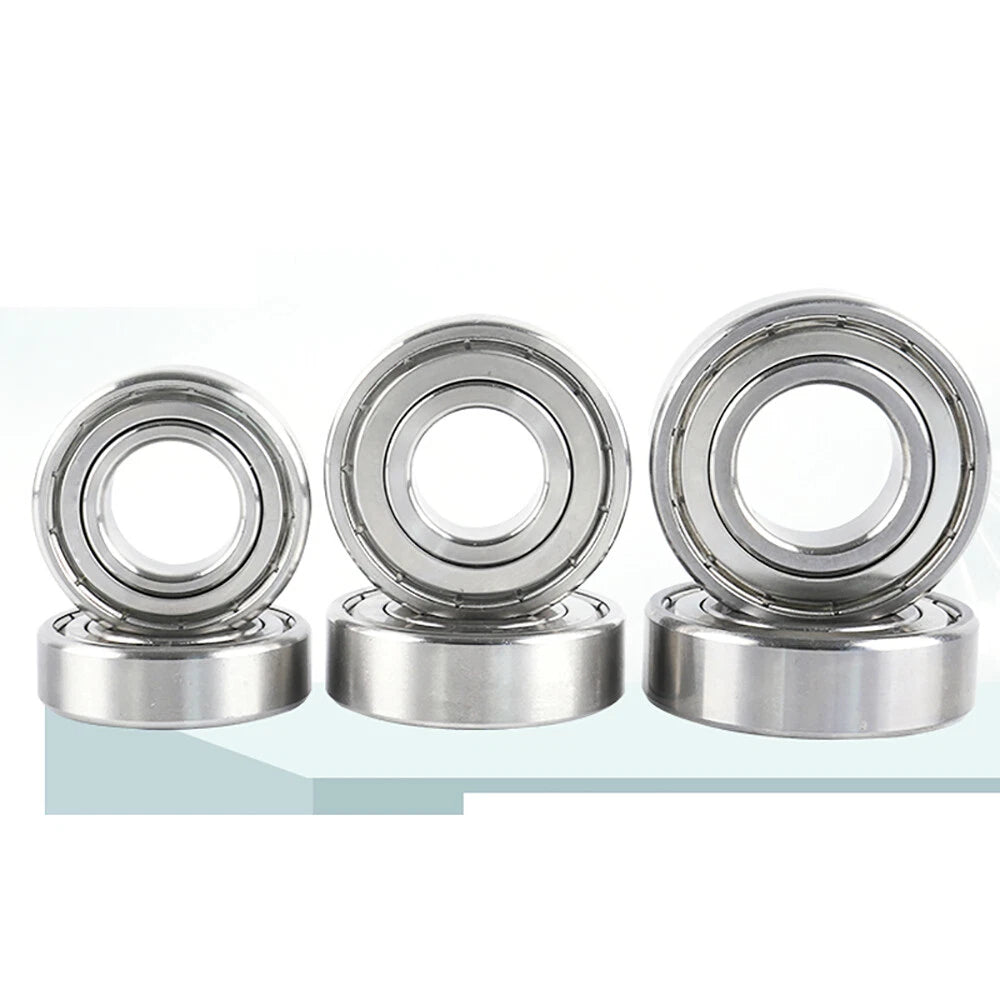

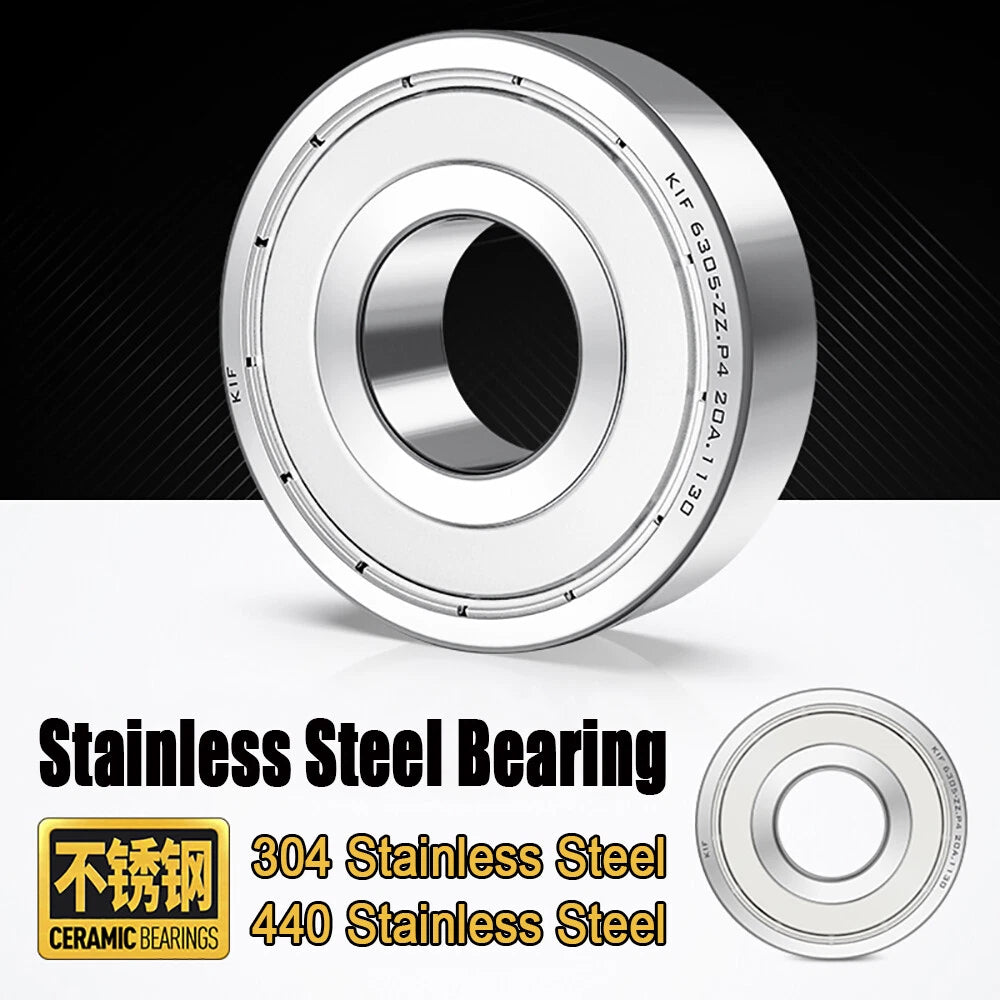

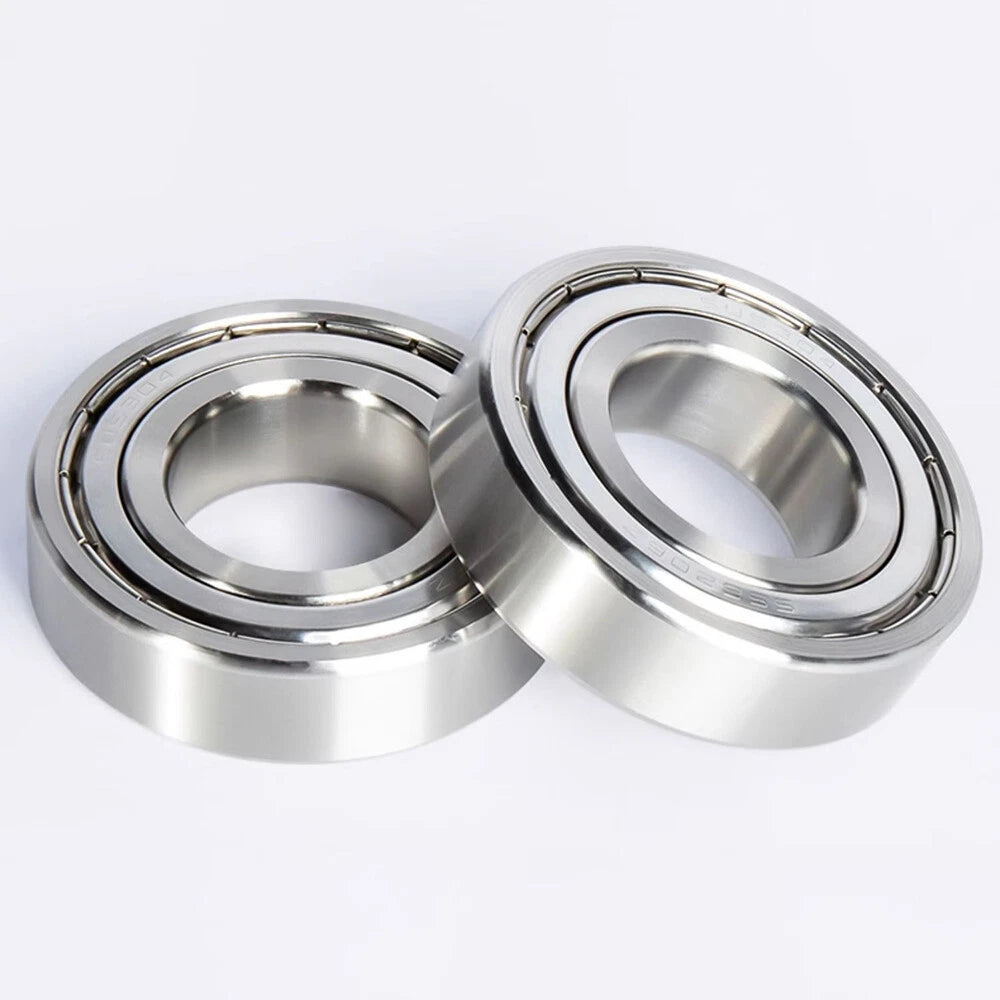

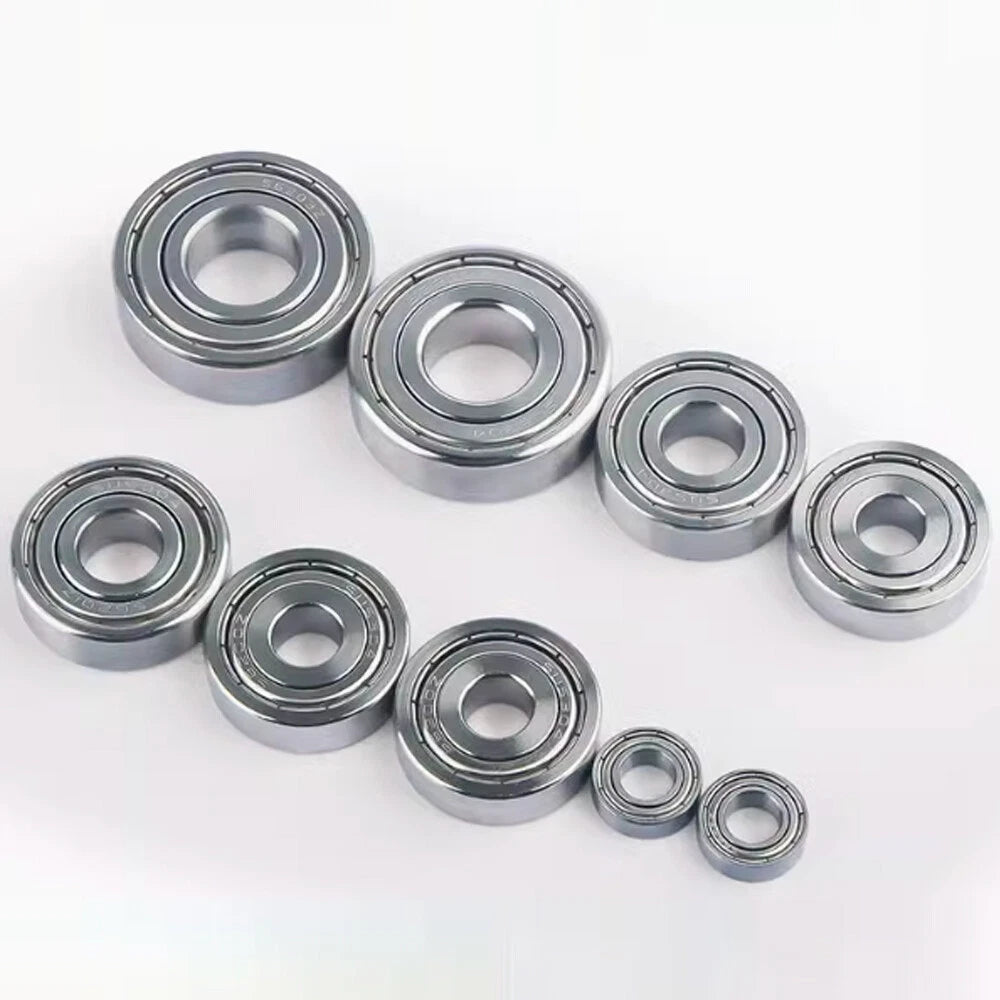

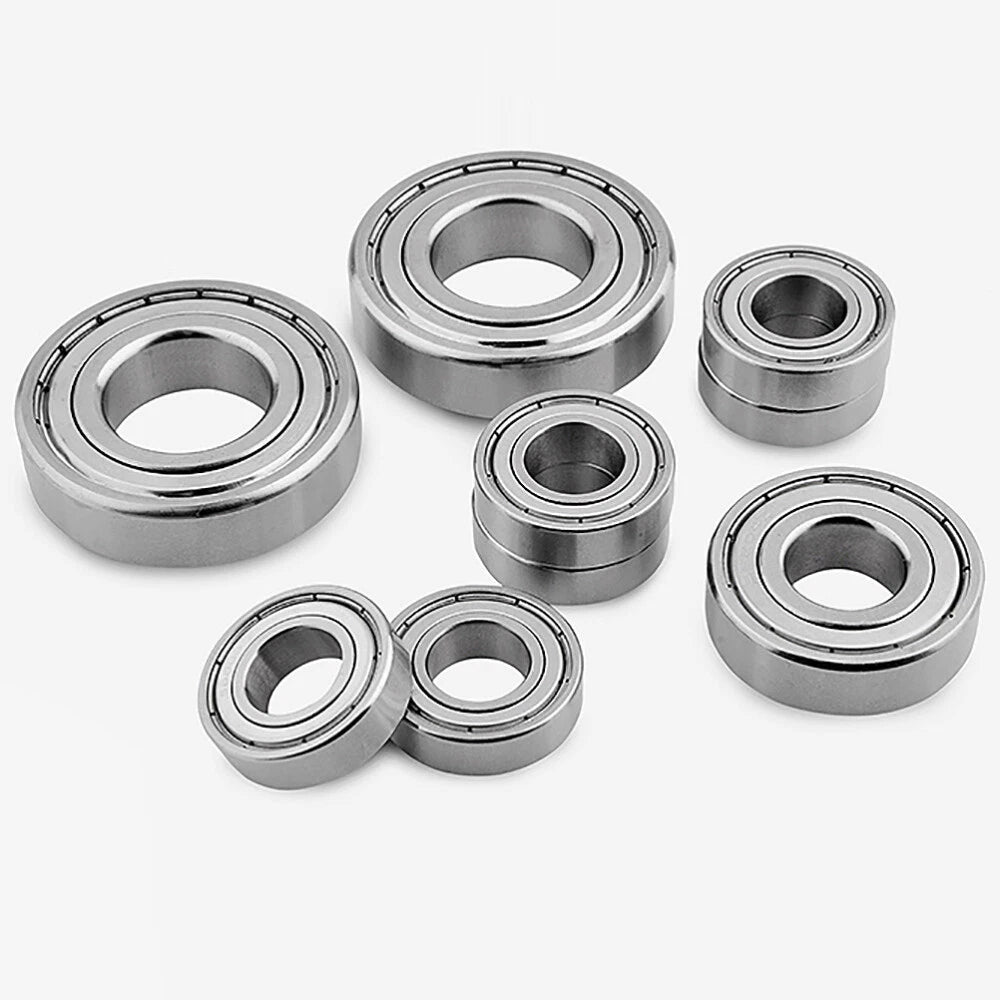

These stainless steel mini deep groove ball bearings are available in inner diameters from 2 mm to 9 mm (approximately 0.079" to 0.354"), with outer diameters ranging from 5 mm to 26 mm and widths from 2.5 mm to 8 mm. Two material grades are offered: 440C martensitic stainless steel for maximum hardness and load capacity, and 304 austenitic stainless steel for superior corrosion resistance in wet or chemically active environments. All variants feature double-shielded (ZZ) steel closures that retain grease and exclude contaminants without adding significant drag.
Typical applications for these miniature deep groove ball bearings include RC vehicle wheel hubs and motor shafts, drone arm pivots and gimbal axes, 3D printer extruder and idler assemblies, medical and dental instrument handpieces, fishing reel spool spindles, and small electric motor end shields. The compact envelope and low starting torque make them a reliable choice wherever space is at a premium and smooth rotation is non-negotiable.
| Bearing Type | Deep Groove Ball Bearing (Miniature Series) |
|---|---|
| Shield Type | ZZ (Double Steel Shield, Non-Contact) |
| Inner Diameter (d) | 2 mm – 9 mm (0.079" – 0.354") |
| Outer Diameter (D) | 5 mm – 26 mm (0.197" – 1.024") |
| Width (B) | 2.5 mm – 8 mm (0.098" – 0.315") |
| Material Options | 440C Stainless Steel / 304 Stainless Steel |
| Lubrication | Grease-packed (factory pre-lubricated) |
| Operating Temperature | See variant options |
| Radial Load Capacity | See variant options |
| Quantity per Pack | 1 / 3 / 5 / 10 pieces |
| Series Covered | SMR, S68, S69, S60, S62, SR188 and related miniature series |
| Dimensional Standard | Metric (ISO) |
Choose 440C when your priority is load capacity and hardness — it achieves Rockwell HRC 58–60 after heat treatment, making it better suited for higher-speed or higher-load applications such as RC motor shafts and 3D printer idlers. Choose 304 when corrosion resistance is the primary concern, for example in fishing reels, marine environments, or assemblies exposed to cleaning chemicals. 304 is softer but resists rust and oxidation more effectively in wet conditions.

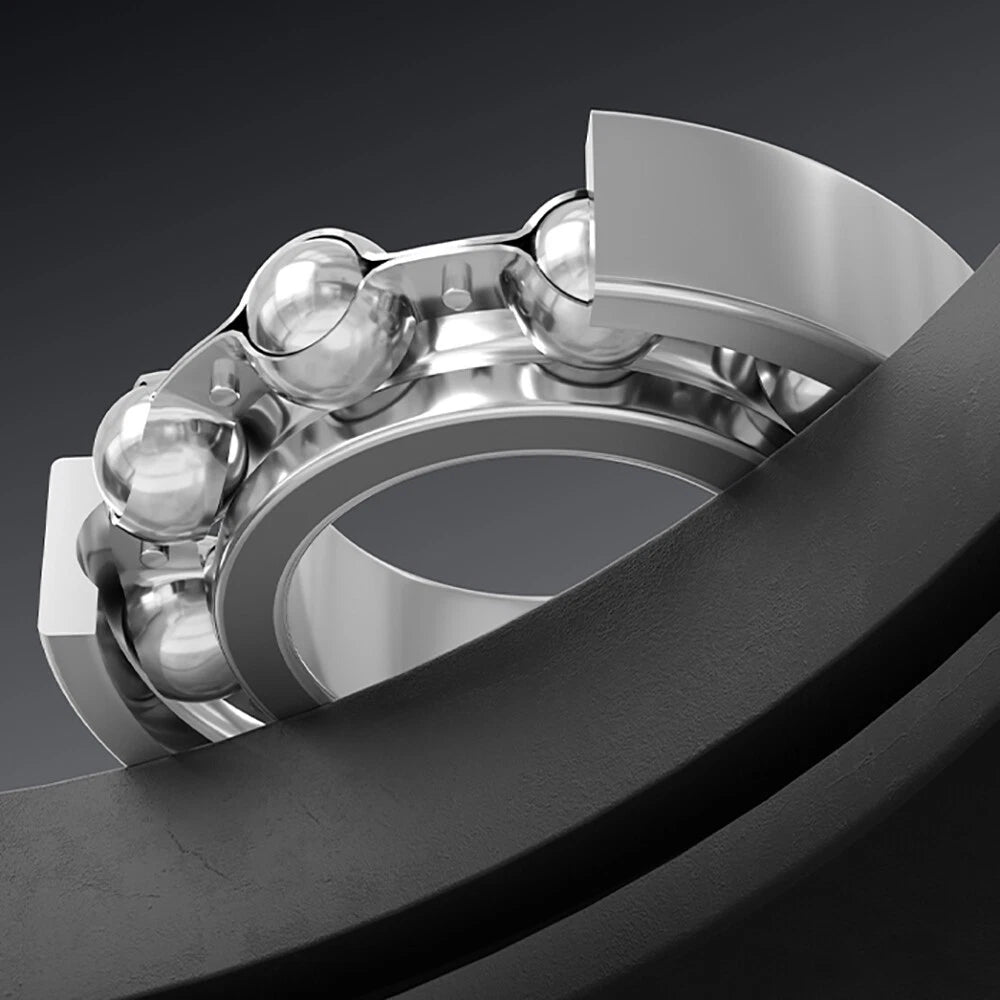

ZZ indicates double-shielded: a steel plate is pressed into a groove on each side of the outer ring, enclosing the ball and raceway assembly. The shields are non-contact (they do not touch the inner ring), so they add minimal friction while keeping contaminants out and grease in. The shields can be carefully pried out with a thin tool if you need to re-lubricate, but they are not designed for repeated removal and may deform if forced.

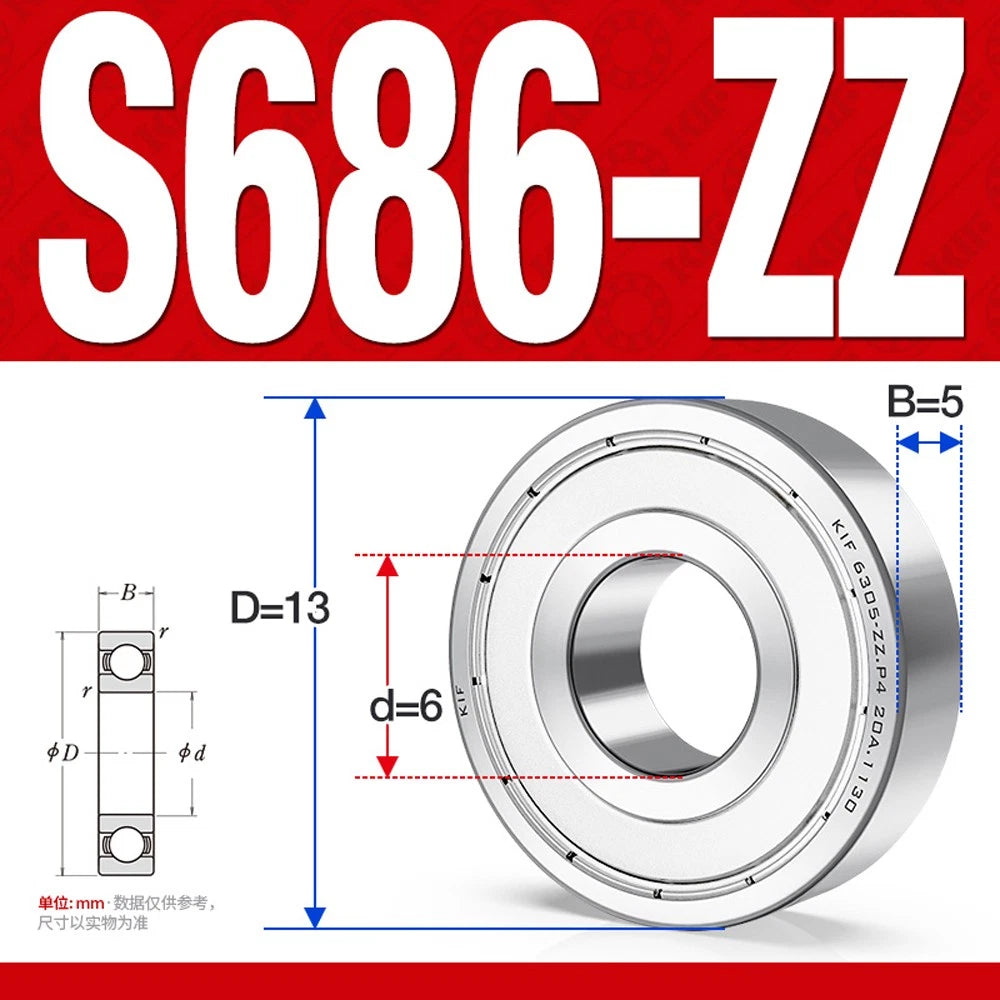

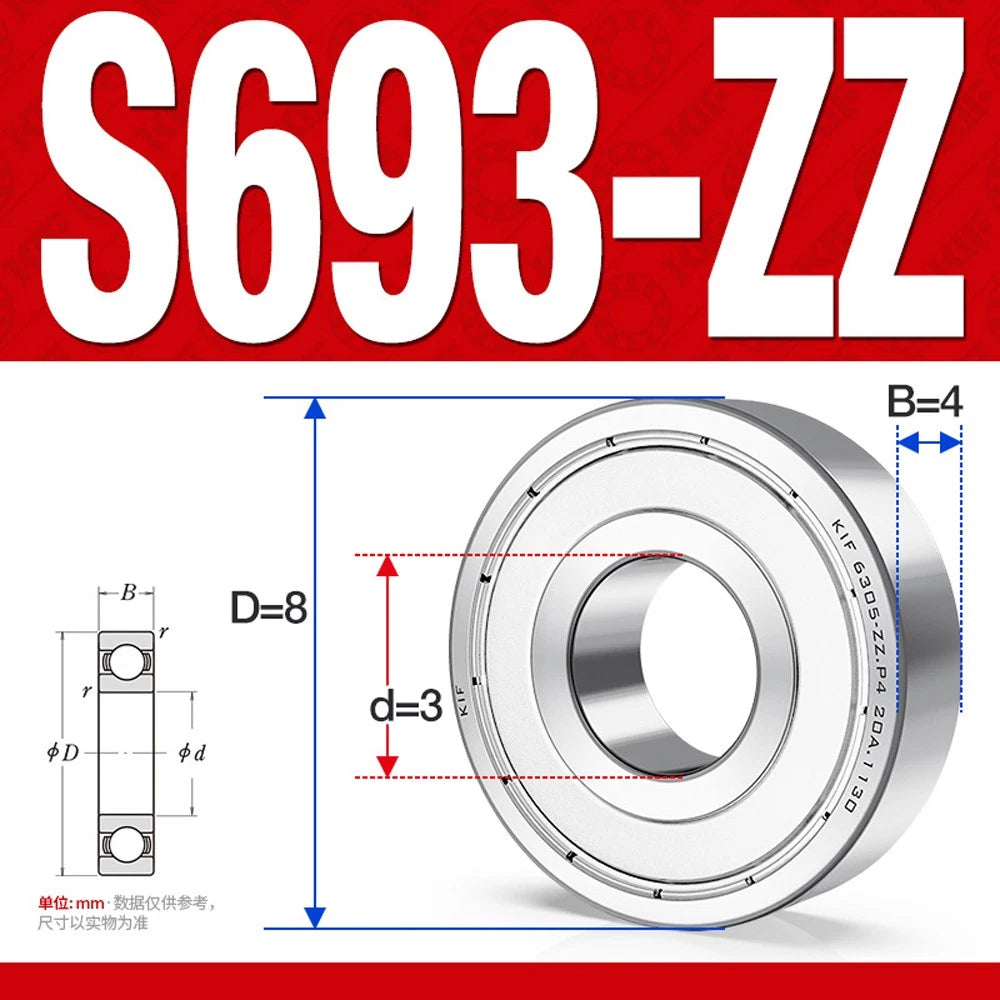

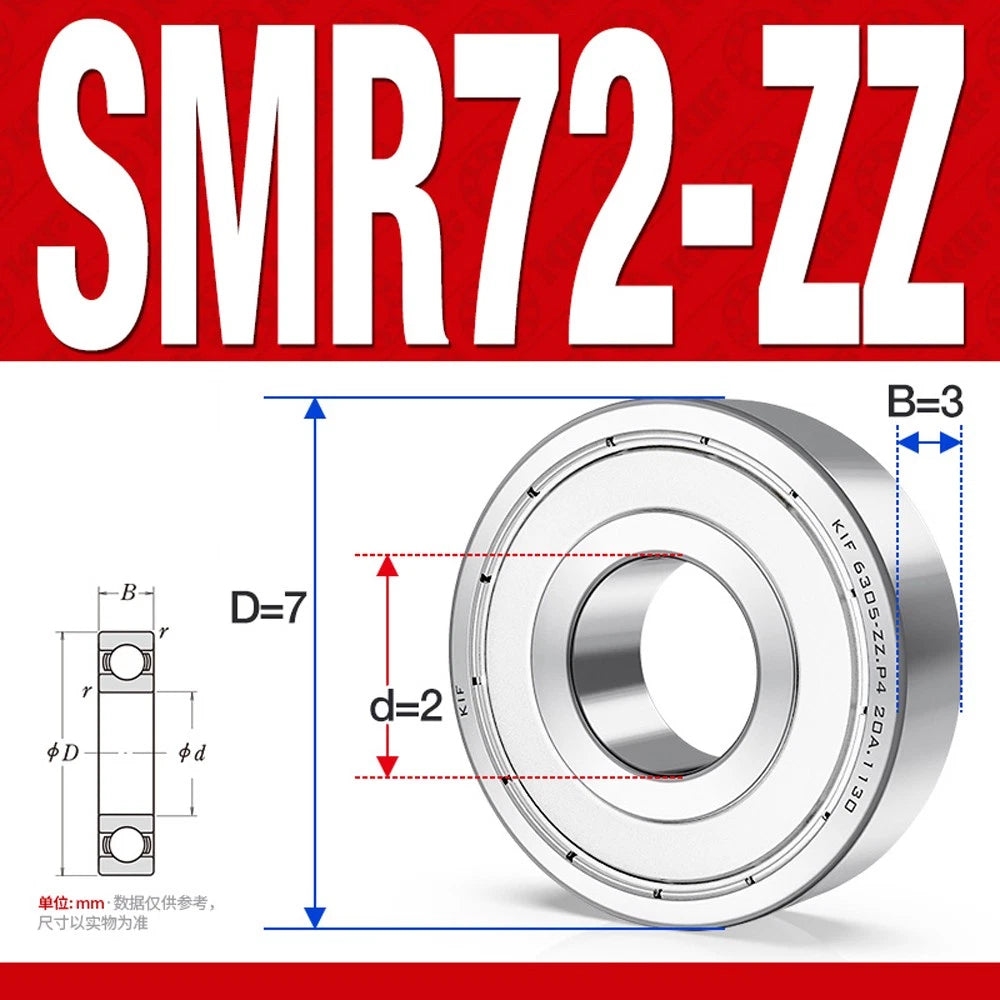

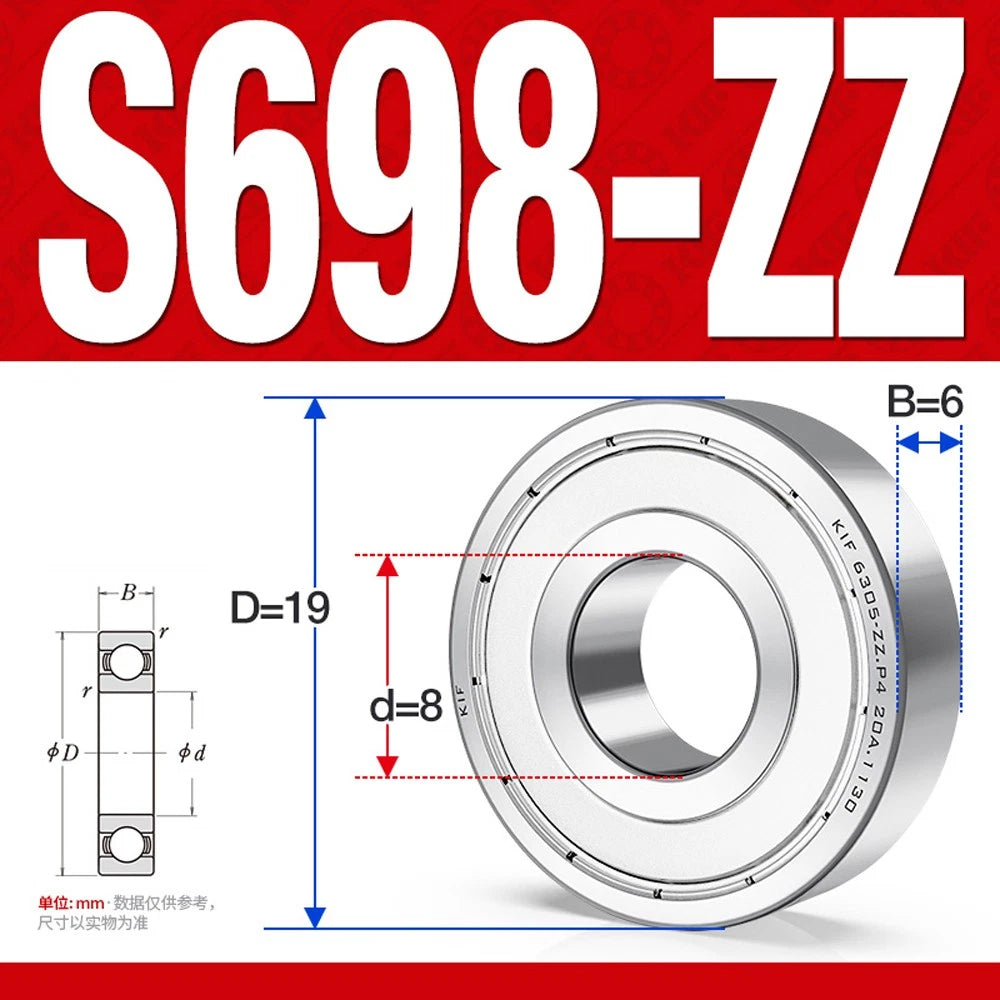

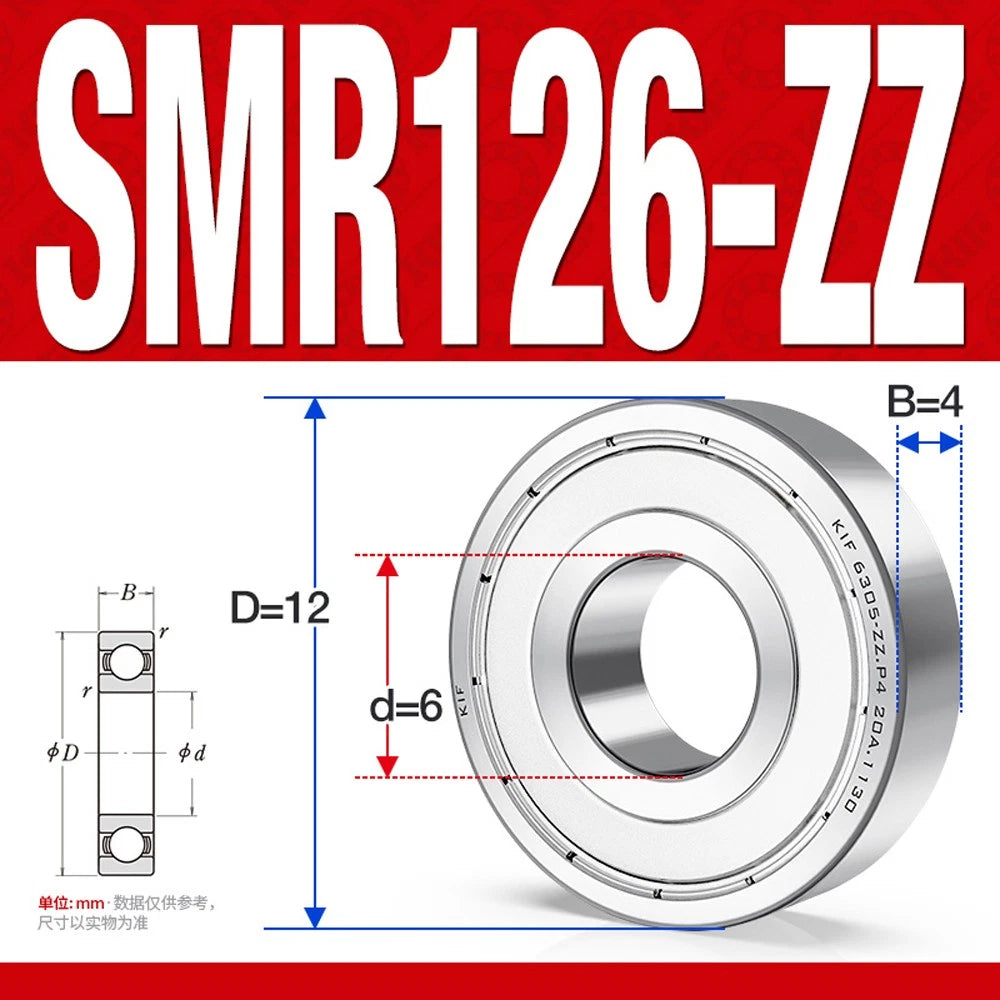

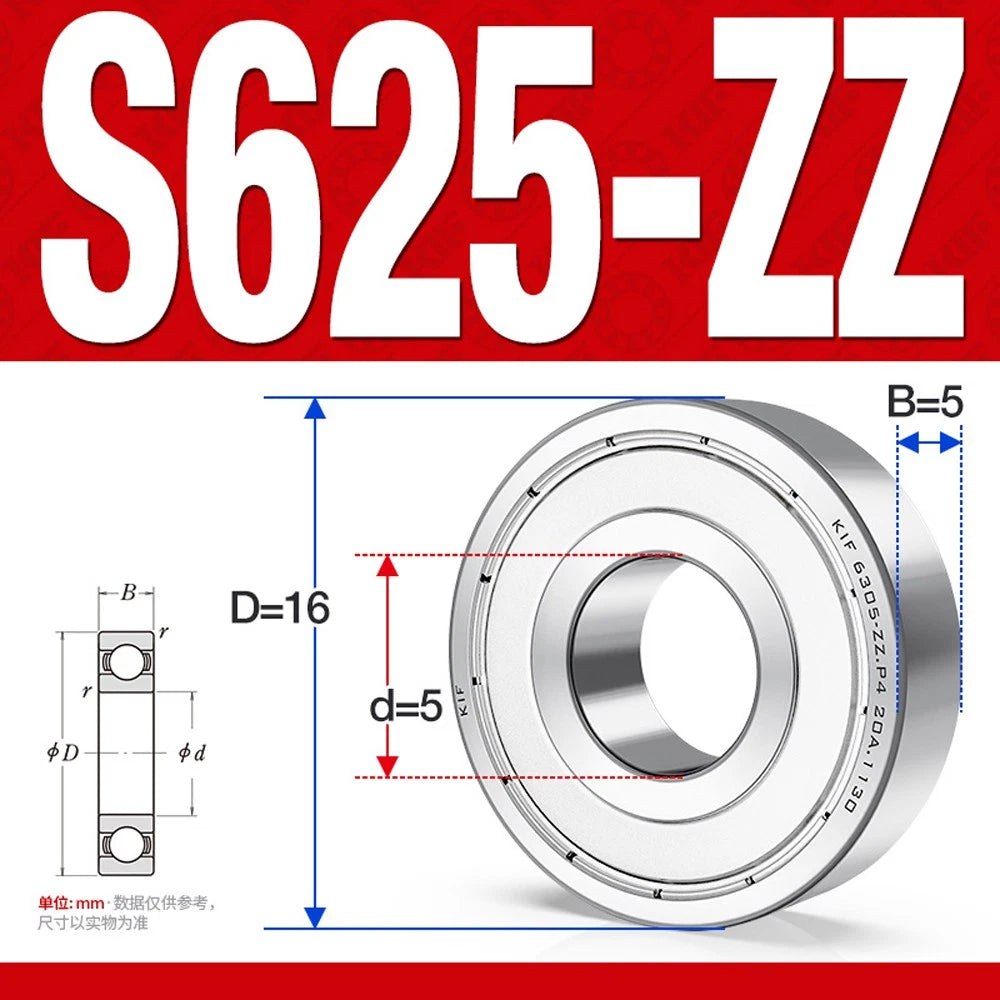

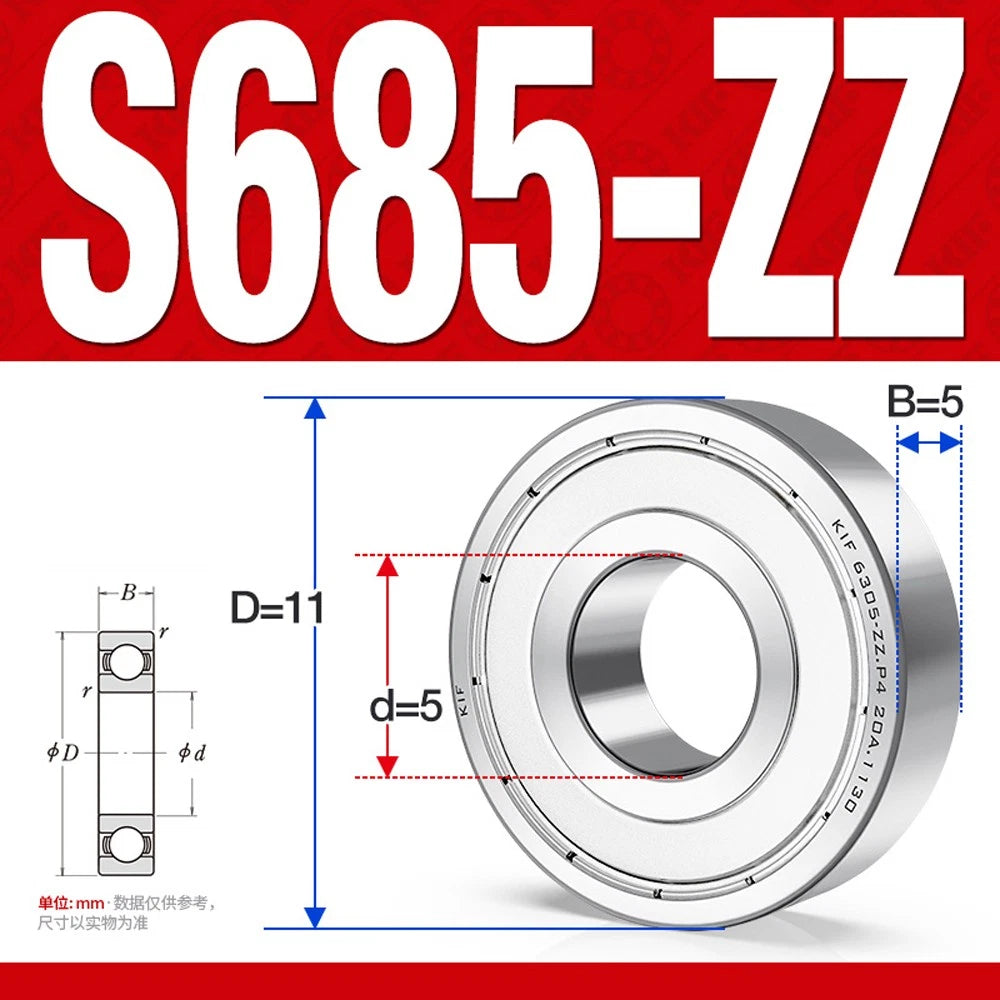

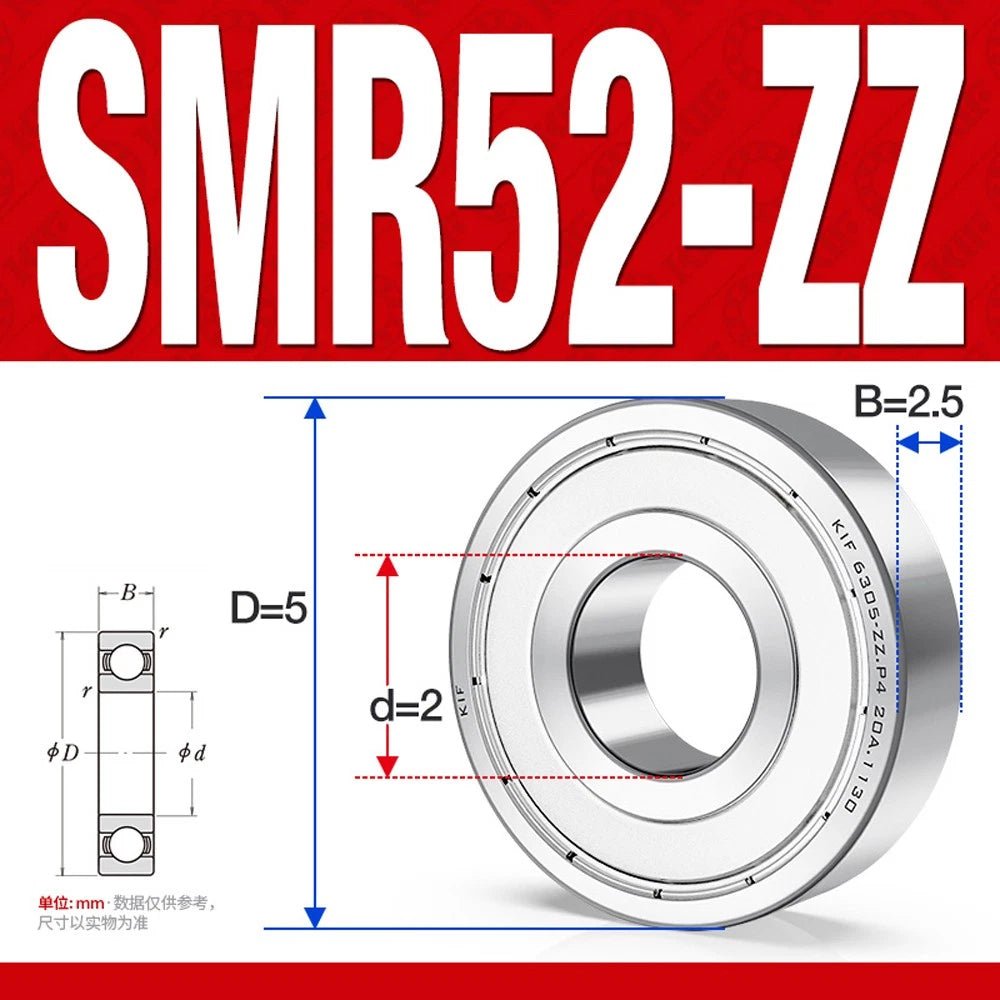

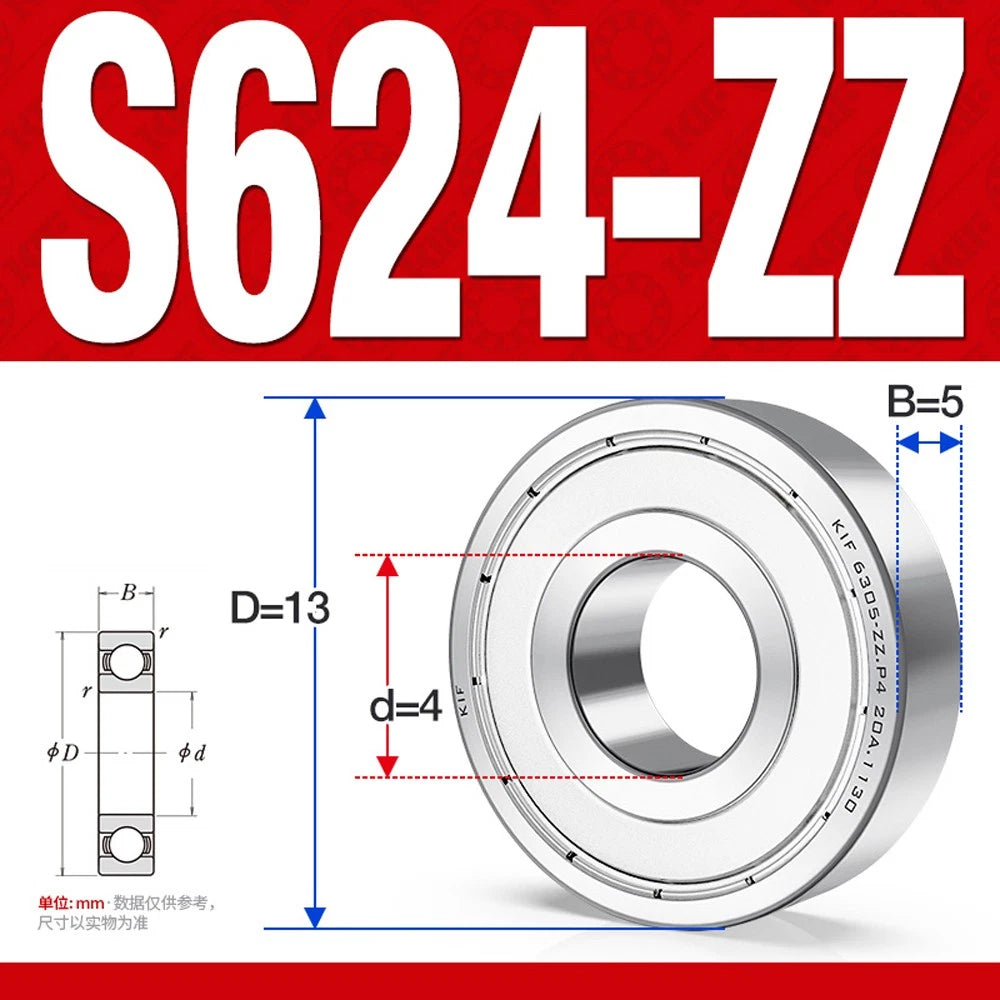

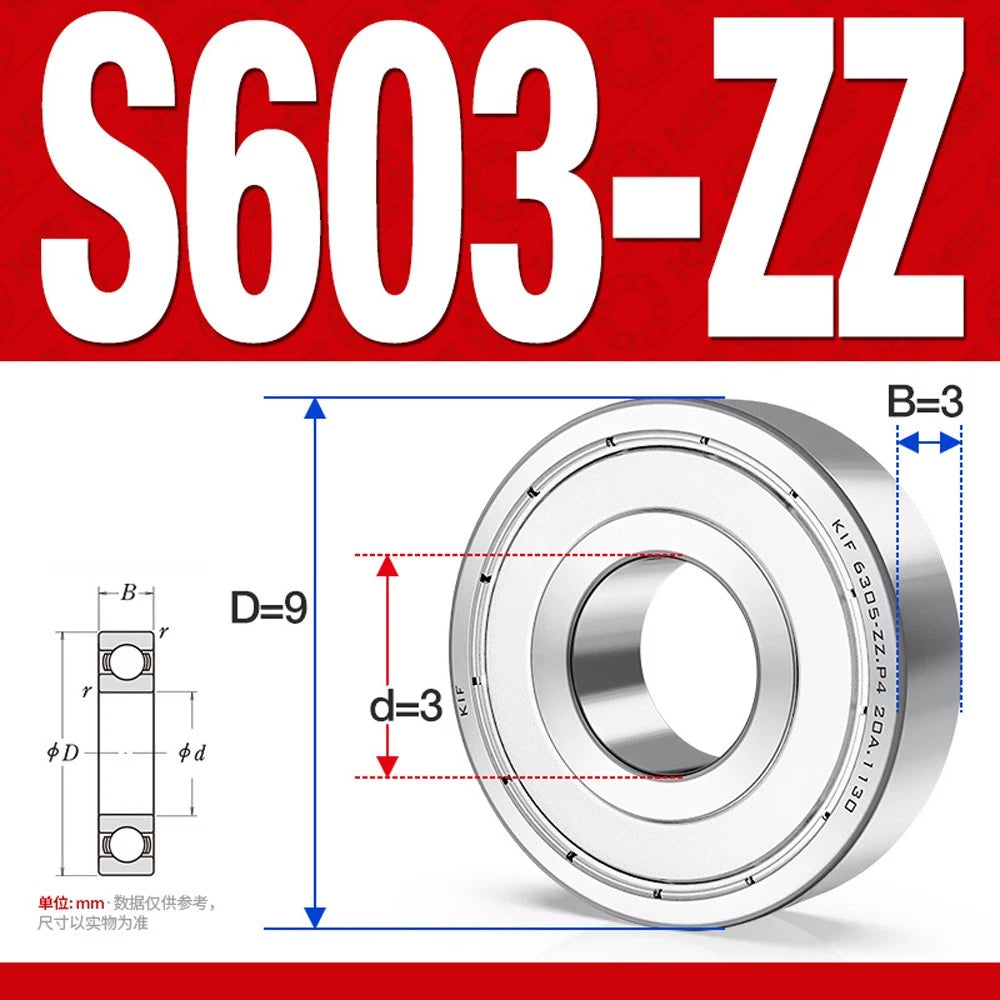

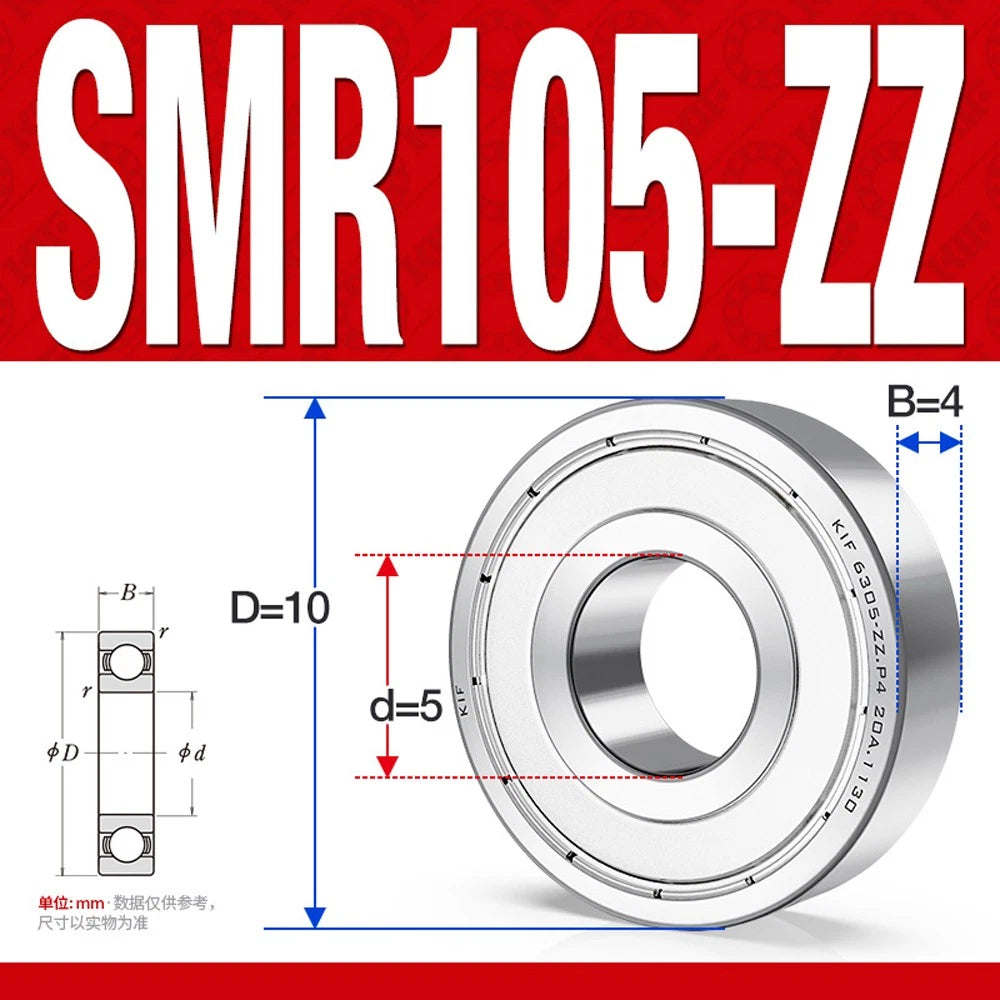

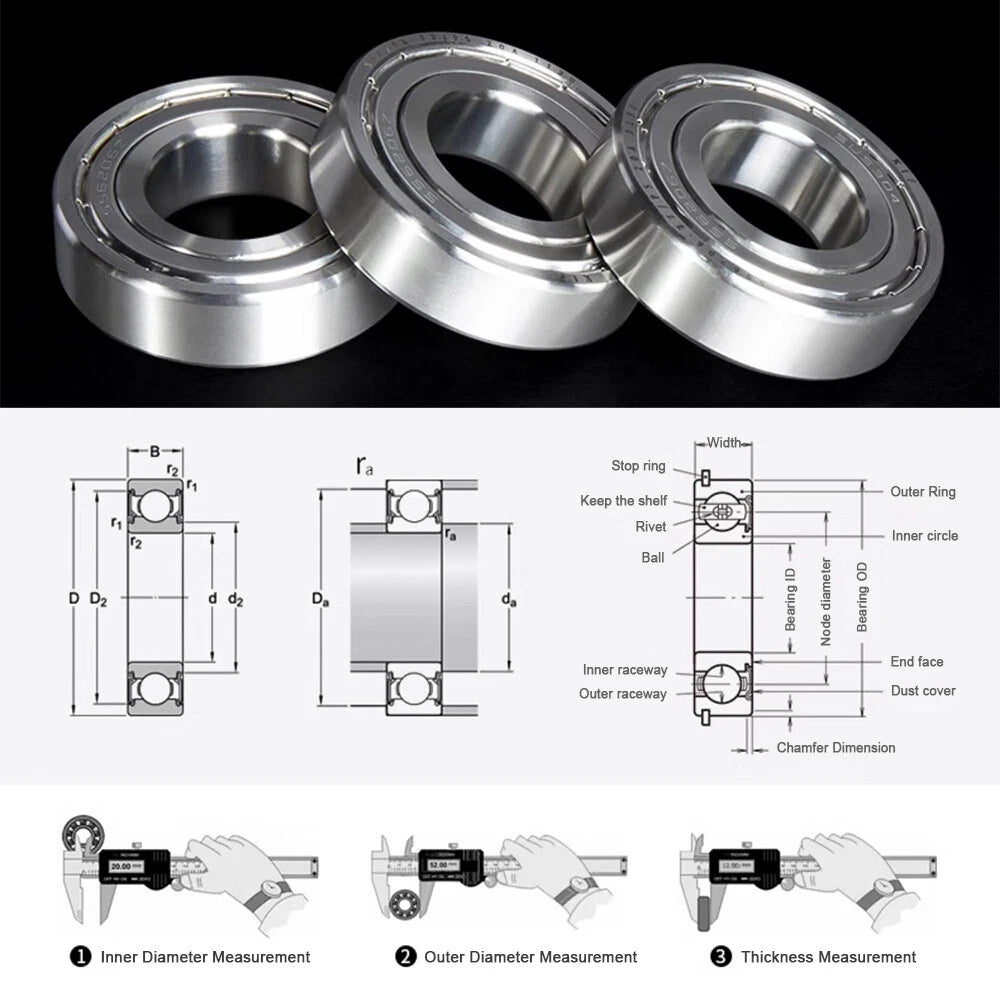

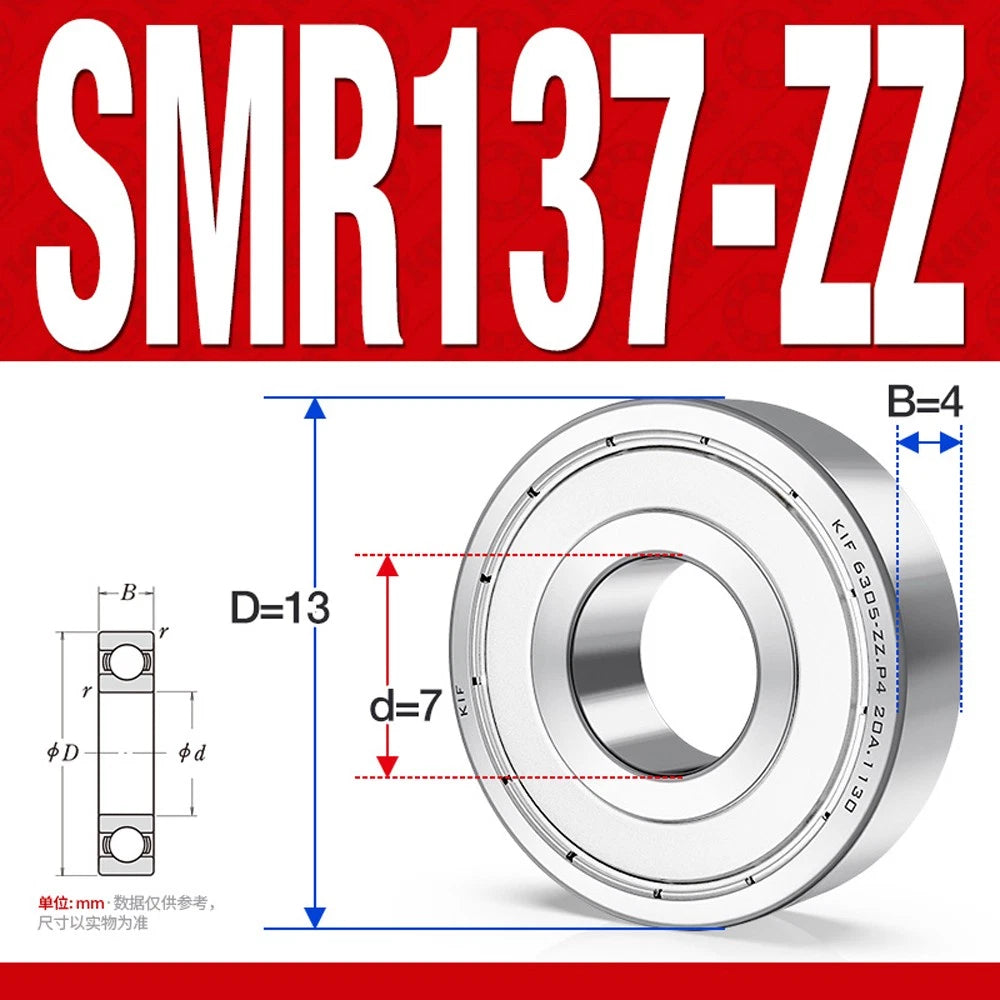

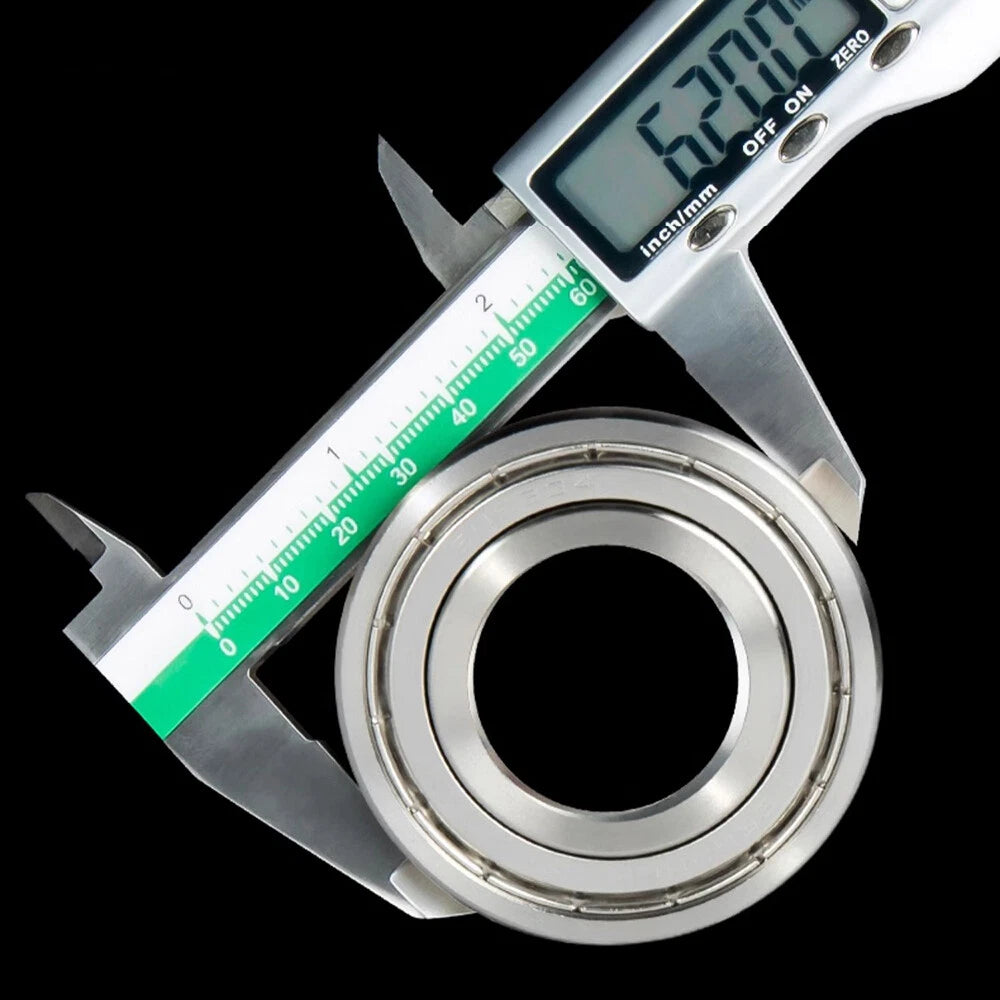

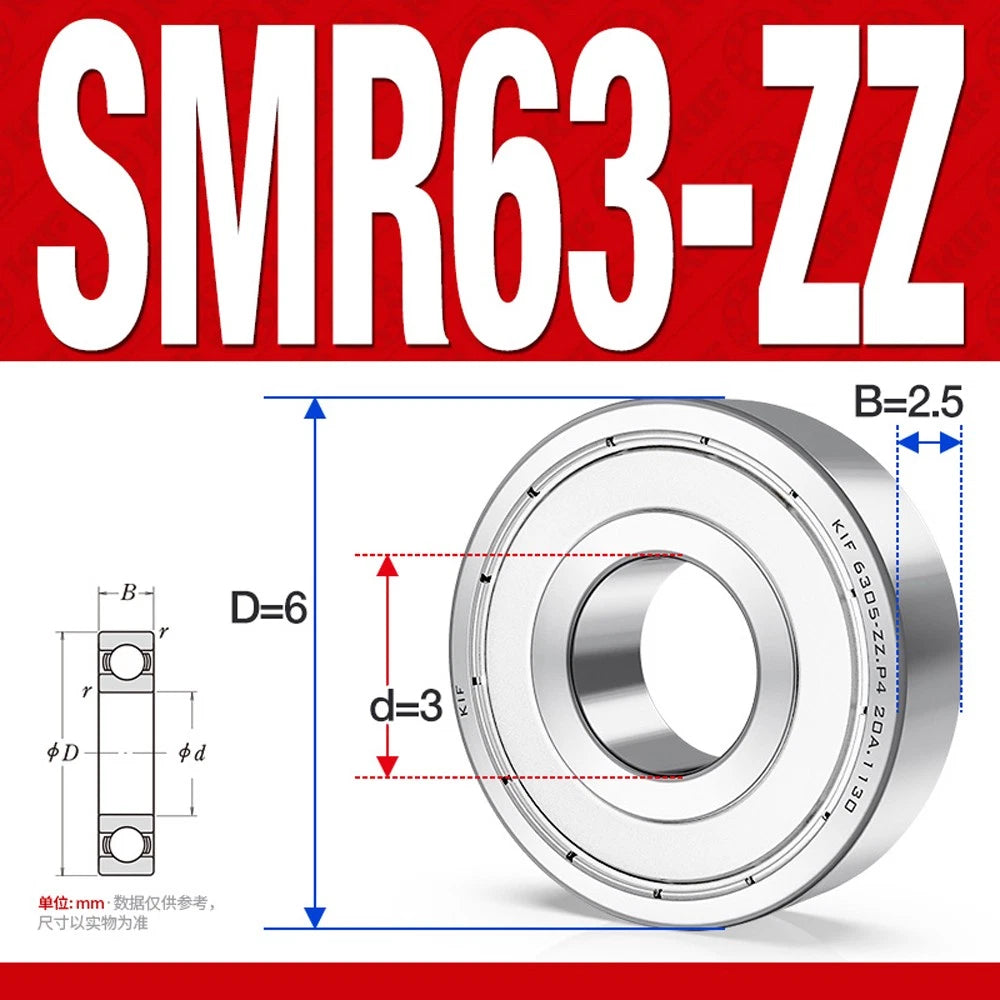

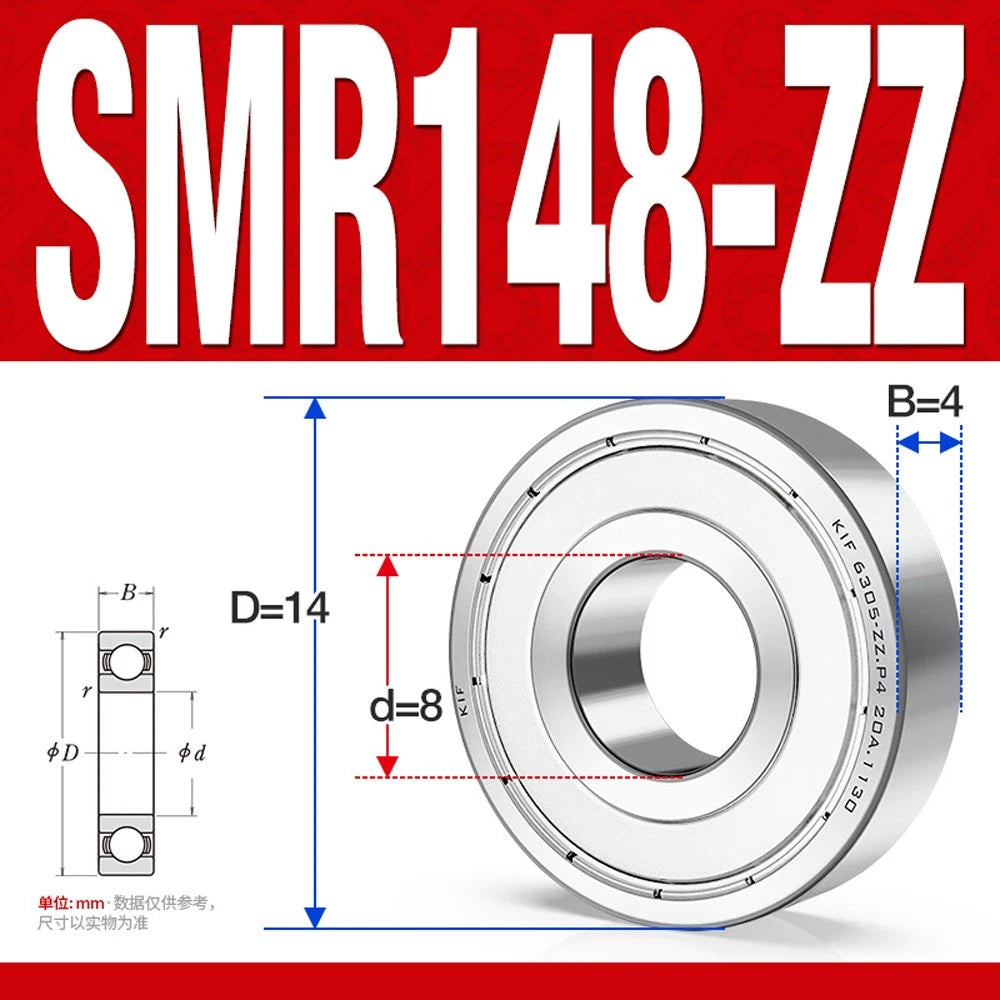

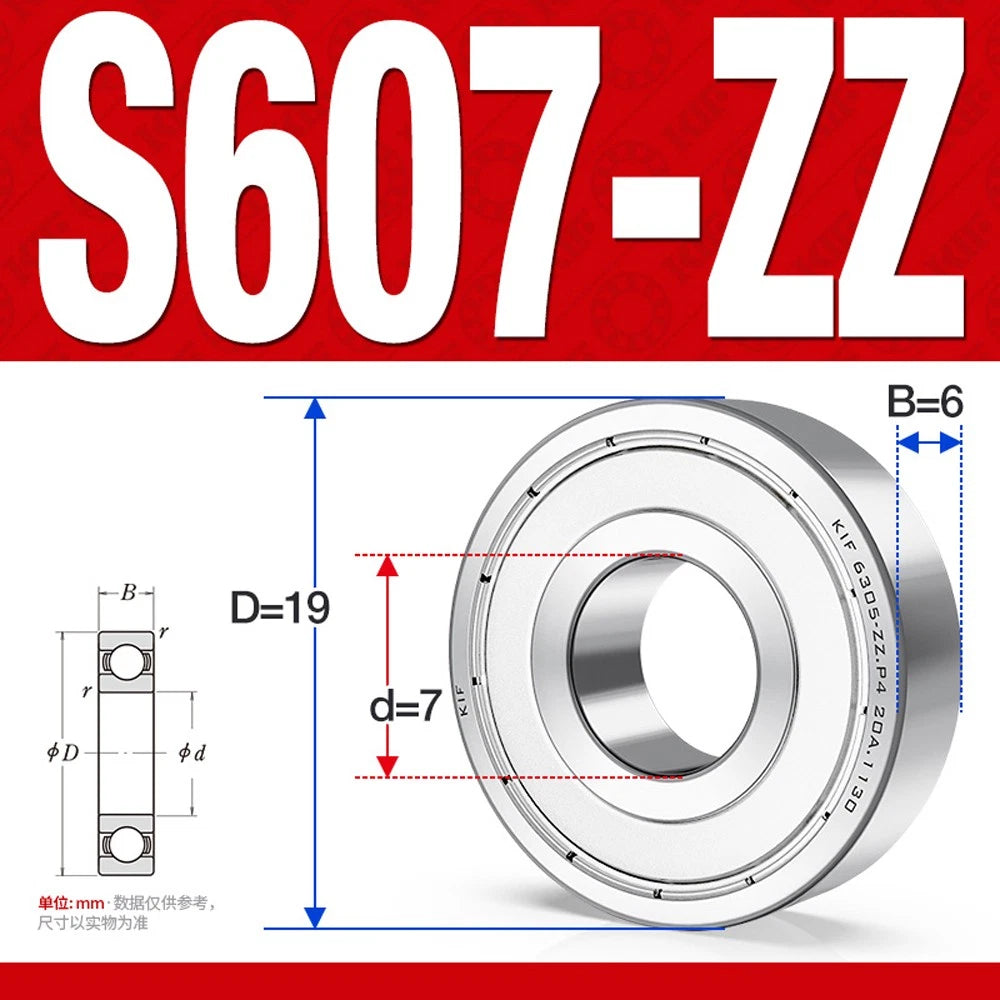

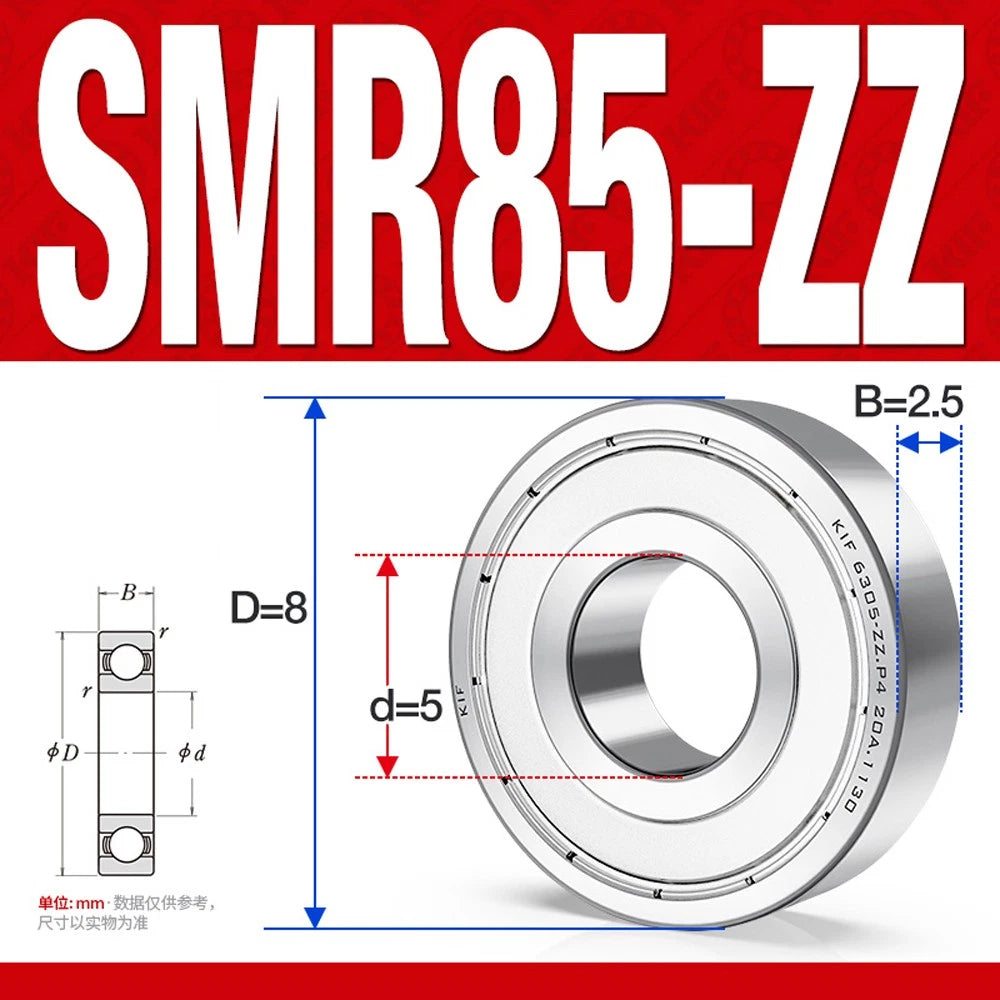

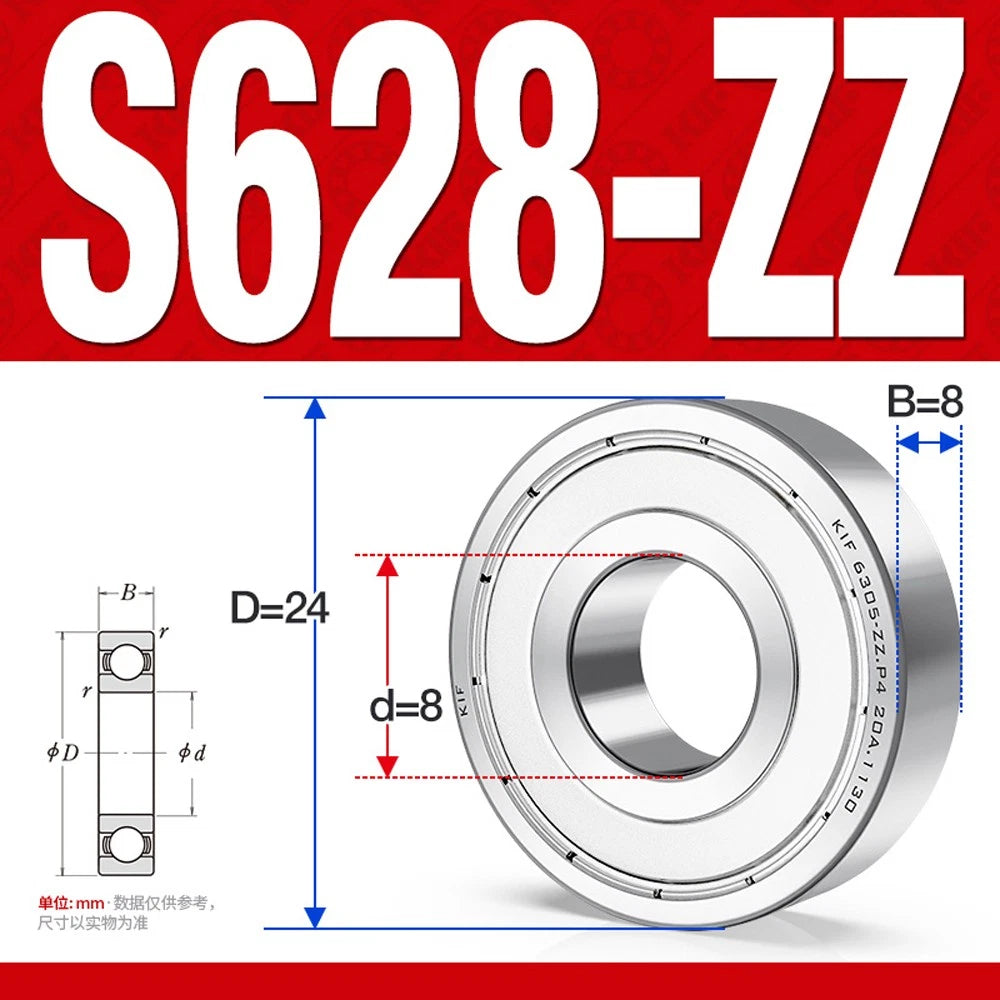

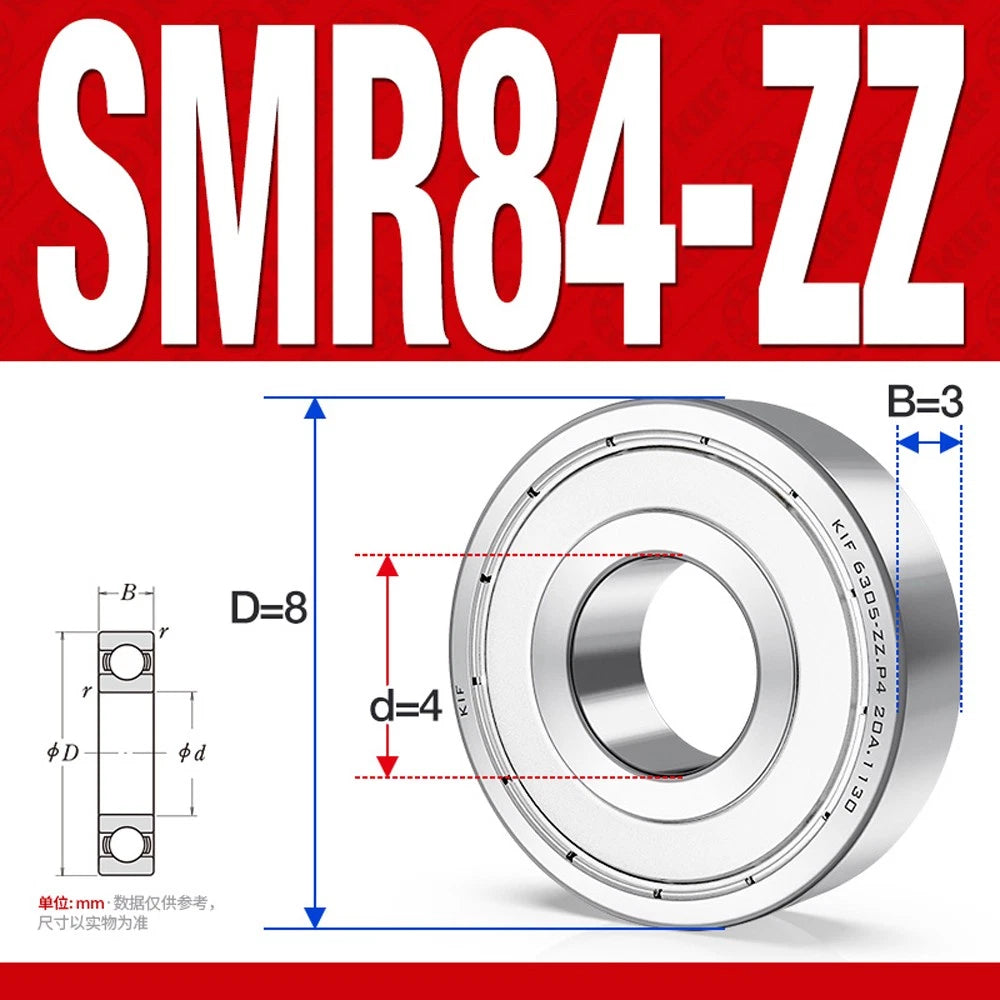

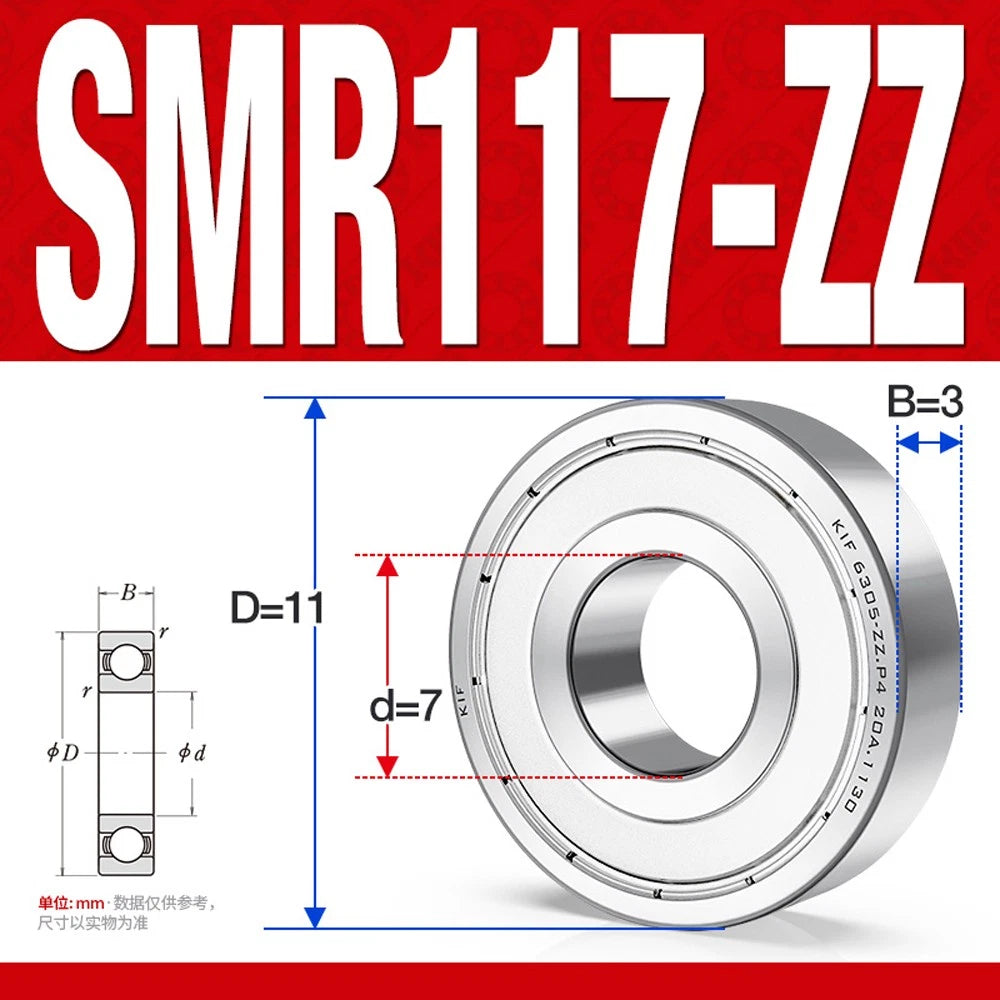

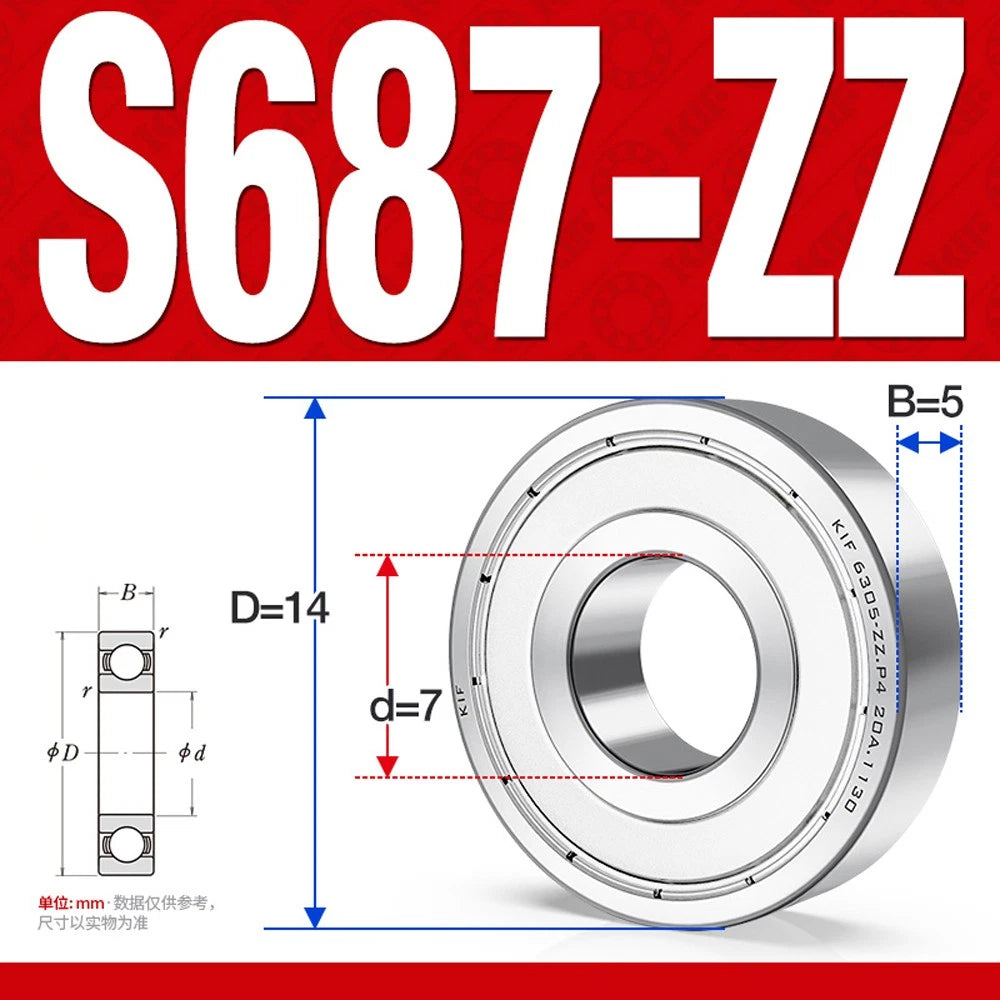

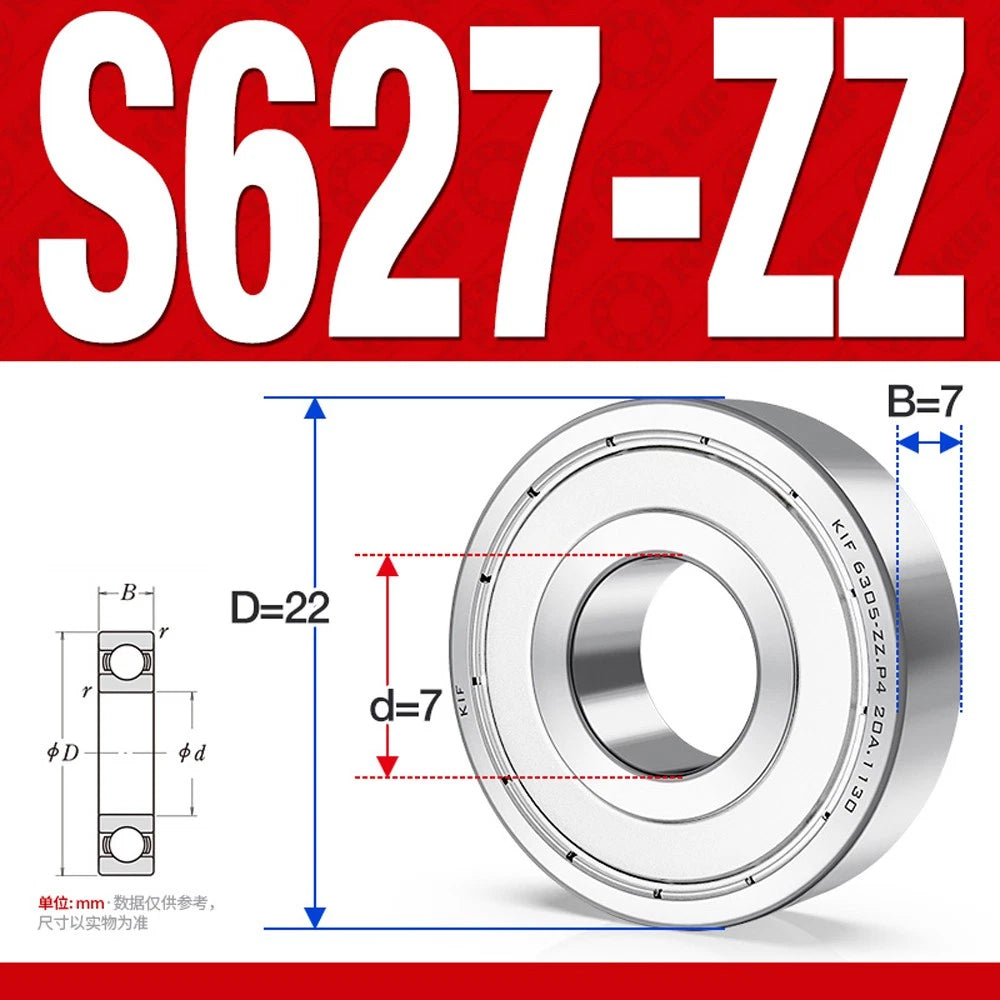

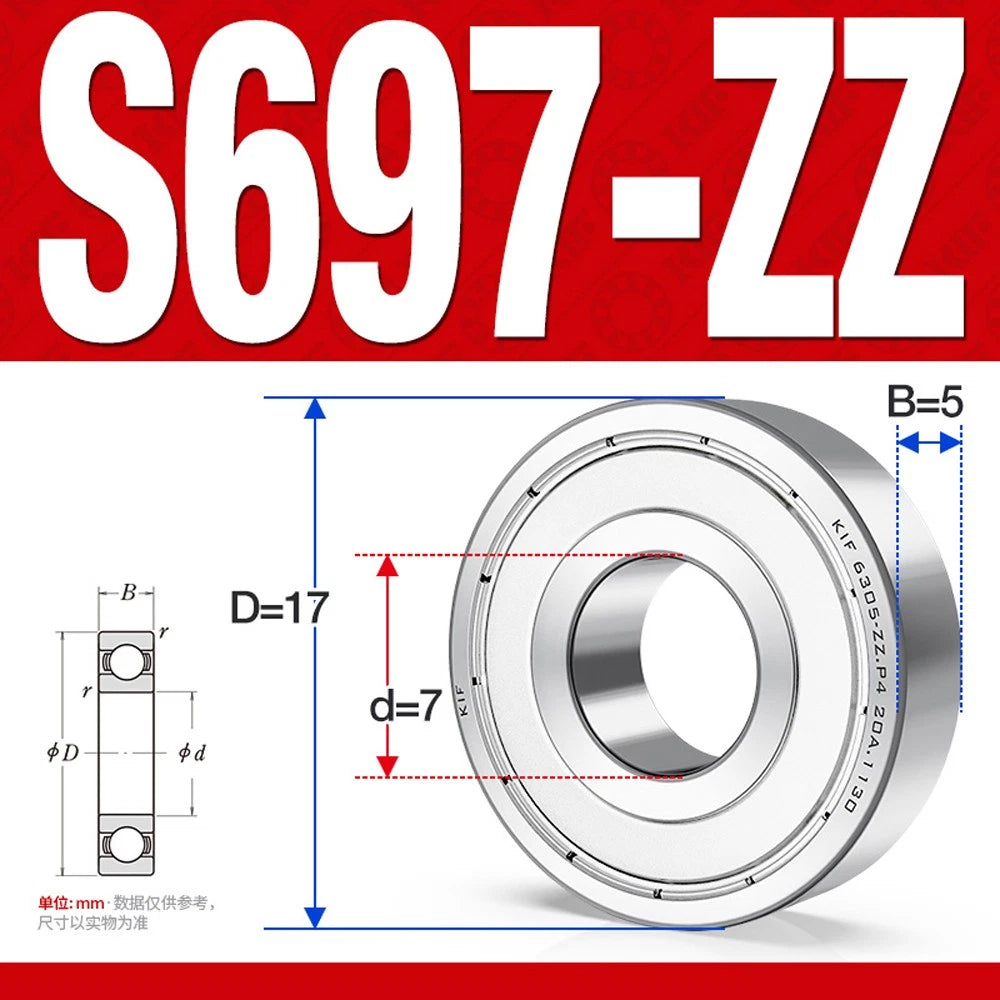

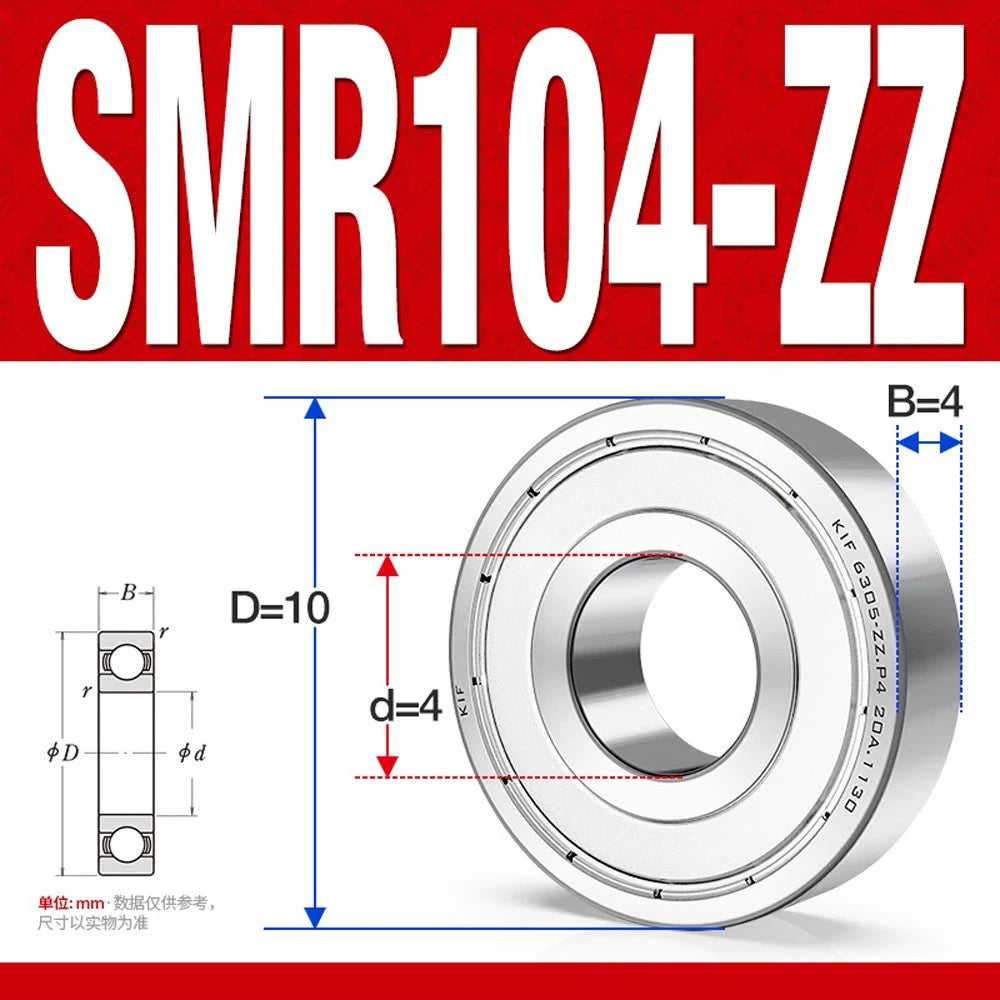

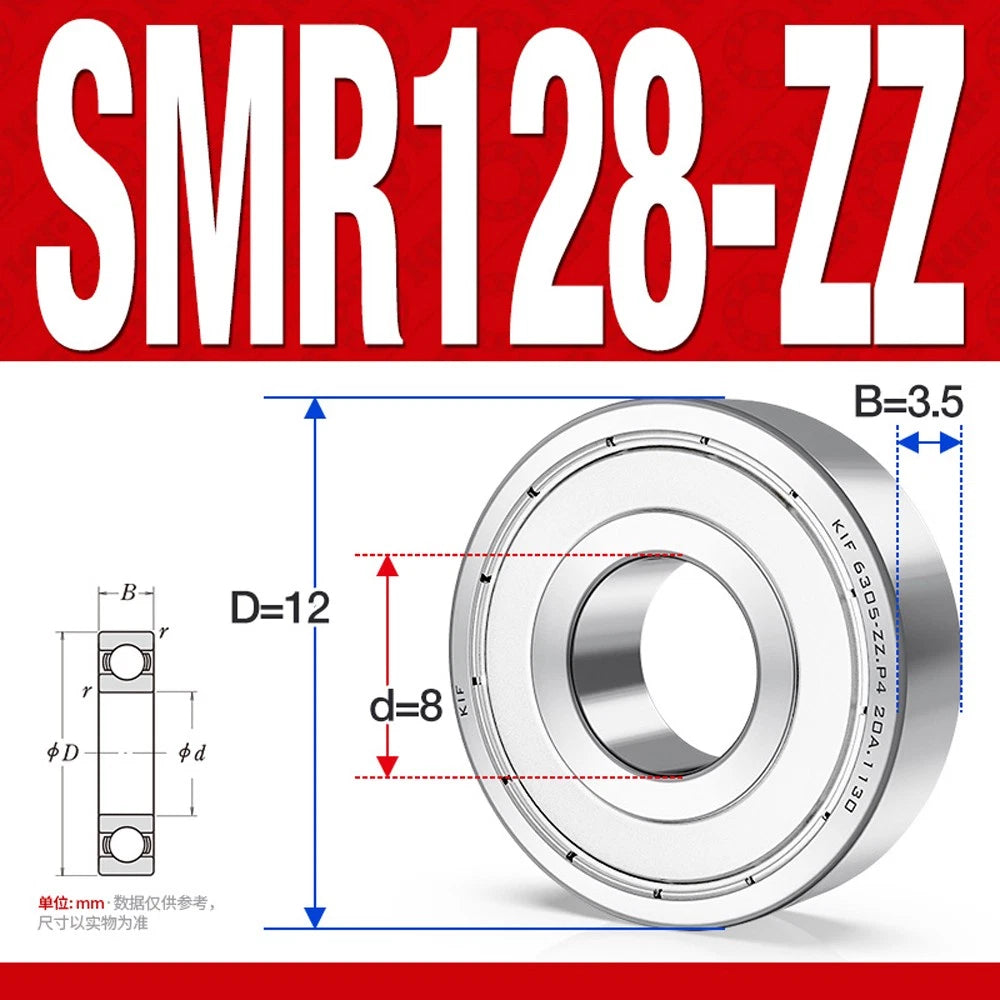

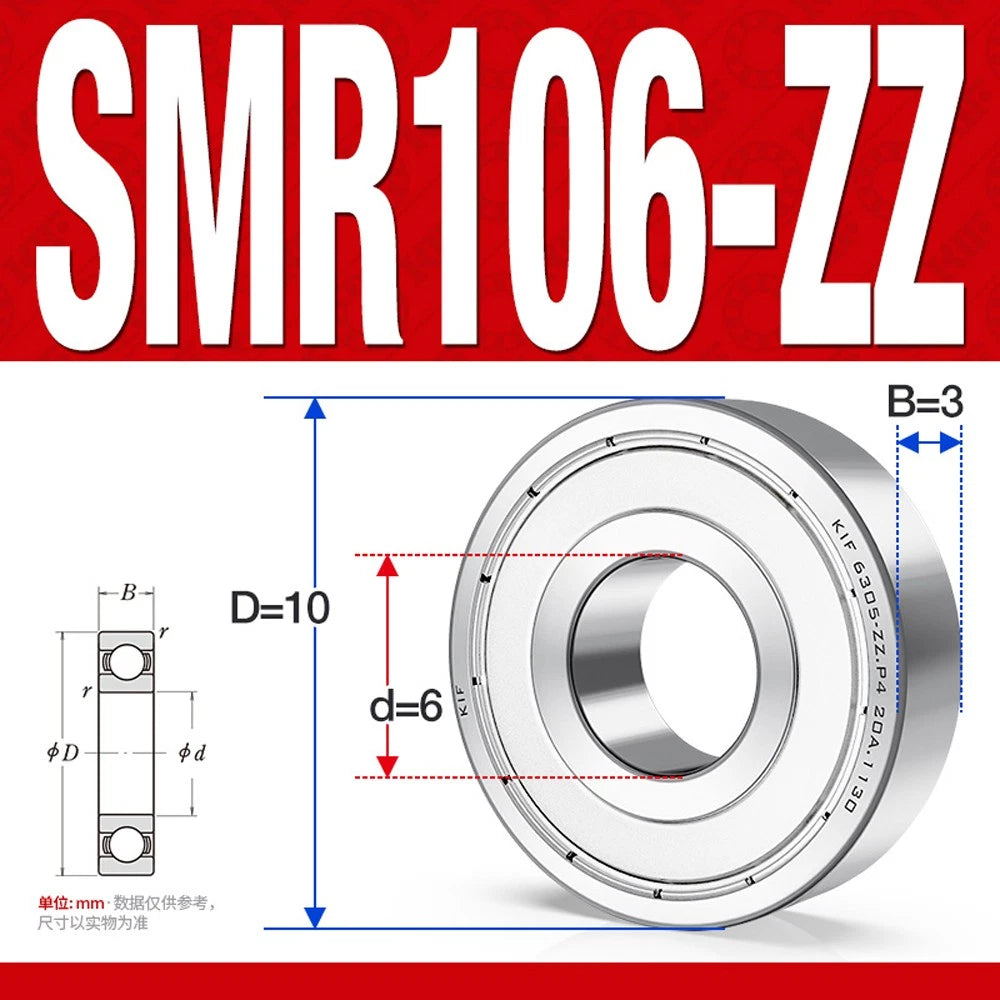

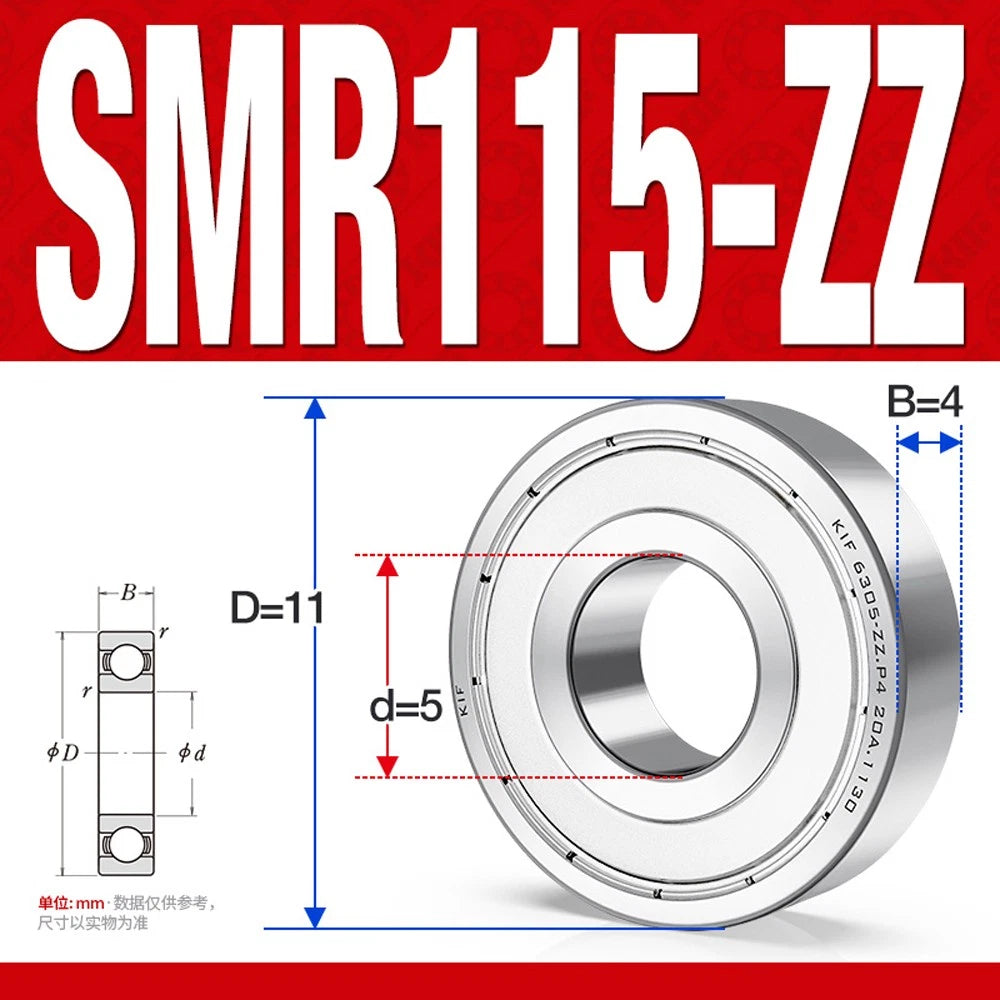

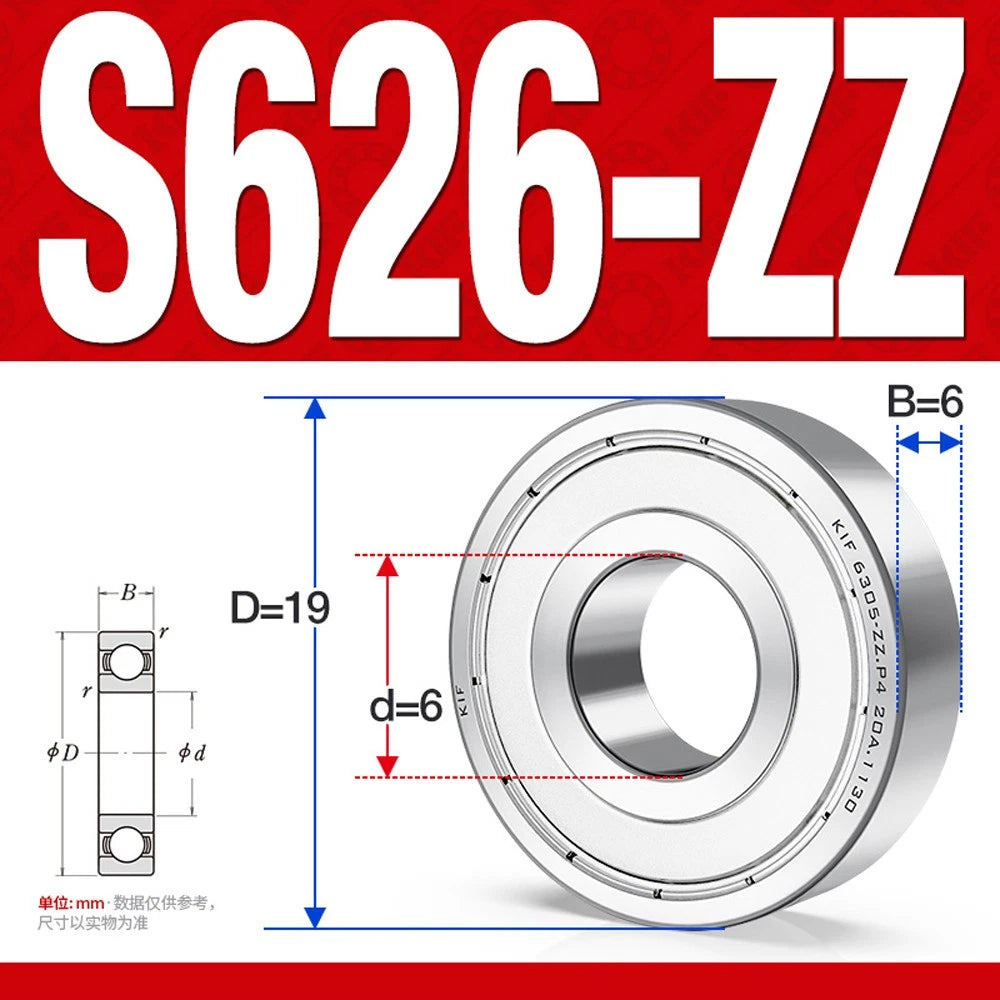

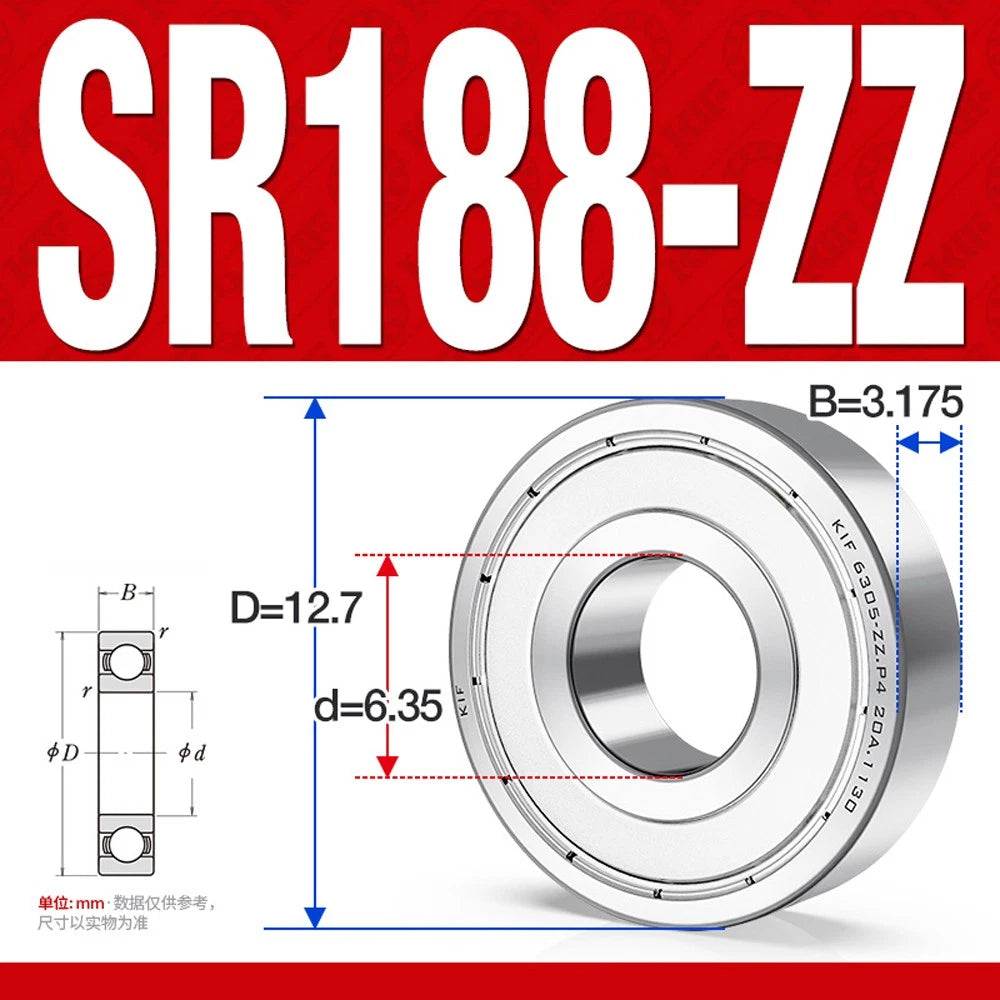

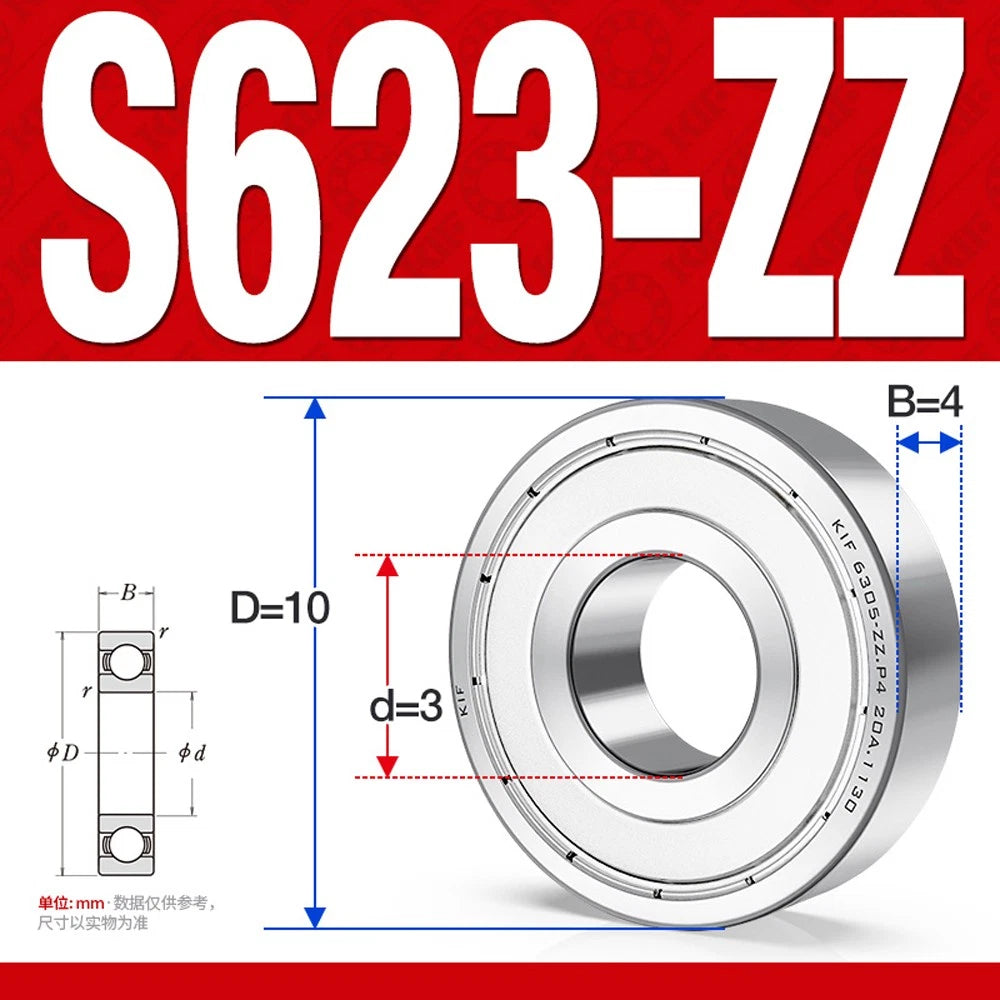

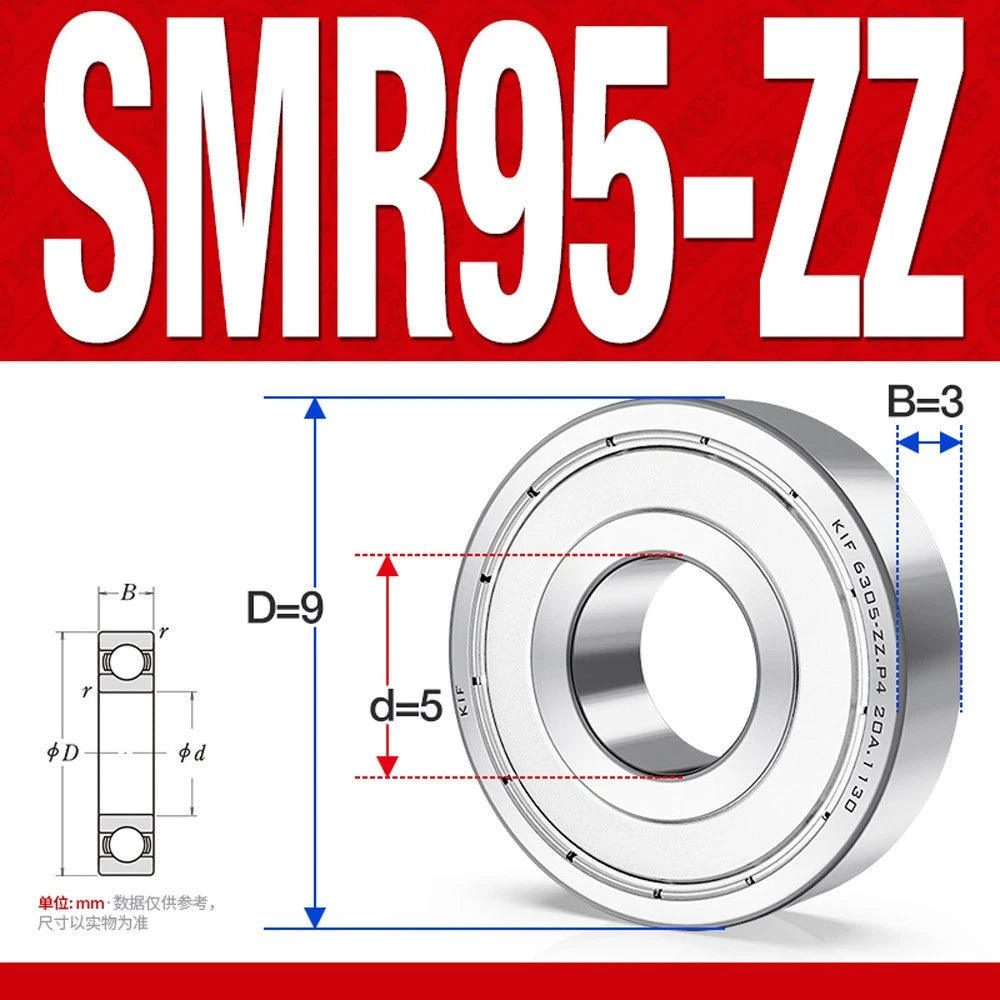

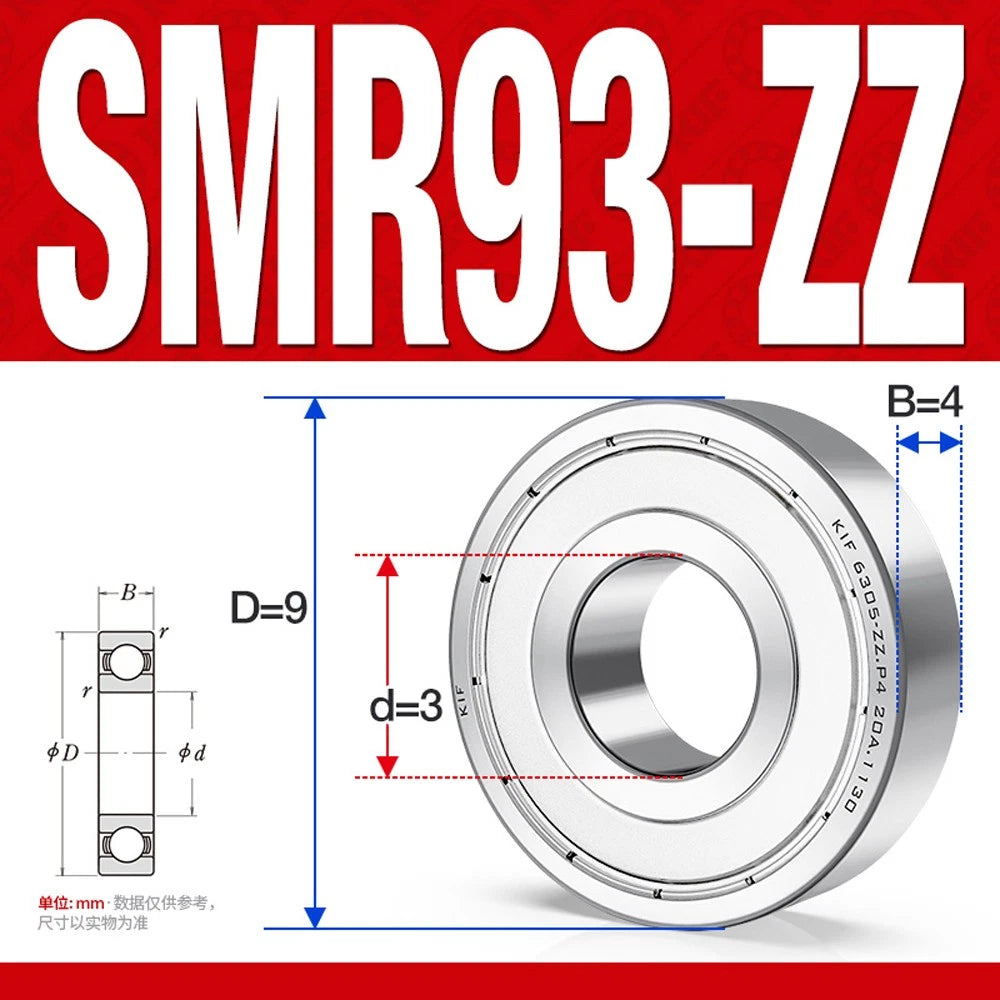

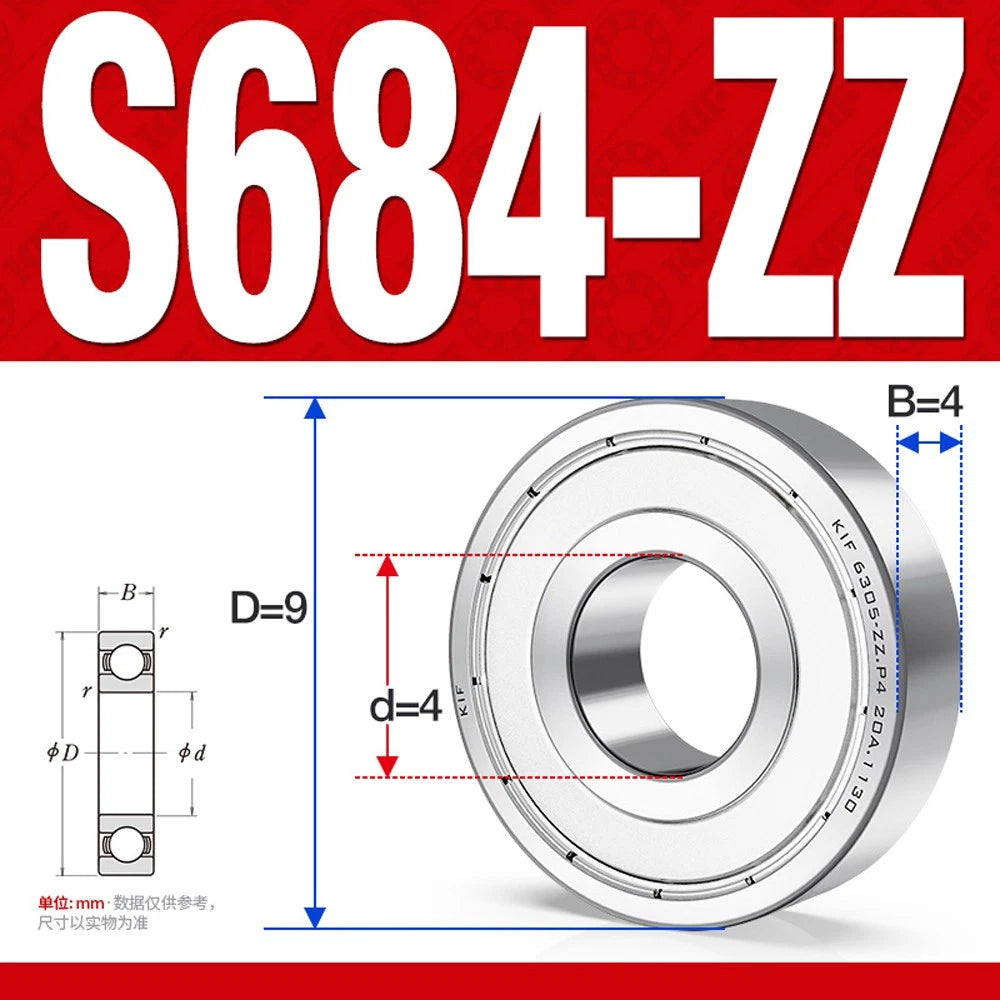

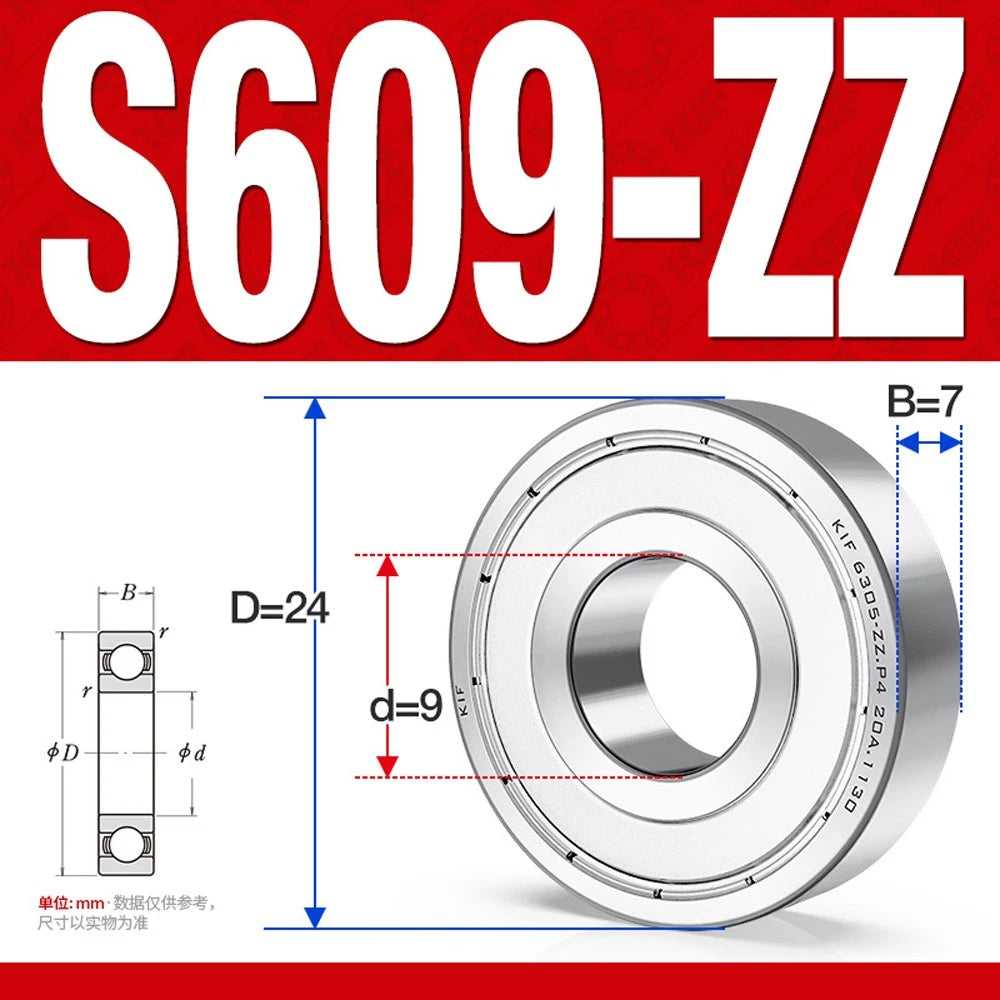

The model designation follows the format d×D×B in millimetres — for example, SMR52-ZZ means inner diameter 2 mm, outer diameter 5 mm, width 2.5 mm. Measure your shaft diameter with a digital calliper to confirm the bore size, then check that your housing bore matches the outer diameter. Allow a light interference fit (H7/js6 or similar) for the housing and a sliding fit for the shaft if you need to remove the bearing for maintenance.
Miniature deep groove ball bearings in the SMR and S6 series are widely used in brushless drone motors and RC vehicle drivetrains. The ZZ shield keeps grease in place at elevated speeds. For very high RPM applications (above approximately 30,000 RPM for the smallest sizes), consider using a light grease or oil lubrication and verify the specific speed rating for your chosen model, as it varies by bore and outer diameter.
Yes. Miniature stainless steel deep groove ball bearings are a common upgrade for 3D printer idler pulleys, extruder pivot points, and linear rod end supports. The ZZ shield prevents PLA and ABS dust from contaminating the raceway. Select the model whose bore matches your idler bolt or shaft diameter and whose outer diameter fits your pulley or bracket bore.
For a single repair or prototype, the 1-piece pack lets you verify fit and performance before committing to more stock. The 3- or 5-piece packs are practical for small builds where you need a few spares on hand. The 10-piece pack offers the lowest per-unit cost and is suited for small production runs, classroom projects, or stocking a workshop where the same bearing size appears across multiple machines.
Store bearings in their original packaging in a dry, temperature-stable environment away from direct sunlight and corrosive vapours. Even stainless steel can develop surface rust if stored in high-humidity conditions for extended periods. If you remove bearings from packaging for inspection, handle them with clean gloves or tools to avoid transferring skin oils, and re-wrap them in anti-corrosion paper or a sealed bag until installation.
