When standard carbon steel chains corrode, seize, or fail in wet, chemical, or food-adjacent environments, engineers and maintenance teams need a dependable alternative. This stainless steel single strand roller chain is engineered for industrial drive systems where corrosion resistance and consistent tensile strength are non-negotiable — whether you're running conveyors, agricultural equipment, or precision machinery.

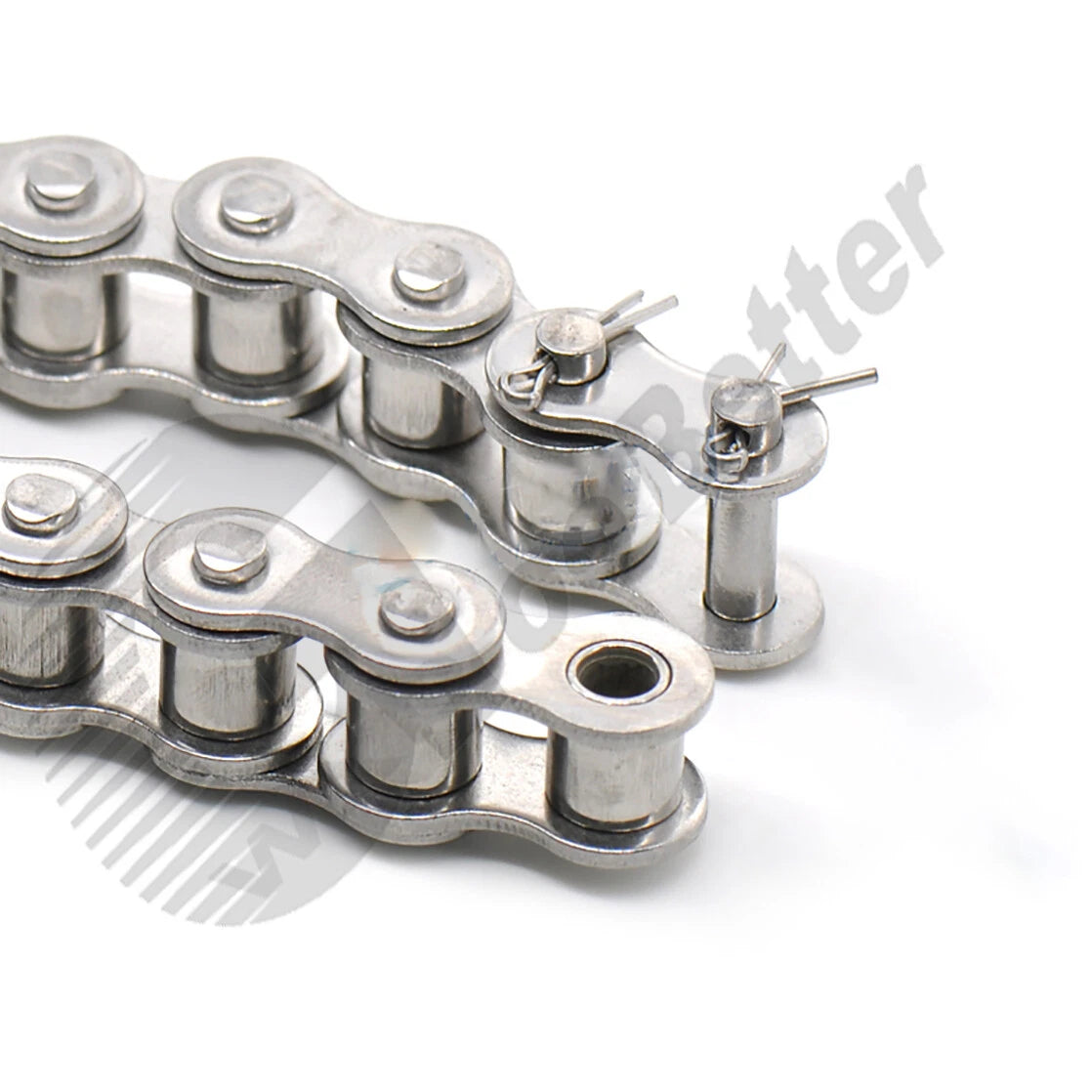

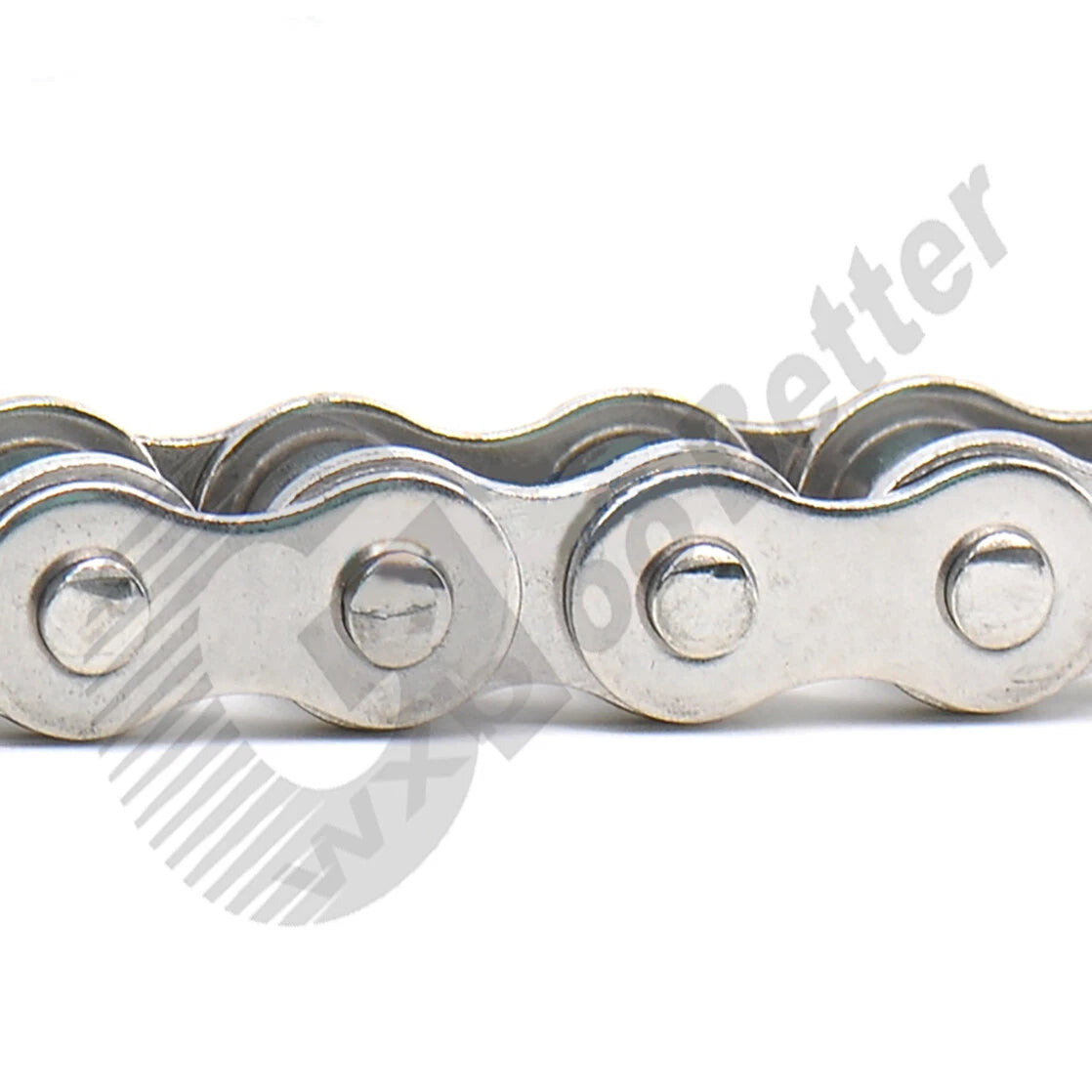

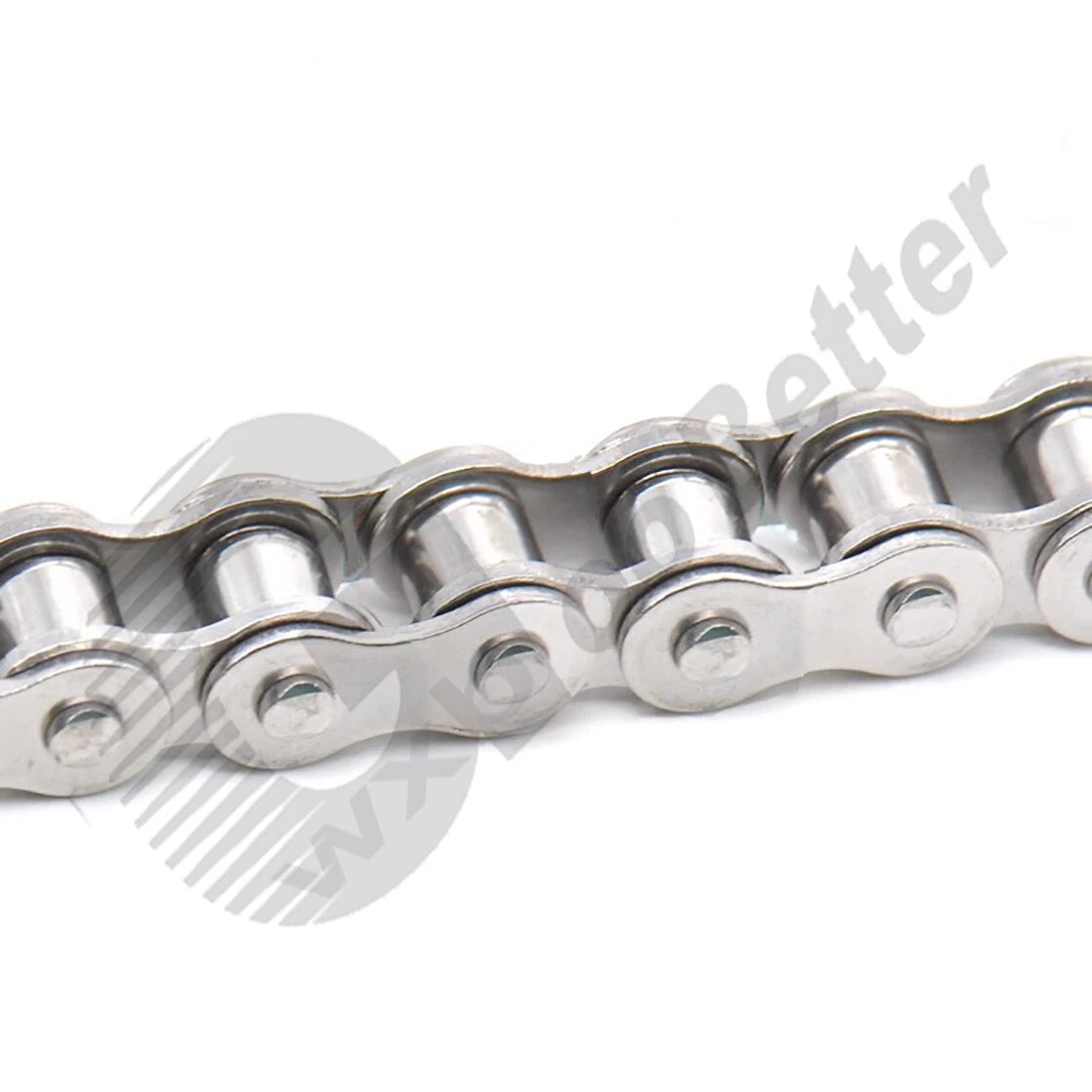

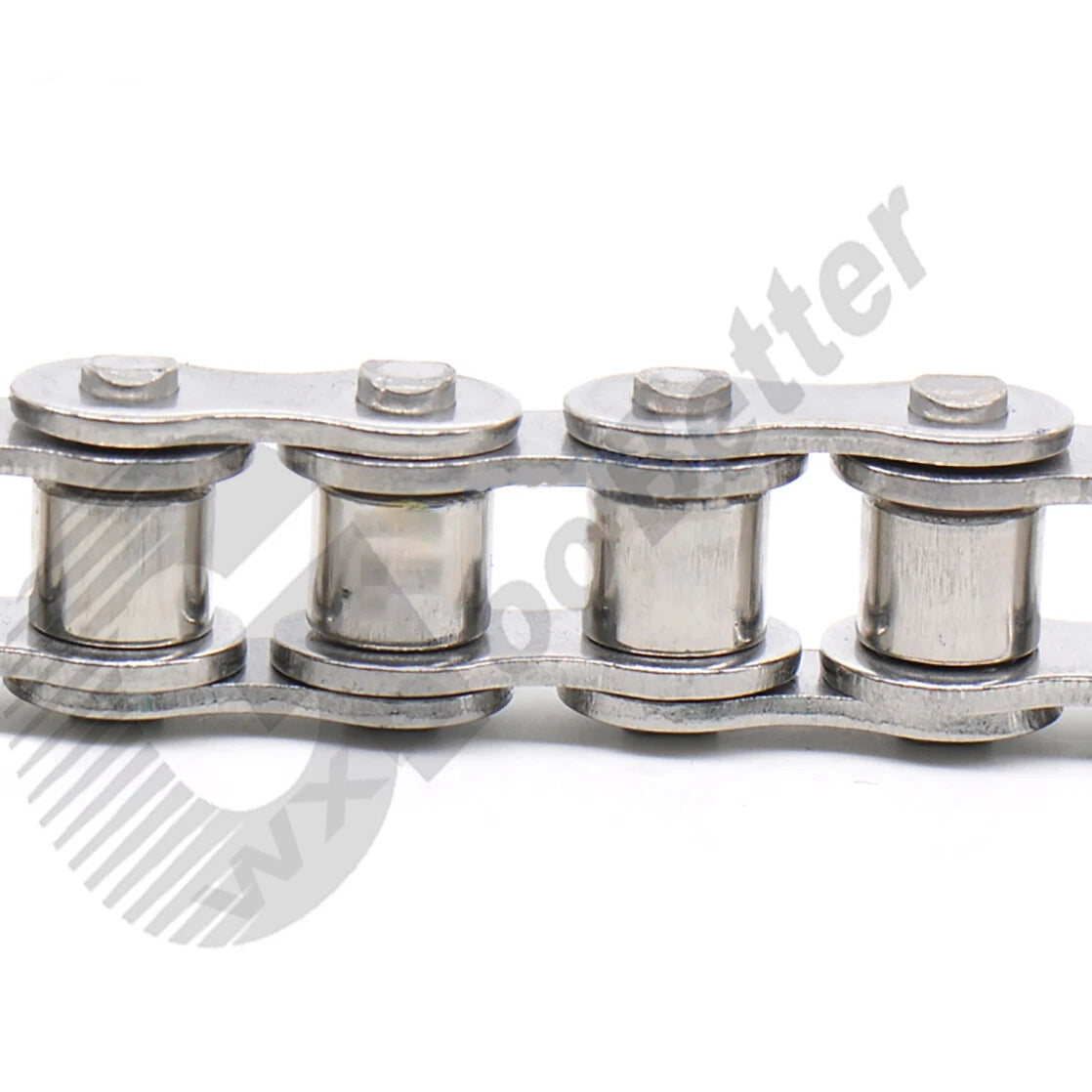

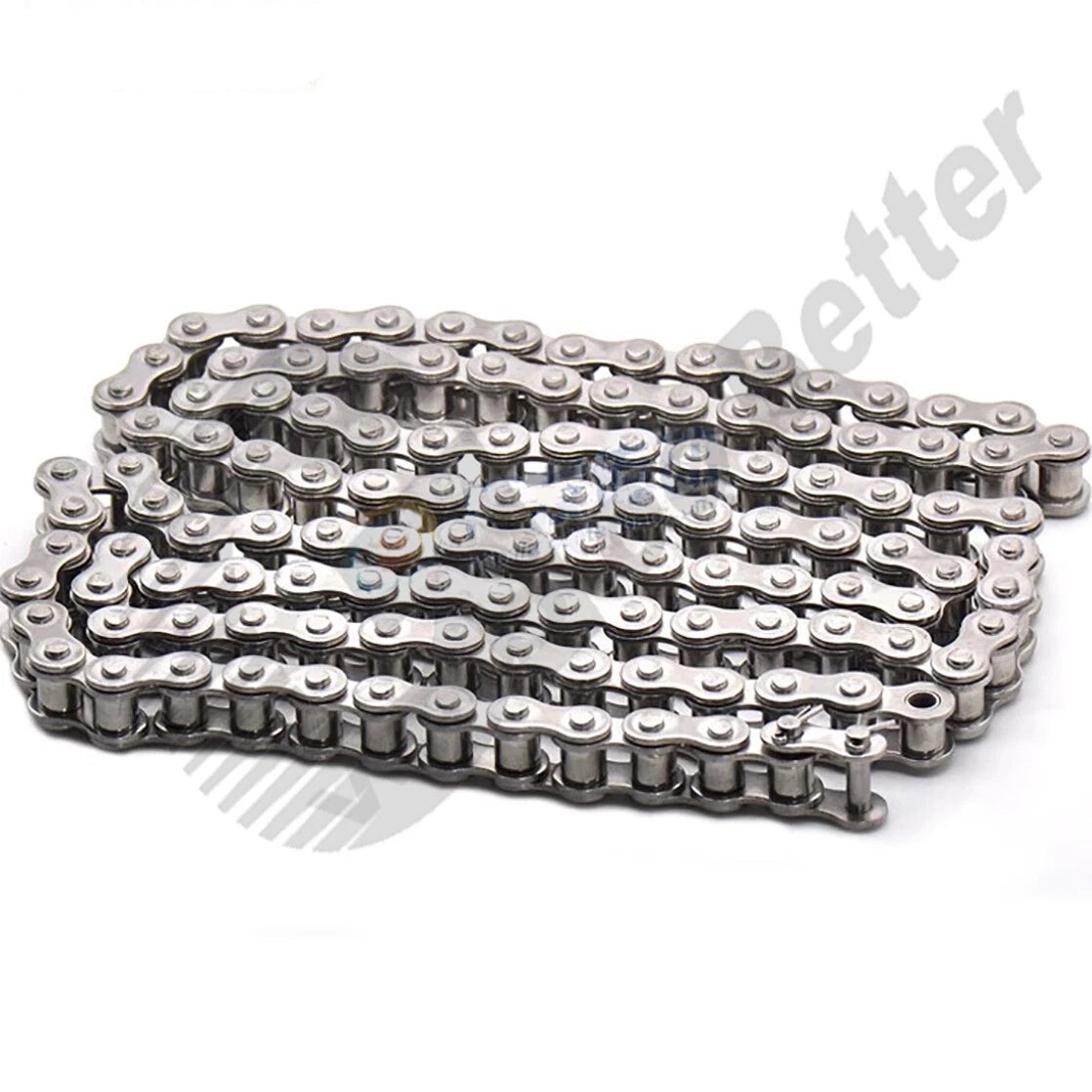

Each chain is constructed from stainless steel (Grade 201 or 304 selectable) with precision-formed inner and outer plates, hardened rollers, and interference-fit pins. Available in chain sizes 04C-1, 06B-1, 08B-1, and 10A-1, with pitch dimensions ranging from approximately 6.35 mm (1/4") to 15.875 mm (5/8"). Cut lengths are offered in 1 m, 1.5 m, 1.524 m, and 5 m to suit a wide range of drive configurations.
Typical applications include stainless steel roller chain for food processing conveyor lines, corrosion-resistant drive chain for marine and outdoor machinery, and single strand roller chain replacement for agricultural and packaging equipment. The ISO-standard pitch dimensions ensure compatibility with standard sprockets across these use cases.

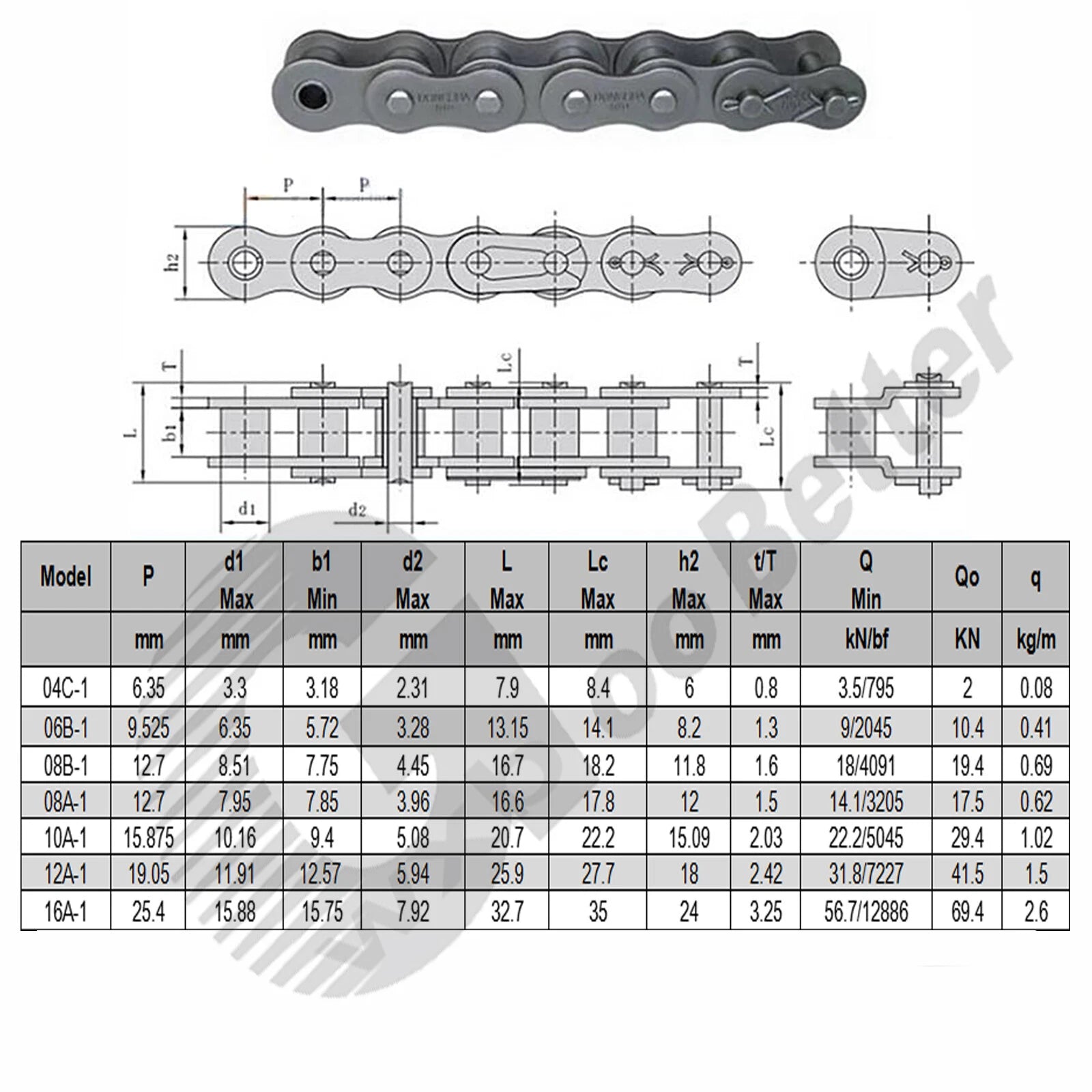

| Chain Standard | ISO 606 |
|---|---|
| Chain Type | Single Strand Roller Chain |
| Available Chain Sizes | 04C-1, 06B-1, 08B-1, 10A-1 |
| Pitch Range | 6.35 mm – 15.875 mm (1/4" – 5/8") |
| Material / Grade | Stainless Steel — Grade 201 or Grade 304 (see variant options) |
| Available Lengths | 1 m, 1.5 m, 1.524 m, 5 m |
| Inner Plate Thickness | See variant options |
| Roller Diameter | See variant options |
| Breaking Load | See variant options |
| Finish | Natural stainless (uncoated) |
| Lubrication | Light factory oil (suitable for initial run-in) |
Match the chain size to your existing sprocket's pitch. 04C-1 has a 6.35 mm pitch, 06B-1 is 9.525 mm, 08B-1 is 12.7 mm, and 10A-1 is 15.875 mm. If you're replacing an existing chain, check the stamped size on the side plate or measure the pitch (center-to-center distance between two pins). When in doubt, contact us to confirm before ordering.
Grade 304 contains higher nickel content (~8–10%) and offers superior corrosion resistance, making it the preferred choice for food processing, marine, and chemical environments. Grade 201 uses manganese in place of some nickel, providing good corrosion resistance at a lower cost — suitable for moderate-duty or indoor applications where extreme chemical exposure is not a concern.
These chains are manufactured to ISO 606 pitch standards, so they are compatible with any standard ISO sprocket of the matching chain size. Verify that your sprocket's tooth profile (simplex/single strand) and pitch match the chain size you select. Non-standard or worn sprockets may cause premature wear even with a new chain.
Use a matching stainless steel connecting link (also called a master link) of the same chain size and grade. Ensure the connecting link's clip or cotter pin is installed in the correct orientation relative to the direction of chain travel to prevent accidental disengagement.
Yes. While stainless steel resists corrosion, the chain's pins, bushings, and rollers still require lubrication to minimize wear and extend service life. Use a food-grade lubricant for food processing applications, or a light machine oil for general industrial use. Re-lubricate at regular intervals based on operating speed and load.
Yes. Grade 304 stainless steel is well-suited for outdoor, humid, and washdown environments. It resists rust and oxidation under regular water exposure. For highly aggressive chemical environments (e.g., chlorinated or acidic solutions), consider Grade 316 stainless — contact us if you need guidance on material selection for your specific conditions.
Use the standard chain length formula: L = 2C/P + (N1 + N2)/2 + (N2 – N1)²/(4π²C/P), where C is center distance, P is pitch, and N1/N2 are the number of teeth on each sprocket. Round up to the nearest even number of links. Select the cut length closest to your calculated requirement and trim or add links as needed using a chain breaker tool and connecting link.
