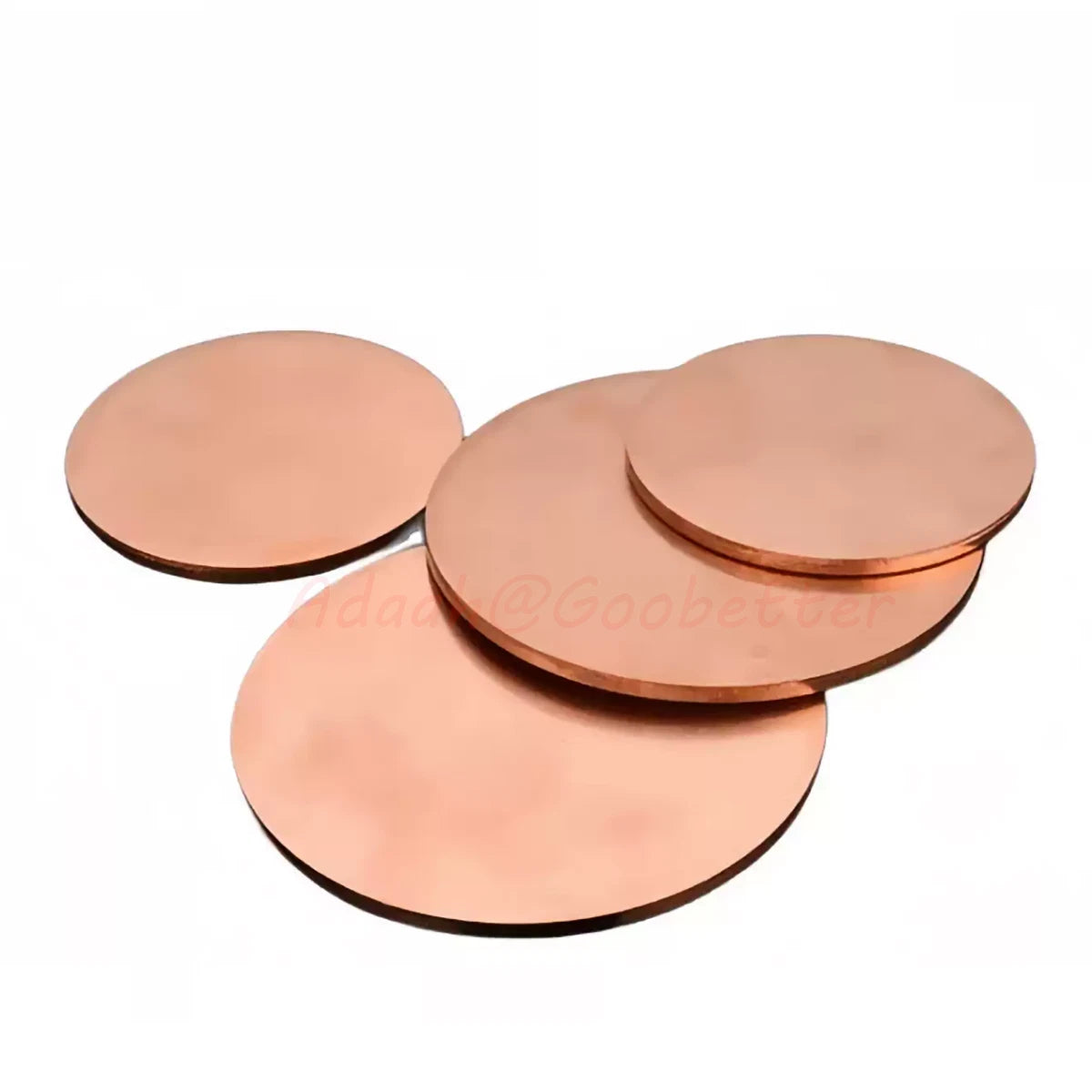

T2 Copper Discs Round Sheet Plate — Precision-Cut Blanks for Electrical, Thermal & Fabrication Work
When a project demands a material that conducts electricity and heat without compromise, finding a reliably sized copper disc blank can be the bottleneck. Hobbyists, electricians, machinists, and fabricators who need repeatable, flat copper rounds — without the waste of cutting from full sheets — will find these T2 copper discs a direct solution.

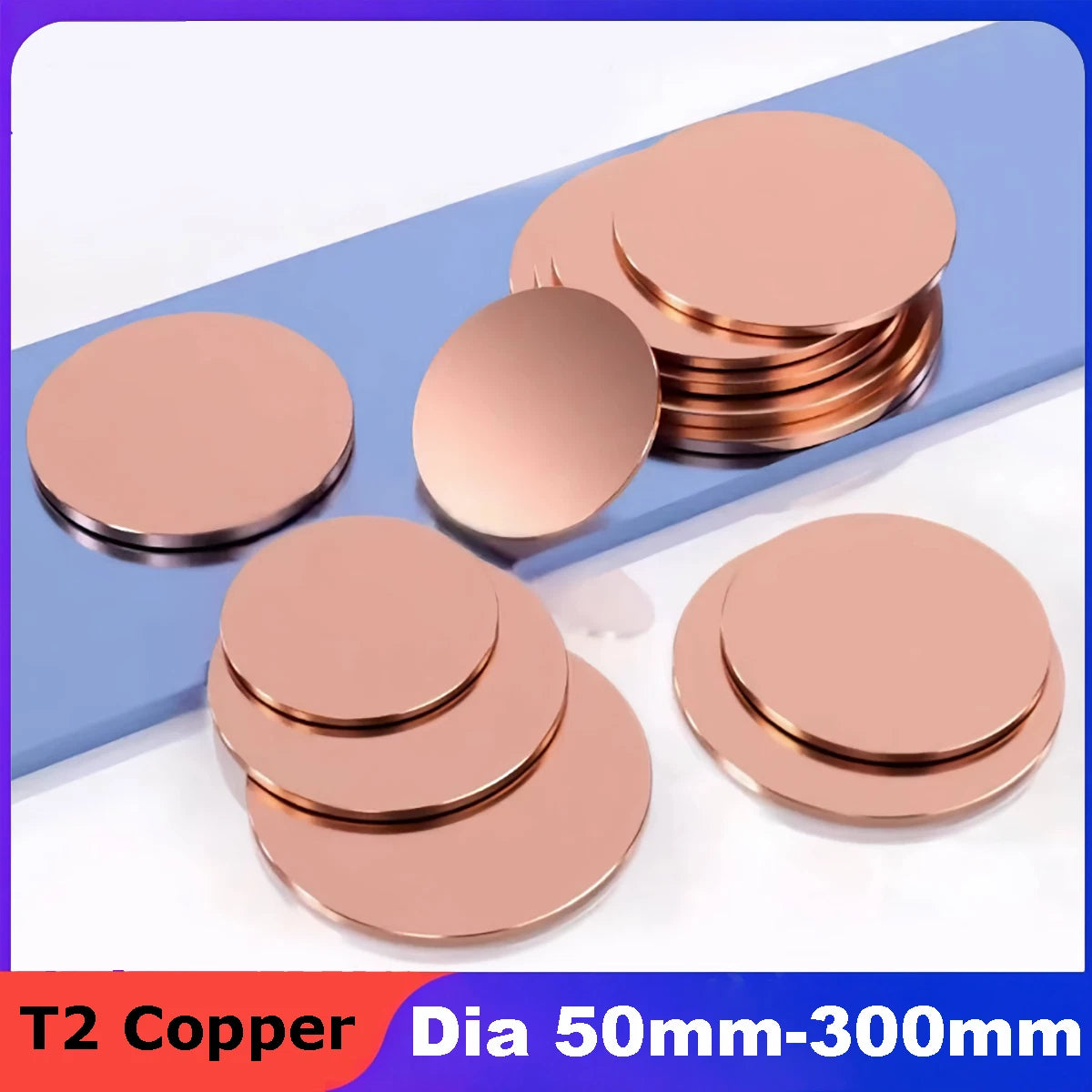

Each disc is cut from T2 (C11000-equivalent) pure copper, offering ≥99.9% copper content. Diameter options span Φ50mm to Φ300mm (approx. 1.97" to 11.81"), and thickness options run from 0.3mm to 3mm (approx. 0.012" to 0.118"). Packing quantities of 1 or 2 pieces per order are available depending on the selected size.

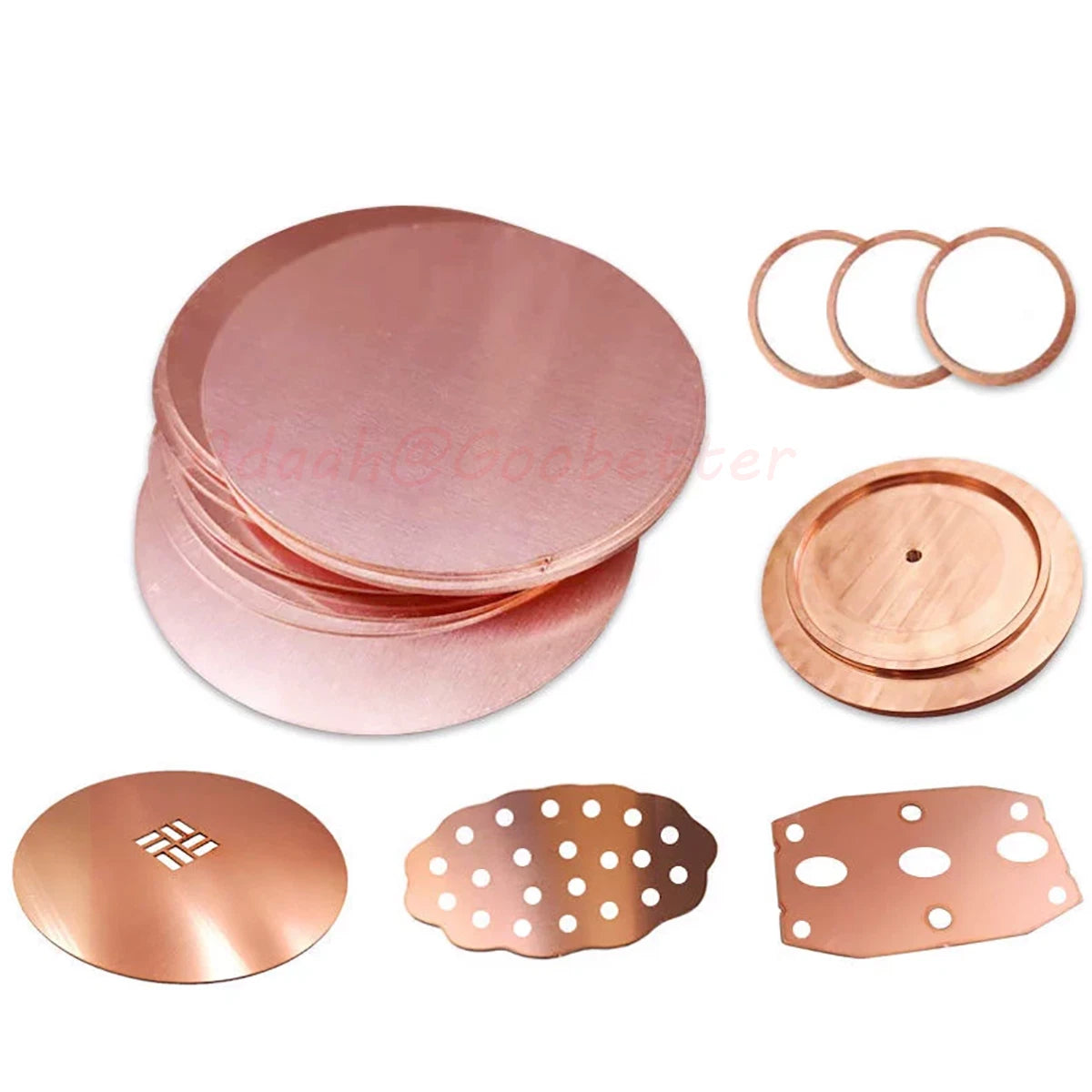

Typical applications include electrical contact pads and bus bar blanks, thermal interface shims and heat spreader inserts, gaskets and sealing washers in plumbing or pneumatic assemblies, and decorative or craft metalwork such as stamping, etching, and enameling blanks.
⚙️ These discs are uncoated, unplated T2 copper blanks. They are compatible with soldering, brazing, silver soldering, and most standard metalworking processes. Surface oxidation may occur over time — clean with a mild acid or abrasive before use if a bright finish is required.
✅ Key Features of These T2 Copper Discs Round Sheet Plates
- 🔩 T2 Pure Copper (≥99.9% Cu) — Delivers electrical conductivity of approximately 58 MS/m and thermal conductivity of ~390 W/m·K, making these discs suitable for demanding electrical and thermal management tasks.

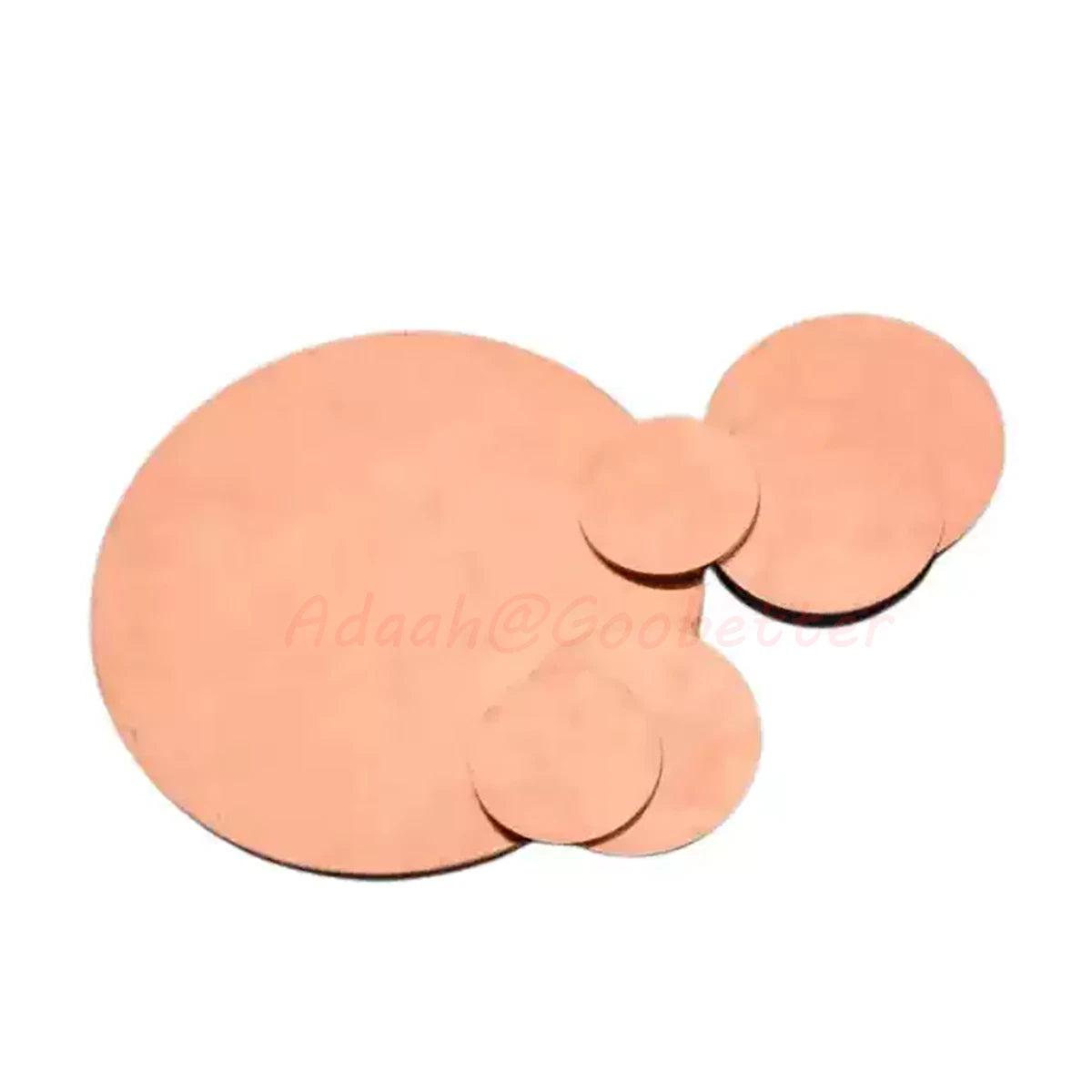

- 📏 Wide Diameter Range: Φ50mm–Φ300mm — Eleven diameter steps (50, 55, 60, 65, 80, 100, 120, 150, 180, 200, 250, 300mm) let you match the blank to your application without secondary cutting.
- 🔬 Precise Thickness Selection: 0.3mm–3mm — Eleven thickness options (0.3, 0.4, 0.5, 0.6, 0.8, 1, 1.2, 1.5, 2, 2.5, 3mm) cover everything from ultra-thin shim stock to structural blanks.
- ✂️ Flat, Burr-Reduced Disc Blanks — Supplied as round-cut discs rather than sheet offcuts, reducing prep time and material waste for round-format applications.
- 🌡️ Excellent Thermal & Electrical Performance — T2 copper's low resistivity (~1.72 µΩ·cm) and high thermal conductivity make these discs effective as heat spreaders, contact pads, and conductive shims.
- 🛠️ Machinable & Formable — Annealed-state T2 copper is soft enough to stamp, drill, turn, and form without cracking, and accepts soldering and brazing without flux compatibility issues.
📐 Technical Specifications — T2 Copper Round Disc Blanks
| Material Grade |
T2 Pure Copper (≥99.9% Cu, C11000-equivalent) |
| Shape |
Round disc / circular blank |
| Diameter Range |
Φ50mm – Φ300mm (approx. 1.97" – 11.81") |
| Thickness Range |
0.3mm – 3mm (approx. 0.012" – 0.118") |
| Available Diameters |
50, 55, 60, 65, 80, 100, 120, 150, 180, 200, 250, 300 mm |
| Available Thicknesses |
0.3, 0.4, 0.5, 0.6, 0.8, 1, 1.2, 1.5, 2, 2.5, 3 mm |
| Electrical Conductivity |
≈ 58 MS/m (approx. 100% IACS) |
| Thermal Conductivity |
≈ 390 W/m·K |
| Surface Finish |
Mill finish, uncoated, unplated |
| Temper / Condition |
See variant options |
| Packing Quantity |
1 PCS or 2 PCS (see variant options) |
| Weight per Piece |
See variant options (varies by diameter and thickness) |
❓ Frequently Asked Questions
How do I choose the right diameter and thickness for my application?

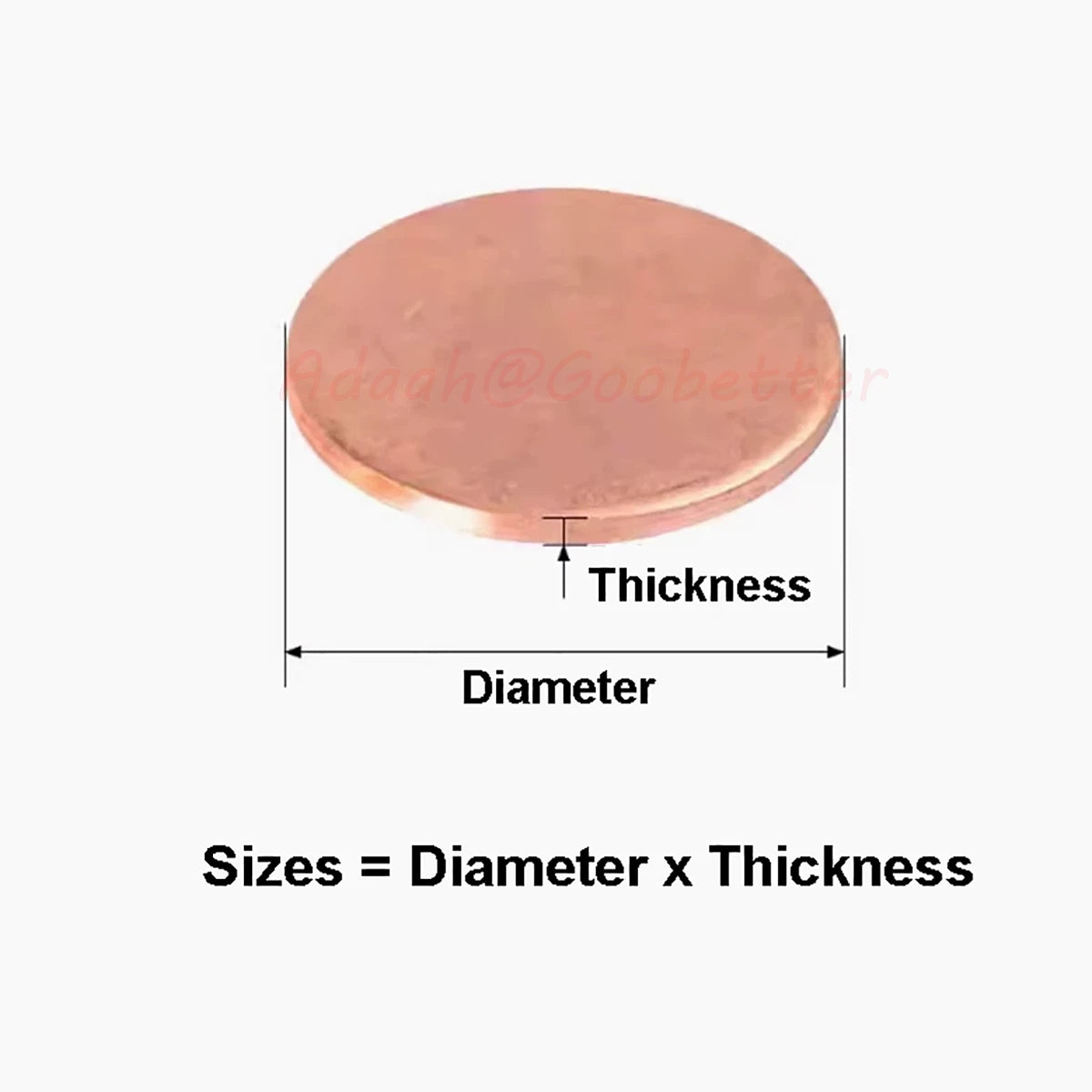

Start with the functional footprint your application requires — for example, the bore diameter of a housing, the contact pad area, or the gasket seat diameter. Then select thickness based on the mechanical load or conductivity path length needed. For shim applications, thinner discs (0.3–0.8mm) are typical; for structural blanks or heat spreaders, 1–3mm is more common. If you are unsure, contact us with your application details and we can advise.
What is T2 copper and how does it differ from other copper grades?
T2 copper is a designation for electrolytic tough-pitch (ETP) copper with ≥99.9% copper content, broadly equivalent to C11000 in ASTM standards. It offers near-maximum electrical and thermal conductivity among commercial copper alloys. Unlike brass or bronze, T2 contains no significant alloying elements, making it the preferred choice when conductivity — not strength — is the primary requirement.
Will these copper discs corrode or oxidize over time?
Pure copper naturally forms a surface oxide layer (patina) when exposed to air and moisture. This does not affect bulk conductivity significantly but can increase contact resistance at surfaces. For electrical contact applications, clean the surface with a mild acid solution (such as diluted citric acid) or fine abrasive before assembly. For decorative applications, a clear lacquer or wax coating can slow oxidation.
Are these discs compatible with soldering and brazing?
Yes. T2 copper solders and brazes readily. For soft soldering, use a rosin-based or no-clean flux with standard tin-lead or lead-free solder. For silver brazing, use a silver-bearing brazing alloy with an appropriate flux. Ensure the surface is clean and oxide-free before joining for best results.
Can I machine, drill, or stamp these discs?
Yes. T2 copper in the annealed or as-supplied condition is relatively soft (typically 40–65 HB) and machines well with standard HSS or carbide tooling. Use sharp tools, adequate lubrication, and moderate feed rates to avoid work-hardening and built-up edge. Stamping and punching are also feasible for thinner gauges (0.3–1mm) with appropriate tooling clearances.
How do I select between 1 PCS and 2 PCS packing options?
The packing quantity option lets you choose how many discs you receive per order line. Smaller diameters (Φ50mm–Φ65mm) are available in both 1 PCS and 2 PCS packs; larger diameters (Φ80mm and above) are typically offered in 1 PCS packs due to weight and size. Select the quantity that matches your project needs — ordering 2 PCS is a cost-effective way to have a spare or to test fit before final assembly.
What surface preparation is recommended before use?
Discs are supplied with a mill finish and may have minor surface oxidation from storage. Before use in electrical or thermal applications, wipe with isopropyl alcohol to remove oils, then lightly abrade with 400–600 grit sandpaper or a Scotch-Brite pad if a bright surface is needed. For soldering, apply flux immediately after cleaning to prevent re-oxidation.
