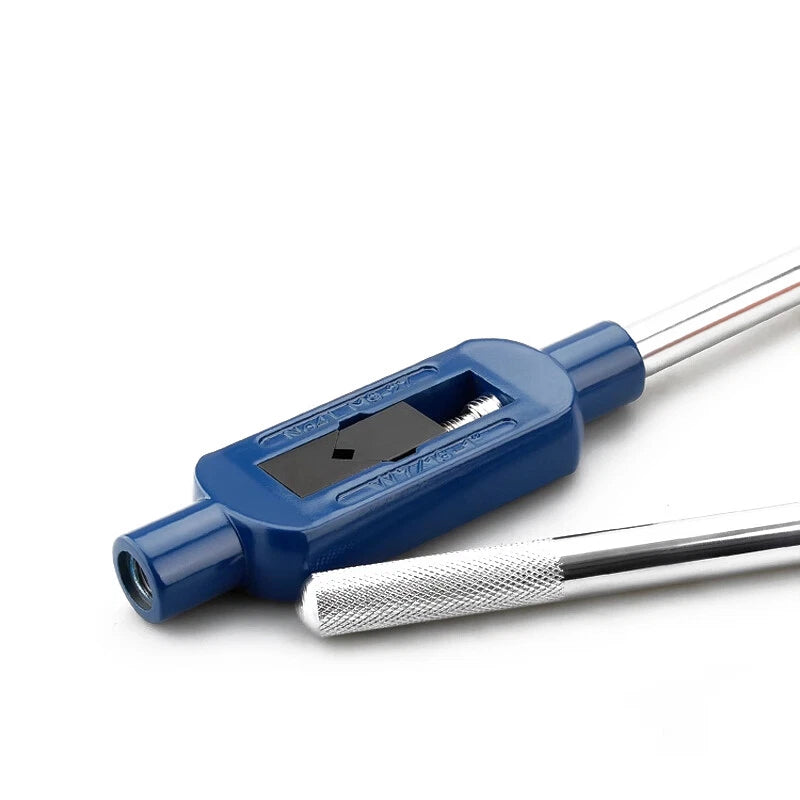

Tap Wrench Adjustable Bar Taps Holder Straight Reamer Tapping Wrench All Model

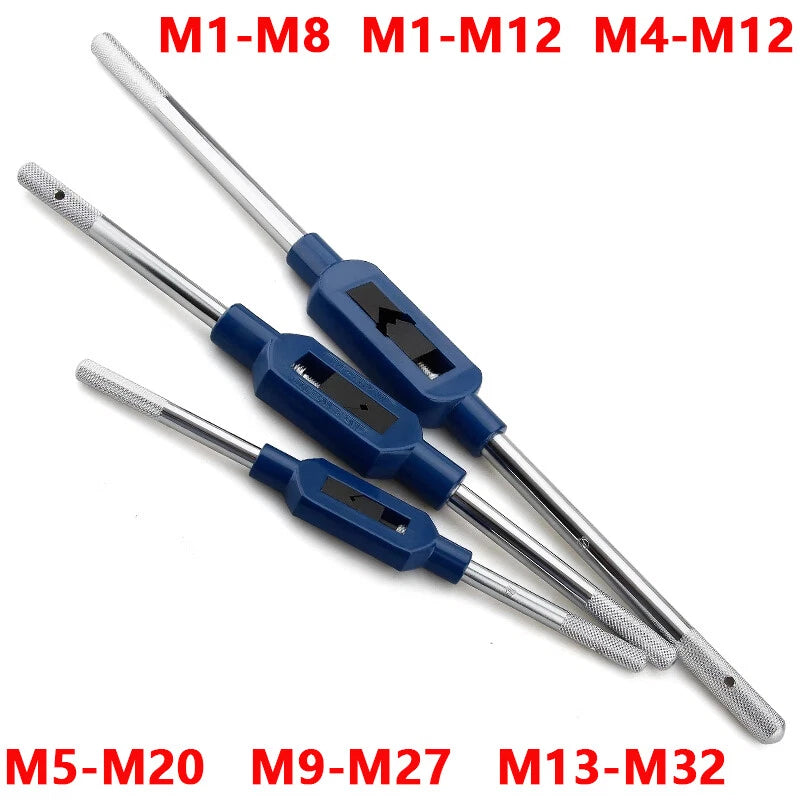

Select the model whose range includes your tap size. For example, if you're using M6 taps, both the M1–M8 and M1–M12 sets will work — the M1–M8 set will give you a more compact wrench better suited to smaller taps, while the M1–M12 set offers more range. For M16 taps, choose M5–M20 or M9–M27. When in doubt, choose the set whose lower bound is closest to your tap size for the best chuck grip.

Yes — as long as the tap has a standard straight square or round shank that falls within the model's chuck capacity, the wrench will grip it. The chuck grips the shank, not the flutes, so tap geometry (spiral, straight, spiral-point) does not affect compatibility.

This wrench is designed for hand tapping in standard engineering materials including mild steel, aluminum, brass, copper, and plastics. For hardened steel, the limiting factor is the tap itself rather than the wrench — use a tap rated for hard materials and apply cutting fluid. The wrench provides the controlled torque needed to avoid tap breakage in tougher materials.

Yes. The adjustable chuck accepts straight-shank reamers within the model's size range. This makes the wrench useful for hand reaming bored holes to final diameter before threading, or for finishing holes to close tolerance without a machine tool.

Use the correct model set so the chuck grips the shank firmly without slipping. Apply cutting fluid appropriate for your material. Advance the tap half a turn, then back off a quarter turn to break the chip. Use both hands on the bar handles to keep the tap perpendicular to the workpiece. For blind holes, count your turns carefully to avoid bottoming out.

The M1–M8 set is a smaller, lighter wrench optimized for fine taps up to M8. The M1–M12 set is a larger wrench that covers the same small sizes but extends up to M12, making it more versatile if you work across a wider range. If you primarily tap M6 and smaller, the M1–M8 set is more maneuverable in tight spaces. If you regularly tap M10–M12 as well, the M1–M12 set eliminates the need for a second tool.

The chuck is designed to stay locked once tightened onto the tap shank. Before starting, tighten the chuck firmly by hand until there is no play. If you notice slipping during use, stop and re-tighten — slipping can damage the tap shank or cause the thread to go off-angle.
