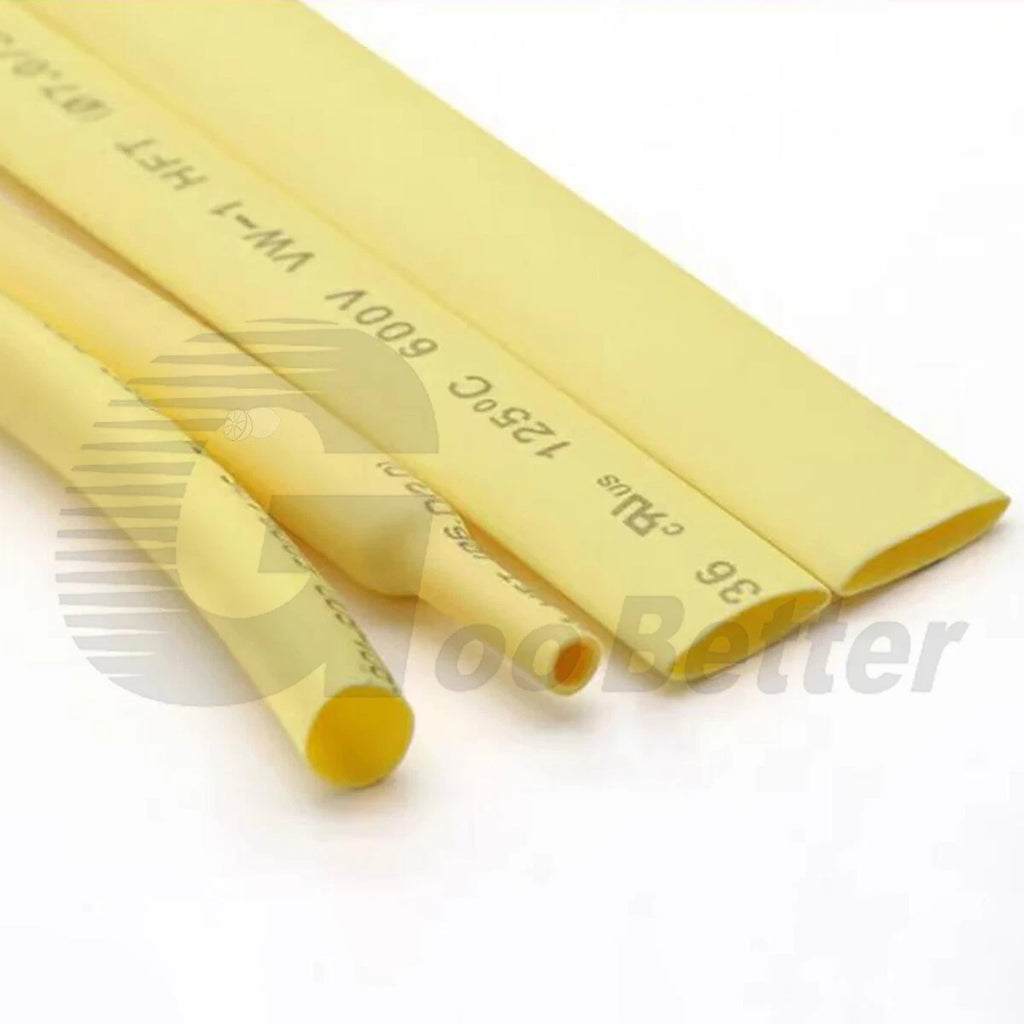

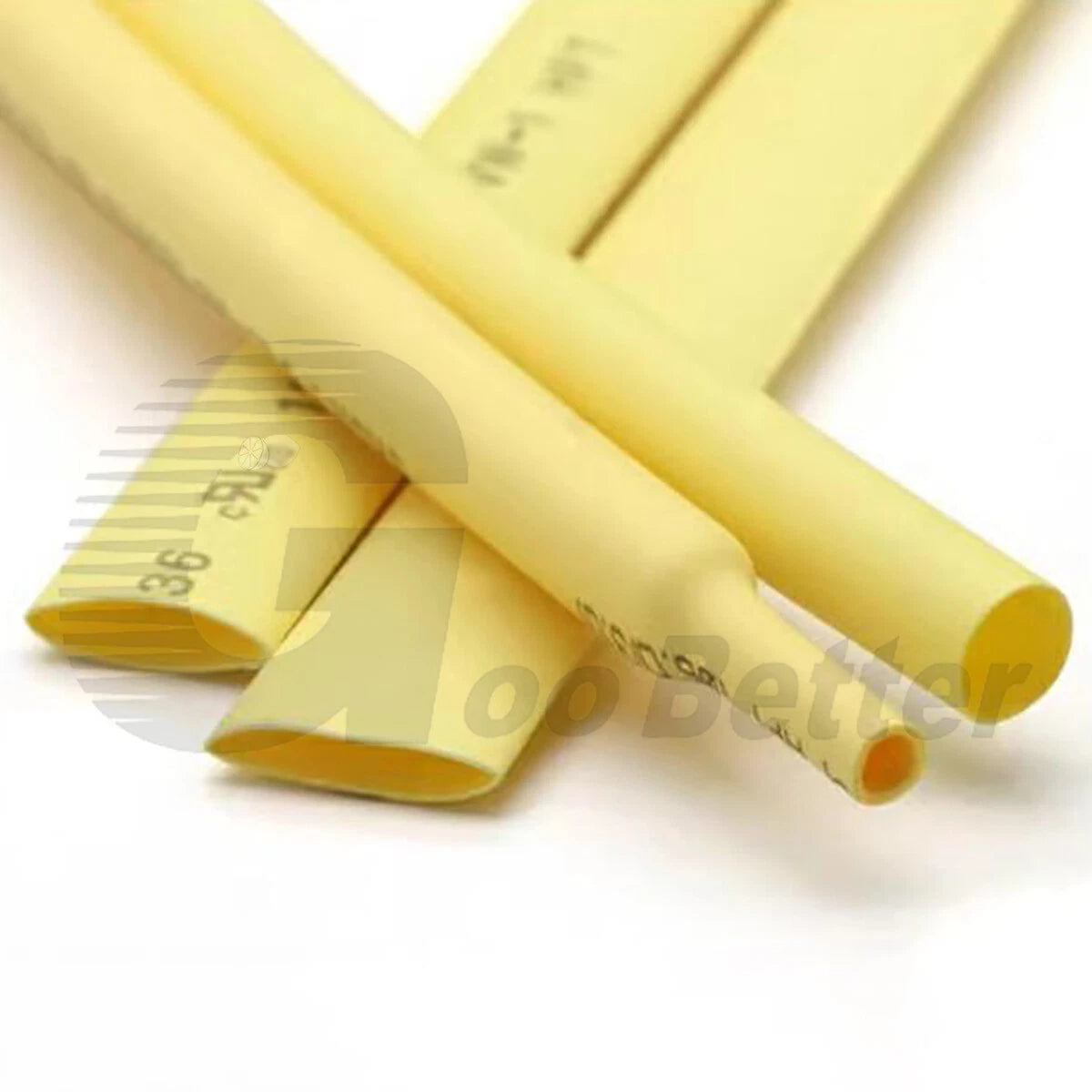

Yellow Heat Shrink Tubing — Reliable Insulation for Every Wire and Cable Job
Loose wire ends, exposed splices, and unprotected connectors are a safety hazard and a frustration for any DIYer, electrician, or technician. Whether you're repairing automotive wiring, building a custom electronics project, or protecting outdoor cable runs, you need heat shrink tubing that fits precisely, shrinks cleanly, and stays put. This yellow heat shrink tubing is available in both 2:1 ratio (without adhesive) and 3:1 ratio (with adhesive inner lining), giving you the right tool for both basic insulation and fully sealed, waterproof connections.

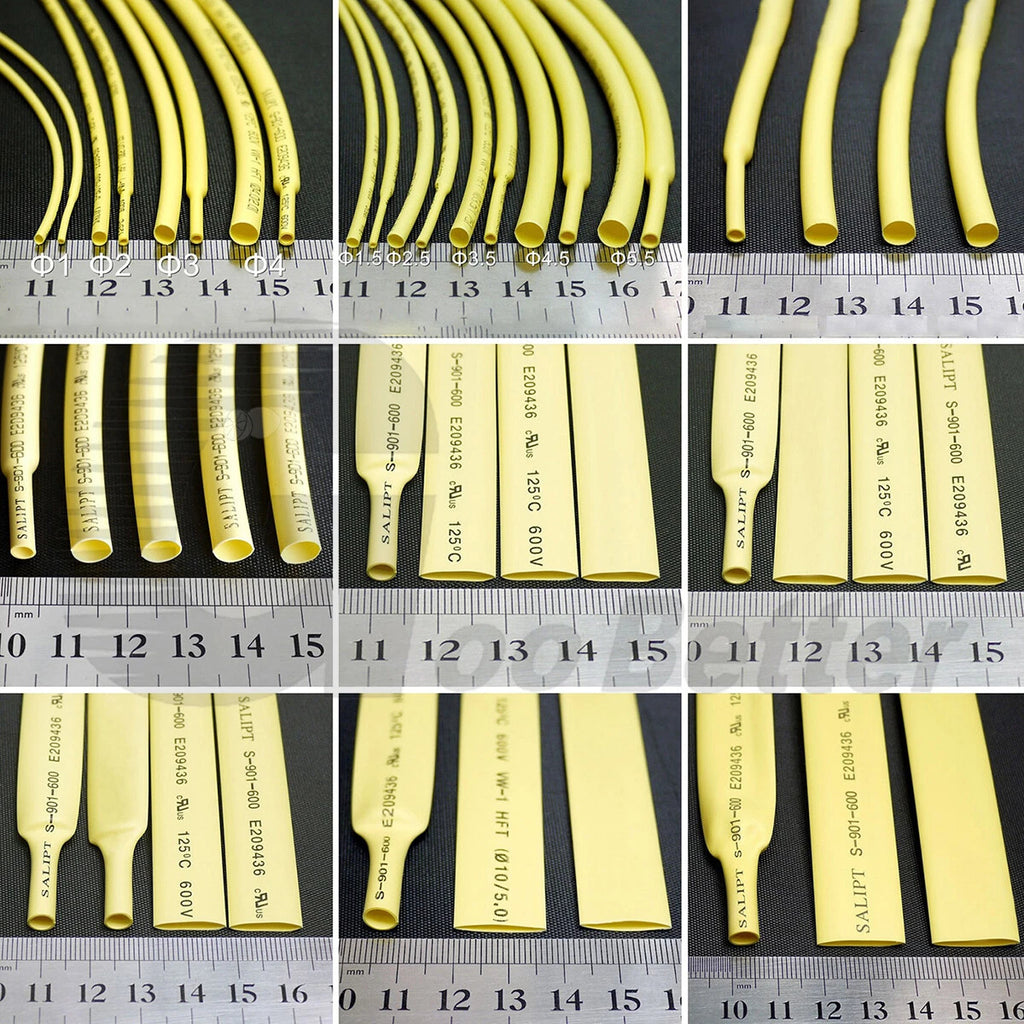

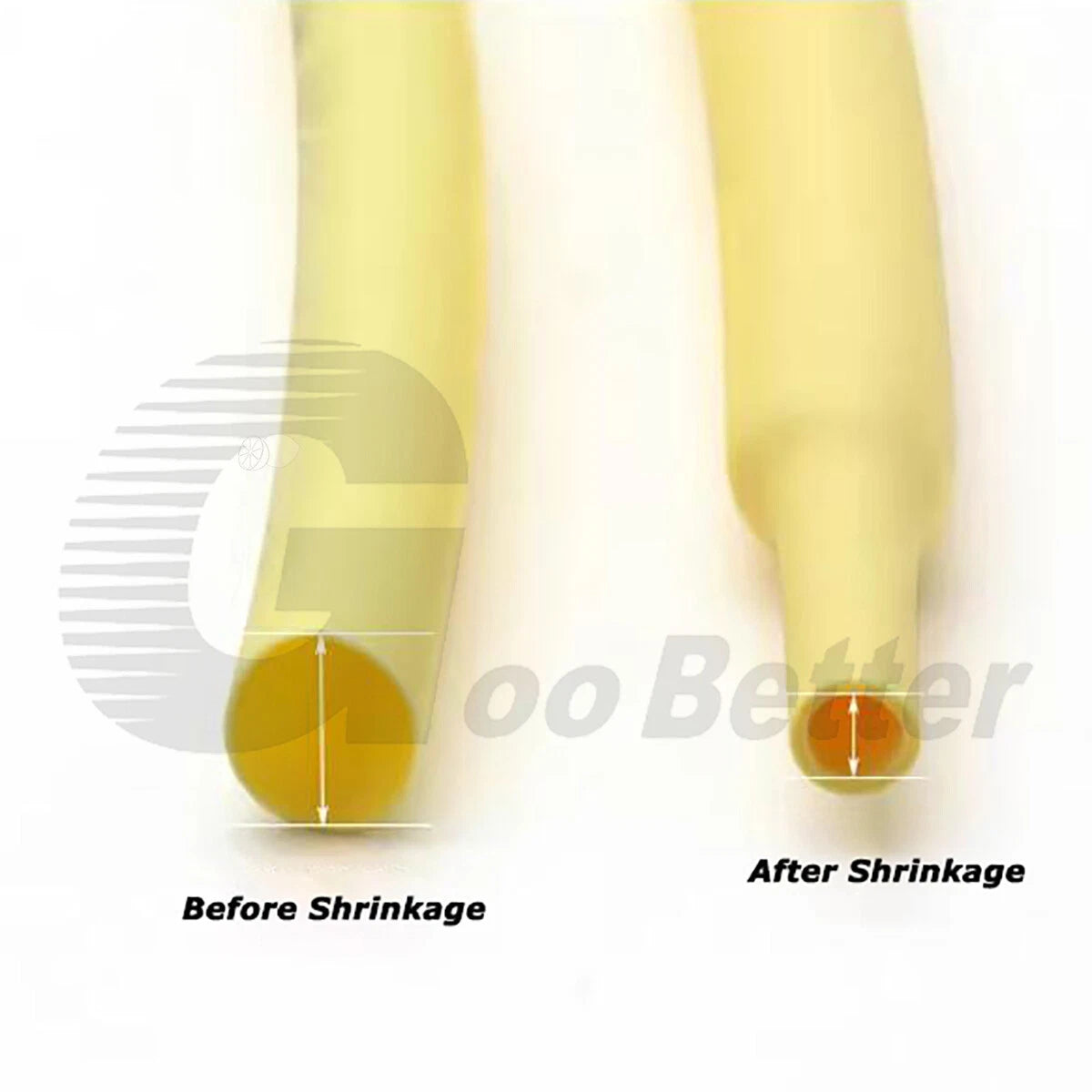

Each listing covers a wide size range from Φ0.6mm (≈0.024") to Φ80mm (≈3.15"), with length options from 1M (≈3.3 ft) up to 50M (≈164 ft). The tubing is made from flame-retardant polyolefin — a material known for its flexibility, chemical resistance, and consistent shrink performance. The 2:1 variant shrinks to half its supplied diameter; the 3:1 adhesive-lined variant shrinks to one-third and bonds to the substrate for a moisture-resistant seal.
Typical use cases include automotive wiring harness repair and color-coding, marine and outdoor cable protection, electronics prototyping and PCB wire management, and industrial cable bundling. The bright yellow color makes it easy to identify circuits at a glance — a practical choice for electrical panels, control boxes, and safety-critical wiring.
ℹ️ Compatibility Note: Select your shrink ratio and diameter based on the outer diameter of your wire or connector before shrinking. For 2:1 tubing, the supplied inner diameter should be at least 20% larger than your wire OD. For 3:1 adhesive-lined tubing, the same rule applies — the adhesive layer adds slight wall thickness after shrinking. If you are unsure, contact us to confirm the right size.
✅ Key Features of These Yellow Heat Shrink Tubes
-
🔥Dual Shrink Ratio Options — Choose 2:1 (without adhesive) for standard wire insulation and color-coding, or 3:1 (with adhesive lining) for waterproof, strain-relieved connections in outdoor and marine wiring applications.
-

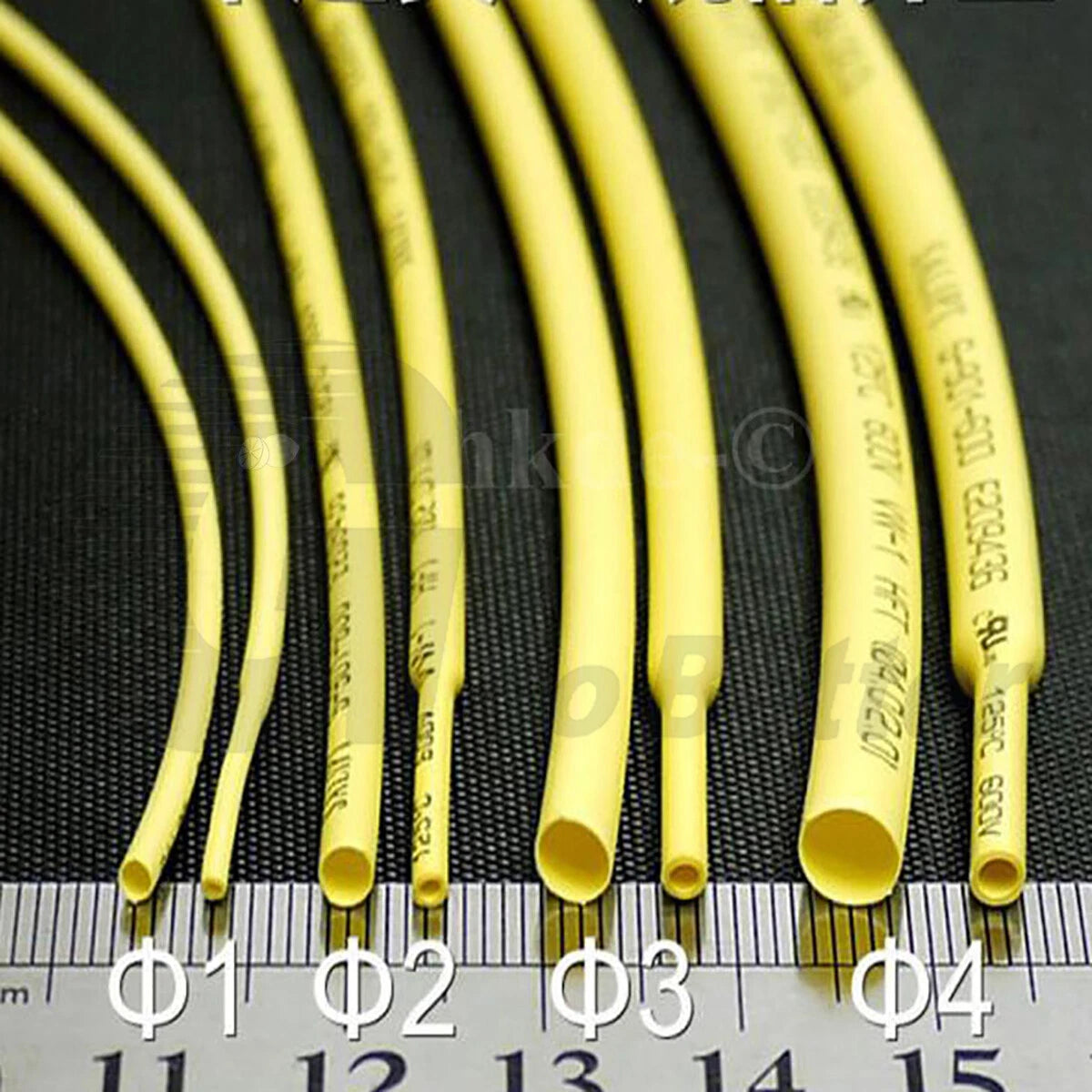

📏Wide Size Range — Available from Φ0.6mm (≈0.024") to Φ80mm (≈3.15"), covering fine signal wires, standard hookup wire, multi-conductor cables, and large conduit bundles in a single product line.
-
🛡️Flame-Retardant Polyolefin Material — The tubing is constructed from flame-retardant polyolefin, offering resistance to abrasion, chemicals, and UV exposure — suitable for automotive, industrial, and electrical panel wiring.
-
💧Adhesive-Lined Waterproof Seal (3:1) — The 3:1 ratio variant features a hot-melt adhesive inner layer that flows and bonds during shrinking, creating a moisture-resistant seal ideal for outdoor cable splices and marine electrical connections.
-
🟡High-Visibility Yellow Color — The bright yellow finish makes circuit identification fast and reliable in electrical panels, control cabinets, and wiring harnesses where color-coding is used for safety or organization.
-
📦Flexible Length Options — Available in 1M, 2M, 5M, 10M, 20M, and 50M cuts, so you can order exactly what you need for a single repair or stock up for ongoing projects without waste.
📐 Technical Specifications — Yellow Heat Shrink Tubing
| Material |
Flame-retardant polyolefin |
| Color |
Yellow |
| Shrink Ratio Options |
2:1 (without adhesive) / 3:1 (with adhesive inner lining) |
| Supplied Diameter Range |
Φ0.6mm (≈0.024") – Φ80mm (≈3.15") |

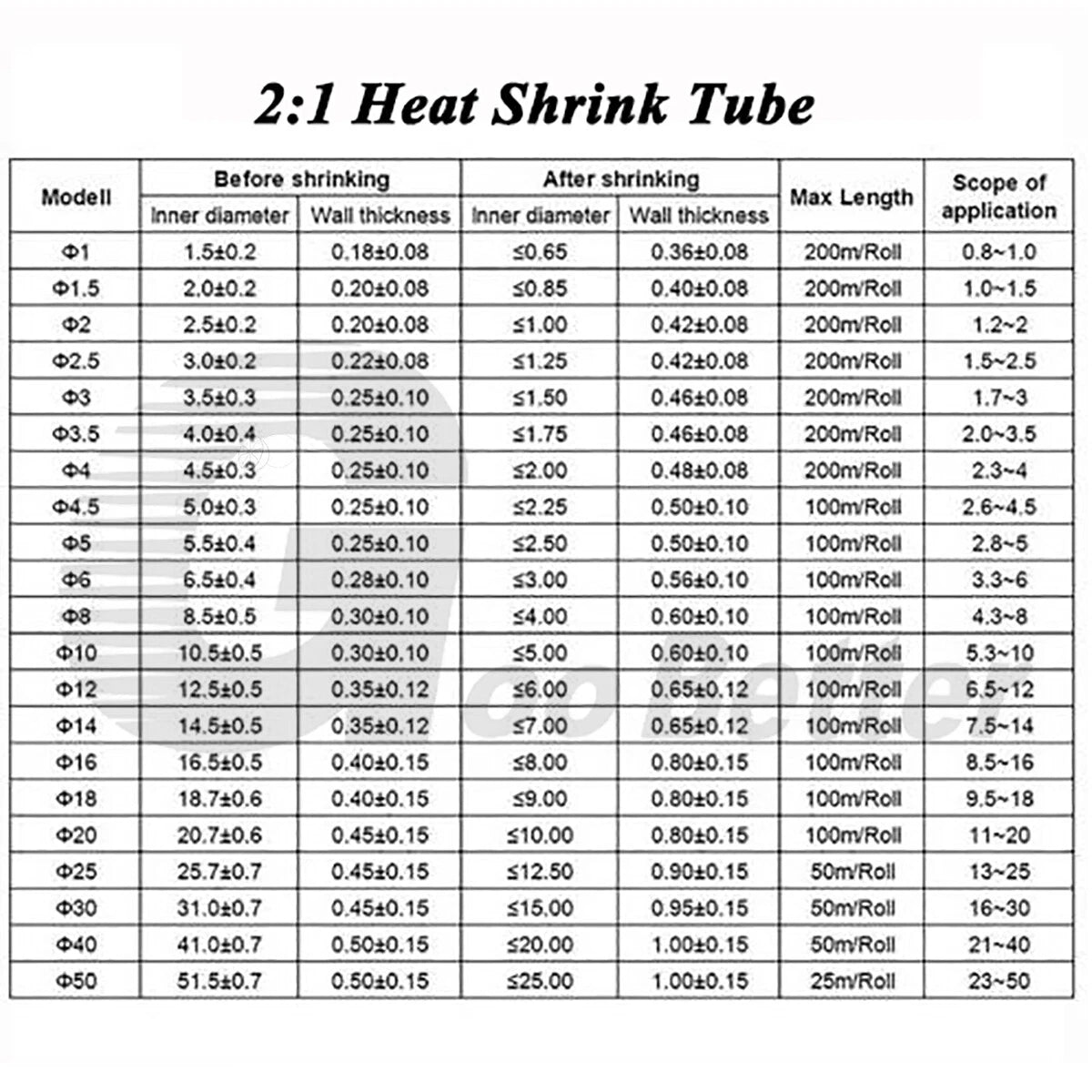

| Recovered Diameter (2:1) |
Approximately 50% of supplied diameter |

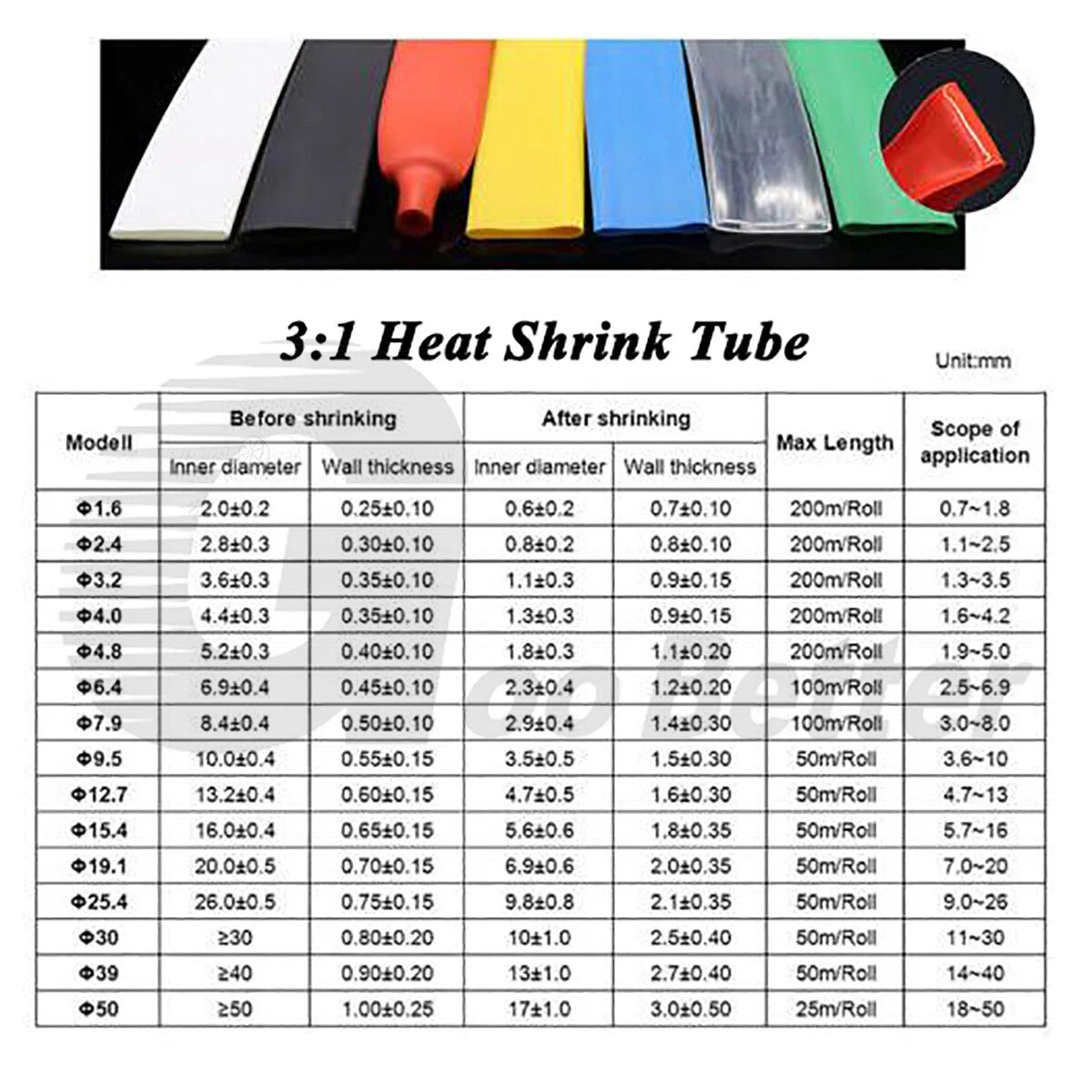

| Recovered Diameter (3:1) |
Approximately 33% of supplied diameter |
| Available Lengths |
1M (≈3.3 ft), 2M (≈6.6 ft), 5M (≈16.4 ft), 10M (≈32.8 ft), 20M (≈65.6 ft), 50M (≈164 ft) |
| Activation Temperature |
Typically 90°C (194°F); full shrink at approx. 120°C–150°C (248°F–302°F) |
| Wall Thickness (after shrink) |
See variant options |
| Adhesive Layer (3:1 only) |
Hot-melt adhesive inner lining; activates during shrinking |
| Flame Retardancy |
Flame-retardant per polyolefin standard; contact us to confirm specific certifications |
| Typical Applications |
Automotive wiring, marine cables, electronics, industrial cable management |
| Operating Temperature Range |
Typically –55°C to +125°C (–67°F to +257°F) after shrinking |
⚠️ Size Selection Tip: Always measure the outer diameter of your wire, connector, or cable bundle before selecting a size. The supplied (pre-shrink) inner diameter should be comfortably larger than your component. If you are between sizes, size up — tubing that is slightly oversized will still shrink down; tubing that is too small will not slide on.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire or cable?
Measure the outer diameter of the wire or connector before shrinking. For 2:1 tubing, choose a size that is at least 20% larger than the object's diameter so the tubing slides on easily. For example, a 4mm wire typically fits well inside Φ5mm or Φ6mm tubing. For 3:1 adhesive-lined tubing, the same rule applies — the adhesive layer adds a small amount of wall thickness after shrinking. When in doubt, size up.
What is the difference between 2:1 and 3:1 heat shrink tubing?
2:1 ratio tubing shrinks to half its original diameter and has no adhesive lining — it is generally used for basic insulation, bundling, and color-coding. 3:1 ratio tubing shrinks to one-third its original diameter and includes a hot-melt adhesive inner layer that bonds to the substrate, providing a waterproof, strain-relieved seal. Choose 3:1 adhesive-lined tubing for outdoor, marine, or moisture-exposed applications where a secure, sealed connection is required.
What temperature is needed to shrink this tubing?
Polyolefin heat shrink tubing typically begins to activate at around 90°C (194°F) and fully shrinks at approximately 120°C–150°C (248°F–302°F). A heat gun set to low or medium is generally sufficient for most sizes. Avoid open flames, which can cause uneven shrinking, scorching, or damage to the underlying wire insulation.
Is this heat shrink tubing suitable for outdoor or waterproof use?
The 3:1 ratio with adhesive variant provides a waterproof seal once fully shrunk, making it suitable for outdoor wiring, marine connections, and underground cable splices. The 2:1 ratio without adhesive offers moisture resistance but is not fully waterproof — it is better suited for indoor or protected environments. For any application exposed to standing water or submersion, the 3:1 adhesive-lined version is recommended.
What wire gauges and cable sizes does this tubing cover?
The size range of Φ0.6mm to Φ80mm covers a very wide range of wire gauges and cable bundles — from fine 30 AWG signal wires up to large multi-conductor cables and conduit bundles. As a general reference, Φ0.6mm–Φ2mm typically suits 28–22 AWG wires; Φ3mm–Φ10mm covers 20–10 AWG and small cable bundles; Φ12mm–Φ80mm is suited for larger cables, conduit, and hose protection. Always verify by measuring your specific component's outer diameter.
Is this tubing flame-retardant and RoHS compliant?
This heat shrink tubing is made from flame-retardant polyolefin material and is generally manufactured to meet UL and RoHS standards. If compliance documentation is required for your specific application or project, please contact us to confirm the applicable certifications for the size and ratio you need.
Can I use this tubing for automotive wiring repairs?
Yes. Both the 2:1 and 3:1 variants are commonly used for automotive wiring harness repairs, connector insulation, and terminal protection. The 3:1 adhesive-lined version is especially recommended for engine bay or underbody applications where vibration, heat cycling, and moisture are concerns. The yellow color is also useful for circuit identification in complex harnesses.
🛒 Select your shrink ratio, size, and length above, then add to cart — ships from our US warehouse.
