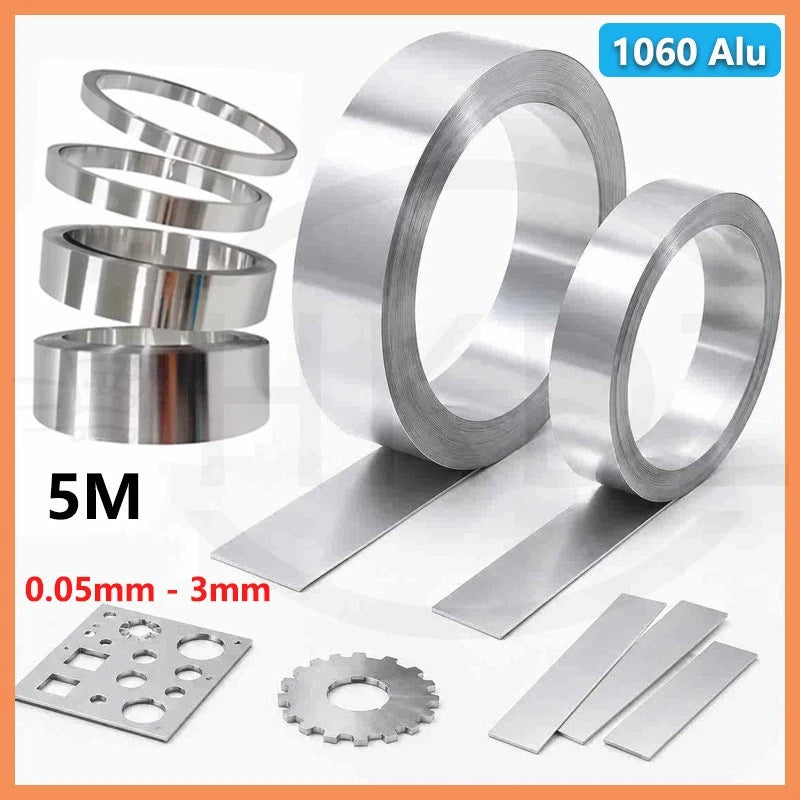

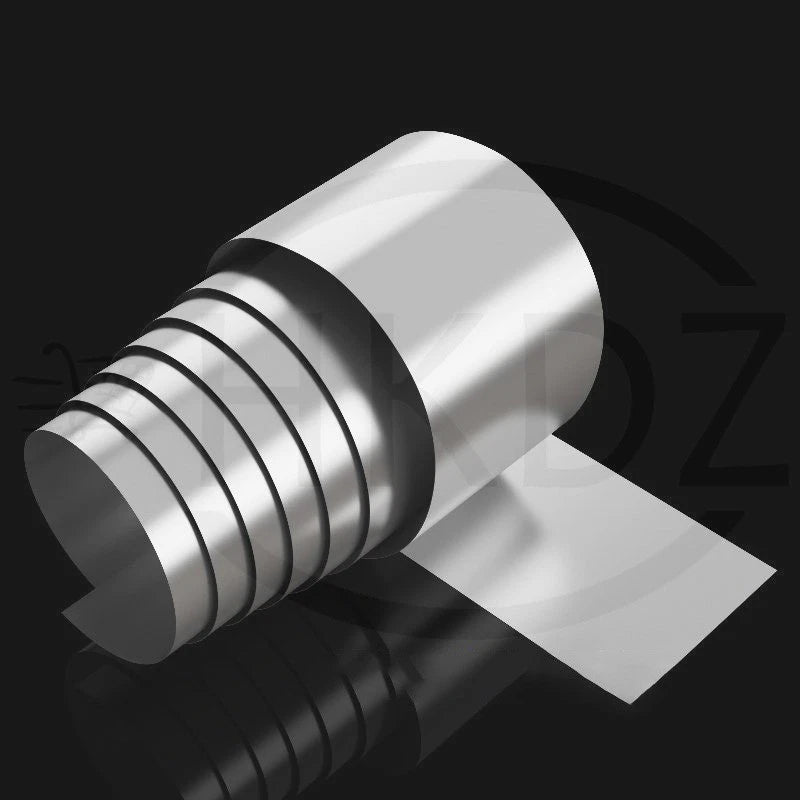

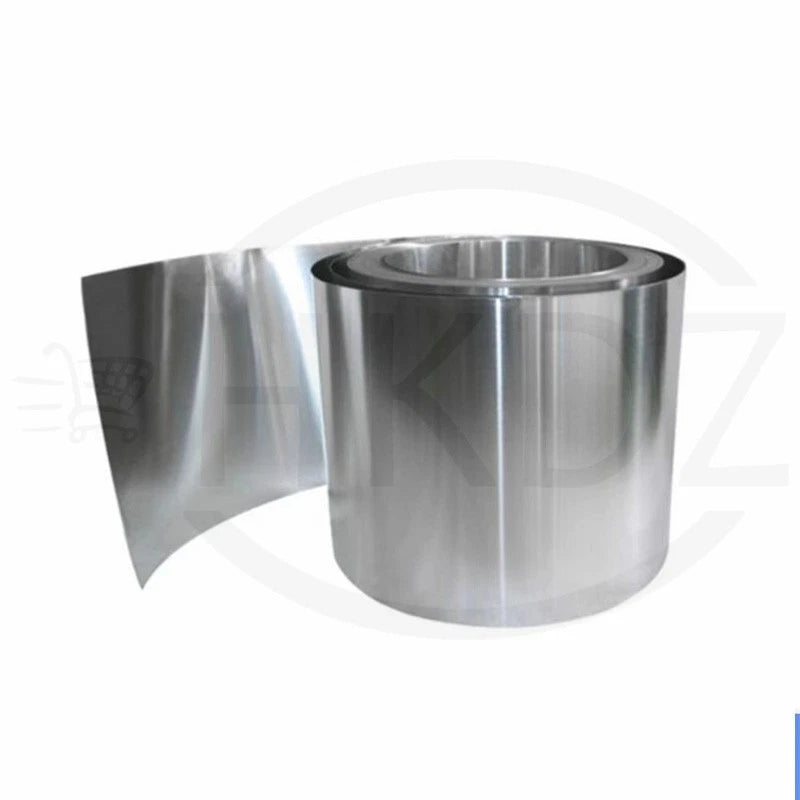

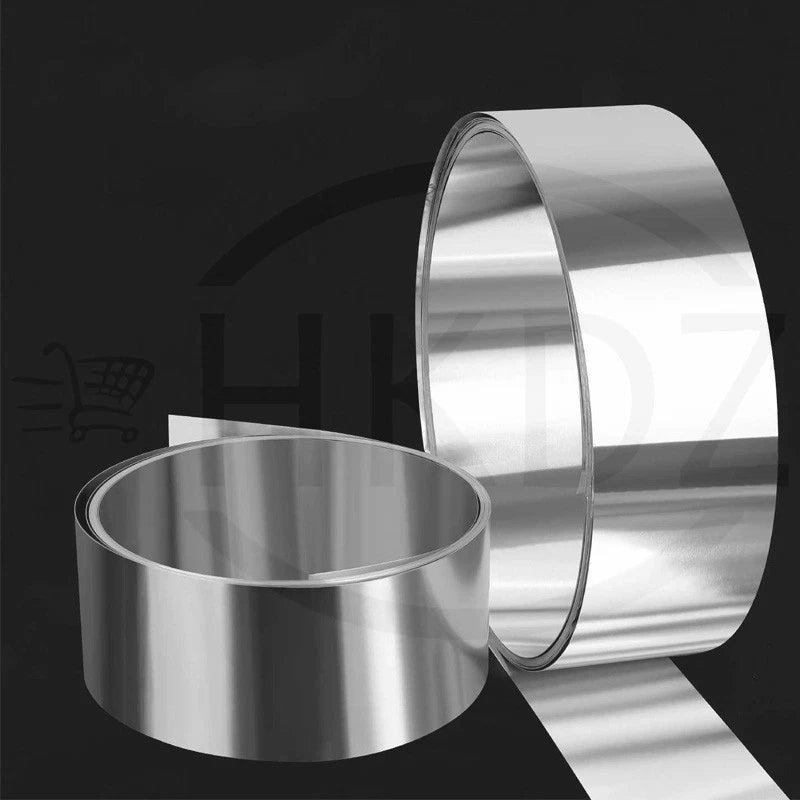

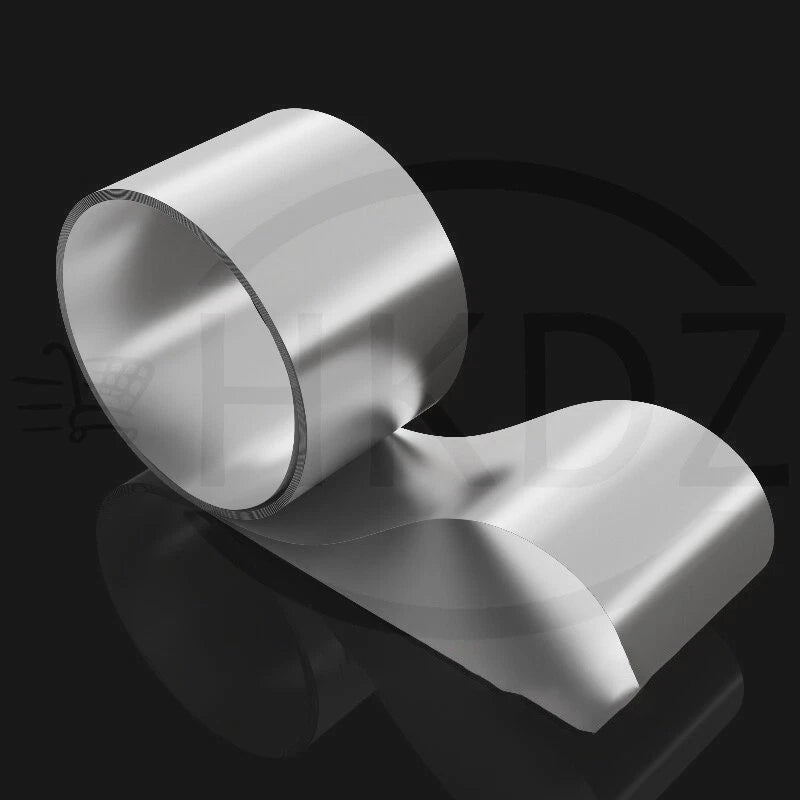

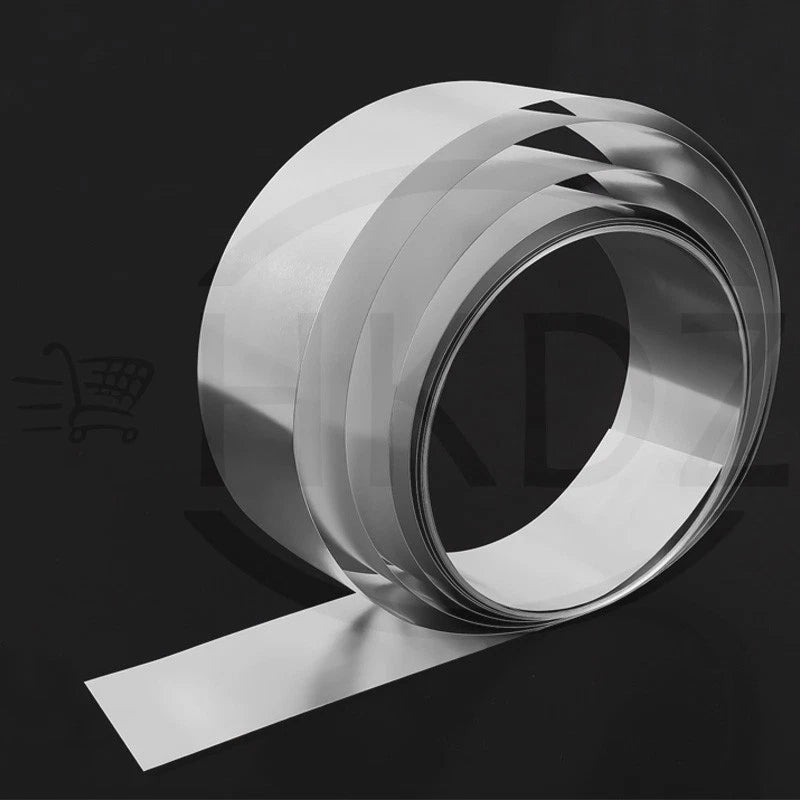

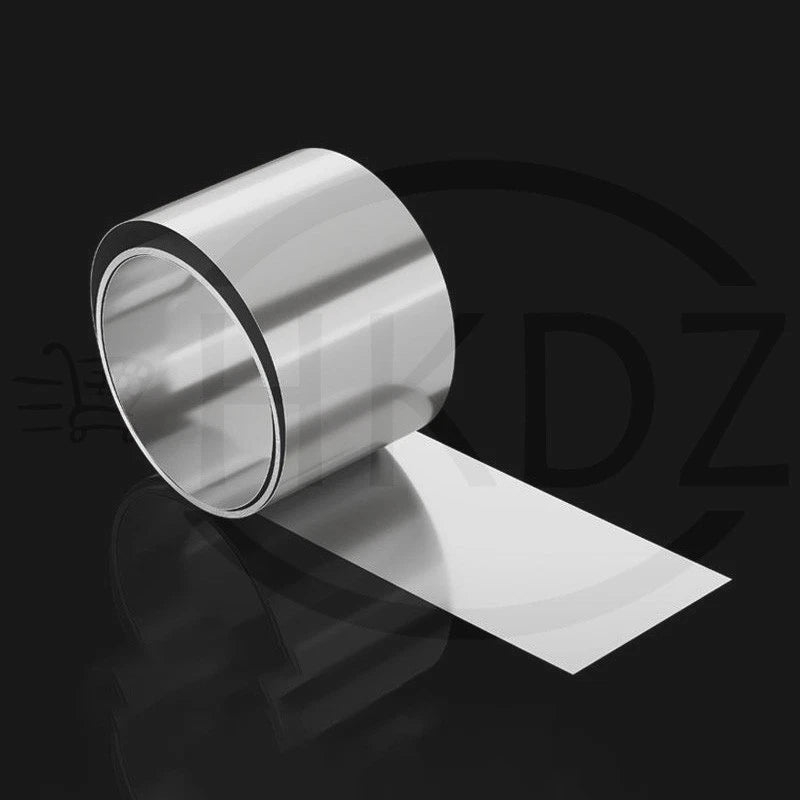

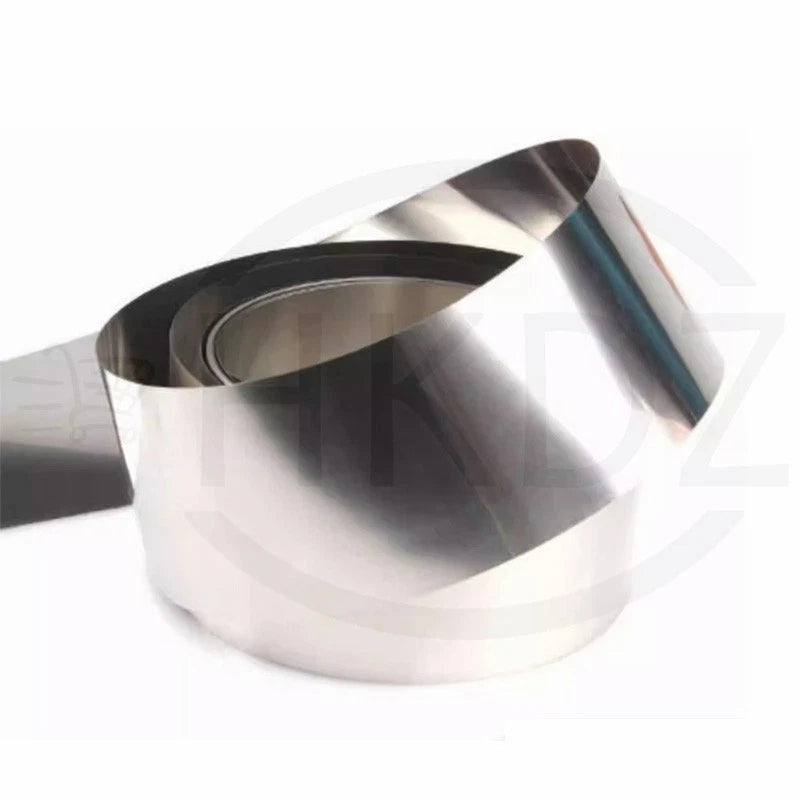

5M Aluminium Strip 1060 Aluminum Foil Sheet Ultra-thin Metal Plate Shim 0.05-3mm

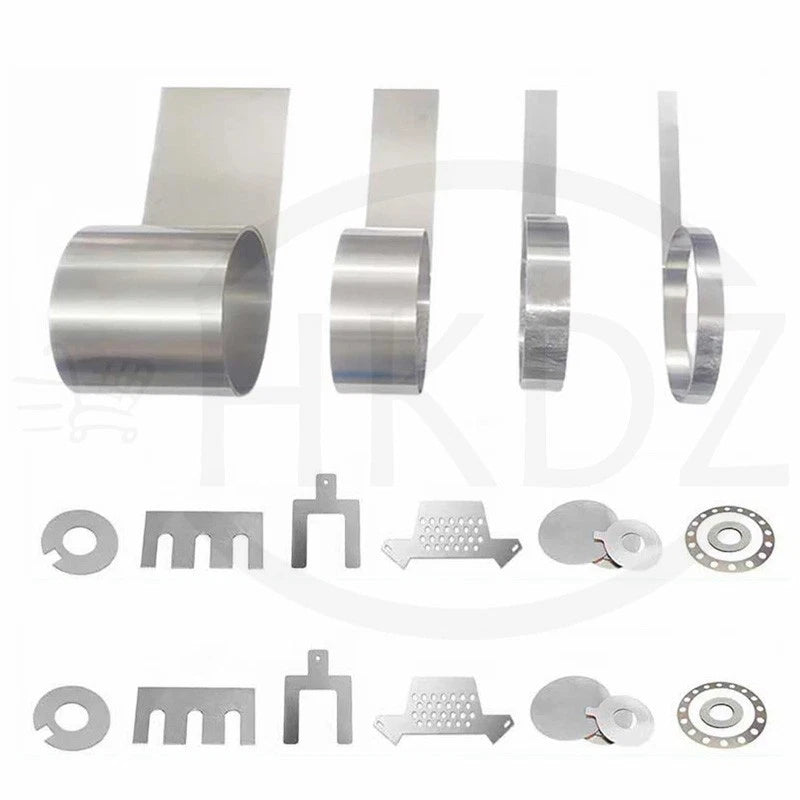

For thermal interface or sealing layers, 0.05–0.1mm foil conforms well to surface irregularities. For precision shimming between machine parts or bearing housings, 0.2–1mm provides measurable, stackable thickness. For structural spacers or load-bearing shims, 1–3mm stock holds its shape under compression. When in doubt, start with a thinner gauge — you can stack multiple layers to reach your target gap.

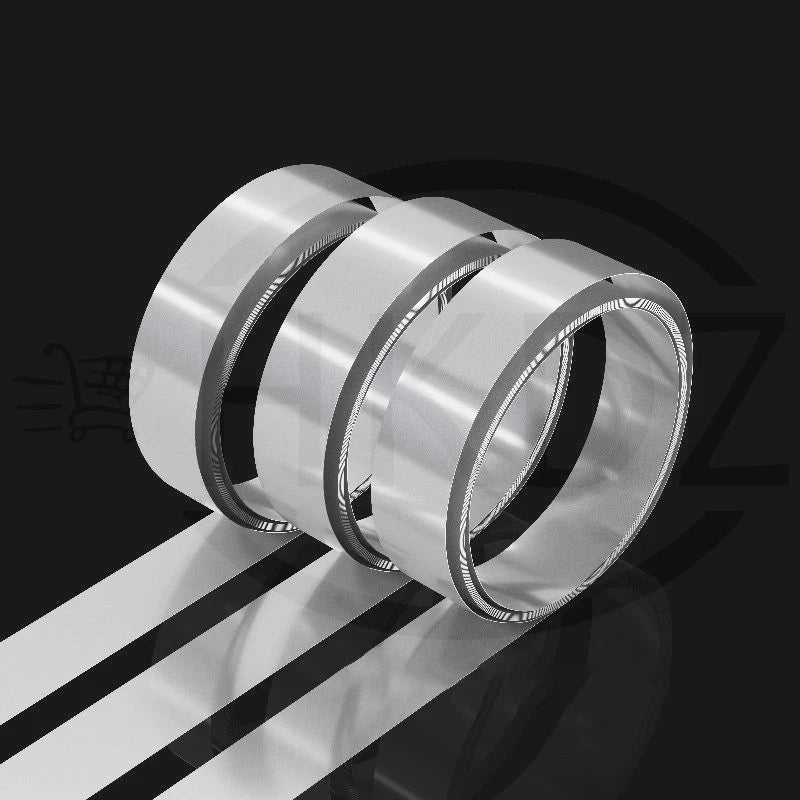

For standard residential duct seams, 50–100mm width covers most lap joints with adequate overlap. For larger commercial duct flanges or wide seams, 150–200mm is more practical. Narrow widths (15–30mm) work well for pipe wrap or tight-radius bends where a wider strip would buckle.

1060 in O (soft) temper has a tensile strength of roughly 55–95 MPa, which is adequate for light-to-medium shimming tasks such as leveling equipment bases, aligning bearing housings, or filling gaps in fabricated assemblies. For heavy-load or high-vibration environments, consider stacking multiple layers or upgrading to a harder alloy (e.g., 6061-T6). Contact us to confirm suitability for your specific load conditions.

1060 aluminum naturally forms a thin, stable aluminum oxide layer on its surface when exposed to air. This passive layer provides good corrosion resistance in most indoor, sheltered outdoor, and mild-humidity environments. It is not recommended for prolonged contact with strong acids, alkalis, or salt-spray environments without additional protective coating. For marine or chemical-exposure applications, consult a materials engineer.

Yes. Gauges up to 0.3mm can be cut cleanly with sharp scissors or a utility knife against a metal straightedge. Gauges from 0.4–1mm are best cut with aviation snips or a rotary slitter. For 1.2–3mm stock, use a metal shear, band saw with a metal blade, or a circular saw with an aluminum-rated carbide blade. Always deburr cut edges before handling to avoid cuts.

No. This product is bare, uncoated aluminum strip with no adhesive backing. It is raw metal stock intended for shimming, fabrication, thermal interface, or structural gap-filling. Aluminum foil tape (used in HVAC) has a pressure-sensitive adhesive on one side. If you need an adhesive-backed product, please contact us to confirm the correct item for your project.

Use the Width and Thickness dropdowns above to select your combination. The price updates automatically based on your selection. If your required size falls between listed options or you need a custom cut length, contact us before ordering and we will advise on the closest available specification.
