Loading a boat onto a trailer solo is a frustrating, back-breaking task without the right equipment. This 12V trailer winch gives boaters, campers, and haulers a reliable electric solution that handles the heavy lifting — so you can focus on the adventure, not the struggle.

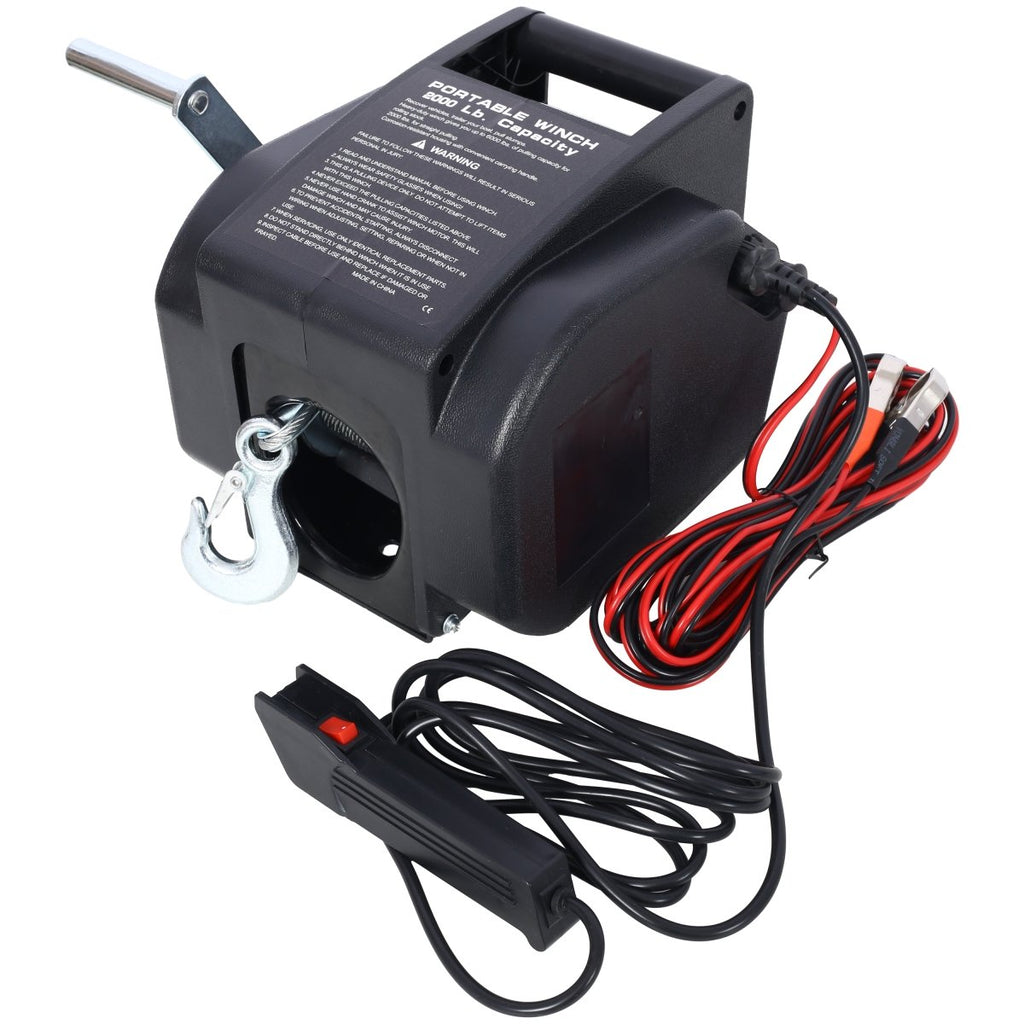

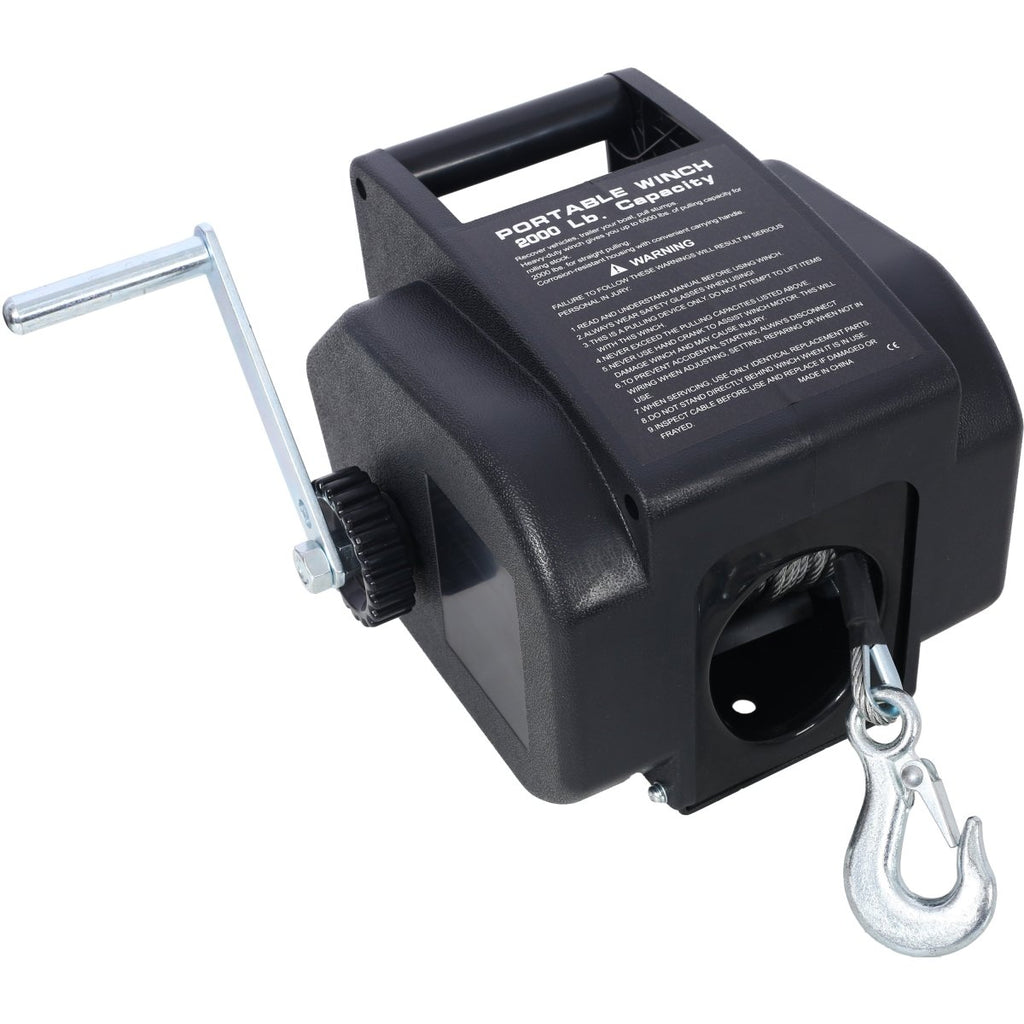

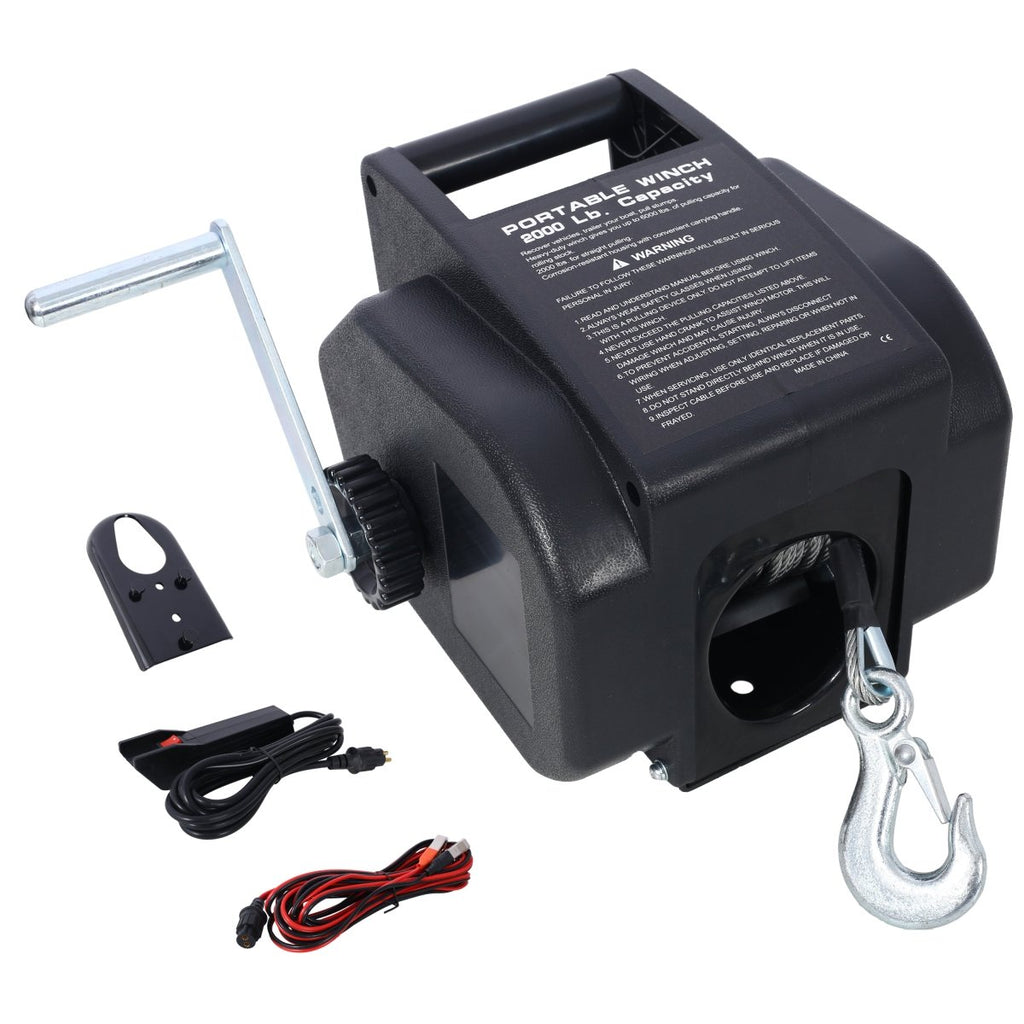

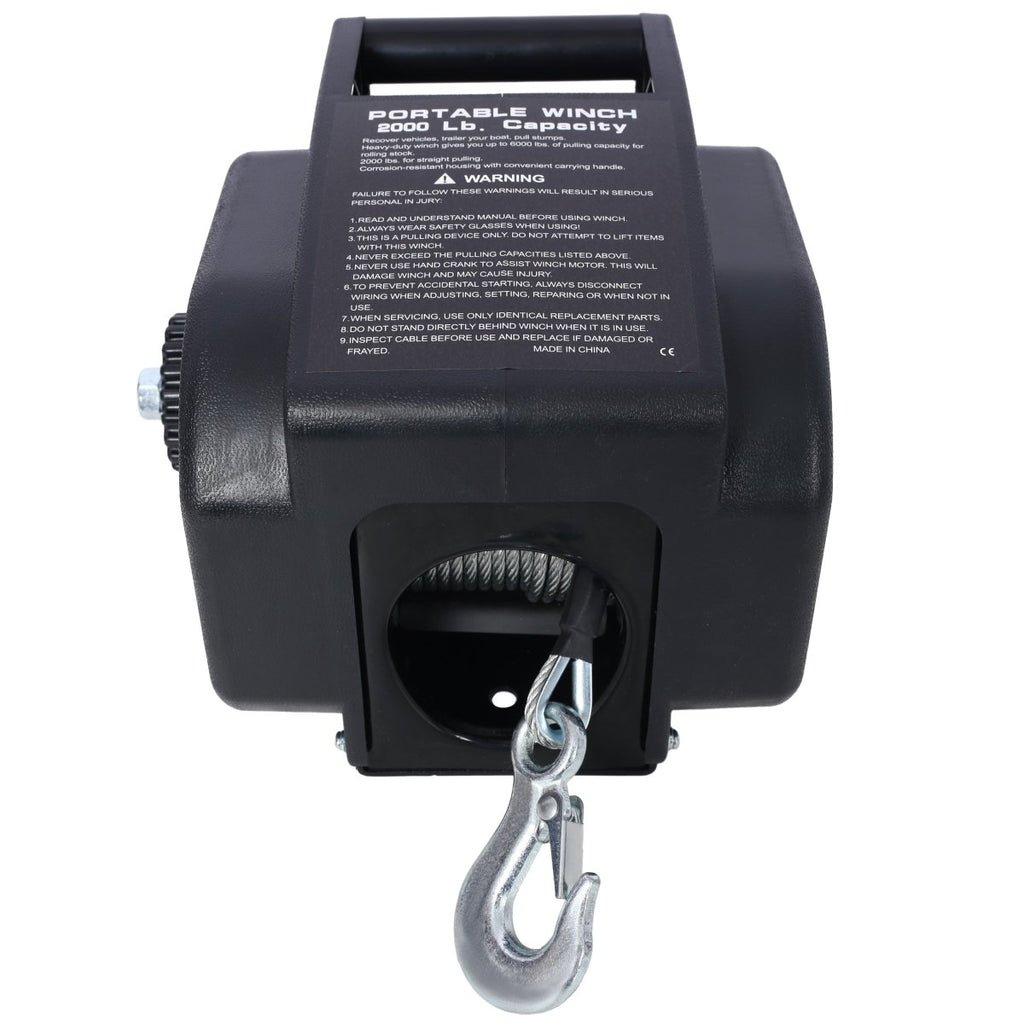

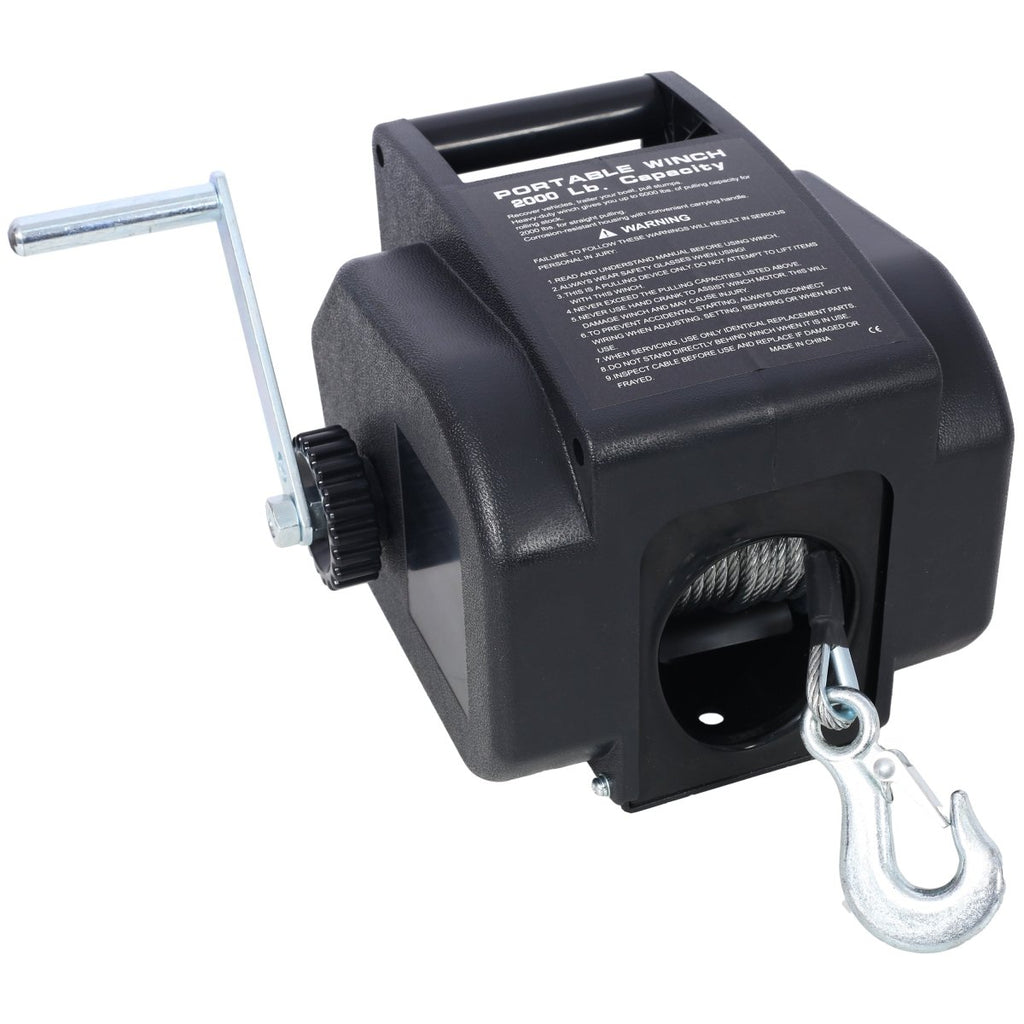

Powered by a 12V DC motor with a 3-stage straight gear drive, this winch delivers a rated line pull of 2,000 lbs (single line), a marine-rated pull of 5,000 lbs, and a rolling-rated pull of 6,000 lbs. It measures 13" × 9.5" × 7.5" and weighs 22 lbs (approx. 10 kg), with a 32 ft (9.2 m) galvanized wire rope (Ø4.8 mm) and a black plastic casing built for outdoor use.
Ideal as an electric boat trailer winch for vessels up to 18 ft and 5,000 lbs, a reversible trailer winch for ATV and utility hauling, or a portable 12V winch for loading and unloading heavy equipment at job sites and boat ramps.
Load and unload vessels up to 18 ft and 5,000 lbs at the boat ramp without a second person. The marine-rated 5,000 lb pull handles everything from fishing boats to ski boats.
Winch ATVs, UTVs, lawn equipment, and heavy cargo onto flatbed or utility trailers. The 6,000 lb rolling-rated pull and 2-inch hitch mount make it a versatile addition to any tow setup.
Bring the winch along on camping or off-road trips. The carry handle and portable design make it easy to deploy wherever you need pulling power — no permanent installation required.
Use the 12V electric winch to load heavy materials, machinery, or equipment onto trailers at construction sites, farms, or warehouses — powered directly from a vehicle battery.
| Power Input | 12V DC |
|---|---|
| Rated Line Pull | 2,000 lbs (907 kg) — single line |
| Marine Rated Line Pull | 5,000 lbs |
| Rolling Rated Line Pull | 6,000 lbs |
| Max Boat Weight | 5,000 lbs |
| Max Boat Length | Up to 18 ft |
| Gear Drive | 3-Stage Straight Gear |
| Line Speed (Under Load) | 1.18 m/min |

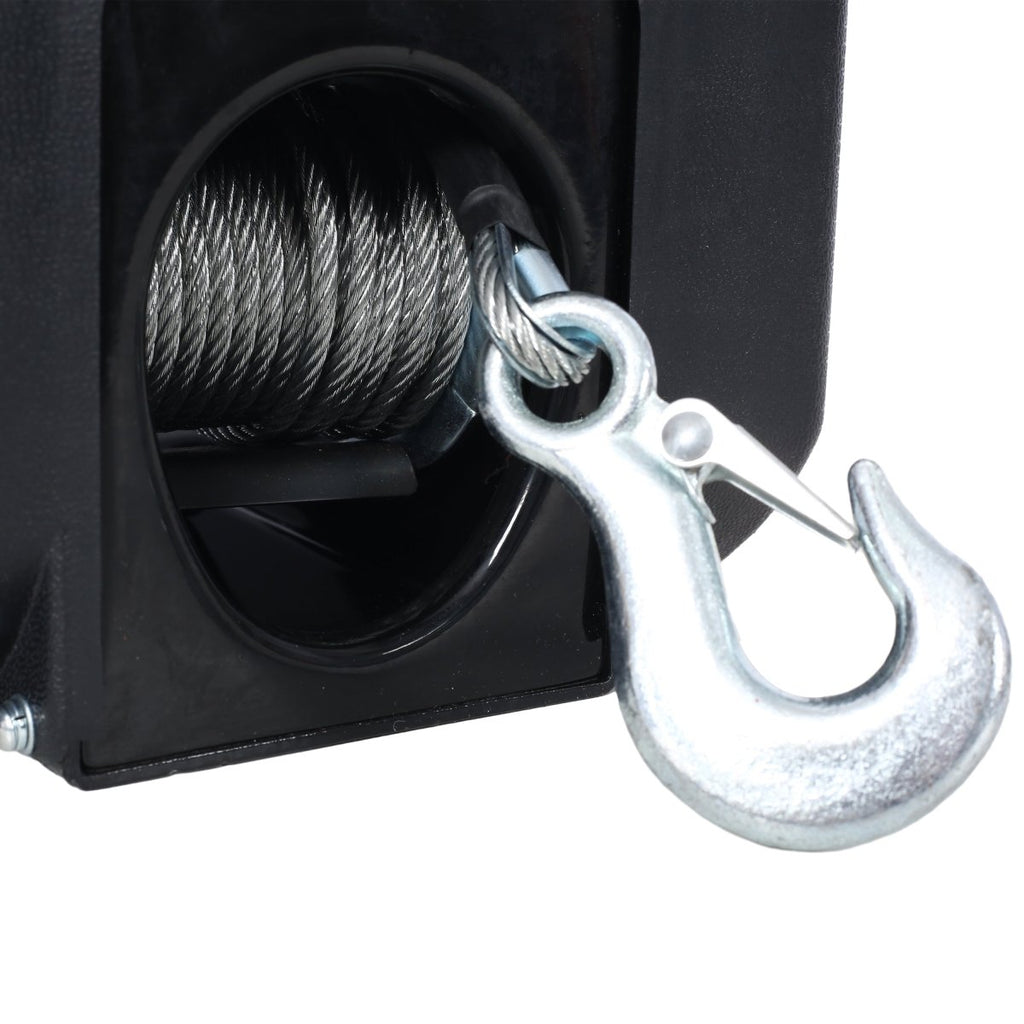

| Wire Rope | 32 ft (9.2 m) × Ø4.8 mm Galvanized Steel |

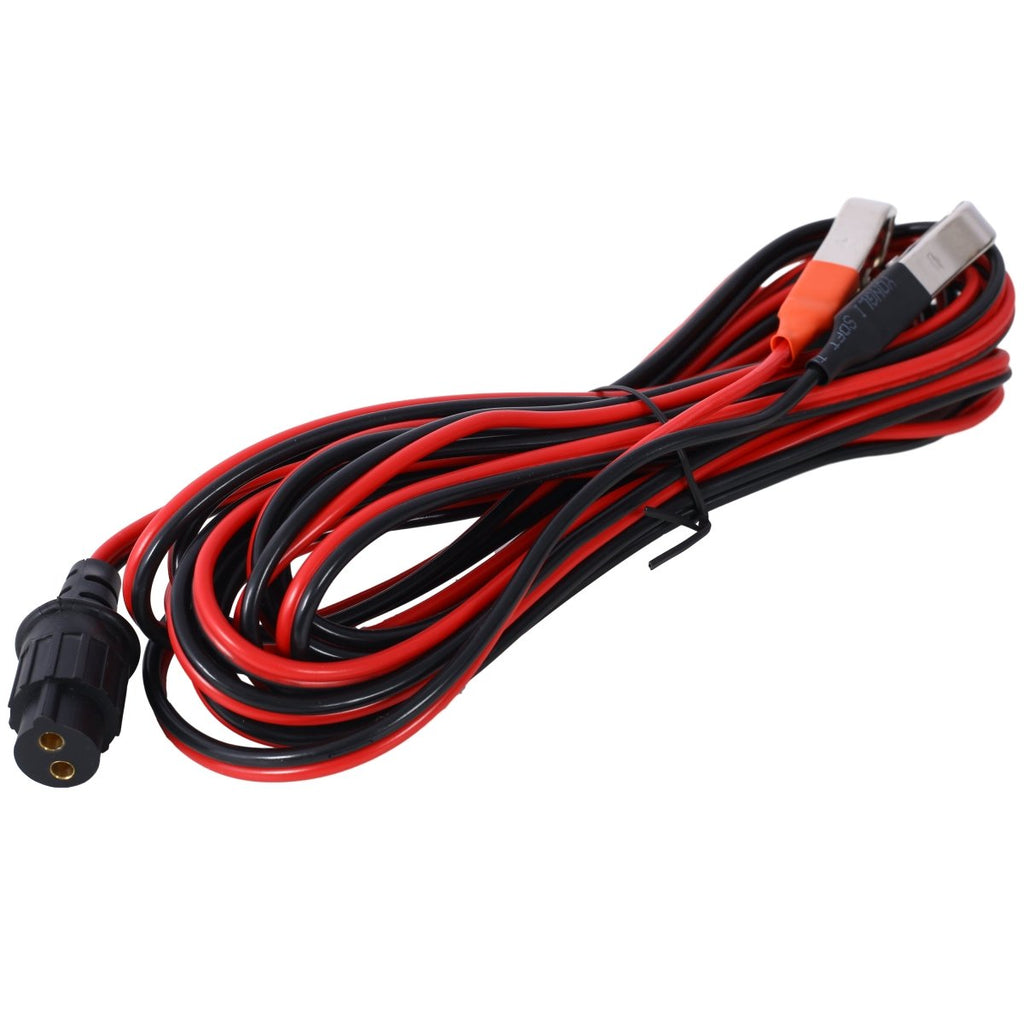

| Battery Cable Length | 20 ft (6 m) |

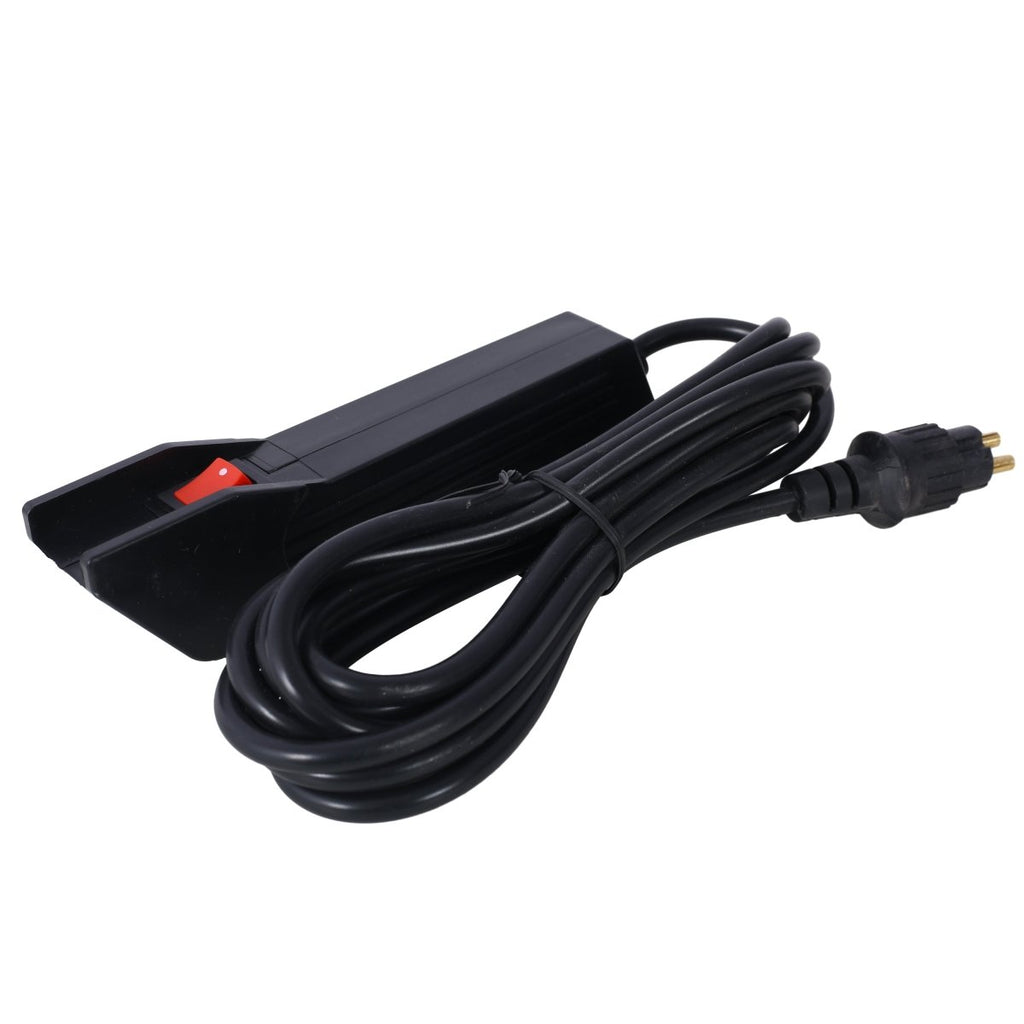

| Remote Control Cable | 10 ft (3 m) |
| Main Hook Size | 5/8" opening × 4-1/4" long |
| Mounting | 2" Ball Hitch Receiver (tool-free slide-on) |
| Mounting Plate Dimensions | 8-3/4" L × 4-15/16" H × 3/16" W |

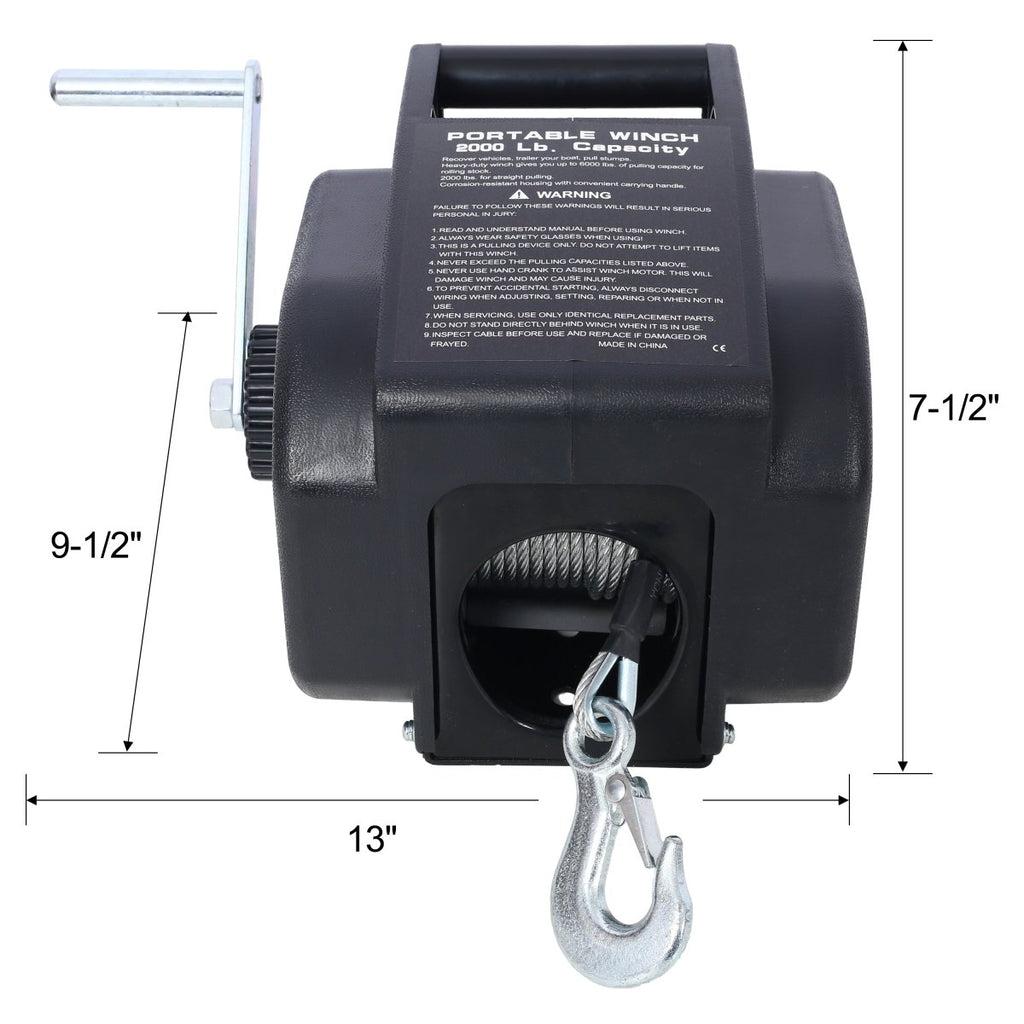

| Product Dimensions | 13" × 9.5" × 7.5" |
| Product Weight | 22 lbs (approx. 10 kg) |
| Casing Material | Black Plastic |
| Operation Mode | Power-In (remote) / Manual-Out (hand crank) |
The rated line pull (2,000 lbs) is the standard single-line capacity for direct pulling. The marine-rated pull (5,000 lbs) accounts for the mechanical advantage of the trailer's roller system when loading a boat. The rolling-rated pull (6,000 lbs) applies when the load is on wheels and rolling freely. Always match the rating to your specific use case.
Yes. The included slide-on adapter plate is designed to fit any standard 2-inch ball hitch receiver. No tools or drilling are required — simply slide it on and secure it to get started.
Yes. This winch features a power-in / manual-out design. The electric motor handles pulling the load in (via the remote control), while a manual hand crank is included for paying out the rope by hand when needed.

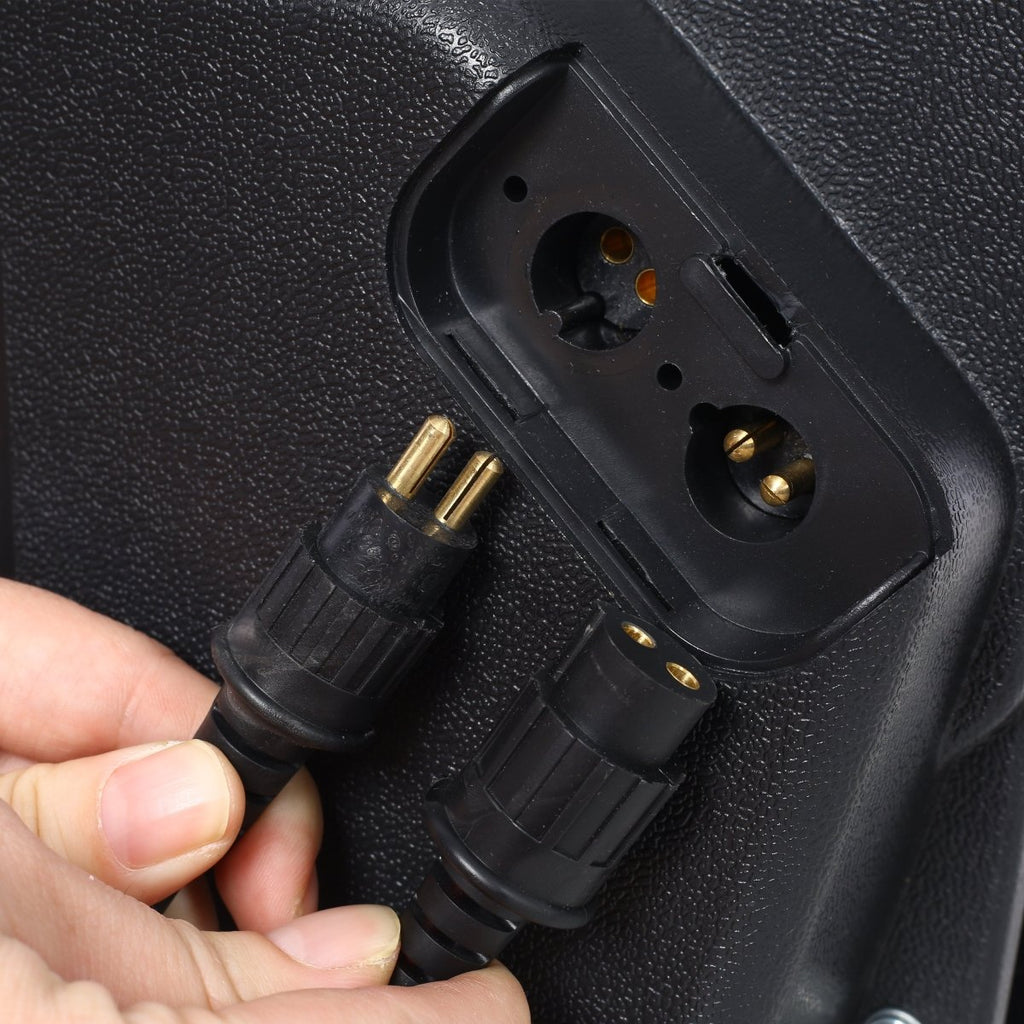

The included battery cables are 20 ft (6 m) long, giving you enough reach to connect directly to your tow vehicle's battery or a dedicated 12V trailer battery. No additional extension cables are typically needed for standard setups.
This winch is rated for boats up to 18 ft in length and up to 5,000 lbs in weight. The 3-stage straight gear drive system provides consistent pulling power across this range. For boats outside these specifications, please verify compatibility before use.
The remote control is designed for outdoor trailer and boat ramp use. While it is built to handle typical outdoor conditions, we recommend keeping it away from direct submersion in water. Contact us to confirm specific IP rating details for your application.
The winch is designed for use with a 2-inch hitch receiver mount, making it portable and easy to move between vehicles. For permanent trailer mounting, additional hardware may be required depending on your trailer's frame configuration. Contact us to confirm compatibility with your specific setup.
