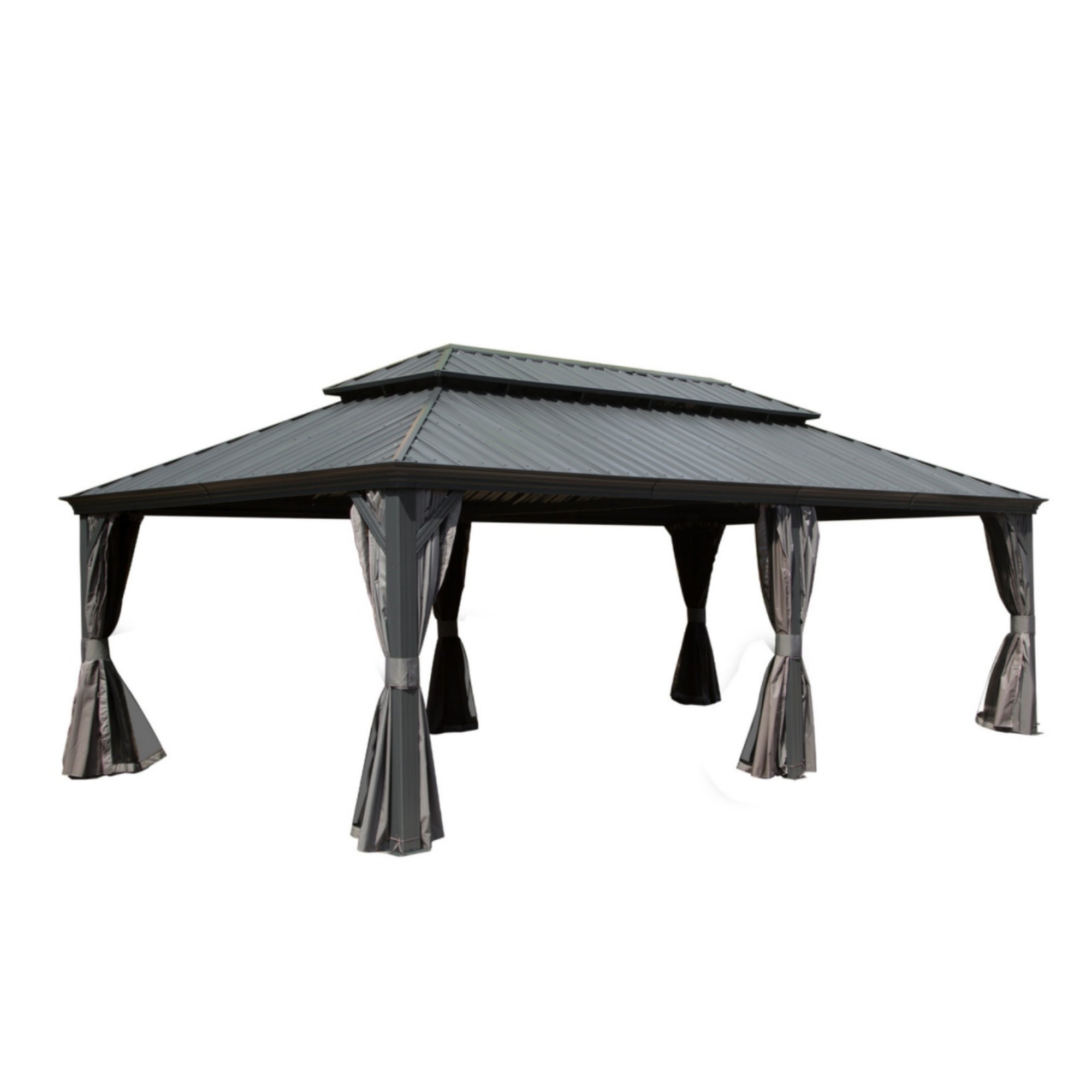

At 14×24 ft, this is the largest hardtop gazebo in the series — delivering approximately 336 sq ft of covered outdoor floor space under a permanent galvanized steel double roof. Homeowners who want to cover an entire outdoor living zone, host large gatherings year-round, or create a dedicated outdoor room that handles serious weather without compromise will find this aluminum-framed pavilion built to match those expectations at scale.

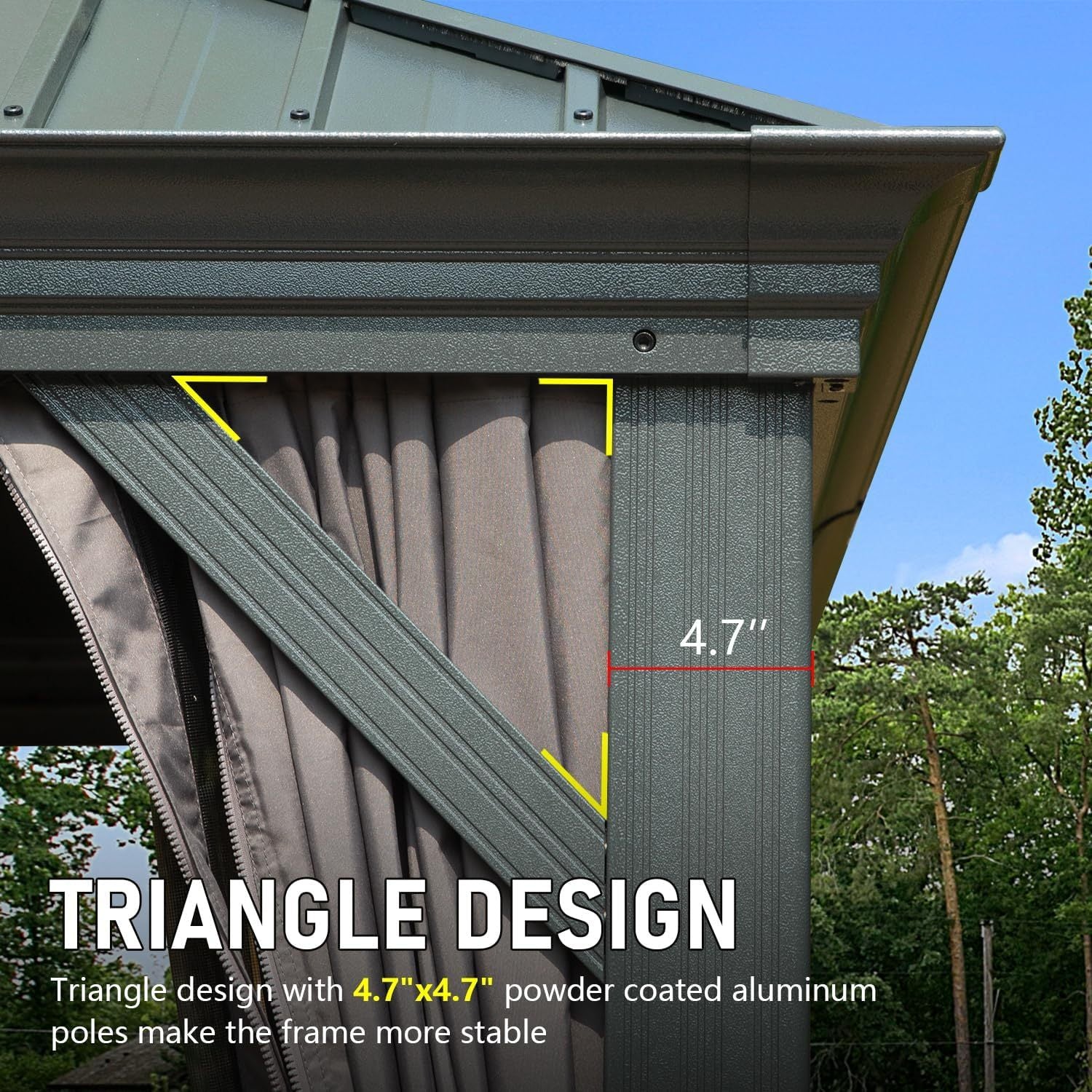

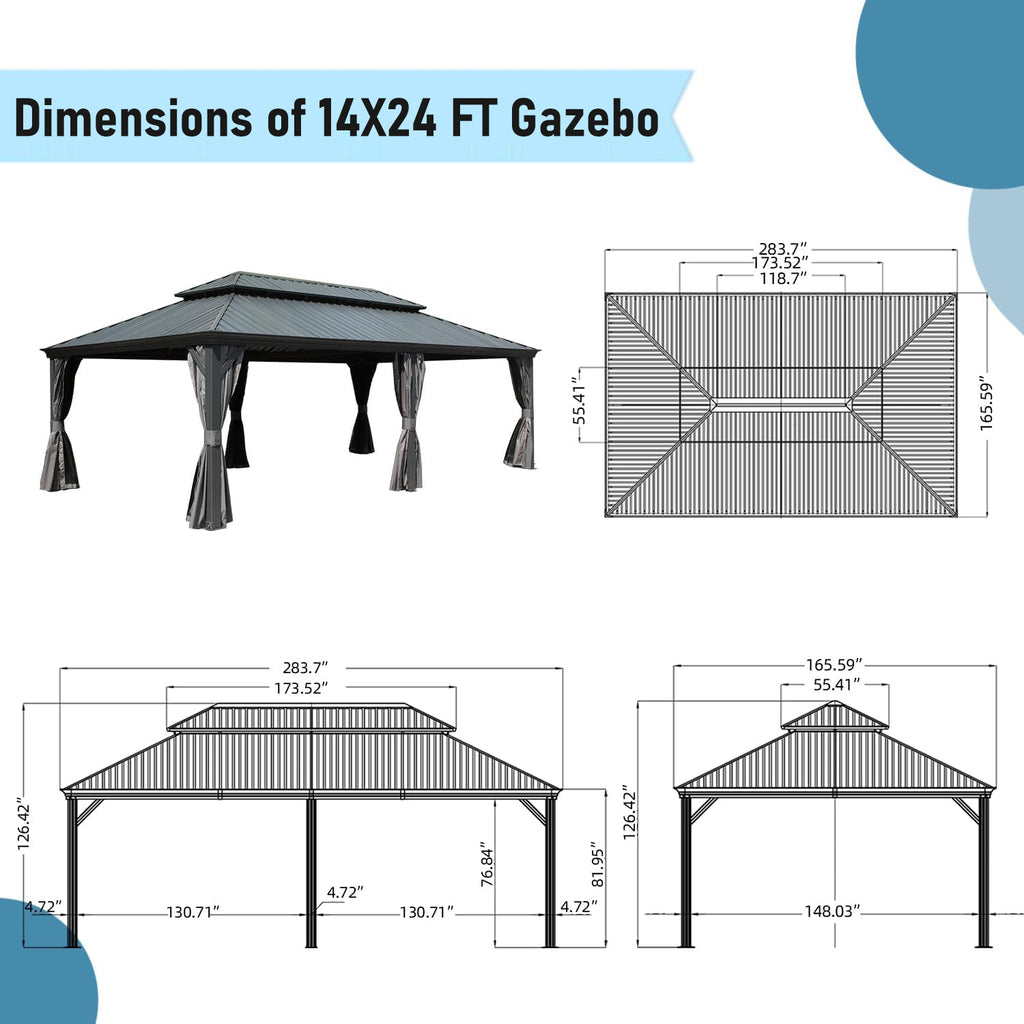

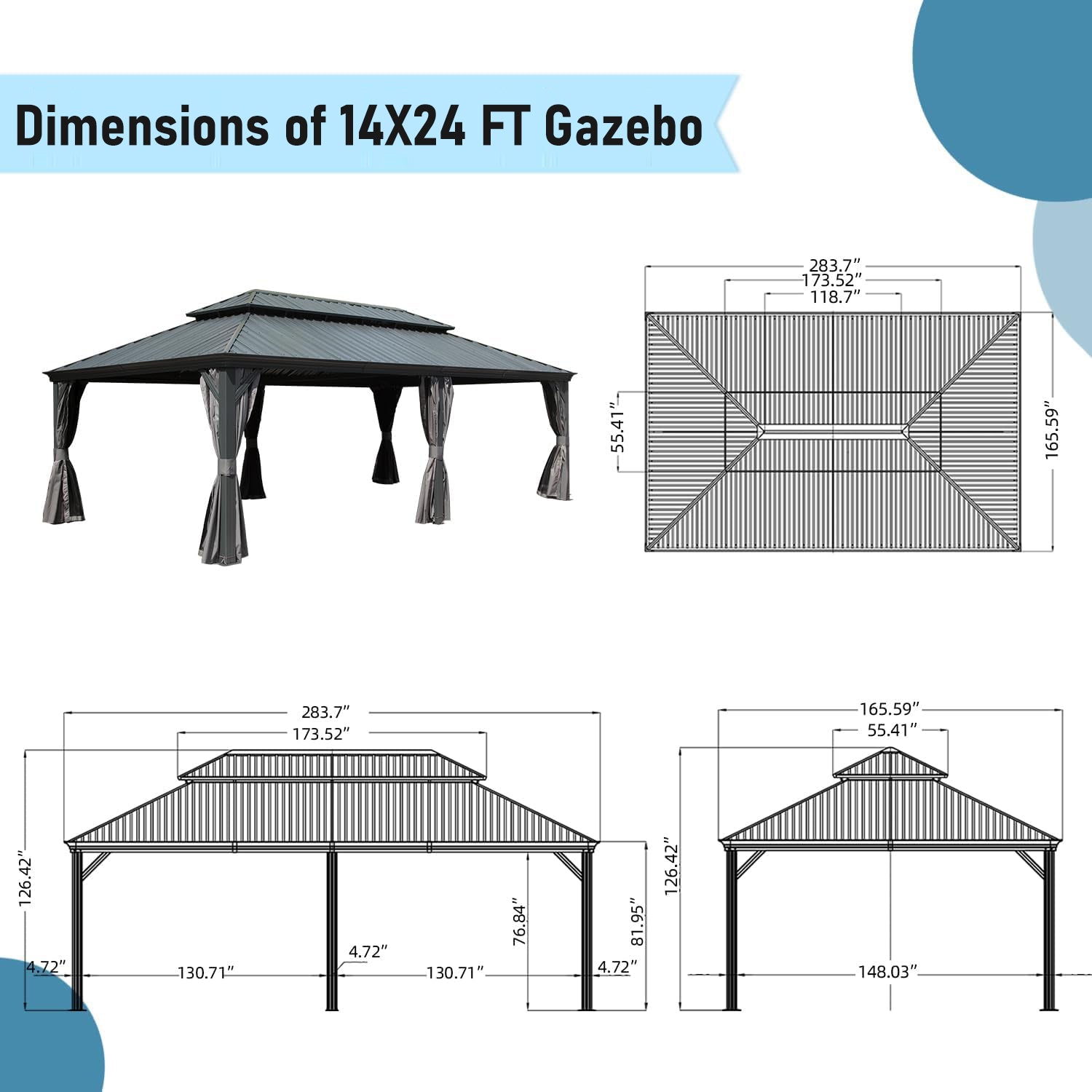

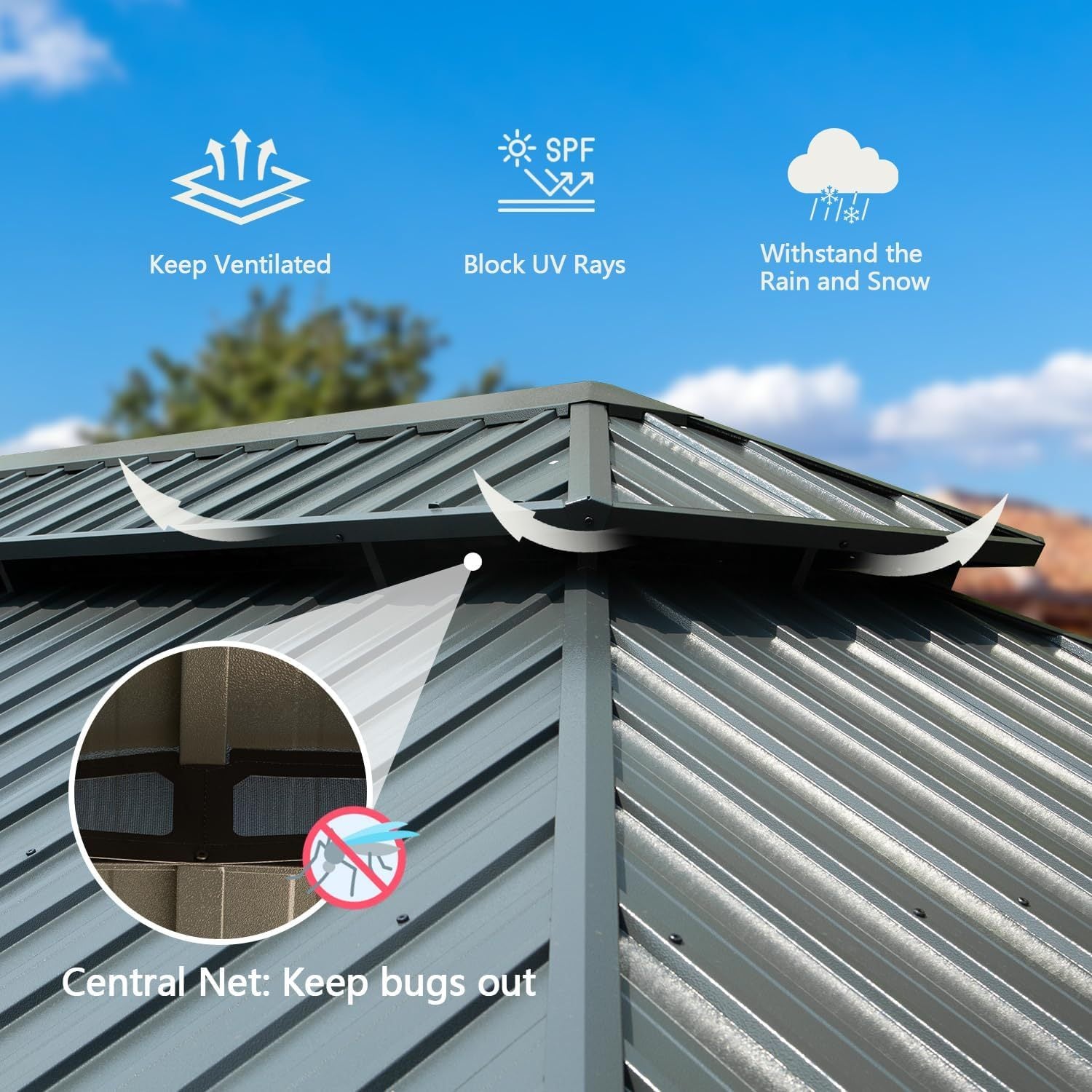

The frame is constructed from powder-coated aluminum in grey, engineered to resist rust, fading, and corrosion through prolonged outdoor exposure. The galvanized steel double roof provides UV protection, sheds rain and snow efficiently via its sloped profile, and features a ventilated double-canopy design that allows wind to pass through — reducing uplift pressure and keeping the interior cooler on hot summer days. The assembled footprint measures 283.70 in. L × 165.59 in. W × 126.42 in. H (~720 cm × 421 cm × 321 cm), with a total weight of approximately 574 lbs (260.4 kg).
A standout feature of this model is the built-in drainage gutter system: rainwater collected on the roof flows down through channels inside the support columns to the ground, keeping the interior completely dry during rain without external gutters or drip edges. Four removable privacy curtains and mesh netting panels provide full perimeter coverage for insect protection, UV shielding, and privacy. This gazebo is well-suited for large backyard entertaining areas, patio and deck coverage, garden pavilions, and outdoor event venues.
Homeowners who regularly host large gatherings, barbecues, or outdoor parties and need a covered space large enough for a full dining setup, lounge seating, and a bar area under one permanent roof.
Households in climates with variable weather who want a permanent structure with a built-in gutter system that keeps the interior dry during rain — so outdoor plans don’t get cancelled by a passing shower.
Property owners planning backyard weddings, milestone celebrations, or recurring outdoor events who need a large, weather-rated permanent structure that looks intentional and holds up through any event.
Homeowners with a large exposed patio or deck who want to cover the entire outdoor living area under a single permanent structure rather than using multiple smaller umbrellas, pergolas, or canopies.
| Product Type | Hardtop Outdoor Gazebo / Pavilion |
|---|---|
| Frame Material | Powder-Coated Aluminum |
| Frame Color | Grey |
| Roof Material | Galvanized Steel (Double Layer) |
| Drainage System | Built-in column gutter system |
| Assembled Length | 283.70 in. (~720 cm / ~24 ft) |
| Assembled Width | 165.59 in. (~421 cm / ~14 ft) |
| Assembled Height | 126.42 in. (~321 cm / ~10.5 ft) |
| Covered Area | ~336 sq ft (14×24 ft) |
| Item Weight | 574 lbs (~260.4 kg) |
| Sidewalls Included | Removable Privacy Curtains + Mesh Netting |
| UV Protection | Yes — roof + curtains |
| Ventilation | Yes — double-canopy air gap design |
| Base Anchoring | Pre-drilled feet (bolt-down compatible) |
| Recommended Installation | 4–6 adults (due to size and weight) |
| Recommended Use | Patio, Backyard, Deck, Garden, Party, Wedding, Outdoor Dining |

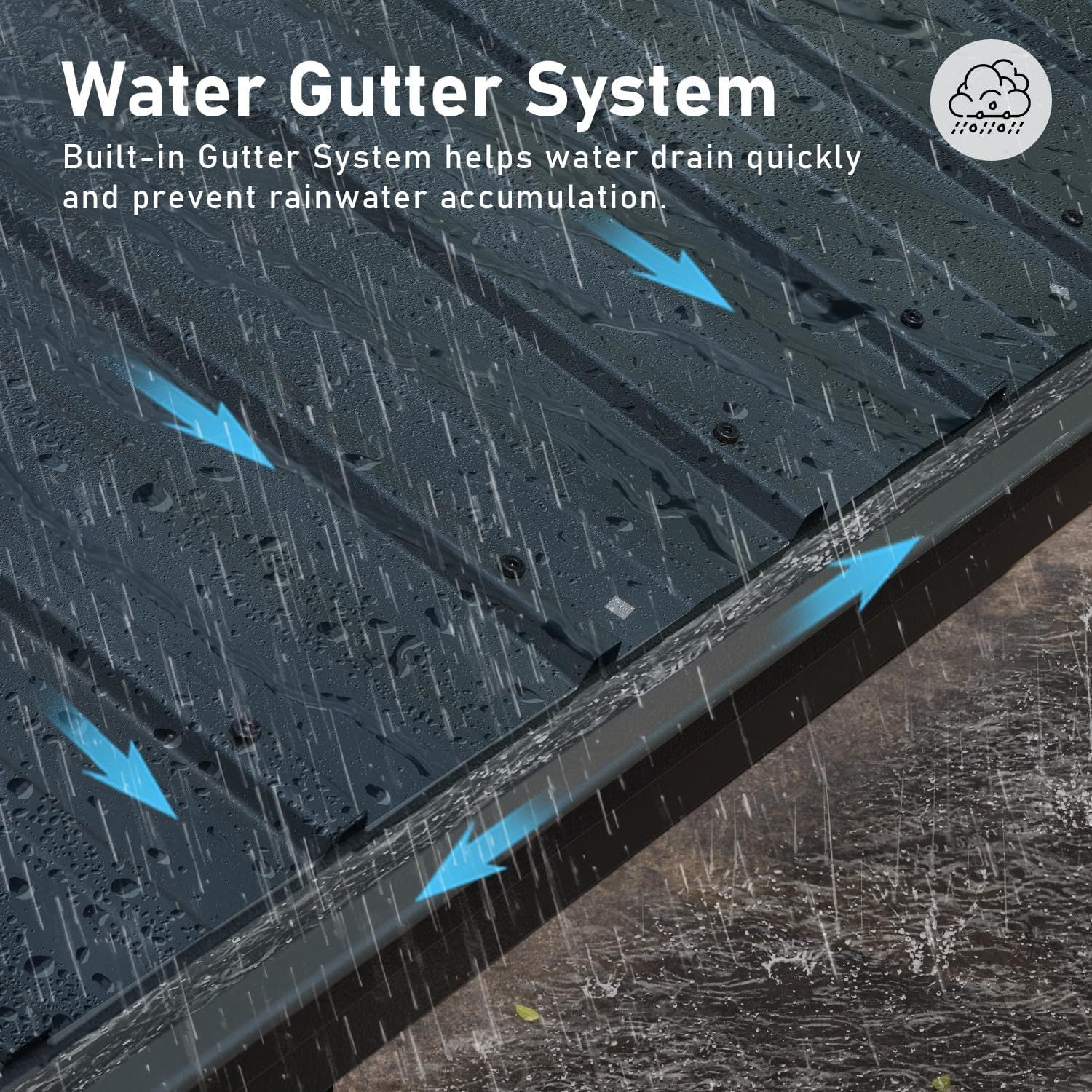

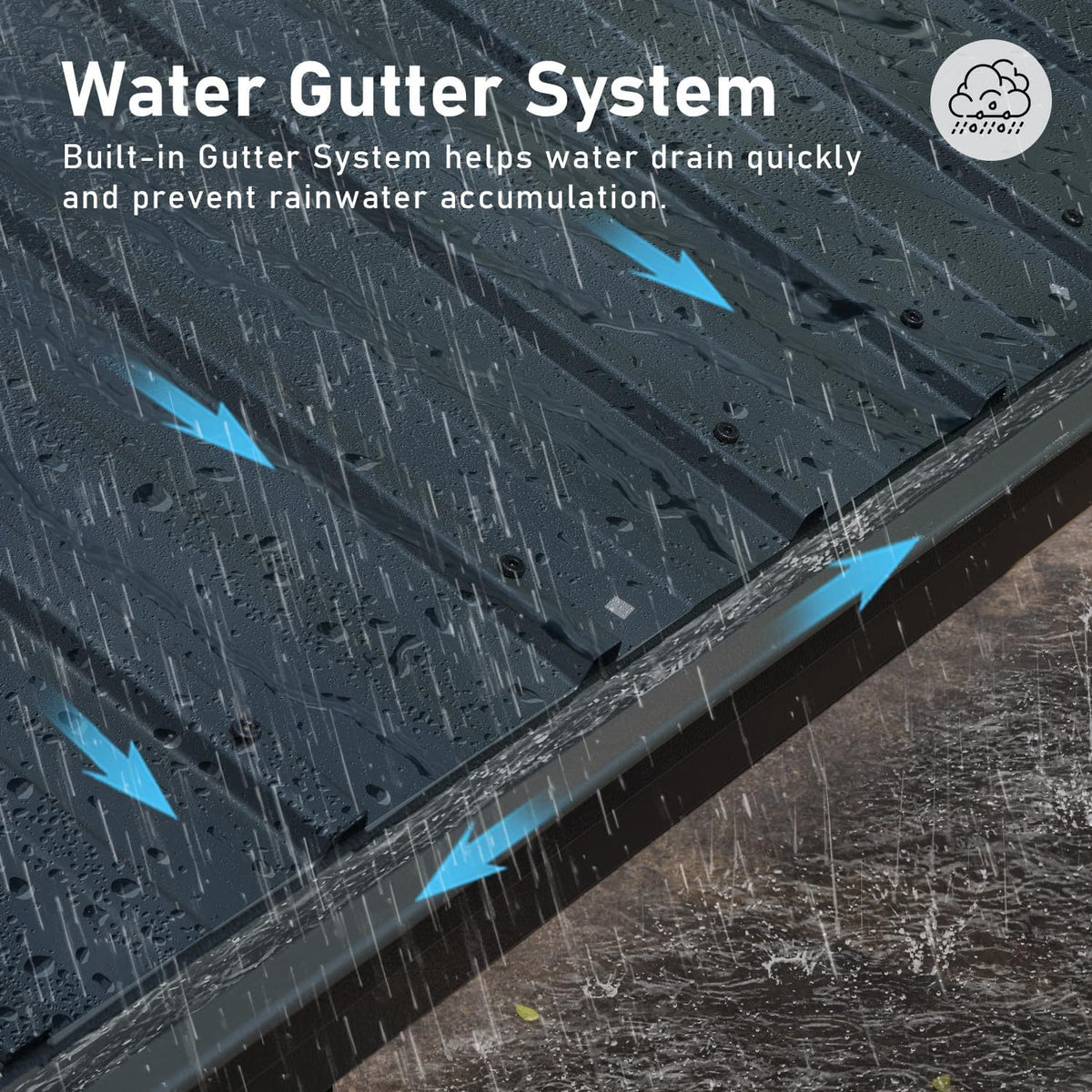

Rainwater collected on the sloped steel roof flows into channels built into the interior of the support columns. The water travels down through the columns and exits at the base, draining to the ground. This keeps the interior of the gazebo completely dry during rain without requiring external gutters, downspouts, or drainage accessories.
Due to the size and weight of this 14×24 ft model (574 lbs), we recommend 4–6 adults for assembly. Assembly time will be longer than smaller models in the series. Comprehensive instructions and all required hardware are included. A power drill and Allen wrench set are strongly recommended.
Yes. The galvanized steel double roof is waterproof and the sloped profile efficiently channels rainwater into the built-in gutter system. The steel construction is designed to withstand heavy snowfall. For very heavy or sustained snowfall, we recommend clearing accumulated snow from the roof to prevent excessive structural stress.

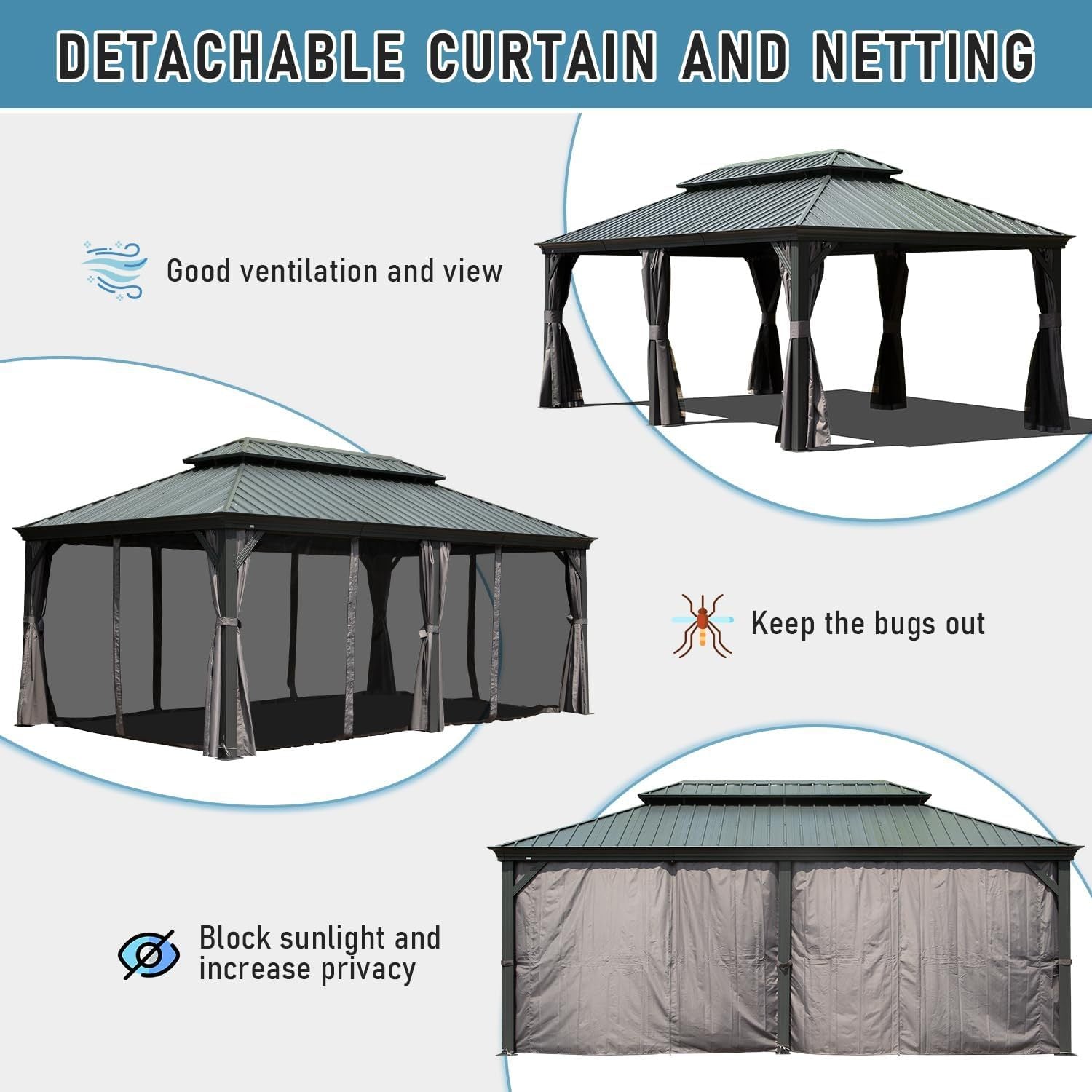

Yes. Both the privacy curtains and mesh netting panels are removable, allowing you to configure the perimeter coverage based on the season, weather, or occasion. Remove them entirely for an open-air feel, or install them for privacy, UV protection, and insect shielding.
The pre-drilled base feet are compatible with concrete slabs, wood decking, pavers, and compacted ground. Anchoring hardware for concrete may need to be sourced separately depending on your installation surface and local requirements.
The 14×24 ft model provides approximately 40% more covered floor area than the 12×20 ft version (~336 sq ft vs ~240 sq ft). It also adds a built-in column gutter system not present on the 12×20 ft model, making it the better choice for climates with frequent rain or for homeowners who want a fully self-contained drainage solution. It is significantly heavier (574 lbs vs 436 lbs) and will require more people and time to assemble.
Permit requirements vary by city, county, and HOA. Because this is a large, permanent, anchored structure, we strongly recommend checking with your local building authority before installation to confirm whether a permit is required for your property and intended use.
Yes. The ~336 sq ft covered footprint, full perimeter curtain and netting coverage, built-in gutter drainage, and permanent steel roof make this gazebo a practical choice for backyard weddings, milestone celebrations, and recurring outdoor events that require reliable weather protection at scale.
