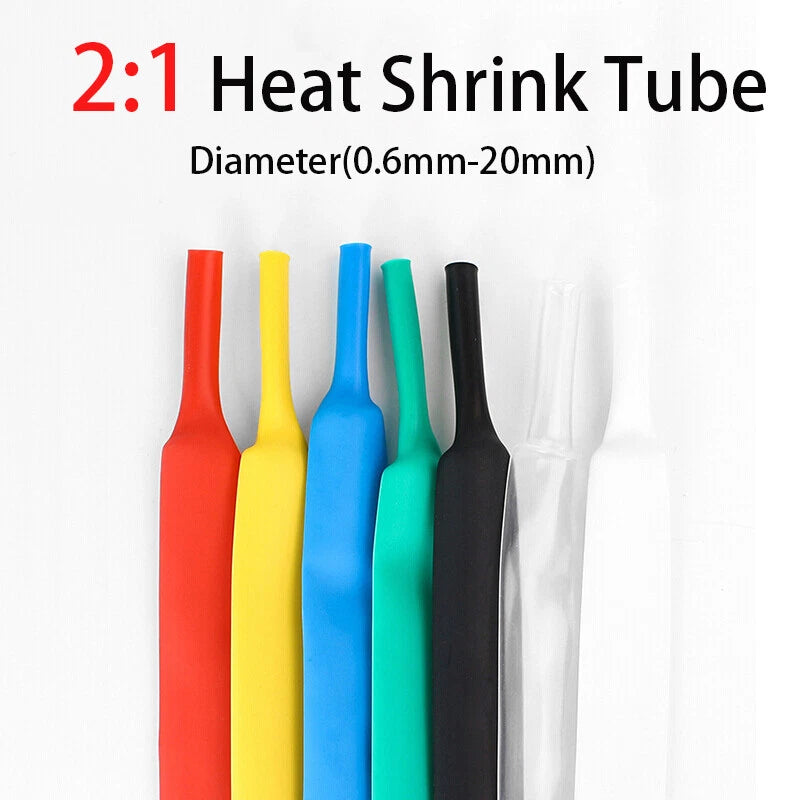

2:1 Heat Shrink Tubing — 0.6mm to 20mm, 7 Colors, Flame Retardant

Select a diameter that is slightly larger than the object you need to cover before shrinking. As a general rule, choose a pre-shrink diameter that is 20–30% larger than the cable or connector outer diameter. For example, for a 2mm wire, a 2.5mm or 3mm tube typically works well. After shrinking at the 2:1 ratio, the tubing will conform tightly to the surface. When in doubt, size up — you can always apply more heat, but you cannot un-shrink the tubing.

This tubing generally shrinks at temperatures between 70°C–110°C (158°F–230°F). A heat gun is the recommended tool for even, controlled shrinking. Move the heat gun slowly along the length of the tubing to avoid hot spots. A lighter or open flame can be used carefully in a pinch, but may cause uneven shrinkage or surface scorching.

Yes. This tubing is made from flame-retardant polyolefin material, which typically meets UL 224 or equivalent standards. It is self-extinguishing and will not propagate flame under normal conditions, making it suitable for use in automotive interiors, electrical enclosures, and other environments where fire safety is a consideration.

Standard 2:1 polyolefin heat shrink tubing generally provides basic moisture resistance and is suitable for light outdoor use and occasional splashing. However, it is not fully waterproof or submersion-rated. For applications involving prolonged moisture exposure, underground burial, or submersion, an adhesive-lined (3:1 or 4:1) heat shrink tubing is recommended instead.

Polyolefin 2:1 heat shrink tubing typically carries a voltage rating of up to 600V, making it suitable for most low-voltage wiring applications including automotive (12V–48V), household electronics, and low-voltage control wiring. For high-voltage or industrial applications, please contact us to confirm the specific rating before ordering.

As a general guide based on typical AWG wire outer diameters:

• 0.6mm–1mm: Very fine wires, typically 28–32 AWG
• 1.5mm–3mm: Small signal wires, typically 22–26 AWG
• 4mm–6mm: Standard hookup wire, typically 16–20 AWG
• 8mm–12mm: Heavier gauge wire or small connectors, typically 10–14 AWG
• 14mm–20mm: Large connectors, battery terminals, or bundled cable groups

Always measure your cable's outer diameter before selecting a size. Contact us if you need help matching a specific wire gauge.

No. All color variants share the same polyolefin material, 2:1 shrink ratio, flame-retardant rating, and electrical insulation properties. Color is purely for identification and organization — for example, using red and black for positive and negative leads, or color-coding cable bundles in automotive wiring harnesses, control panels, or electronics projects.
