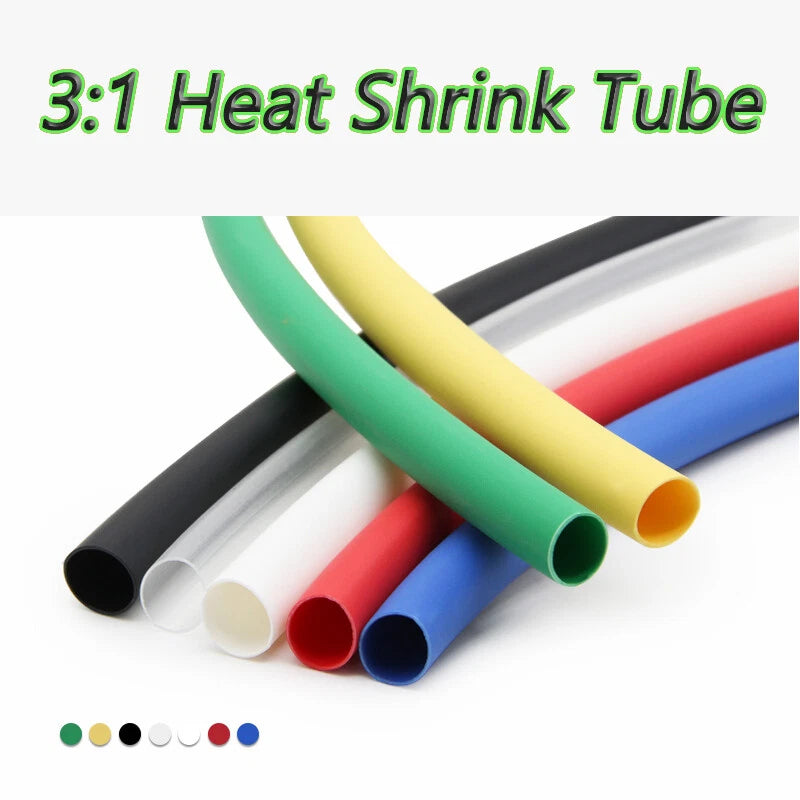

3:1 Heat Shrink Tubing with Adhesive Lining — Dual-Wall Electrical Sleeve

Measure the outer diameter of the wire or connector bundle before shrinking. The tubing's pre-shrink inner diameter should be at least 1.1× the bundle diameter. With a 3:1 shrink ratio, the final recovered diameter is roughly one-third of the listed size — for example, φ9.5mm (≈3/8") tubing typically recovers to approximately φ3.2mm (≈1/8"). When in doubt, size up one step to ensure the tubing slides on easily before heat is applied.

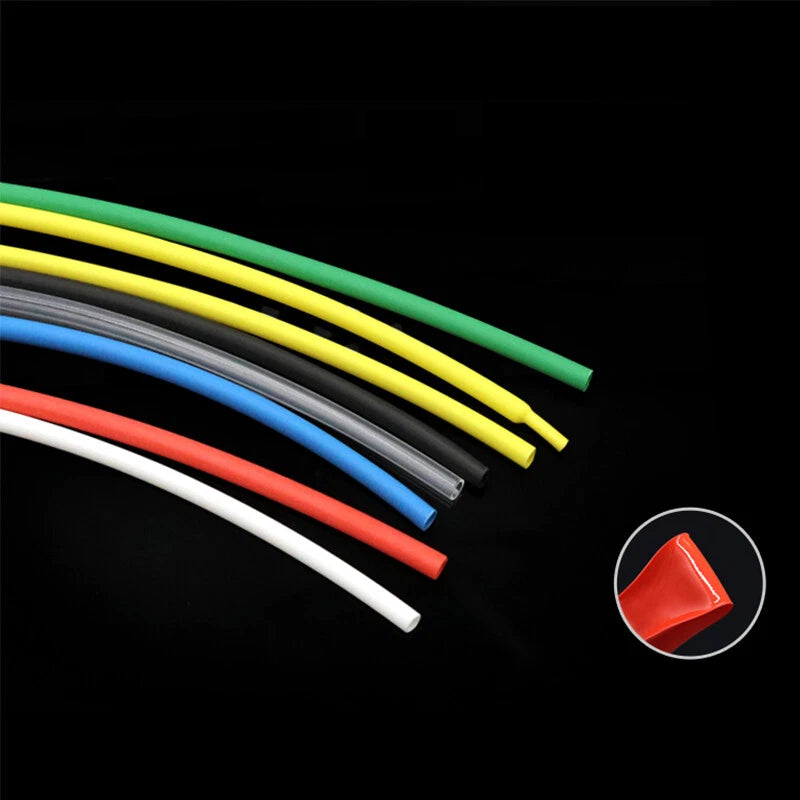

A 3:1 ratio means the tubing shrinks to approximately one-third of its original inner diameter when heat is applied. This is generally a larger recovery range than standard 2:1 tubing, making it well-suited for connectors, solder sleeves, and irregular shapes that need a tighter, more conforming seal. The adhesive inner layer also flows during this process, filling voids for a waterproof wire splice.

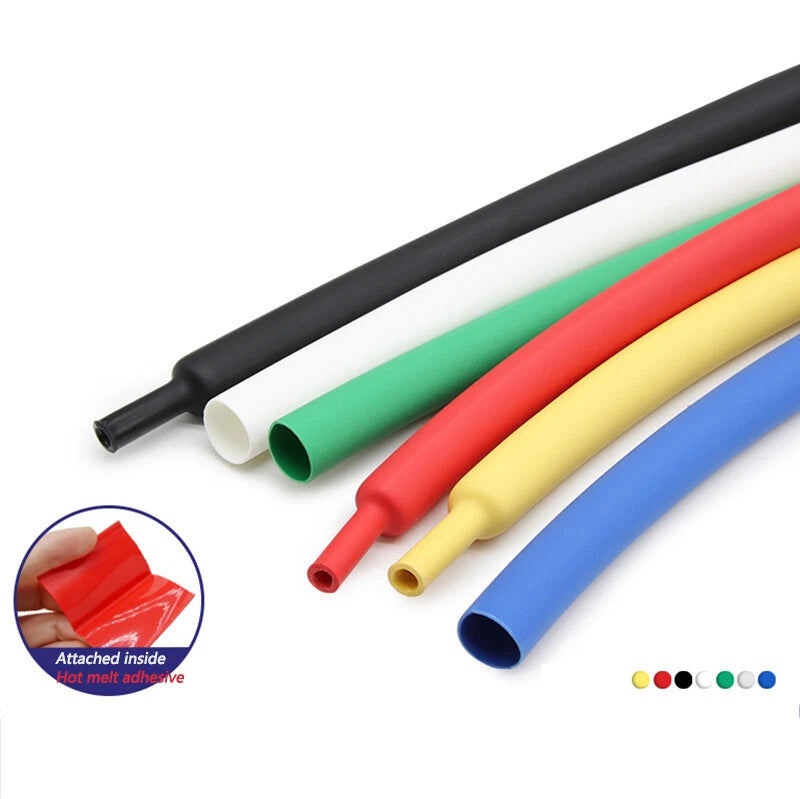

Yes. The inner adhesive layer melts and flows during shrinking to create a moisture-resistant seal around the substrate. This makes it suitable for outdoor wiring, marine battery cable terminations, and automotive underhood applications where moisture ingress is a concern. For fully submerged or high-pressure water exposure, contact us to confirm suitability for your specific application.

Shrinking typically begins at around 70–90°C (158–194°F), and full recovery with adhesive flow generally occurs at 120–135°C (248–275°F). A heat gun is strongly recommended for even, controlled shrinking. Open flames such as lighters or torches can cause uneven shrinkage, scorching, or damage to the adhesive layer, and are generally not recommended for dual-wall tubing.

This dual-wall tubing is generally compatible with copper wire, aluminum wire, steel tubing, and most plastic connectors. The polyolefin outer layer and hot-melt adhesive inner layer bond well to clean, dry surfaces. Avoid use on substrates with active oils or silicone coatings without surface preparation, as adhesion may be reduced.

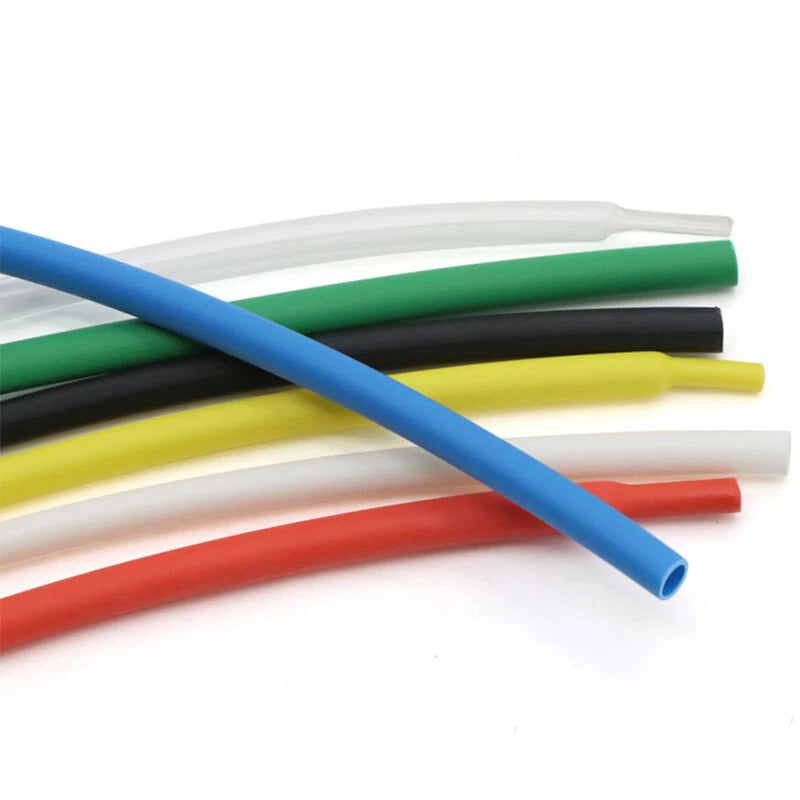

Color is typically used for circuit identification and organization. Standard US electrical color conventions include: black for ground or negative, red for positive or live, green for earth ground, white or gray for neutral, and yellow or blue for secondary circuits. Transparent tubing allows visual inspection of the connection underneath — useful for quality checks on solder joints or crimp terminations.

Yes. Each piece is sold in 1m (≈39") lengths and can be cut to any shorter length with scissors or a utility knife before or after shrinking. Cut ends are clean and do not fray. For longer runs, simply order multiple pieces and butt them end-to-end before shrinking, or overlap slightly for a continuous seal.

Dual-wall polyolefin heat shrink tubing of this type is typically rated for 600V applications, which covers standard 12V and 24V automotive and marine systems with significant margin. For high-voltage, industrial, or safety-critical installations, please contact us to confirm the exact rating for the specific diameter you need before use.
