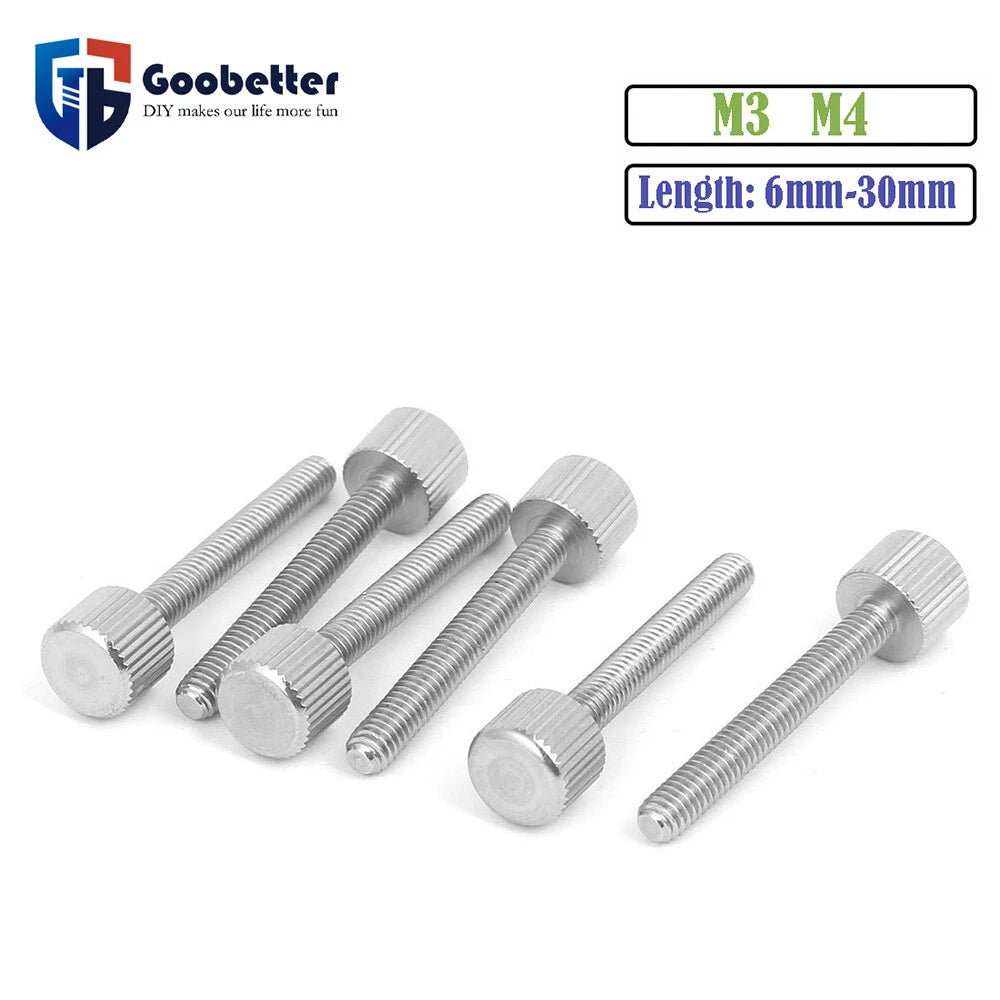

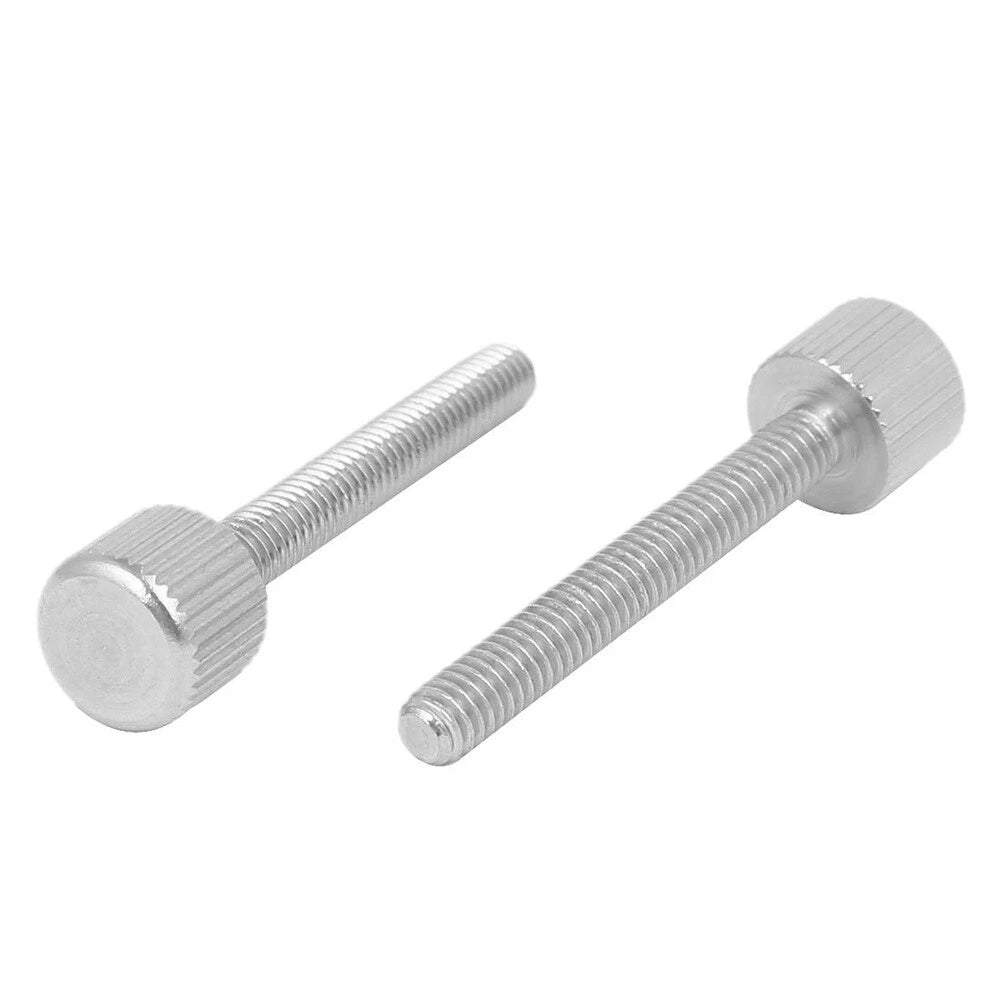

🔧 Product Overview: Knurled Thumb Screws – 303 Stainless Steel, M3 & M4 Hand Grip Bolts
For tool‑less fastening that combines a comfortable, non‑slip grip with excellent corrosion resistance, these 303 stainless steel knurled thumb screws are an ideal choice. The domed, knurled head provides a secure surface for hand tightening and loosening – no screwdriver or wrench needed. Manufactured to precise dimensions (see table), they feature a full thread with standard coarse metric pitch (M3x0.5, M4x0.7). The robust 303 stainless steel construction offers good corrosion resistance and strength, making them suitable for both indoor and outdoor applications. Perfect for automotive trim, machinery access panels, 3D printers, camera rigs, and any DIY project where hand‑operated fasteners are preferred.
✨ Why These 303 Stainless Steel Knurled Thumb Screws Are a Workshop Essential
-
303 stainless steel construction – Offers excellent corrosion resistance, good machinability, and moderate strength. Ideal for applications where rust is a concern.
-

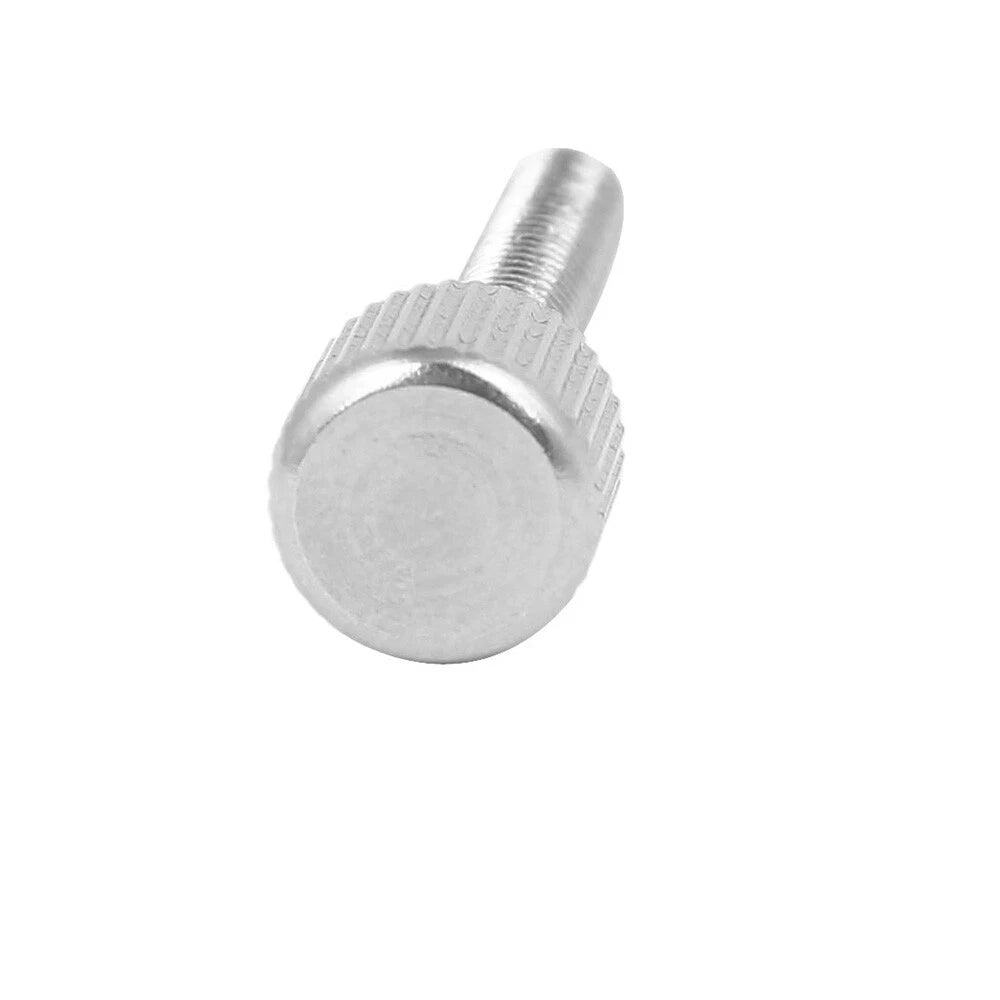

Knurled domed head for tool‑less grip – Diamond knurl pattern provides a secure, non‑slip surface for hand tightening and loosening – no tools required.
-
Available in M3 and M4 metric sizes – Common diameters for electronics, automotive trim, light machinery, and DIY projects.
-

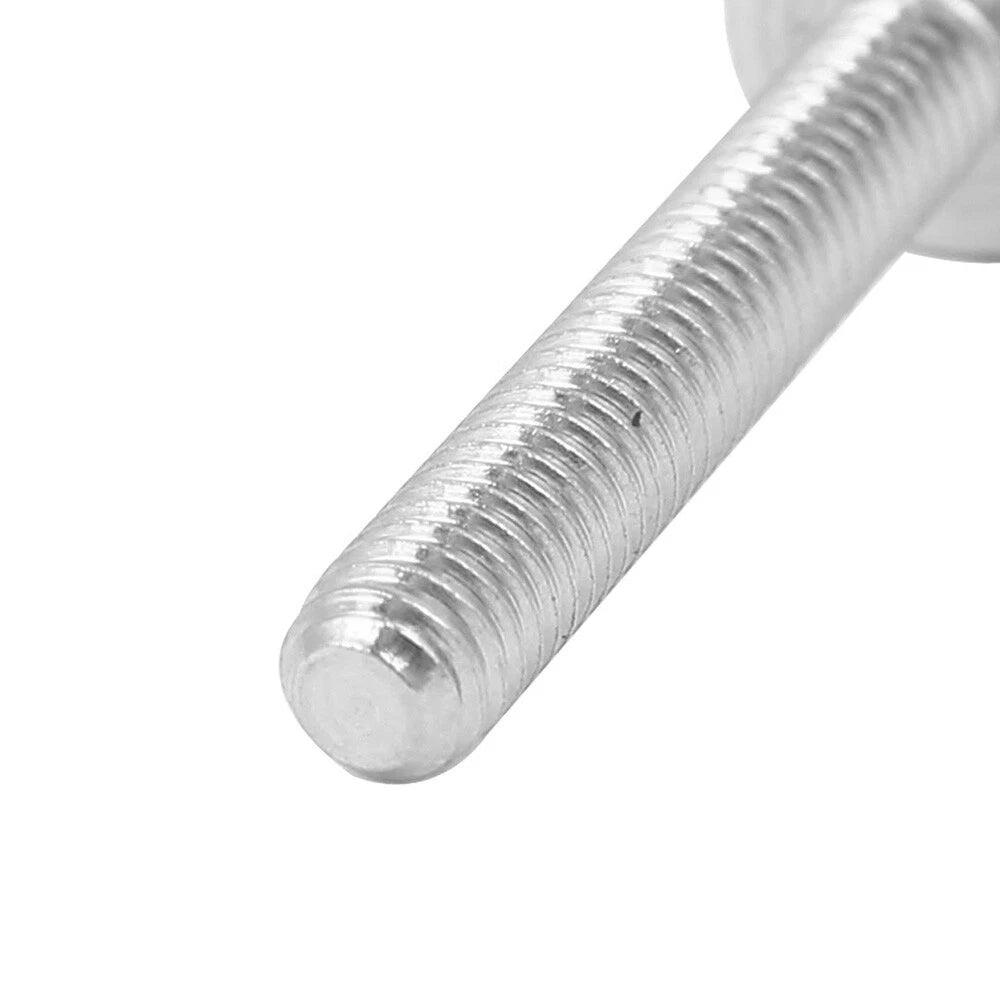

Fully threaded, coarse metric pitch – Standard threads (M3x0.5, M4x0.7) run the entire length for maximum grip and easy nut engagement.
-
Precision dimensions per supplied spec – Head diameter (A) and knurled collar diameter (B) meet the values shown in the table.
-
Wide applications – Automotive (carbolts), machinery access panels, 3D printer bed leveling knobs, camera rigs, electronic enclosures, and general DIY.
📏 Technical Specifications – 303 Stainless Knurled Thumb Screws (M3 & M4)
| Thread Size (d) |
Thread Pitch (p) |
Head Diameter (A) max |
Knurled Collar Diameter (B) max |
Material |
| M3 |
0.5mm |
9.10mm |
7.10mm |
303 Stainless Steel |
| M4 |
0.7mm |
9.10mm |
7.10mm |
303 Stainless Steel |
Note: Length is measured from underside of head to tip (thread length). Various lengths available – select from options. All screws are fully threaded. Dimensions based on provided specification.
| Product Type |
Knurled Thumb Screws (Hand Grip Bolts) |
| Material Grade |
303 Stainless Steel |
| Drive Style |
Hand grip (toolless) |
| Head Style |
Domed knurled head |
Thread Type |
Fully threaded, coarse metric
|
| Length Options |
Select from dropdown (various lengths available) |
| Length Measurement |
Under head – from underside of head to tip (head not included) |
❓ FAQs – 303 Stainless Knurled Thumb Screws
🔸 What is the difference between 303 and 304 stainless steel?
303 stainless contains added sulfur for improved machinability, making it easier to produce precision parts. It has slightly lower corrosion resistance than 304 but is still excellent for most indoor and light outdoor applications. For saltwater or heavy chemical exposure, 316 stainless is recommended.
🔸 Are these screws fully threaded? How is length measured?
Yes – they are fully threaded from under the head to the tip. Length is measured from the underside of the domed head to the tip (head not included). For example, an M4 x 20mm screw has a 20mm threaded shank.

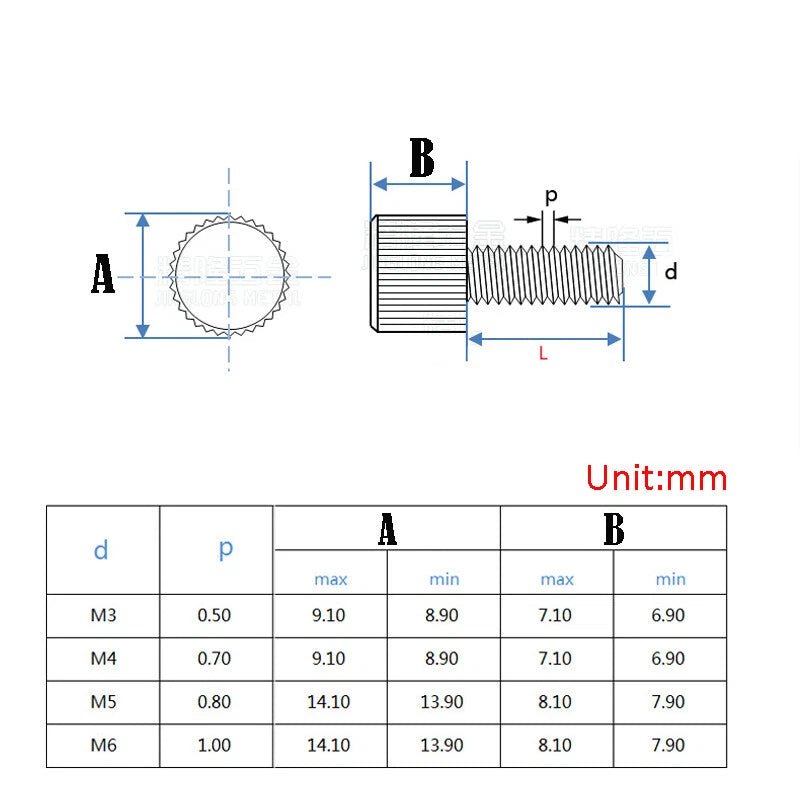

🔸 What are the head dimensions (A and B) shown in the table?
A is the overall head diameter (9.10mm for M3/M4). B is the diameter of the knurled collar section (7.10mm). These dimensions ensure a consistent, comfortable grip and proper fit in your application.
🔸 Can I use these screws with nuts, or are they for tapped holes only?
These are standard machine screws – they work with matching M3 or M4 nuts or in pre‑tapped holes. For through‑hole applications, use a nut on the back side. The knurled head is for hand grip only – do not use tools on the knurling.
🔸 What lengths are available for M3 and M4?
We offer various thread lengths – please select from the dropdown options. Typical ranges: M3: 6–30mm, M4: 8–40mm. If you need a specific length not listed, contact us for a custom quote.
🔸 Are these screws magnetic?
303 stainless steel is generally non‑magnetic in its annealed state, but cold working (like thread rolling) can make it slightly magnetic. A light magnetic response is normal and does not affect corrosion resistance.
