Available in two materials:
304 stainless steel (18/8 chrome-nickel alloy, 1.4301)
316 stainless steel (containing 2-3% molybdenum, 1.4401, seawater-resistant)
Industrial-grade fastening: Progressive locking design
Superior corrosion resistance: 316 version passes 5,000-hour salt spray test
Specification Range:

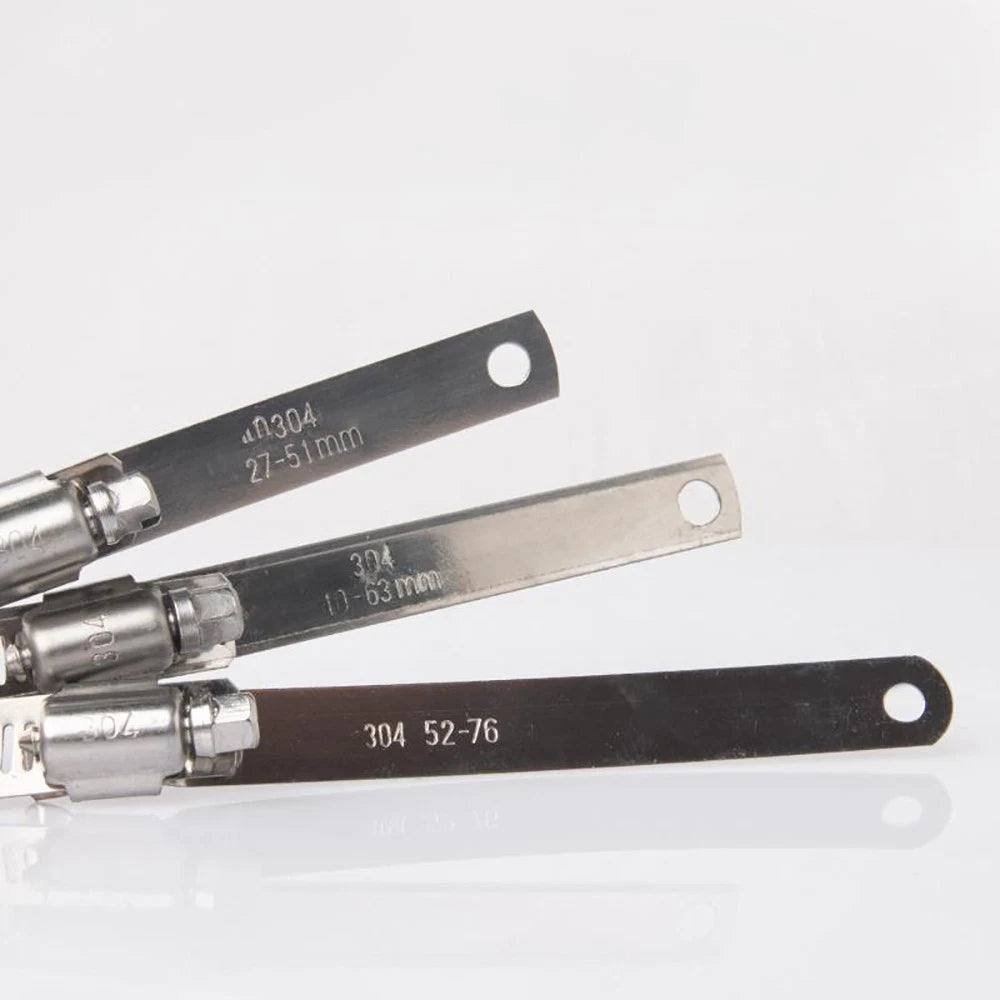

Applicable diameters: 21mm-127mm (optional)

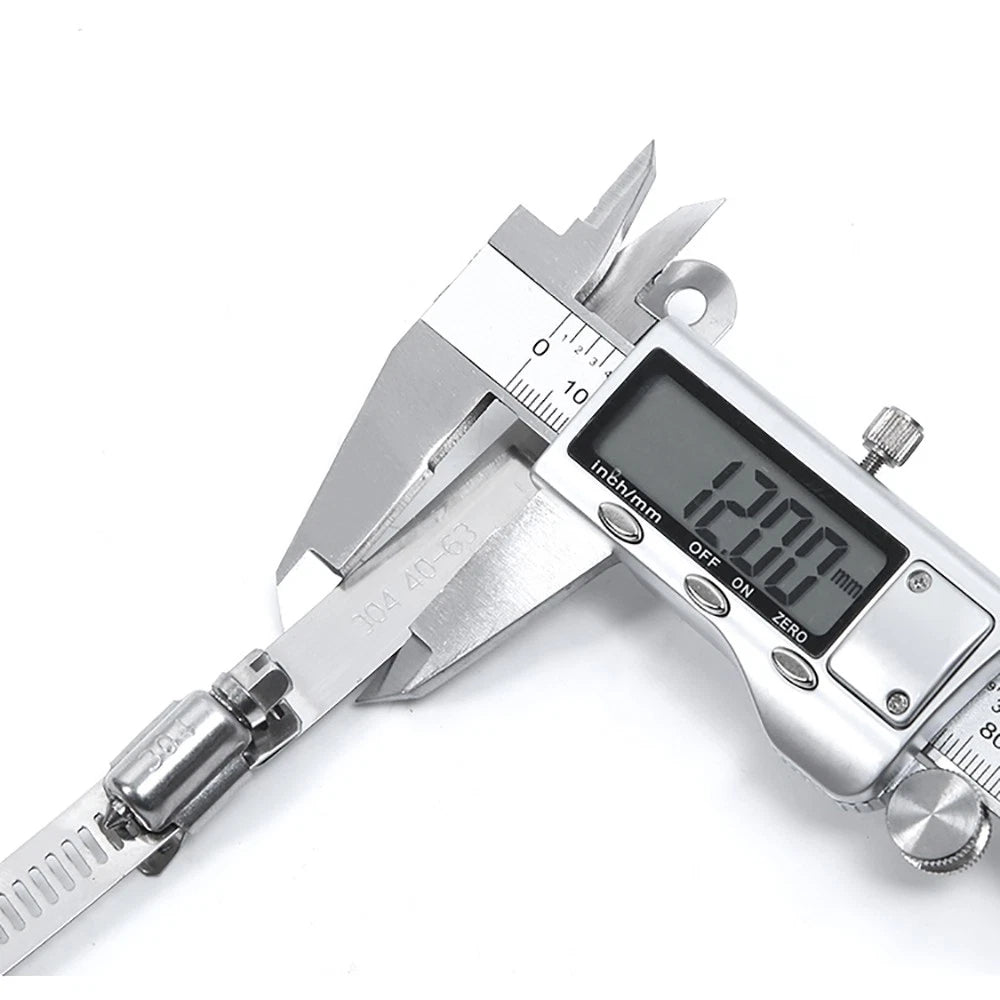

Belt width: 12mm (heavy duty)
Performance Parameters:
Working Pressure: ≤40 bar (water) / 25 bar (oil)
Temperature range: -60°C to +400°C (316 material)
Product Features
Anti-slip design: Precision knurling on the inner wall (prevents pipe shifting)
Quick installation: No tools required, easy one-handed operation
Applications: Magnetic flap level gauges; beer brewing equipment pipe connections; ship seawater cooling systems; high-pressure seals for chemical equipment
