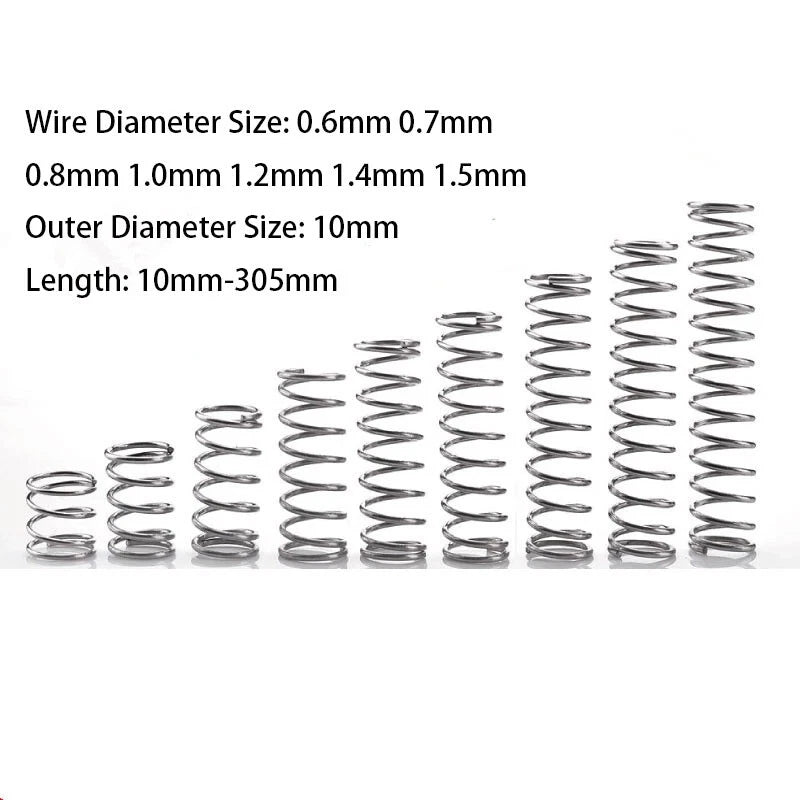

Wire Dia 0.6mm-1.5mm Compression Spring 304 Stainless Steel Pressure Springs

Wire diameter determines the spring's stiffness and load capacity. Thinner wire (0.6–0.8 mm) suits light-duty applications like electronic latches and small sensors. Heavier wire (1.2–1.5 mm) is better for higher-load uses such as valve return springs and CNC fixture preloads. If you know your required spring rate or load, use a spring rate calculator with the outer diameter and free length to confirm the right wire size.

Yes — 304 stainless steel provides good tensile strength for small compression springs. The exact load capacity depends on the wire diameter, outer diameter, and free length of the specific variant. For critical load-bearing applications, verify the spring rate and maximum load against your design requirements before ordering.

304 stainless steel offers solid corrosion resistance in most humid, wet, and mildly corrosive environments. It performs well in freshwater, light chemical exposure, and outdoor conditions. For highly aggressive environments (saltwater immersion, strong acids or chlorides), consider 316 stainless steel instead.

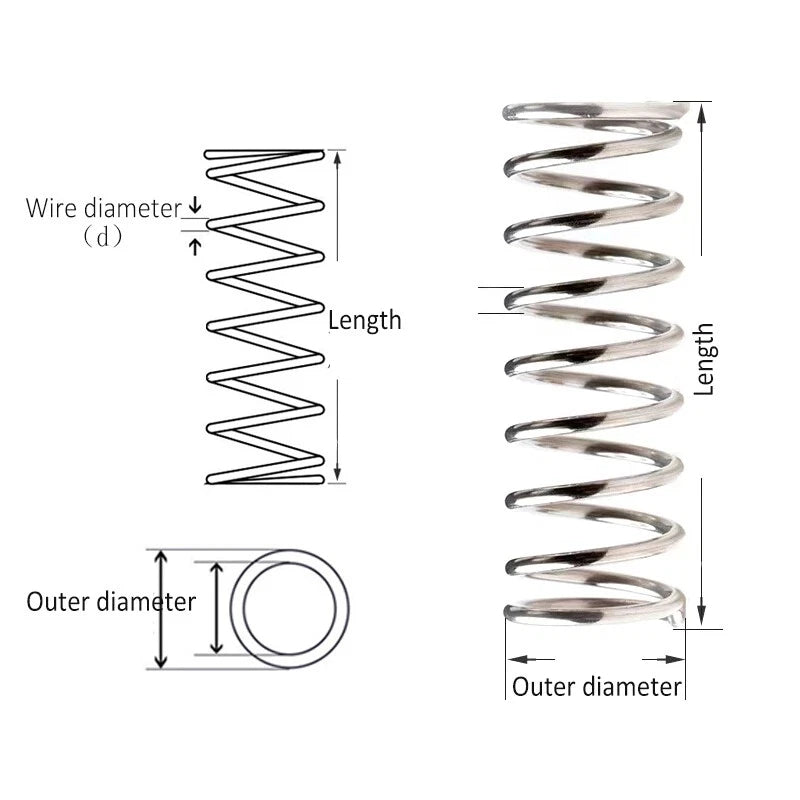

Outer diameter varies by wire diameter and is listed in the variant options. As a general guide, outer diameter is typically 5–8× the wire diameter for standard compression springs in this size range. Please check the specific variant details or contact us to confirm the outer diameter for your chosen wire size and length combination.

Yes — small stainless steel compression springs are commonly used in 3D printer extruder tensioners, bed leveling assemblies, and hotend mounts. The 0.6 mm and 0.8 mm wire diameter variants in shorter free lengths (10–30 mm) are typically the best fit for these applications. Check your printer's spring seat diameter to confirm outer diameter compatibility.

Free length is the uncompressed length of the spring. Choose a free length that is longer than your required working length — the difference between free length and working length determines the deflection and therefore the force applied. A common rule of thumb is to select a free length 20–40% longer than the compressed working length for typical applications.

Packs of 3 or 5 are ideal for prototyping, repair kits, or small production runs where you need spares. Single-piece packs suit one-off repairs or testing. For larger production quantities, ordering multiple packs of 5 is the most cost-effective option available in this listing.
