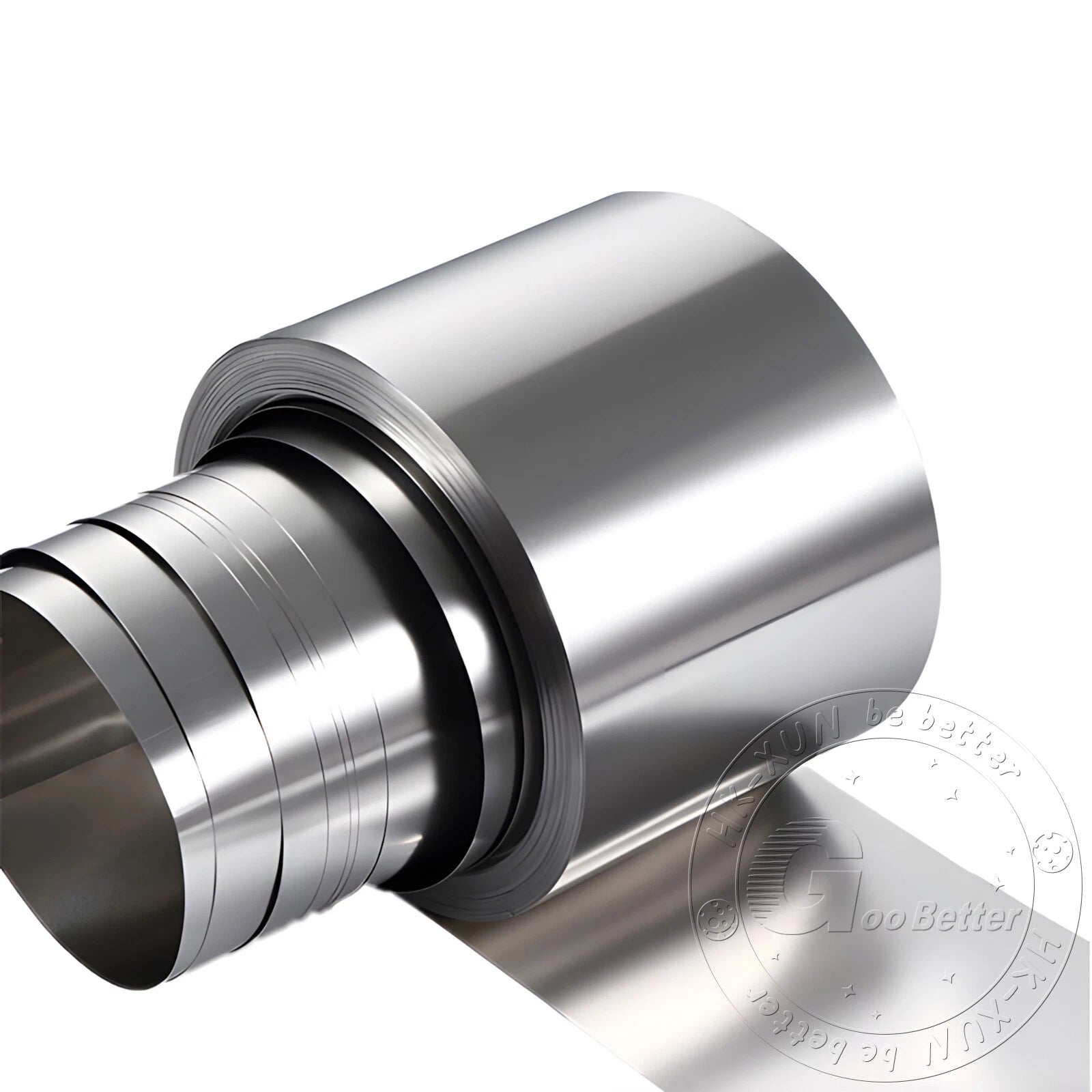

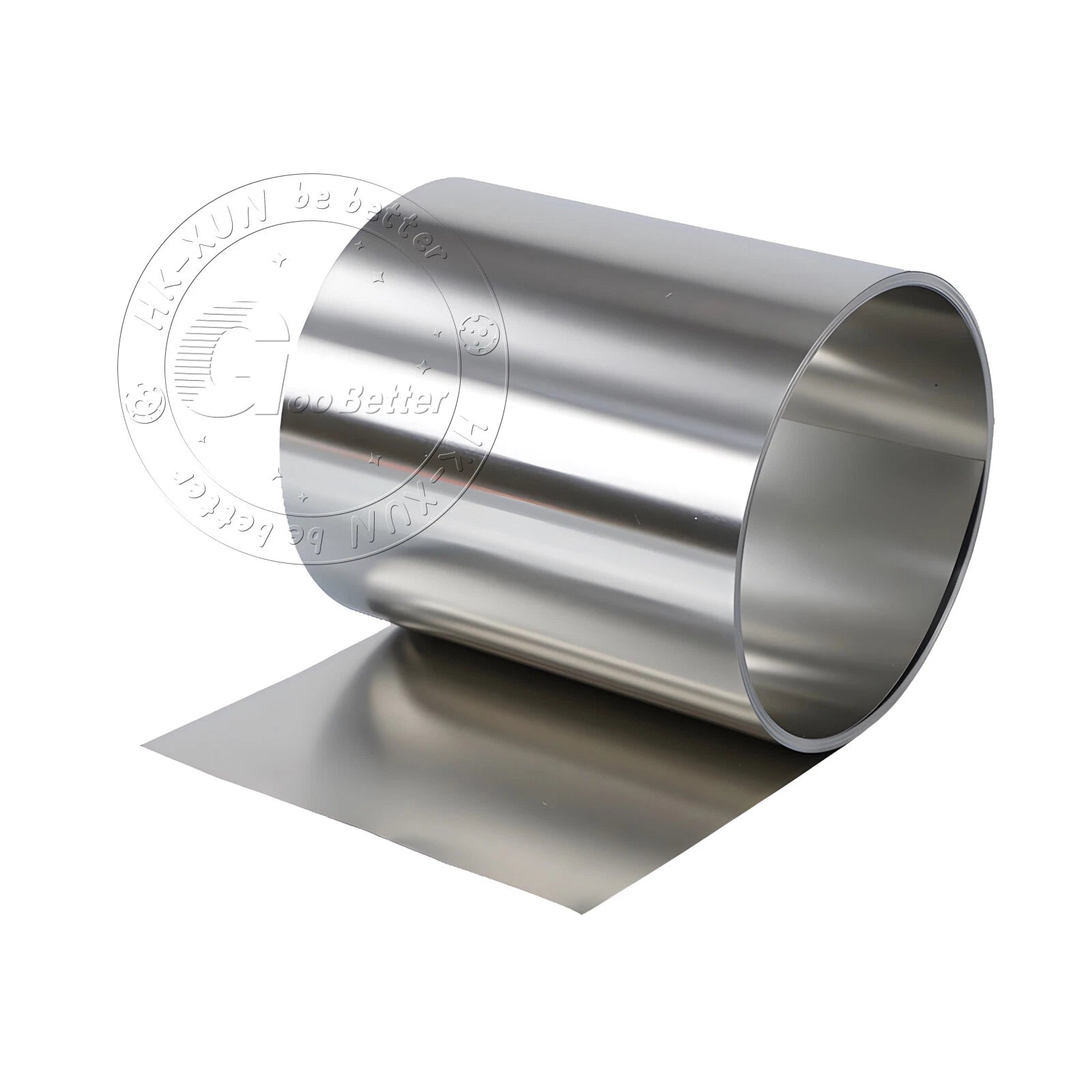

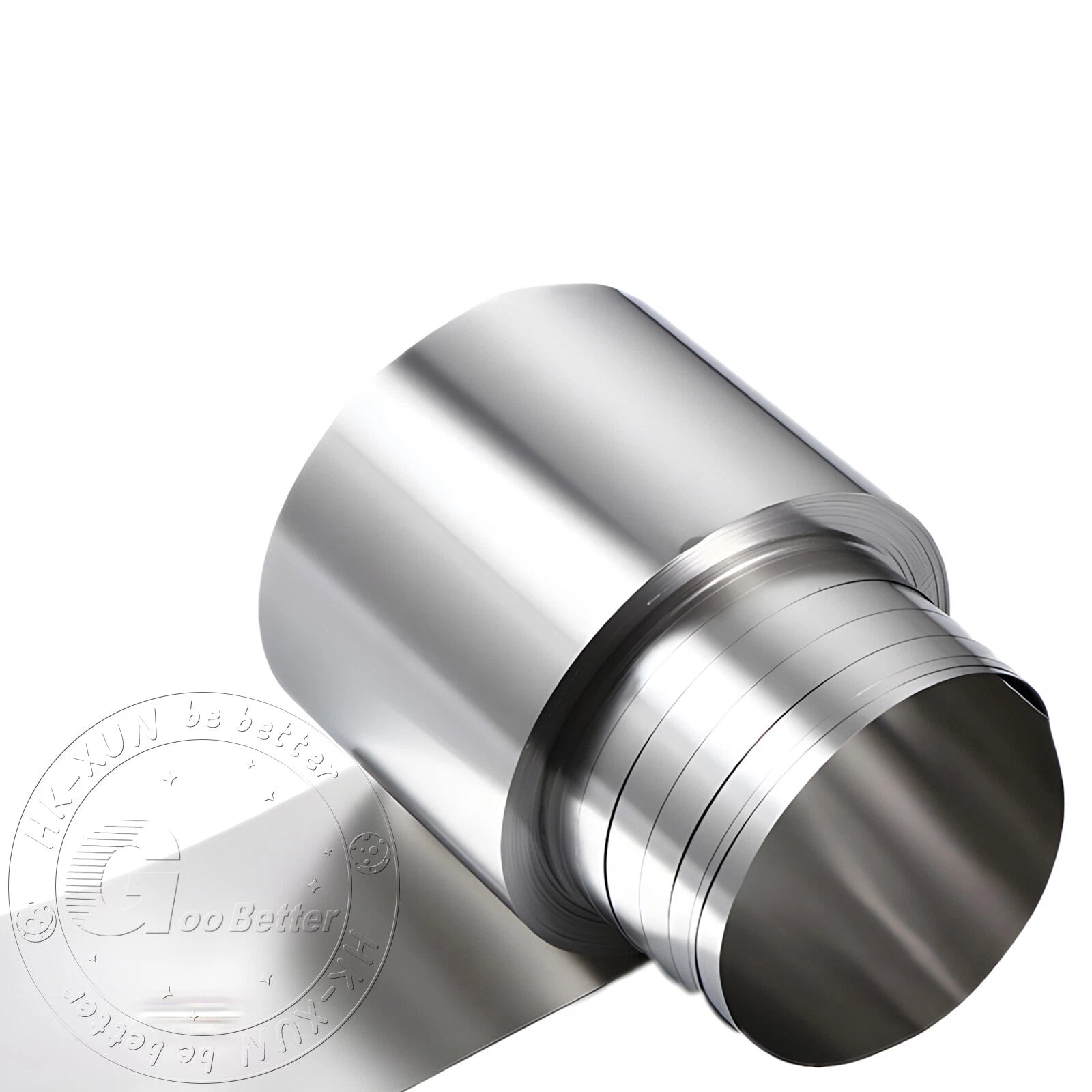

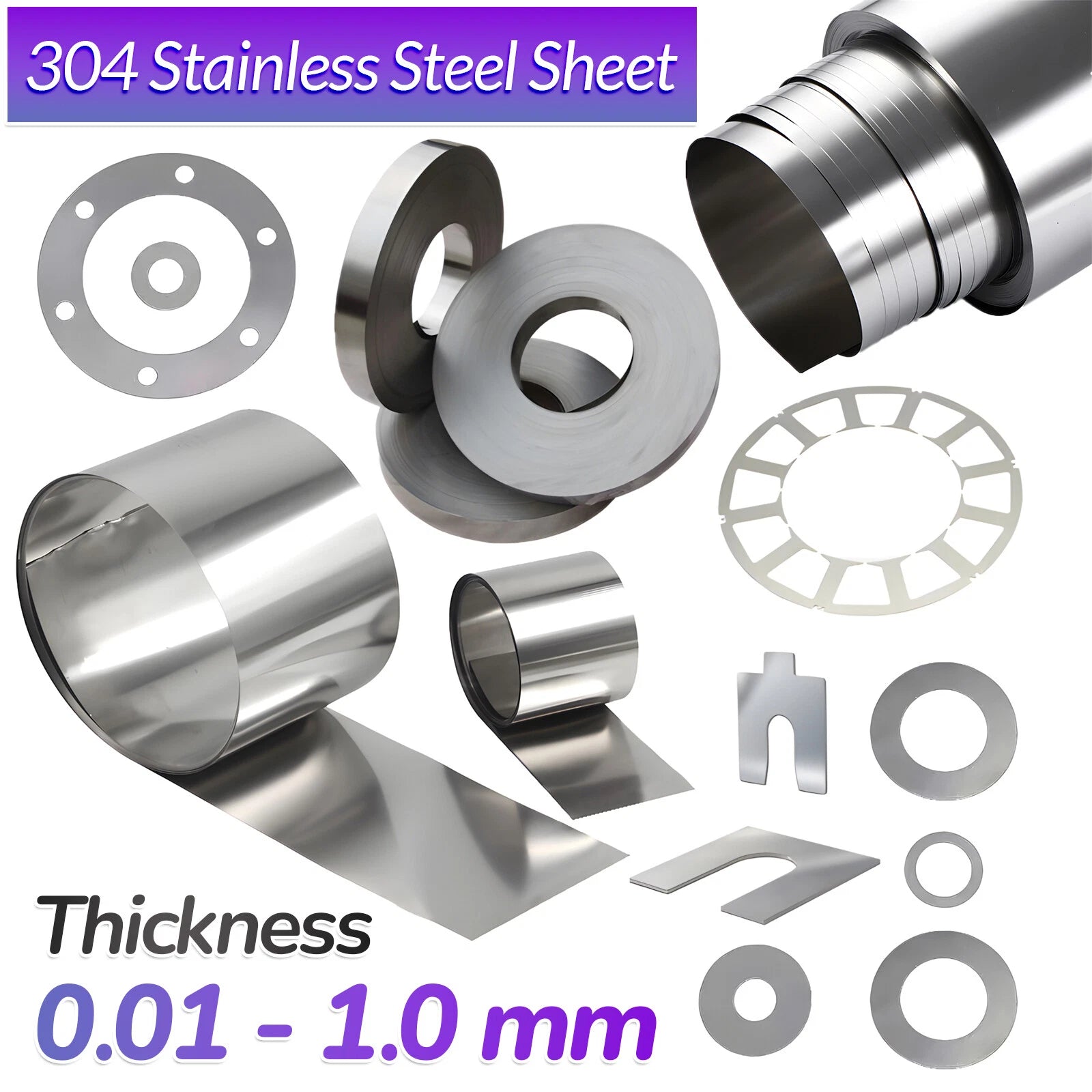

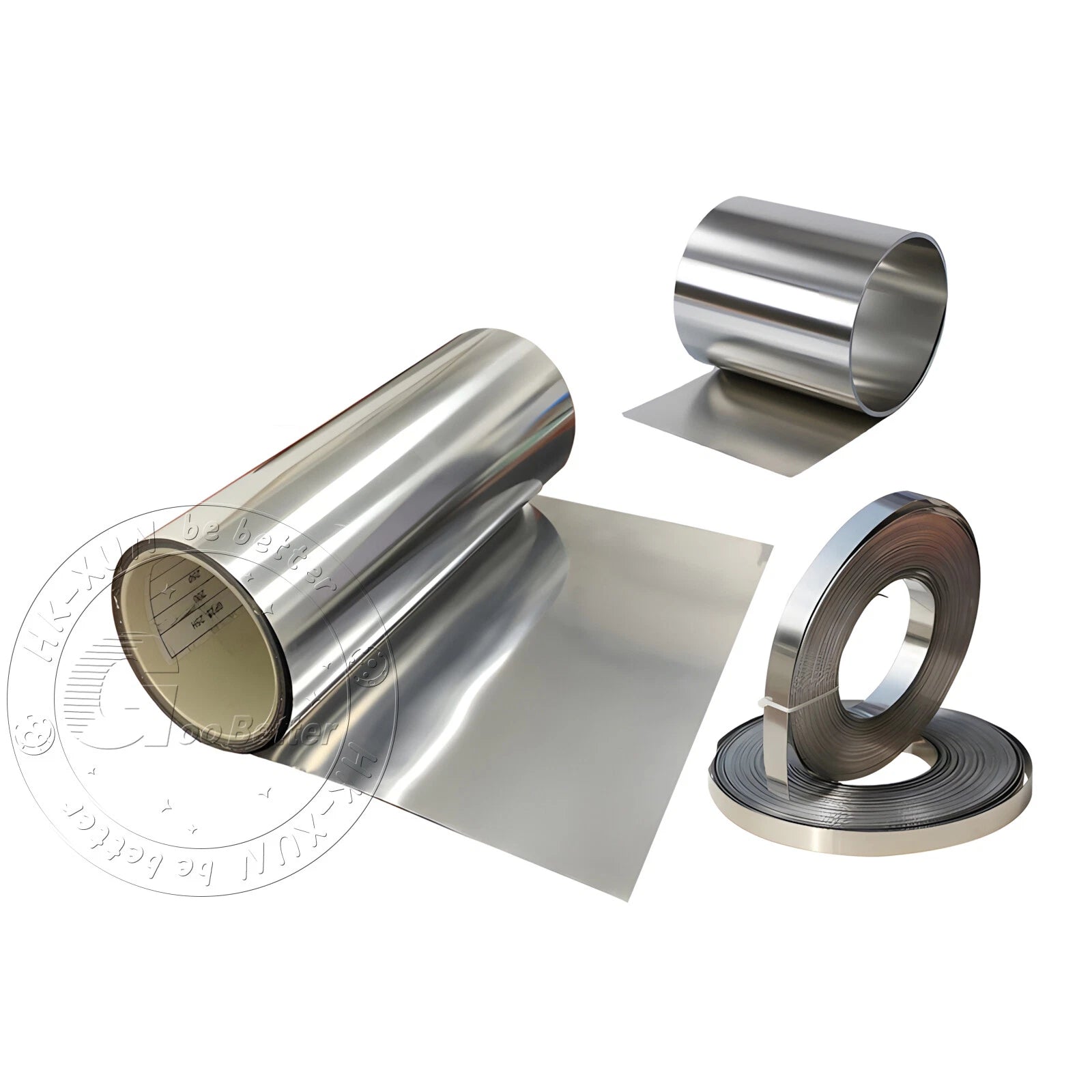

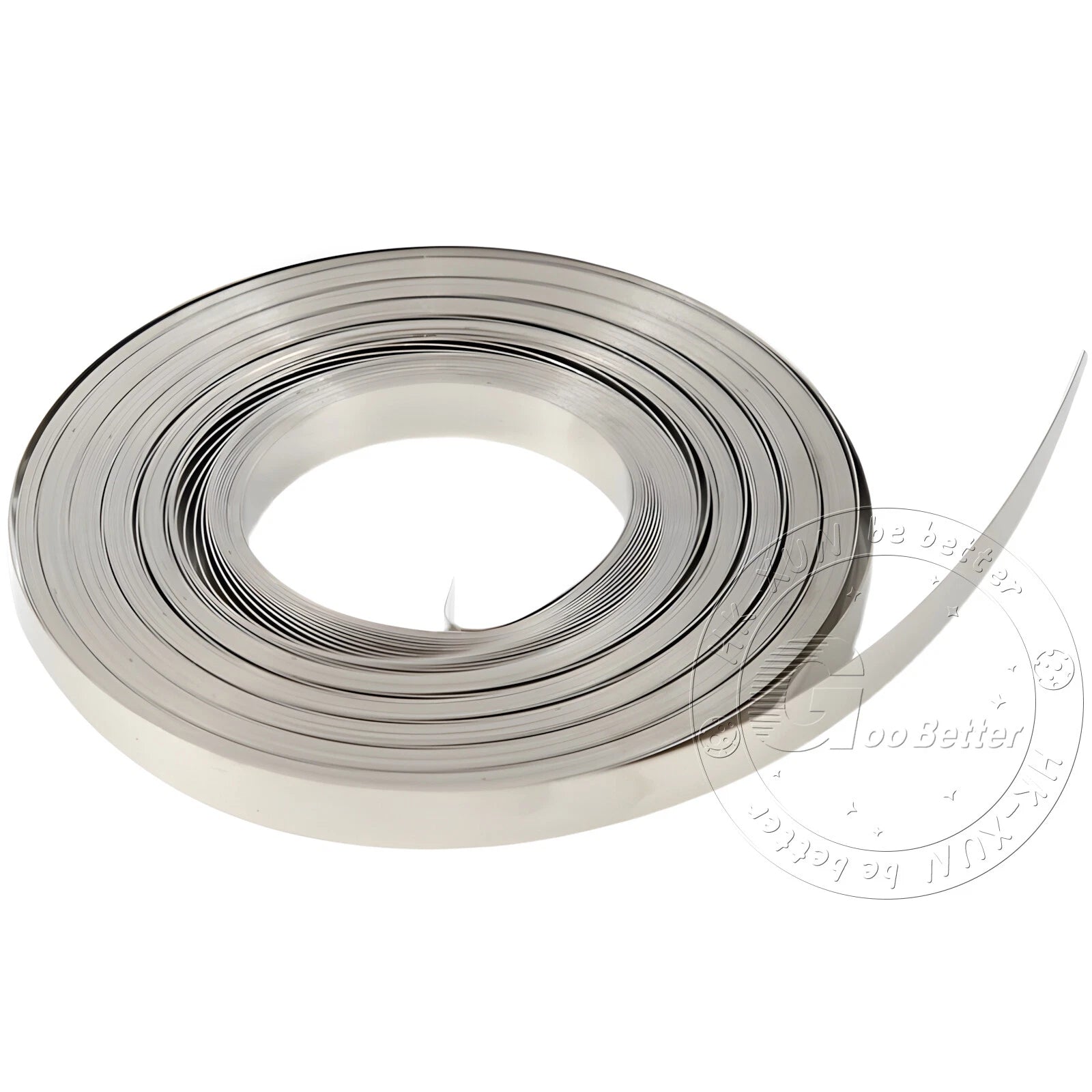

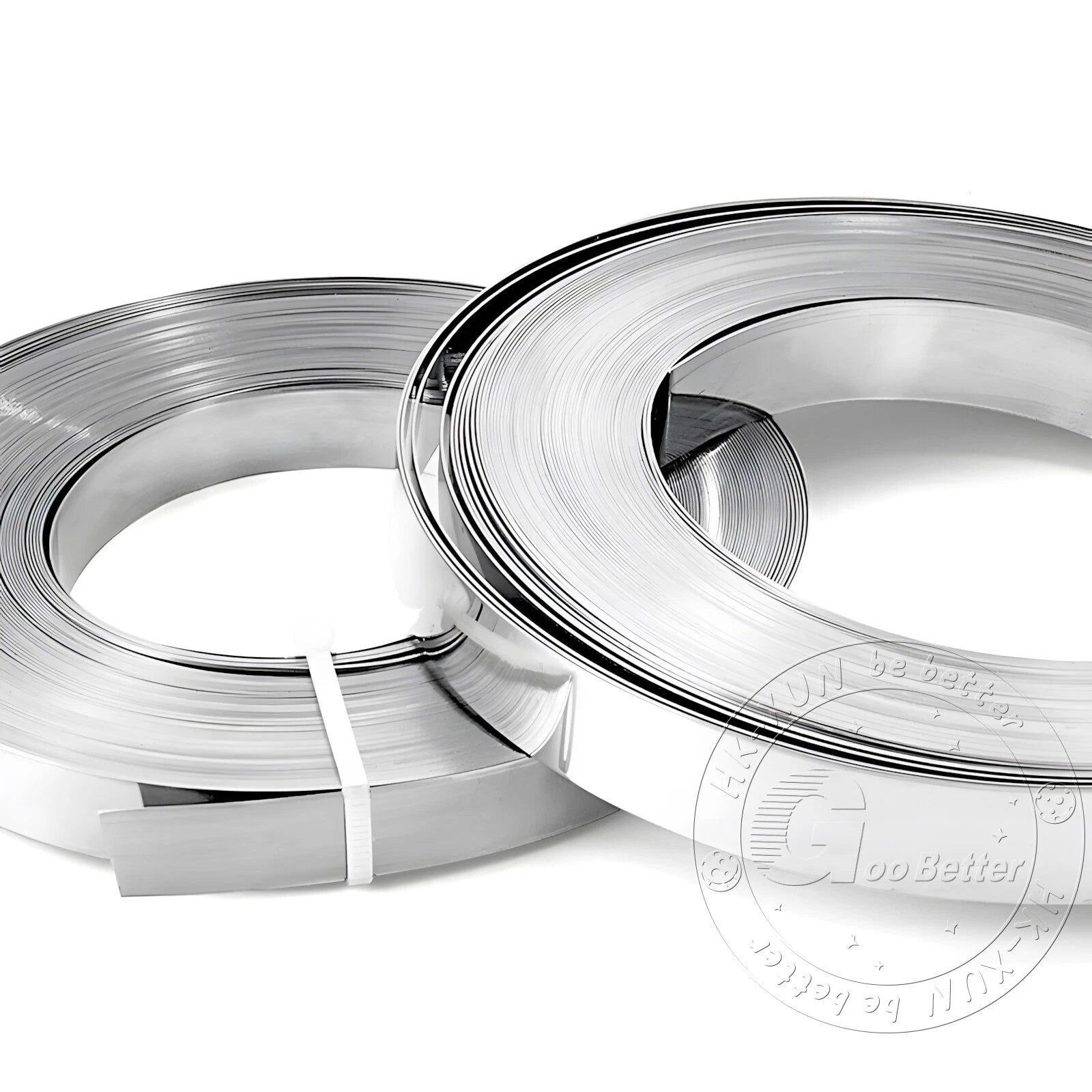

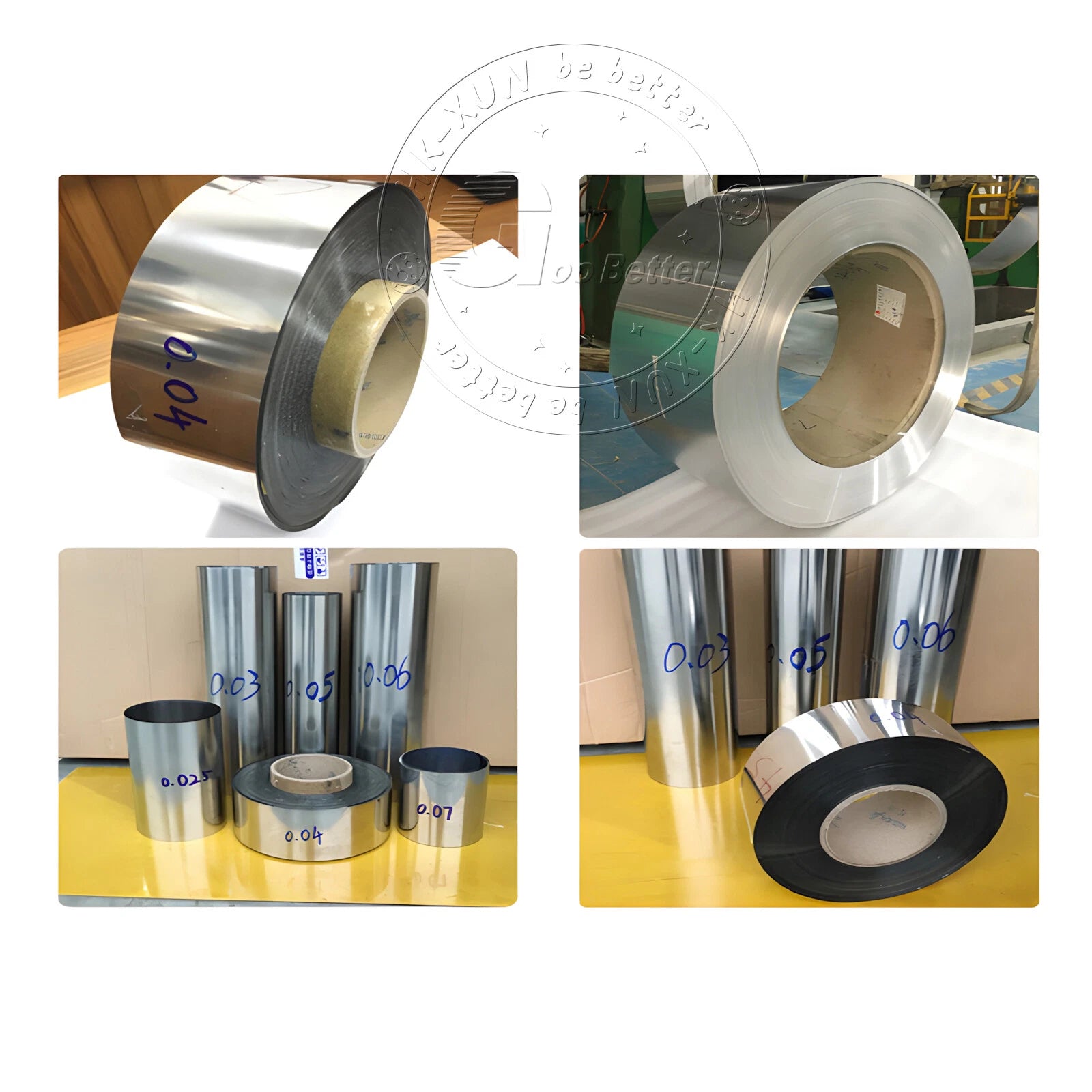

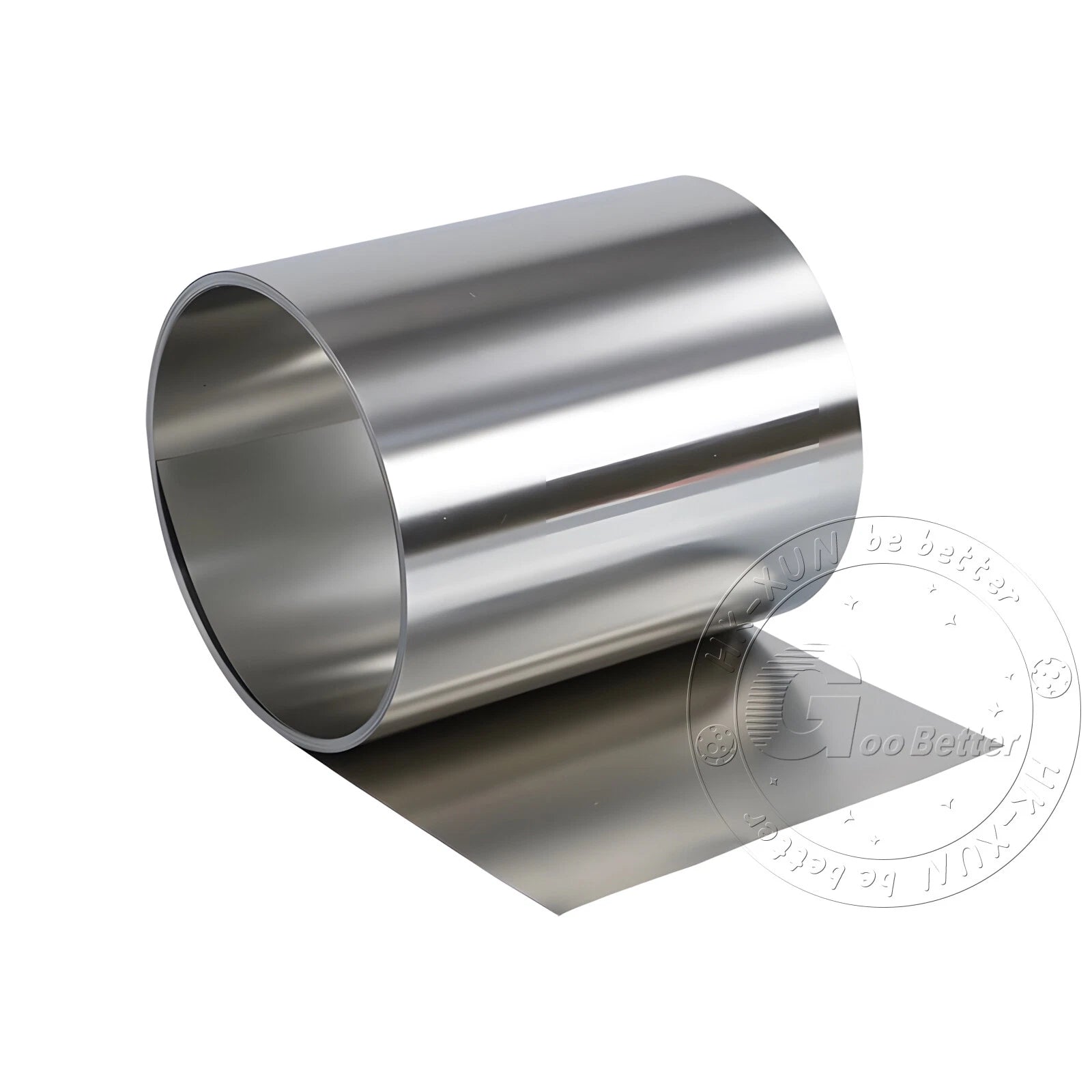

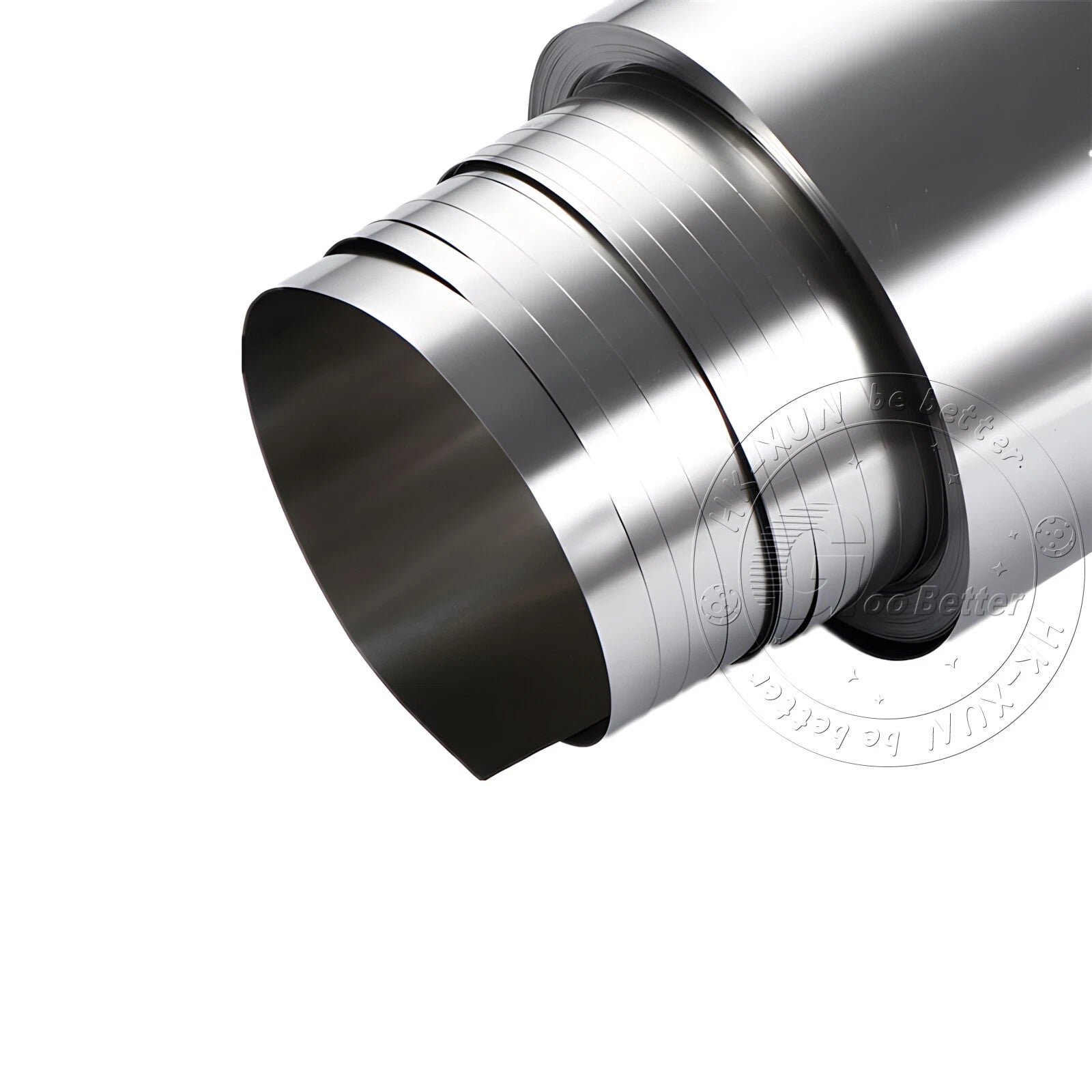

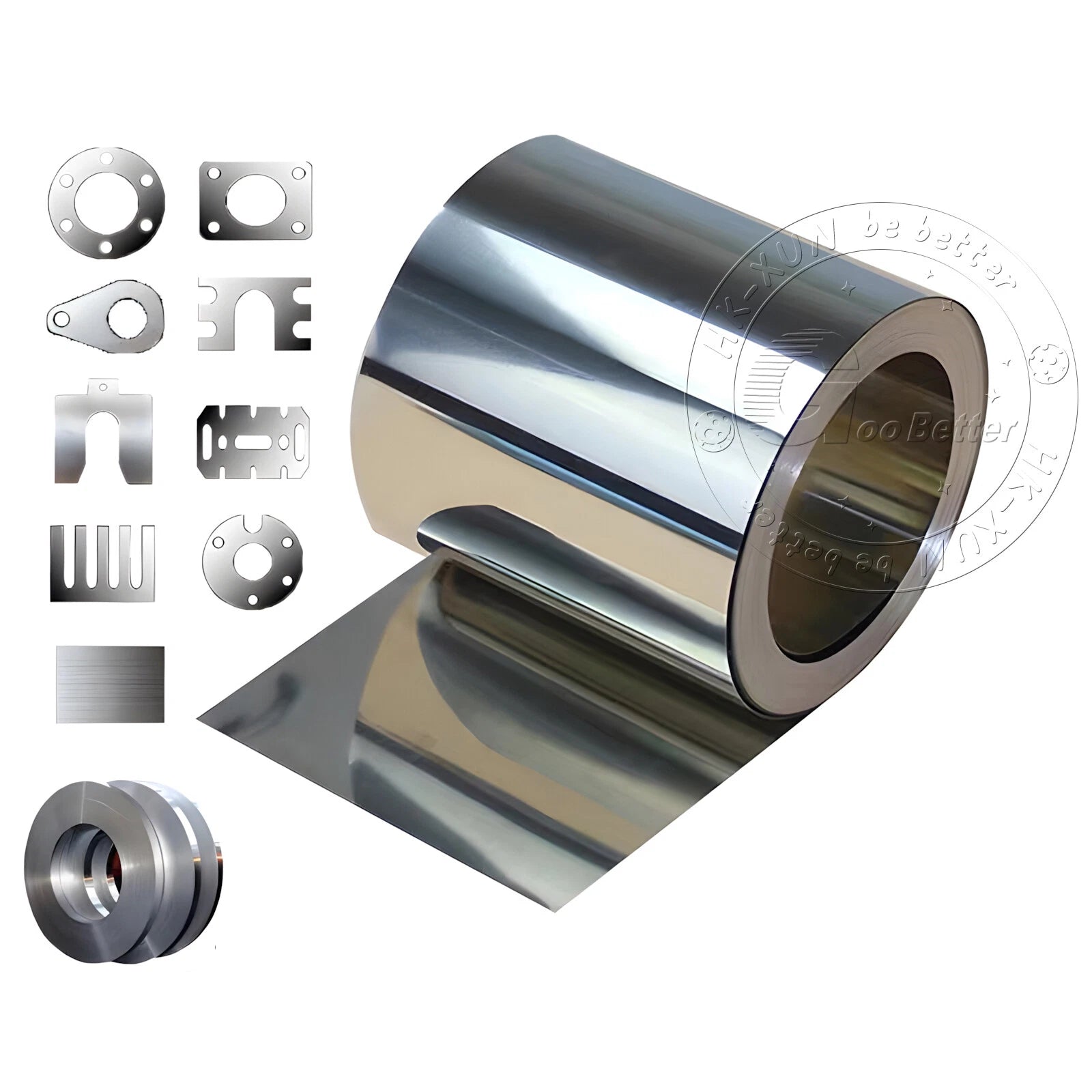

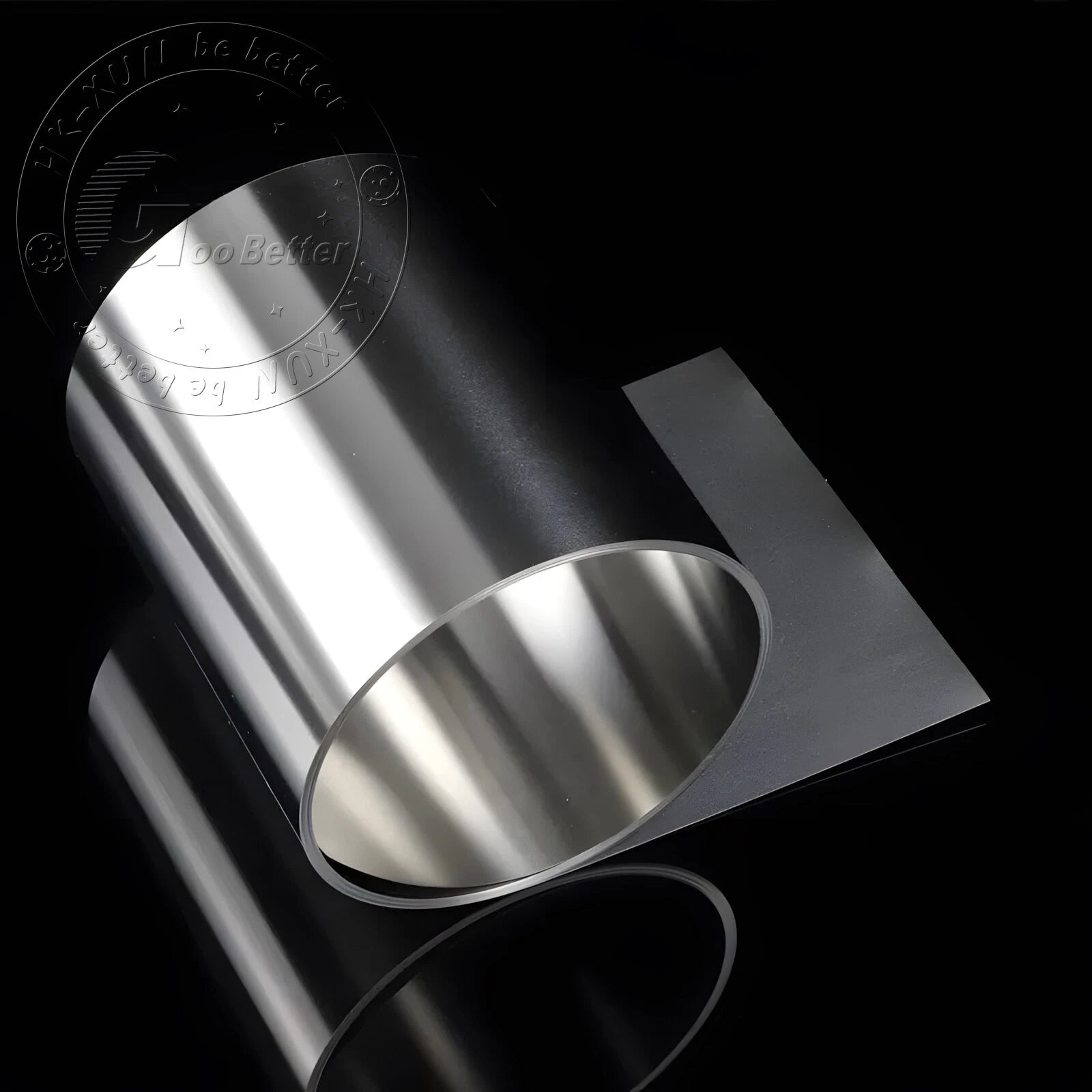

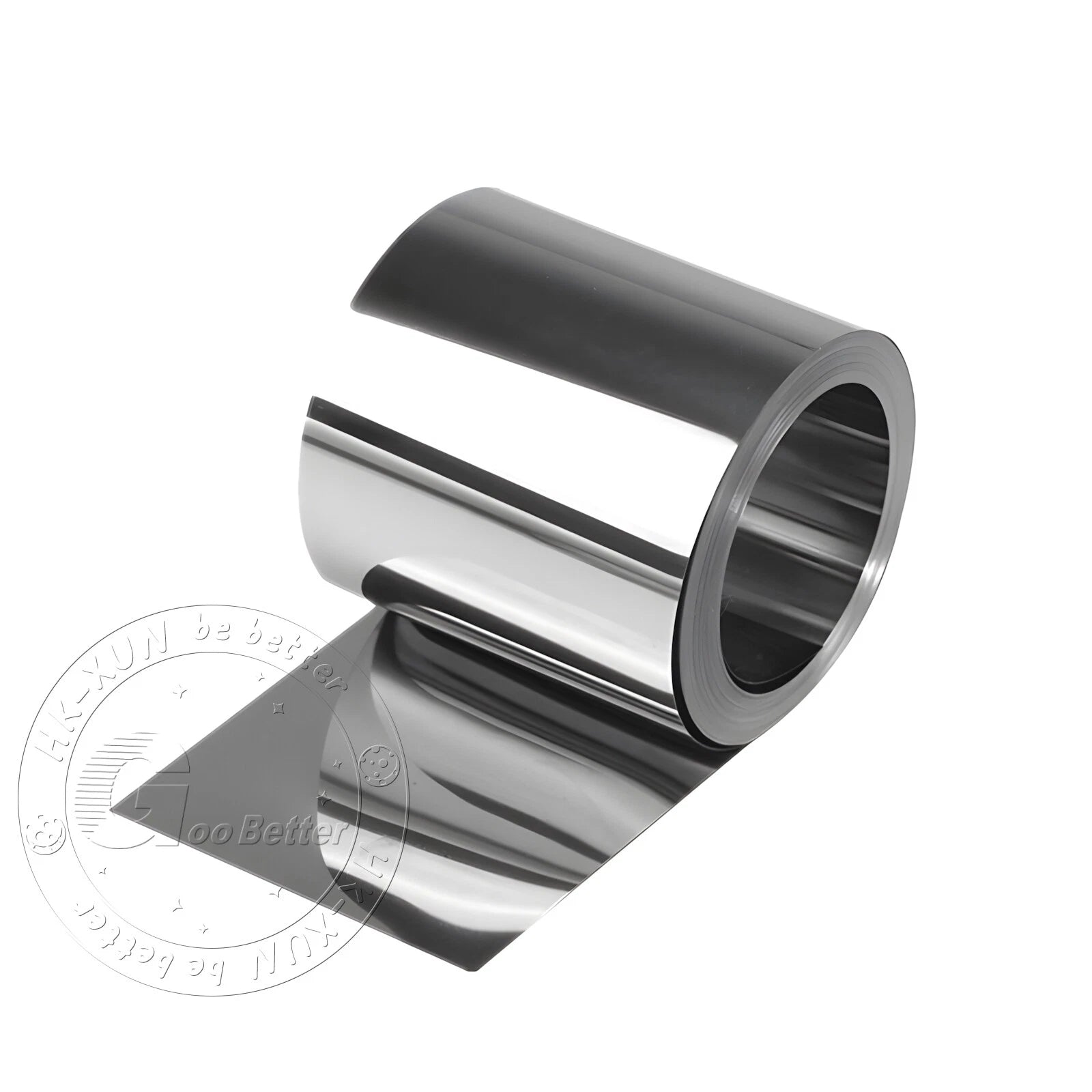

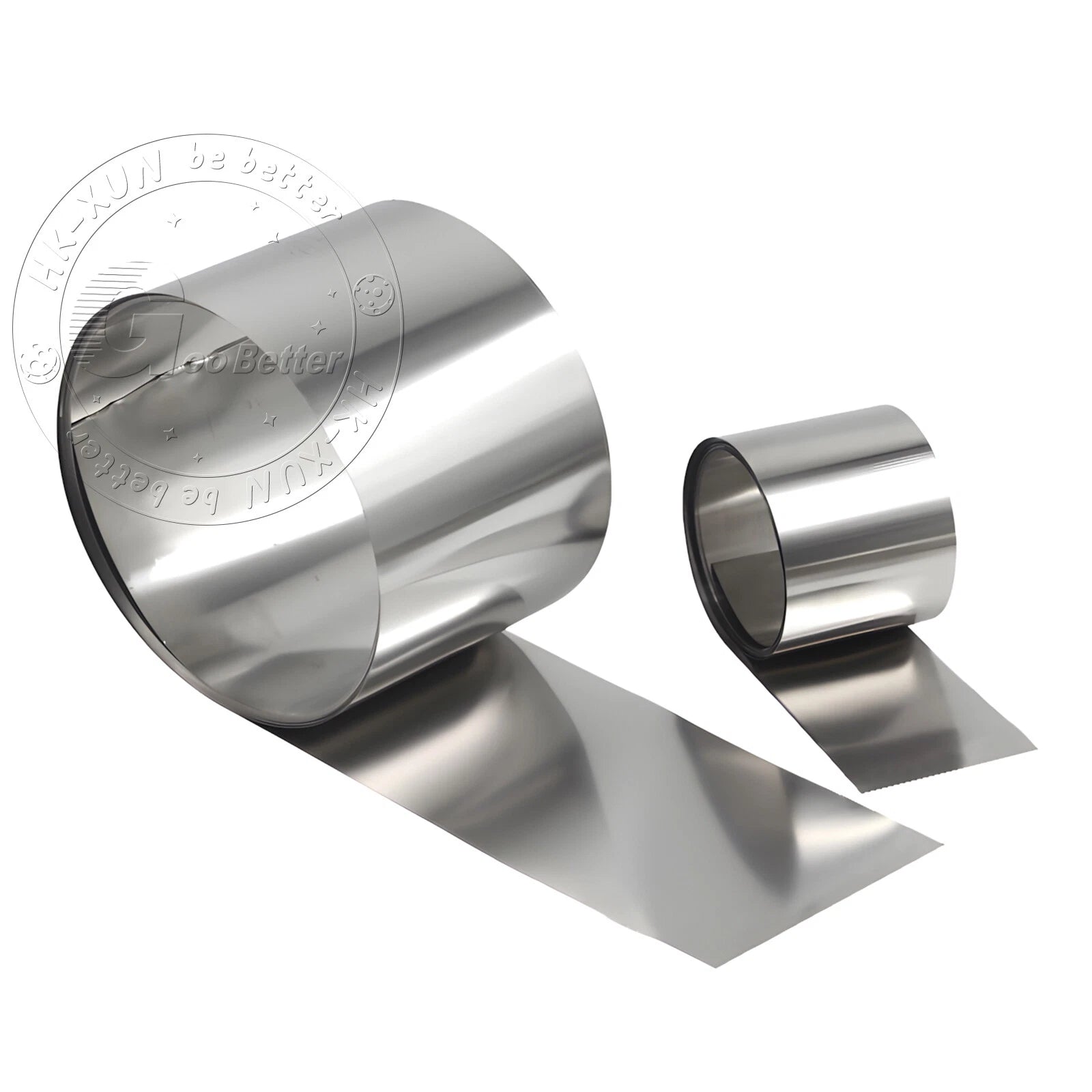

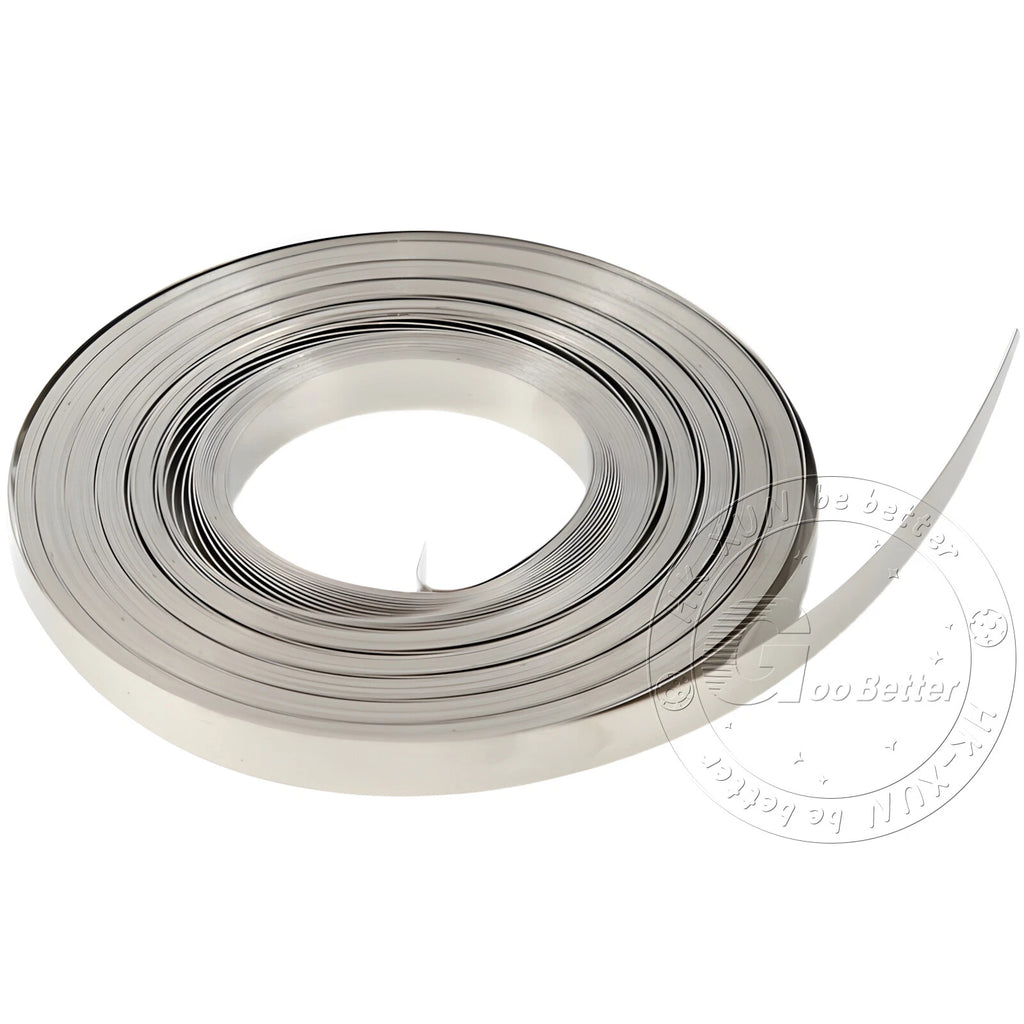

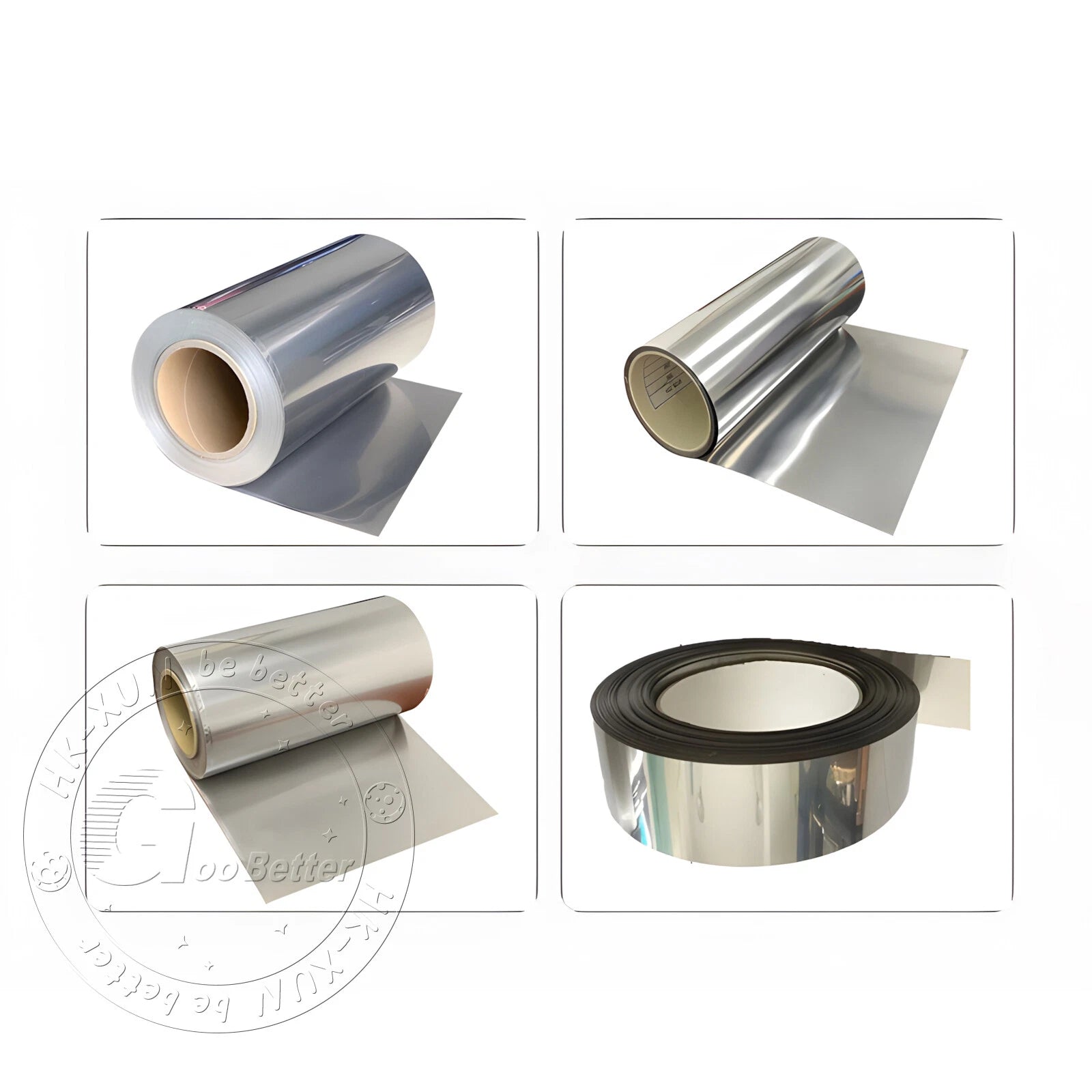

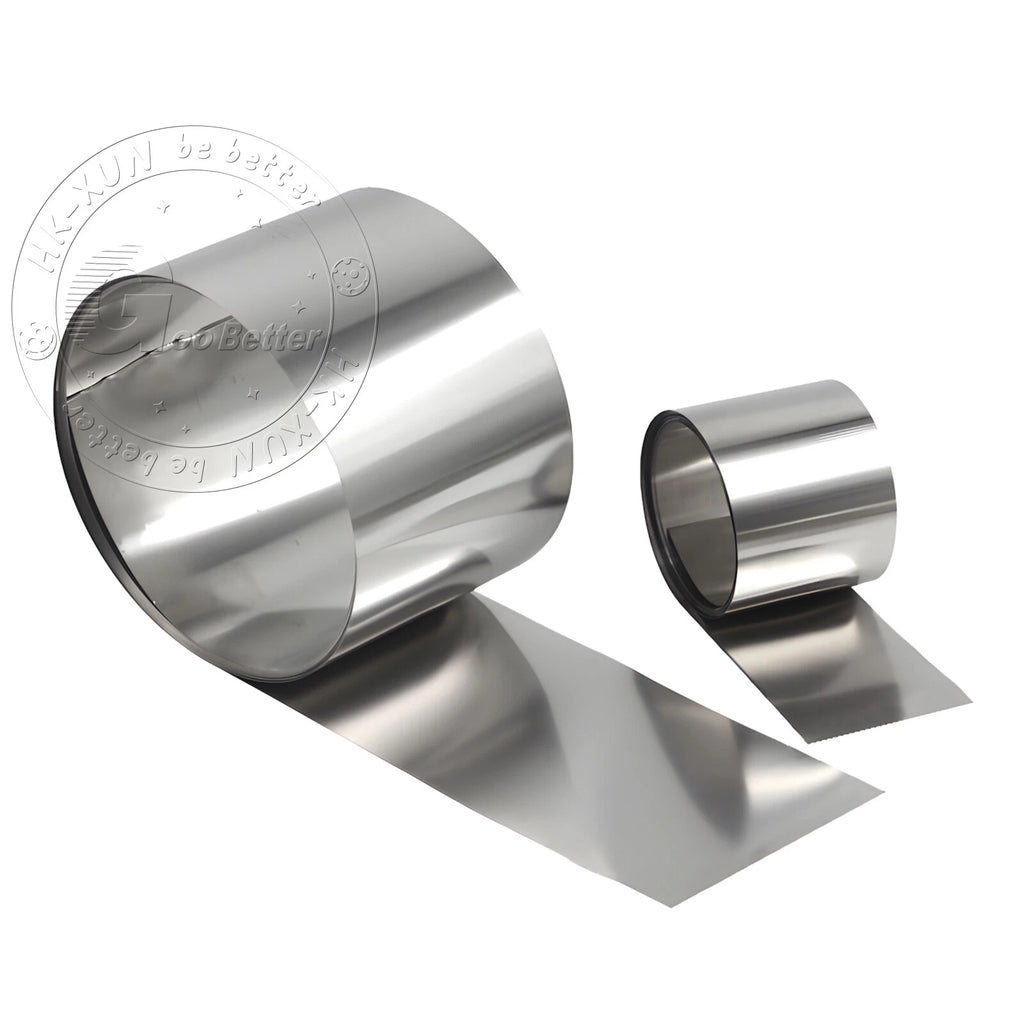

304 Stainless Steel Thin Plate Band Thick 0.01mm~1mm Metal Strip Roll Foil Sheet

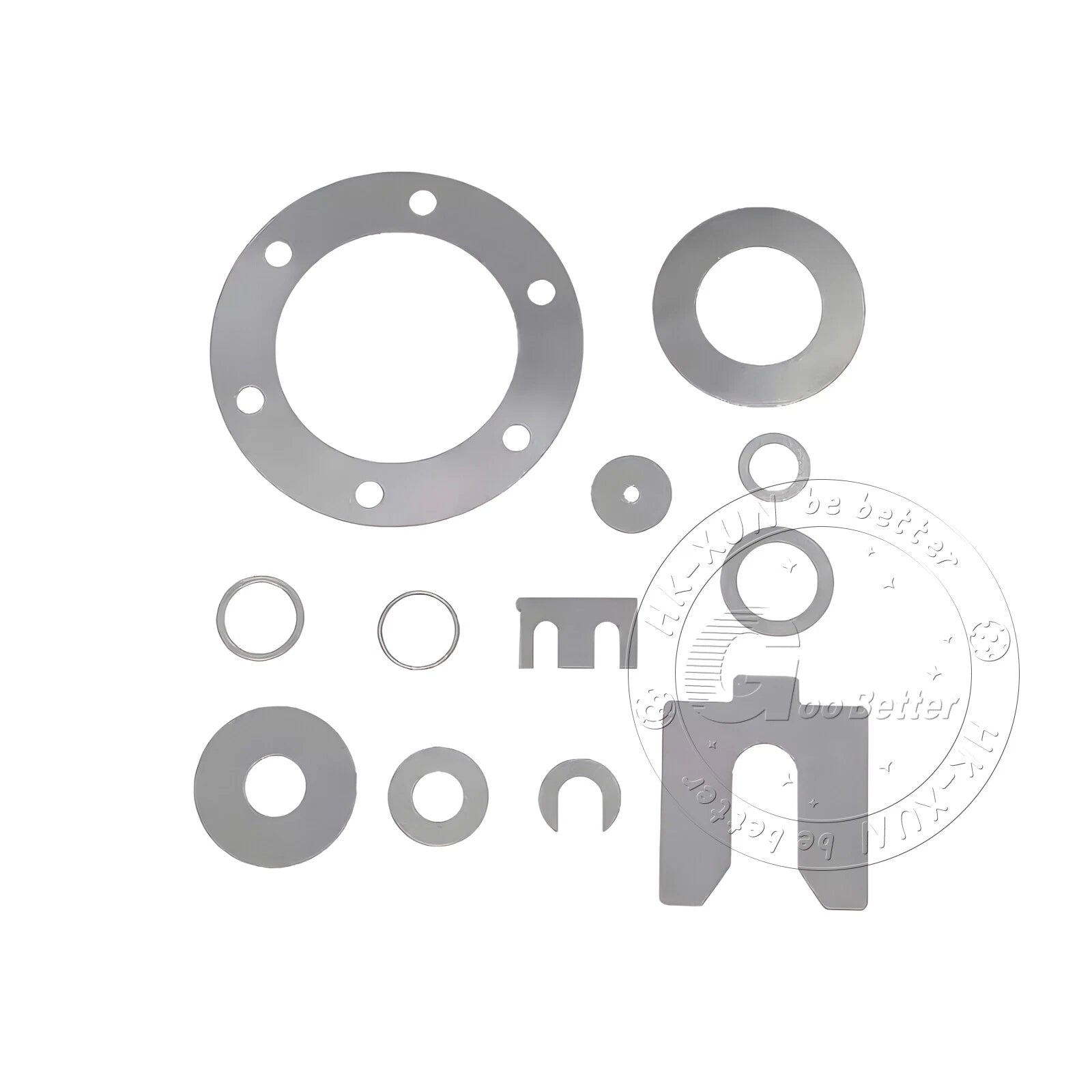

For shimming or gap-filling, match the thickness to your measured gap — use calipers for accuracy. For flexible spring elements or heat shields, thinner gauges (0.05–0.2 mm) provide the necessary flex. For structural brackets or reinforcement plates, gauges of 0.5 mm and above offer meaningful rigidity. When in doubt, order one step thinner and one step thicker to test before committing to a larger quantity.

304 SS has a tensile strength of approximately 515 MPa and a yield strength of around 205 MPa, which is adequate for light-to-medium structural tasks such as brackets, clips, and reinforcement strips. For heavy load-bearing or high-fatigue applications, consult an engineer and consider whether a thicker gauge or a higher-strength alloy is more appropriate.

304 stainless steel performs well in dry indoor and mildly humid environments. In coastal or chloride-rich outdoor settings, surface staining or pitting can develop over time. For marine or salt-spray environments, 316-grade stainless steel is the recommended choice. If you need outdoor durability in a non-marine setting, periodic cleaning with a mild stainless cleaner will extend the appearance and service life.

Yes. 304 SS is readily weldable using TIG, MIG, or spot-welding processes with ER308L filler wire. For thin gauges (≤0.1 mm), TIG welding with careful heat control is recommended to avoid warping. Soldering is possible with stainless-compatible flux and silver-bearing solder, though weld joints are generally stronger. Avoid using carbon-steel tools or wire brushes on the weld area to prevent contamination and rust spots.

Gauges up to approximately 0.1 mm can be scored and snapped or cut with heavy-duty scissors and a straightedge. From 0.1 mm to 0.3 mm, aviation tin snips or a rotary cutter with a metal blade work well. For 0.3 mm and above, an angle grinder with a thin cutting disc, a metal-cutting bandsaw, or laser cutting gives the cleanest edge. Always deburr cut edges with a fine file or deburring tool before handling.

Yes. These strips are fully compatible with 304 or 316 stainless fasteners (screws, rivets, bolts). For adhesive bonding, two-part epoxies and structural acrylic adhesives rated for metal substrates bond reliably after light scuffing and degreasing the surface. Avoid using dissimilar metals (e.g., bare carbon steel fasteners) in contact with the strip in wet environments, as galvanic corrosion can occur.

Store flat or loosely rolled in a dry location away from direct contact with carbon steel tools or surfaces, which can transfer iron particles and cause rust spots. Interleave strips with paper or plastic film if stacking multiple pieces. For long-term storage, a light coat of food-grade mineral oil on the surface provides additional protection and wipes off cleanly before use.
