3:1 Double Wall Heat Shrink Tube — Waterproof Protection for Wiring, Connectors & Splices
Exposed wire splices, corroded terminals, and unprotected connectors are among the most common causes of electrical failures in automotive, marine, and DIY projects. Whether you're a professional auto electrician, a boat owner protecting bilge wiring, or a maker sealing custom cable assemblies, standard heat shrink simply doesn't cut it when moisture, vibration, or harsh environments are involved.

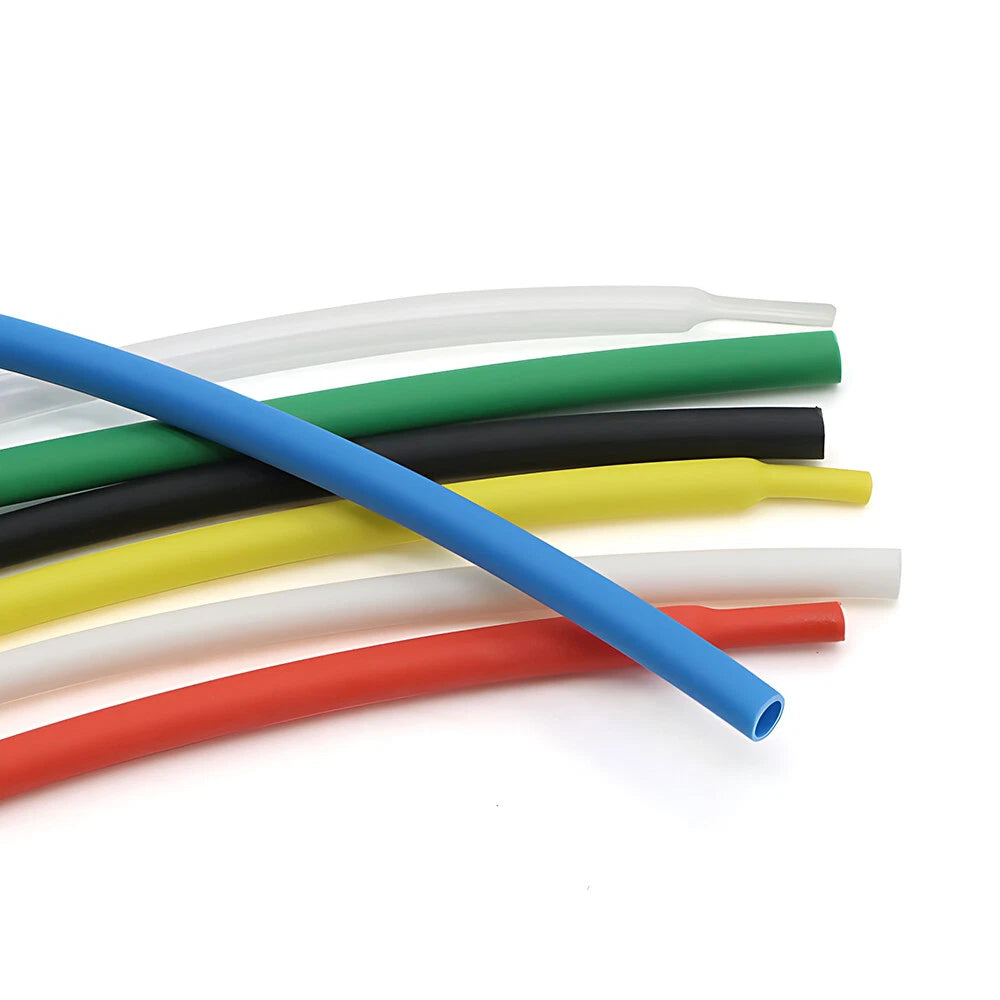

Each piece of this 3:1 double wall heat shrink tube features a dual-layer construction: a flexible polyolefin outer wall paired with an inner hot-melt adhesive lining. Available in diameters from φ1.6mm (≈1/16") to φ85mm (≈3-3/8"), in 8 colors (Black, White, Red, Green, Yellow, Blue, Transparent, Orange), and in 1 Meter or 5 Meter lengths. The 3:1 shrink ratio means the tube recovers to approximately one-third of its original diameter — providing a tight, conforming fit over irregular shapes and stepped connectors.
Typical applications include automotive wiring harness repair, marine cable sealing, battery terminal protection, underground splice waterproofing, and color-coded wire identification in control panels. The glue-lined design is especially useful for heat shrink wire connector sealing and waterproof butt splice insulation.
🔌
Compatibility: Works with copper, aluminum, and tinned wire; suitable for automotive (12V/24V), marine, low-voltage electronics, and general DIY wiring. Verify diameter against your component before ordering — see the size guide in the FAQ below.
✅ Key Features of These 3:1 Double Wall Heat Shrink Tubes
-

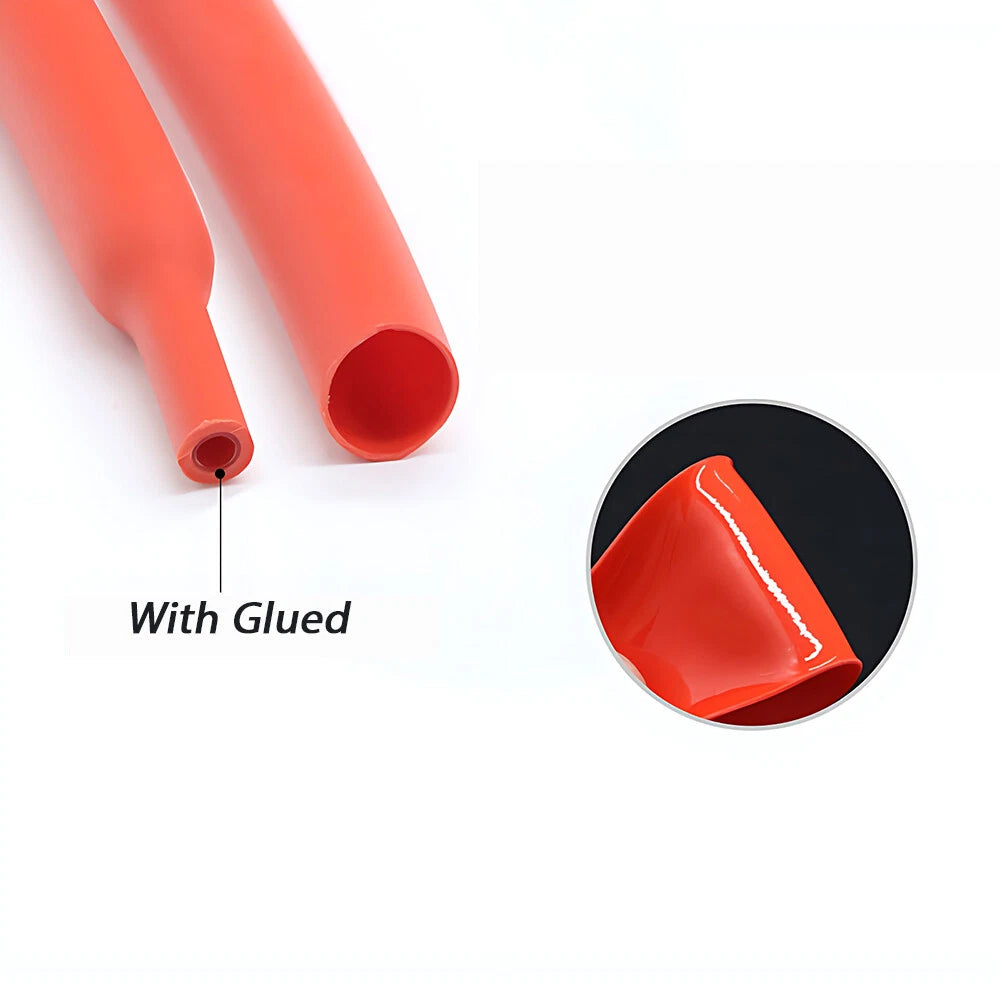

💧Waterproof Glue-Lined Seal — The inner hot-melt adhesive flows into gaps and bonds to the substrate as the tube shrinks, creating a moisture-resistant seal suited for waterproof heat shrink wire connector applications.
-
📐3:1 Shrink Ratio — Recovers to approximately one-third of the supplied diameter, conforming tightly to stepped connectors, irregular shapes, and bundled cables where standard 2:1 tubing leaves gaps.
-

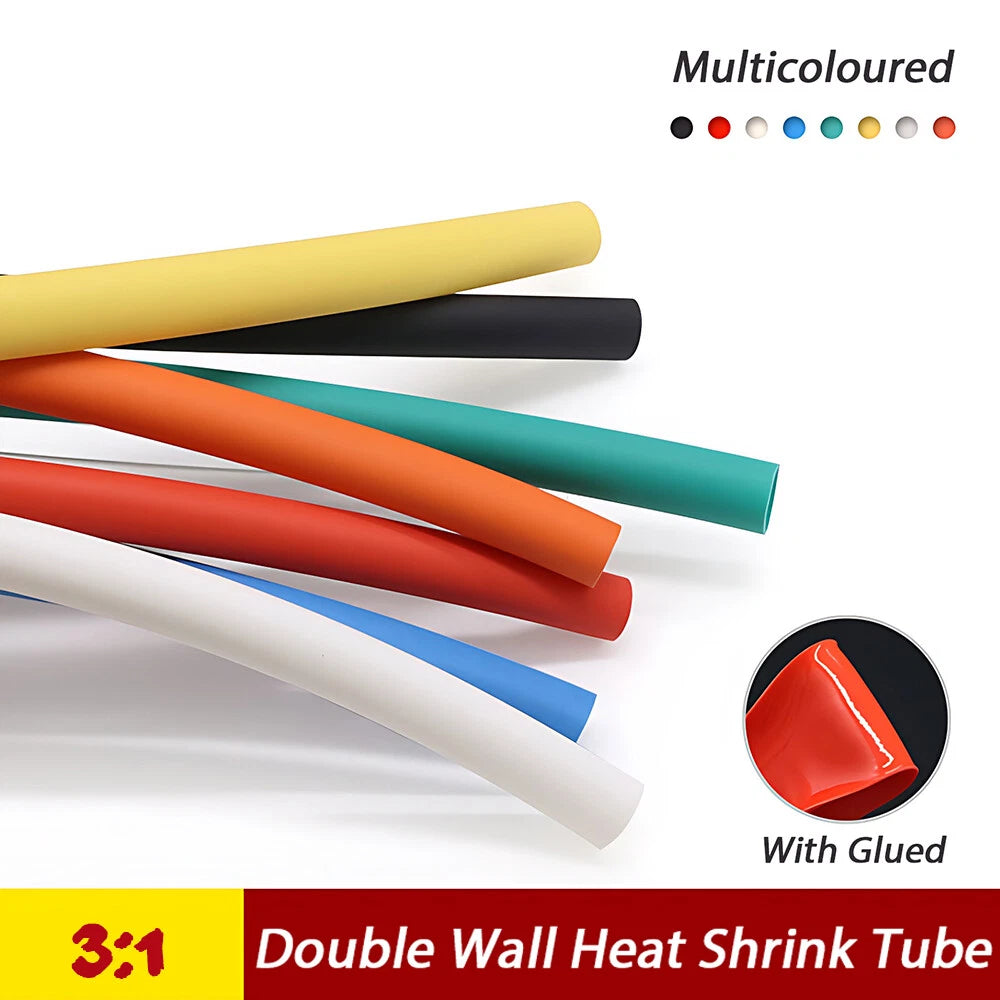

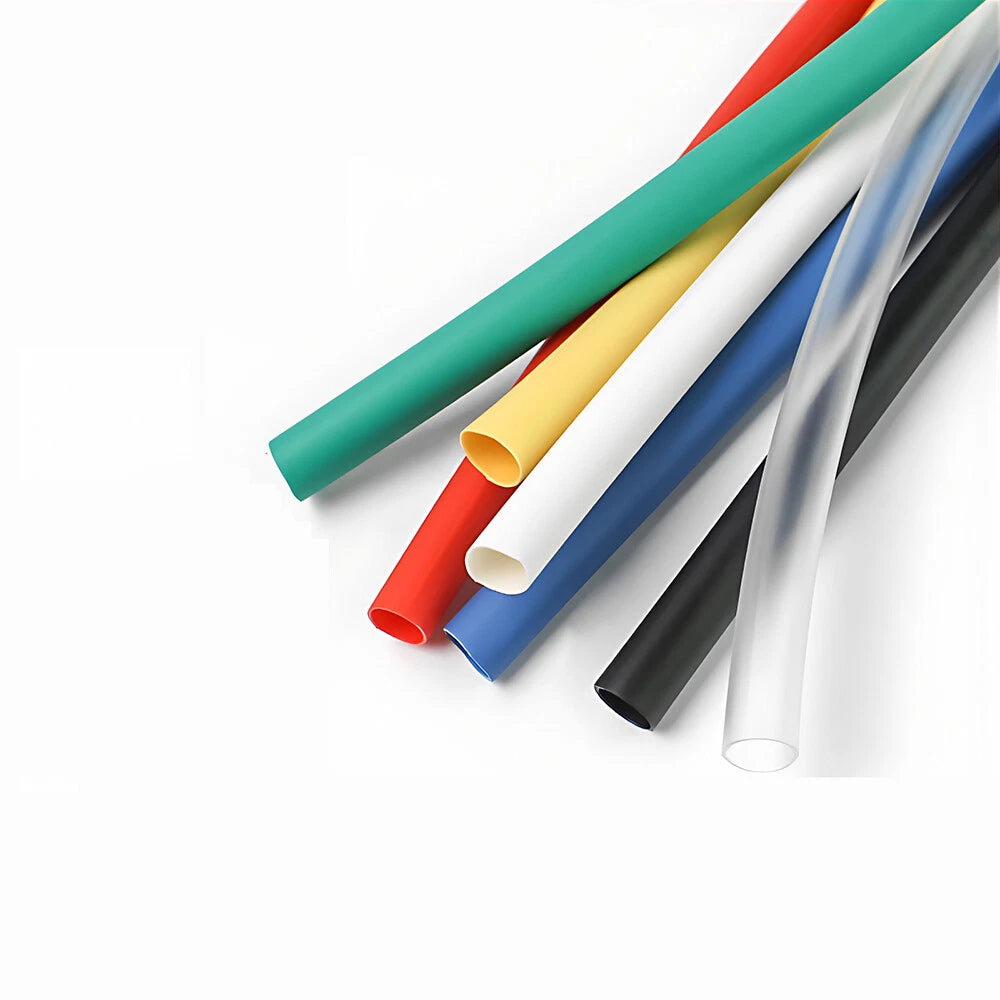

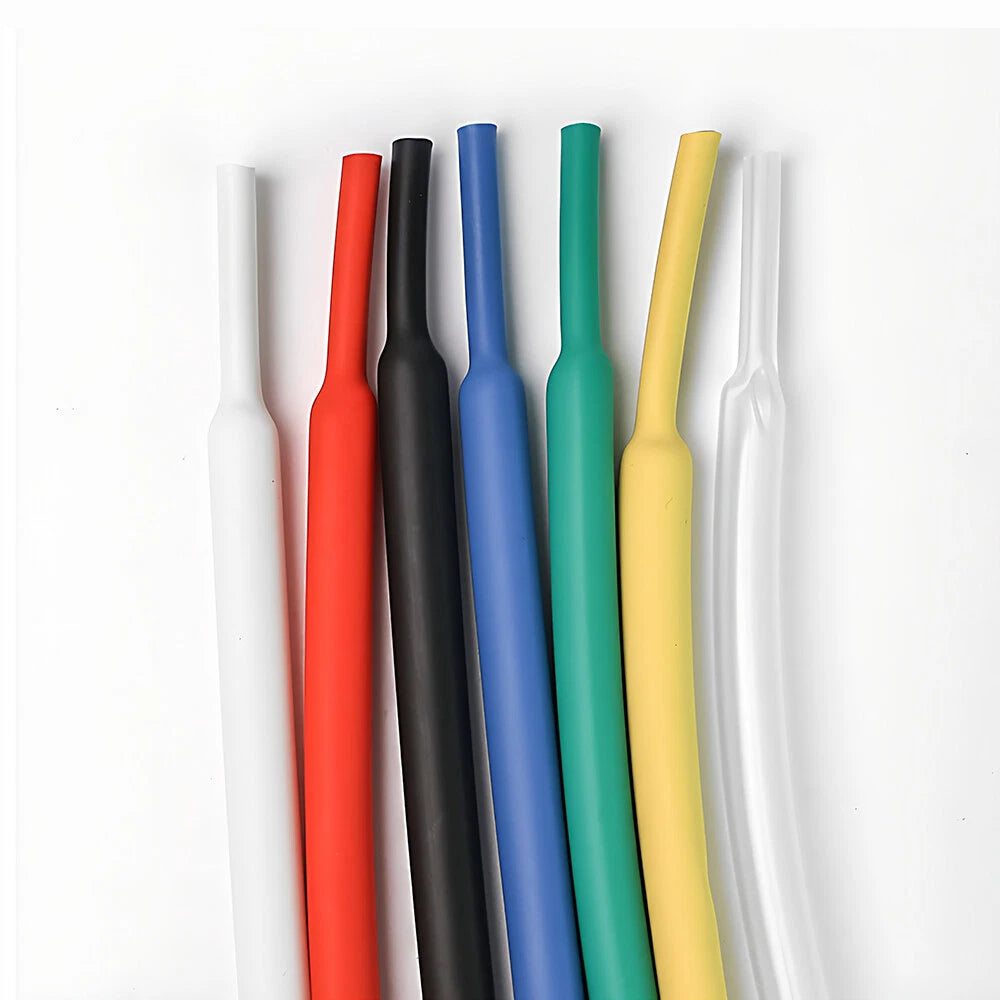

🎨8 Color Options — Black, White, Red, Green, Yellow, Blue, Transparent, and Orange allow color-coded wire identification and circuit tracing in automotive wiring harnesses and control panels.
-
📏Wide Diameter Range — From φ1.6mm (≈1/16") to φ85mm (≈3-3/8"), covering fine electronics wiring through large battery cables and cable bundles in a single product line.
-
✂️Cut-to-Length Flexibility — Available in 1 Meter and 5 Meter lengths; cut to any custom length before shrinking. Ends do not fray, making field installation straightforward.
-
🔥Polyolefin Outer Wall — The outer layer is generally resistant to UV exposure, common automotive fluids, and abrasion, making it suitable for under-hood, outdoor, and marine glue-lined heat shrink tubing applications.

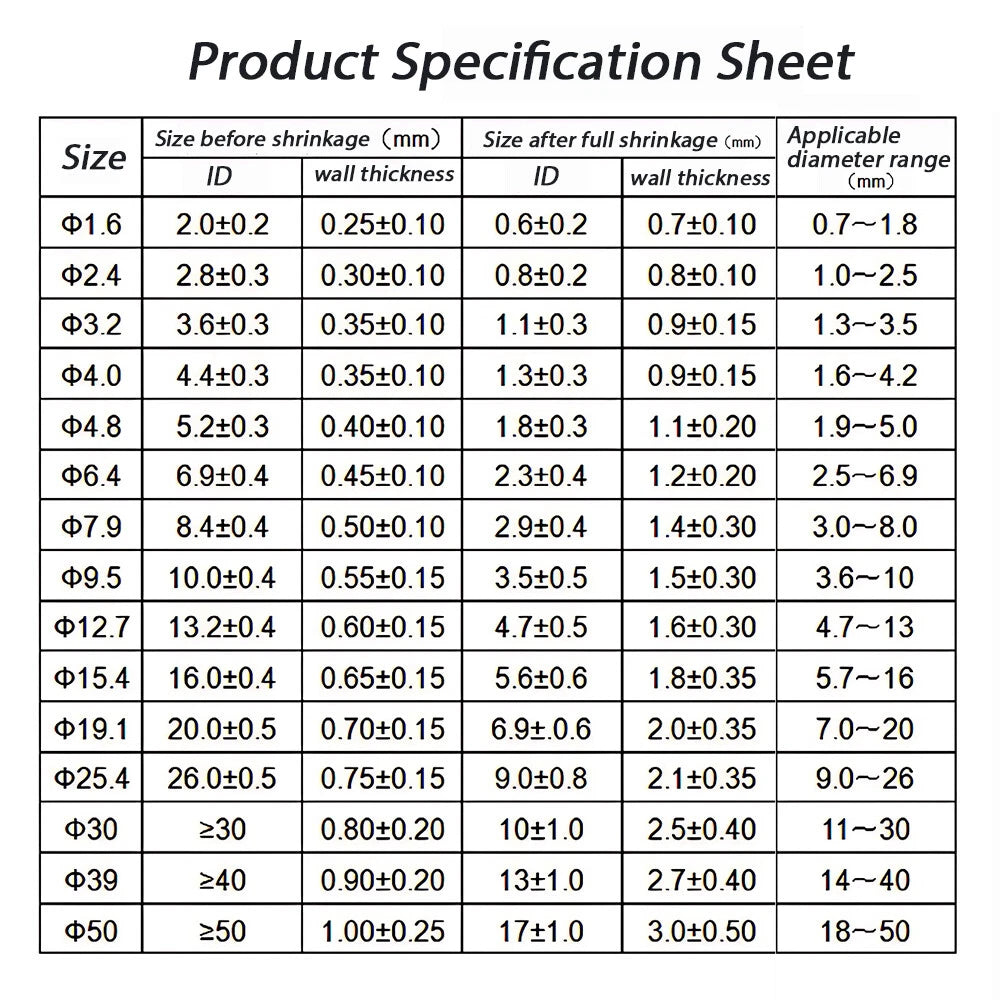

📐 Technical Specifications — 3:1 Double Wall Heat Shrink Tubing
| Shrink Ratio |
3:1 |
| Construction |
Dual-layer: polyolefin outer wall + hot-melt adhesive inner lining |
| Available Diameters (supplied) |
φ1.6mm, φ2.4mm, φ3.2mm, φ4mm, φ4.8mm, φ6.4mm, φ7.9mm, φ9.5mm, φ12.7mm, φ15.4mm, φ19.1mm, φ25.4mm, φ30mm, φ39mm, φ50mm, φ65mm, φ85mm |
| Available Colors |
Black, White, Red, Green, Yellow, Blue, Transparent, Orange |
| Available Lengths |
1 Meter (≈3.3 ft) / 5 Meter (≈16.4 ft) |
| Shrink Temperature (typical) |
Begins ~70–90°C (158–194°F); full recovery ~120°C (248°F) |
| Wall Thickness (after shrink) |
See variant options |
| Adhesive Type |
Hot-melt (thermoplastic) inner lining |
| Outer Material |
Polyolefin |
| Operating Temperature Range |
Contact us to confirm |
| Voltage Rating |
Contact us to confirm |
| Applicable Standards |
Contact us to confirm |
⚠️
Size tip: Always measure your component's outer diameter before selecting a tube. The supplied diameter listed is the before-shrink inner diameter. If you are between sizes, size up for easier installation.
❓ Frequently Asked Questions
How do I choose the right diameter for my application?
Measure the outer diameter of the wire, connector, or component you need to cover. Choose a tube whose supplied (before-shrink) inner diameter is at least 20–30% larger than your component. With a 3:1 shrink ratio, the tube will shrink down to roughly one-third of its original diameter — so a φ9.5mm (≈3/8") tube will typically recover to approximately φ3.2mm (≈1/8"). When in doubt, size up one step.
What does the 3:1 shrink ratio mean?
A 3:1 shrink ratio means the tube shrinks to approximately one-third of its original inner diameter when heat is applied. This is generally double the recovery of standard 2:1 tubing, making it well-suited for irregular shapes, connectors, and bundled cables where a tighter fit is needed.
How strong is the adhesive lining, and can it hold under vibration?
The inner hot-melt adhesive layer flows and bonds to the substrate as the tube shrinks, creating a mechanical and environmental seal. In most cases this provides solid resistance to vibration, moisture ingress, and axial pull-off forces — making it suitable for automotive wiring harnesses and marine connections where movement and flex are common.
Is this tubing suitable for outdoor or marine use?
Yes. The glue-lined construction creates a waterproof seal around the substrate, which generally makes it suitable for outdoor, marine, and underground applications. The polyolefin outer wall typically provides UV and chemical resistance. For prolonged saltwater immersion or high-pressure wash-down environments, contact us to confirm suitability for your specific use case.
What temperature is needed to shrink the tubing, and what tools can I use?
Polyolefin double-wall heat shrink tubing typically begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun is the recommended tool for even, controlled shrinkage. Open flames (lighters, torches) can be used carefully but risk scorching the tube — keep the heat source moving at all times and avoid concentrating heat in one spot.
Which wire gauges or connector types is this compatible with?
The tubing is compatible with a wide range of wire gauges and connector types. As a general guide: φ1.6mm suits very fine wires (typically AWG 22–26), φ3.2mm–φ6.4mm covers common automotive and electronics wiring (AWG 10–20), and larger diameters (φ12.7mm–φ85mm) are suited for cable bundles, battery terminals, and large connectors. See variant options for the full diameter range.
Can I cut the tubing to a custom length before shrinking?
Yes. Cut the tubing to your desired length with scissors or a utility knife before applying heat. The cut ends will not fray. Allow a small overlap — typically 5–10mm (≈1/4") — beyond the area you want to seal for best adhesive coverage and a clean finished look.
