When standard roller chain isn't enough for your attachment or conveyor build, the #35 roller chain with bent ear on both sides gives you the mounting flexibility you need. Fabricators, machine builders, and DIY engineers working on conveyor systems, automated feeders, or custom drive assemblies often struggle to find chain that combines reliable power transmission with ready-to-use attachment tabs — this chain solves that problem out of the box.

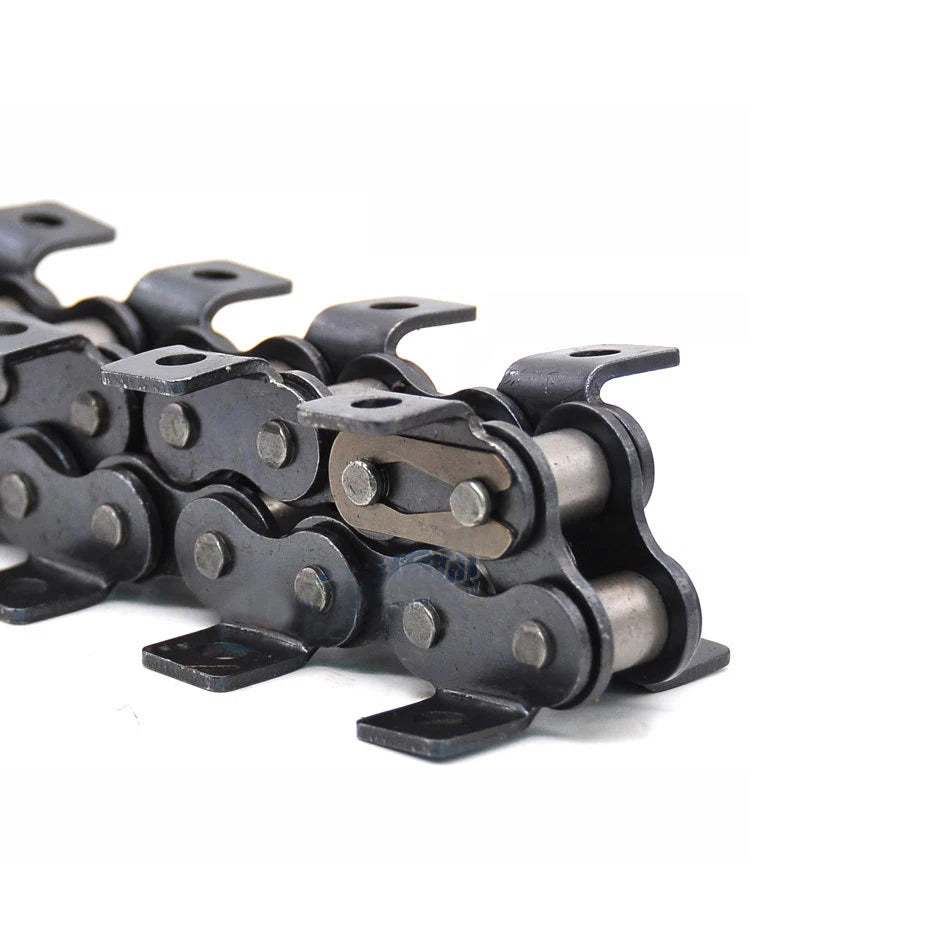

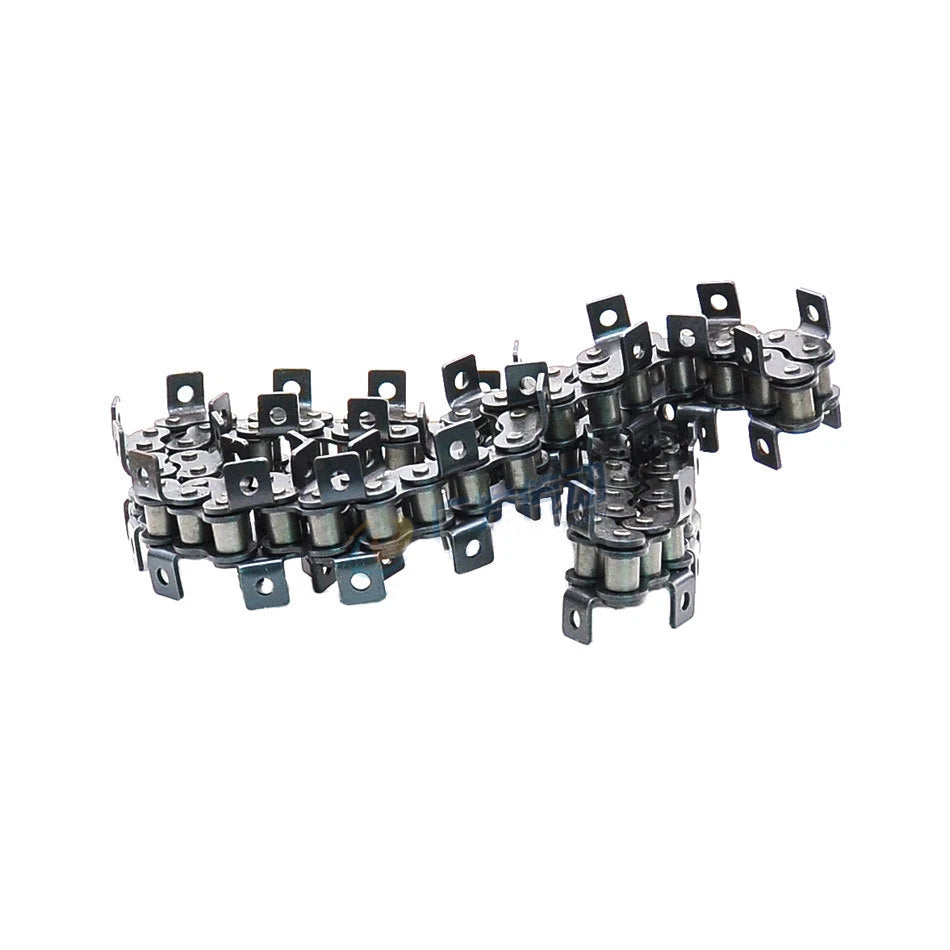

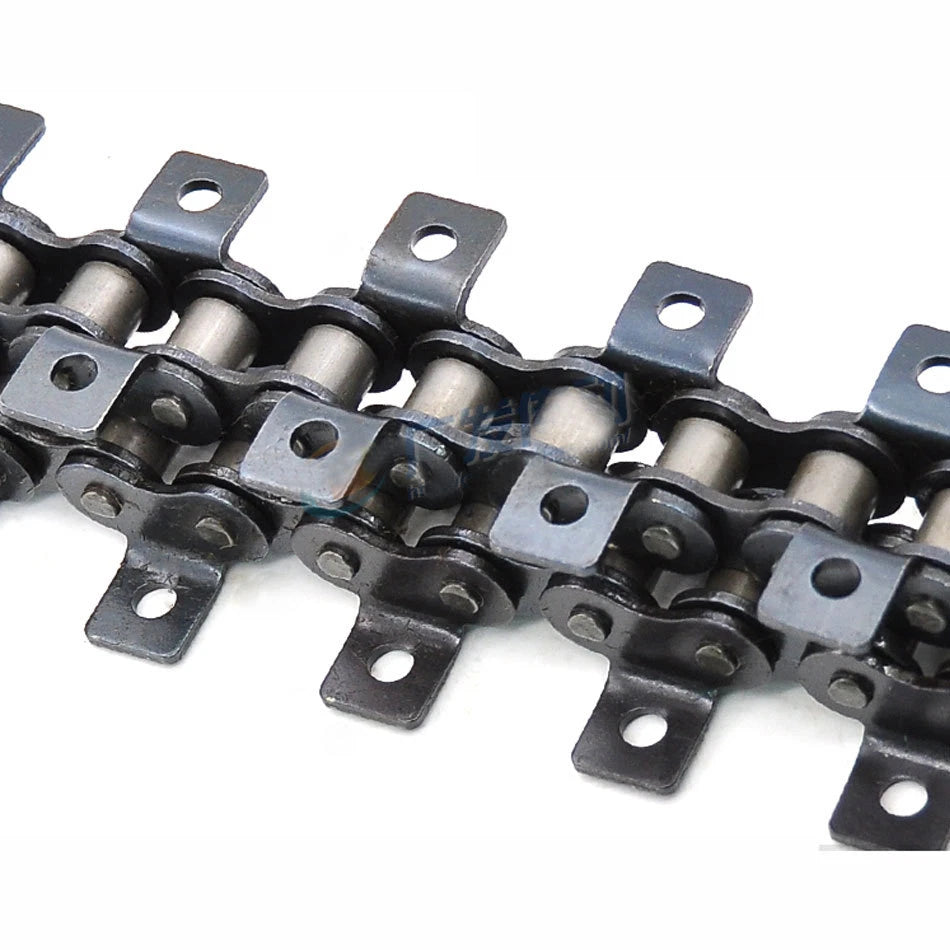

This listing covers a 1.5-meter (approximately 59 inches) length of #35 / 06B roller chain, featuring bent attachment ears on both sides of each link. The chain is constructed from carbon steel with a zinc-plated or natural finish depending on the variant, with a pitch of 9.525 mm (3/8 inch) conforming to the 06B / #35 standard. Inner width is typically 5.72 mm (0.225 in), and the bent ears extend outward to provide a flat mounting surface for brackets, guides, or custom fixtures.
Typical use cases include light-duty conveyor belt drives, automated parts-feeding systems, small agricultural equipment attachments, and custom robotics or CNC machine drive trains — all applications where a #35 bent-ear attachment chain or 06B conveyor chain with side tabs delivers a measurable advantage over plain roller chain.
Attachment ears on both sides of every link provide symmetrical mounting points, making it straightforward to attach guides, brackets, or conveyor flights without custom fabrication.
9.525 mm (3/8") pitch conforms to ISO 606 / ANSI #35 standards, ensuring direct compatibility with off-the-shelf #35 sprockets and chain accessories.
Hardened carbon steel pins, bushings, and rollers deliver consistent tensile strength for light-to-medium duty drive and conveyor applications.
Each unit ships as a pre-cut 1.5-meter (approx. 59 in) strand — no cutting required for most standard conveyor spans. A connecting link is recommended for loop assembly.
The bent ears present a flat, drilled-or-drillable tab surface, compatible with M4–M6 fasteners for attaching conveyor slats, pusher dogs, or sensor brackets.
Pre-lubricated at assembly for immediate use. Periodic re-lubrication with chain oil extends service life in continuous-duty conveyor and drive applications.
| Chain Standard | #35 / 06B (ISO 606 / ANSI) |
|---|---|
| Pitch | 9.525 mm (3/8 in) |
| Inner Width | 5.72 mm (0.225 in) |
| Roller Diameter | 6.35 mm (0.250 in) |
| Length | 1.5 m (approx. 59 in) |
| Ear Configuration | Bent ear, both sides |
| Material | Carbon steel |
| Finish | See variant options |
| Max Allowable Load | See variant options |
| Connecting Link Included | See variant options |
This chain is designed for standard #35 / 06B sprockets with a 9.525 mm (3/8") pitch. Any sprocket labeled #35 or 06B from common industrial suppliers will mesh correctly. Always verify the sprocket bore size and tooth count match your shaft and speed requirements before ordering.
#35 / 06B roller chain is rated for light-to-medium duty applications. Typical minimum tensile strength for this standard is around 8.0 kN (approximately 1,800 lbf), though actual working load limits depend on speed, lubrication, and application. For heavy-duty or high-cycle applications, consider upgrading to #40 or #50 chain.
Standard carbon steel chain offers moderate corrosion resistance when kept lubricated. For outdoor or wet environments, regular re-lubrication with a weather-resistant chain oil is recommended. If your application involves prolonged moisture exposure, consider a stainless steel variant or apply a protective coating after installation.

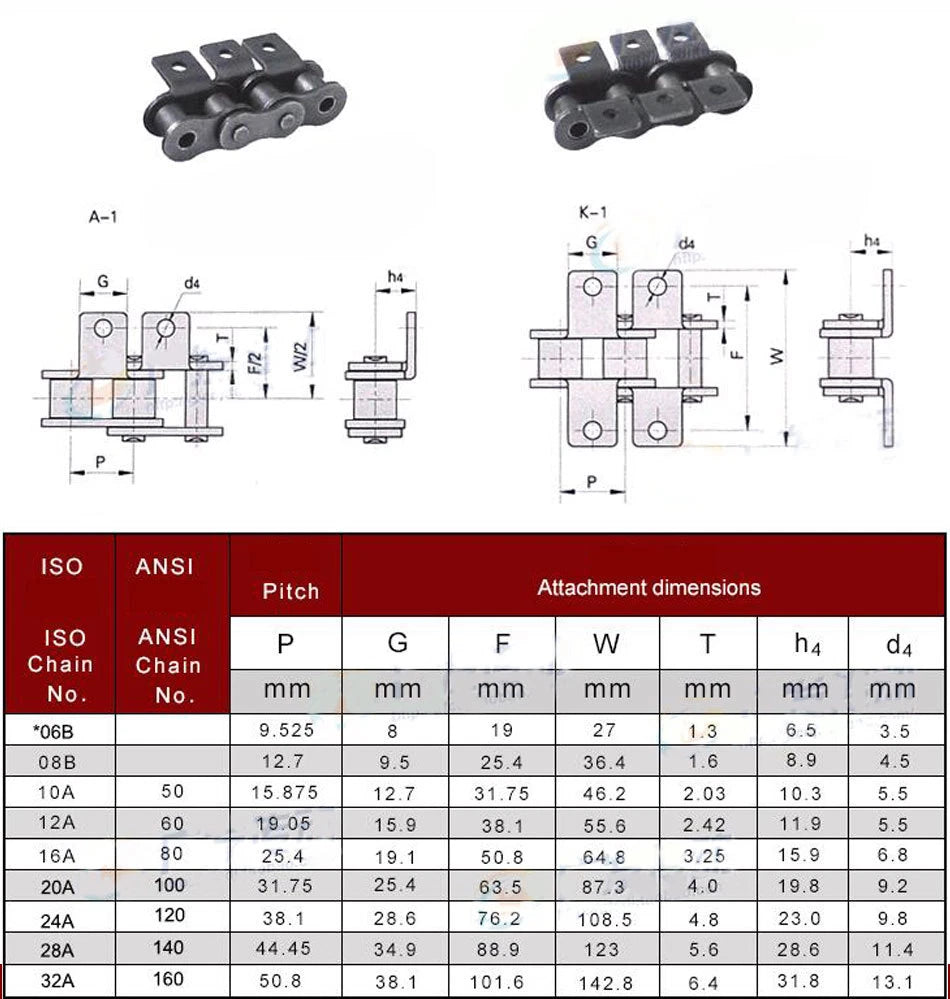

The bent ears on #35 attachment chain typically accommodate M4 to M6 metric bolts or equivalent imperial fasteners (roughly 10–32 to 1/4-20 UNC). Ear hole diameter and spacing vary by manufacturer — contact us to confirm exact dimensions for your specific variant before drilling or fitting brackets.
Yes. This product is sold as an open strand (1.5 m length). To form a continuous loop for a conveyor or drive system, you will need a #35 / 06B connecting link (also called a master link), sold separately. Measure your required loop length carefully before cutting or joining.
Choose the bent-ear attachment chain when your application requires mounting fixtures, conveyor flights, pusher dogs, or sensor brackets directly to the chain links. If you only need power transmission with no attachments, standard #35 roller chain is lighter and lower cost. The bent-ear version is the right choice for conveyor builds, automated feeders, and any system where items must be carried or guided by the chain itself.
Yes. #35 roller chain can be shortened using a chain breaker tool to press out a pin at the desired link. Cut to the nearest full pitch (9.525 mm) and use a connecting link to rejoin if needed. Take care to count links accurately before cutting, as the bent-ear spacing may affect your attachment layout.
