When your Reprap 3D printer or CNC router loses positional accuracy, the culprit is often a worn or mismatched timing pulley. Engineers, makers, and machine builders who demand repeatable motion need a synchronous wheel that holds tight tolerances across thousands of cycles. This 3M 16-tooth step timing pulley is designed for exactly that — delivering consistent belt engagement and reliable shaft grip in demanding motion-control applications.
Each pulley features a 3M tooth profile (3mm pitch) with 16 teeth, machined from aluminum alloy for a balance of low weight and structural rigidity. The belt width options of 11mm and 16mm accommodate the most common 3M belt widths, while bore sizes ranging from 4mm to 8mm (including 4mm, 5mm, 6mm, 6.35mm, 7mm, and 8mm) cover the majority of stepper motor shaft diameters used in desktop CNC and FDM 3D printing platforms.
Typical use cases include Reprap-style 3D printer X/Y axis drives, CNC router gantry systems, laser engraver carriage assemblies, and custom belt-driven automation rigs where a 3M synchronous belt timing pulley with a step-bore design is required for secure shaft retention without set-screw slippage.
Standard 3mm pitch with 16 teeth ensures accurate belt meshing and minimal backlash for precise positional control in 3D printing and CNC routing.
The stepped bore allows the pulley to seat securely on motor shafts without requiring a custom adapter, reducing wobble and improving concentricity.
Available in 4mm, 5mm, 6mm, 6.35mm (1/4"), 7mm, and 8mm bore diameters to match the most common NEMA 17 and NEMA 23 stepper motor shaft sizes.
Choose between 11mm and 16mm belt-width variants to match your existing 3M timing belt, ensuring full tooth engagement across the belt face.
Machined from aluminum alloy for a lightweight yet rigid build that resists deformation under continuous belt tension loads in high-cycle applications.
Dimensionally compatible with standard 3M 16T synchronous pulleys used across Reprap ecosystems and open-frame CNC platforms — no modification required.
| Tooth Profile | 3M (3mm pitch) |
|---|---|
| Number of Teeth | 16T |
| Belt Width Compatibility | 11mm / 16mm |

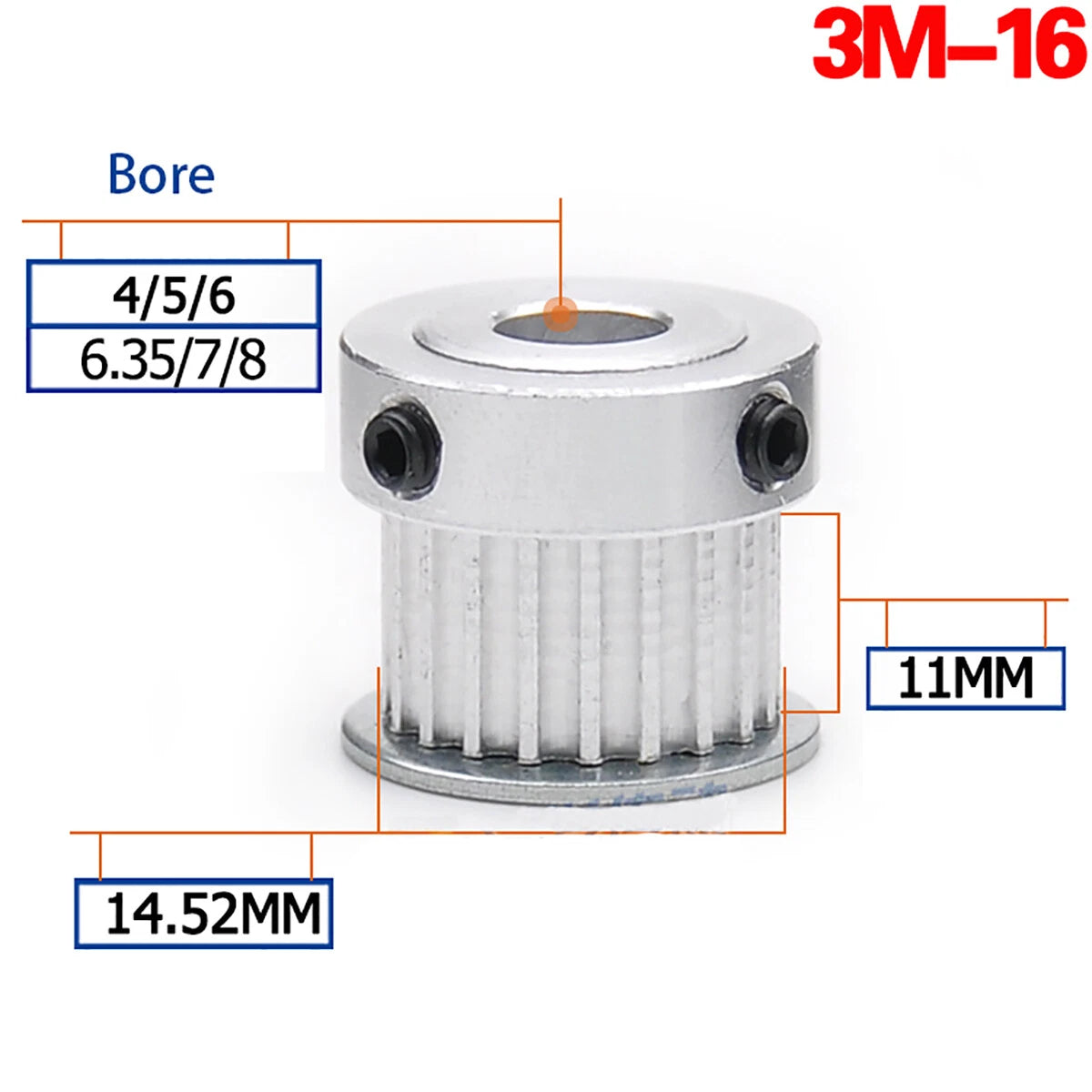

| Bore Diameter Options | 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm |
| Material | Aluminum Alloy |
| Bore Type | Step bore with set screw |
| Outer Diameter | See variant options |
| Hub Length | See variant options |
| Flange | See variant options |
| Finish | Natural anodized / machined |
| Application | 3D printer, CNC router, laser engraver, belt-driven automation |
Measure your stepper motor's output shaft diameter with a caliper. NEMA 17 motors typically use a 5mm shaft, while NEMA 23 motors commonly use a 6.35mm (1/4") or 8mm shaft. Select the bore size that matches your shaft — a step-bore pulley should fit snugly with no play before the set screw is tightened.
The belt width refers to the width of the 3M timing belt the pulley is designed to engage. An 11mm-wide pulley pairs with an 11mm 3M belt, and a 16mm-wide pulley pairs with a 16mm 3M belt. Using a mismatched width can cause the belt to ride off the pulley face or reduce load capacity. Check your existing belt width before ordering.
Yes. The 3M 16T tooth profile is widely used in Reprap-derived 3D printer designs for X and Y axis motion. Verify that your printer uses a 3M pitch belt (3mm tooth spacing) and that the bore matches your motor shaft before purchasing. Most Reprap builds using NEMA 17 motors will use the 5mm bore variant.
The step-bore design combined with a set screw provides a secure mechanical connection when properly tightened against a flat on the motor shaft (if present). For applications with higher torque or vibration, applying a small amount of thread-locking compound to the set screw is recommended. Ensure the shaft and bore are clean and free of oil before assembly.
Aluminum alloy has natural corrosion resistance suitable for indoor use in 3D printing and CNC environments. For humid or outdoor environments, the anodized or machined finish provides an additional layer of protection. Avoid prolonged exposure to salt spray or harsh chemicals without additional protective coating.
Yes. This 3M 16T timing pulley is suitable for any belt-driven motion system using a 3M pitch synchronous belt, including CNC routers, laser engravers, and custom automation rigs. Ensure the bore matches your drive shaft and that the belt width variant matches your belt. The aluminum construction handles the continuous duty cycles typical of CNC and laser applications.
A step timing pulley (also called a step-bore pulley) has a bore that is machined in a stepped profile, allowing it to accommodate a specific shaft diameter while providing a shoulder for axial positioning. This is in contrast to a plain-bore pulley, which has a uniform bore diameter throughout. The step design improves shaft alignment and reduces the risk of the pulley walking axially under load.
